Is this frame OK to ride?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Is this frame OK to ride?

Old 08-01-18, 10:00 PM
  #1
mctrek
Member
Thread Starter

Join Date: Apr 2010
Location: Dover, OH
Posts: 44

Bikes: 85 Trek 400, Trek 420, Fuji Roubaix

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Is this frame OK to ride?

I have this older Puch frame that I noticed some paint being chipped and stretched by the top lug and a slight bump on the bottom of the top tube by the lug. Please look at the pictures and let me know your thoughts. Would you ride on this frame? I know steel is more forgiving than carbon and aluminum, but should I be concerned?

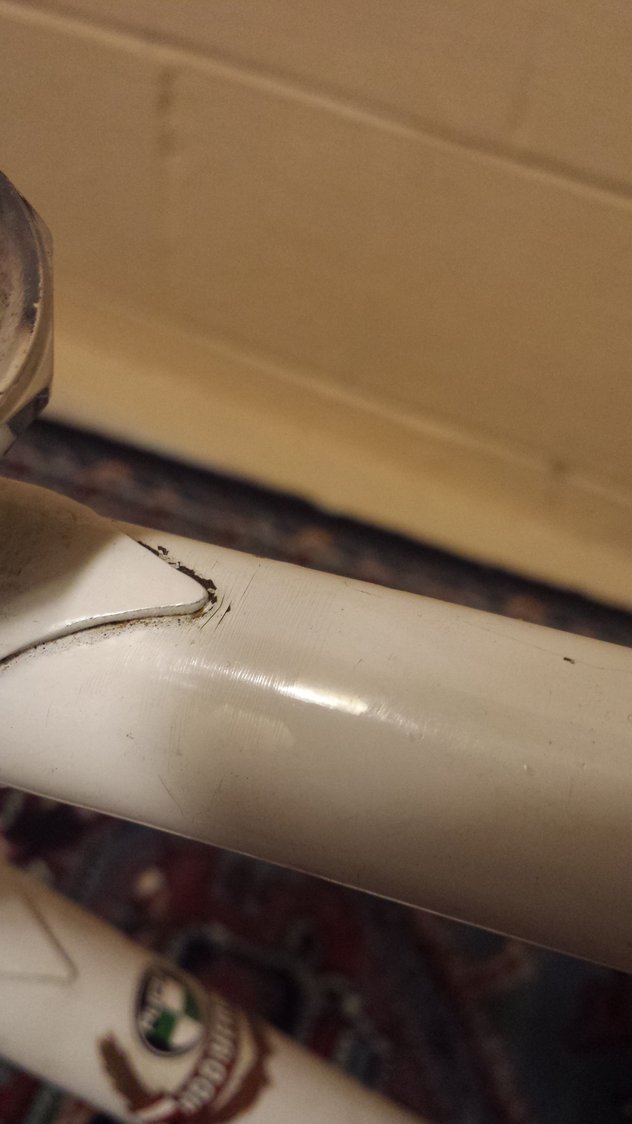

You can feel a bump behind the lug, it is hard to get a good picture of it since it is pretty small bump.

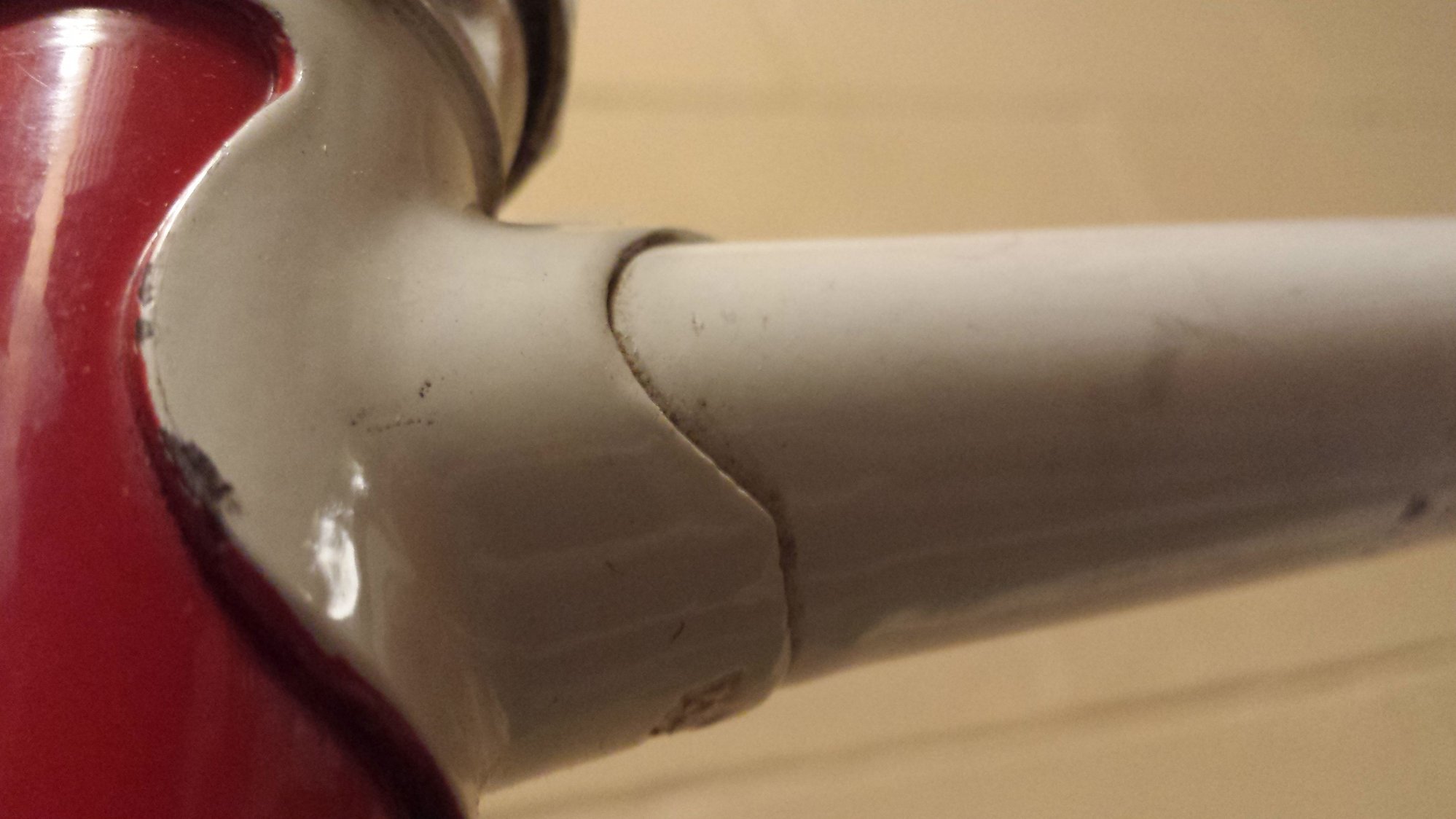

Paint looks chipped and stretched by the lug.
mctrek is offline
Old 08-01-18, 10:02 PM
  #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 41,589

Bikes: 8

Mentioned: 183 Post(s)
Tagged: 0 Thread(s)
Quoted: 6747 Post(s)
Likes: 0
Liked 161 Times in 137 Posts
Maybe last owner hit something..
fietsbob is offline
Old 08-01-18, 10:12 PM
  #3
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 18,135
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 26 Times in 24 Posts
Like Bob said, I think it hit something, but didn't bent. That's always been my interpretation of those kinds of paint cracks. I would keep an eye on it
unterhausen is offline
Old 08-01-18, 10:18 PM
  #4
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,582

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1708 Post(s)
Likes: 0
Liked 29 Times in 25 Posts
I suspect this frame has had a frontal impact and that it's been ridden many miles after. While I would have few concerns in riding it I would want to do a full alignment check. On the job I make many analogies about service work and such. If this frame started with 9 lives it's down to 4or 5 left. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 08-01-18, 10:47 PM
  #5
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 6,813

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 89 Post(s)
Tagged: 0 Thread(s)
Quoted: 1597 Post(s)
Likes: 0
Liked 38 Times in 30 Posts
Like Andy says, traditional lugged frames are very forgiving. I'd look further at the same place on the down tube. Very good chance you'll see a bulge underneath. Bigger concern is what the fork saw. I'd look long and hard at the front and rear of the fork blades just under the fork crown. Also the crown itself. And I'd sight down the headtube and do my best to judge whether the fork blades were in line. (The fork could well have been straightened. Not the end of the world, but figure 6 to 8 lives are gone.

I put my Mooney through a rude crash early on when I dropped the front wheel into a crack. No visible damage I could find. I was across the country from the builder so I just kept on riding. A couple of years later, I crashed a lot harder and bent both fork blades; one a lot. I had a local framebuilder straighten the fork and put in an order for a new one. That was 1983. Fork went on a year later. Bike is still going strong 35,000 miles later. I have long suspected the wheelbase might be a tad shorter than when built but it rides beautifully so I just don't sweat it.

Ben
79pmooney is offline
Old 08-02-18, 07:38 AM
  #6
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,122

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 147 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
A local frame builder here straightened for me an almost unridable frame and fork (both bent) on his Marchetti and Lange tables and the total in 2014 was $80. Rides beautifully, no further paint damage, so even if you need service it should not be too expensive.
easyupbug is offline
