Bottom bracket type?
08-26-18 | 09:52 AM
#1
Thread Starter
Senior Member
Joined: Jun 2008
Posts: 593
Likes: 0
From: Eugene, OR
Bikes: Jamis XLT 2.0, Kona Fire Mountain
Bottom bracket type?

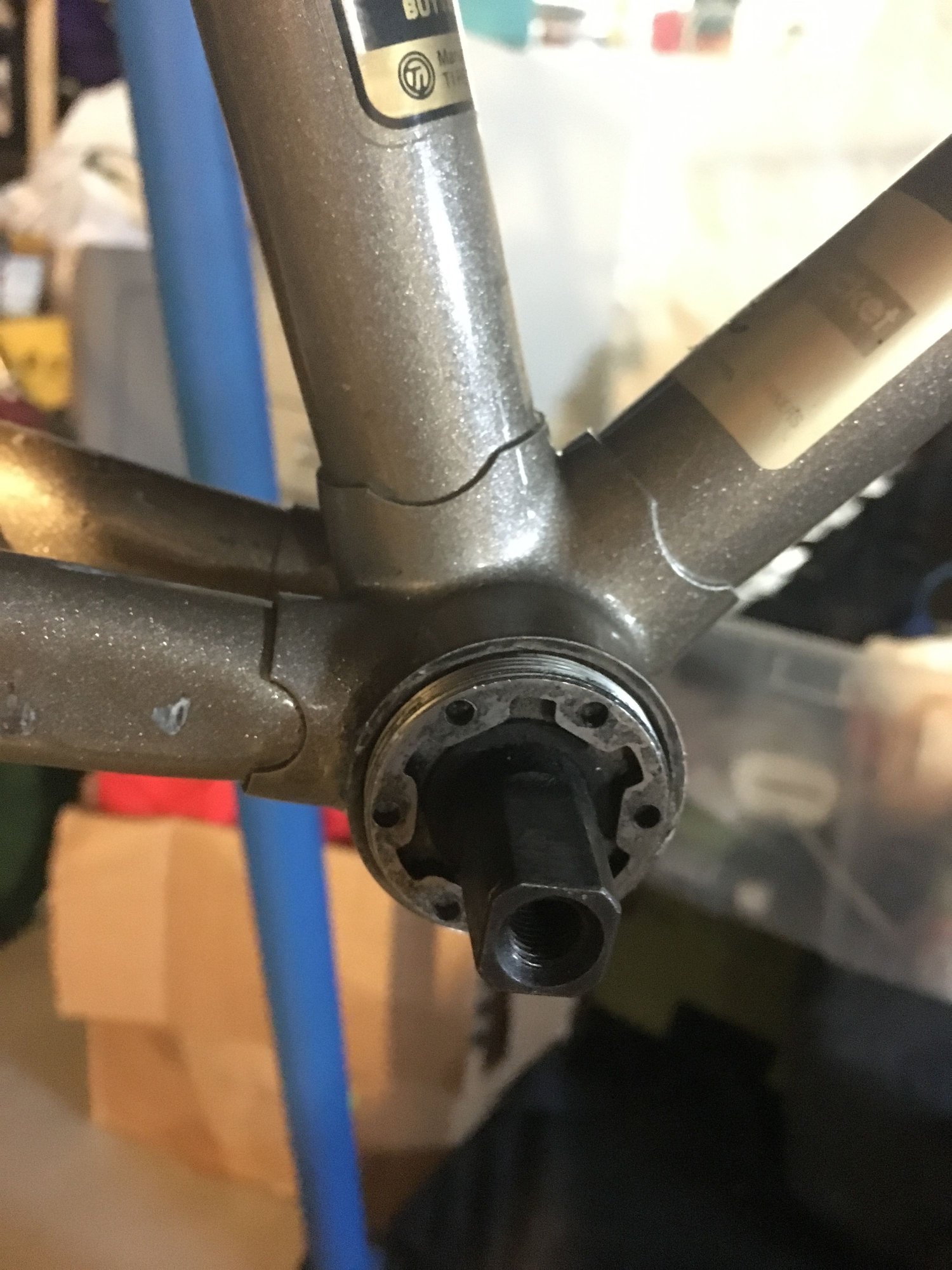

I'm stripping down a Trek 520 and came across a non-Shimano BB for the first time (out of the 5 or so used bikes I've stripped) and don't know how to identify it/what tool I need to remove it. Can anybody help me out?
08-26-18 | 04:09 PM
#2
Senior Member
Joined: May 2003
Posts: 4,054
Likes: 164
From: Mountain Brook. AL
An adjustable pin wrench should work to get that out, eg for one shot use: https://www.harborfreight.com/adjust...nch-36554.html
Obviously size of the pins is a parameter. I still have a cycling tool pin wrench in my tool box I haven't used since the '70s, but got for some
forgotten BB cup like that.
OTOH a punch and tapping gently with a hammer may be all you need.
Obviously size of the pins is a parameter. I still have a cycling tool pin wrench in my tool box I haven't used since the '70s, but got for some
forgotten BB cup like that.
OTOH a punch and tapping gently with a hammer may be all you need.
Last edited by sch; 08-26-18 at 04:13 PM.
08-26-18 | 08:54 PM
#3
Senior Member
Joined: Feb 2012
Posts: 19,352
Likes: 5,469
From: Rochester, NY
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB
Is that a SunTour unit? It looks like an adjustable pin spanner might engage the cup's holes. (maybe the common Green Park SP-?) I suspect the specific tool used the lobes instead. I've used nails and skinny drift punched held in the vice if the tools usually at hand were "missing". Andy
