Difference Between 700c & 29ER Wheelsets
I ordered a carbon fork with a 15mm TA - disc brake. As was mentioned here in an earlier post there are a lot of wheelsets that have a 15mm TA front wheel. I plan to run between a 38-42mm tire on this bike, so I was planning between a 19mm-22mm internal width wheel. Since this is an "allroad"/touring frame I want some solid wheels so I was thinking minimum 32 spokes.
Are the 29ER wheels made with heavier gauge rims, bearings, or heavier spokes than 700c wheels? Or are they basically the same with just wider widths available in 29ER?
It seems like I might get more wheelset for my money with 29ER. Which would you go with if you were doing this build?
Are the 29ER wheels made with heavier gauge rims, bearings, or heavier spokes than 700c wheels? Or are they basically the same with just wider widths available in 29ER?
It seems like I might get more wheelset for my money with 29ER. Which would you go with if you were doing this build?
#2
Senior Member
700c/29" is six of one/half-dozen of the other.
It's driven by an industry who can't decide how they want to market things, so generally speaking, inches refer to mountain bikes, French sizing to everything else. Mechanics use ETRTO sizes, as it leaves no room for miscommunication. 622, for those sizes, for what it's worth.
There may be differences between a 100mm wide, 15mm diameter axle for a road vs mountain bike, but the only significant one, aside from fashion (see: low spoke counts, weird spoking patterns), is a wider rim on the mountain bike vs the road bike.
It's driven by an industry who can't decide how they want to market things, so generally speaking, inches refer to mountain bikes, French sizing to everything else. Mechanics use ETRTO sizes, as it leaves no room for miscommunication. 622, for those sizes, for what it's worth.
There may be differences between a 100mm wide, 15mm diameter axle for a road vs mountain bike, but the only significant one, aside from fashion (see: low spoke counts, weird spoking patterns), is a wider rim on the mountain bike vs the road bike.
#3
Senior Member
Join Date: Jun 2018
Location: The Urban Shores Of Michigami
Posts: 1,749
Bikes: ........................................ .....Holdsworth "Special"..... .......Falcon "Special".......... .........Miyata 912........... ........................................
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 702 Post(s)
Liked 672 Times
in
420 Posts
So 700C is the same as 29" but both are really 622....reminds me of this Seinfeld episode...
#4
Senior Member
Join Date: Jul 2016
Location: Groningen
Posts: 1,308
Bikes: Gazelle rod brakes, Batavus compact, Peugeot hybrid
Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 5997 Post(s)
Liked 956 Times
in
730 Posts
It's driven by an industry who can't decide how they want to market things, so generally speaking, inches refer to mountain bikes, French sizing to everything else. Mechanics use ETRTO sizes, as it leaves no room for miscommunication. 622, for those sizes, for what it's worth.
.
.
#5
Senior Member
Join Date: Oct 2006
Location: Orange County, CA
Posts: 4,770
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 630 Post(s)
Likes: 0
Liked 369 Times
in
206 Posts
I ordered a carbon fork with a 15mm TA - disc brake. As was mentioned here in an earlier post there are a lot of wheelsets that have a 15mm TA front wheel. I plan to run between a 38-42mm tire on this bike, so I was planning between a 19mm-22mm internal width wheel. Since this is an "allroad"/touring frame I want some solid wheels so I was thinking minimum 32 spokes.
Are the 29ER wheels made with heavier gauge rims, bearings, or heavier spokes than 700c wheels? Or are they basically the same with just wider widths available in 29ER?
It seems like I might get more wheelset for my money with 29ER. Which would you go with if you were doing this build?
Are the 29ER wheels made with heavier gauge rims, bearings, or heavier spokes than 700c wheels? Or are they basically the same with just wider widths available in 29ER?
It seems like I might get more wheelset for my money with 29ER. Which would you go with if you were doing this build?
#6
Senior Member
#7
Banned
3 systems ETRTO, Fractional/inch, and French.

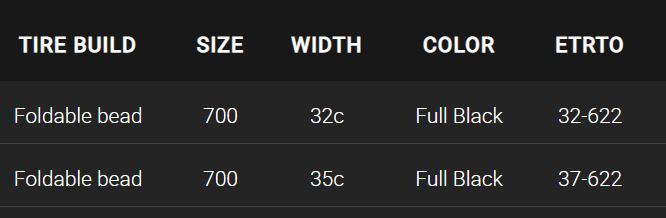

Variation in tires.. and companies make 37, others a 35..
[1 & 5/8" is not a metric measurement]
for a 2" tire a 29er rim is wider..
On the course in Switzerland, for the world championship MTB race,
everyone was on 29ers..
.....
Variation in tires.. and companies make 37, others a 35..
[1 & 5/8" is not a metric measurement]
for a 2" tire a 29er rim is wider..
On the course in Switzerland, for the world championship MTB race,
everyone was on 29ers..
.....
Last edited by fietsbob; 09-24-18 at 03:18 PM.
#8
Super-duper Genius
Join Date: Aug 2016
Location: Muskrat Springs, Utah
Posts: 1,713
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 768 Post(s)
Liked 984 Times
in
508 Posts
When they call a rim 29-er, they're marketing it to mountain bikers, and 700c, to roadies. They're the same diameter. The important differences are the width (which can vary through a pretty wide range, according to intended use), and the rim's shape, material, etc. I wish all manufacturers and all cycling disciplines would go to a universal sizing standard, preferably ETRTO.
#11
Advocatus Diaboli
Join Date: Feb 2015
Location: Wherever I am
Posts: 8,635
Bikes: Merlin Cyrene, Nashbar steel CX
Mentioned: 14 Post(s)
Tagged: 1 Thread(s)
Quoted: 4733 Post(s)
Liked 1,532 Times
in
1,003 Posts
#12
Senior Member
Join Date: Jul 2016
Location: Groningen
Posts: 1,308
Bikes: Gazelle rod brakes, Batavus compact, Peugeot hybrid
Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 5997 Post(s)
Liked 956 Times
in
730 Posts
The 'Stadsfiets' is the one from the picture and that has been the most regular upright Dutch bike with those tyres for decades. The regular upright French bikes are usually a bit flimsier with narrower tyres, just as the sportier Dutch bikes above the stadsfiets. So the 700x35 C fits as a replacement for a 35-622 too. The next French size, 38, might not fit if you replace a 1 3/8 because the fender stays are in the way. So I guess the table and the picture are playing it safe, it tells what does fit and not what might fit. I recently put on 47-622 to replace the 1 3/8 but simular bikes might have less clearance and an LBS wouldn't think I left enough clearance anyway. The width in both ETRTO and French is the width between the walls of a tyre full of air, not the width of the bead.
Appearantly the C in French stands for 'jante a croche', which as I understand it is a 'hooked rim', there are also B's but I have no idea what that stands for. Logically the height of all French tyres should be about the same at 700 - 622 = 78mm, or 3 inch. That's not right, so the 700 is probably about the necessary space in the frame, including fenders and some room to tension the chain. Initially I assumed the reason those old sizes use the outer circumference of the wheel including the tyre was to calculate the right gear ratio's for the desired metres of development, but that can't be the case with the French sizes. At least the Dutch (copied from the English) sizes give the heigth of the tyre also. It's probably just typically French: they invented the metric system but lost interest afterwards, didn't bother with it's precision and just used a nice round number.
My conclusion is that ETRTO works very well as long as you or a webshop don't let the other sizes interfere, and it works together with a tape measure contrary to the others.
#13
Mad bike riding scientist
Join Date: Nov 2004
Location: Denver, CO
Posts: 27,362
Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones
Mentioned: 152 Post(s)
Tagged: 1 Thread(s)
Quoted: 6219 Post(s)
Liked 4,218 Times
in
2,365 Posts
The English, as well as others, call the current 622mm rim a '28" wheel' which is probably just a hold over from the old 635mm rim. I've run across similar ideas when referring to the 27" wheel here in the US. Someone at a bike shop once tried to tell me that a 700C (622mm ISO) was the same as a 27" (630mm ISO). They aren't.
__________________
Stuart Black
Plan Epsilon Around Lake Michigan in the era of Covid
Old School…When It Wasn’t Ancient bikepacking
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Stuart Black
Plan Epsilon Around Lake Michigan in the era of Covid
Old School…When It Wasn’t Ancient bikepacking
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Likes For cyccommute:
#14
Senior Member
Join Date: Sep 2008
Posts: 162
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Likes: 0
Liked 2 Times
in
2 Posts
While the hubs may be different, it's the rim that carries the size designation. A 700C (622mm ISO) rim is the same size as a 29er rim. The tires for both are interchangeable. The wider 29er may not fit in a road frame but it's the same size of tire. Hub width has nothing to do with the rim size. There are plenty of 135mm OLD bicycles using 700C rims. Touring bikes, for example, have used the mountain bike width hub for a long time. Crossbikes and, I suspect, gravel bikes as well. Some of the gravel bikes may even use the "Boost" spacing or will in the near future.
#15
Non omnino gravis
I have two wheelsets for my CX bike-- one is my (now) "road" set, and the other is a mish-mash Crank Brothers set, a front Iodine and a rear Cobalt. I've probably put 6 or 7 thousand road (tubeless) miles on those CB wheels.
The first wheelset I bought was WTB i23 hoops on Deore XT hubs-- sold as an "MTB" wheelset. Cheaper, thanks to that-- a "road" set with the same hubs cost about 50% more.
The first wheelset I bought was WTB i23 hoops on Deore XT hubs-- sold as an "MTB" wheelset. Cheaper, thanks to that-- a "road" set with the same hubs cost about 50% more.
#17
Senior Member
Join Date: Jul 2005
Posts: 7,487
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Liked 162 Times
in
89 Posts
Off topic a little, but regarding the "700c" designation, the "c" was originally a width designation. A, B, C, and D designations were used, with A being narrowest, D being the widest. Sheldon explains in this paragraph:
French sizes:
In the French system, the first number is the nominal outside diameter in mm, followed by a letter code for the width: "A" is narrow, "D" is wide. The letter codes no longer correspond to the tire width, since narrow tires are often made for rim sizes that originally took wide tires; for example, 700 C was originally a wide size, but now is available in very narrow widths, with actual outside diameters as small as 660 mm.
#18
Senior Member
Off topic a little, but regarding the "700c" designation, the "c" was originally a width designation. A, B, C, and D designations were used, with A being narrowest, D being the widest. Sheldon explains in this paragraph:
French sizes:
In the French system, the first number is the nominal outside diameter in mm, followed by a letter code for the width: "A" is narrow, "D" is wide. The letter codes no longer correspond to the tire width, since narrow tires are often made for rim sizes that originally took wide tires; for example, 700 C was originally a wide size, but now is available in very narrow widths, with actual outside diameters as small as 660 mm.
#19
Banned
Yes in the category 600, 650, 700 , etc,
the overall diameter is constant,
as the tire is fatter, wider& taller,
the rim (bead seat) diameter is smaller.
the overall diameter is constant,
as the tire is fatter, wider& taller,
the rim (bead seat) diameter is smaller.
#20
Senior Member
Join Date: Jul 2016
Location: Groningen
Posts: 1,308
Bikes: Gazelle rod brakes, Batavus compact, Peugeot hybrid
Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 5997 Post(s)
Liked 956 Times
in
730 Posts
Me neither, I got it from French wikipedia.
I've got a Dutch rodbrake roadster which was origanlly fitted with 28x1 3/8 x 1 5/8, but it's only 40 years old and older roadsters often had wider tyres, so that makes sense. But it doesn't make sense to me when it comes to the diameter. I've never seen a bigger rim on a Dutch roadster than a 622, that has been the top size for ages. I might just not have noticed, but that would surprise me. I've owned an older rod brake roadster, probably pre war, and I'm tall and never liked the proportions of the taller bikes with the 28 inch wheels.
A 622 rim with an 1 5/8" high tire would make a 663,275 mm outer diameter, and that's 26,1 inch. A 635 with a 1 5/8 tyre would still be well short of a 28 inch outer diameter, with 26,6 inch. So it still makes no sense. The only thing that comes close to 28"is the length of the front fork x2, which would make at least some sense. .
Still I don't believe a 700C tyre that is supposed to fit on a so called 28" rim or a 622 or 635 rim has an outer diameter of 700mm, the difference is just too big for a tyre to fill. Maybe I went wrong somewhere, but I don't believe that if you measure the diameter of a 700C it will be 700 mm. Maybe the French just converted the English 28", which isn't 28 inch, to the metric system?
700C tires were available in the US long before hooked rims were prevalent. The 700B, however, is (yet) another wheel size. According to Sheldon Brown, it is a 635mm rim that was called a 28" and was prevalent on "English, Dutch, Chinese, Indian Rod-brake roadsters".
The English, as well as others, call the current 622mm rim a '28" wheel' which is probably just a hold over from the old 635mm rim. I've run across similar ideas when referring to the 27" wheel here in the US. Someone at a bike shop once tried to tell me that a 700C (622mm ISO) was the same as a 27" (630mm ISO). They aren't.
To expand on this: 700 (and 650) told you the outside diameter of the inflated tire. As noted, A, B, C, D were progressively larger tires. A 700A tire was the same outside diameter as a 700D, but much smaller width-wise (and ergo, the rim would be larger than the 700D).
#21
Mad bike riding scientist
Join Date: Nov 2004
Location: Denver, CO
Posts: 27,362
Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones
Mentioned: 152 Post(s)
Tagged: 1 Thread(s)
Quoted: 6219 Post(s)
Liked 4,218 Times
in
2,365 Posts
I've got a Dutch rodbrake roadster which was origanlly fitted with 28x1 3/8 x 1 5/8, but it's only 40 years old and older roadsters often had wider tyres, so that makes sense. But it doesn't make sense to me when it comes to the diameter. I've never seen a bigger rim on a Dutch roadster than a 622, that has been the top size for ages. I might just not have noticed, but that would surprise me. I've owned an older rod brake roadster, probably pre war, and I'm tall and never liked the proportions of the taller bikes with the 28 inch wheels.
A 622 rim with an 1 5/8" high tire would make a 663,275 mm outer diameter, and that's 26,1 inch. A 635 with a 1 5/8 tyre would still be well short of a 28 inch outer diameter, with 26,6 inch. So it still makes no sense. The only thing that comes close to 28"is the length of the front fork x2, which would make at least some sense. .
On a side note, Oregon passed a bicycle excise tax law that is supposed to generate money for bicycle projects in Oregon. It's a $15 tax on new bikes sales on bicycles that have "26-inch or larger wheels". If you do the math, like you have, the only bike that they could collect tax on is a Coker Monster Cycle. The law says "wheel", not tire. A 700C wheel is only 24.5" and as long as you keep the tire size under 38mm, you aren't being a bike with wheels and tires larger than 26"
__________________
Stuart Black
Plan Epsilon Around Lake Michigan in the era of Covid
Old School…When It Wasn’t Ancient bikepacking
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Stuart Black
Plan Epsilon Around Lake Michigan in the era of Covid
Old School…When It Wasn’t Ancient bikepacking
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Last edited by cyccommute; 09-25-18 at 02:57 PM.
#22
Senior Member
Join Date: Jul 2016
Location: Groningen
Posts: 1,308
Bikes: Gazelle rod brakes, Batavus compact, Peugeot hybrid
Mentioned: 85 Post(s)
Tagged: 0 Thread(s)
Quoted: 5997 Post(s)
Liked 956 Times
in
730 Posts
Perhaps Dutch bikes shouldn't be included in the list. The 28" wheel was on the Raleigh Roadster as well as some other English bikes. From what I can tell, they were pre-WWII to post WWII (mid-50s?). Harris Cyclery still sells them and says they are for brands like " Dunelt, Raleigh, Rudge, Humber, Phillips."
No one ever said that bicycle tire sizes were anything but confusing. They are all supposed to be the size of the tire's outside diameter but, as you pointed out, that doesn't add up. I'm trying to move away from calling tires by their "size" and referring to the rim diameter instead. It's still confusing but less so then going by the outside diameter of some "standard" tire.
On a side note, Oregon passed a bicycle excise tax law that is supposed to generate money for bicycle projects in Oregon. It's a $15 tax on new bikes sales on bicycles that have "26-inch or larger wheels". If you do the math, like you have, the only bike that they could collect tax on is a Coker Monster Cycle. The law says "wheel", not tire. A 700C wheel is only 24.5" and as long as you keep the tire size under 38mm, you aren't being a bike with wheels and tires larger than 26"
#23
Senior Member
It's a mess. Fronts are now 110 and 150 for fat bikes. My " old" 2013 bike is 100 front, 142 rear. Now boost is 110 front, 148 rear with some at 150 and some rears also at 157. Yikes. Oh and rear for fat bikes can be 170, 190 and 197. Hmmm.
