What's going on with my fork?
#1
Senior Member
Thread Starter
Join Date: Feb 2017
Location: Chicago, IL
Posts: 518
Bikes: 2004 Trek 520, resto-modded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 93 Times
in
51 Posts
What's going on with my fork?

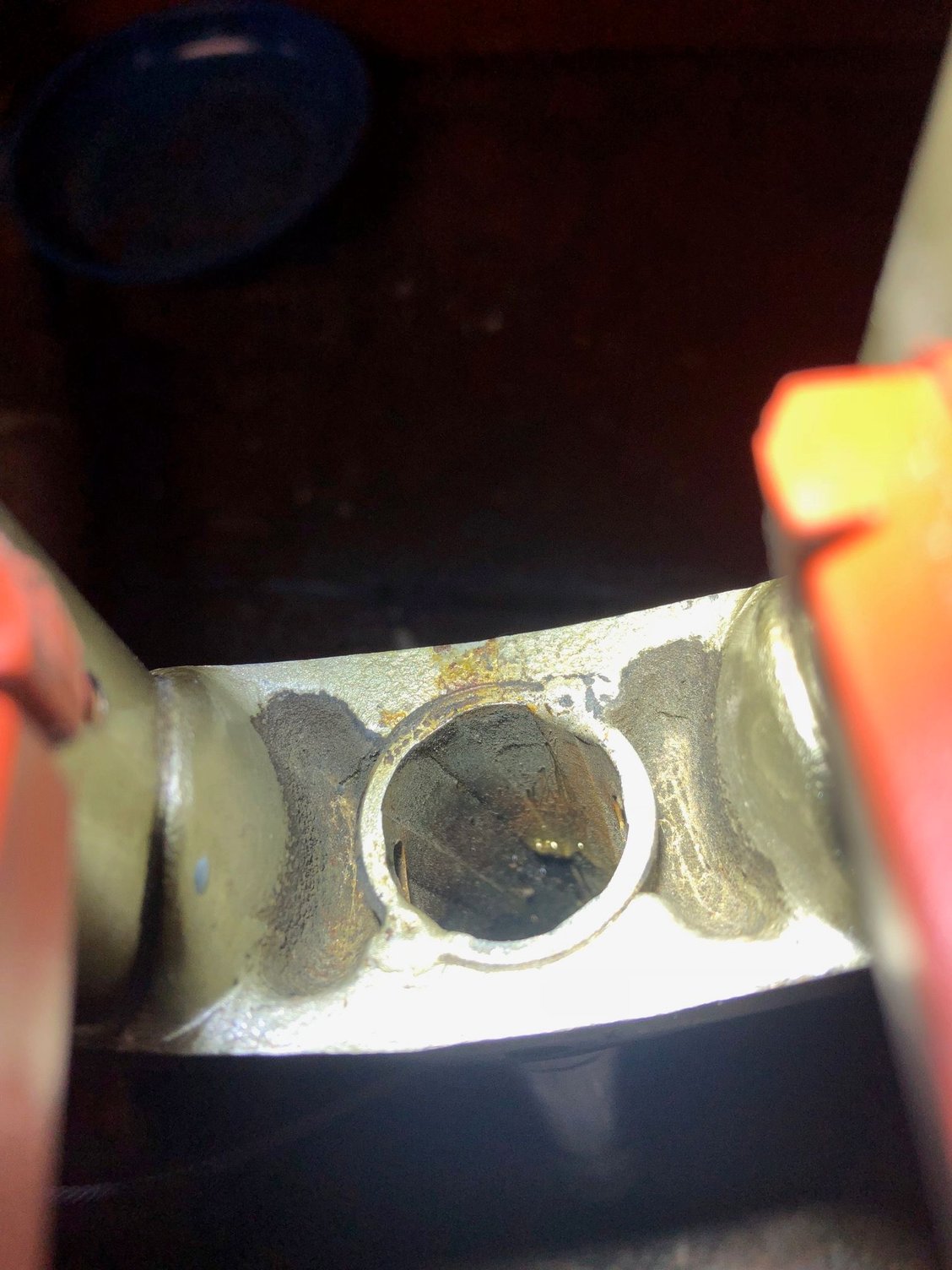

As I was replacing the headset on my Miyata 1000LT, I noticed some weirdness on my fork steerer tube. The entire tube is completely smooth except for the bottom inch or so near the crown race, where it's slightly rippled or textured. You can feel it with your fingers.
Another weird thing: there's a spot of what looks like rust on the back of the fork steerer... looking inside the tube, there's a yellowish lump of something on the inside. After poking with a sharp thing, some of it flaked off into gold metallic specks.
What's going on? Does the rippling mean it was in a crash and isn't safe to ride? Please advise!
Another weird thing: there's a spot of what looks like rust on the back of the fork steerer... looking inside the tube, there's a yellowish lump of something on the inside. After poking with a sharp thing, some of it flaked off into gold metallic specks.
What's going on? Does the rippling mean it was in a crash and isn't safe to ride? Please advise!
#2
SE Wis
Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 10,515
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970
Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 2747 Post(s)
Liked 3,396 Times
in
2,056 Posts
The grooves above the crown race seat look like maybe they did some minor machining to fit it in the fork crown.
The rifling inside the steerer tube is an indication of the type of tubing it was made from.
Any gold stuff is just excess brass brazing material.
None of it is anything I'd worry about
Tell-tale signs of Columbus tubing
The rifling inside the steerer tube is an indication of the type of tubing it was made from.
Any gold stuff is just excess brass brazing material.
None of it is anything I'd worry about
Tell-tale signs of Columbus tubing
#3
Senior Member
Join Date: Feb 2012
Location: Rochester, NY
Posts: 18,086
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4206 Post(s)
Liked 3,867 Times
in
2,313 Posts
Most likely this is a Tange steerer. Like Columbus's splines but different dimensions for them. The insides look pretty normal to my eyes.
The grooves at the steerer's lower outside are beneath the paint so likely from the factory that way. How old is this bike? It's lasted this way for a long time and should do so for quite a while longer I suspect.
The crown race looks normal.
The stuff inside? Who knows. Rust, flux, paint (with rust making it look brassy/gold)?
From the little I can see there's no obvious crash or other damage. What does the frame look like? Andy
The grooves at the steerer's lower outside are beneath the paint so likely from the factory that way. How old is this bike? It's lasted this way for a long time and should do so for quite a while longer I suspect.
The crown race looks normal.
The stuff inside? Who knows. Rust, flux, paint (with rust making it look brassy/gold)?
From the little I can see there's no obvious crash or other damage. What does the frame look like? Andy
__________________
AndrewRStewart
AndrewRStewart
#4
Senior Member
Thread Starter
Join Date: Feb 2017
Location: Chicago, IL
Posts: 518
Bikes: 2004 Trek 520, resto-modded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 93 Times
in
51 Posts
Frame has no signs of crash damage that I can see. It's Miyata's Spline Triple Butted Tubing. Bike is from 1990. Glad to hear it's probably not a cause for concern.
Most likely this is a Tange steerer. Like Columbus's splines but different dimensions for them. The insides look pretty normal to my eyes.
The grooves at the steerer's lower outside are beneath the paint so likely from the factory that way. How old is this bike? It's lasted this way for a long time and should do so for quite a while longer I suspect.
The crown race looks normal.
The stuff inside? Who knows. Rust, flux, paint (with rust making it look brassy/gold)?
From the little I can see there's no obvious crash or other damage. What does the frame look like? Andy
The grooves at the steerer's lower outside are beneath the paint so likely from the factory that way. How old is this bike? It's lasted this way for a long time and should do so for quite a while longer I suspect.
The crown race looks normal.
The stuff inside? Who knows. Rust, flux, paint (with rust making it look brassy/gold)?
From the little I can see there's no obvious crash or other damage. What does the frame look like? Andy
#5
Senior Member
Join Date: Feb 2012
Location: Rochester, NY
Posts: 18,086
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4206 Post(s)
Liked 3,867 Times
in
2,313 Posts
You've got a nice bike there. If you ever want to rid yourself of those cantis I'll be happy to take them off your hands. Andy
__________________
AndrewRStewart
AndrewRStewart
#9
Old fart
Join Date: Nov 2004
Location: Appleton WI
Posts: 24,786
Bikes: Several, mostly not name brands.
Mentioned: 153 Post(s)
Tagged: 0 Thread(s)
Quoted: 3588 Post(s)
Liked 3,400 Times
in
1,934 Posts
Tange steer tube:
Ishiwata steer tube:
#10
Junior Member
Join Date: Dec 2017
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
I'm going to buck the trend and say that your fork is probably toast - in your last picture I can see what looks like a minimum of three possible cracks in the weld joining the stearer to the crown and at least two potential cracks within the stearer, one of which appears to be about where the upper surface of the crown would be.
There's also what appears to be s significant gouge out of the interior stearer.
Ok, it may be nothing - a photo , no matter how good (and yours are very clear and relevant to your initial question) will never be a substitute for a Mk1 eyeball inspection- but if it was my bike it would be out of service until I'd addressed what that last photo appears to show.
If I'm wrong, no harm, no foul - if I'm right, potentially big money (and pain) if you live in the US - where I live the medical and loss of earnings cost of accidents are covered by a taxpayer funded accident compensation scheme, so I just need to worry about the pain (trust me, it's worth it,especially as you get older and more likely to damage your body in an otherwise minor event - they will even pay for a taxi to take you to/from work, if the inability to drive is all that's stopping you working again).
There's also what appears to be s significant gouge out of the interior stearer.
Ok, it may be nothing - a photo , no matter how good (and yours are very clear and relevant to your initial question) will never be a substitute for a Mk1 eyeball inspection- but if it was my bike it would be out of service until I'd addressed what that last photo appears to show.
If I'm wrong, no harm, no foul - if I'm right, potentially big money (and pain) if you live in the US - where I live the medical and loss of earnings cost of accidents are covered by a taxpayer funded accident compensation scheme, so I just need to worry about the pain (trust me, it's worth it,especially as you get older and more likely to damage your body in an otherwise minor event - they will even pay for a taxi to take you to/from work, if the inability to drive is all that's stopping you working again).
#12
Senior Member
Thread Starter
Join Date: Feb 2017
Location: Chicago, IL
Posts: 518
Bikes: 2004 Trek 520, resto-modded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 93 Times
in
51 Posts
Hmm, I think you’re just seeing grime on the fork and inside steerer tube. I looked pretty closely and nothing seemed like a crack.
I'm going to buck the trend and say that your fork is probably toast - in your last picture I can see what looks like a minimum of three possible cracks in the weld joining the stearer to the crown and at least two potential cracks within the stearer, one of which appears to be about where the upper surface of the crown would be.
There's also what appears to be s significant gouge out of the interior stearer.
Ok, it may be nothing - a photo , no matter how good (and yours are very clear and relevant to your initial question) will never be a substitute for a Mk1 eyeball inspection- but if it was my bike it would be out of service until I'd addressed what that last photo appears to show.
If I'm wrong, no harm, no foul - if I'm right, potentially big money (and pain) if you live in the US - where I live the medical and loss of earnings cost of accidents are covered by a taxpayer funded accident compensation scheme, so I just need to worry about the pain (trust me, it's worth it,especially as you get older and more likely to damage your body in an otherwise minor event - they will even pay for a taxi to take you to/from work, if the inability to drive is all that's stopping you working again).
There's also what appears to be s significant gouge out of the interior stearer.
Ok, it may be nothing - a photo , no matter how good (and yours are very clear and relevant to your initial question) will never be a substitute for a Mk1 eyeball inspection- but if it was my bike it would be out of service until I'd addressed what that last photo appears to show.
If I'm wrong, no harm, no foul - if I'm right, potentially big money (and pain) if you live in the US - where I live the medical and loss of earnings cost of accidents are covered by a taxpayer funded accident compensation scheme, so I just need to worry about the pain (trust me, it's worth it,especially as you get older and more likely to damage your body in an otherwise minor event - they will even pay for a taxi to take you to/from work, if the inability to drive is all that's stopping you working again).
#13
Senior Member
Join Date: Feb 2012
Location: Rochester, NY
Posts: 18,086
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4206 Post(s)
Liked 3,867 Times
in
2,313 Posts
John- You are likely correct. I just received my copy of Japaneese Steel (Bevington/Ryder) and am looking forward to the info as to who provided the various brands *who had their "own" labeled tube sets) their tubing.
MikeGS- Sure, maybe, although I doubt your suggestions. Photos are well known for providing too little info for deep meanings to be derived from them. Andy
MikeGS- Sure, maybe, although I doubt your suggestions. Photos are well known for providing too little info for deep meanings to be derived from them. Andy
__________________
AndrewRStewart
AndrewRStewart
#14
Senior Member
I would take a high speed wire brush tool to that and completely remove all surface coatings down to bare steel so I could get a better look at the condition of the steel.
#15
Senior Member
Thread Starter
Join Date: Feb 2017
Location: Chicago, IL
Posts: 518
Bikes: 2004 Trek 520, resto-modded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 93 Times
in
51 Posts
Actually they are helical. The picture makes them look straight, but they do indeed spiral.
#16
Junior Member
Join Date: Dec 2017
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
#17
Junior Member
Join Date: Dec 2017
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
John- You are likely correct. I just received my copy of Japaneese Steel (Bevington/Ryder) and am looking forward to the info as to who provided the various brands *who had their "own" labeled tube sets) their tubing.
MikeGS- Sure, maybe, although I doubt your suggestions. Photos are well known for providing too little info for deep meanings to be derived from them. Andy
MikeGS- Sure, maybe, although I doubt your suggestions. Photos are well known for providing too little info for deep meanings to be derived from them. Andy
#18
Senior Member
Join Date: Jan 2013
Posts: 2,679
Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 569 Post(s)
Liked 582 Times
in
409 Posts
I wish some of my forks looked that good but if you are worried you could have a non-destructive testing services company check the fork after any paint, scale, grease, etc. is removed and use a dye penetrant (kits are $100+ for DIY) to check of cracks/issues.
#19
With a mighty wind
Join Date: May 2015
Posts: 2,594
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 1088 Post(s)
Liked 862 Times
in
490 Posts
I stared at those photos for a while trying to see the flaws someone mentioned upthread.
Photo 1. Perfect.
Photo 2. Perfect.
Photo 3. Defect on the right that looks like a crack but is almost certainly surface rust/grime/paint. Another similar but smaller defect on the upper right corner. I can't see a third.
It's possible that I don't know what I'm looking for. Seems fine to me.
Photo 1. Perfect.
Photo 2. Perfect.
Photo 3. Defect on the right that looks like a crack but is almost certainly surface rust/grime/paint. Another similar but smaller defect on the upper right corner. I can't see a third.
It's possible that I don't know what I'm looking for. Seems fine to me.
#20
Senior Member
Thread Starter
Join Date: Feb 2017
Location: Chicago, IL
Posts: 518
Bikes: 2004 Trek 520, resto-modded 1987 Cannondale SR400, rando-modded 1976 AD Vent Noir; 2019 Wabi Classic; 1989? Burley Duet
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 213 Post(s)
Liked 93 Times
in
51 Posts
Thread
Thread Starter
Forum
Replies
Last Post
Morimorimori
Bicycle Mechanics
14
05-14-19 09:01 PM
