Shimano shifter adjustment?

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Shimano shifter adjustment?

Reply

Old 04-17-19, 08:29 AM
  #1
bgdoyle
Junior Member
Thread Starter

Join Date: Jun 2018
Location: N Nevada
Posts: 21

Bikes: '18 Giant Defy,'18 Trek FX3, Early '90s Giant Iguana, 1978 Schwinn Le Tour III

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Shimano shifter adjustment?

Trek 2018 FX3, Shimano EF65, 9 speed Flat bar shifters. Installed Sqlab 411 innerbar ends for hand placement options. I have had to rotate the brake / shifter assembly down to a near verticle drop from the handgrips to allow enough travel for the outer lever to shift. There seems to be a lot of travel before it 'clicks' and was wondering if there is any adjustment. Have not taken the cover off yet, but will check tonight. The bar end seem comfortable if the brake levers are adjusted up, but the clamp for the barends limits travel. Do manuals exist for these shifters? Thanks!
bgdoyle is offline
Reply With Quote
Old 04-17-19, 10:31 AM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 11,347

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1648 Post(s)
There's no adjustment for shift lever travel. I can see why there would be interference given the location the additional handles (and "bar ends" is rather misleading a name). Shimano has all kinds of data on their website about their products. Andy
__________________
AndrewRStewart
Andrew R Stewart is offline
Reply With Quote
Old 04-17-19, 11:00 AM
  #3
TimothyH
- Soli Deo Gloria -

TimothyH's Avatar

Join Date: Aug 2015
Location: Northwest Georgia
Posts: 13,164

Bikes: 2018 Rodriguez Custom Fixed Gear, 2017 Niner RLT 9 RDO, 2015 Bianchi Pista, 2002 Fuji Robaix

Mentioned: 201 Post(s)
Tagged: 0 Thread(s)
Quoted: 5874 Post(s)
Originally Posted by bgdoyle View Post
Do manuals exist for these shifters?

si.shimano.com is always the first place to look for Shimano maintenance info.

https://si.shimano.com/#/en/search/Keyword?name=ST-EF65

You will want the dealer manual (DM)


-Tim-
TimothyH is offline
Reply With Quote
Old 04-17-19, 06:13 PM
  #4
bgdoyle
Junior Member
Thread Starter

Join Date: Jun 2018
Location: N Nevada
Posts: 21

Bikes: '18 Giant Defy,'18 Trek FX3, Early '90s Giant Iguana, 1978 Schwinn Le Tour III

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Well I guess they are going back. Felt good when I first installed them but then the shifter issue. When I got them to shift brake levers are inconvenient. Oh well. Maybe I can cut down something with a thinner clamp. Thanks for the assist!
Brian
bgdoyle is offline
Reply With Quote
Old 04-17-19, 08:15 PM
  #5
AnkleWork
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,205

Bikes: old clunker

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 488 Post(s)
Have you considered mounting them on the other side of the shifter mount (toward the stem)?
AnkleWork is offline
Reply With Quote
Old 04-17-19, 10:25 PM
  #6
bgdoyle
Junior Member
Thread Starter

Join Date: Jun 2018
Location: N Nevada
Posts: 21

Bikes: '18 Giant Defy,'18 Trek FX3, Early '90s Giant Iguana, 1978 Schwinn Le Tour III

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)

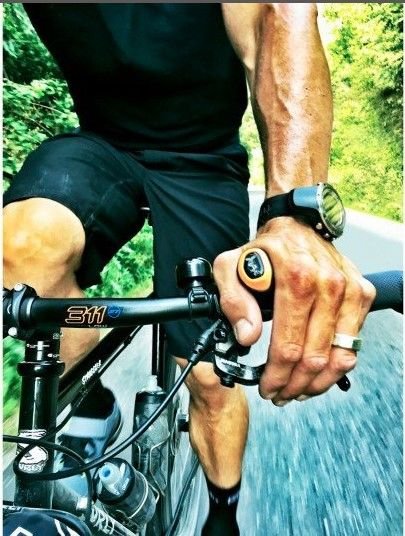

I was hoping for the result shown in the image I stolt from subgrade in the thread 'Flats Bars or drops' where you are still able to grab the brakes and access the shifters.

But with the outer lever not setting until it is 5/16 of an inch from the bar there was just no way the fit the sqlab 411 the way I want.


The way the shifter is designed the bar will really only fit between the grips and the shifter.
