1994 Epic Chainring BCD?

How do I figure out the front chainring BCD on my 1994 Specialized Epic? I've been thinking about replacing the 42 tooth chainring with a 39.

I can get a new 39 tooth Sora chainring with a 110 BCD for under $17. The Sora is for a 9 speed chain, but my bike is an 8 speed. Should it still work?
mtnbud is offline
Old 05-07-19, 10:49 AM
  #2
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 6,126
Liked 1,801 Times in 1,050 Posts
Your crank probably has a 130 mm BCD. However, a bike that old may not still have the original crankset

Last edited by alcjphil; 05-07-19 at 11:17 AM.
alcjphil is online now
Old 05-07-19, 11:01 AM
  #3
Senior Member

Join Date: Jan 2013
Location: Llano Estacado
Posts: 3,702

Bikes: old clunker

Likes: 0
Liked 105 Times in 83 Posts
Originally Posted by mtnbud
How do I figure out the front chainring BCD on my 1994 Specialized Epic? I've been thinking about replacing the 42 tooth chainring with a 39.

I can get a new 39 tooth Sora chainring with a 110 BCD for under $17. The Sora is for a 9 speed chain, but my bike is an 8 speed. Should it still work?
Search: Sheldon BCD.
AnkleWork is offline
Old 05-07-19, 12:12 PM
  #4
Senior Member
Thread Starter

mtnbud's Avatar

Join Date: Jul 2011
Location: Salem Oregon
Posts: 1,035

Bikes: 2019 Trek Stash 7, 1994 Specialized Epic 1986 Diamondback Ascent 1996 Klein Pulse Comp, 2006 Specialized Sequoia Elite

Liked 541 Times in 297 Posts
Originally Posted by AnkleWork
Search: Sheldon BCD.
Thanks
mtnbud is offline
Old 05-07-19, 12:44 PM
  #5
Senior Member
Thread Starter

mtnbud's Avatar

Join Date: Jul 2011
Location: Salem Oregon
Posts: 1,035

Bikes: 2019 Trek Stash 7, 1994 Specialized Epic 1986 Diamondback Ascent 1996 Klein Pulse Comp, 2006 Specialized Sequoia Elite

Liked 541 Times in 297 Posts
Originally Posted by alcjphil
Your crank probably has a 130 mm BCD. However, a bike that old may not still have the original crankset
Thanks, I don't think it's original. It is a Suntour Superb Pro. I'll check that Sheldon cite for info.
Jeff
mtnbud is offline
Old 05-07-19, 01:08 PM
  #6
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,658

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Liked 2,585 Times in 1,586 Posts
Originally Posted by mtnbud
Thanks, I don't think it's original. It is a Suntour Superb Pro. I'll check that Sheldon cite for info.
Jeff
If it's this one, 42 is about as small as you can go*: VeloBase.com - Component: SunTour CW-5000, Superbe Pro


* a 41T has existed, but wouldn't help much if you found one.
__________________
Originally Posted by chandltp
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 05-07-19, 06:10 PM
  #7
Senior Member

Join Date: Jan 2017
Posts: 659
Liked 207 Times in 126 Posts
I think your right. 42 is probably the lowest you can go without a big cost. How about adding a larger cog on the rear? Freehubs are easy and freewheels can be changed with a little effort.
Cycle Tourist is offline
Old 05-08-19, 08:00 AM
  #8
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 27,598

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Liked 4,434 Times in 2,476 Posts
Originally Posted by AnkleWork
Search: Sheldon BCD.
Or measure between the chainring holes and multiply by 1.701 for a 5 hole chainring. The Suntour cranks are listed in Brown's crib sheet
__________________
Stuart Black
Plan Epsilon Around Lake Michigan in the era of Covid
Old School…When It Wasn’t Ancient bikepacking
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!



cyccommute is offline
Old 05-08-19, 08:12 AM
  #9
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Liked 1,361 Times in 867 Posts
You can see how close the bolts are to the edge , teeth ? y/n? ...

144 bcd, you buy a new crankset , 42 is already minimum ..

135- 39, 130-38, 110-34 and etc..





....
fietsbob is offline
Old 05-08-19, 09:44 AM
  #10
Senior Member
Thread Starter

mtnbud's Avatar

Join Date: Jul 2011
Location: Salem Oregon
Posts: 1,035

Bikes: 2019 Trek Stash 7, 1994 Specialized Epic 1986 Diamondback Ascent 1996 Klein Pulse Comp, 2006 Specialized Sequoia Elite

Liked 541 Times in 297 Posts

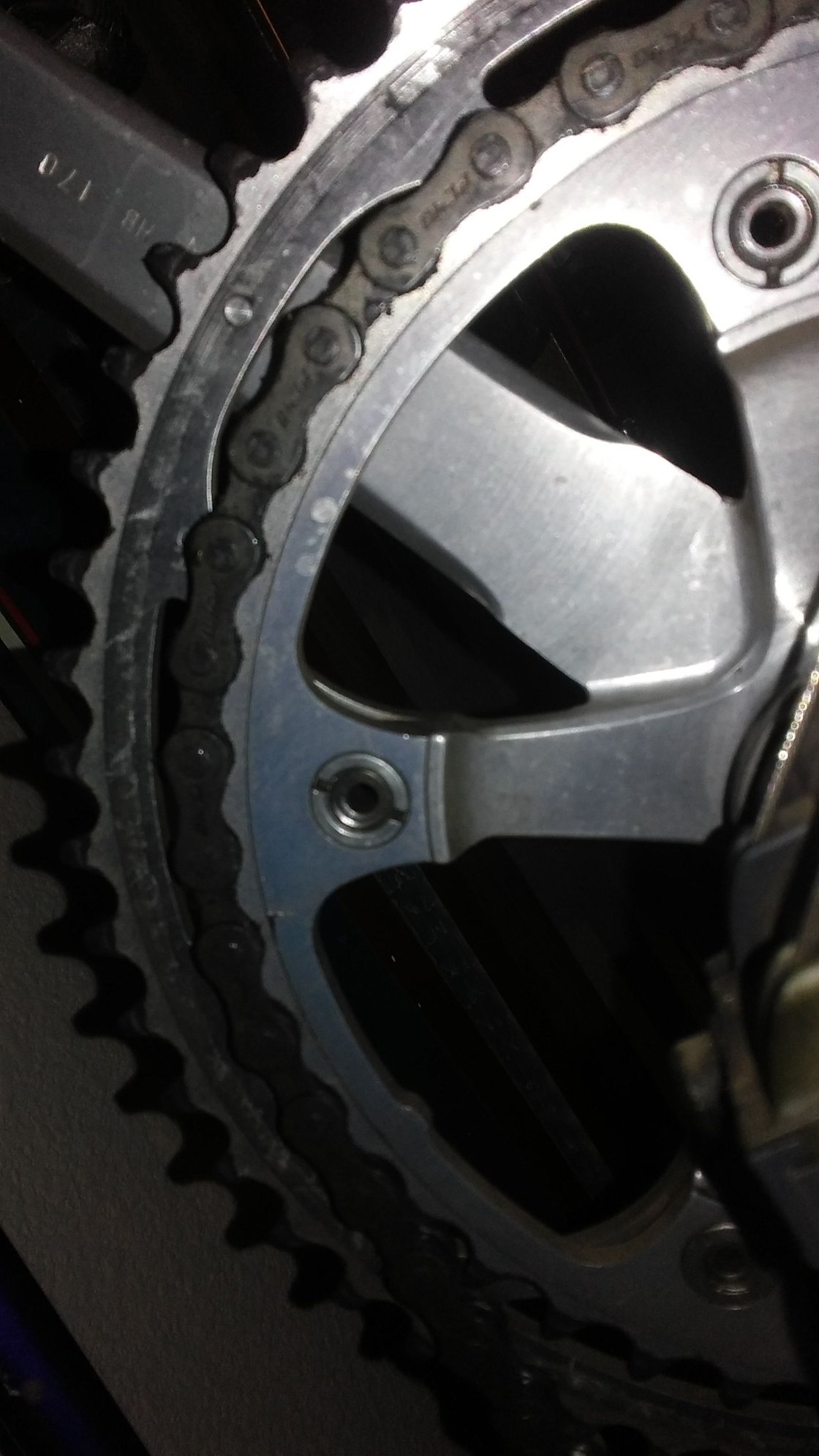

I measured approximately 75 mm between bolts. 75 x 1.701 = 127.6. Is the Sora chainring compatible with this style of chainring? Thanks everybody!

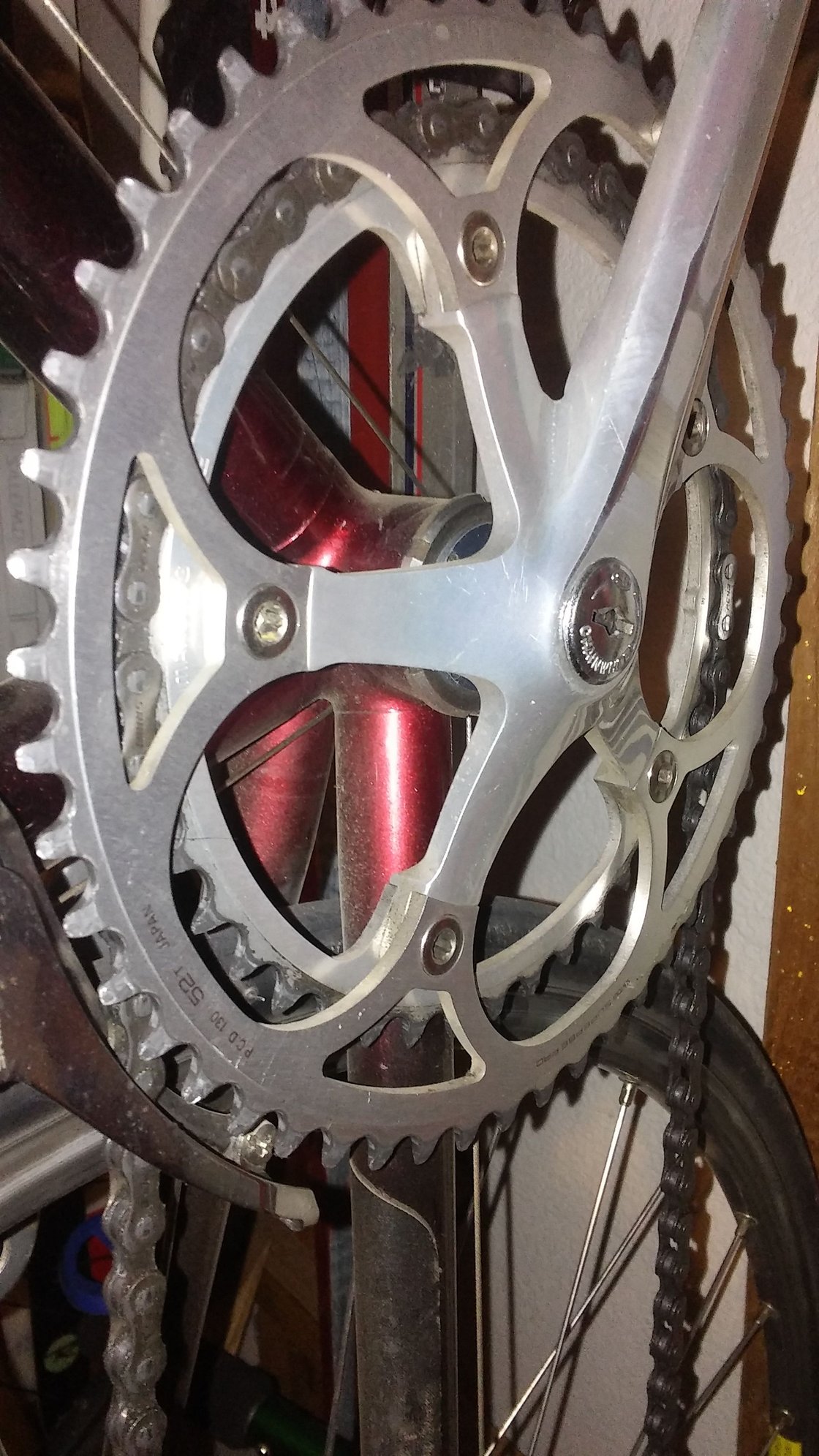

(Looking at the first picture, I notice the large chainring has PCD 130 printed on it! - Ugh!)

Last edited by mtnbud; 05-08-19 at 09:47 AM.
mtnbud is offline
Old 05-08-19, 09:51 AM
  #11
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,658

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Liked 2,585 Times in 1,586 Posts
Originally Posted by mtnbud
(Looking at the first picture, I notice the large chainring has PCD 130 printed on it! - Ugh!)
There ya go!
__________________
Originally Posted by chandltp
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
Old 05-08-19, 05:50 PM
  #12
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 6,126
Liked 1,801 Times in 1,050 Posts
Originally Posted by mtnbud
How do I figure out the front chainring BCD on my 1994 Specialized Epic? I've been thinking about replacing the 42 tooth chainring with a 39.

I can get a new 39 tooth Sora chainring with a 110 BCD for under $17. The Sora is for a 9 speed chain, but my bike is an 8 speed. Should it still work?
Going back to the original question: The make and model of the bike turns out to be irrelevant. The actual crank on the bike is useful information as is information found on the chainrings of that crank. Turns out that a Sora 110 BCD chainring will not work. $17 is an attractive price, but the make, model, and year of the bike was misleading information
alcjphil is online now
Old 05-09-19, 09:49 AM
  #13
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Liked 1,361 Times in 867 Posts
Yea Bike brand is just paint on the frame, Everything else is bought by the factory from other companies..

if the component part order is big enough , the supplier may put the brand name of the customer on it...
