Need help solving rear shifting problem

Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Need help solving rear shifting problem

Old 05-13-19, 03:22 PM
  #1
hrdknox1
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 15
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Need help solving rear shifting problem

I need your help in diagnosing and solving an issue with shifting in the rear cogs. First, after loosening the cable, I position the barrel adjuster to its most clockwise position. Then I assure that the pulleys are aligned under the smallest cog while on the largest chainring. Next I assure that the shifter is at the smallest cog position and the cable is at that position. Then I attach the cable to the rear derailleur by pulling it very tight and securing it with the bolt. The derailleur doesn't move the chain to the next smallest cog when I shift one click up. It takes more than one click of the shifter for the cable to pull the derailleur to the next cog. When I tighten the cable tension more with the barrel adjuster, it shifts up but won't shift back down. I can shift to all cogs except the largest (23), and the smallest (11). Both high and low gear limiting screws are set properly to allow derailleur movement to these cogs.

Help! I've invested much time trying to sought this out. I even bought a derailleur hanger tool thinking that perhaps the derailleur hanger was bent....it wasn't.


Components: Shimano 10 speed derailleurs and shifters.

Cassette: Shimano 11-23

Last edited by hrdknox1; 05-13-19 at 03:25 PM.
hrdknox1 is offline
Old 05-13-19, 03:49 PM
  #2
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Posts: 10,771

Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 651 Post(s)
Liked 19 Times in 18 Posts
Symptoms are classic for sticking/dirty cable/housing.
Replace the loop next to the RDER. That's usually the biggest contributor because it gets dirt on the cable and the severe bend wears the housing faster.
If you can afford 10 speed, you can afford decent cable & housing.
Bill Kapaun is online now
Likes For Bill Kapaun:
Old 05-13-19, 04:19 PM
  #3
hrdknox1
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 15
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by Bill Kapaun View Post
Symptoms are classic for sticking/dirty cable/housing.
Replace the loop next to the RDER. That's usually the biggest contributor because it gets dirt on the cable and the severe bend wears the housing faster.
If you can afford 10 speed, you can afford decent cable & housing.
Thanks. I've replaced the housing at the rear derailleur....even shortened it a bit. In fact I've replaced all the housing and a new cable. Still having the same issue.
hrdknox1 is offline
Old 05-13-19, 05:00 PM
  #4
Racing Dan
Senior Member

Racing Dan's Avatar

Join Date: Aug 2015
Posts: 1,274
Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 726 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Did you mix n match newer and older shimano 10 speed components or road and mtb. Its not all compatible.
Racing Dan is offline
Old 05-13-19, 09:25 PM
  #5
DOS
Senior Member

DOS's Avatar

Join Date: Feb 2008
Location: Arlington, VA USA
Posts: 1,769
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 5 Times in 5 Posts
Ensure cable is routed through shifter and seated correctly and that housing isn’t binding up inside due to incorrect housing seating.

Check cable and housing is routing correctly to derailleur and derailleur pinch bolt.

Check for a kink in the cable near where it enters housing as that can cause binding. Lastly, clean and lube derailleur pivots.
DOS is offline
Old 05-14-19, 06:22 AM
  #6
blamester
Blamester

Join Date: Dec 2011
Location: Ireland
Posts: 466

Bikes: Peugeot teamline

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 73 Post(s)
Likes: 0
Liked 5 Times in 4 Posts
Make sure the shifter is in the correct position when you start.
So shift all the way down till there are no clicks. Then set the cable.
blamester is offline
Old 05-14-19, 06:28 AM
  #7
Lemond1985
Sophomore Member

Lemond1985's Avatar

Join Date: Jan 2019
Posts: 1,304
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 714 Post(s)
Liked 87 Times in 70 Posts
Maybe back out the "H" screw a little, so the RD "overshoots" the smallest cog a bit. Not enough for the chain to fall off or anything, just a generous amount of overshoot. I have done this before with some limited success.

I suspect that sometimes when we think there's enough slack for the RD to drop the chain into the smallest cog, but in reality it's just short of what's needed to do that.
Lemond1985 is offline
Old 05-14-19, 06:54 AM
  #8
andrewclaus
Senior Member

Join Date: Feb 2012
Location: Golden, CO, Scottsdale, AZ
Posts: 1,501

Bikes: 2016 Fuji Tread, 1983 Trek 620

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 214 Post(s)
Likes: 0
Liked 12 Times in 11 Posts
A trick to get the cable tension right is to manually shift the RD into the third highest gear, stop pedaling, and leave it there. Attach the cable hand tight, and pedal so it drops into high gear. That usually puts just the right amount of preload on the cable.

Other than that, the common fixes have been mentioned--slight misadjustment of limit screws, friction in the cable/housing, improper seating of a cable end, mismatch of components. Sometimes you get a crimped housing end that's hard to see.
andrewclaus is offline
Likes For andrewclaus:
Old 05-14-19, 06:59 AM
  #9
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 31,458

Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!

Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 1130 Post(s)
Likes: 0
Liked 13 Times in 13 Posts
I believe you have both limit screws a bit too tight. Try backing both out about 1/4 turn and try again.
HillRider is offline
Old 05-14-19, 07:30 AM
  #10
bakerjw
Senior Member

Join Date: Sep 2008
Location: NE Tennessee
Posts: 755

Bikes: Giant TCR/Surly Karate Monkey/Foundry FireTower/Curtlo Tandem

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 119 Post(s)
Liked 46 Times in 34 Posts
Originally Posted by andrewclaus View Post
A trick to get the cable tension right is to manually shift the RD into the third highest gear, stop pedaling, and leave it there. Attach the cable hand tight, and pedal so it drops into high gear. That usually puts just the right amount of preload on the cable.
VERY helpful.
Thanks
bakerjw is offline
Old 05-14-19, 06:05 PM
  #11
hrdknox1
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 15
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by Lemond1985 View Post
Maybe back out the "H" screw a little, so the RD "overshoots" the smallest cog a bit. Not enough for the chain to fall off or anything, just a generous amount of overshoot. I have done this before with some limited success.

I suspect that sometimes when we think there's enough slack for the RD to drop the chain into the smallest cog, but in reality it's just short of what's needed to do that.
Seems that adjusting the "H" screw a bit to where the chain overshoots the smallest cog got the chain to drop to the smallest cog. Then a bit more tension with the barrel adjuster got it to go on the largest cog. Shifting is still not perfect, but much better than before.
Thanks for your help.
hrdknox1 is offline
Old 05-23-19, 11:44 AM
  #12
hrdknox1
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 15
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by andrewclaus View Post
A trick to get the cable tension right is to manually shift the RD into the third highest gear, stop pedaling, and leave it there. Attach the cable hand tight, and pedal so it drops into high gear. That usually puts just the right amount of preload on the cable.

Other than that, the common fixes have been mentioned--slight misadjustment of limit screws, friction in the cable/housing, improper seating of a cable end, mismatch of components. Sometimes you get a crimped housing end that's hard to see.
Very Good Trick. After employing this, the shifting is much better and satisfactory. My OCD will continue to have me making minor adjustments until shifting is 100% spot on.
hrdknox1 is offline
Old 05-26-19, 01:10 AM
  #13
migrantwing
Senior Member

migrantwing's Avatar

Join Date: Sep 2011
Location: UK
Posts: 492

Bikes: '07 Carrera TDF / 2011 Ghost Race Actinum 5000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by andrewclaus View Post
A trick to get the cable tension right is to manually shift the RD into the third highest gear, stop pedaling, and leave it there. Attach the cable hand tight, and pedal so it drops into high gear. That usually puts just the right amount of preload on the cable
I woke at 4:50am, read this post and just had to try your little trick. I was sleepy, half brained, but it worked, Great little tip! Kudos to you, sir.
migrantwing is offline
Old 05-28-19, 10:44 AM
  #14
hrdknox1
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 15
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 2 Times in 2 Posts

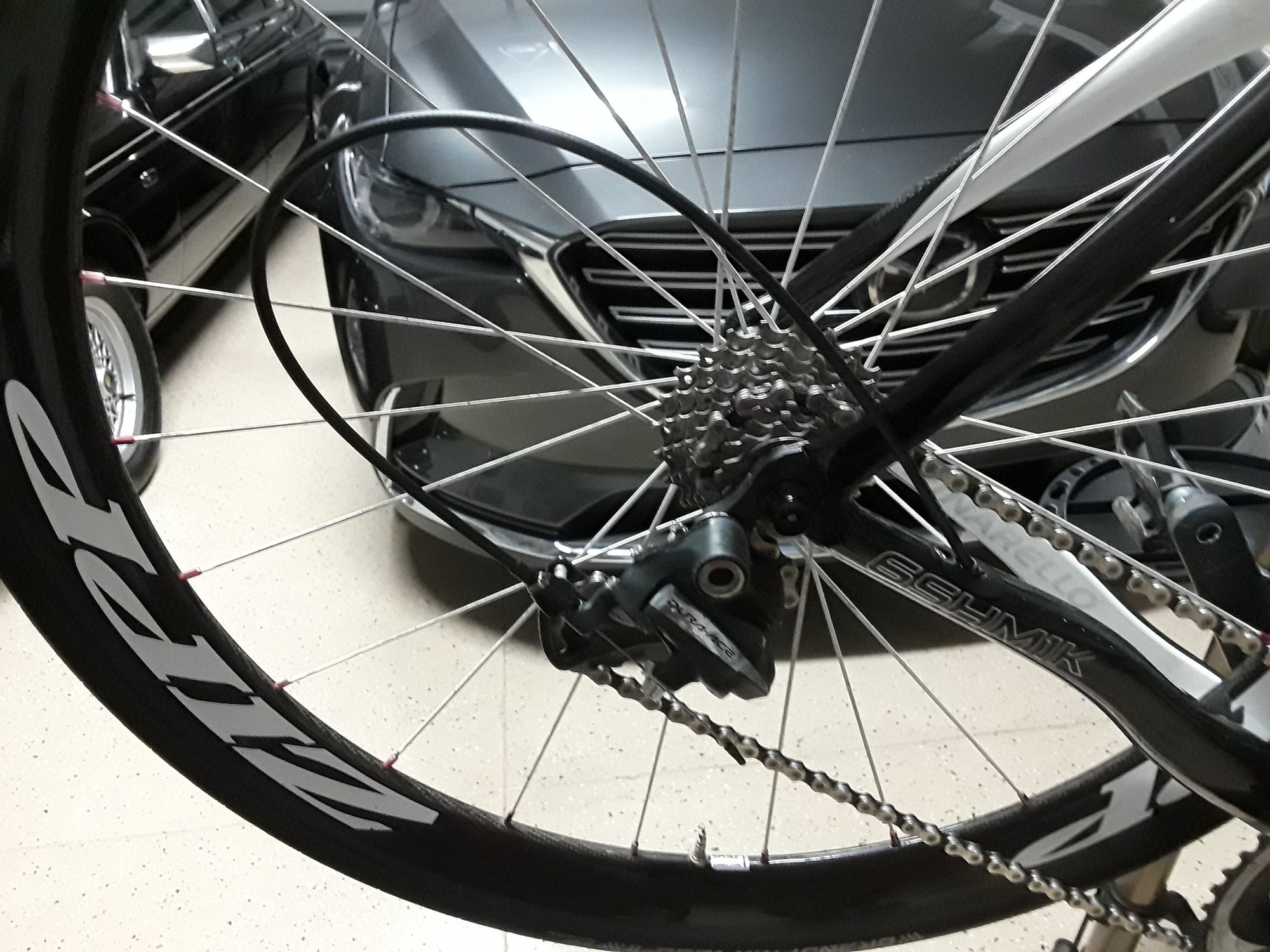

Problem solved. I lengthened the cable loop at the derailleur. It is quite a big loop, but the shifting is now ideal.
hrdknox1 is offline
Old 05-28-19, 12:19 PM
  #15
alcjphil
Senior Member

alcjphil's Avatar

Join Date: Jun 2002
Location: Montreal, Quebec
Posts: 2,933
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 537 Post(s)
Liked 13 Times in 12 Posts
That loop is a bit larger than I would have thought necessary, but if it works you can't argue with success
alcjphil is offline
Old 05-29-19, 08:32 AM
  #16
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 3,562

Bikes: Schwinn Varsity

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1224 Post(s)
Liked 34 Times in 21 Posts
Too long. Is that 5mm brake housing or 4mm shifter housing.
trailangel is online now
Old 06-02-19, 07:14 PM
  #17
hrdknox1
Junior Member
Thread Starter

Join Date: Apr 2014
Posts: 15
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Originally Posted by trailangel View Post
Too long. Is that 5mm brake housing or 4mm shifter housing.
I have shortened it, and shifting is still good. I had it extra long just to see if length was the issue.
hrdknox1 is offline
