Dura Ace shifter compatibility

Search
Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Dura Ace shifter compatibility

Thread Tools

Search this Thread

Old 08-05-19 | 09:18 PM
  #1
davei1980's Avatar
Thread Starter
Very Slow Rider

Joined: Jul 2017
Posts: 1,274
Likes: 133
From: E Wa

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike

Dura Ace shifter compatibility

I have a Dura Ace bar end 10 speed indexed shifter (SL BS 79)

Wondering if I can run an older Ultegra or 105 rear derailleur with similar characteristics or if it has to be Dura Ace? A guy told me Dura Ace stuff can be odd.

Thanks- my first look at building a bike with more than one gear ratio!
davei1980 is offline
Reply
Old 08-05-19 | 09:24 PM
  #2
rccardr's Avatar
aka: Dr. Cannondale
Titanium Club Membership
Sheldon Brown Memorial - Titanium
15 Anniversary
Active Streak: 30 Days

Joined: Jul 2009
Posts: 8,683
Likes: 6,390
Those shifters are compatible with older 105 back to 1050, with older Ultegra/600 back to 6208, and all indexed Dura Ace except 740X.
Also all imdexed Deore up to and including 9 speed.
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply
Old 08-05-19 | 09:40 PM
  #3
davei1980's Avatar
Thread Starter
Very Slow Rider

Joined: Jul 2017
Posts: 1,274
Likes: 133
From: E Wa

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike

Originally Posted by rccardr
Those shifters are compatible with older 105 back to 1050, with older Ultegra/600 back to 6208, and all indexed Dura Ace except 740X.
Also all imdexed Deore up to and including 9 speed.
thanks!!
Ok seeing a lot of RD 5700, 5600, 6700, 6800 for sale. All those Ultegra/ 105 options work you think? It wasn’t shifting my Shimano Zee DR at all but that’s not surprising
davei1980 is offline
Reply
Old 08-06-19 | 07:12 AM
  #4
rccardr's Avatar
aka: Dr. Cannondale
Titanium Club Membership
Sheldon Brown Memorial - Titanium
15 Anniversary
Active Streak: 30 Days

Joined: Jul 2009
Posts: 8,683
Likes: 6,390
Originally Posted by davei1980
thanks!!
Ok seeing a lot of RD 5700, 5600, 6700, 6800 for sale. All those Ultegra/ 105 options work you think? It wasn’t shifting my Shimano Zee DR at all but that’s not surprising
5500,5600,5700,6500,6600,6700, sure. Those are all solid derailleurs and good ones/new ones are out there at good prices.
5800 and 6800 are 11 speed components and are not compatible with those shifters.

What is a Shimano Zee DR?
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply
Old 08-06-19 | 07:27 AM
  #5
davei1980's Avatar
Thread Starter
Very Slow Rider

Joined: Jul 2017
Posts: 1,274
Likes: 133
From: E Wa

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike


Originally Posted by rccardr
5500,5600,5700,6500,6600,6700, sure. Those are all solid derailleurs and good ones/new ones are out there at good prices.
5800 and 6800 are 11 speed components and are not compatible with those shifters.

What is a Shimano Zee DR?
Thanks again! Goes to show you if it comes up in a search for 10 speed it doesn’t mean anything.

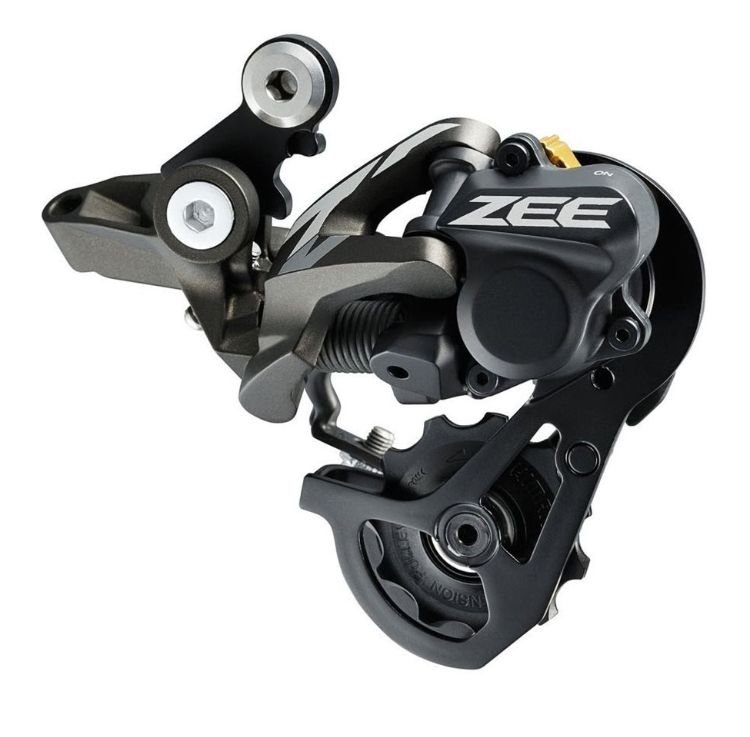

Zee is a ultra short cage, clutched mtb derailleur. I am happy to share why I came into possession if you are in to long stories. I am learning. Single speed is way simpler
davei1980 is offline
Reply
Old 08-06-19 | 07:33 AM
  #6
Senior Member

Joined: Aug 2005
Posts: 33,657
Likes: 1,119
From: Pittsburgh, PA

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

I'm using 10-speed Dura Ace bar end shift levers (the same SL-BS79) mounted on Gevenalle "brifter" brackets to shift both a 9-speed Ultegra RD-6503 rear derailleur and an 8-speed 105 RD-1050 rear derailleur using Shimano 10-speed cassettes. Both set-ups work extremely well.

Shimano road/MTB shifter/derailleur compatibility was great from 7-speed 105/Ultegra/MTB groups and 9-speed Dura Ace right up until 10-speed MTB and 11-speed everything.
HillRider is offline
Reply
Old 08-06-19 | 08:36 AM
  #7
davei1980's Avatar
Thread Starter
Very Slow Rider

Joined: Jul 2017
Posts: 1,274
Likes: 133
From: E Wa

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike

Originally Posted by HillRider
I'm using 10-speed Dura Ace bar end shift levers (the same SL-BS79) mounted on Gevenalle "brifter" brackets to shift both a 9-speed Ultegra RD-6503 rear derailleur and an 8-speed 105 RD-1050 rear derailleur using Shimano 10-speed cassettes. Both set-ups work extremely well.

Shimano road/MTB shifter/derailleur compatibility was great from 7-speed 105/Ultegra/MTB groups and 9-speed Dura Ace right up until 10-speed MTB and 11-speed everything.
Yep! The DR pictured above I am sure works great with the matching trigger shifter! I actually tried but it didn't fit over my drop bars well and was too close to my brake levers. Wound up sending it back.
davei1980 is offline
Reply
Old 08-06-19 | 02:46 PM
  #8
Full Member

Joined: Nov 2016
Posts: 490
Likes: 44
From: SoCal

Bikes: 2014 Bruce Gordon Rock&Road, 1995 Santana Visa Tandem, 1990 Trek 520, 2012 Surly LHT

The Zee derailleur you show is based on Shimano's 10 speed MTB geometry, labeled Dyn-Sys. Shimano's road and MTB RD and indexed shifters up to and including 9 speed were for the most part compatible. Starting with 10 speed MTB though, the road shifters were no longer compatible with a MTB RD to shift a 10 speed cassette properly.
Eggman84 is offline
Reply
Old 08-06-19 | 03:40 PM
  #9
davei1980's Avatar
Thread Starter
Very Slow Rider

Joined: Jul 2017
Posts: 1,274
Likes: 133
From: E Wa

Bikes: Jones Plus LWB, 1983 Centurion Japanese CrMo bike

Originally Posted by Eggman84
The Zee derailleur you show is based on Shimano's 10 speed MTB geometry, labeled Dyn-Sys. Shimano's road and MTB RD and indexed shifters up to and including 9 speed were for the most part compatible. Starting with 10 speed MTB though, the road shifters were no longer compatible with a MTB RD to shift a 10 speed cassette properly.
Yeah I proved that out empirically - I wound up buying a dyna sys trigger shifter but I couldn't get it to work on my drop bar config without a large amount of dremel and BS.

My new plan is to ditch the 11-36 cassette, go with a 11-28 cassette and get a nice, older Ultegra, 105, or Dura Ace RD and use my current DA shifter.

Live and learn and spend a little and learn some more.
davei1980 is offline
Reply
