Weird BB to Pull

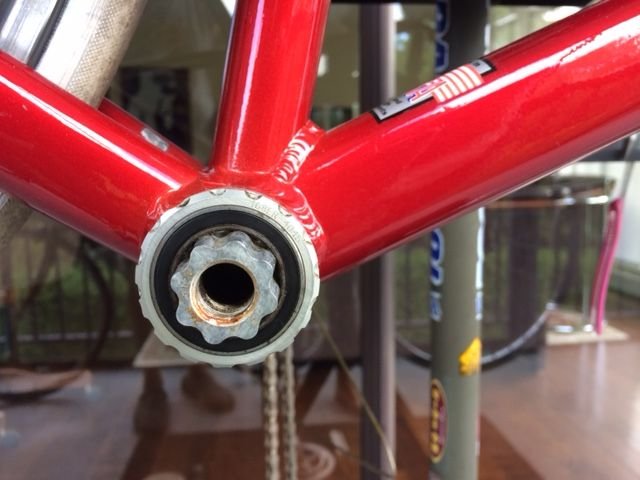

Does anyone have any ideas about pulling this Alex Pong Magic Motorcycle BB?
VtwinVince is offline
Reply
Old 09-14-19 | 03:27 PM
  #2
Member

Joined: Sep 2019
Posts: 32
Likes: 26

You need, or can make ?, the wrench amathingy.
Foxonabike is offline
Reply
Old 09-14-19 | 03:49 PM
  #3
terrymorse's Avatar
climber has-been
Titanium Club Membership
20 Anniversary
Community Builder
Community Influencer

Joined: Dec 2004
Posts: 9,156
Likes: 6,048
From: Palo Alto, CA

Bikes: Scott Addict RC Pro & R1, Felt Z1

IIRC, it was the first of the external bearing bottom brackets, early to mid 1990s or so.

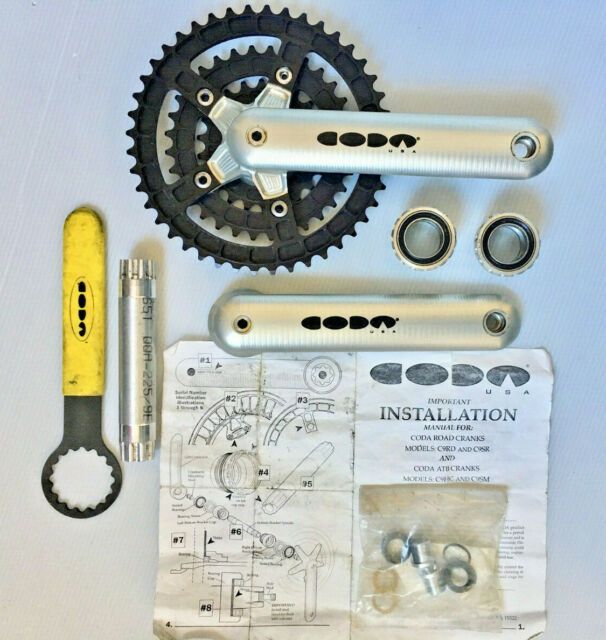

Threaded bearing cups, so they ought to simply unscrew with the appropriate wrench (16-notch).

Measure the diameter of your cups to get the matching size wrench.

Rumor has it that a Shimano Hollowtech tool fits, but it's best to check the dimensions yourself. Park Tool says their BBT-9 wrench diameter is "approximately 44mm".
__________________
Ride, Rest, Repeat. ROUVY: terrymorse


terrymorse is offline
Reply
Old 09-14-19 | 04:09 PM
  #4
Bigbus's Avatar
Very Senior Member

Joined: Mar 2018
Posts: 1,211
Likes: 344
From: Always on the Run

Bikes: More than last week

If you're impatient, there's always a hammer and brass drift. Just saying...
Bigbus is offline
Reply
Old 09-15-19 | 06:41 PM
  #5
3alarmer's Avatar
Senior Member

Joined: Nov 2010
Posts: 22,994
Likes: 10,498
From: Sacramento, CA

Bikes: old ones

.
...I have removed something similar with a lock ring pliers, but I was lucky and it came out easily using those and some ATF/acetone mix on the threads. If your plan is to pull it out and replace it with something else, you could probably figure out a destructive method (assuming you have no lock ring pliers.)
3alarmer is offline
Reply
Old 09-16-19 | 10:08 AM
  #6
Thread Starter
Senior Member
5 Anniversary

Joined: Jul 2018
Posts: 1,171
Likes: 658
Thanks for the tips, will get on it shortly.
