Help with gear wire end
04-30-20 | 07:55 AM
#1
Thread Starter
Junior Member
Joined: Apr 2020
Posts: 11
Likes: 0
Help with gear wire end
Hi
I want to change my gear wire, but can't seem to loosen the end on the handle. I've seen countless videoes, but none seem to have the same cable management. I hope someone here could help me.
I have a Concorde Prelude 500 with Shimano Tiagra gear system (no model number). Beneath you can see pictures of the gear handle and the loose end. I can see the end when i hold in break and gear up at the same time.
Thanks a lot!
I want to change my gear wire, but can't seem to loosen the end on the handle. I've seen countless videoes, but none seem to have the same cable management. I hope someone here could help me.
I have a Concorde Prelude 500 with Shimano Tiagra gear system (no model number). Beneath you can see pictures of the gear handle and the loose end. I can see the end when i hold in break and gear up at the same time.
Thanks a lot!
04-30-20 | 09:15 AM
#2
Senior Member
Joined: Jun 2005
Posts: 2,908
Likes: 987
From: Louisville KY
Bikes: 06 Lemond Reno, 98 GT Timberline
With all of the diff. model numbers this covers, seems that it might be helpful: https://si.shimano.com/pdfs/dm/DM-ST0002-04-ENG.pdf
04-30-20 | 09:27 AM
#3
Senior Member
Joined: Apr 2012
Posts: 6,017
Likes: 925
From: Nor Cal
Unwind the broken strands to get them out of the way, and straighten the cable with pliers.
Make sure that it's shifted into highest gear position, and push straight in on the cable with pliers.
The other ends of the broken strands are probably making it difficult.
Common problem and why many replace shift cables once a year.
Make sure that it's shifted into highest gear position, and push straight in on the cable with pliers.
The other ends of the broken strands are probably making it difficult.
Common problem and why many replace shift cables once a year.
04-30-20 | 03:04 PM
#4
Senior Member
Joined: Sep 2010
Posts: 8,327
Likes: 1,112
From: Roswell, GA
Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta
It is good that you caught it BEFORE the head broke off in the shifter; getting a broken-off one can cause a level of pain only achieved in Apache torture sessions.
Going forward, inspect frequently and definitely do so immediately if any sudden change in shifting characteristics is noted.
Going forward, inspect frequently and definitely do so immediately if any sudden change in shifting characteristics is noted.
04-30-20 | 03:23 PM
#5
Banned
Joined: Apr 2020
Posts: 8
Likes: 3
Unwind the broken strands to get them out of the way, and straighten the cable with pliers.
Make sure that it's shifted into highest gear position, and push straight in on the cable with pliers.
The other ends of the broken strands are probably making it difficult.
Common problem and why many replace shift cables once a year.
Make sure that it's shifted into highest gear position, and push straight in on the cable with pliers.
The other ends of the broken strands are probably making it difficult.
Common problem and why many replace shift cables once a year.
05-01-20 | 04:49 AM
#6
Senior Member
Joined: Jan 2013
Posts: 2,390
Likes: 958
From: South Jersey
I'd be interested in knowing how you got cable out like that with the head still inside. Maybe pulled it out around the cable pulley? If you shift to the highest gear, the head of the cable will line up with the round opening in the slot(shown in your last picture) and the cable will come out.
05-01-20 | 09:36 AM
#7
Full Member
Joined: Oct 2019
Posts: 415
Likes: 146
From: Foothills of West Central Maine
Bikes: 2007 Motobecane Fantom Cross Expert, 2020 Motobecane Omni Strada Pro Disc (700c gravel bike), 2021 Motobecane Elite Adventure with Bafang 500W rear hub drive
A bit off-topic, but love those gear position indicators. I wonder why those didn't catch on and spread to the entire Shimano lineup. I have them on my 9- speed but not on newer 10- speed Tiagras, and I miss them!
05-01-20 | 05:12 PM
#8
Senior Member
Joined: Dec 2006
Posts: 3,788
Likes: 109
From: Long Island, New York
Bikes: a lowrider BMX, a mountain bike, a faired recumbent, and a loaded touring bike
Oh, I had a similar problem today, had me going crazy... I’ve put new cables in before, but this time it was the cable housing !
I was unable to shift onto the large chainring, 0.7 miles into my ride.
The top end of the housing was undone,& would not fit back into the ferrule. Later I noticed the housing was split further down.
I guess it’s best to leave the shifter on the handlebars. I ruined a cable by kinking it, lucky I had several spares.
i have photos.

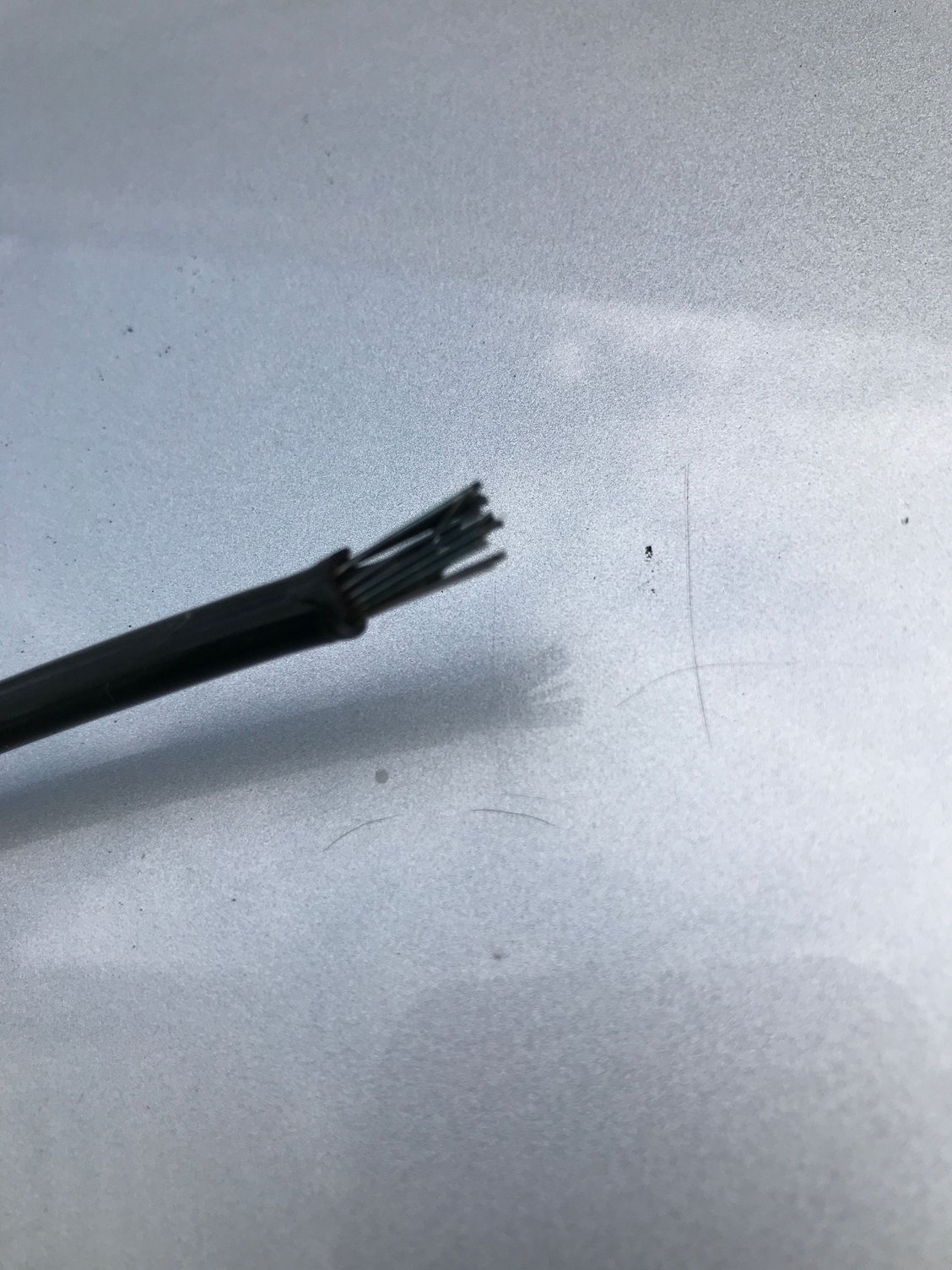

Cable Housing End Frayed (Shifter Cable)

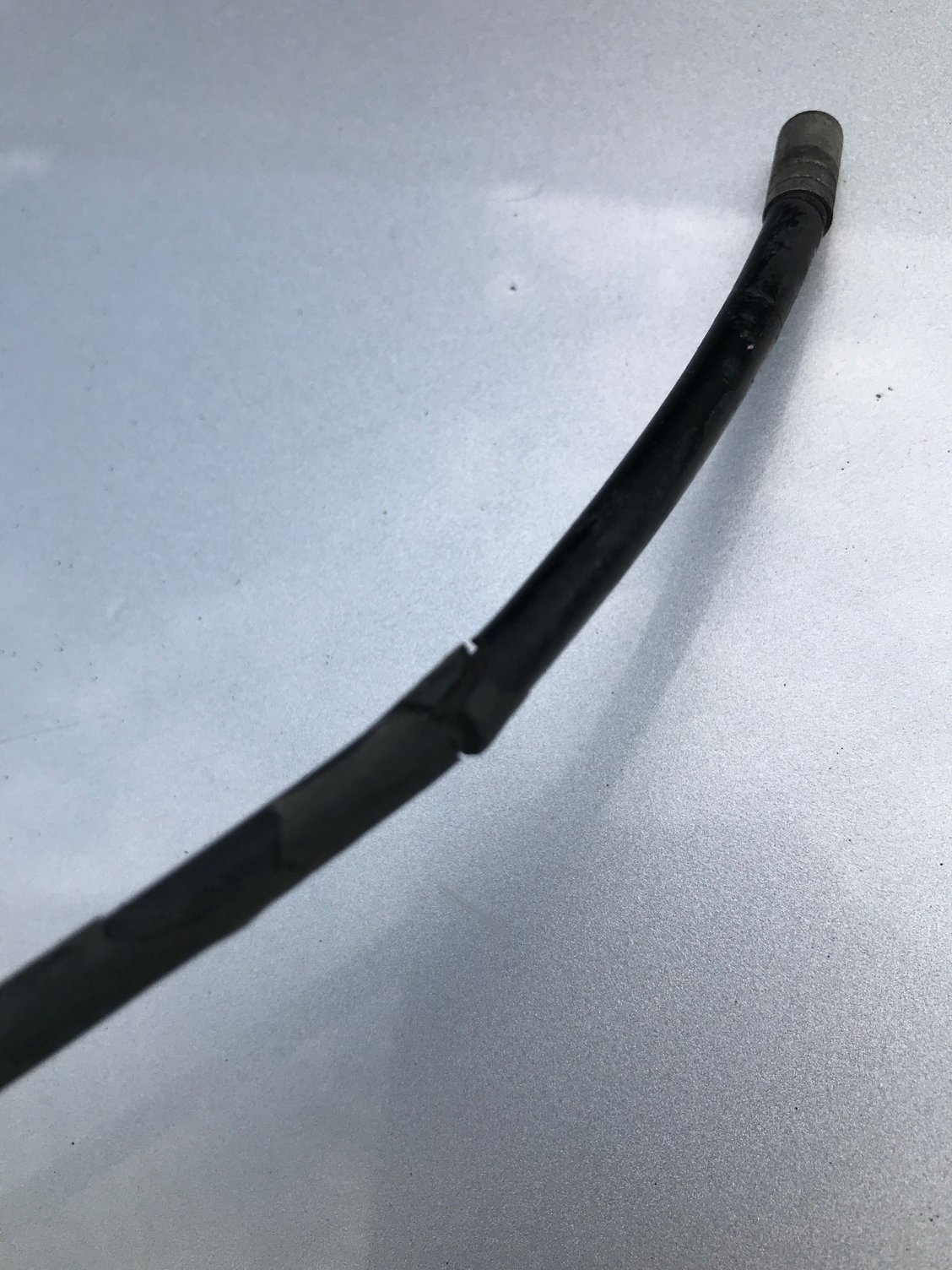

Shifter Cable Housing Split
I was unable to shift onto the large chainring, 0.7 miles into my ride.
The top end of the housing was undone,& would not fit back into the ferrule. Later I noticed the housing was split further down.
I guess it’s best to leave the shifter on the handlebars. I ruined a cable by kinking it, lucky I had several spares.
i have photos.
Cable Housing End Frayed (Shifter Cable)
Shifter Cable Housing Split
