Broken nipple

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Broken nipple

Old 07-01-20, 06:35 AM
  #1
_ForceD_
Sr Member on Sr bikes
Thread Starter

_ForceD_'s Avatar

Join Date: Jul 2015
Location: Rhode Island (sometimes in SE Florida)
Posts: 2,003

Bikes: Several...from old junk to new all-carbon.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 870 Post(s)
Liked 603 Times in 321 Posts
Broken nipple

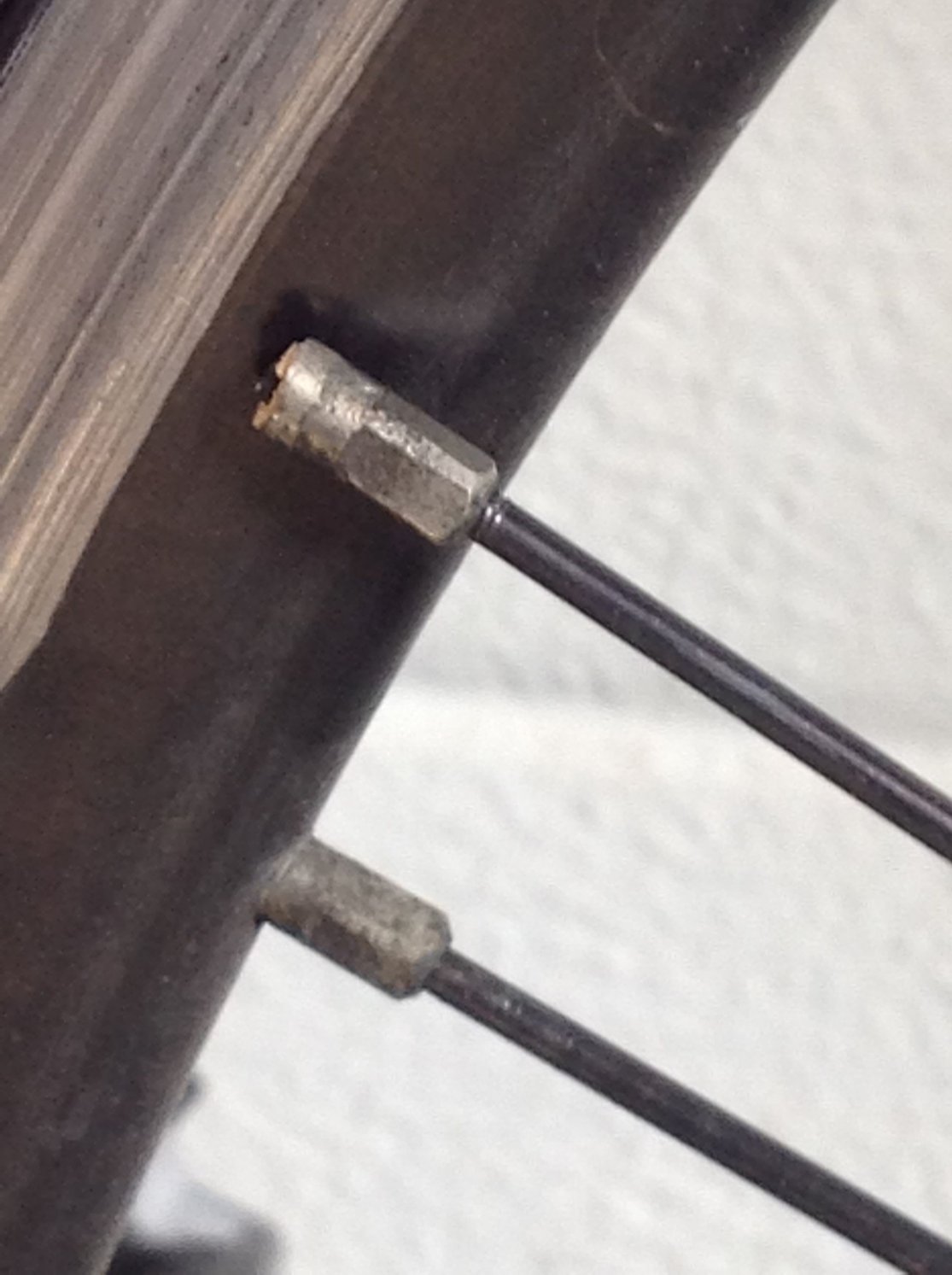

In all my years of riding (nearly 40) I don't think I've ever had a brass nipple break. Many spokes...almost always at the head...but never a nipple.




Dan
_ForceD_ is offline
Old 07-01-20, 07:05 AM
  #2
Andrew R Stewart
Senior Member

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Posts: 17,006

Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Mongoose Tomac ATB, GT Bravado ATB, JCP Folder, Stewart 650B ATB

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3744 Post(s)
Liked 2,815 Times in 1,743 Posts
Brass nipples break too. Just no where as common as Al ones. Generally we find that the spoke didn't enter the head of the nipple, it was a couple mms too short. Andy
__________________
AndrewRStewart
Andrew R Stewart is online now
Old 07-01-20, 07:37 AM
  #3
dsbrantjr
Senior Member

dsbrantjr's Avatar

Join Date: Sep 2010
Location: Roswell, GA
Posts: 8,303

Bikes: '93 Trek 750, '92 Schwinn Crisscross, '93 Mongoose Alta

Mentioned: 30 Post(s)
Tagged: 0 Thread(s)
Quoted: 1429 Post(s)
Liked 1,063 Times in 711 Posts
Originally Posted by Andrew R Stewart View Post
Brass nipples break too. Just no where as common as Al ones. Generally we find that the spoke didn't enter the head of the nipple, it was a couple mms too short. Andy
+1, there is also evidence of corrosion on that nipple and its neighbor.
dsbrantjr is offline
Old 07-01-20, 07:43 AM
  #4
UniChris
Senior Member

UniChris's Avatar

Join Date: May 2017
Location: Northampton, MA
Posts: 1,841

Bikes: 36" Unicycle, winter knock-around hybrid bike

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 374 Times in 268 Posts
Why does that spoke have threads exposed below the nipple when the other one doesn't?
UniChris is offline
Old 07-01-20, 07:52 AM
  #5
_ForceD_
Sr Member on Sr bikes
Thread Starter

_ForceD_'s Avatar

Join Date: Jul 2015
Location: Rhode Island (sometimes in SE Florida)
Posts: 2,003

Bikes: Several...from old junk to new all-carbon.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 870 Post(s)
Liked 603 Times in 321 Posts
Originally Posted by UniChris View Post
Why does that spoke have threads exposed below the nipple when the other one doesn't?
I had a feeling someone would ask that. It's because I tried to unscrew it just to see if it was seized or not. I was able to do that easily with just my fingers. None of the others have thread exposed. It's only because I twisted just a bit.

As I've read...this is probably due to the fact that the spoke is just a mm or two too short and didn't thread into the head of the nipple...as suggested above. (Although I guess it appears that way because I unscrewed it a little bit.) It isn't the highest quality wheel, but it's in the neighborhood of 10 years old and this is the first time that's happened.

Dan
_ForceD_ is offline
Old 07-01-20, 08:59 AM
  #6
UniChris
Senior Member

UniChris's Avatar

Join Date: May 2017
Location: Northampton, MA
Posts: 1,841

Bikes: 36" Unicycle, winter knock-around hybrid bike

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 374 Times in 268 Posts
Originally Posted by _ForceD_ View Post
I had a feeling someone would ask that. It's because I tried to unscrew it just to see if it was seized or not. I was able to do that easily with just my fingers. None of the others have thread exposed. It's only because I twisted just a bit.

As I've read...this is probably due to the fact that the spoke is just a mm or two too short and didn't thread into the head of the nipple...as suggested above. (Although I guess it appears that way because I unscrewed it a little bit.) It isn't the highest quality wheel, but it's in the neighborhood of 10 years old and this is the first time that's happened.
Seems like if you screwed it back into position there would be spoke projecting into the broken off part?

Might be worth having a look at the spoke ends in the others even if it means sacrificing your rim tape
UniChris is offline
Old 07-01-20, 09:14 AM
  #7
rmacdona
Junior Member

Join Date: May 2019
Location: Waterdown, Ontario
Posts: 22

Bikes: 1987 Cannondale ST600, 1988 Fisher Mt. Tam, 1989 Cannondale SR800, 1998 Cannondale T500

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Liked 7 Times in 5 Posts
I experienced a similar nipple failure just recently when repairing a wheel. Head of nipple sheared level with bottom of slot. Ended up replacing all the nipples - false economy otherwise.

rmacdona is offline
Old 07-01-20, 08:38 PM
  #8
mrrabbit
Senior Member

mrrabbit's Avatar

Join Date: Dec 2007
Location: San Jose, California
Posts: 3,496

Bikes: 2001 Tommasini Sintesi w/ Campagnolo Daytona 10 Speed

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)
Likes: 0
Liked 31 Times in 26 Posts
#1 cause of broken nipples is spokes that are too short.

Nipples are fasteners, not spoke extenders.

A properly built wheel will have the spokes at least penetrating the thickness of the rim...which is usually is about 1mm below the screwdriver slot of the nipple.

Quality nipples with spokes too short will hold up longer, cheap nipples will break sooner.

=8-)
__________________
5000+ wheels built since 1984...

Disclaimer:

1. I do not claim to be an expert in bicycle mechanics despite my experience.
2. I like anyone will comment in other areas.
3. I do not own the preexisting concepts of DISH and ERD.
4. I will provide information as I always have to others that I believe will help them protect themselves from unscrupulous mechanics.
5. My all time favorite book is:

Kahane, Howard. Logic and Contemporary Rhetoric: The Use of Reason in Everyday Life
mrrabbit is offline
Likes For mrrabbit:
Old 07-01-20, 08:51 PM
  #9
Bigbus
Very Senior Member

Join Date: Mar 2018
Location: Always on the Run
Posts: 1,211

Bikes: Giant Quasar & Fuji Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 342 Times in 243 Posts
This is a (real) wheel question, not meaning to hijack the thread, but how do you determine what spoke length you'll need when all you have is a hub and a rim? I will never build a wheel, but I'm one of those curious old codgers if that's okay.
Bigbus is offline
Old 07-02-20, 12:15 AM
  #10
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,688
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 1073 Post(s)
Liked 291 Times in 218 Posts
Originally Posted by Bigbus View Post
.....how do you determine what spoke length you'll need when all you have is a hub and a rim?
First you do a net search for ”spoke length calculator”.
With a bit of luck, you might find one that already have your hub and rim in its database.
If not, you need to feed it some numbers.
The number you’re looking for for the rim is the ERD - Effective Rim Diameter. Sometimes the manufacturer either list it or even prints it on the rim. If that is not the case, further enlightenment can be found by doing a net search on ”measuring ERD”.
Oh, and you need to tell it how many spokes and what pattern you want.

Then you need some numbers for the hub. You need the diameter of the circle of spoke holes in the flange, and where the flanges are in relation to the middle of the wheel axle.
Feed this into the calculator and see what it comes up with.

Do note that this is the quick explanation of how to go about it. Further study is recommended before actually ordering stuff or attempting a wheel build.
dabac is offline
Likes For dabac:
Old 07-02-20, 09:10 AM
  #11
Bigbus
Very Senior Member

Join Date: Mar 2018
Location: Always on the Run
Posts: 1,211

Bikes: Giant Quasar & Fuji Roubaix

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 413 Post(s)
Liked 342 Times in 243 Posts
Originally Posted by dabac View Post
First you do a net search for ”spoke length calculator”.
With a bit of luck, you might find one that already have your hub and rim in its database.
If not, you need to feed it some numbers.
The number you’re looking for for the rim is the ERD - Effective Rim Diameter. Sometimes the manufacturer either list it or even prints it on the rim. If that is not the case, further enlightenment can be found by doing a net search on ”measuring ERD”.
Oh, and you need to tell it how many spokes and what pattern you want.

Then you need some numbers for the hub. You need the diameter of the circle of spoke holes in the flange, and where the flanges are in relation to the middle of the wheel axle.
Feed this into the calculator and see what it comes up with.

Do note that this is the quick explanation of how to go about it. Further study is recommended before actually ordering stuff or attempting a wheel build.
And this sums up why I will never build a wheel LOL Thank you.
Bigbus is offline
Old 07-03-20, 06:58 PM
  #12
UniChris
Senior Member

UniChris's Avatar

Join Date: May 2017
Location: Northampton, MA
Posts: 1,841

Bikes: 36" Unicycle, winter knock-around hybrid bike

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 894 Post(s)
Liked 374 Times in 268 Posts
Originally Posted by Bigbus View Post
This is a (real) wheel question, not meaning to hijack the thread, but how do you determine what spoke length you'll need when all you have is a hub and a rim? I will never build a wheel, but I'm one of those curious old codgers if that's okay.
You use calipers to measure the hub and a couple of known length spokes set at desired depth in nipples + calipers to measure the ERD of the rim at a few spots (measure to INSIDE of bend). Calipers are cheap now and fun to own...

Then you use a spoke calculator.

Building wheels is fun, really... 'course mine are amongst the simplest with no dish. And I only need one :-)

(I've also lucked out that the factory ERD specs on my rims were correct - I did the measurement only to confirm them using spokes purchased on the assumption they were correct, while formally you're not supposed to trust factory specs)

Last edited by UniChris; 07-03-20 at 07:01 PM.
UniChris is offline
Likes For UniChris:
