Grinding noise on mostly new drivetrain

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Grinding noise on mostly new drivetrain

Old 12-25-20, 07:17 PM
  #1
VonSubmarine
Junior Member
Thread Starter

Join Date: Jan 2020
Location: Austin TX
Posts: 9

Bikes: 1979 Peugeot, 2003(?) Trek 2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Grinding noise on mostly new drivetrain

I've had a Trek 2000 since about 2005 and recently replaced the FD, RD, cassette, chain, brake/shift levers, and all the cable/housing. All new 5700 series 105 parts, except for the chain which is Ultegra. Years ago I replaced the triple 105 crank that came with the bike with an FSA Team Carbon double 53/39. My old cassette was 9spd and the new is 10spd.

With the new setup I get a grinding noise when pedaling under load in my small chainring. Not an ear-splitter, but definitely sounds wrong. Shift up to the 53 and the noise is gone. The 39t doesn't appear to be worn out, and wasn't making the noise before swapping out all the above parts. The sound isn't the chain rubbing on the FD cage. Chain is lubed, everything is new and clean, I'm sure I sized the chain correctly, and I've put about 50 miles on the setup to see if maybe the chain just needed to get to know the chainring but it still sounds the same.

What should I check? Is there anything else with chain alignment that I might've missed? Thanks!
VonSubmarine is offline
Old 12-25-20, 08:19 PM
  #2
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 464

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 188 Times in 112 Posts
a pic would help.is the wheel square in the dropouts so as to not allow the small cassette sprocket to be too close the the chainstay? the chain properly routed through the rear derailleur pulley's? new crank have the proper distance from the chainstay so the chain isn't making contact to the frame? "Road Double 43.5 mm Shimano spec, measured to the midpoint between the rings.
with typical 5 mm chainring spacing, this puts the inner at 41 mm, the outer at 46 mm."https://www.sheldonbrown.com/chainline.html
'02 nrs is offline
Old 12-25-20, 09:19 PM
  #3
KCT1986
Senior Member

Join Date: Jan 2016
Posts: 198
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 30 Times in 22 Posts
Is this happening on all/most of cogs of cass.? If smaller cogs mostly, could the chain be clipping the teeth on the big chainring at this extreme angle?

Is this a asymmetrical chain? correctly aligned?

How's shifting front and rear?
KCT1986 is offline
Old 12-25-20, 09:24 PM
  #4
FastJake
Constant tinkerer

FastJake's Avatar

Join Date: May 2010
Location: Wisconsin
Posts: 7,865
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 53 Times in 44 Posts
Several possibilities here. Chain way too long allowing the rear derailer to run out of capacity and run against itself?

My guess is a worn chainring.
FastJake is offline
Old 12-27-20, 12:49 PM
  #5
VonSubmarine
Junior Member
Thread Starter

Join Date: Jan 2020
Location: Austin TX
Posts: 9

Bikes: 1979 Peugeot, 2003(?) Trek 2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Thanks for the response, I'm still working my way up to 10 posts before I can share pictures I guess...

is the wheel square in the dropouts so as to not allow the small cassette sprocket to be too close the the chainstay?
Wheel looks dead square and there's 4.2mm of space between the smallest cog and the frame.
the chain properly routed through the rear derailleur pulley's?
I'm not sure how the chain could be incorrectly routed through the jockey wheels, I've done it a number of times on this and other bikes. Is there something special to account for when installing a new chain and RD?
new crank have the proper distance from the chainstay so the chain isn't making contact to the frame?
The crank isn't new, been on the bike since 2006ish, but the chain doesn't appear to be anywhere near the frame by the FD.
VonSubmarine is offline
Old 12-27-20, 01:03 PM
  #6
VonSubmarine
Junior Member
Thread Starter

Join Date: Jan 2020
Location: Austin TX
Posts: 9

Bikes: 1979 Peugeot, 2003(?) Trek 2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Originally Posted by KCT1986 View Post
Is this happening on all/most of cogs of cass.? If smaller cogs mostly, could the chain be clipping the teeth on the big chainring at this extreme angle?
It's definitely happening on most if not all of the cogs. I checked out the angle while on the stand and it doesn't look like the big ring could possibly touch the chain while I'm in the small ring.

Originally Posted by KCT1986 View Post
Is this a asymmetrical chain? correctly aligned?
Yes, and it's installed with the correct side facing out.

Originally Posted by KCT1986 View Post
How's shifting front and rear?
Shifting feels pretty great, maybe a little stiff on the FD but I think that's due to some less than ideal cable routing and lengths.

Last edited by VonSubmarine; 12-27-20 at 04:21 PM. Reason: Fixed quoting
VonSubmarine is offline
Old 12-27-20, 01:05 PM
  #7
VonSubmarine
Junior Member
Thread Starter

Join Date: Jan 2020
Location: Austin TX
Posts: 9

Bikes: 1979 Peugeot, 2003(?) Trek 2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Originally Posted by FastJake View Post
Several possibilities here. Chain way too long allowing the rear derailer to run out of capacity and run against itself?
Nope, nowhere near running into itself.

Originally Posted by FastJake View Post
My guess is a worn chainring.
I guess this could be it, and I was on the verge of just replacing it to check. It sure doesn't look bad compared to what others post when describing worn out chainrings, but maybe.

Last edited by VonSubmarine; 12-27-20 at 04:22 PM. Reason: Fixed quoting
VonSubmarine is offline
Old 12-28-20, 04:25 PM
  #8
oldbobcat
Senior Member

oldbobcat's Avatar

Join Date: Jul 2005
Location: Boulder County, CO
Posts: 3,390

Bikes: '79 Gios, '80 Masi, '06 Felt, early '60s Frejus

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 104 Times in 77 Posts
Is it while using any rear cog with the small chainring, or just the largest (innermost, slowest) cog?
oldbobcat is offline
Old 12-28-20, 04:51 PM
  #9
KCT1986
Senior Member

Join Date: Jan 2016
Posts: 198
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 75 Post(s)
Liked 30 Times in 22 Posts
Originally Posted by VonSubmarine View Post
It's definitely happening on most if not all of the cogs. I checked out the angle while on the stand and it doesn't look like the big ring could possibly touch the chain while I'm in the small ring.



Yes, and it's installed with the correct side facing out.



Shifting feels pretty great, maybe a little stiff on the FD but I think that's due to some less than ideal cable routing and lengths.
Thanks for the reply.

Unfortunately, it all seems OK and should not be any of the issues that I had in mind. Your answers to all the other posters' question also seems to check out. Chainring may be the culprit.

Good luck.
KCT1986 is offline
Old 12-29-20, 06:25 PM
  #10
FastJake
Constant tinkerer

FastJake's Avatar

Join Date: May 2010
Location: Wisconsin
Posts: 7,865
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 151 Post(s)
Liked 53 Times in 44 Posts
Originally Posted by VonSubmarine View Post
I'm not sure how the chain could be incorrectly routed through the jockey wheels, I've done it a number of times on this and other bikes. Is there something special to account for when installing a new chain and RD?
No, nothing special. But you might be surprised how many people get it wrong! It's worth double-checking.

If it's only happening in the small ring and most/all of the cogs that rules out enough other possibilities that I still think it's a worn ring. Might be worth taking the FD completely off to make *sure* it's not rubbing.
FastJake is offline
Likes For FastJake:
Old 12-31-20, 09:15 PM
  #11
VonSubmarine
Junior Member
Thread Starter

Join Date: Jan 2020
Location: Austin TX
Posts: 9

Bikes: 1979 Peugeot, 2003(?) Trek 2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Thanks all. I'll try removing the FD just to be sure and then pick up a new chainring if the noise is still there.
VonSubmarine is offline
Old 01-01-21, 08:28 AM
  #12
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,609

Bikes: Schwinn Varsity

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1762 Post(s)
Liked 518 Times in 308 Posts
Originally Posted by VonSubmarine View Post
I'm not sure how the chain could be incorrectly routed through the jockey wheels, I've done it a number of times on this and other bikes. Is there something special to account for when installing a new chain and RD?

Check again if you don't know how it could be wrong.
trailangel is offline
Old 01-01-21, 12:59 PM
  #13
VonSubmarine
Junior Member
Thread Starter

Join Date: Jan 2020
Location: Austin TX
Posts: 9

Bikes: 1979 Peugeot, 2003(?) Trek 2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Originally Posted by trailangel View Post
Check again if you don't know how it could be wrong.
Ha! I mean Iím looking at it compared to three other bikes in my garage and Iíve replaced chains before. I am however interested in how it could be done wrong.... It seems like you couldnít reverse the orientation of the chain to the jockey wheels and have the chain even stay on both of them.

Open to specific things to look for though, not trying to be a jerk.
VonSubmarine is offline
Old 01-01-21, 01:12 PM
  #14
trailangel
Senior Member

trailangel's Avatar

Join Date: Feb 2014
Location: Pasadena, CA
Posts: 4,609

Bikes: Schwinn Varsity

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1762 Post(s)
Liked 518 Times in 308 Posts
The tab on the DR cage between the upper and lower wheels.
trailangel is offline
Likes For trailangel:
Old 01-02-21, 10:23 AM
  #15
VonSubmarine
Junior Member
Thread Starter

Join Date: Jan 2020
Location: Austin TX
Posts: 9

Bikes: 1979 Peugeot, 2003(?) Trek 2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Checked again, chain is on the correct side of the tab. Just to make sure, wouldn't that make an awful noise regardless of which chainring I was in?
VonSubmarine is offline
Old 01-02-21, 12:59 PM
  #16
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 464

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 157 Post(s)
Liked 188 Times in 112 Posts

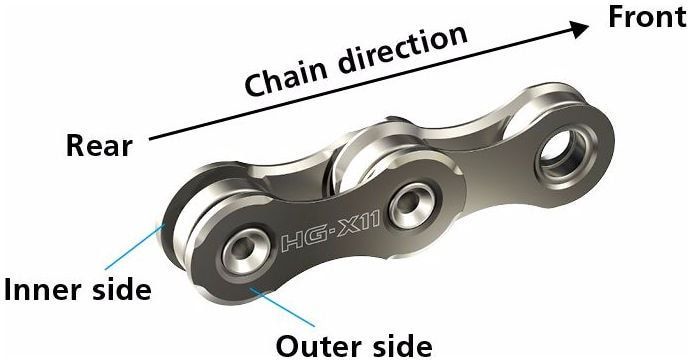

is the new ultegra 10 speed chain installed in the correct direction-logos out? did you readjust the sis gear adjustment by shifting to the second smallest cog,turning cable adjuster till you hear clanging then back off till its silent?https://bike.shimano.com/en-US/techn...ls/hg-x11.html
'02 nrs is offline
Likes For '02 nrs:
Old 01-02-21, 05:53 PM
  #17
VonSubmarine
Junior Member
Thread Starter

Join Date: Jan 2020
Location: Austin TX
Posts: 9

Bikes: 1979 Peugeot, 2003(?) Trek 2000

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 1 Time in 1 Post
Originally Posted by '02 nrs View Post
did you readjust the sis gear adjustment by shifting to the second smallest cog,turning cable adjuster till you hear clanging then back off till its silent?
This was it! I did not know about that process and after doing it the sound is gonzo! Thanks so much.
VonSubmarine is offline
Likes For VonSubmarine:
