What tool to remove this freewheel?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

What tool to remove this freewheel?

Old 12-29-20, 05:26 PM
  #1
Guyatwork37
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Denver, CO
Posts: 62

Bikes: Specialized Allez 3Rensho, Spcialized Roubaix Expert, Kona Fire Mountain

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 11 Times in 7 Posts
What tool to remove this freewheel?

I've not encountered a freewheel like this before. It has no spline or notches. It's from an early 2000s Gary Fisher mountain bike. Last pick isnwhatt what up against bteh freewhel, as there wasn't a cone. Not sure what tool to get or how to remove it. Thanks for any help!


Guyatwork37 is offline
Old 12-29-20, 05:35 PM
  #2
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 403

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 159 Times in 94 Posts

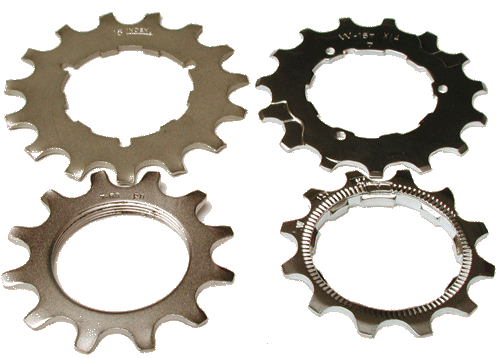

possibly a uniglide cassette-smallest gear unscrews to remove the cluster.need 2 chainwhips.https://www.sheldonbrown.com/k7.html

'02 nrs is offline
Likes For '02 nrs:
Old 12-29-20, 05:41 PM
  #3
Guyatwork37
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Denver, CO
Posts: 62

Bikes: Specialized Allez 3Rensho, Spcialized Roubaix Expert, Kona Fire Mountain

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by '02 nrs View Post
possibly a uniglide cassette-smallest gear unscrews to remove the cluster.need 2 chainwhips.https://www.sheldonbrown.com/k7.html

The center stays motionless when spinning backwards, wouldn't that indicate a freewheel versus a cassette?
Guyatwork37 is offline
Old 12-29-20, 05:52 PM
  #4
onsay99
Senior Member

onsay99's Avatar

Join Date: Mar 2020
Location: Mid Atlantic, Nawf Cackalaky, Rawlywood
Posts: 59

Bikes: 3 road steelys, 3 alu, 1 mtb, 1cx

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Likes: 0
Liked 12 Times in 8 Posts
Any name or other markings stamped on the hub shell?
onsay99 is offline
Old 12-29-20, 07:44 PM
  #5
Guyatwork37
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Denver, CO
Posts: 62

Bikes: Specialized Allez 3Rensho, Spcialized Roubaix Expert, Kona Fire Mountain

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by onsay99 View Post
Any name or other markings stamped on the hub shell?
Nothing stamped on the freewheel, which is also odd, but the hub itself is a Suntour.
Guyatwork37 is offline
Old 12-29-20, 08:06 PM
  #6
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 403

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 159 Times in 94 Posts
If Suntour very likely a microdrive cassette w/ thread on small sprocket.
'02 nrs is offline
Old 12-29-20, 08:27 PM
  #7
Guyatwork37
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Denver, CO
Posts: 62

Bikes: Specialized Allez 3Rensho, Spcialized Roubaix Expert, Kona Fire Mountain

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by '02 nrs View Post
If Suntour very likely a microdrive cassette w/ thread on small sprocket.
8.5.5

So if that's the case, the small sprocket can just be twisted off. Chain whip for the sprocket and something to hold rest of cassette?
Guyatwork37 is offline
Likes For Guyatwork37:
Old 12-29-20, 11:09 PM
  #8
icemilkcoffee
Senior Member

Join Date: Aug 2009
Posts: 442
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Liked 171 Times in 116 Posts
Originally Posted by '02 nrs View Post

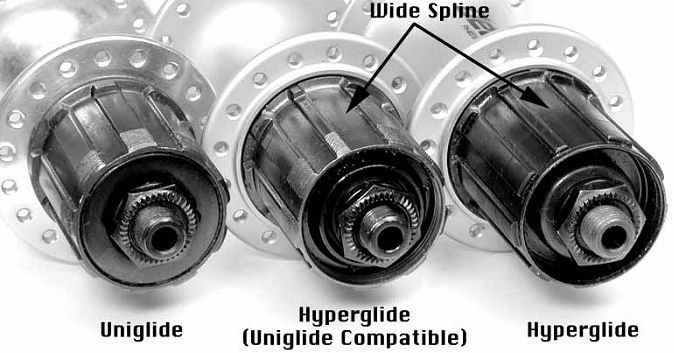

possibly a uniglide cassette
That is NOT a Uniglide.
icemilkcoffee is offline
Likes For icemilkcoffee:
Old 12-29-20, 11:39 PM
  #9
Jeff Wills
Insane Bicycle Mechanic

Jeff Wills's Avatar

Join Date: Mar 2008
Location: other Vancouver
Posts: 9,469
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 646 Post(s)
Liked 274 Times in 178 Posts
I agree that it is probably a SunTour cassette hub from the late '80's/early '90's. Need to see the rest of the hub shell to be more certain.

These are tough to get spare parts for. Shimano dominated the market then and SunTour was dying.
__________________
Jeff Wills

Comcast nuked my web page. It will return soon..
Jeff Wills is offline
Old 12-29-20, 11:49 PM
  #10
Guyatwork37
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Denver, CO
Posts: 62

Bikes: Specialized Allez 3Rensho, Spcialized Roubaix Expert, Kona Fire Mountain

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by icemilkcoffee View Post
That is NOT a Uniglide.
So what do you think it is then?
Guyatwork37 is offline
Old 12-30-20, 12:37 AM
  #11
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,085

Bikes: Klein, Merckx, Trek

Mentioned: 58 Post(s)
Tagged: 0 Thread(s)
Quoted: 2706 Post(s)
Liked 662 Times in 386 Posts
There were some freewheels that were designed not to be removeable with a tool - they required destructive removal. Basically you use a hammer and punch to get the bearing race off of there and then everything falls apart.

https://www.parktool.com/blog/repair...uctive-removal

Should be regular English FW threads on the hub though so replacement will be easy.

Last edited by DiabloScott; 12-30-20 at 12:49 AM.
DiabloScott is offline
Likes For DiabloScott:
Old 12-30-20, 06:09 AM
  #12
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,293

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1480 Post(s)
Liked 978 Times in 662 Posts
Originally Posted by Guyatwork37 View Post
8.5.5

So if that's the case, the small sprocket can just be twisted off. Chain whip for the sprocket and something to hold rest of cassette?
2 chain whips
dedhed is offline
Likes For dedhed:
Old 12-30-20, 07:12 AM
  #13
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,610
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Liked 205 Times in 130 Posts
Originally Posted by DiabloScott View Post
There were some freewheels that were designed not to be removeable with a tool - they required destructive removal. Basically you use a hammer and punch to get the bearing race off of there and then everything falls apart.

https://www.parktool.com/blog/repair...uctive-removal

Should be regular English FW threads on the hub though so replacement will be easy.
Yup and I'm pretty sure that's what we are looking at here.The OP has stated that the center part does not rotate with the cogs and there are clearly visible pin holes on what I am quite certain is the lock ring.
Drive that ring clockwise to remove and the floor will be littered with tiny ball bearings and the entire outer assembly will slip off. The rest can (he said optimistically) be removed with a pipe wrench.
Dan Burkhart is online now
Likes For Dan Burkhart:
Old 12-30-20, 07:32 AM
  #14
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 416

Bikes: Romet Jubilat x 5

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 94 Times in 75 Posts
Originally Posted by Dan Burkhart View Post
Yup and I'm pretty sure that's what we are looking at here.The OP has stated that the center part does not rotate with the cogs and there are clearly visible pin holes on what I am quite certain is the lock ring.
Drive that ring clockwise to remove and the floor will be littered with tiny ball bearings and the entire outer assembly will slip off. The rest can (he said optimistically) be removed with a pipe wrench.
Yup indeed, undo the pin plate and the balls will fall out, in pure Suntour fashion. However, that does not mean it is the way to remove it - first it is important to check whether that first sprocket is threaded.
I find the biggest problem with Suntour freehubs is so many people just remove and replace them that there is too few people to explore their removal and rebuilding
Geepig is offline
Likes For Geepig:
Old 12-30-20, 08:09 AM
  #15
dabac
Senior Member

Join Date: Mar 2008
Posts: 8,416
Mentioned: 45 Post(s)
Tagged: 0 Thread(s)
Quoted: 988 Post(s)
Liked 173 Times in 131 Posts
Originally Posted by icemilkcoffee View Post
That is NOT a Uniglide.
+1
Never seen an U-G with pin spanner holes in the bearing shield/dust cap.
dabac is offline
Old 12-30-20, 08:38 AM
  #16
Trakhak
Senior Member

Join Date: Jan 2005
Location: Baltimore, MD
Posts: 2,459
Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 741 Post(s)
Liked 435 Times in 271 Posts
Originally Posted by dedhed View Post
2 chain whips
Yes. Before you try the destructive approach, use two chain whips to unscrew the first sprocket. If you have only one chain whip, you can grab a length of chain with a large Vice Grip to use as a second chain whip.
Trakhak is offline
Old 12-30-20, 08:41 AM
  #17
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,610
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Liked 205 Times in 130 Posts
Originally Posted by Geepig View Post
Yup indeed, undo the pin plate and the balls will fall out, in pure Suntour fashion. However, that does not mean it is the way to remove it - first it is important to check whether that first sprocket is threaded.
I find the biggest problem with Suntour freehubs is so many people just remove and replace them that there is too few people to explore their removal and rebuilding
Except removing just the cogs leaves the outer part of the freewheeling mechanism in place and gets you no closer to removing it.
Dan Burkhart is online now
Old 12-30-20, 10:45 AM
  #18
Guyatwork37
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Denver, CO
Posts: 62

Bikes: Specialized Allez 3Rensho, Spcialized Roubaix Expert, Kona Fire Mountain

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 11 Times in 7 Posts
As a follow-up, apparently it just falls out when you turn it over...




tbis is my first time encounting this type of freewheel
Guyatwork37 is offline
Old 12-30-20, 10:48 AM
  #19
Geepig
Senior Member

Geepig's Avatar

Join Date: Sep 2020
Location: Eastern Poland
Posts: 416

Bikes: Romet Jubilat x 5

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 110 Post(s)
Liked 94 Times in 75 Posts
Originally Posted by Dan Burkhart View Post
Except removing just the cogs leaves the outer part of the freewheeling mechanism in place and gets you no closer to removing it.
And you were saying...
Geepig is offline
Old 12-30-20, 11:59 AM
  #20
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,610
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Liked 205 Times in 130 Posts
Originally Posted by Guyatwork37 View Post
As a follow-up, apparently it just falls out when you turn it over...




tbis is my first time encounting this type of freewheel
Well, that is interesting. I'm sure I won't live long enough to see everything. Curious to know where the right side bearing cup is. I don't see any sign of it in any of the photos. Did you take any photos before you removed the axle?

Last edited by Dan Burkhart; 12-30-20 at 12:04 PM.
Dan Burkhart is online now
Likes For Dan Burkhart:
Old 12-30-20, 12:21 PM
  #21
Guyatwork37
Senior Member
Thread Starter

Join Date: Aug 2020
Location: Denver, CO
Posts: 62

Bikes: Specialized Allez 3Rensho, Spcialized Roubaix Expert, Kona Fire Mountain

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 34 Post(s)
Liked 11 Times in 7 Posts
Originally Posted by Dan Burkhart View Post
Well, that is interesting. I'm sure I won't live long enough to see everything. Curious to know where the right side bearing cup is. I don't see any sign of it in any of the photos. Did you take any photos before you removed the axle?
8.5.5

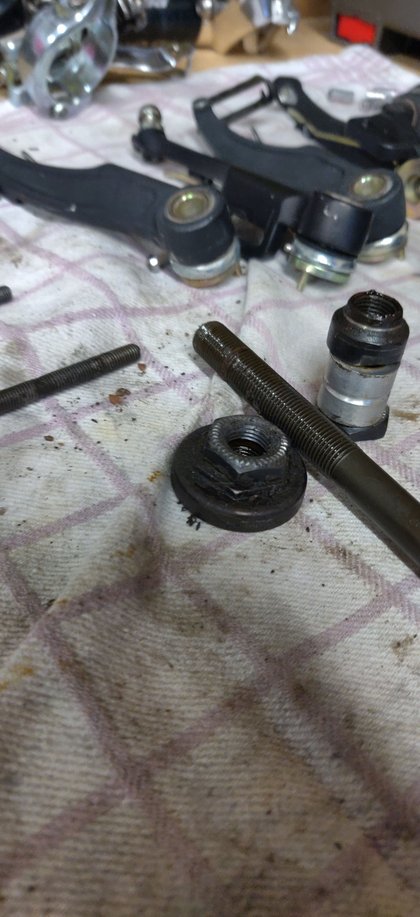

There was just the dust cap on the right side, no cone or anything other than a spacer and lock nut. I'm very confused by it to be honest.
Guyatwork37 is offline
Old 12-30-20, 12:57 PM
  #22
'02 nrs
royaloaker

'02 nrs's Avatar

Join Date: Jan 2010
Location: se MIch.
Posts: 403

Bikes: 1938 claud butler,1983 Basso,teledyne titan,teocali super,nrs,1993 stumpjumper fsr,Paramountain,Paramount Buell,4 banger,Zaskar LE,Colnago Master Ibex MTB,1987ish,.etc....

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 141 Post(s)
Liked 159 Times in 94 Posts
Originally Posted by Guyatwork37 View Post
As a follow-up, apparently it just falls out when you turn it over...

this is my first time encounting this type of freewheel
your not alone.in 20 some years I have never seen that setup.will bet the small cog still unthreads & separates from a carrier of sorts.pulling the axle may have let the whole unit free.
'02 nrs is offline
Old 12-30-20, 01:34 PM
  #23
Barry2
LRP=HR

Join Date: Sep 2019
Location: SF Bay Area
Posts: 714

Bikes: 79 Holdsworth Special, 93 C-dale MT3000 Tandem, 96 C-dale F700CAD3, Two Cervelo R3's 2011 & 2018, JustGo Runt, Ridley Oval, Kickr Bike 8-)

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 273 Post(s)
Liked 227 Times in 156 Posts
Originally Posted by Guyatwork37 View Post
As a follow-up, apparently it just falls out when you turn it over...
Way too convenient... it'll never catch on !
P_ _ _ Tool would buy the Patent and kill it.

Barry
Barry2 is offline
Likes For Barry2:
Old 12-30-20, 03:26 PM
  #24
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 7,293

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1480 Post(s)
Liked 978 Times in 662 Posts
Suntour freehub, hub and cassette HELP!!!!!!!! | Retrobike

​​​​​​Suntour Accushift Drivetrain Components at Yellow Jersey

Remove Suntour freehub body?

Suntour Microdrive cassette question | Retrobike
dedhed is offline
Old 12-30-20, 04:31 PM
  #25
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Posts: 7,610
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 710 Post(s)
Liked 205 Times in 130 Posts
I can't find anything in those links that explains it. A couple of them gave security warnings so I didn't go there.
However, the OP stated it was an early 2000s bike, so unless it was fitted with an older wheel somewhere along the way, I don't think we are looking at Suntour here.
Although it does seem strange that an early 2000s Gary Fisher would have a 7 speed.

Last edited by Dan Burkhart; 12-30-20 at 04:37 PM.
Dan Burkhart is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
