Made from mostly unwanted junk Wheel Trueing stand

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Made from mostly unwanted junk Wheel Trueing stand

Old 08-07-21, 06:59 PM
  #1
EaOutlaw1969
Member
Thread Starter

Join Date: May 2019
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Made from mostly unwanted junk Wheel Trueing stand

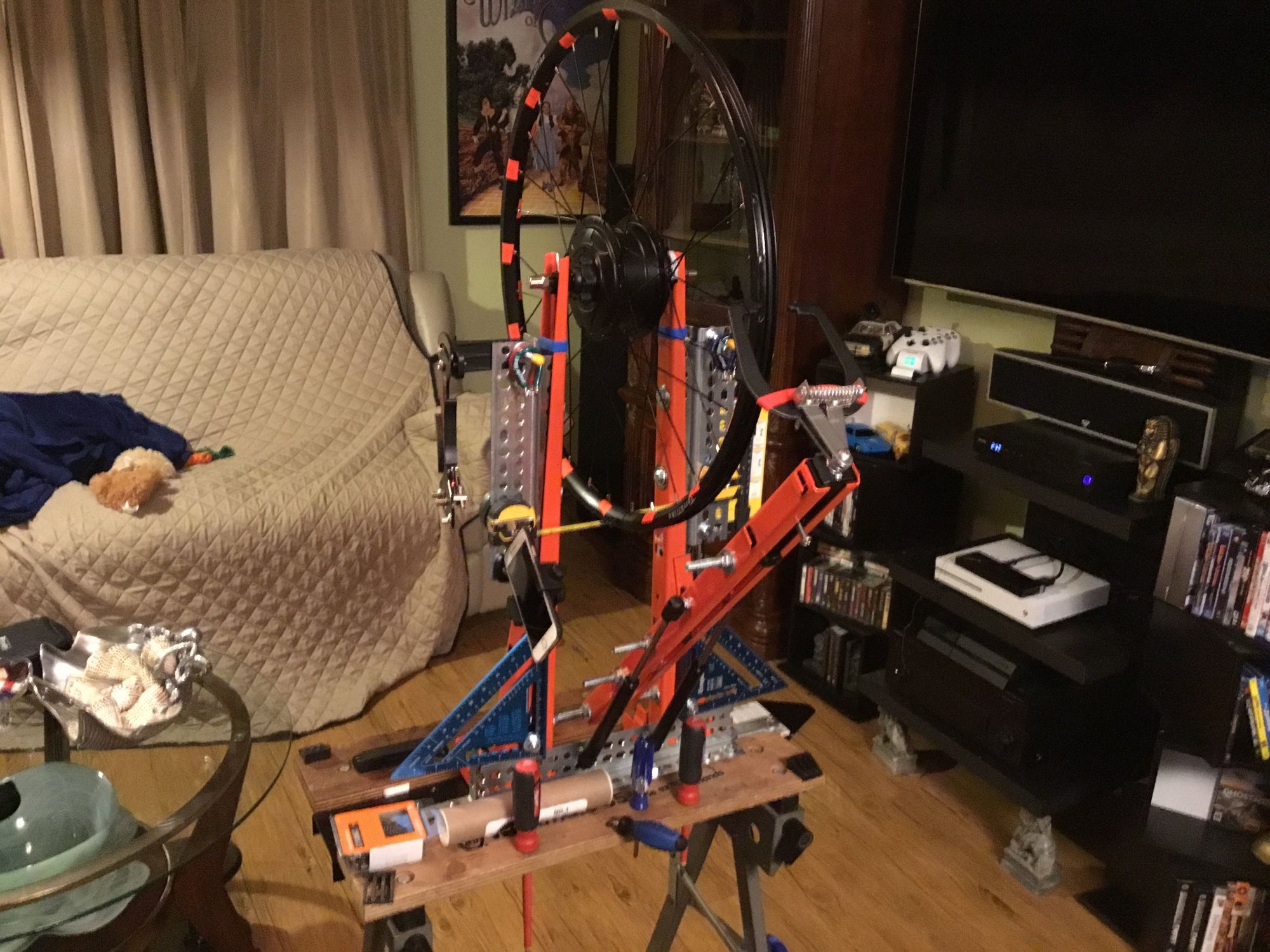

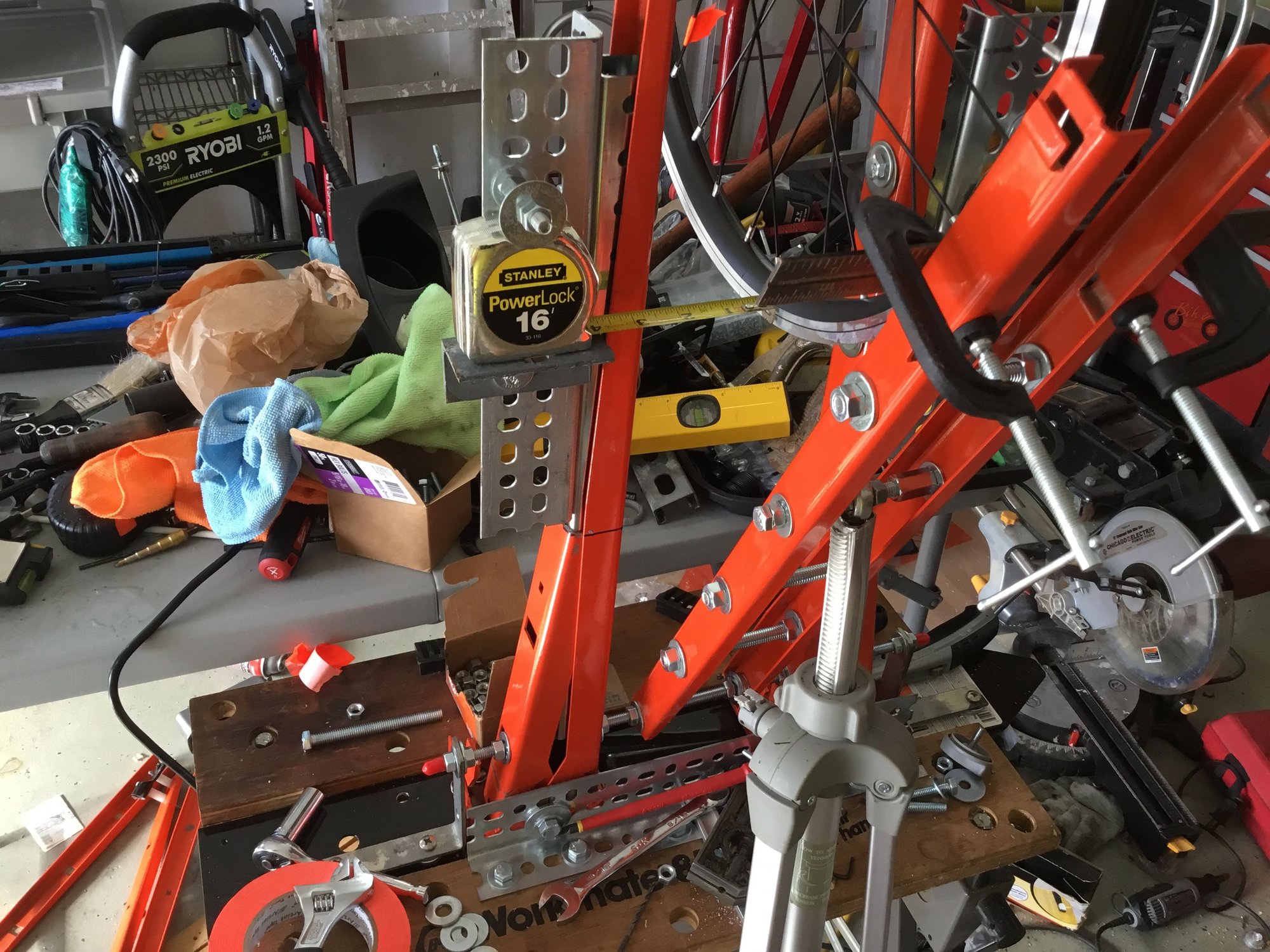

Here are some pictures of my home made wheel truing stand. I wanted the Park Tools 4.2 but I did not want the price tag. So I am in the middle of making one that once I clean it up I can use while sitting in the living room. I have 3 trikes and 3 other wheels that all need to be trued and get the tires seated properly. with all the wheels I have to deal with it just does not make financial sense to let someone else get paid to do a half ass job. I did order a Park Tool 238K Caliper Upgrade Kit for TS-2 Truing Stand https://www.amazon.com/gp/product/B0...?ie=UTF8&psc=1 I am pretty sure I can find away to rig this kit up to my stand. It will not look as fancy as the Park and will not be anywhere close to as easy to set up as the Park tools stand yet I am more proud that is is hand made by me.

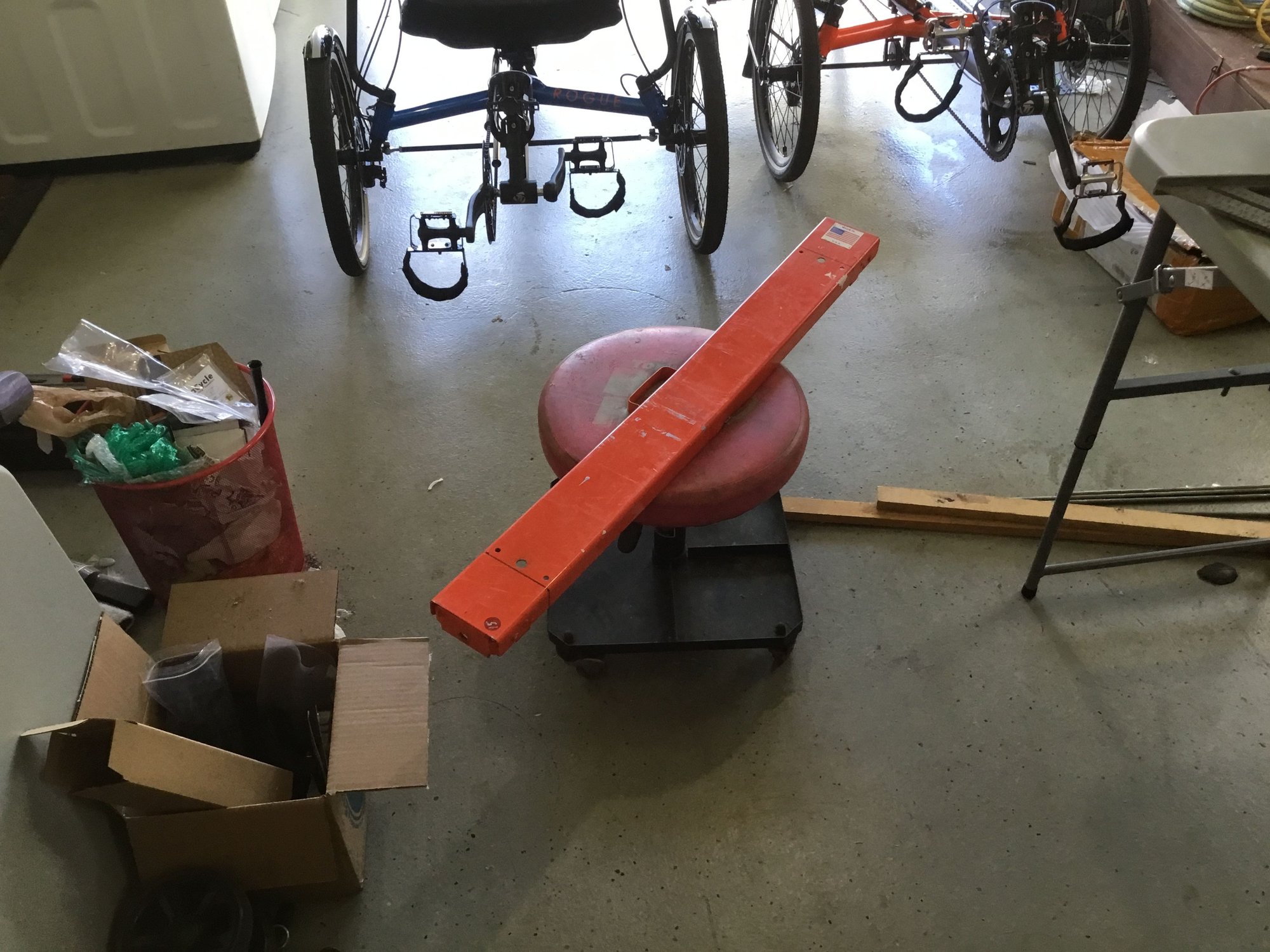

BTW I made most of this from a old bent up folding metal sawhorse, a old tripod, and a old wore out bent up folding table I had to fix. ( some of the material and fasteners came from Home Depot

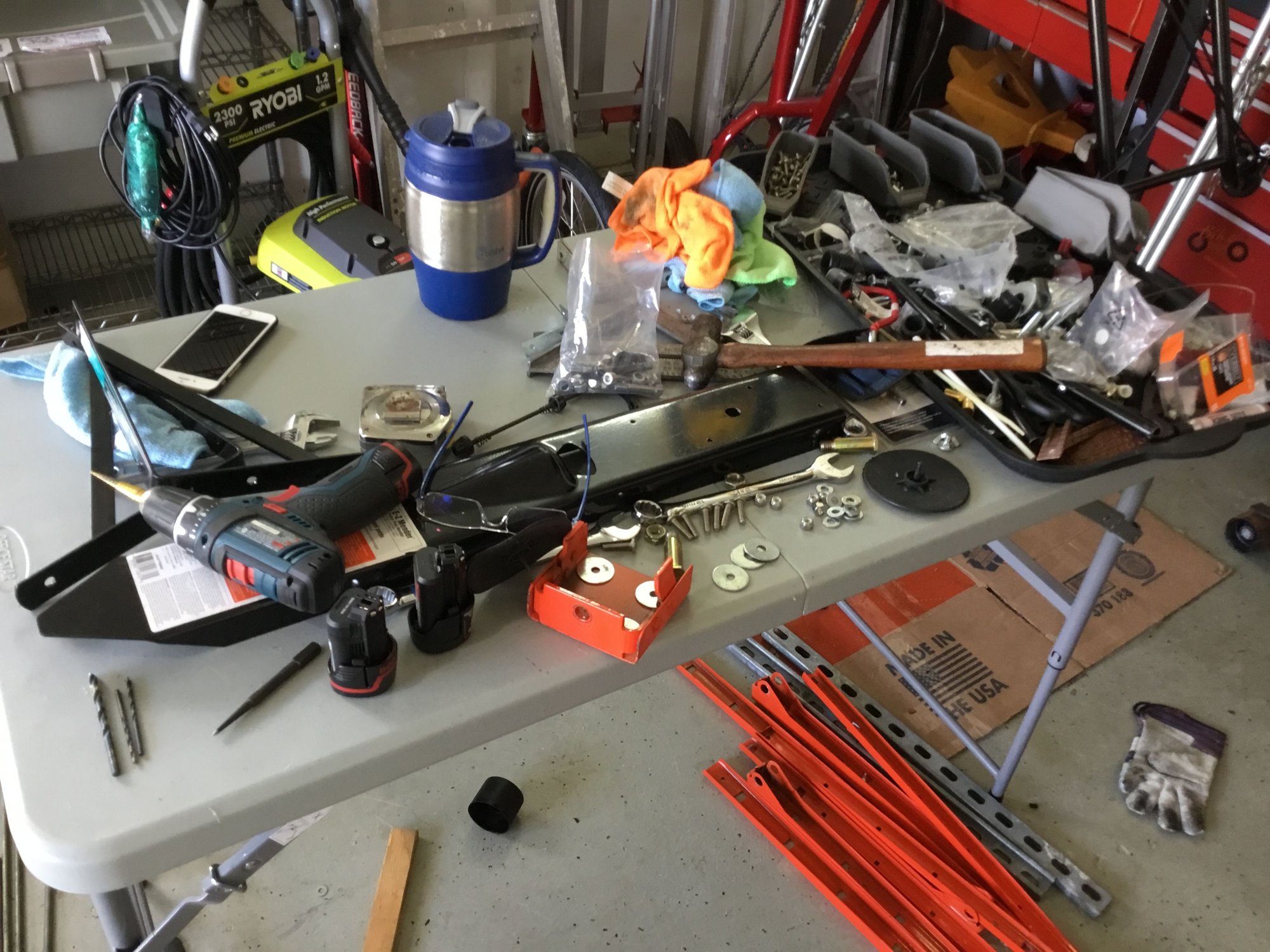

Sorry about the mess in the back ground trust me I will clean it up soon.




























EaOutlaw1969 is offline
Likes For EaOutlaw1969:
Old 08-07-21, 08:18 PM
  #2
squirtdad
Senior Member

squirtdad's Avatar

Join Date: Jul 2006
Location: San Jose (Willow Glen) Ca
Posts: 7,909

Bikes: 85 team Miyata (modern 5800 105) , '84 Team Miyata,(dura ace old school) 80?? SR Semi-Pro 600 Arabesque

Mentioned: 83 Post(s)
Tagged: 0 Thread(s)
Quoted: 1519 Post(s)
Liked 887 Times in 588 Posts
Creative, but could not cut up my folding sawhorses
__________________
Life is too short not to ride the best bike you have, as much as you can
(looking for Torpado Super light 56,57 or so)

squirtdad is offline
Old 08-07-21, 09:10 PM
  #3
_ForceD_
Senior Member

_ForceD_'s Avatar

Join Date: Jul 2015
Location: Rhode Island
Posts: 1,640

Bikes: Several...from old junk to new all-carbon.

Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 701 Post(s)
Liked 337 Times in 174 Posts
That’s pretty creative. But really…after everything it takes to build it…it seems like buying the Park stand would be easier.

Dan
_ForceD_ is offline
Old 08-07-21, 09:26 PM
  #4
EaOutlaw1969
Member
Thread Starter

Join Date: May 2019
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Originally Posted by squirtdad View Post
Creative, but could not cut up my folding sawhorses
Do not worry no actual in good shape saw horses were harmed in this documentary.
EaOutlaw1969 is offline
Old 08-07-21, 09:41 PM
  #5
EaOutlaw1969
Member
Thread Starter

Join Date: May 2019
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Originally Posted by _ForceD_ View Post
That’s pretty creative. But really…after everything it takes to build it…it seems like buying the Park stand would be easier.

Dan
You are right with the time it took and the cash I have spent so far I could have purchased the just bought the least expensive Park Stand Well I could have purchased it yet I would still be waiting on it to arrive.
I have two tadpole trikes Both TerraTrikes one Rogue and the other is a GTS plus I have a Delta trike they all need to have their wheels trued and have the tires seated properly So I do not mind doing what I can during rainy days we have been having.
But since you are buying I need https://www.amazon.com/Park-Tool-TS-...g-goods&sr=1-1
And I could use https://www.parktool.com/product/centering-gauge-1554-1
Thanks for the donation. Be sure to send the wheels you need built or trued and I will take care of that in appreciation.
EaOutlaw1969 is offline
Old 08-08-21, 08:46 AM
  #6
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,836

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 321 Post(s)
Liked 193 Times in 145 Posts
I like it, reminds me of the pleasure I get from the learning, innovation, satisfaction I get and re-purposing scrap. Being a tinkerer myself I built my stand with what is basically given in Roger Musson's excellent book, Professional Guide to Wheel Building. I have modified it a few times and dial indicators are next but would have to completely rebuild or have a second stand for e-bike or fat tires.
easyupbug is offline
Old 08-08-21, 04:44 PM
  #7
EaOutlaw1969
Member
Thread Starter

Join Date: May 2019
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Originally Posted by easyupbug View Post
I like it, reminds me of the pleasure I get from the learning, innovation, satisfaction I get and re-purposing scrap. Being a tinkerer myself I built my stand with what is basically given in Roger Musson's excellent book, Professional Guide to Wheel Building. I have modified it a few times and dial indicators are next but would have to completely rebuild or have a second stand for e-bike or fat tires.
I figured by building the stand the way I am it will allow me to adjust it for any size tire and wheel combination without replacing any parts.
EaOutlaw1969 is offline
Old 08-08-21, 05:27 PM
  #8
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,836

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 321 Post(s)
Liked 193 Times in 145 Posts
Originally Posted by EaOutlaw1969 View Post
I figured by building the stand the way I am it will allow me to adjust it for any size tire and wheel combination without replacing any parts.
Exactly, fit for purpose.
easyupbug is offline
Old 08-08-21, 07:47 PM
  #9
SoSmellyAir
Method to My Madness

Join Date: Nov 2020
Location: Orange County, California
Posts: 1,008

Bikes: Cannondale Synapse, Trek FX 2

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 458 Post(s)
Liked 266 Times in 202 Posts
Originally Posted by EaOutlaw1969 View Post
I have two tadpole trikes Both TerraTrikes one Rogue and the other is a GTS plus I have a Delta trike they all need to have their wheels trued and have the tires seated properly
On a related note, now that I think back, all of my son's bikes before his current (but outgrown) Cannondale Quick 24" have wheels which are noticeably out of true. All of them are slightly out of round (i.e., non-constant radius) and a few further have noticeable left and right oscillations.
SoSmellyAir is offline
Old 08-09-21, 06:22 PM
  #10
EaOutlaw1969
Member
Thread Starter

Join Date: May 2019
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 5 Posts





EaOutlaw1969 is offline
Old 08-09-21, 06:33 PM
  #11
EaOutlaw1969
Member
Thread Starter

Join Date: May 2019
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 5 Posts

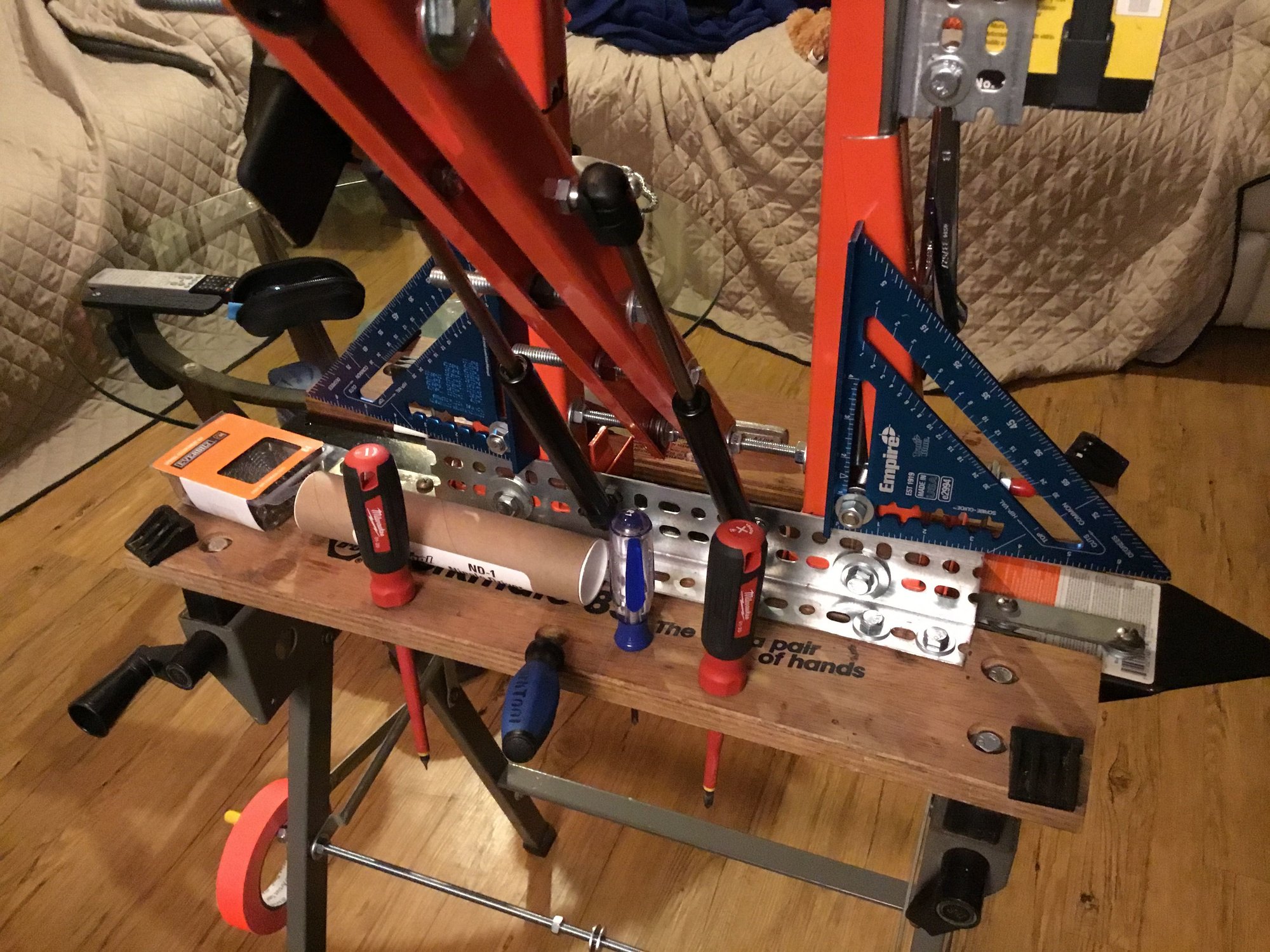

The Bike tool station- truing stand has got more love more to updates coming. I will be also adding storage provisions for all my bike tools and small spare parts. aside from what I keep on my trike I may end up adding locking swivel casters that came off of my snap on tool cart. I did manage to get my Nuvinci N380 hub laced in to my TerraTrike 26" wheel. I am not crazy about he 2 cross pattern I was limited to. I hope it holds up to my abuse. I plan on going to HD and getting new twin Tape measurers, and twin plastic Combo speed square, angle finder. I will get this stand zeroed out then work out away to make adjusting the stand less labor intensive.
EaOutlaw1969 is offline
Old 08-09-21, 07:56 PM
  #12
WizardOfBoz
Generally bewildered

WizardOfBoz's Avatar

Join Date: Aug 2015
Location: Eastern PA, USA
Posts: 2,872

Bikes: 2014 Trek Domane 6.9, 1999 LeMond Zurich, 1978 Schwinn Superior

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 1069 Post(s)
Liked 266 Times in 201 Posts
I iike it a lot, and I have a Park stand. Mine works great, but yours is .... cool.
WizardOfBoz is offline
Old 08-10-21, 04:09 PM
  #13
EaOutlaw1969
Member
Thread Starter

Join Date: May 2019
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 5 Posts
Originally Posted by WizardOfBoz View Post
I iike it a lot, and I have a Park stand. Mine works great, but yours is .... cool.
Thanks
EaOutlaw1969 is offline
Old 08-10-21, 04:14 PM
  #14
EaOutlaw1969
Member
Thread Starter

Join Date: May 2019
Posts: 29
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Likes: 0
Liked 7 Times in 5 Posts

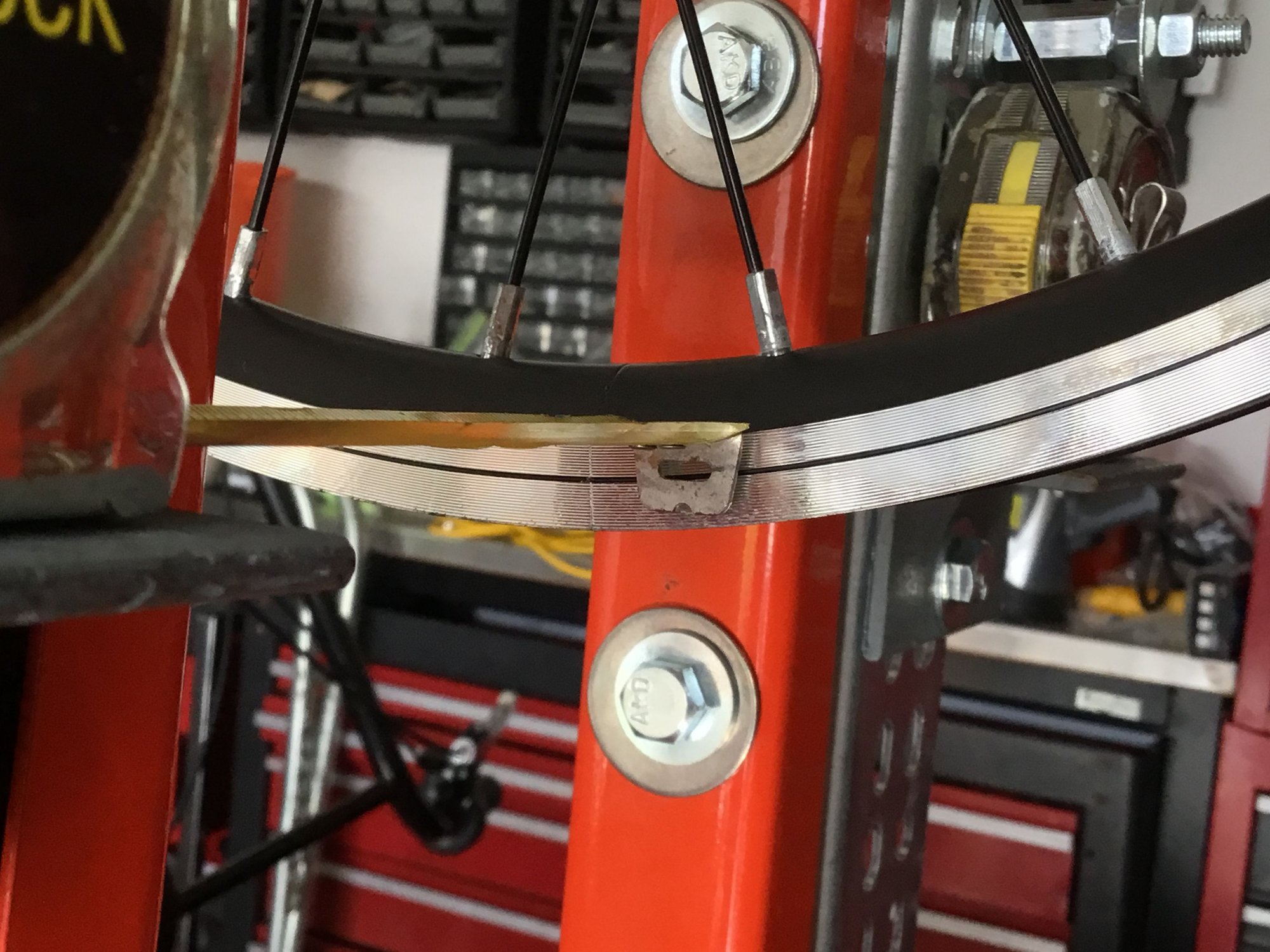

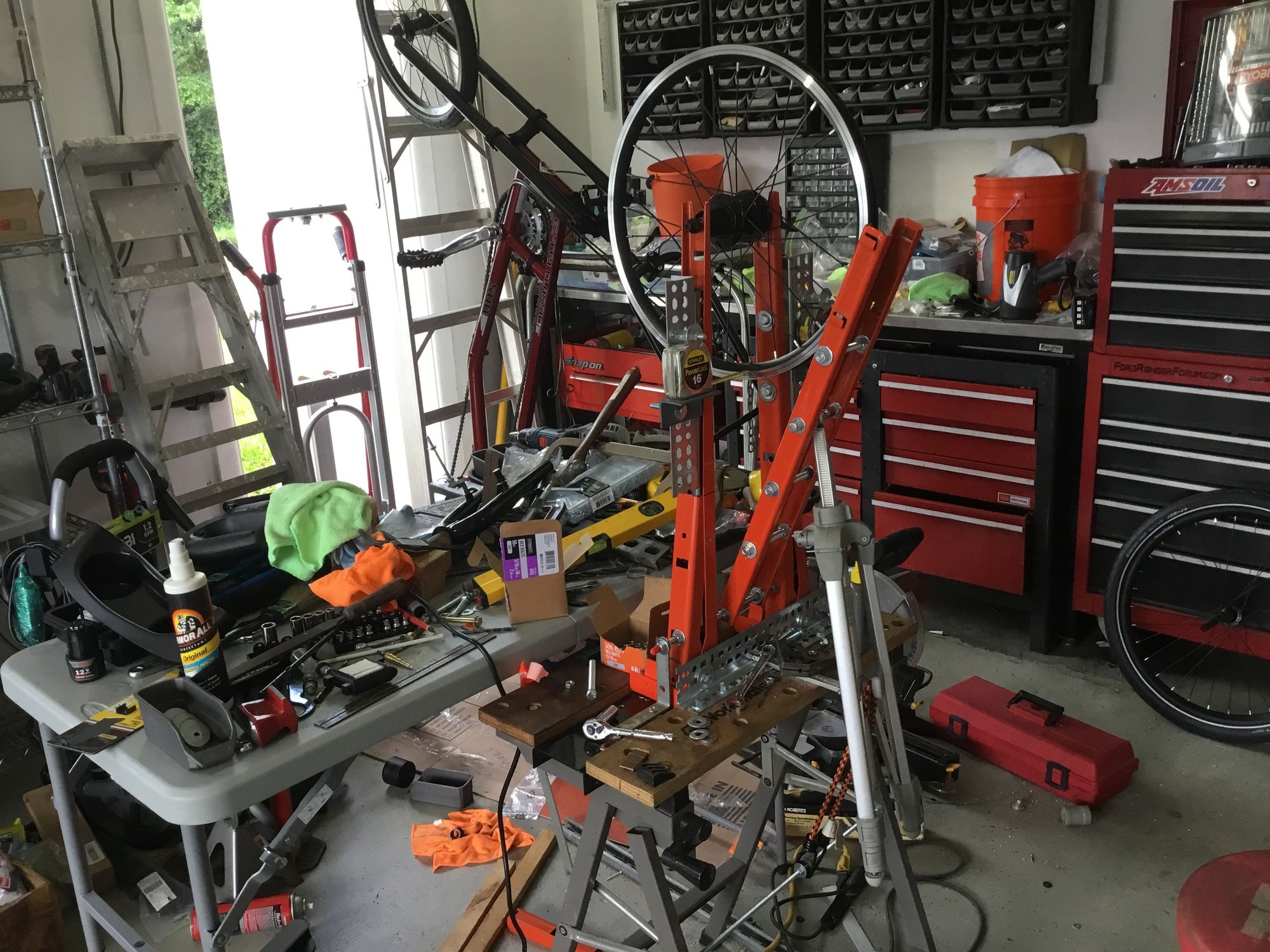

Some more upgrades to the stand more to come I did some work to the wheel, lubed the spokes, nipples and tensioned the spokes where the wheel is reasonably ( Retail ready} yet not true enough to pass a dial indicator test.
