set screw stuck

Search
Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

set screw stuck

Thread Tools

Search this Thread

Old 11-22-21 | 05:24 PM
  #1
Thread Starter
Senior Member

Joined: Oct 2008
Posts: 65
Likes: 5
From: SF Bay Area

Bikes: dahon - S7

set screw stuck

I'm trying to change out stock handle bars on my dahon D7. The GripShift handle appears to need be unloosened with a set screw. Needs a 2.5 size hex driver. I'm traveling and away from decent tools so I bought foldout set of Husky hex wrenched and I've tried to twist it and the walls of the set screw socket head are not holding up. I've had decent luck on mildly worn socket heads using a high quality hex driver but I don't have access to one. Any ideas how I can extract this screw?

- maybe use the flame from a cigarette lighter to heat the screw and hopefully not melt the plastic?
- drill it out?

regfman is offline
Reply
Old 11-22-21 | 05:57 PM
  #2
cxwrench's Avatar
Senior Member

Joined: Jul 2013
Posts: 3,767
Likes: 2,940
From: Nor-Cal

Bikes: lots

How on earth are you going to heat the screw but not melt the plastic? That's one of the more ridiculous things I've read on BF. You might be able to drill it out. Take it to a good bike shop and pay them to do it.
cxwrench is offline
Reply
Old 11-22-21 | 05:59 PM
  #3
TPL
Senior Member

Joined: Jul 2017
Posts: 248
Likes: 90
Screw extractor ....a small one
TPL is offline
Reply
Old 11-22-21 | 09:00 PM
  #4
frogman's Avatar
Senior Member
15 Anniversary

Joined: Sep 2006
Posts: 917
Likes: 250
From: Napa Valley, CA

Bikes: Wife says I have too many :-)

I second the screw extractor.
frogman is offline
Reply
Old 11-22-21 | 09:10 PM
  #5
frogman's Avatar
Senior Member
15 Anniversary

Joined: Sep 2006
Posts: 917
Likes: 250
From: Napa Valley, CA

Bikes: Wife says I have too many :-)

Originally Posted by cxwrench
How on earth are you going to heat the screw but not melt the plastic? That's one of the more ridiculous things I've read on BF. You might be able to drill it out. Take it to a good bike shop and pay them to do it.


Please try to limit yourself to just offering constructive comments with out the sarcastic digs..................................
frogman is offline
Reply
Old 11-22-21 | 09:33 PM
  #6
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,350
Likes: 5,262
From: Appleton WI

Bikes: Several, mostly not name brands.

Epoxy a sacrificial Allen key to the bolt and use it to remove the bolt.
JohnDThompson is offline
Reply
Old 11-22-21 | 10:16 PM
  #7
cxwrench's Avatar
Senior Member

Joined: Jul 2013
Posts: 3,767
Likes: 2,940
From: Nor-Cal

Bikes: lots

Originally Posted by frogman
Please try to limit yourself to just offering constructive comments with out the sarcastic digs..................................
I did, I guess you missed that part.
cxwrench is offline
Reply
Old 11-22-21 | 10:27 PM
  #8
Senior Member
10 Anniversary

Joined: Nov 2013
Posts: 1,163
Likes: 318
Maybe a needle nose vise grip.
Bmach is offline
Reply
Old 11-22-21 | 10:30 PM
  #9
frogman's Avatar
Senior Member
15 Anniversary

Joined: Sep 2006
Posts: 917
Likes: 250
From: Napa Valley, CA

Bikes: Wife says I have too many :-)

I didn't miss your constructive comment. Very nice.
Did you miiss the part where I asked if you could omit the sarcastic digs ?
frogman is offline
Reply
Old 11-22-21 | 10:39 PM
  #10
Junior Member
10 Anniversary

Joined: Nov 2014
Posts: 141
Likes: 66
From: Arlington, TN

Bikes: 2005 Giant OCRc2, 2016 GT Aggressor Expert

Hammer in a torx bit and use it to twist out the bolt.
masonv45 is offline
Reply
Old 11-23-21 | 04:49 PM
  #11
dedhed's Avatar
SE Wis
20 Anniversary

Joined: Apr 2005
Posts: 11,549
Likes: 4,329
From: Milwaukee, WI

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Originally Posted by masonv45
Hammer in a torx bit and use it to twist out the bolt.
This is the "go to" before drilling anything
dedhed is offline
Reply
Old 11-23-21 | 06:14 PM
  #12
Senior Member
15 Anniversary

Joined: Feb 2007
Posts: 1,834
Likes: 548
First don't ever leave home without proper tools. I only use whia or same quality hex tools. If the torx and epoxy method fail then drilling may be necessary. Carefully drilling so the hex head falls off then center popping The remaining part of the screw and using a left hand drill may work. Finding proper tools on the road is not likely.
Rick is offline
Reply
Old 11-24-21 | 04:37 PM
  #13
Thread Starter
Senior Member

Joined: Oct 2008
Posts: 65
Likes: 5
From: SF Bay Area

Bikes: dahon - S7

Followup: Yeah, the heating idea is stupid. I admit it, and I didn't do that.
I'm in the process of setting up a second residence and I have a few extra bikes so I shipped them out for me and my wife. I shipped a couple of the redundant general tools I have but I didn't ship my decent Wiha wrenches that probably wouldn't have had a problem with this. I like the idea about using a torx driver but I didn't have one of those with me either.

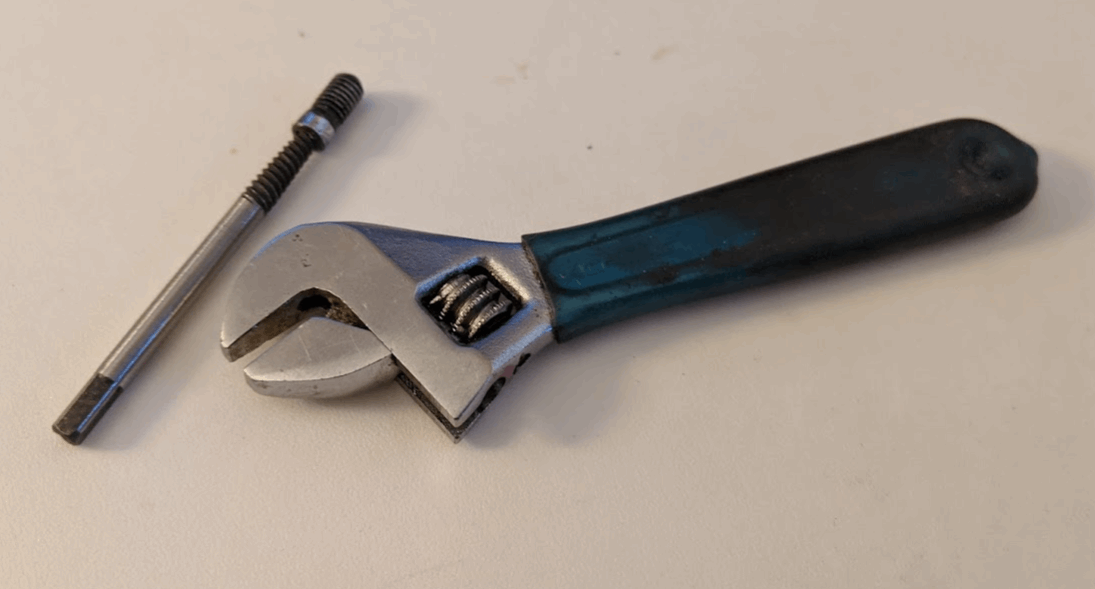

I took the suggestion to buy a screw extractor bit for $2.89 and I did have a small adjustable wrench to grab it and turn it -- and that worked great. I heard the loctite make that satisfying snap sound and the screw just backed out.

Unfortunately I don't yet have a way to get that screw extractor to release from the screw ....... so I took another trip to the hardware and bought an M5 set screw and the job is done.

Last edited by regfman; 11-24-21 at 04:41 PM.
regfman is offline
Reply
Old 11-24-21 | 08:14 PM
  #14
sweeks's Avatar
Senior Member
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 3,293
Likes: 1,040
From: Chicago area

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Originally Posted by regfman
Unfortunately I don't yet have a way to get that screw extractor to release from the screw
Clamp the screw extractor in a vise, then use a pair of pliers to grab the screw and turn it clock-wise. But don't re-use the screw.
sweeks is offline
Reply
Old 11-24-21 | 08:17 PM
  #15
sweeks's Avatar
Senior Member
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 3,293
Likes: 1,040
From: Chicago area

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Originally Posted by JohnDThompson
Epoxy a sacrificial Allen key to the bolt and use it to remove the bolt.
Do you really have to actually *sacrifice* the Allen key? Once the screw is out, it should be fairly easy to knock the screw off. The epoxy should chip off; if not, a file would do it.
sweeks is offline
Reply
Old 11-25-21 | 07:55 AM
  #16
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,350
Likes: 5,262
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by sweeks
Do you really have to actually *sacrifice* the Allen key? Once the screw is out, it should be fairly easy to knock the screw off. The epoxy should chip off; if not, a file would do it.
Sure. I'd still use a cheap Allen key rather than, say, a Snap-On.
JohnDThompson is offline
Reply
Old 11-25-21 | 09:49 AM
  #17
sweeks's Avatar
Senior Member
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 3,293
Likes: 1,040
From: Chicago area

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Originally Posted by JohnDThompson
Sure. I'd still use a cheap Allen key rather than, say, a Snap-On.
Completely agree!
sweeks is offline
Reply
Old 11-26-21 | 09:42 AM
  #18
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Mar 2016
Posts: 1,044
Likes: 260
From: North of Boston

Bikes: 2003 Lemond Alpe D' Huez... plus a " few" more :)

Glad it all worked out for you.

The method is similar to an " easy out" tool from a stripped screw.

This forum is the BEST of all time !!!!
bikemike73 is offline
