Do foam inserts for tires work?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Do foam inserts for tires work?

Old 04-22-22, 05:02 AM
  #1
rbrides
Curmudgeon
Thread Starter

rbrides's Avatar

Join Date: Nov 2018
Location: Triangle NC
Posts: 245

Bikes: Specialized Diverge Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 17 Times in 14 Posts
Do foam inserts for tires work?

Four day bikepacking trip coming up and Iím considering trying foam inserts in my wheels. What experience do you all have with these and what are the pros/cons? Iíve bikepacked several trips before and ridden 1000s of miles tubeless.
rbrides is offline
Old 04-22-22, 06:13 AM
  #2
sloppy12
Senior Member

Join Date: Oct 2020
Posts: 480
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 166 Post(s)
Liked 248 Times in 146 Posts
Yes they work. they generally are a huge PITA to install. Unless you are going to run stupid low pressure or are bombing rock gardens on a bike packing trip I dont feel like they are needed.
sloppy12 is offline
Likes For sloppy12:
Old 04-22-22, 06:20 AM
  #3
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 12,316
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2385 Post(s)
Liked 713 Times in 597 Posts
Originally Posted by rbrides View Post
Four day bikepacking trip coming up and Iím considering trying foam inserts in my wheels. What experience do you all have with these and what are the pros/cons? Iíve bikepacked several trips before and ridden 1000s of miles tubeless.
are there specific issues you've had in the past that would have you consider foam inserts?
djb is offline
Likes For djb:
Old 04-22-22, 07:41 AM
  #4
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
I do not use them, but have friends that do.

They do what they are supposed to do: protect the rims while running pressures low enough for rim strikes.

If you are not currently getting rim strikes, and you are not looking to drop your pressure, they donít serve a lot of purpose IMO.
Kapusta is offline
Likes For Kapusta:
Old 04-22-22, 07:48 AM
  #5
rbrides
Curmudgeon
Thread Starter

rbrides's Avatar

Join Date: Nov 2018
Location: Triangle NC
Posts: 245

Bikes: Specialized Diverge Comp

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 103 Post(s)
Liked 17 Times in 14 Posts
Originally Posted by djb View Post
are there specific issues you've had in the past that would have you consider foam inserts?
I'm thinking prevention rather than curing a problem I've experienced. My BP trip will be remote and has no resupply stops so i'll have extra pounds on the bike.
rbrides is offline
Old 04-22-22, 08:46 AM
  #6
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,333

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 137 Post(s)
Tagged: 1 Thread(s)
Quoted: 4906 Post(s)
Liked 2,493 Times in 1,475 Posts
Originally Posted by Kapusta View Post
They do what they are supposed to do: protect the rims while running pressures low enough for rim strikes.
Tubeless is supposed to be the ďcureĒ for pinch flats. But pinch flats are physicsí way of telling you that your tire pressure is too low. Rim strikes are just a far more expensive version of physics talking you that you donít have enough air in the tires. Would the ride qualities really suffer from putting just a few more psi of air in the tires?
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Likes For cyccommute:
Old 04-22-22, 09:12 AM
  #7
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
Originally Posted by cyccommute View Post
Tubeless is supposed to be the “cure” for pinch flats. But pinch flats are physics’ way of telling you that your tire pressure is too low. Rim strikes are just a far more expensive version of physics talking you that you don’t have enough air in the tires. Would the ride qualities really suffer from putting just a few more psi of air in the tires?
In some cases and applications.... yes.

Also what you are saying about pinch flats and rims strikes is not the whole story. There is a window between what will give you a pinch flat and what will actually dent a rim. With tubeless I can run my pressure a few pound lower than gives me pinch flats without denting my rims. Been doing so for many years. With tubes, and a ~2.3" rear tire, 28 is as low as I could go in the rear before getting pinch flats. With tubeless I was down around 25 and never dented the rim. Front was not relevant for me, as pinch flats were never really the limiting factor for how low I could go (stability was).

Inserts let you go a lot lower without denting a rim. Whether that is worth the extra weight depends on what the application is. Bikepacking is probably not an application that warrants inserts.

EDIT: I guess I should have differentiated between rim strikes and rim damage. The point of foam inserts is to allow pressures that would otherwise risk damaging the rims.

Last edited by Kapusta; 04-22-22 at 01:35 PM.
Kapusta is offline
Likes For Kapusta:
Old 04-22-22, 09:20 AM
  #8
Polaris OBark
Dirt Roadie

Polaris OBark's Avatar

Join Date: Jan 2022
Posts: 1,187
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 631 Post(s)
Liked 791 Times in 477 Posts
I struggled for quite some time to get my wife's tire to mount with a Vittoria gravel tire insert. I failed. Two bike shops failed. I pulled out the insert and the tire set up nearly instantly.

I also found (on my own bike) that my traction in dirt/gravel actually improved a bit when I inflated the tires more. The irony with supple tires is that they require a greater air pressure.
Polaris OBark is offline
Likes For Polaris OBark:
Old 04-22-22, 02:35 PM
  #9
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,333

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 137 Post(s)
Tagged: 1 Thread(s)
Quoted: 4906 Post(s)
Liked 2,493 Times in 1,475 Posts
Originally Posted by Kapusta View Post
In some cases and applications.... yes.
Iíve been mountain biking since 1984. Iíve never found a situation where I need my tires to be flat to ride.

Also what you are saying about pinch flats and rims strikes is not the whole story. There is a window between what will give you a pinch flat and what will actually dent a rim.
If there is a window it is a very, very, very narrow one. I never pinch flat. I also never dent rims except for a single incidence where I missed hopping a curb correctly. I have seen a whole lot of tubeless rims that look like someone took a hammer to them.





I donít recall what the rim was but thatís a Hadley hubÖ$400+Ö, probably a $90 rim, spokes, and labor for build. Itís close to a $600 mistake. (And the owner was an idiot since that wheel is worth a relatively cheap rim replacement.) A bit more air in the tire would have saved a whole lot of money.

With tubeless I can run my pressure a few pound lower than gives me pinch flats without denting my rims. Been doing so for many years. With tubes, and a ~2.3" rear tire, 28 is as low as I could go in the rear before getting pinch flats. With tubeless I was down around 25 and never dented the rim. Front was not relevant for me, as pinch flats were never really the limiting factor for how low I could go (stability was).
Really?! 3 whole psi! Thatís astounding!

Sarcasm aside, thatís the very narrow ďwindowĒ Iím talking about.

Inserts let you go a lot lower without denting a rim. Whether that is worth the extra weight depends on what the application is. Bikepacking is probably not an application that warrants inserts.

EDIT: I guess I should have differentiated between rim strikes and rim damage. The point of foam inserts is to allow pressures that would otherwise risk damaging the rims.
Air also allows you to avoid damaging a rim. Itís cheaper and lighter. Bikepacking puts extra weight on the bike which kind of negates any benefit you might get from running lower tire pressure anyway.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 04-22-22, 02:40 PM
  #10
cxwrench
Senior Member

cxwrench's Avatar

Join Date: Jul 2013
Location: Nor-Cal
Posts: 3,262

Bikes: lots

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 1631 Post(s)
Liked 2,391 Times in 1,237 Posts
Stewart I'm failing to see how destroying a $90.00 rim is a $600.00 mistake?
cxwrench is offline
Likes For cxwrench:
Old 04-22-22, 03:42 PM
  #11
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
Originally Posted by cxwrench View Post
Stewart I'm failing to see how destroying a $90.00 rim is a $600.00 mistake?
I am failing to understand the point of almost anything he writes.

EDIT: removed some unnecessary snark that I repeat in another post.

Last edited by Kapusta; 04-22-22 at 06:28 PM.
Kapusta is offline
Old 04-22-22, 04:33 PM
  #12
Sy Reene
Advocatus Diaboli

Sy Reene's Avatar

Join Date: Feb 2015
Location: Wherever I am
Posts: 7,903

Bikes: Merlin Cyrene, Nashbar steel CX

Mentioned: 12 Post(s)
Tagged: 1 Thread(s)
Quoted: 4248 Post(s)
Liked 1,220 Times in 802 Posts
Originally Posted by rbrides View Post
Four day bikepacking trip coming up and Iím considering trying foam inserts in my wheels. What experience do you all have with these and what are the pros/cons? Iíve bikepacked several trips before and ridden 1000s of miles tubeless.
What potential problem are you trying to solve for? As I understand it, these inserts are to get you an extra dozen or so miles. If you have a problem on day 1, I wouldn't count on living with just the insert for the next 3 days.
Sy Reene is offline
Likes For Sy Reene:
Old 04-22-22, 04:43 PM
  #13
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
Originally Posted by Sy Reene View Post
What potential problem are you trying to solve for? As I understand it, these inserts are to get you an extra dozen or so miles. If you have a problem on day 1, I wouldn't count on living with just the insert for the next 3 days.
Your question is a good one: what problem is trying to be solved here that warrants the extra hassle and weight?

While inserts can give you some extra pedal time if you flat, that is not the main reason for them. The main reason for them is to allow you to run lower pressures without damaging the rim. They also give some extra sidewall support at the lower pressures.
Kapusta is offline
Old 04-22-22, 04:58 PM
  #14
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
Originally Posted by cyccommute View Post
I’ve been mountain biking since 1984. I’ve never found a situation where I need my tires to be flat to ride..
Who said anything about riding around on flat tires? Straw man argument there.

If that was just you being dramatic, then remember that not all situations in mountain biking involve you. There are tens of thousands of other MTBers with their own situations, some very different from yours.

Originally Posted by cyccommute View Post
I don’t recall what the rim was but that’s a Hadley hub…$400+…, probably a $90 rim, spokes, and labor for build. It’s close to a $600 mistake. (And the owner was an idiot since that wheel is worth a relatively cheap rim replacement.) A bit more air in the tire would have saved a whole lot of money.
The point of this is what exactly? People have been trashing rims since long before tubeless. Run the pressure too low for your tire/wheel setup, your terrain, and your riding style and you can trash a rim. Tubeless just lowers that pressure threshold.

Originally Posted by cyccommute View Post
Really?! 3 whole psi! That’s astounding!
an 11-12% drop in pressure is a noticeable difference in performance. Most MTBers would notice it back to back.. And that is just how far I dropped it to get it where I wanted it. Lower than that and I was giving up too much stability for my tastes. Other people drop it even more when going tubeless.
Kapusta is offline
Old 04-22-22, 08:27 PM
  #15
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,099

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Liked 348 Times in 254 Posts
Isn't another reason to use these inserts to make the tires more resistant to flats? A centimeter of foam between the inside of the tire and the inner tube could be significant.
The Schwalbe "Marathon Plus" has a sort of foam insert under the tread, not as thick, but in my experience has been almost 100% effective in preventing flats on my commuter bike.

Cross-section of a Marathon Plus at "autopsy" after a significant failure. This tire had about 3,000 flat-free miles on it.
sweeks is offline
Likes For sweeks:
Old 04-22-22, 08:42 PM
  #16
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
Originally Posted by sweeks View Post
Isn't another reason to use these inserts to make the tires more resistant to flats? A centimeter of foam between the inside of the tire and the inner tube could be significant.
The Schwalbe "Marathon Plus" has a sort of foam insert under the tread, not as thick, but in my experience has been almost 100% effective in preventing flats on my commuter bike.

Cross-section of a Marathon Plus at "autopsy" after a significant failure. This tire had about 3,000 flat-free miles on it.
Iím pretty sure the inserts the OP is referring to are the ones that install against the rim.

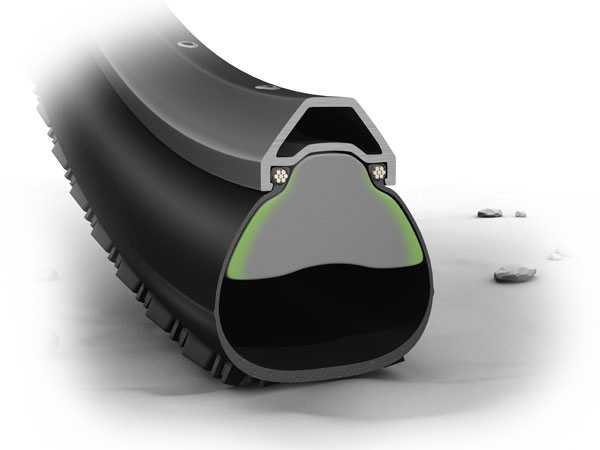

From the Cush Core site:



Kapusta is offline
Likes For Kapusta:
Old 04-22-22, 08:57 PM
  #17
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,099

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Liked 348 Times in 254 Posts
Originally Posted by Kapusta View Post
Iím pretty sure the inserts the OP is referring to are the ones that install against the rim.
Thanks for that. I had not seen that type of liner. I was thinking of this one, which seems to me more designed to prevent flats, though they are claimed to prevent rim damage and allow a certain amount of "running while flat".

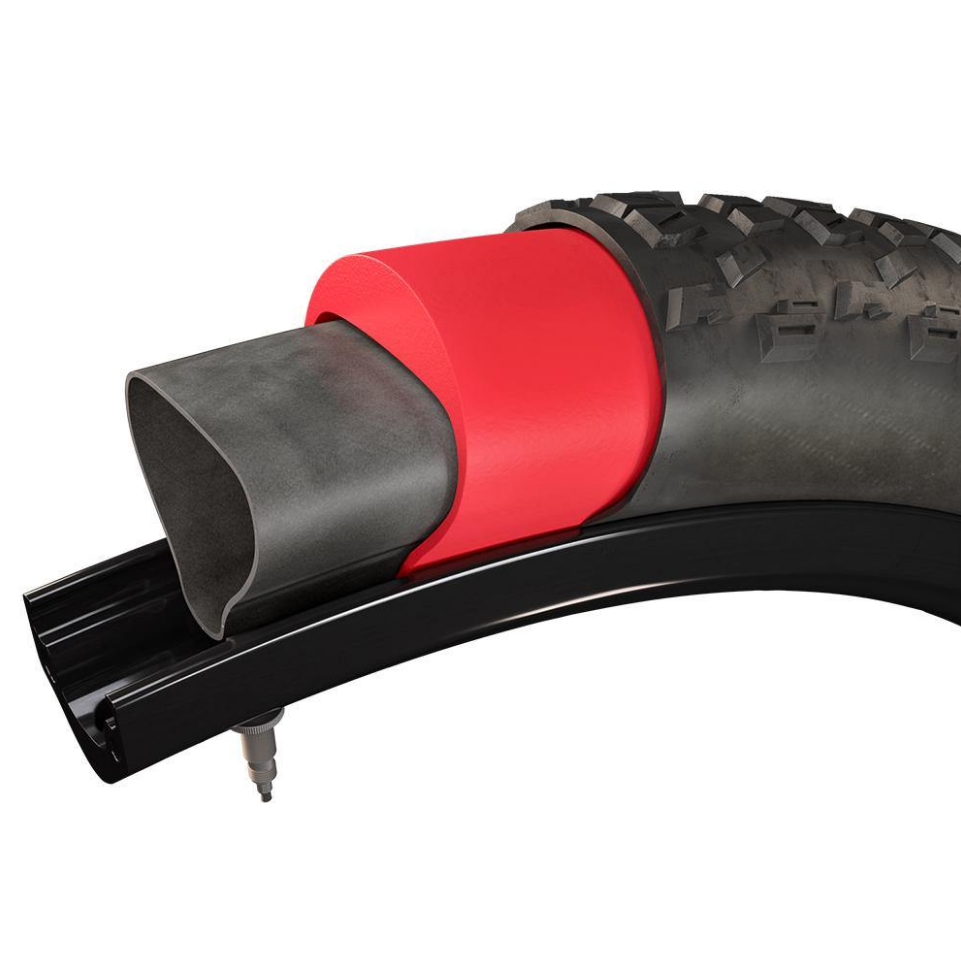

Tannus tire liner.
sweeks is offline
Old 04-22-22, 09:20 PM
  #18
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
Originally Posted by sweeks View Post
Thanks for that. I had not seen that type of liner. I was thinking of this one, which seems to me more designed to prevent flats, though they are claimed to prevent rim damage and allow a certain amount of "running while flat".

Tannus tire liner.
Huh. Maybe he was talking about that.
Kapusta is offline
Old 04-23-22, 07:49 AM
  #19
djb
Senior Member

Join Date: Jul 2010
Location: Montreal Canada
Posts: 12,316
Mentioned: 32 Post(s)
Tagged: 0 Thread(s)
Quoted: 2385 Post(s)
Liked 713 Times in 597 Posts
Originally Posted by rbrides View Post
I'm thinking prevention rather than curing a problem I've experienced. My BP trip will be remote and has no resupply stops so i'll have extra pounds on the bike.
In that case, to me tire choice is more important, ie not a tire with a thin sidewall if you know you could be in sharp rock stuffAlong with prudent tire pressures for the weight of you and your bike vs terrainAlong with prudent riding over stuff, a few seconds more or a minute or whatever walking a bike over bad stuff worth it depending on remoteness etc etc
in other words, using proper judgement and tire choice
djb is offline
Old 04-23-22, 07:54 AM
  #20
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,333

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 137 Post(s)
Tagged: 1 Thread(s)
Quoted: 4906 Post(s)
Liked 2,493 Times in 1,475 Posts
Originally Posted by Kapusta View Post
I am failing to understand the point of almost anything he writes.

EDIT: removed some unnecessary snark that I repeat in another post.
Itís a $600 mistake because the guy donatedÖi.e. ďgave awayĒ, aka ďgot rid ofĒÖthe wheel. Thatís $600 out of his pocket because he was an idiot.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 04-23-22, 08:07 AM
  #21
cyccommute
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 25,333

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 137 Post(s)
Tagged: 1 Thread(s)
Quoted: 4906 Post(s)
Liked 2,493 Times in 1,475 Posts
Originally Posted by Kapusta View Post
Who said anything about riding around on flat tires? Straw man argument there.
If you can compress the tire to the point where the rim hits the ground and damages the rim, the tire is flat.


The point of this is what exactly? People have been trashing rims since long before tubeless. Run the pressure too low for your tire/wheel setup, your terrain, and your riding style and you can trash a rim. Tubeless just lowers that pressure threshold.
While people have damaged rims in the past, tubeless and running low pressures have increased the number of rims that are damaged. And my point is exactly what you said. Ruining a wheel isnít a cheap mistake. Adding a bit more air is cheap insurance. Tubeless doesnít lower the pressure threshold, it just masks the clue that you might have a problem. Pinch flats tell the rider to increase the pressure a bit. With tubeless, the indicator is a dented rim. Very large difference in cost.
__________________
Stuart Black
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!
Days of Wineless Roads. Bed and Breakfasting along the KATY
Twisting Down the Alley. Misadventures in tornado alley.
cyccommute is offline
Old 04-23-22, 08:19 AM
  #22
Crankycrank
Senior Member

Join Date: Jan 2009
Location: San Diego, CA
Posts: 3,026
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 640 Post(s)
Liked 607 Times in 461 Posts
Originally Posted by Sy Reene View Post
What potential problem are you trying to solve for? As I understand it, these inserts are to get you an extra dozen or so miles. If you have a problem on day 1, I wouldn't count on living with just the insert for the next 3 days.
+1 and I'll ask again. rbrides, what are you trying to achieve? Fewer puncture flats or protection from pinch flats or both? We're all just guessing at this point and could answer your question better knowing what you're looking for. Also, check reviews on Amazon, web bike sellers, etc., of some of the inserts available. After reading many of these I decided none were for me as they all seemed to have some drawbacks that would have been made them worse than just getting a stiffer sidewalled and more puncture resistant tread tire even if it was on the heavier, slower rolling side but still rode better than any tire with inserts.
Crankycrank is offline
Likes For Crankycrank:
Old 04-23-22, 08:42 AM
  #23
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
Originally Posted by cyccommute View Post
Itís a $600 mistake because the guy donatedÖi.e. ďgave awayĒ, aka ďgot rid ofĒÖthe wheel. Thatís $600 out of his pocket because he was an idiot.
No argument there
Kapusta is offline
Likes For Kapusta:
Old 04-23-22, 08:45 AM
  #24
sweeks
Senior Member

sweeks's Avatar

Join Date: Sep 2004
Location: Chicago area
Posts: 2,099

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 809 Post(s)
Liked 348 Times in 254 Posts
In the spirit of "flat prevention", which I think may have been the OP's motivation for asking about tire inserts, I have a possibly interesting case report.
In Post #15 I mentioned a "significant failure" of a Schwalbe "Marathon Plus" tire. About 2 weeks prior, I had the first flat ever on one of these tires, which had been in service on Chicago streets for at least 3,000 miles. I found a solitary puncture that breached the blue gel layer and the kevlar carcass. I placed a new tube and a Mr. Tuffy tire liner, which I thought was a bit of over-kill, but not unreasonable since this is my commuter bike. About 2 weeks later, I noticed a "thumping" feeling while riding or walking the bike. I traced this to a swelling on the tread of the rear wheel. I reduced the tire pressure somewhat to get home, and changed the tire.
The bulge seemed to be in the same area as the prior penetration, which was still apparent (see image). However, on the inside of the tire there was much more extensive damage (see images). I am not sure how an object that made a simple puncture, albeit good sized, could rip the inside of the tire this way. At any rate, I think I was lucky to have the tire liner in place. I transferred it to the replacement Marathon Plus... again, probably over-kill.
Submitted for consideration!


This is a view of the bulge, seen on the way home after I lowered the pressure. The old puncture is visible.



Here's a side view of the tire bulge and the original perforation. It's interesting that the bulge is on the side, not in the center where the defect is.



Here is the hole left by the object, which I never found. It's a pretty good size, but otherwise nothing too extreme.



This is the inside of the tire. The damage extends a centimeter or so. See the next image...



Here's the damaged area everted slightly. If the tire liner had not been present, I think the tube might have herniated through this large of a hole.
sweeks is offline
Likes For sweeks:
Old 04-23-22, 08:51 AM
  #25
Kapusta
Advanced Slacker

Kapusta's Avatar

Join Date: Feb 2017
Posts: 5,595

Bikes: Soma Fog Cutter, Surly Wednesday, Turner 5-Spot, Canfielld Tilt

Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 2499 Post(s)
Liked 2,133 Times in 1,192 Posts
Originally Posted by cyccommute View Post
If you can compress the tire to the point where the rim hits the ground and damages the rim, the tire is flat.
The point of inserts is that they help PREVENT that damage so you are not riding on a flat tire.
Kapusta is offline
Likes For Kapusta:

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
