Threaded Headset Tool Options for 33mm/34mm Locknuts

Old 11-22-23, 02:58 PM
  #26
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 6,605
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 4139 Post(s)
Liked 1,327 Times in 866 Posts
Originally Posted by SurferRosa
And for $15 shipped, you can buy a brand new, proper headset in the Tange Passage. It looks great and has a low stack that will fit on almost anything.

​​​https://www.ebay.com/itm/223220754810

I installed one on this '80s Falcon a couple months ago.





​​​​​​You can build your own cup press tool with some big washers, nuts and a long threaded bolt. Some PVC pipe is all that's needed to set the crown race.
The all steel Passage has too low a bottom stack height, if you want to keep factory steering angles
Kontact is offline
Old 11-22-23, 03:09 PM
  #27
Senior Member
Thread Starter

Join Date: Jul 2020
Location: Calgary, AB Canada
Posts: 535

Bikes: Miyata 1000, Lemond Zurich, Lynskey Rouleur, Airborne Zeppelin, Vintage Zullo, Miele Lupa

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Liked 94 Times in 72 Posts
Originally Posted by SurferRosa
It looks great and has a low stack that will fit on almost anything.
Purdy. On the topic of your bikes, you may be able to assist me with something unrelated to headsets. I have a 70's Italian road bike that desperately wants shiny silver rims for the wheels. It's all warm colors. And finding an affordable, quality set of such rims has proven difficult. I've been considering the Mavic Open Elites. If I recall correctly, this is something that you've explored in the past. If so:

a) Did they build well?
b) Did the pinned jointing cause you any grief?
c) Are you happy with the aesthetic?

I wouldn't say no to a photo...
Harold74 is offline
Old 11-22-23, 03:18 PM
  #28
Senior Member
Thread Starter

Join Date: Jul 2020
Location: Calgary, AB Canada
Posts: 535

Bikes: Miyata 1000, Lemond Zurich, Lynskey Rouleur, Airborne Zeppelin, Vintage Zullo, Miele Lupa

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Liked 94 Times in 72 Posts
Arrowana , Kontact , maddog34 , 3alarmer, cyccommute

All of you mentioned the ChannelLock wrenches which I'm seriously considering in the 8", WideAZZ permutation.

Are you guys using the standard thickeness version or the narrow ones? I can get the standard for $30CAD this weekend. The narrow one will cost me $100CAD and take a few weeks.

I suspect that the standard thickness would do me but, at 5/32" thickness, the narrow one might be handy for lower locknuts as well as upper.

There shall be tape...

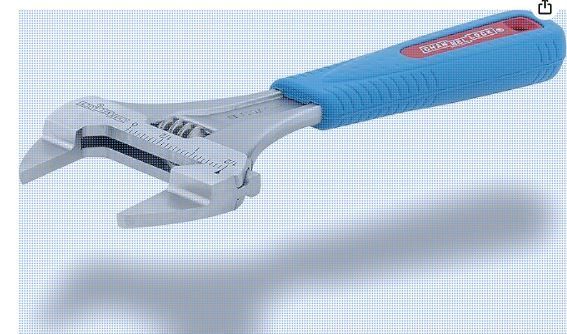

8", Wide-Ass, Slim Jaw
Harold74 is offline
Old 11-22-23, 03:24 PM
  #29
señor miembro

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 8,742

Bikes: '70s - '80s Campagnolo

Mentioned: 92 Post(s)
Tagged: 0 Thread(s)
Quoted: 3833 Post(s)
Liked 6,404 Times in 3,166 Posts
Originally Posted by Harold74
I've been considering the Mavic Open Elites. If I recall correctly, this is something that you've explored in the past.
You're probably referring to this thread:

Anyone build with Mavic Open Elite on his c&v?

But, no, I never went that route. I have bought two sets of rims in the past year, including for that Falcon. They were both Sun m13ii black presta 32h from Carson City. The Sun rims are a little lighter than the Open Elite, and I have lots of experience building them.

I trim and discard the ugly part of the rim label. My only real issue is I have to file down the seam on some of them with a Dremel to obtain that perfectly smooth braking surface.
SurferRosa is online now
Old 11-22-23, 03:57 PM
  #30
Mad bike riding scientist

cyccommute's Avatar

Join Date: Nov 2004
Location: Denver, CO
Posts: 27,214

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Mentioned: 148 Post(s)
Tagged: 1 Thread(s)
Quoted: 6116 Post(s)
Liked 4,036 Times in 2,293 Posts
Originally Posted by Harold74
Arrowana , Kontact , maddog34 , 3alarmer, cyccommute

All of you mentioned the ChannelLock wrenches which I'm seriously considering in the 8", WideAZZ permutation.

Are you guys using the standard thickeness version or the narrow ones? I can get the standard for $30CAD this weekend. The narrow one will cost me $100CAD and take a few weeks.

I suspect that the standard thickness would do me but, at 5/32" thickness, the narrow one might be handy for lower locknuts as well as upper.

There shall be tape...

8", Wide-Ass, Slim Jaw
I was mentioning Channellock pliers to hold the top race if necessary. You can use any tongue and groove pliers but you’ll need a big one…12” to 16” for the job. Be careful using them as they will cut into the metal of the headset no matter how carefully you apply them.

For the top nut, you can get the properly sized headset wrench or just use a 12” adjustable wrench. The WideAZZ really isn’t necessary nor that useful. It doesn’t fit much on bicycles and it is rather short for the leverage needed to turn a nut that large.
__________________
Stuart Black
Plan Epsilon Around Lake Michigan in the era of Covid
Old School…When It Wasn’t Ancient bikepacking
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!



cyccommute is offline
Old 11-22-23, 04:02 PM
  #31
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: Sacramento, CA
Posts: 22,786

Bikes: old ones

Mentioned: 304 Post(s)
Tagged: 0 Thread(s)
Quoted: 26083 Post(s)
Liked 10,002 Times in 6,948 Posts
Originally Posted by Harold74
Arrowana , Kontact , maddog34 , 3alarmer, cyccommute

All of you mentioned the ChannelLock wrenches which I'm seriously considering in the 8", WideAZZ permutation.

Are you guys using the standard thickeness version or the narrow ones? I can get the standard for $30CAD this weekend. The narrow one will cost me $100CAD and take a few weeks.

I suspect that the standard thickness would do me but, at 5/32" thickness, the narrow one might be handy for lower locknuts as well as upper.

There shall be tape...


8", Wide-Ass, Slim Jaw
...that's a new iteration, since I bought mine. It looks like it should work well, but I've only used a regular thickness, older style one, and on top nuts, not lowers. I have regular thin headset wrenches that fit all my lowers.
__________________
3alarmer is online now
Old 11-22-23, 04:17 PM
  #32
Friendship is Magic

3alarmer's Avatar

Join Date: Nov 2010
Location: Sacramento, CA
Posts: 22,786

Bikes: old ones

Mentioned: 304 Post(s)
Tagged: 0 Thread(s)
Quoted: 26083 Post(s)
Liked 10,002 Times in 6,948 Posts
Originally Posted by Harold74
I've been considering the Mavic Open Elites.

a) Did they build well?
b) Did the pinned jointing cause you any grief?
c) Are you happy with the aesthetic?

I wouldn't say no to a photo...
...I've used them on several wheelsets, because of the attractive price and the Mavic name. They worked fine for me, and I still ride all of them.

If you are careful with your initial tensioning, getting the rim well centered on the hub, the joint shouldn't cause an issue. It did not for me. I think these are cheaper because they are produced in eastern Europe somewhere.

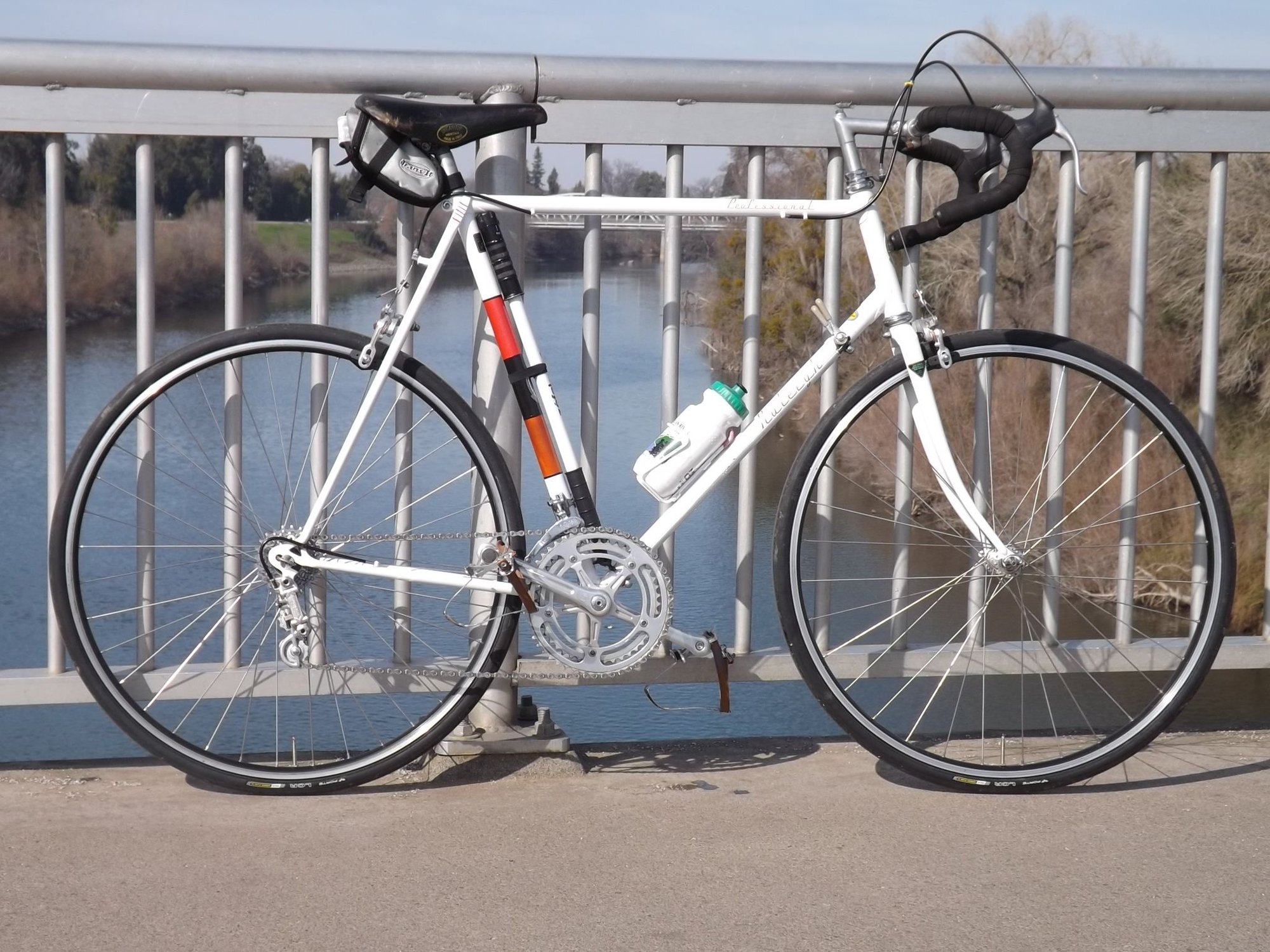

I think this is them on a Raleigh Professional I repainted:

__________________
3alarmer is online now
Old 11-23-23, 05:45 PM
  #33
Senior Member
Thread Starter

Join Date: Jul 2020
Location: Calgary, AB Canada
Posts: 535

Bikes: Miyata 1000, Lemond Zurich, Lynskey Rouleur, Airborne Zeppelin, Vintage Zullo, Miele Lupa

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 315 Post(s)
Liked 94 Times in 72 Posts

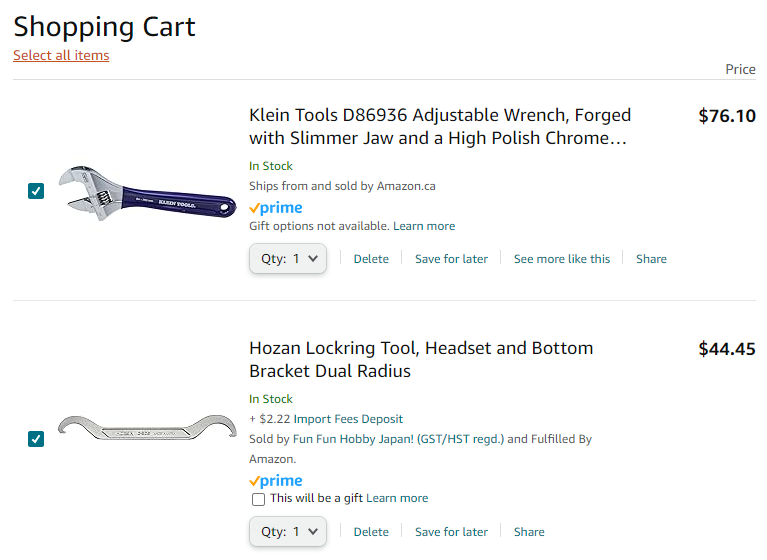

For the sake of closure, I've purchased the items shown below. The Klein comes in the same, thin jaw form as does the ChannelLock and I'm hoping is of comparable quality. It's $25 cheaper than the ChannelLock and will arrive tomorrow instead of in a month's time. I was planning to purchase a second, Park Headset wrench anyhow. Hopefully the Klein can obviate the need for that.

Thanks, everyone, for your help with this.

Harold74 is offline
Old 11-23-23, 06:48 PM
  #34
Senior Member

grumpus's Avatar

Join Date: Apr 2016
Posts: 943
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Liked 353 Times in 273 Posts
Originally Posted by Harold74
I'm not sure if you were referring to me but it's less of an objection and more of an inquiry. Purpose made headset wrenches have worked great for me in the past. Crescent wrenches... obviously not, especially on black locknuts. Not having tried an adjustable hex wrench, I wasn't sure where that would fall on the continuum. If the use of such wrenches is common practice, that will be an attractive option for me.

Is there a particular wrench that you've had good experiences with? Amazon has three versions, in order of price (CAD):

Max Power @ $29
Rigid Tools @ $58
Milwaukee Tool @ $58

All seem to be rated about the same. That said, I imagine that bicycle work is not the most common usage for these things.
I bought a Bahco 9035 for a plumbing job earlier this year but it works well on headsets too. There are cheaper versions from lesser brands - the key search phrase seems to be "wide jaw" or "deep jaw" along with "vanadium".
grumpus is offline
Old 11-23-23, 08:09 PM
  #35
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 10,445

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2698 Post(s)
Liked 3,303 Times in 2,007 Posts
Originally Posted by grumpus
I bought a Bahco 9035 for a plumbing job earlier this year but it works well on headsets too. There are cheaper versions from lesser brands - the key search phrase seems to be "wide jaw" or "deep jaw" along with "vanadium".

adjustable drain wrench
dedhed is offline
Old 11-24-23, 12:44 PM
  #36
Senior Member

grumpus's Avatar

Join Date: Apr 2016
Posts: 943
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Liked 353 Times in 273 Posts
Originally Posted by dedhed
adjustable drain wrench
That comes up with all sorts of weird plumbing gadgets, including aluminium wrenches which are fine for plastic pipe fittings but not much else.
Wide deep jaw vanadium shows me a page of nothing but relevant stuff including this one which looks OK for $15.99. But that might just be Amazon extrapolating from my search history and viewed items.
grumpus is offline
Old 11-24-23, 12:51 PM
  #37
Senior Member

Mr. 66's Avatar

Join Date: Aug 2015
Posts: 3,418
Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1119 Post(s)
Liked 1,673 Times in 934 Posts
I have the double ended Park 33/34
Mr. 66 is offline
Old 11-24-23, 01:06 PM
  #38
Senior Member

Kontact's Avatar

Join Date: Apr 2011
Posts: 6,605
Mentioned: 41 Post(s)
Tagged: 0 Thread(s)
Quoted: 4139 Post(s)
Liked 1,327 Times in 866 Posts
You know, just about any 12" adjustable wrench is going to work much better than a flat non-adjustable open end wrench. This thread is weird.


Adjustable wrenches get a bad wrap when then are used as a replacement for and in the same manner as non-adjustable wrench, because they loosen up every time the wrench comes off the nut and is then re-applied. But that isn't how you use a headset wrench, and where adjustables really shine.
Kontact is offline
Likes For Kontact:
Old 11-24-23, 01:22 PM
  #39
Senior Member

grumpus's Avatar

Join Date: Apr 2016
Posts: 943
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 386 Post(s)
Liked 353 Times in 273 Posts
Originally Posted by cyccommute
I was mentioning Channellock pliers to hold the top race if necessary. You can use any tongue and groove pliers but you’ll need a big one…12” to 16” for the job. Be careful using them as they will cut into the metal of the headset no matter how carefully you apply them.
Use some leather (old belt) to stop the jaws from chewing the race.
grumpus is offline
