Brake levers

If I switch my brakes from cantilever to V Linear can I use the original levers?
Never mind I found the answer. Nope

Last edited by Clint in KY; 06-02-25 at 05:13 PM.
Clint in KY is offline
Reply
Old 06-02-25 | 05:15 PM
  #2
cyccommute's Avatar
Mad bike riding scientist
Titanium Club Membership
20 Anniversary
Community Builder
Community Influencer

Joined: Nov 2004
Posts: 29,167
Likes: 6,235
From: Denver, CO

Bikes: Some silver ones, a red one, a black and orange one, and a few titanium ones

Originally Posted by Clint in KY
If I switch my brakes from cantilever to V Linear can I use the original levers?
Probably not a good idea. Short pull levers with long pull brakes can work but they are touchy and difficult to set up properly. There are some old brake levers that will can be used with both by moving the anchor point from back in the age where the brakes were being converted. Avid Speed Dials will work as well.
__________________
Stuart Black
Dreamin' of Bemidji Down the Mississippi (in part)
Plan Epsilon Around Lake Michigan in the era of Covid
Gold Fever Three days of dirt in Colorado
Pokin' around the Poconos A cold ride around Lake Erie
Dinosaurs in Colorado A mountain bike guide to the Purgatory Canyon dinosaur trackway
Solo Without Pie. The search for pie in the Midwest.
Picking the Scablands. Washington and Oregon, 2005. Pie and spiders on the Columbia River!





cyccommute is offline
Reply
Old 06-03-25 | 07:30 AM
  #3
grumpus's Avatar
Senior Member
10 Anniversary
Community Builder
Community Influencer

Joined: Apr 2016
Posts: 3,848
Likes: 1,777
Originally Posted by Clint in KY
If I switch my brakes from cantilever to V Linear can I use the original levers?
Never mind I found the answer. Nope
it depends - not all short pull brake levers are the same, and not all V-brake arms are the same, and some levers have adjustable pull. You might find that, perhaps with the addition of low-compression cable and with frequent fine adjustment, the current levers work fine. Or you might find that when you need maximum braking it's just not there - remember when you're careening down a hill that sometimes it's better to crash now, rather than hanging on and crashing later when you're going really fast.
grumpus is offline
Reply
Old 06-03-25 | 08:55 AM
  #4
sweeks's Avatar
Senior Member
20 Anniversary
Community Builder

Joined: Sep 2004
Posts: 3,304
Likes: 1,046
From: Chicago area

Bikes: Airborne "Carpe Diem", Motobecane "Mirage", Trek 6000, Strida 2, Dahon "Helios XL", Dahon "Mu XL", Tern "Verge S11i"

You *could* use THESE. I had them on my road bike, which had direct-pull ("V") brakes and Ultegra STI levers. The set-up worked perfectly. I've since reconfigured the bike with different levers to accommodate "trekking" bars, but still use the "Travel Agents" as low-friction, right-angle cable guides.


"Travel Agent" making a small-radius cable path possible.

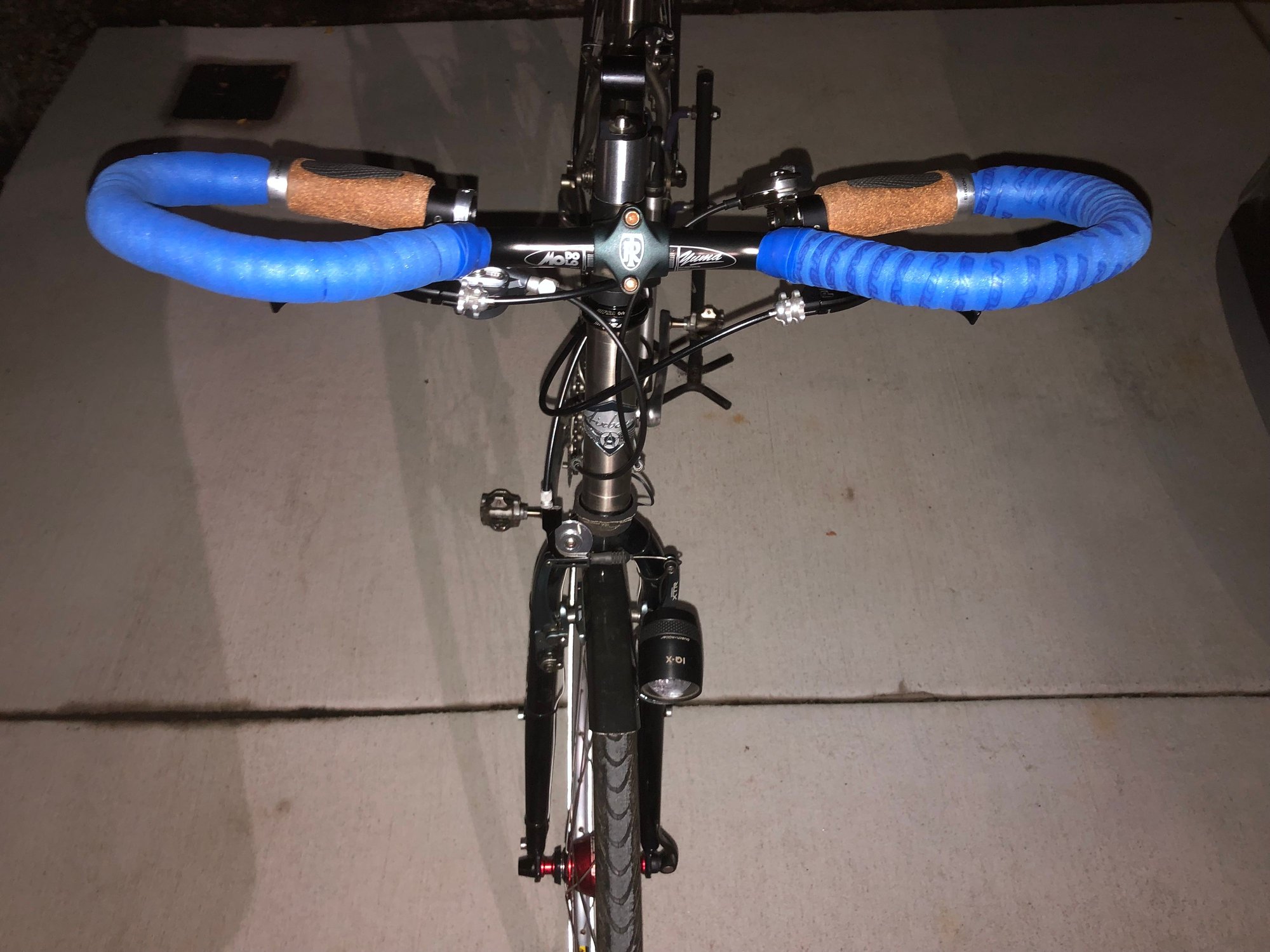

Front and rear "Travel Agents" visible.
