I recently purchased a used, older Specialized Allez. It was ‘ridable’ when I got it, but it needed lots of ‘attention’ for my personal liking. And, I’ve already ridden it several times as I get to the various “issues.” One of those issues is that at some point the nickel/brass nipples on the rear wheel have corroded to the point that they’re almost not useable for truing. Probably due to the south Florida salt air. The spokes look like they’re in descent condition. Anyway, I’m thinking about re-nippling it (and re-spoking any if needed), and just wondering if there’s a preferred way that I should go about it. I.e. — just go spoke by spoke as I work radially about the wheel; by laced spoke couples; DS then NDS (or vice verse); etc. FWIW, the rim is a Mavic CXP 21 (622x15), and the hub is a Ritchey on a 2x9 gearing system. And I would do the work on a truing stand. Any suggestions?
Dan
Dan
Aubergine
Francophile
close
- Join DateNov 2015
- LocationSeattle
- Posts:4,782
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:486
-
Liked:2,088 Times in 1,012 Posts
I would loosen all spokes first, then replace the nipples one by one. Then, obviously, retrue and tension the wheel.
Try a drop of triflow where the spoke leaves the nipple, and then loosen the nipple to get more into the threads. Of course, if the nipple rounds off, replace it. Lube each nipple and give it a little time to penetrate the threads, then see if you can loosen each nipple Ľ or ˝ turn. One more drop of triflow after they've been loosened and you should be able to true and tension the wheel without fuss.
I recently had a set of nipples on a 27" wheelset that wouldn't budge, along with a few that had corroded and failed, probably due to road salt. In trying to free a few of the spokes I instead broke them at the nipple. Since I loosened the spokes all the way around, the wheel needed tensioning and dishing after I replaced the broken spokes.
This was a 1970's wheelset so I'm not sure if the spokes were stainless.
I recently had a set of nipples on a 27" wheelset that wouldn't budge, along with a few that had corroded and failed, probably due to road salt. In trying to free a few of the spokes I instead broke them at the nipple. Since I loosened the spokes all the way around, the wheel needed tensioning and dishing after I replaced the broken spokes.
This was a 1970's wheelset so I'm not sure if the spokes were stainless.
Quote:
Dan
Reading this for the 5th time, I don't think there's a preferred method for this operation. Either replacing the nipples or loosening then to work lubricant in will require you to true, (maybe) dish, and tension the wheel, so following your favorite wheel building technique should be fine. Originally Posted by _ForceD_
I recently purchased a used, older Specialized Allez. It was ‘ridable’ when I got it, but it needed lots of ‘attention’ for my personal liking. And, I’ve already ridden it several times as I get to the various “issues.” One of those issues is that at some point the nickel/brass nipples on the rear wheel have corroded to the point that they’re almost not useable for truing. Probably due to the south Florida salt air. The spokes look like they’re in descent condition. Anyway, I’m thinking about re-nippling it (and re-spoking any if needed), and just wondering if there’s a preferred way that I should go about it. I.e. — just go spoke by spoke as I work radially about the wheel; by laced spoke couples; DS then NDS (or vice verse); etc. FWIW, the rim is a Mavic CXP 21 (622x15), and the hub is a Ritchey on a 2x9 gearing system. And I would do the work on a truing stand. Any suggestions?Dan
cyccommute
Mad bike riding scientist
close
- Join DateNov 2004
- LocationDenver, CO
- Posts:29,136
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:606
-
Liked:6,180 Times in 3,242 Posts
Having done this a few times for simply aesthetic reasons, I have always detensioned all the way around the wheel, replace the spoke nipples and then retension the wheel. Going spoke by spoke while the wheel is under tension is a lot of hard work.
Although I have used Triflow at my local co-ops for lubricating nipples, 3-in-One oil is my choice at home. Doesn’t smell like bananas.
Although I have used Triflow at my local co-ops for lubricating nipples, 3-in-One oil is my choice at home. Doesn’t smell like bananas.
Bill Kapaun
Really Old Senior Member
close
- Join DateFeb 2007
- LocationMid Willamette Valley, Orygun
- Posts:14,610
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:20
-
Liked:1,861 Times in 1,210 Posts
IF the nipples are "frozen", take a vise grip pliers (sharp teeth help much) and you can clamp it on the right amount and simply "peel off" the old nipple.
Wire brushing corroded threads may be useful.
Wire brushing corroded threads may be useful.
Trakhak
Senior Member
close
- Join DateJan 2005
- LocationBaltimore, MD
- Posts:8,973
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:9,431
-
Liked:5,889 Times in 3,427 Posts
Quote:
Wire brushing corroded threads may be useful.
The intended meaning of "peel off" is unclear, to me at least. Do you simply mean that Vice Grips can be used to unscrew a nipple that resists being turned with a spoke key? If not, what?Originally Posted by Bill Kapaun
IF the nipples are "frozen", take a vise grip pliers (sharp teeth help much) and you can clamp it on the right amount and simply "peel off" the old nipple.Wire brushing corroded threads may be useful.
pdlamb
Senior Member
close
- Join DateDec 2010
- Locationnorthern Deep South
- Posts:9,684
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:991
-
Liked:2,602 Times in 1,569 Posts
My inclination is to replace the nipples one at a time, working around the wheel, but wait until they're all done to re-true and re-tension. With this approach, I don't see the benefit to de-tensioning all the spokes first.
But having seen Unca Sam's approach, that may be even better. If it ain't broke ...
But having seen Unca Sam's approach, that may be even better. If it ain't broke ...
Bill Kapaun
Really Old Senior Member
close
- Join DateFeb 2007
- LocationMid Willamette Valley, Orygun
- Posts:14,610
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:20
-
Liked:1,861 Times in 1,210 Posts
Quote:
It cuts it open kind of like a can opener, and peels it off like an orange.Originally Posted by Trakhak
The intended meaning of "peel off" is unclear, to me at least. Do you simply mean that Vice Grips can be used to unscrew a nipple that resists being turned with a spoke key? If not, what?
Sharp teeth = cut.
Vice grip is a law enforcement issue.
sweeks
Senior Member
close
- Join DateSep 2004
- LocationChicago area
- Posts:3,276
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:3,647
-
Liked:1,027 Times in 688 Posts
Quote:
I had to deconstruct a 20" wheel with a worn-out rim. I wanted to re-use the spokes. The nipples were so tight from corrosion that I rounded off a few even after using penetrating oil. I used a "mini" slip-joint pliers to unscrew all the nipples. Luckily there were only 20 spokes!Originally Posted by Bill Kapaun
IF the nipples are "frozen", take a vise grip pliers (sharp teeth help much) and you can clamp it on the right amount and simply "peel off" the old nipple.

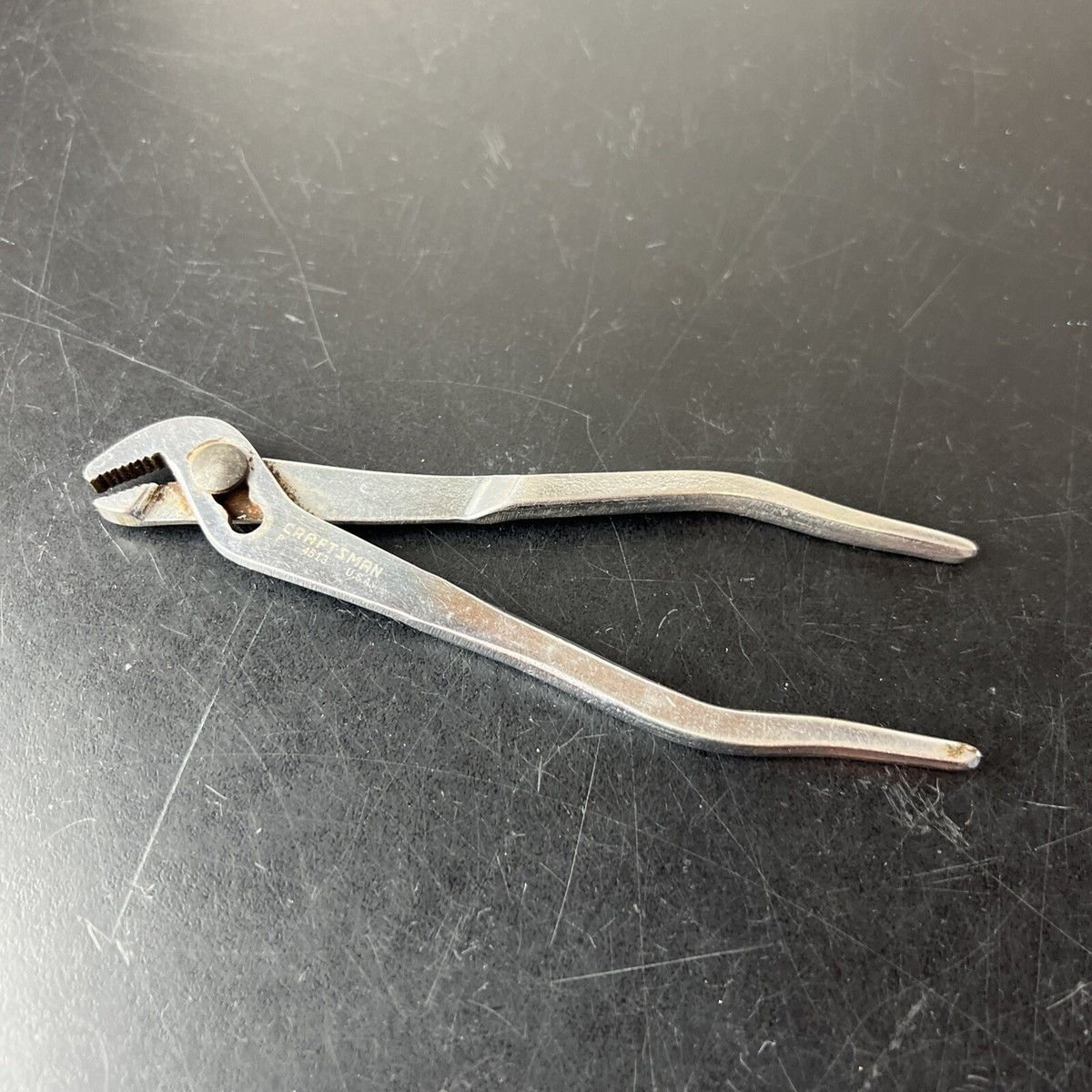

These were handy to grab the rounded-off spoke nipples.
Quote:
Providing I can get the existing nipples lubed and loose, I’m inclined to use this approach. Seems like if I work spoke to spoke that can keep the wheel true as I go, and don’t have to bother with re-dishing.Originally Posted by pdlamb
My inclination is to replace the nipples one at a time, working around the wheel, but wait until they're all done to re-true and re-tension. With this approach, I don't see the benefit to de-tensioning all the spokes first.
Thanks for all the comments.
Dan
Road Fan
Senior Member
close
- Join DateApr 2005
- LocationAnn Arbor, MI
- Posts:17,195
-
iTrader Positive Feedback0
-
iTrader Feedback Score(0)
-
Likes:177
-
Liked:761 Times in 585 Posts
I’d pull all the nipples, then clean and rebuild the wheel, but first, magnet test all the spokes and nipples, and replace all the ferro magnetic ones with some good stainless ones. Make sure you replace with correct diameter and thread.
beyond that I’d mostly use what Cycocommute said, and use Musson’s book as a guide to the details.
beyond that I’d mostly use what Cycocommute said, and use Musson’s book as a guide to the details.
