Last evening, a car pulling out from parking hit me and my bike last night - no major injuries to me but the front wheel which I'd intended to replace in the near future, needs doing now. Anyway, I decided to give a bike a good wash in honour of the imminent new wheel.

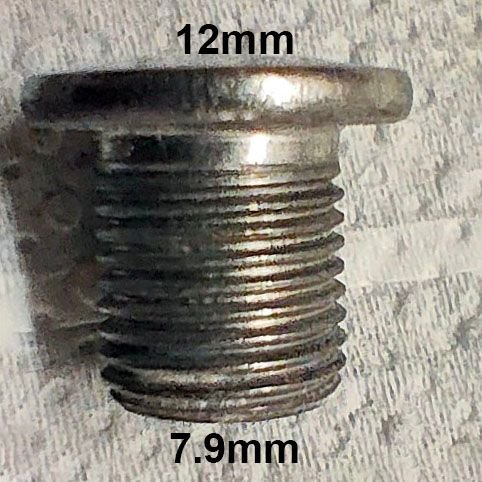

I left it in my shed to dry and went out later to inspect its unusual clean state (I cycle in very filthy places) and I noticed a wee bolt lying by the rear wheel. I don't know if this bolt had always been lying about but, I have no idea if it came off the bike (maybe due to the collision) or it was waste from some other DIY shenanigans that goes on in my shed.

Any ideas from the attached photos?

Gummomarx is offline
Reply
Old 01-28-26 | 03:27 PM
  #2
bboy314's Avatar
Senior Member
Titanium Club Membership
15 Anniversary
Community Builder

Joined: Dec 2008
Posts: 2,706
Likes: 2,761
From: Pioneer Valley
Chainring bolt. Check your crankset for any that are missing.
bboy314 is offline
Reply
Old 01-28-26 | 04:20 PM
  #3
Thread Starter
Junior Member
10 Anniversary

Joined: Aug 2015
Posts: 140
Likes: 33
From: Ireland

Bikes: Giant Escape 0

Originally Posted by bboy314
Chainring bolt. Check your crankset for any that are missing.
Seems okay from this image - can it be from anywhere else on my triple chainset?
Gummomarx is offline
Reply
Old 01-28-26 | 04:35 PM
  #4
Senior Member
15 Anniversary

Joined: Jan 2009
Posts: 4,360
Likes: 1,646
From: San Diego, CA
Originally Posted by Gummomarx
Seems okay from this image - can it be from anywhere else on my triple chainset?
Check the inside of the granny ring. Could be one of those bolts.
Crankycrank is offline
Reply
Old 01-28-26 | 04:45 PM
  #5
Thread Starter
Junior Member
10 Anniversary

Joined: Aug 2015
Posts: 140
Likes: 33
From: Ireland

Bikes: Giant Escape 0

I've just checked the tightness on the visible side - they're rock steady. Wouldn't they just spin freely if the far side were missing?
Gummomarx is offline
Reply
Old 01-28-26 | 05:18 PM
  #6
Senior Member
15 Anniversary

Joined: Jan 2009
Posts: 4,360
Likes: 1,646
From: San Diego, CA
Originally Posted by Gummomarx
I've just checked the tightness on the visible side - they're rock steady. Wouldn't they just spin freely if the far side were missing?
I believe your granny ring has its own separate bolts.
Crankycrank is offline
Reply
Old 01-28-26 | 06:17 PM
  #7
maddog34's Avatar
Senior Member
10 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Jul 2015
Posts: 7,327
Likes: 3,195
From: NW Oregon

Bikes: 1982 Trek 930R Custom, '91 Diamondback Ascent w/ XT, XTR updates, Fuji Team Pro CF road flyer, Specialized Sirrus Gravel Convert, '09 Comencal Meta 5.5 XC, '02 Marin MBX500, '84 Gitane Criterium bike

there are three places on your bike that use those types of Screws...
the big ring and middle ring... look ok in the pic..
the small inner ring... check it, let us know.
and finally, one might be used to attach the DERAILLEUR HANGER to the rear dropout... and those are usually the Shortest Screws of that type, unlike the one you just found on the floor.....

Last edited by maddog34; 01-28-26 at 06:25 PM.
maddog34 is offline
Reply
Old 01-28-26 | 07:04 PM
  #8
grumpus's Avatar
Senior Member
10 Anniversary
Community Builder
Community Influencer

Joined: Apr 2016
Posts: 3,809
Likes: 1,754
Originally Posted by Gummomarx
I've just checked the tightness on the visible side - they're rock steady. Wouldn't they just spin freely if the far side were missing?
The outer and middle rings are held on together with nuts and bolts, the inner ring has bolts that screw directly into the back of the spider, sometimes with spacers.
grumpus is offline
Reply
Old 01-29-26 | 07:00 AM
  #9
Thread Starter
Junior Member
10 Anniversary

Joined: Aug 2015
Posts: 140
Likes: 33
From: Ireland

Bikes: Giant Escape 0

Originally Posted by grumpus
The outer and middle rings are held on together with nuts and bolts, the inner ring has bolts that screw directly into the back of the spider, sometimes with spacers.
The inner ring bolts are solid. I'm beginning to think that that bolt is renegade from a previous chainset replacement that my friend did for me -p robably ruled out from the woodpile that I lean the bicycle against LOL.


Gummomarx is offline
Reply
Old 01-29-26 | 12:38 PM
  #10
Senior Member
15 Anniversary
Community Builder

Joined: Aug 2009
Posts: 3,113
Likes: 1,617

wheelreason is offline
Reply
Old 01-29-26 | 05:31 PM
  #11
grumpus's Avatar
Senior Member
10 Anniversary
Community Builder
Community Influencer

Joined: Apr 2016
Posts: 3,809
Likes: 1,754
Originally Posted by wheelreason
That's quite fun, but I like this one:

grumpus is offline
Reply
Old 02-02-26 | 07:43 AM
  #12
Thread Starter
Junior Member
10 Anniversary

Joined: Aug 2015
Posts: 140
Likes: 33
From: Ireland

Bikes: Giant Escape 0

After pondering the possibility that the rogue bolt that had rolled out from the adjacent woodpile - possibly left behind by the boyo who replaced the old chainset - I took the bike out for a ride. All having gone smoothly, I now believe my theory was correct, although I'm clearly culpable for the wild goose chase.

Many thanks for your kind advice and attention.
