I hear this quite often. Manufacturers usually haven't said. Manufacturers claims are often wrong or one weight is claimed for different frame sizes. There are different frame sizes in some models, obviously a taller frame is going to weigh more because the tubes are longer and some makers use thicker wall tubing to try to make their frame stiffer.

So post actual weights of bare frames (no parts) and oem forks.
Any type of frame, road, mtb, cruiser, kids, what ever. No snobby weight weenie postings of just the lightest frames out there. Lets see just how heavy cheap bikes are too. Lugged steel, welded tofu dreg, carbon, ti, cromo, gas pipe, etc.

It's not convenient to completely strip a bike just to weigh the frame so consider weighing frames when they are getting a full overhaul or rebuild. And there are many frame sets just hanging around. separate fork & frame for weights.

To allow for pressed in headset cups, subtract .13 pounds or 60 grams. No need to remove those just for the weigh in.

Report in pounds or grams or both.
Include brand, model, frame size, year if known, serial optional.

First up.

brand: Genesis
model: Saber 700c.
description: Welded hydroformed aluminum wallyworld road bike with steel aero 1" threaded fork.
frame weight 4.54 - .13 = 4.4 pounds
fork weight 2.87 with crown race.
frame size 22.5"/57cm CT
wheel size 700c
year: 2018?

field labels to copy for your post.

brand:
model:
description: .
frame weight:
fork weight:
frame size:
wheel size:
year:

Go to the weight weenies site, This and much more has already been done.

https://weightweenies.starbike.com/l...ype=roadframes

Not the most complete list.

Really ? What exactly is the point in knowing what every POS 50 year-old bike-boom frame weighs ?

Especially since I doubt most of the old-farts could even provide a plus/minus "accuracy"of 4-6 ounces.

Aren't there much better uses of time and energy - such as actually going for a bicycle ride ?

OK, I'll play. Not that any of my bikes are anywhere "normal" in their layouts. I have 3 unpainted frames and forks, all steel and fillet brazed. None were designed to be light weight with 0.6 and o.5 mid section walls in the main tubes.

Brand Stewart Stewart Stewart
Description #750 #150 #550
Urban Flat Bar Dual Rigid MtB Gravel
Frame 4.5lbs 4.7lbs 4.2lbs
Fork 2.3lbs 2.5lbs 2.1lbs
Size (C-C) 45cm 42cm 46cm
Wheel 650x48 650x65 650x42


The lightest frame I have made was just over 3.25lbs, Columbus KL, minimal lugs and in a small size. That frame was classic tube diameters and flexed a lot, climbed like a beast but descended like crap as it shimmied badly. Were I to replicate the same goal today and used modern dimensions I would expect about 3.3lbs. for a truly rideable frame, and it would handle better than my long gone KL frame. Andy

Sorry for the confusing table of data. My attempts to align the columns isn't working.

Not bad; the new hardtail frame from State clocks in at 7.2 pounds (they didn't report the size, but from the pics M/L. I have a Niner hardtail that I built years ago and AIR the Scandium frame weighed about 2 and 3/4 pounds.

brand: Sears Free Spirit Ted Williams
model:
description: 3 speed cruiser made by Murray.
frame weight: 8.08 pounds
fork weight: 1.81 pounds
frame size:20"
wheel size:26 x 1 3/8"
year: ~1970 ( The date code on the Shimano 3CC hub is unreadable.)

someone drilled holes in the frame for internal routing of the generator wires so this frame is about 10 grams lighter than stock.
Murray bottom bracket construction. It has a clip that traps the down tube, seat tube and chain stays. The internal clip is held with a single weld. Looks like they added some putty to keep it from leaking. They notch the main tubes to make room for the other tubes. The chain stays are bashed in to make room for the bb cups. Head tube internal lug is a single piece for the top tube and down tube. Similar lug for seat post-top tube joint, note the top tube is tapered where it meets the seat tube. Looks like there was some movement where the down tube enters the bb. I've seen other Murrays fail there. Build it cheaper and faster!






Sears Free Spirit Ted Williams 3 speed

Murray BB construction. Internal clip that traps the inserted tubes in place.

Murray BB construction. A single weld to hold it all together.

Internal lug to hold the top tube to the seat tube. Yes it does interfere with the seat post.

Single internal lug in the head tube for the top tube and down tube.

When I first peeked into the BB shell of my PX10 I was shocked to see the Reynolds frame tubes intruding this much. Spent considerable time with a Dremel and file to clean things up.

1975 Schwinn Breeze

brand: Schwinn
model: Breeze.
description: electro forged gas pipe
frame weight 7.2 pounds
fork weight 2.74 with crown race. (flat blade type)
frame size 17"
wheel size 26 x 1-3/8
year: 1975



1975 Schwinn Breeze

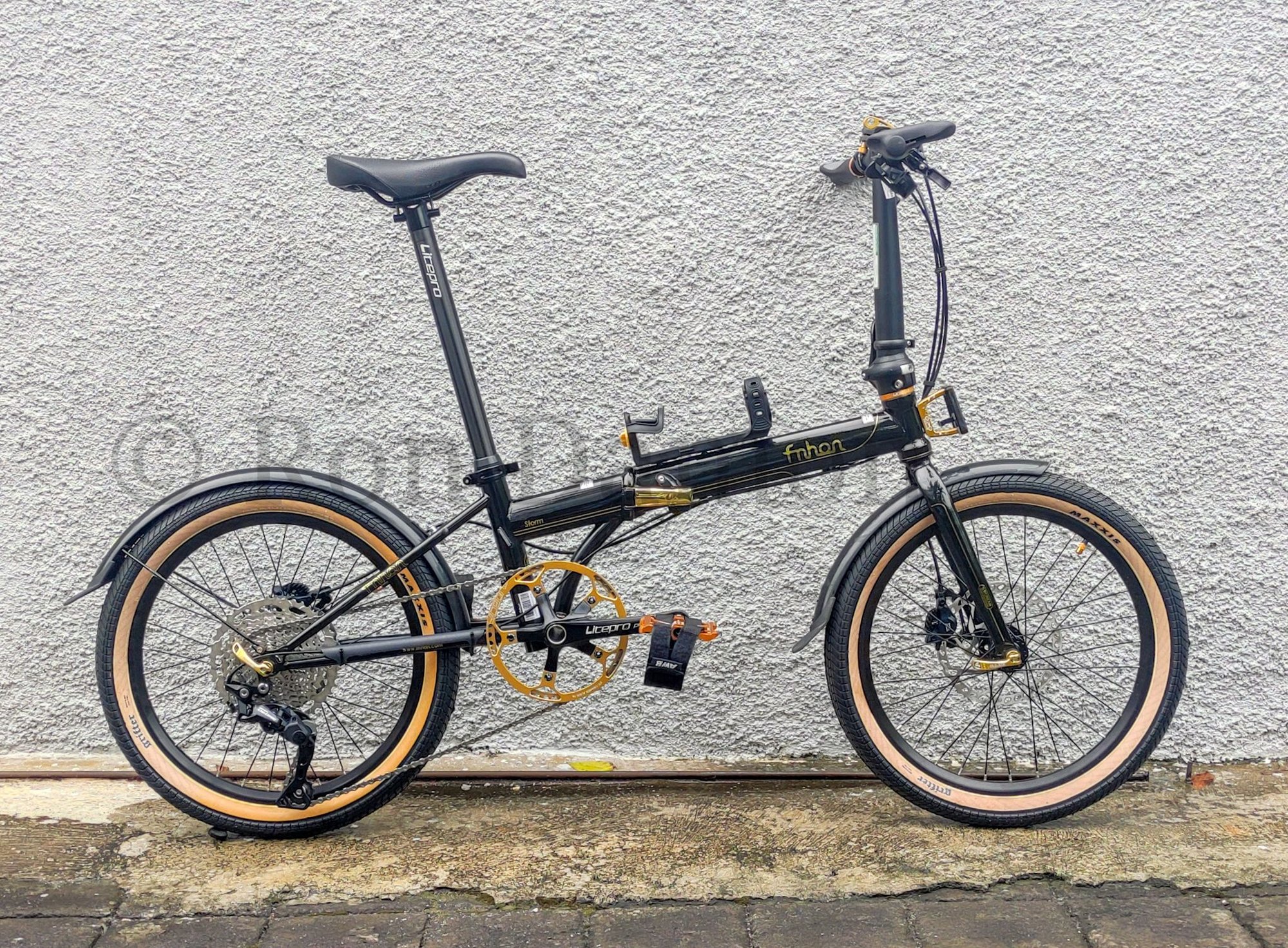

brand: FnHon
model: Storm
description: mid-hinge, disc-brake folding
frame weight: 2.6kg (4130 Chro-moly)
fork weight: 0.6lg (Al-alloy)
frame size: one-size
wheel size: 20" (ETRTO 406 or 451)
year: 2010s

And no Holdsworths

brand: Holdsworth
model: Whirlwind
description: Top of the line, very fancy chromed lugs
frame weight: 1900g = 4.19 lbs
fork weight: 734g = 1.62 lbs
frame size: 23"
wheel size: originally 27", now 700C
year: 1953

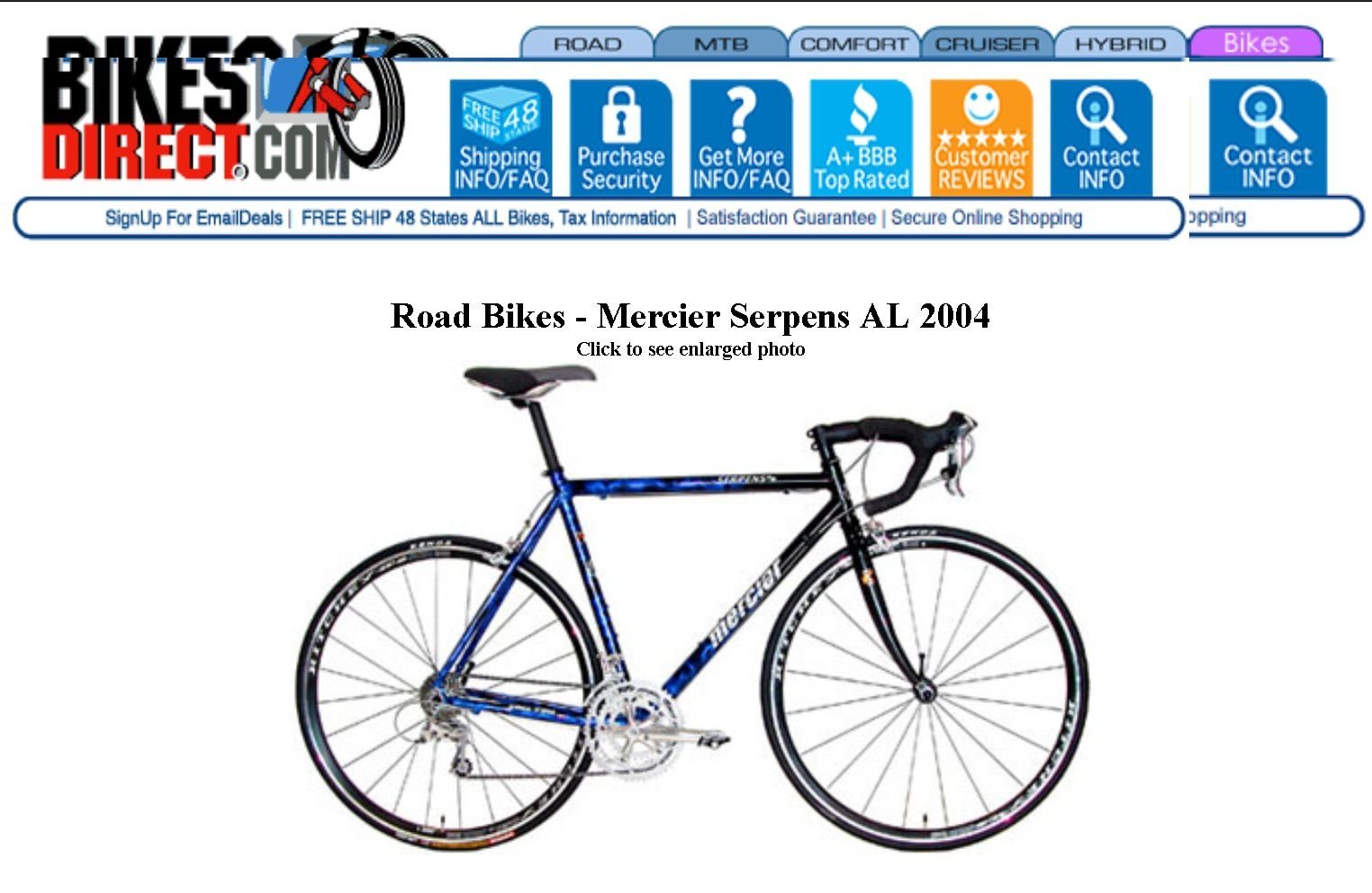

brand: Mercier
model: Serpens AL
description: welded aluminum frame road bike
frame weight: 3.73 pounds
fork weight: 1.34 pounds (Kinesis 2 carbon with aluminum steerer & crown)
frame size: 54cm
wheel size: 700c
year: 2004

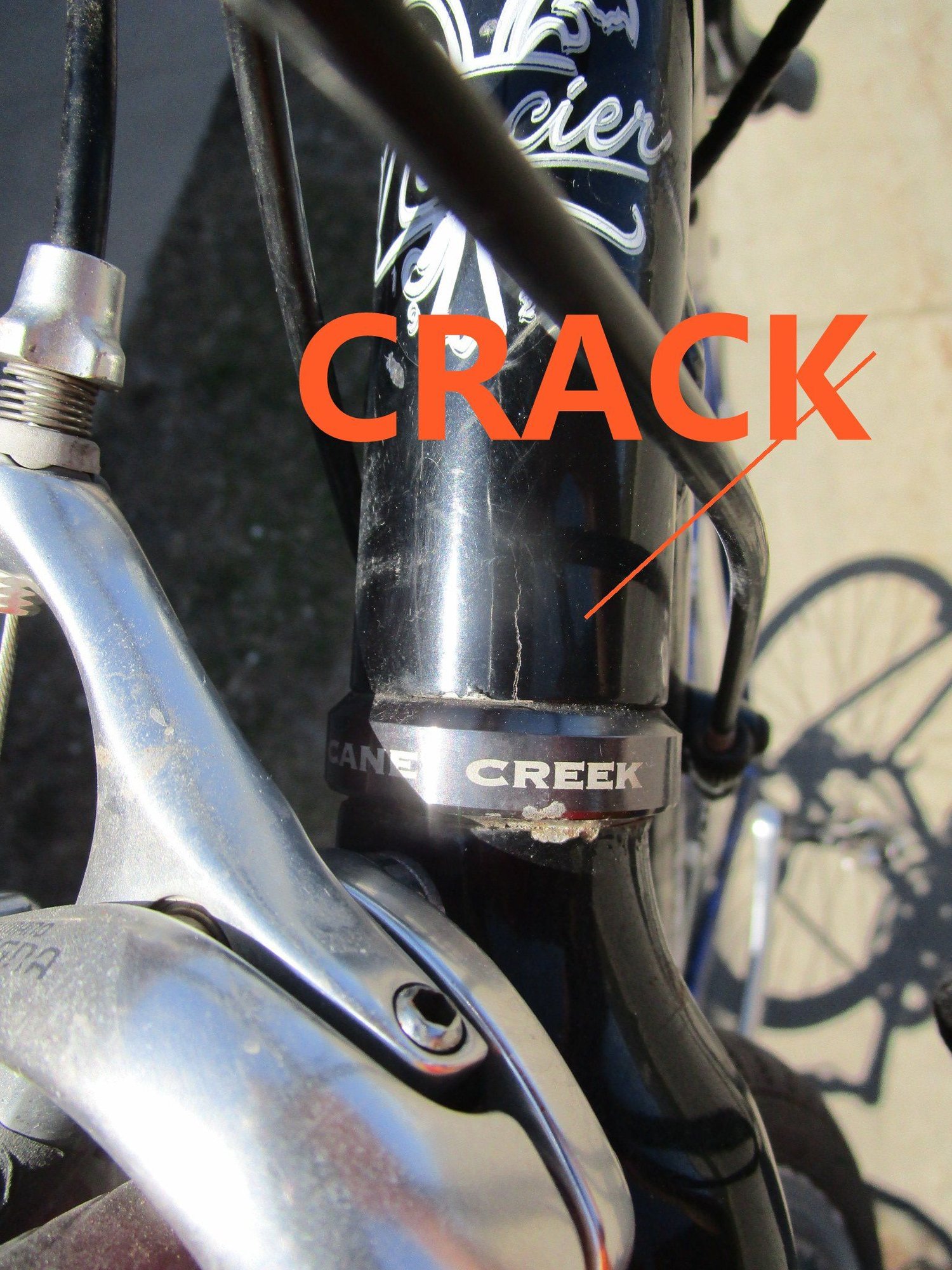

Crack in the head tube. Lots of corrosion. Bike dismantled and the frame will go to metal recycling. "Get your nickel deposit back". At ~50 cents per pounds we're looking at about $2. FYI, Serpens is a constellation in the sky.

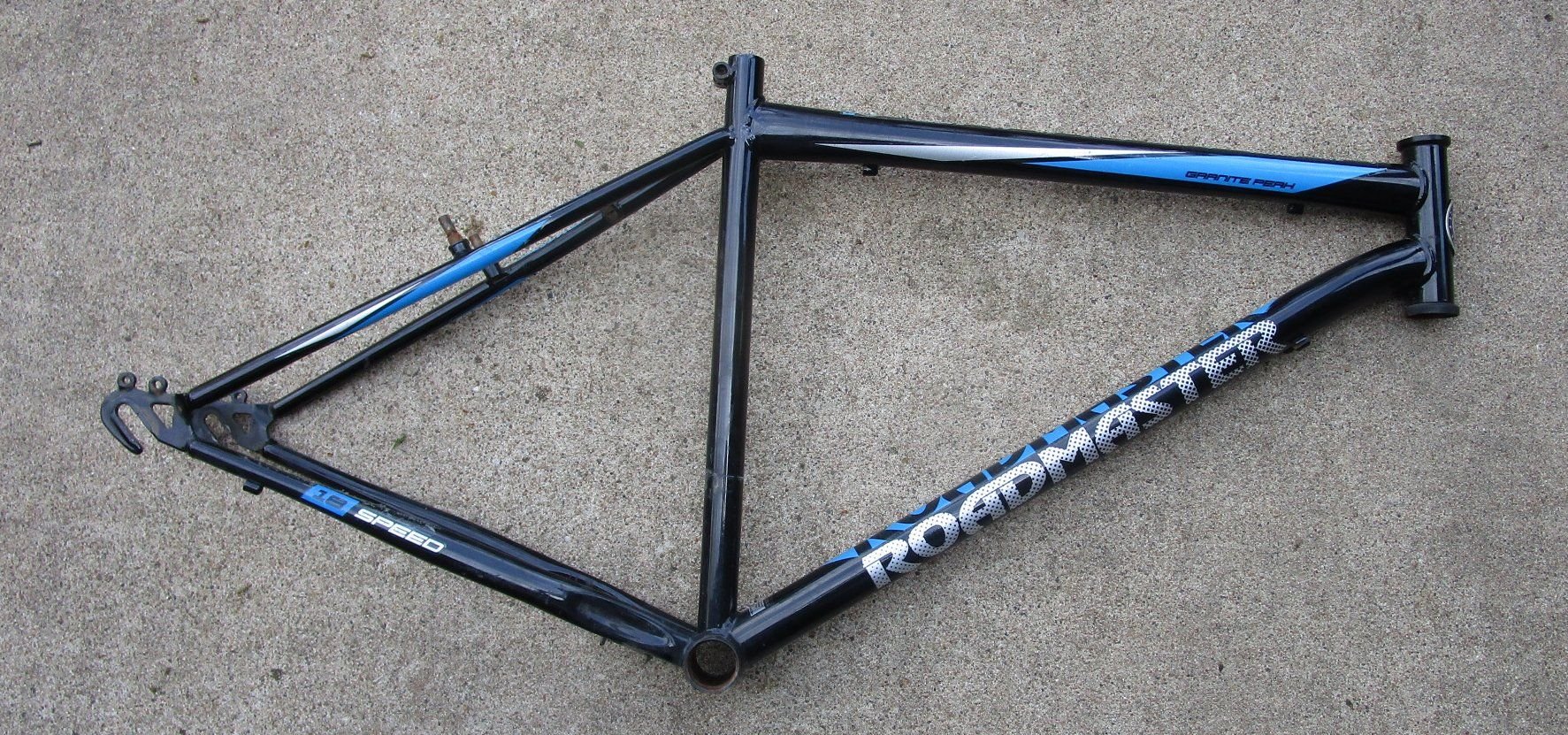

brand: RoadMaster
model: Granite Peak
description: boxmart bso mountain bike, welded carbon steel frame.
frame weight:7.14 pounds
fork weight: 4.14 pounds
frame size: one size fits all at the box marts.
wheel size: 26"
year: 2019

One of the best selling bikes from the past 20-25 years. This later model has larger diameter top & down tubes and the down tube has a little curve to it. Older models are all straight tubes, 1 and 1-1/8" diameters.

I think this merits repeating.

thanks bike snobs. Do you complain about every other aspect of cycling you personally don't like?

brand: Schwinn
model: Aluminum Comp
description: aluminum frame mountain bike
frame weight: 4.04 pounds (lighter than any Reynolds frame)
fork weight: 5.25 pounds.
frame size: 17
wheel size:26
year: 2003

Reynolds steel frames have been made that weigh well under 4 lbs.

Cracked head tubes are not really uncommon to see if you work in a shop. Almost every one I've seen have been Al material.

While I'm no weight wienie I do fine the posts on not standard double diamond frames to be interesting, like the DaHan wannabie's. Andy

Trek 4500 alu. MTB frame, bare.. 4.25lbs... plus or minus a gram, for spider nests and such...

We've evidently come so far with precision manufacturing processes, that spec charts like this Merlin one from 2002 are no longer available

My Trek Emonda SLR circa 2022:

Frame weight: 640 g
Fork weight: 275 g

Rim brake version of course. Disc versions cannot come close to these numbers.

Those are interesting numbers, one of the extremely rare instances where the products weight is substantially lighter than the official weight used in their marketing and advertising.

Officially trek declared the weight of your frame at 698 grams unpainted and 760 grams painted. Fork was marketed at 381 grams.

Perhaps they were inflating the weight in preparation for the disc versions. The current equivalent Madone is marketed at 765 grams and the fork at 370 grams. But the new version is considered an aero bike with full internal cables and extra aero shaped materials. Things being equal a noticeably faster bike.

Let’s not mention other competitors such as the Aethos at 585 grams.

Émonda SLR RSL H1 Frameset - Trek Bikes

Emonda SLR H1: frame weight: 640 g. Fork weight: 275 g.

Disc equivalents, like all disc brake frames, are heavy and uncompetitive.

So unsure where everyone's numbers are from, unless actual weights at home of eg. 50cm size frame (vs 56)?
Your link says this in the specs:

It's a deranged form of "Gaslighting". The person in question provides a link to a frame whose official weight is nowhere near what is claimed, and the current replacement is listed as effectively the same weight. Yet, sticks to the narrative that disc frames are somehow heavier and non-competitive, even though the current replacement bike is a full Aero bike. A closer competitor would be the traditional non-aero Aethos, which weighs 900 grams frame and fork, plus or minus, depending on the steerer stack.

Never debates the facts yet repeats the same misinformation.
