Frame damage
#2

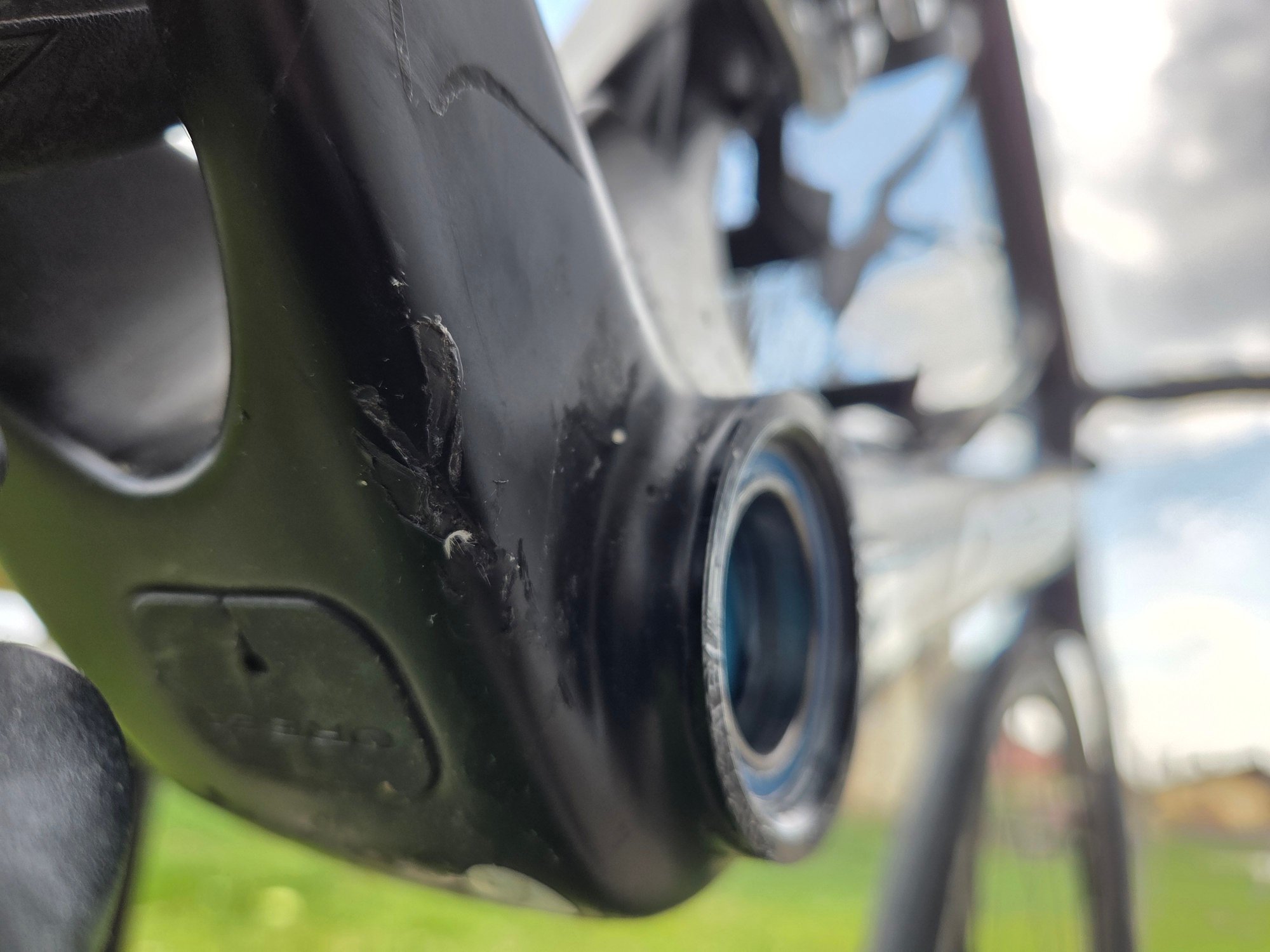

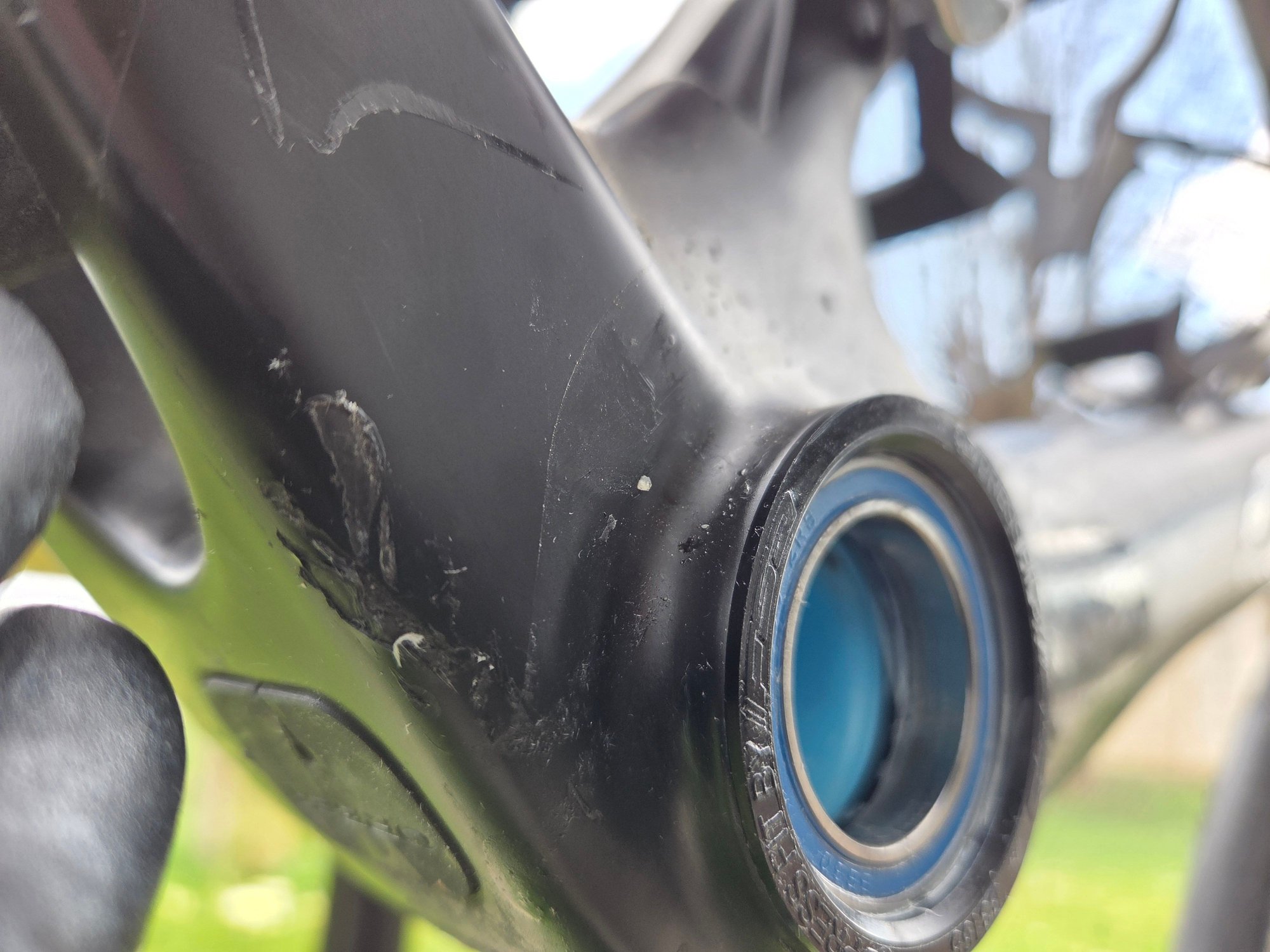

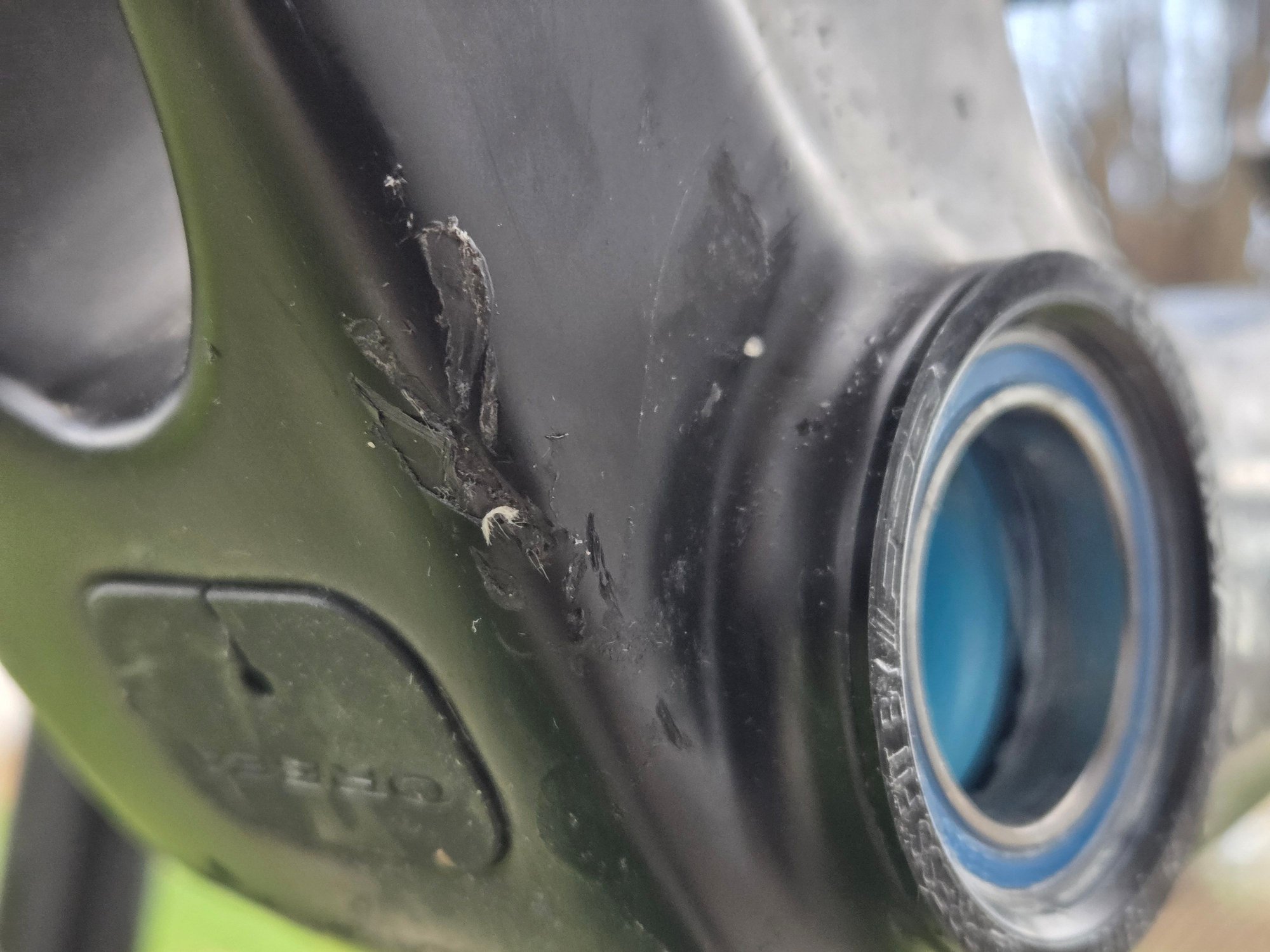

Despite the nice clear pictures, it is still difficult to tell what exactly is going on there. I'd be inclined to have someone experienced with carbon take a look at it in person. It is quite likely that slapping on some epoxy and riding it would be just fine, as the area near the bottom bracket shell tends to be very overbuilt on many carbon frames, but I'd still want to be sure the damage isn't more severe than it looks before doing so.
#3
Facts just confuse people




Joined: Jul 2017
Posts: 19,209
Likes: 6,996
From: Mississippi
Bikes: Tarmac Disc Comp Di2 - 2020
I don't think there is one right thing to do. You do have the option of putting some clear on it. But I don't think that it will help. Particularly since it doesn't appear the gash goes down to the fabric. At least not in that picture.
I'd just ride the bike and every once in a while check it to see if any bad is happening. Though at that point, a new bike or costly repair will likely be in order. But clear epoxy or other might just cover up the future bad events so you aren't able to see them happening. Till they show you otherwise at least.
I'd just ride the bike and every once in a while check it to see if any bad is happening. Though at that point, a new bike or costly repair will likely be in order. But clear epoxy or other might just cover up the future bad events so you aren't able to see them happening. Till they show you otherwise at least.
#6
Senior Member

Joined: Apr 2010
Posts: 2,925
Likes: 494
From: Elevation 666m Edmonton Canada
Bikes: 2013 Custom SA5w / Rohloff Tourster
Doesn't look too bad. That's DIY patchable. Mask off where you want the patch to end. Sand off the paint finish.
2 layers of CF and epoxy, tight plastic wrap and let set a day then unwrap.
Trim the frayed ends when it's still not solid. Another day to harden then smooth and paint. Done.
2 layers of CF and epoxy, tight plastic wrap and let set a day then unwrap.
Trim the frayed ends when it's still not solid. Another day to harden then smooth and paint. Done.
#7
Senior Member
Joined: Oct 2023
Posts: 1,101
Likes: 982
Bikes: *'00 LS Vortex/Chorus 12/Campag Zondas*98 LS Classic - S&S couplers/Chorus 12/Rolf Vector Pros*'95 DeBernardi Cromor S/S, Mavic Open Pros on Phil Wood track hubs*
