Repairs to mig welded steel frame?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Repairs to mig welded steel frame?

Old 12-29-16, 02:00 AM
  #1
Senior Member
Thread Starter

dadoflam's Avatar

Join Date: Jan 2008
Location: Great Southern Land
Posts: 173

Bikes: ’71 Cinelli SC;‘ 72 Cinelli SC ; 2011 Baum Corretto Ti; 2007 BMC SLC01; 1986 Pinarello Team Bike; 1983 De Rosa Professional; 1959 Bianchi TdF; ’78 Masi GC Ca

Likes: 0
Liked 2 Times in 2 Posts
Repairs to damaged Tig welded steel frame?

To any tig welded frame experts out there
I am considering buying a rare-ish 90's steel framed bike - tig welded construction. The top tube has been crushed at some point - seller calims it is OK but for purchase purposes I am going to assume it needs to be repaired and wanted to find out if repairs can be done with a reasonable result.


Is it possible to repair damage such as this? - can the top tube be removed or would it be a case of cutting out a section and inserting a new section with internal sleeving at the junctions - staying away from the original headtube/seatube welded junctions.


I am guessing that removing the tube in entirety would be a messy job and that the seat tube and head tube will be hard to weld neatly a second time(?)


Would appreciate any thoughts/knowledge

Last edited by dadoflam; 12-29-16 at 02:03 AM.
dadoflam is offline
Old 12-29-16, 03:22 AM
  #2
Senior Member

Chombi's Avatar

Join Date: Jul 2009
Posts: 11,128

Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC

Likes: 0
Liked 34 Times in 28 Posts
You can bring it to a builder and see if the dent can be eased out with frame blocks, before resorting to replacing the tube, although the simple (compared to lugged/brazed) Mig welded, lugless frame construction might make tube replacement cost closer to the cost of labor to do frame blocking. Only way to find out is to consult a builder....
Chombi is offline
Old 12-29-16, 03:27 AM
  #3
curmudgineer

old's'cool's Avatar

Join Date: Dec 2009
Location: Chicago SW burbs
Posts: 4,417

Bikes: 2 many 2 fit here

Liked 112 Times in 70 Posts
I have no firsthand experience, but IMO these are the circumstances that would warrant such a frame repair:
  1. I'm equipped to do it myself
  2. I have a buddy that will do it for cheap/free
  3. the frame is special/valuable enough to warrant the cost of a professional repair & repaint
If none of the above are applicable, I'd be looking for a replacement frame, bare, or if necessary, from a donor bike.
old's'cool is offline
Old 12-29-16, 03:59 AM
  #4
Senior Member
Thread Starter

dadoflam's Avatar

Join Date: Jan 2008
Location: Great Southern Land
Posts: 173

Bikes: ’71 Cinelli SC;‘ 72 Cinelli SC ; 2011 Baum Corretto Ti; 2007 BMC SLC01; 1986 Pinarello Team Bike; 1983 De Rosa Professional; 1959 Bianchi TdF; ’78 Masi GC Ca

Likes: 0
Liked 2 Times in 2 Posts
thanks old's cool - this one falls into category three - one of about 25 ever made to my knowledge. Still checking the authenticity.
I was definitely counting on a professional repair job - wasn't sure how this sort of thing would be approached and/or whether it was a 'beyond repair' situation for this type of frame construction. With lugged frames there are good old school frame makers in these parts who would braze a new tube in without too much problem.
dadoflam is offline
Old 12-29-16, 05:26 AM
  #5
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 9,674

Bikes: '65 Frejus TDF, '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Liked 2,295 Times in 1,147 Posts
Take pictures and ask over on the framebuilders forum - Framebuilders - Bike Forums
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 12-29-16, 05:37 AM
  #6
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 13,320

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Liked 6,624 Times in 3,799 Posts
As is often the case there will be many opinions on something like this. I would encourage you to seek out experts in this discipline specifically. My recommendation would be to consult Dave Levy of Ti Cycles in PDX, he is an expert in repair of all things bicycle frames, especially when it is difficult and challenging.


Originally Posted by dadoflam
thanks old's cool - this one falls into category three - one of about 25 ever made to my knowledge. Still checking the authenticity.
I was definitely counting on a professional repair job - wasn't sure how this sort of thing would be approached and/or whether it was a 'beyond repair' situation for this type of frame construction. With lugged frames there are good old school frame makers in these parts who would braze a new tube in without too much problem.
merziac is offline
Old 12-29-16, 09:21 AM
  #7
Senior Member

Join Date: Mar 2016
Location: Phoenix AZ
Posts: 376
Likes: 0
Liked 3 Times in 2 Posts
If you cut internal sleeves and inserted them, then how could the new replacement section be put in place? Unless they are with no more than a mm or so stickout, then the frame spread slightly to insert the new tube. Even then though the internal sleeves really wouldn't contribute much if any to the strength of the new welds.

I would just have the new section welded with a double V butt weld at the joints, meaning the old section is chamfered at the end, and the new section is chamfered, then the weld fills up those areas. The resulting weld in theory can be just as strong as the parent metal. No internal sleeves.

I'm not a skilled enough welder to pull off welding on such thin wall material without distorting it, but I have seen welders who could. There's a couple of things TIG welders will do to show off their skills: one is to cut two beer cans off in the middle then weld them back together with a butt joint. Quite impressive, takes a very steady hand and control of the arc. The other is to weld two razer blades together lengthwise.
nashvillebill is offline
Old 12-29-16, 09:33 AM
  #8
Senior Member

Join Date: Jun 2006
Posts: 20,338
Liked 2,857 Times in 2,015 Posts
Images for framebuilder time, of note cut a main triangle and things get pretty limber. And you will find out fast any built in stresses in the frame!
I would not want to sleeve it but I would measure, mark, cut insert and then braze in the sleeves, spring open the frame, insert the replacement section then silver that in.
repechage is offline
Old 12-29-16, 09:39 AM
  #9
Senior Member

Join Date: Feb 2014
Location: Midwest
Posts: 2,081

Bikes: See the signature....

Liked 195 Times in 117 Posts
Welding in a new section would be a hack repair, at best, IMHO. Just as difficult as welding in an entire new tube, so why bother.
__________________
My bikes: '81 Trek 957, '83 Trek 720, '85 Trek 500, '85 Trek 770, '81 Merckx, '85 Centurion Cinelli, '85 Raleigh Portage, '92 RB-2, '09 Bianchi
nesteel is offline
Old 12-29-16, 10:11 AM
  #10
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,551
Liked 4,585 Times in 3,406 Posts
Rare doesn't always mean valuable.

What is the bike/frame you are considering?

Photos of the bike/frame, and the damage?

Also once repaired, and painted, it will remain as a repaired/painted frame that will naturally decrease its value.

I might consider the repair on something very special like a super-rare funny bike. But, probably not on most other frames... other than attempting a home repair.
CliffordK is offline
Old 12-29-16, 10:31 AM
  #11
Senior Member

Join Date: Jan 2013
Posts: 2,756

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Liked 636 Times in 436 Posts
There are not many frames worth the cost of quality repairs (new top tube) and quality paint/decals and take the lose in value for being a respray unless it is a labor of love. Does not sound like this is a labor of love so pictures, please.
easyupbug is online now
Old 12-29-16, 12:22 PM
  #12
Senior Member

clasher's Avatar

Join Date: May 2009
Location: Kitchener, ON
Posts: 2,738
Liked 148 Times in 103 Posts
It's not really complicated to remove a tube from a TIG welded frame, just cut a chunk out of the dented tube, grind/sand off the old welds, miter a new tube and weld it up. If you are handy with a file and a measuring tape one could buy a new top tube from NOVA, do the coping yourself, cut out the damaged tube yourself and just take it to a regular welding shop, they charge less than framebuilders it seems to me.
clasher is offline
Old 12-30-16, 06:53 AM
  #13
spondylitis.org

kunsunoke's Avatar

Join Date: Mar 2013
Location: Fleetwood, PA, USA
Posts: 1,005

Bikes: '84 Colnago Super; '90 Bridgestone MB-1; '81 Trek 930; '01 Cinelli Supercorsa; '62 Ideor Asso; '87 Tommasini Super Prestige; '13 Lynskey R2300; '84 Serotta Nova Special; '94 Litespeed Catalyst; etc.

Liked 97 Times in 63 Posts
This isn't heat-treated steel, is it? If so, the entire frame will have to be re-treated, which means the cost to repair might be prohibitive unless the bike has sentimental value or is collectible.

Non-treated steel should be straightforward for anyone with a TIG welder to handle. I've had things done by the welder just down the street, and that was more than enough to ensure integrity in garden variety Tange Infinity tubing.

It'd be best just to replace the entire tube, since one can never vouch for the integrity after major damage.
kunsunoke is offline
Old 12-30-16, 09:42 AM
  #14
Senior Member

TenGrainBread's Avatar

Join Date: Sep 2015
Location: Madison, WI
Posts: 2,707
Liked 662 Times in 341 Posts
Originally Posted by nashvillebill
I would just have the new section welded with a double V butt weld at the joints, meaning the old section is chamfered at the end, and the new section is chamfered, then the weld fills up those areas. The resulting weld in theory can be just as strong as the parent metal. No internal sleeves.
The point of creating a groove (you mentioned welding a double V groove) is that it lets you penetrate into thick material when welding. In this case the tube is very thin so penetration wouldn't be an issue. In fact you would want the tube thicker at the weld so as not to get "melt-through" at the joint (hence the sleeve suggestion). A sleeve would act as reinforcement, a heat sink, and would keep the tubes square to each other during fitment.


Also, a mod might want to change the MIG mention in the title to TIG. As far as I know MIG is not used for bike fabrication.
TenGrainBread is offline
Old 12-30-16, 11:17 AM
  #15
Senior Member

Join Date: Mar 2016
Location: Phoenix AZ
Posts: 376
Likes: 0
Liked 3 Times in 2 Posts
Originally Posted by TenGrainBread
The point of creating a groove (you mentioned welding a double V groove) is that it lets you penetrate into thick material when welding. In this case the tube is very thin so penetration wouldn't be an issue. In fact you would want the tube thicker at the weld so as not to get "melt-through" at the joint (hence the sleeve suggestion). A sleeve would act as reinforcement, a heat sink, and would keep the tubes square to each other during fitment.


Also, a mod might want to change the MIG mention in the title to TIG. As far as I know MIG is not used for bike fabrication.
I don't disagree with your logic; a sleeve lets the welder turn up the heat enough to get full penetration while minimizing blow-through, and with higher heat there's no need to chamfer the edges (by chamfering I meant basically breaking the sharp edges down, since the wall thickness is less than a millimeter).

I have indeed made internal sleeves to butt-weld thick-walled aluminum tubing (for the lock bars on my cargo trailer). One hassle to making internal sleeves is that the outer diameter (OD) of the sleeve must match the ID of the tubing, ideally it would be a tight locational fit. I have a lathe so it wasn't a big deal to turn the sleeves to the right size, but I don't know if the OP has that option available. So my thought was to eliminate the sleeves and have the welder, assuming he/she is skilled, turn the heat way down while still achieving a full penetration weld. Easier said than done.

Which ultimately brings me to my (revised) conclusion: Whether using an internal sleeve, or butt-welding without an internal sleeve, this in all probability will look like a kludged repair job. The weld must achieve full penetration all the way around, since any nonconformities will introduce stress risers and possibly begin cracking. Plus, when the weld is complete, it won't be a perfectly flat surface all the way around. Best case, it's a convex ridge all around that can be carefully ground and sanded flat and smooth. That's a whole lot of work and very tedious. Worst case, there's undercutting (depressions and incomplete filling) at places in addition to the raised ridge. The undercutting will require filling with body filler before painting. Undercutting also introduces stress risers and since the material is thinner there, the frame may fail.

So while the frame could be repaired by cutting out a bad section in the middle and butt-welding a new piece in, IMHO it's not a great solution, at least not for a frame that supposedly is worth a lot of money. My thought now is that the best solution is the earlier suggestion of cutting the tube out entirely and replacing the whole piece. Grinding the old welds off won't be much more work (if any) than trying to grind new butt welds perfectly smooth. Now there would be a smooth new tube, with no stress issues.
nashvillebill is offline
Old 12-30-16, 12:38 PM
  #16
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,551
Liked 4,585 Times in 3,406 Posts
If you're putting a sleeve in, then brazing is also a possibility.

I'm wondering if one could make one's sleeve(s) loose enough that they could be pushed into the uncrushed section of tube. Then using a string, thread, or wire through he headtube and/or seattube pull them into place. Then braze into place. Welding is best with a tight fit, but brazing works well with a slight gap around the sleeve.
CliffordK is offline
Old 01-01-17, 09:22 PM
  #17
Senior Member
Thread Starter

dadoflam's Avatar

Join Date: Jan 2008
Location: Great Southern Land
Posts: 173

Bikes: ’71 Cinelli SC;‘ 72 Cinelli SC ; 2011 Baum Corretto Ti; 2007 BMC SLC01; 1986 Pinarello Team Bike; 1983 De Rosa Professional; 1959 Bianchi TdF; ’78 Masi GC Ca

Likes: 0
Liked 2 Times in 2 Posts

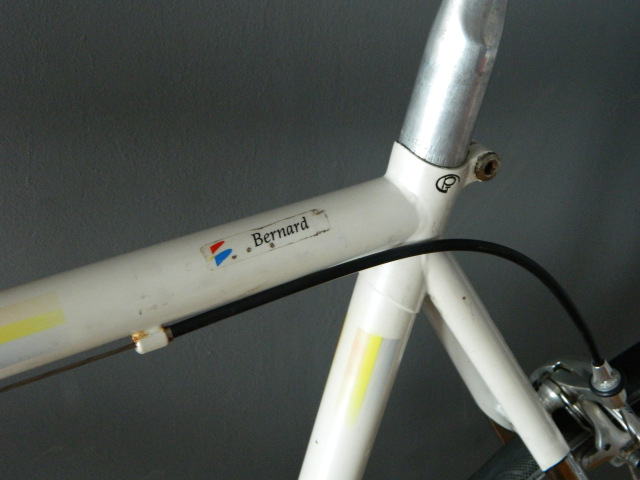

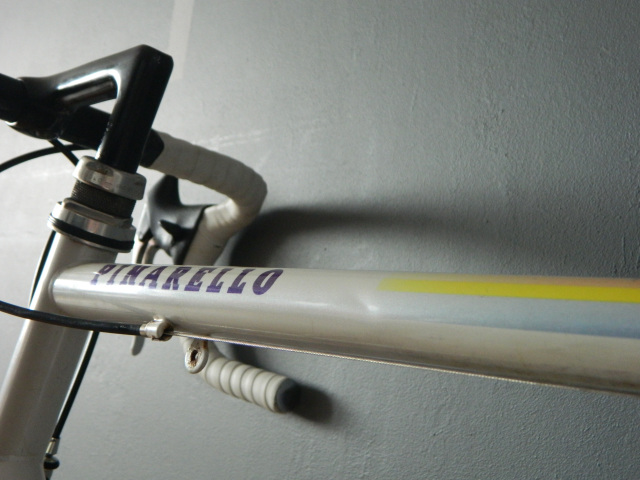

Ok – I made the decision and bought the bike. It is a Banesto Team bike made by Dario Pegoretti in 1993 and ridden by Jean Francois Bernard during the 1994 season including the TdF where he supported Indurain to his 4th victory. (and the last TdF won on asteel bike)
This bike ticked a few boxes for me – the key ones being that it is a Pegoretti (which I have always quested after), a vintage Pinarello (which I collect) and a 90’s era steel bike with early Campy ergo shifting (I don’t have) all in one.
When Dario replied to my email and very kindly confirmed that it was one of his it was enough to take the gamble on the dents either being minor or repairable – I am pretty stoked to have got it.
Dario indicated that it is made with Excell tubing which I had not come across before. A bit of Googling gave me a bit to work with including that it has a different composition to many products makingit light, strong but also a bit harder to work with.

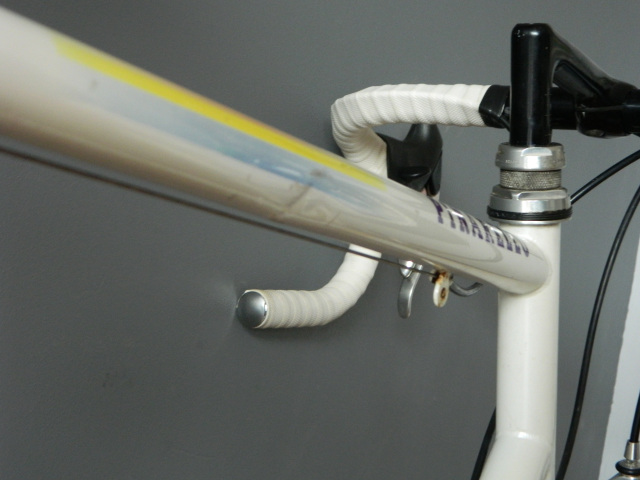

The dent on the right hand side is the one I am concerned about



















Last edited by dadoflam; 01-01-17 at 10:59 PM.
dadoflam is offline
Old 01-01-17, 10:52 PM
  #18
Old bikes, Older guy

Senior Ryder 00's Avatar

Join Date: Jun 2014
Location: Fiscal Conservative on the Lefty Coast - Oregon
Posts: 877

Bikes: A few modern, Several vintage, All ridden when weather allows.

Liked 190 Times in 130 Posts
Heck, if it can’t be rolled out and the alignment is OK, I’d just document its history, maintain it well and ride it a lot. Any repairs, even if near perfect, are going to undermine the value.

Cheers,

Van
__________________
Remember: Real bikes have pedals.
...and never put a yellow tail on a Red, White and Blue kite!
Senior Ryder 00 is offline
Old 01-01-17, 11:33 PM
  #19
Senior Member

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 13,104

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Liked 4,134 Times in 2,665 Posts
Originally Posted by merziac
As is often the case there will be many opinions on something like this. I would encourage you to seek out experts in this discipline specifically. My recommendation would be to consult Dave Levy of Ti Cycles in PDX, he is an expert in repair of all things bicycle frames, especially when it is difficult and challenging.
My thought exactly when I saw the OP's post. Tig welded frames are bread and butter for TiCycles. So is repairing anything steel (not just bikes). They are not cheap but you will get the word on if the repair is feasible, how it should be done and what it might cost.

It's a given that they have seen damaged tig welded bikes. The biggest market for theirs is as winter bikes for local racers. Those bikes don't get babied.

Ben
