This seems problematic -- is this fork forked?

I finally got around to Boeshielding the interior of my Moto Grand Record's tubes, and when it came time to flip the fork and move the goop around, I noticed what I think is a distressing absence of brazing material on the underside of the non-drive side fork crown. Can this be repaired easily? Is it necessary to fix? (My gut tells me yes.)

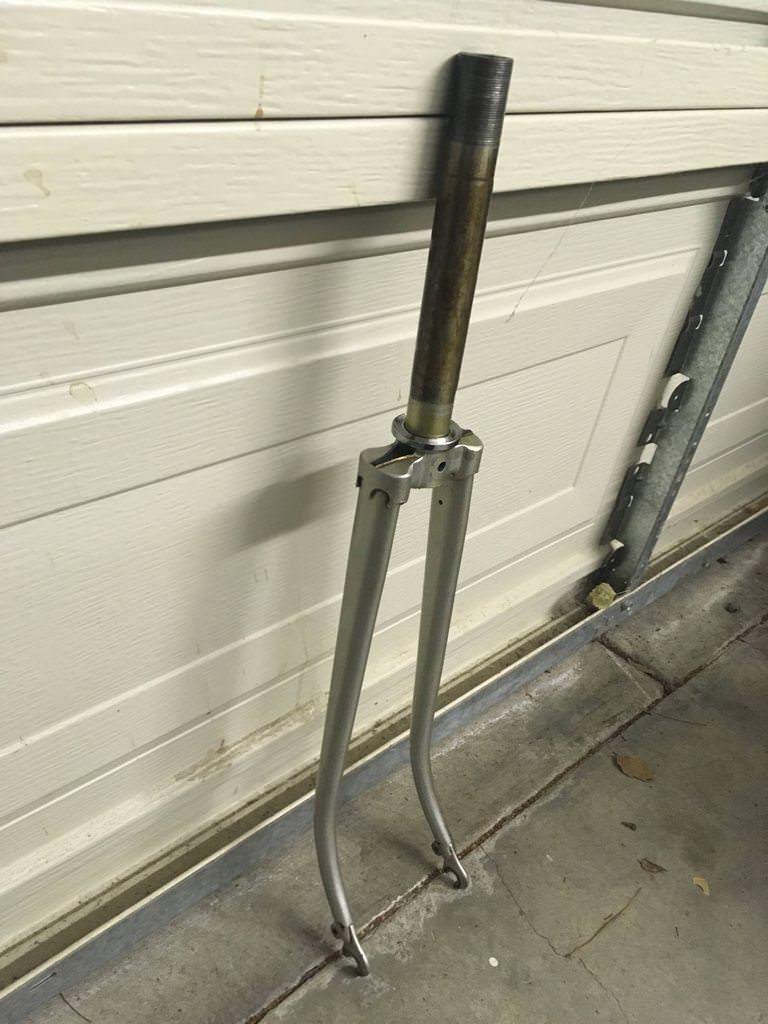

First, a couple of overall shots, no obvious damage, no rust. Problem side is the non-drive side, stage right:

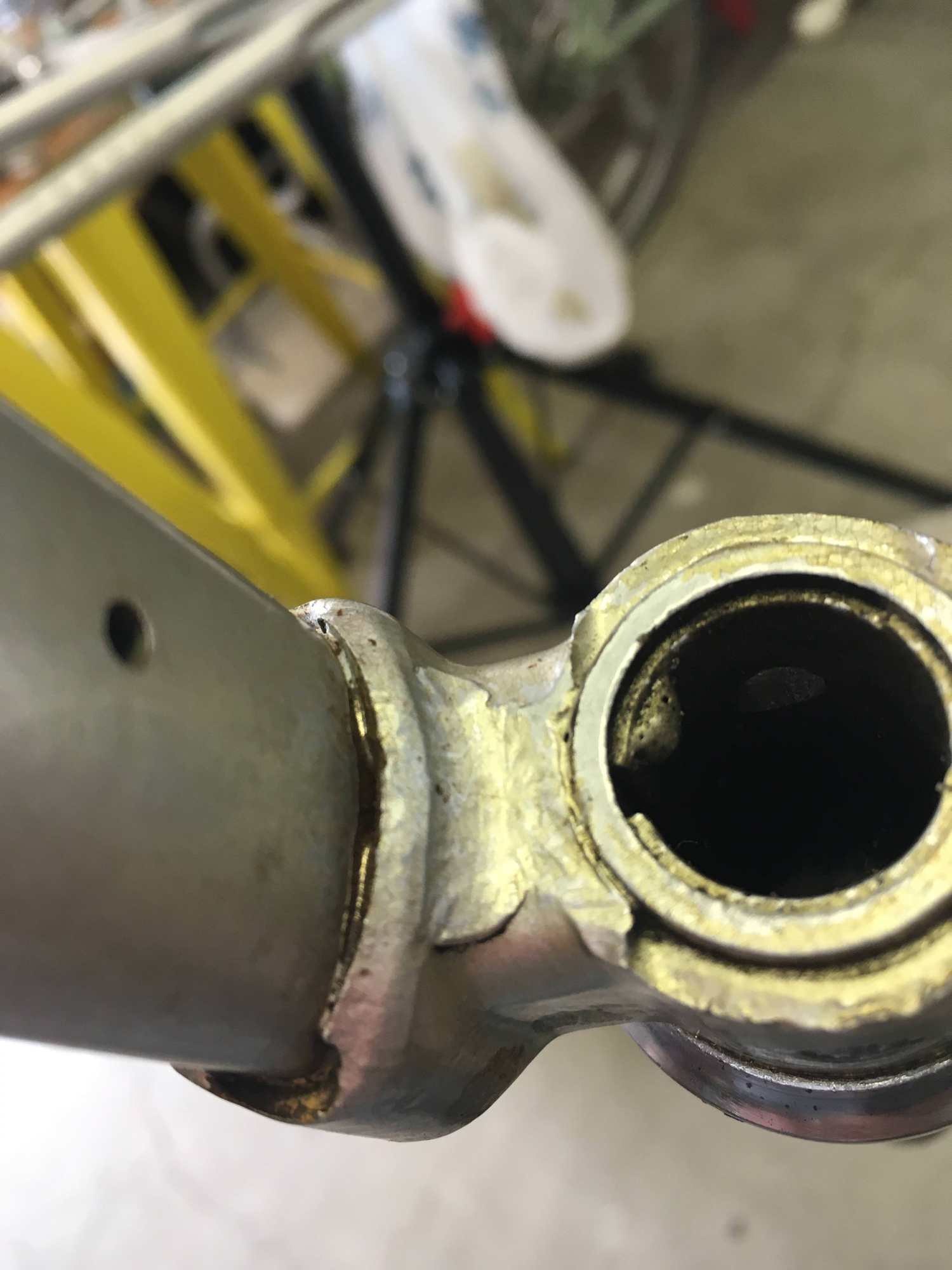

DS, which seems fine

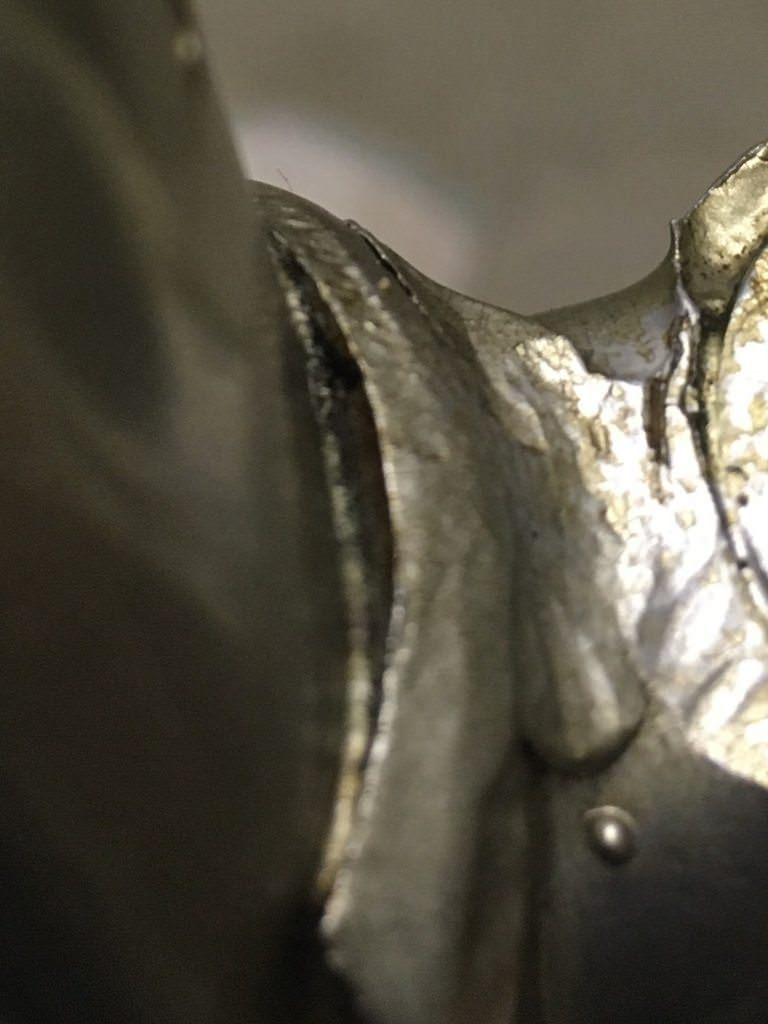

DS, detail

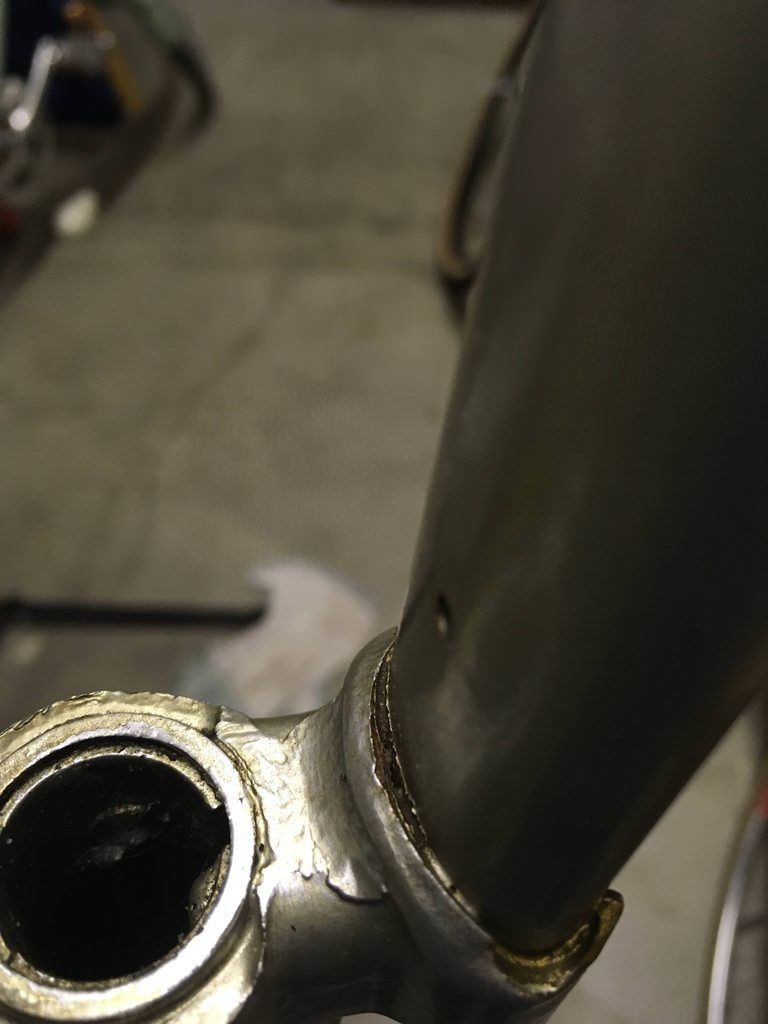

NDS, problem side

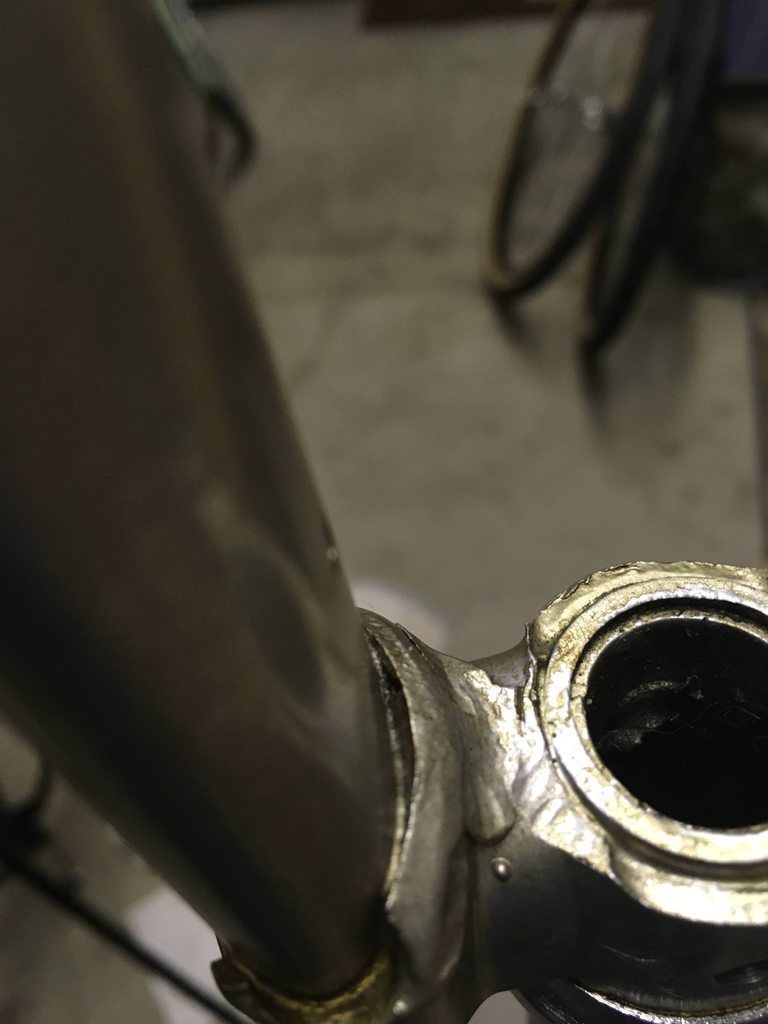

NDS, detail

Last edited by noobinsf; 06-06-18 at 10:56 AM.
noobinsf is offline
Old 06-06-18, 05:25 AM
  #2
malcala622
Senior Member

malcala622's Avatar

Join Date: Oct 2014
Location: Pico Rivera, CA
Posts: 4,031

Bikes: 1983 Basso Gap...2013 Colnago CX-1...2015 Bianchi Intenso

Mentioned: 87 Post(s)
Tagged: 0 Thread(s)
Quoted: 1116 Post(s)
Liked 995 Times in 587 Posts
From the first pic the DS blade looks like its leaning more outward.
__________________
1983 Basso Gap... 2013 Colnago CX1...2015 Bianchi Intenso




malcala622 is offline
Old 06-06-18, 06:54 AM
  #3
Road Fan
Senior Member

Road Fan's Avatar

Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,212

Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8

Mentioned: 43 Post(s)
Tagged: 0 Thread(s)
Quoted: 1575 Post(s)
Liked 466 Times in 356 Posts
Those cracks under the fork crown and the not-too-clean braze between the blade and the crown look like a fracture waiting to happen. I'd have it inspected by a frame builder to find out if it is safe, and if not, if it is repairable.
Road Fan is online now
Old 06-06-18, 07:02 AM
  #4
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Posts: 12,896
Mentioned: 31 Post(s)
Tagged: 0 Thread(s)
Quoted: 3432 Post(s)
Liked 2,178 Times in 1,287 Posts
I can't say that I've ever looked under my forks. Now you've got me thinking maybe I should.
himespau is online now
Old 06-06-18, 07:46 AM
  #5
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,128
Mentioned: 214 Post(s)
Tagged: 0 Thread(s)
Quoted: 16344 Post(s)
Liked 3,548 Times in 2,633 Posts
I don't see much in photos #3 & #4 (NDS) other than cheap workmanship. The filler probably doesn't need to exceed the length of the lug/crown.

Photos #5 & #6 (DS) do look a bit disturbing as if there has been some movement in the fork blade.

As @malcala622 mentioned, perhaps you could feel if the fork blade feels loose, or check the fork alignment (quality C&V bike shop?)

I'd probably start looking for a new fork. However, you might have the thread moved to the Framebuilders subforum for suggestions. It might be able to be re-brazed, but you'd have to get the joint very clean, and assuming that is chrome and not paint, a lot of people won't want to work with chrome although technically one should be able to do the work without destroying the chrome (lots of good flux).
CliffordK is offline
Old 06-06-18, 07:51 AM
  #6
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,671

Bikes: It's complicated.

Mentioned: 1175 Post(s)
Tagged: 0 Thread(s)
Quoted: 4117 Post(s)
Liked 3,665 Times in 1,617 Posts
Typical French workmanship, I say. It's hard to tell how deep that gap in the braze is. Can you give a measurement? If it's only a mm or two, I wouldn't worry. On that last picture I'd try and gouge out as much of the rusty looking stuff as possible to see how deep the lack of brazing material is. It could be just flux that was never removed. If so, a soak in hot water and some poking around would remove it.

BTW, the only cracks I see are in the paint.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-06-18, 07:58 AM
  #7
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
Originally Posted by Road Fan View Post
Those cracks under the fork crown and the not-too-clean braze between the blade and the crown look like a fracture waiting to happen. I'd have it inspected by a frame builder to find out if it is safe, and if not, if it is repairable.
I don't think what you're seeing are cracks, but the brazing is definitely a problem. The casting of the fork crown does not look like the cleanest, so the underside has some craggy "extra" material on either side of the steerer tube's underbelly.

Yes, point taken -- at a minimum, it seems I need an expert opinion from someone who can get his/her hands on it.
noobinsf is offline
Old 06-06-18, 08:19 AM
  #8
juls
over the hill

juls's Avatar

Join Date: Apr 2009
Location: florida
Posts: 1,410

Bikes: 72 maino-76 austro daimler inter 10-? giant kronos

Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 84 Post(s)
Likes: 0
Liked 3 Times in 3 Posts
Kind of looks like it was rebrazed fron original/like a fill in? Looks too sloppy to me to be original. Compared to raleighs, most motos I had were cleaner.....and that braze looks newer. Of course I can and have been wrong.
juls is offline
Old 06-06-18, 08:23 AM
  #9
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
Originally Posted by gugie View Post
Typical French workmanship, I say. It's hard to tell how deep that gap in the braze is. Can you give a measurement? If it's only a mm or two, I wouldn't worry. On that last picture I'd try and gouge out as much of the rusty looking stuff as possible to see how deep the lack of brazing material is. It could be just flux that was never removed. If so, a soak in hot water and some poking around would remove it.

BTW, the only cracks I see are in the paint.
Hmm, I will measure later today. I think I see actual space between the crown and the blade, though, so I'm not too confident.

Besides Bernie Mikkelsen, does anyone know of a reputable frame builder here in the Bay Area who could assess this and perform the fix if necessary? He's the only one I know of, but I've never had to research this sort of thing.
noobinsf is offline
Old 06-06-18, 08:31 AM
  #10
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,938

Bikes: Indeed!

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 1173 Post(s)
Liked 2,075 Times in 703 Posts
Originally Posted by noobinsf View Post
Hmm, I will measure later today. I think I see actual space between the crown and the blade, though, so I'm not too confident.

Besides Bernie Mikkelsen, does anyone know of a reputable frame builder here in the Bay Area who could assess this and perform the fix if necessary? He's the only one I know of, but I've never had to research this sort of thing.
Ed Litton in Richmond. Paul Sadoff at Rock Lobster in Santa Cruz. Steve Rex in Sacramento.
obrentharris is offline
Old 06-06-18, 08:37 AM
  #11
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
Originally Posted by obrentharris View Post
Ed Litton in Richmond. Paul Sadoff at Rock Lobster in Santa Cruz. Steve Rex in Sacramento.
Thank you! I had heard of Ed Litton, but he did not come to mind immediately, and the other two are new to me.

I really appreciate everyone's advice.
noobinsf is offline
Old 06-06-18, 08:43 AM
  #12
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
Originally Posted by himespau View Post
I can't say that I've ever looked under my forks. Now you've got me thinking maybe I should.
I like that blog Restoring Vintage Bicycles from the Hand Built Era, and seeing what I saw brought this post to mind (though I did not intentionally steal her turn of phrase):

https://restoringvintagebicycles.com...fork-failures/

I hadn't read through the comments from this post before, and she makes a compelling case for simply getting a new fork. If it's cost prohibitive to fix, I'll look into that option. Since this is a keeper bike, I am not factoring a full quality repaint into the repair cost. I might instead primer it until I can powder coat. Woe is the tinkerer who finds a task beyond his skills...

Last edited by noobinsf; 06-06-18 at 08:48 AM.
noobinsf is offline
Old 06-06-18, 09:06 AM
  #13
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
Originally Posted by CliffordK View Post
I don't see much in photos #3 & #4 (NDS) other than cheap workmanship. The filler probably doesn't need to exceed the length of the lug/crown.

Photos #5 & #6 (DS) do look a bit disturbing as if there has been some movement in the fork blade.

As @malcala622 mentioned, perhaps you could feel if the fork blade feels loose, or check the fork alignment (quality C&V bike shop?)

I'd probably start looking for a new fork. However, you might have the thread moved to the Framebuilders subforum for suggestions. It might be able to be re-brazed, but you'd have to get the joint very clean, and assuming that is chrome and not paint, a lot of people won't want to work with chrome although technically one should be able to do the work without destroying the chrome (lots of good flux).
There is no movement with the blade, and it is not chrome, so at least there is that.

Good point about moving this forum to Frame Builders, though.

Moderators, may I ask that this thread be moved to the Frame Builders forum?
noobinsf is offline
Old 06-06-18, 09:08 AM
  #14
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,128
Mentioned: 214 Post(s)
Tagged: 0 Thread(s)
Quoted: 16344 Post(s)
Liked 3,548 Times in 2,633 Posts
Just click on the red dot, and they move threads quickly.
CliffordK is offline
Old 06-06-18, 09:12 AM
  #15
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
Originally Posted by CliffordK View Post
Just click on the red dot, and they move threads quickly.
Done, thanks!
noobinsf is offline
Old 06-06-18, 10:47 AM
  #16
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 22,773
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 2,335 Times in 1,648 Posts
Moderator's response: We don't see why this one should be in framebuilding, sorry.

Framebuilder's response: I wouldn't ride it and there is no way I would spend money fixing it. Really hard to add filler to a rusty gap in an old fork. If you really want to know if there is a problem, get that area sandblasted. I used to keep myself in beer money back in the '70s fixing improperly brazed French bikes, so my guess is it was made after lunch. I wouldn't have touched this one though.

I wouldn't expect movement with a partially brazed fork blade. At least not until the fatigue crack moves through the good filler. It might never happen, it might happen the next time it's ridden, you never know.
unterhausen is offline
Old 06-06-18, 11:04 AM
  #17
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
I think after a bit of cleaning with an exacto knife, I'm encouraged. (Working from home today, so snuck out to the garage for a minute.) Also, when I posted this late last night, I was a little turned around, and it's actually the NDS that is in question, so I edited my initial post to reflect this.

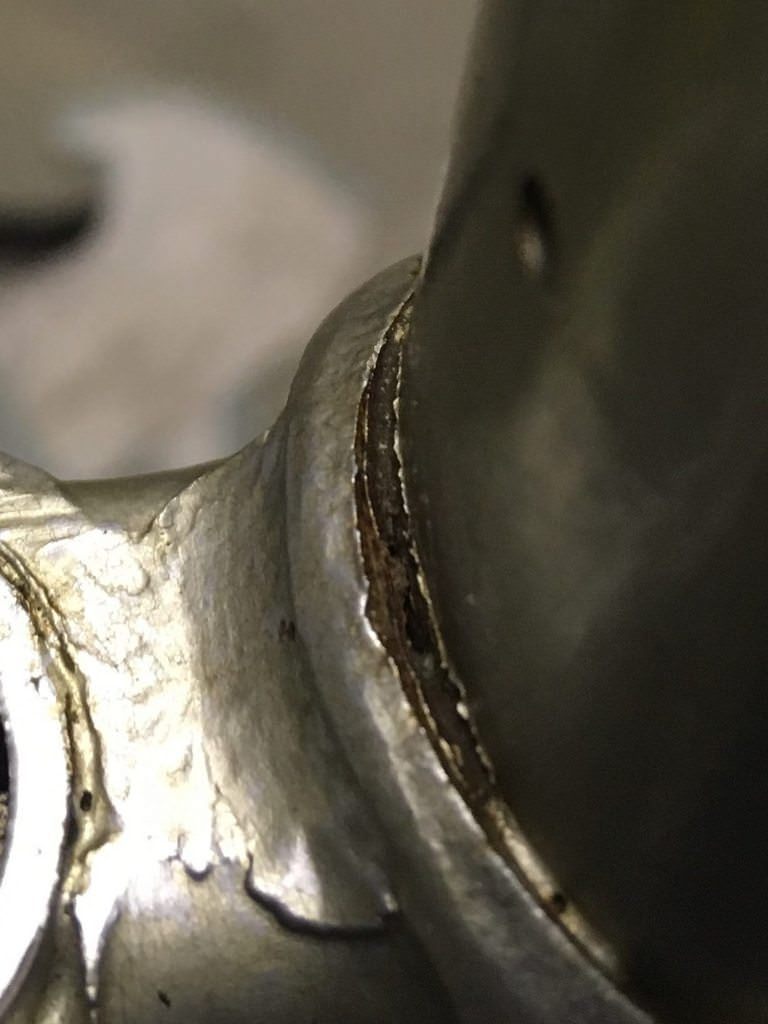

Here is a better view of the spot, after cleaning out the gunk. It looks like there is indeed a small gap in the brazing material, not that the gap goes the entire length of the lug/blade interface. The brazing material tapers in on either end of this small gap, so it does not look like a break -- it looks to have been painted that way. There is no rust. Maybe not the best workmanship, but it looks like what I thought was gap was mostly gunk. Am I off base, or is my improved mood justified?


Last edited by noobinsf; 06-06-18 at 11:23 AM.
noobinsf is offline
Old 06-06-18, 12:18 PM
  #18
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,128
Mentioned: 214 Post(s)
Tagged: 0 Thread(s)
Quoted: 16344 Post(s)
Liked 3,548 Times in 2,633 Posts
Ahhh,

Thanks for the update.

That looks a lot less cracked, and more like an original manufacturing flaw. In which case, if it isn't causing a problem (and hasn't disintegrated in the last 30 or 40 years), then you should be able to ignore it.



Other than that gap in the middle, can a razor blade slide between the filler and the fork blade closer to the edges of the crown?

Last edited by CliffordK; 06-06-18 at 12:22 PM.
CliffordK is offline
Old 06-06-18, 12:32 PM
  #19
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
Originally Posted by CliffordK View Post
Other than that gap in the middle, can a razor blade slide between the filler and the fork blade closer to the edges of the crown?
No, aside from the small gap, there is no other space where a razor blade can fit. I think I'm confident ignoring it, and just being mindful of any change in ride characteristics.
noobinsf is offline
Old 06-06-18, 01:55 PM
  #20
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 4,015
Mentioned: 21 Post(s)
Tagged: 0 Thread(s)
Quoted: 420 Post(s)
Liked 221 Times in 141 Posts
And 't'were mine, I'd put a little acrylic sealant ("bathroom caulk") into the hole to keep spray from going into the fork crown; actually I'd worry more about corrosion of the top of the fork blade, since it's much thinner. But I wouldn't hesitate to ride that fork.
Charles Wahl is online now
Old 06-06-18, 02:51 PM
  #21
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,671

Bikes: It's complicated.

Mentioned: 1175 Post(s)
Tagged: 0 Thread(s)
Quoted: 4117 Post(s)
Liked 3,665 Times in 1,617 Posts
Those fork crowns are folded up and welded on the bottom. You can see the weld on the bottom going across. That braze gap you see on that last picture is probably from a lack of contact from the filler material on the weld seam. That's common on old Motos and other bikes that use a stamped and welded fork crown.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 06-06-18, 02:56 PM
  #22
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,793
Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2534 Post(s)
Liked 1,468 Times in 1,107 Posts
"this is the end, my trusted friend"

​​​​​​​At this point I would just be thinking about the integrity all the time, maybe even for years, but "this is it, time to go...'
repechage is offline
Old 06-06-18, 03:11 PM
  #23
CliffordK
Senior Member

CliffordK's Avatar

Join Date: Nov 2014
Location: Eugene, Oregon, USA
Posts: 27,128
Mentioned: 214 Post(s)
Tagged: 0 Thread(s)
Quoted: 16344 Post(s)
Liked 3,548 Times in 2,633 Posts
I looked at three of my Motobecanes.

Mirage. Pressed steel and welded crown, much like the OP. No "gap" like the OP has, but the filler is perhaps 1/2mm shy of filling the space between the crown and the blade to the top.
'
Grand Touring. Appears to be a cast crown. There is a big lump of weld or braze on the inside of the fork blade, but nothing too odd.

Grand Jubilee, also cast. Has a fender, and hard to visualize underside. May have a similar lump to what the Grand Touring has.

None of the bikes have fork tangs on the inside.



There were earlier threads about the increased strength from the fork tangs, but a lot of older bikes don't have them.
CliffordK is offline
Old 06-06-18, 03:31 PM
  #24
noobinsf
Senior Member
Thread Starter

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 3,071

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '83 Mercian KOM Touring, '85 Univega Alpina Uno, '76 Eisentraut Limited

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1005 Post(s)
Liked 984 Times in 597 Posts
This thread has been reassuring -- I appreciate everyone's input...
noobinsf is offline
Related Topics
Thread
Thread Starter
Forum
Replies
Last Post
atombianchi
Classic & Vintage
6
09-09-18 08:48 PM
gugie
Classic & Vintage
16
06-04-17 07:14 PM
Rochet
Classic & Vintage
5
06-02-16 12:07 AM
Mr Pink57
Mountain Biking
9
08-25-11 01:06 PM
sailorbenjamin
Classic & Vintage
13
03-08-11 05:56 PM

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
