Quill Stem Options?

Search
Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Quill Stem Options?

Thread Tools

Search this Thread

Old 06-20-18 | 07:18 PM
  #1
Thread Starter
Senior Member

Joined: Jul 2015
Posts: 134
Likes: 0
From: Holland, Michigan

Bikes: 1991 Team Miyata, and a 2014 Cannondale Synapse (for sale)

Quill Stem Options?

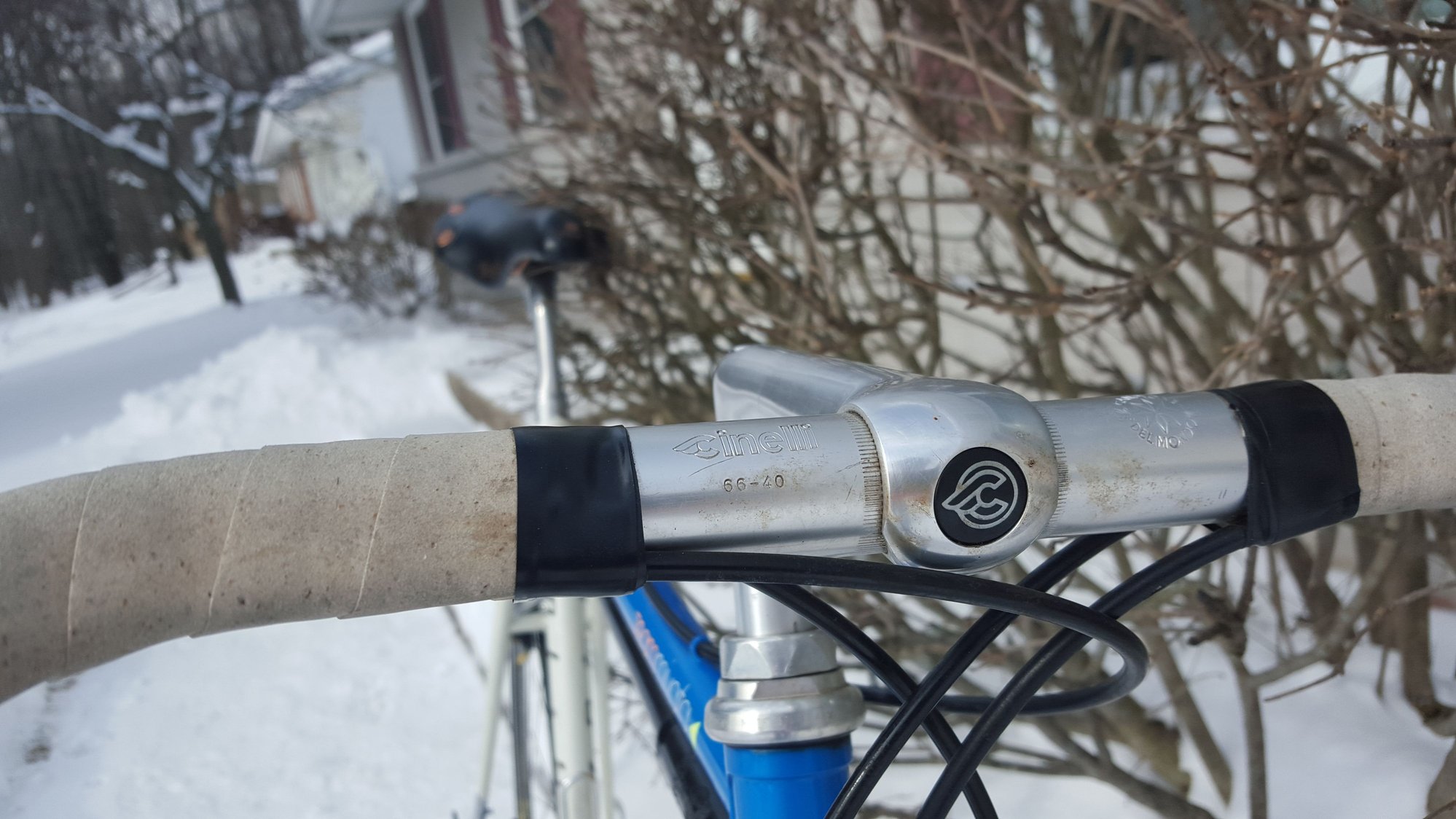

I have a 1990 and I need a new quill stem as the handlebars slip and makes it unsafe to ride. I currently have Cinelli bars and Cinelli XA stem currently on it and love the look. I've heard a lot of bad things about the XA stem, so I am looking into other period options from any other companies. I like a sleek look, but it's before my time, so I don't know what would be a good option. 110mm is my current stem length, so I would like a model that makes a 110mm. This is not a looking to buy post, just trying to see what period correct options there are.

Thanks in advance!
Mr.Peloton is offline
Reply
Old 06-20-18 | 07:32 PM
  #2
79pmooney's Avatar
Senior Member
10 Anniversary
Community Builder

Joined: Oct 2014
Posts: 14,153
Likes: 5,275
From: Portland, OR

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

The brain dead answer is Nitto. Their stems are as nice as you want to pay for. The top end, the Pearl, is as nice (and probably better machined, accurate, etc.) as any stem made. Most of Nitto's stems are measured like everybody else's. but note: the Pearl is measured handlebar center to intersection of stem centerline and steerer centerlinr. So, take the Pearl named dimension and multiply by 1.08. (A Pearl 12 is a Cinelli/TTT 130.)

Google Nitto Pearl. It doesn't look like yours; more like an older Cinelli. Web photos do not do it justice. In your hands it is a knockout. Especially when you can see all the machining detail normally hidden by bar and steerer. In production and probably will be for a while. They come both 25.4 and 26.0 mm dia.

Ben
79pmooney is offline
Reply
Old 06-20-18 | 07:39 PM
  #3
Kontact's Avatar
Senior Member
15 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Apr 2011
Posts: 12,631
Likes: 4,785
What have you heard about XAs? I've never heard any issues - popular stem.

The bar diameter is the rarer 26.4mm, so your options are Cinelli 1A or rarer Mavic stems. Later Cinelli stems were 26.0, so shop carefully.
Kontact is offline
Reply
Old 06-20-18 | 08:00 PM
  #4
Thread Starter
Senior Member

Joined: Jul 2015
Posts: 134
Likes: 0
From: Holland, Michigan

Bikes: 1991 Team Miyata, and a 2014 Cannondale Synapse (for sale)

Originally Posted by Kontact
What have you heard about XAs? I've never heard any issues - popular stem.
I've heard that since the logo is embossed that they are prone to stress cracking in that area, as well as being loud and having road wobble (haven't experienced) at higher speeds. I LOVE how it looks, but after hearing the stress cracking at the logo from some people it makes me a bit weary since I put a lot of pressure on the stem since I ride really aggressively.

I just ran across the Cinelli 1R stem, it would go well with my blacked out look I've gone for my bike, but I haven't heard anything about it, is it a good stem?

Last edited by Mr.Peloton; 06-20-18 at 08:05 PM. Reason: Typos/new info
Mr.Peloton is offline
Reply
Old 06-20-18 | 08:36 PM
  #5
Chombi1's Avatar
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Nov 2015
Posts: 4,900
Likes: 1,125
Are you talking about the logo on the front of the XA stem?? If you are, it is close to the same as what's on the 1R, with the XA having more material under the plastic black Cinelli logo disc as it is not punched through (except for small holes for locating rods at the back of the disc.) like the 1R, so should be stronger at that area than the 1R, but maybe the forcing from the split clamp design might still cause it to crack, unlike the 1R that has a clamp are without a split on it (a continuous ring around the handlebar)...
Chombi1 is offline
Reply
Old 06-21-18 | 04:39 AM
  #6
Old Fireleg's Avatar
Full Member

Joined: Oct 2012
Posts: 269
Likes: 71

Bikes: '76 Colnago Super NR,'83 Romani Aero KL/SP SR, '85 Mino Denti Aero Master CR, '86 ALAN Cyclo-cross DA, '89 Bottecchia SLX CR, '90 Colnago Master Piu CR

Originally Posted by Mr.Peloton
I have a 1990 and I need a new quill stem as the handlebars slip and makes it unsafe to ride. I currently have Cinelli bars and Cinelli XA stem currently on it and love the look. I've heard a lot of bad things about the XA stem, so I am looking into other period options from any other companies. I like a sleek look, but it's before my time, so I don't know what would be a good option. 110mm is my current stem length, so I would like a model that makes a 110mm. This is not a looking to buy post, just trying to see what period correct options there are.

Thanks in advance!
Modolo stems were a concern during this time as well. But then it was thickened in the bend. The X Eras - X-Setra - Q-Even generation has been designed for this. But it's almost black.
3ttt Evol and Record 84 are also from this period and not just in black versions. The Pro racers had to do it in the meantime.
Old Fireleg is offline
