Old 07-10-18 | 02:14 PM
  #26
Thread Starter
Junior Member

Joined: Jul 2018
Posts: 13
Likes: 0
I was wondering .. do you guys keep a steady peddling when you change gears on these older bikes or do you pause right before a shift? I’ve always had a little bit of pause when I’m mountain biking when shifting but I don’t shift all the much on the trails
Acoolname is offline
Reply
Old 07-10-18 | 02:32 PM
  #27
Senior Member

Joined: Apr 2015
Posts: 4,272
Likes: 1,304
From: Seattle
Originally Posted by Acoolname
I was wondering .. do you guys keep a steady peddling when you change gears on these older bikes or do you pause right before a shift?
Momentarily lowering pedaling force to reduce tension on the drivetrain can help the chain cleanly move from sprocket to sprocket, but there's no reason to totally stop pedaling if things are working smoothly. The drivetrain needs to be spinning in order for the shift to happen!
HTupolev is offline
Reply
Old 07-10-18 | 03:14 PM
  #28
DiabloScott's Avatar
It's MY mountain
15 Anniversary

Joined: Sep 2006
Posts: 10,184
Likes: 4,250
From: Mt.Diablo

Bikes: Klein, Merckx, Trek

Originally Posted by Acoolname
I was wondering .. do you guys keep a steady peddling when you change gears on these older bikes or do you pause right before a shift?
Yeah, just let up on the tension and soft pedal for couple revolutions, especially for shifts in the front. I do this with my newest brifters too but it only takes a half-rev.
DiabloScott is offline
Reply
Old 07-10-18 | 03:59 PM
  #29
rccardr's Avatar
aka: Dr. Cannondale
Titanium Club Membership
Sheldon Brown Memorial - Titanium
15 Anniversary
Active Streak: 30 Days

Joined: Jul 2009
Posts: 8,683
Likes: 6,390
The above-mentioned 10 speed ST (Gugie, you'll see it in person this weekend):
__________________
Hard at work in the Secret Underground Laboratory...
rccardr is offline
Reply
Old 07-10-18 | 05:13 PM
  #30
Thread Starter
Junior Member

Joined: Jul 2018
Posts: 13
Likes: 0
Okay so I got back from my ride. It’s definitely not the front derailer. The noise is coming from the back and the front I made sure was on the large cog. In the back it only seems to happen when I’m going up in a gear. Just one gear mainly. From smallest cog to the 2nd it will get stuck and not want to go. Then from 3-4-5 it’s fine. Then going back down to the smallest cog on the back it is fine. I’m guessing that is a index issue on the rear derailer? Also come to find out the seat this thing came with is quite painful lol. I guess I’m used to my mtn bike seat.
Acoolname is offline
Reply
Old 07-10-18 | 05:20 PM
  #31
Senior Member

Joined: Jun 2018
Posts: 257
Likes: 19
Originally Posted by DiabloScott
Yeah, just let up on the tension and soft pedal for couple revolutions, especially for shifts in the front. I do this with my newest brifters too but it only takes a half-rev.
My wife absolutely cannot grasp this. She is constantly having shifting issues, that I can't seem to replicate.

It doesn't help that her description of the problem is usually so vague as to be useless.
88Tempo is offline
Reply
Old 07-10-18 | 05:29 PM
  #32
Pilot321's Avatar
Junior Member

Joined: May 2017
Posts: 157
Likes: 1
From: S.E. PA

Bikes: 1987 Cannondale SR500

Originally Posted by 88Tempo
My wife absolutely cannot grasp this. She is constantly having shifting issues, that I can't seem to replicate.

It doesn't help that her description of the problem is usually so vague as to be useless.
Have someone else explain it to her OTHER than her husband (you). They magically believe anybody else's instruction, and advice over yours. Don't ask me how I know.
Pilot321 is offline
Reply
Old 07-10-18 | 08:27 PM
  #33
JohnDThompson's Avatar
Old fart
Titanium Club Membership
20 Anniversary
Community Builder

Joined: Nov 2004
Posts: 26,402
Likes: 5,333
From: Appleton WI

Bikes: Several, mostly not name brands.

Originally Posted by DiabloScott
Well I don't, and it doesn't make any sense... but it seemed like Mr. Thompson was implying there was such a thing.
Not indexed downtube front shifters, AFAIK. But there are indexed twist-grip front shifters (:hurk! and indexed front thumb shifters (:meh out there.
JohnDThompson is online now
Reply
Old 07-10-18 | 09:23 PM
  #34
Full Member

Joined: Aug 2014
Posts: 286
Likes: 57
Originally Posted by Acoolname
Okay so I got back from my ride. It’s definitely not the front derailer. The noise is coming from the back and the front I made sure was on the large cog. In the back it only seems to happen when I’m going up in a gear. Just one gear mainly. From smallest cog to the 2nd it will get stuck and not want to go. Then from 3-4-5 it’s fine. Then going back down to the smallest cog on the back it is fine. I’m guessing that is a index issue on the rear derailer? Also come to find out the seat this thing came with is quite painful lol. I guess I’m used to my mtn bike seat.
I'd suggest you increase cable tension a little to see if it helps. You do that by turning the barrel adjuster at the rear derailleur counterclockwise. Turn it a quarter turn and see if it changes the shifting. This could also be a bent derailleur hanger.
mitchmellow62 is offline
Reply
Old 07-11-18 | 01:30 AM
  #35
verktyg's Avatar
verktyg

Joined: Jul 2006
Posts: 4,034
Likes: 1,271
From: SF Bay Area

Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1980s DeRosa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1988 Colnago Technos, 1985 RalieghUSA SBDU Team Pro

Lubrication

Lot of good advice but something no one mentioned is lubricating the levers, cables, cable housing and derailleurs, also the chain. The pulleys on the rear derailleur should rotate freely and the top pulley should be able to move a little side to side.

Generously apply some light lubricant to all of the areas that I mentioned. Clean the excess off, reapply and clean again. Work the gears with the rear wheel off the ground. That will distribute the lubricant. If that doesn't help then you will need to adjust the tension on the the rear cable. Seek assistance.

Your LBS (Local Bike Shop) can recommend a good lubricant.

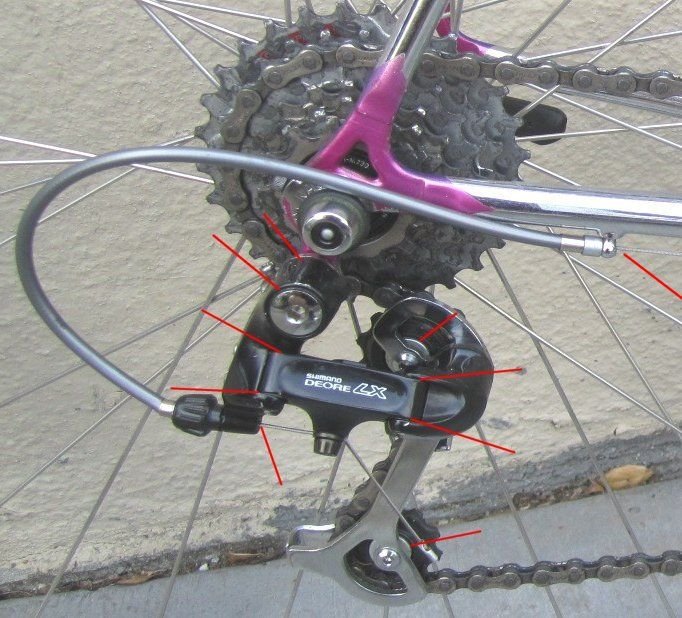

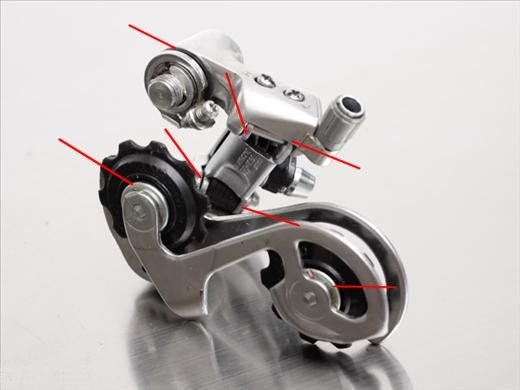

Oiling points on a rear derailleur:




verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....

Chas. ;-)

verktyg is offline
Reply
Old 07-11-18 | 05:01 AM
  #36
Senior Member
Titanium Club Membership
10 Anniversary

Joined: Nov 2013
Posts: 2,405
Likes: 1,584
From: Near Pottstown, PA: 30 miles NW of Philadelphia

Bikes: 2 Trek Mtn, Cannondale R600 road, 6 vintage road bikes

Originally Posted by Acoolname
Okay so I got back from my ride. It’s definitely not the front derailer. The noise is coming from the back and the front I made sure was on the large cog. In the back it only seems to happen when I’m going up in a gear. Just one gear mainly. From smallest cog to the 2nd it will get stuck and not want to go. Then from 3-4-5 it’s fine. Then going back down to the smallest cog on the back it is fine. I’m guessing that is a index issue on the rear derailer? Also come to find out the seat this thing came with is quite painful lol. I guess I’m used to my mtn bike seat.
I see this a lot at our LBS and it's often due to a bent RD hanger. Ensure that a) the rear wheel is true then b) the RD hanger is aligned correctly: parallel to that trued rim. If you don't have the right tools do this, have your LBS do to. Should not be expensive but could be well worth it.

Another possibility is a RD cable hanging up inside the housing - tightens OK but does not release smoothly. May need to change the cable and the housings, at least that rear most housing.
Prowler is offline
Reply
Old 07-11-18 | 08:41 AM
  #37
Thread Starter
Junior Member

Joined: Jul 2018
Posts: 13
Likes: 0

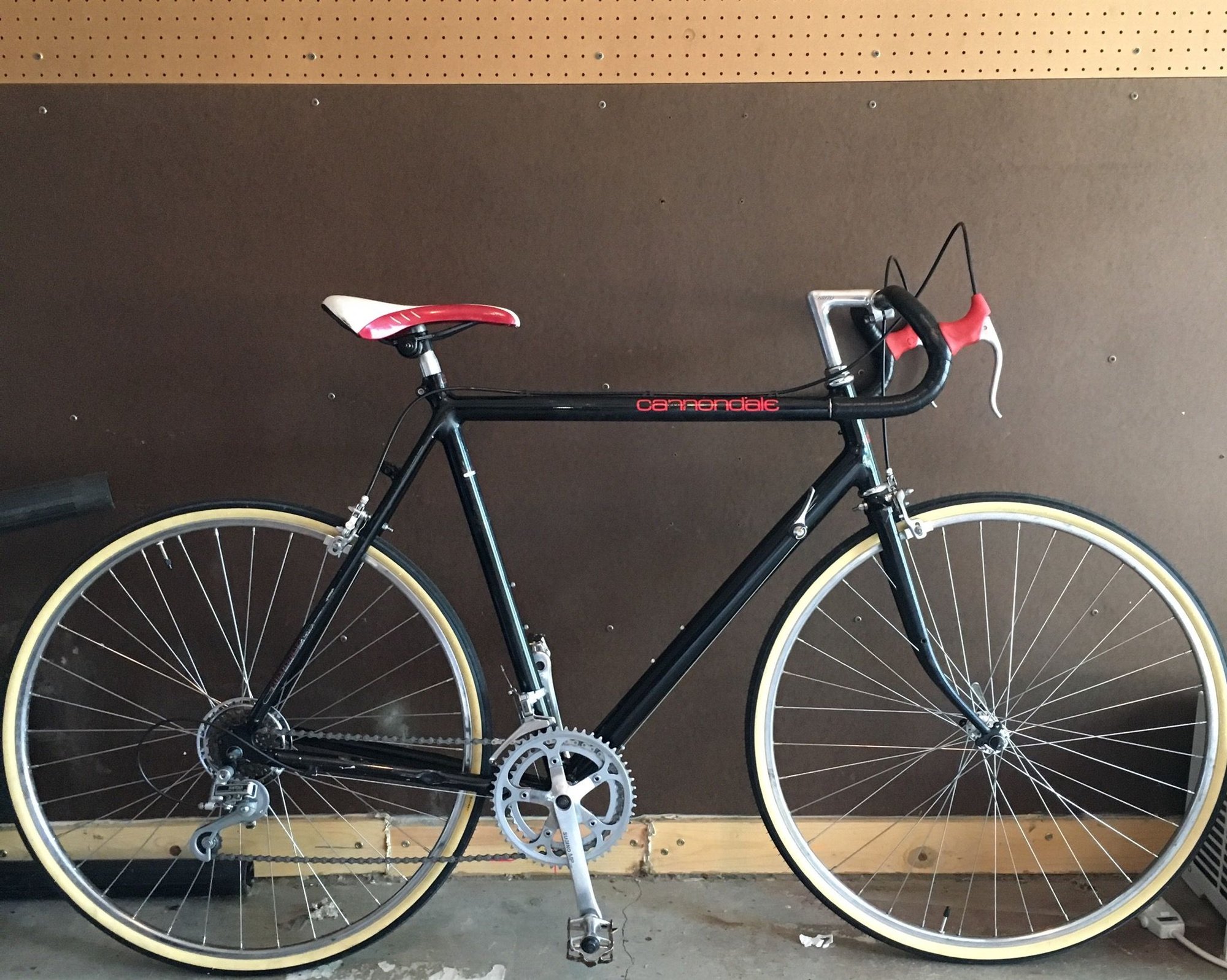

Thanks guys for the suggestions! I’ll start by doing the lube since it seems the most simple. Then the cable and derailer. I can post a pic now so here’s the ole cannondale. I really like it except I’ll prob change the seat cuz it kills.
Acoolname is offline
Reply
Old 07-11-18 | 08:58 PM
  #38
Thread Starter
Junior Member

Joined: Jul 2018
Posts: 13
Likes: 0
On the pic of my bike above^ do y’all think I could raise my handlebars any more?
Acoolname is offline
Reply
Old 07-11-18 | 09:22 PM
  #39
Senior Member
Titanium Club Membership
20 Anniversary

Joined: Jan 2004
Posts: 6,169
Likes: 1,799
From: Madison, WI USA
^^^^ Impossible to say for sure, but unlikely. Put a small piece of tape on the stem to indicate its current position, then pull it out all the way. Look for a mark referring to its maximum height. It'll either be a line with an arrow pointing to it, or a set of "hash marks" going around the stem. It'll also say either "Min insert" or "max" or "max rise" or the like. That will tell you how high you can raise it, and still be safe.
madpogue is offline
Reply
Old 07-11-18 | 10:13 PM
  #40
Kontact's Avatar
Senior Member
15 Anniversary
Community Builder
Community Influencer
Active Streak: 30 Days

Joined: Apr 2011
Posts: 12,752
Likes: 4,866
Originally Posted by JohnDThompson
Not indexed downtube front shifters, AFAIK. But there are indexed twist-grip front shifters (:hurk! and indexed front thumb shifters (:meh out there.
There was an Exage downtube shifter that was for a double that was indexed.

But I know you were talking about STI, Grip Shift, etc.
Kontact is offline
Reply
Old 07-14-18 | 09:20 AM
  #41
Senior Member
10 Anniversary

Joined: Dec 2013
Posts: 2,091
Likes: 350
There are still older stems out there without a minimum insertion mark. Most manufacturers put the mark at 6-7cm of insertion. Everybody flouts the markings slightly. Sheldon says 5cm or 2". Sheldon's suggestion seems very dubious to a lot of us. Any less than 5cm and you are asking for trouble. You already have a tall stem and have created a lot of leverage.

You'll get more useful hand positions if you rotate the bar backwards or towards you. That could be enough to make it feel like the 'bars are higher.
63rickert is offline
Reply
Old 07-14-18 | 12:14 PM
  #42
Senior Member
Titanium Club Membership
20 Anniversary

Joined: Jan 2004
Posts: 6,169
Likes: 1,799
From: Madison, WI USA
Originally Posted by 63rickert
You already have a tall stem and have created a lot of leverage.
+1; I always thought the min insertion was in part a function of the overall length of the stem (same with seatposts). If you don't find a minimum insertion mark, you could take the stem to a store or bike co-op that sells used/vintage parts, and find a quill stem of similar construction and length, that does have a mark, and then you'd at least have a point of reference.
madpogue is offline
