Lambert of England, square VS square taper?
08-27-18 | 10:00 AM
#1
Thread Starter
Senior Member
Joined: Jun 2018
Posts: 733
Likes: 6
Lambert of England, square VS square taper?

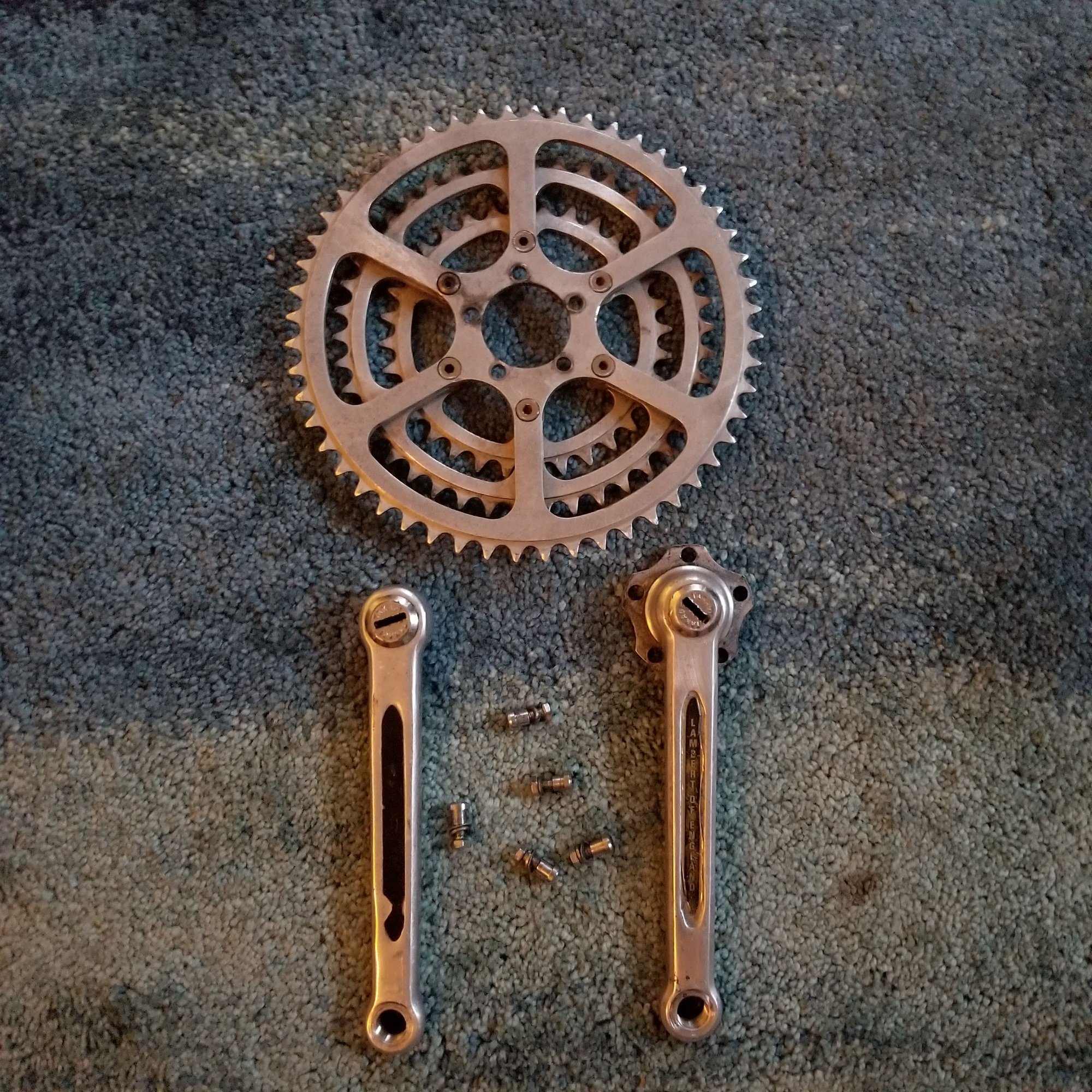

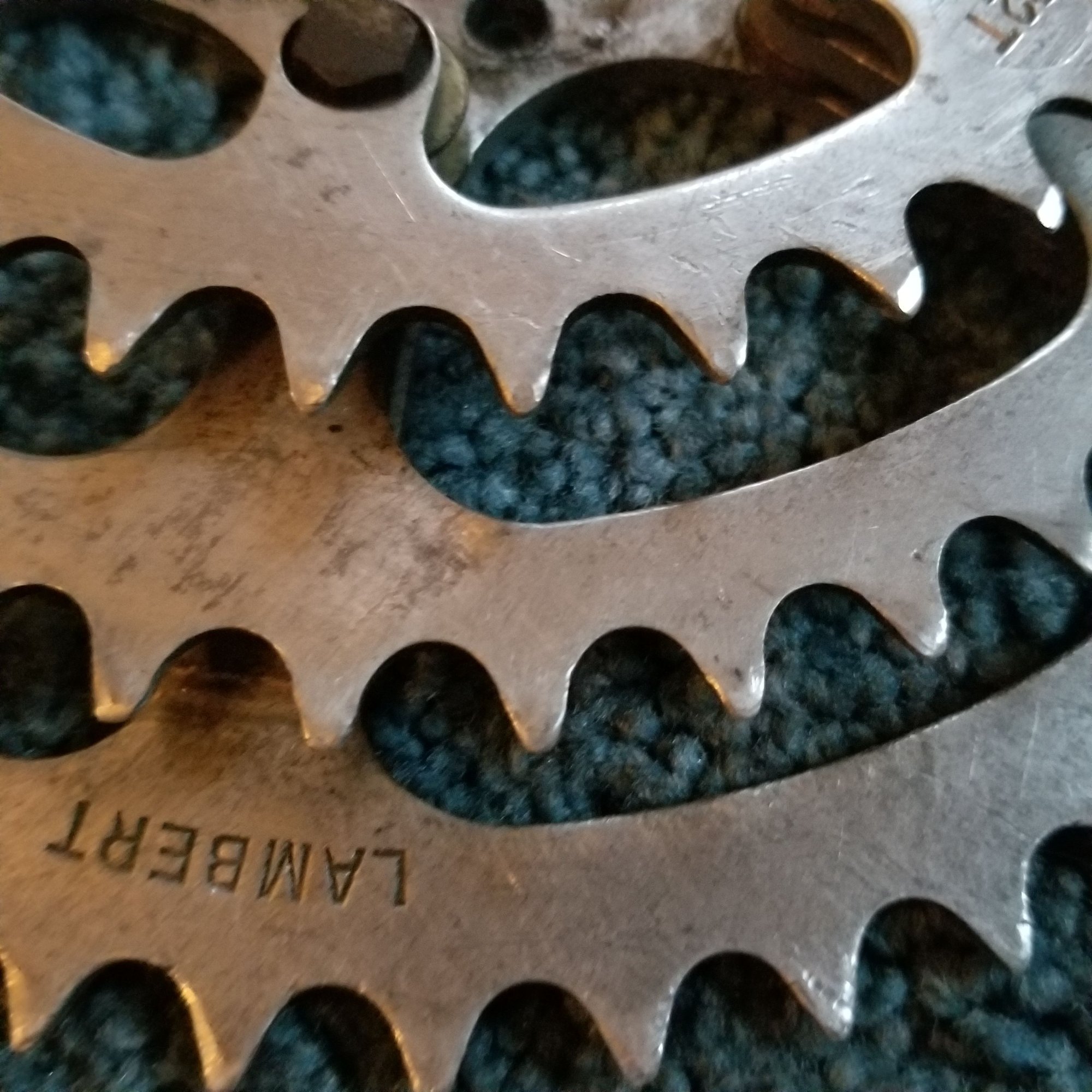

How can I tell if my Lambert of england are sqaure or sqaure tapper fittings? I know many of the earlier models are sqaure with no taper. There is no date code on my cranks. They came off of a sqaure taper spindle (from what I can tell) and they rode fine on it. I only rode the bike about 6 miles before taking it apart for parts but everything felt fine on it.
I'm unsure whether the previous owner just cranked them down on a taper or if they were one of the later models that were designed with it.
I'd like to put them on a project but I dont want to deal with the retightneing bussiness, or the finding of a sqaure spindle, if they are not tapered.
I'm unsure whether the previous owner just cranked them down on a taper or if they were one of the later models that were designed with it.
I'd like to put them on a project but I dont want to deal with the retightneing bussiness, or the finding of a sqaure spindle, if they are not tapered.
08-27-18 | 10:52 AM
#2
Ride, Wrench, Swap, Race
Joined: Jan 2010
Posts: 9,834
Likes: 1,809
From: Northern California
Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
If they came off of a tapered spindle and with the chainrings running true at the time, then I think that you can be pretty sure that these cranks are tapered.

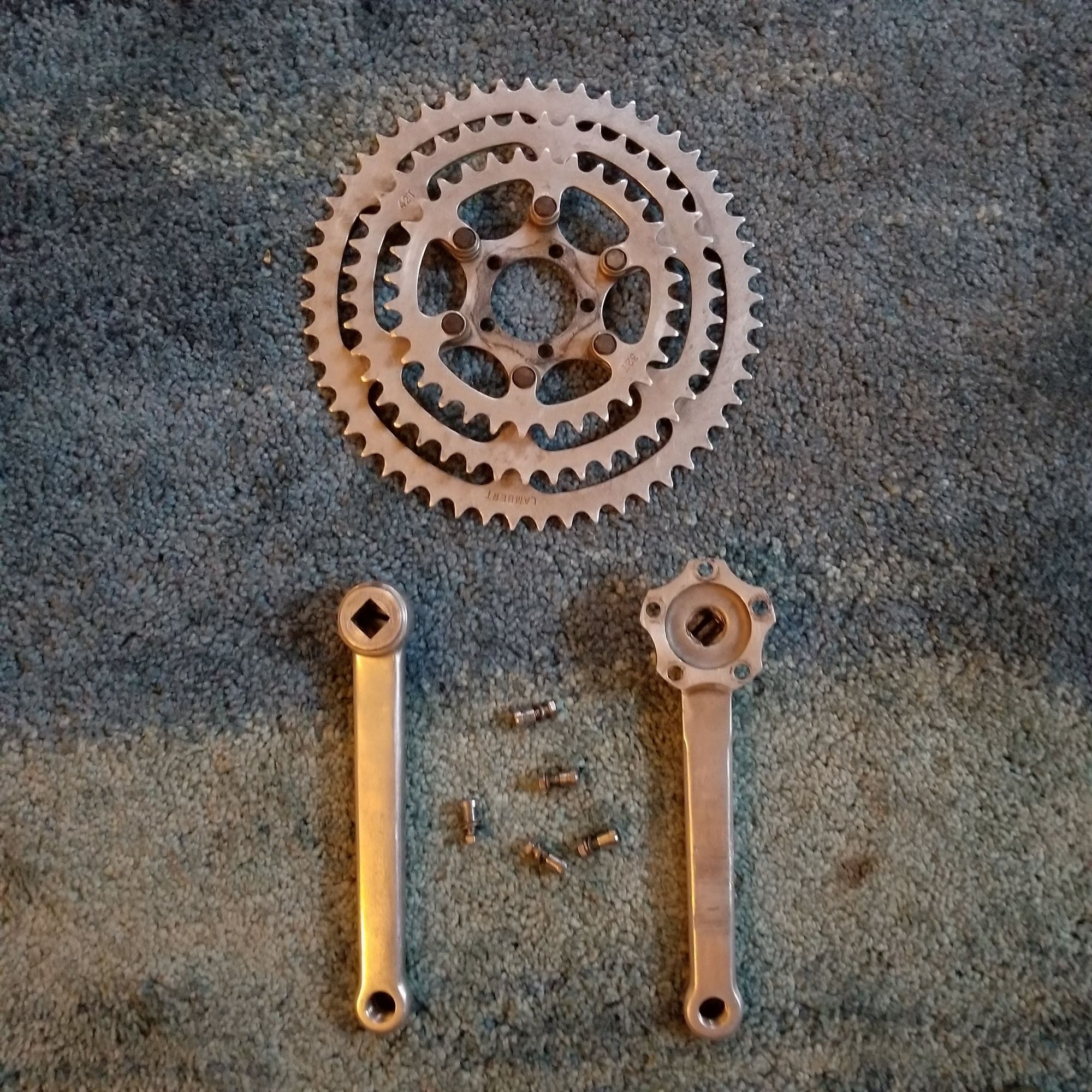

The taper is visibly pronounced if you look in the opening from different sides, like with the two arms sitting side by side to compare.
The taper is visibly pronounced if you look in the opening from different sides, like with the two arms sitting side by side to compare.
08-27-18 | 10:57 AM
#3
Super Moderator
Joined: Jul 2004
Posts: 21,987
Likes: 1,169
From: Ffld Cnty Connecticut
Bikes: Old Steelies I made, Old Cannondales
Isn't that a rebadged Stronglight ?
"... How can I tell if my Lambert of england are sqaure or sqaure tapper fittings? ..."
Measure both ends of the square opening. Taper will have different measurements.
Is there such a thing as square non-tapered ?
"... How can I tell if my Lambert of england are sqaure or sqaure tapper fittings? ..."
Measure both ends of the square opening. Taper will have different measurements.
Is there such a thing as square non-tapered ?
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.
FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike.
FYI: https://www.bikeforums.net/forum-sugg...ad-please.html
08-27-18 | 11:12 AM
#4
Old fart
Joined: Nov 2004
Posts: 26,404
Likes: 5,339
From: Appleton WI
Bikes: Several, mostly not name brands.
No, it's a copy of the TA Pro-5 arms, made in England for Lambert/Viscount.
Yes, that's the definitive proof.
Unfortunately, there are. Some Lambert/Viscount cranks and spindles were square, but untapered. As you might expect, they had a tendency to spontaneously loosen.
"... How can I tell if my Lambert of england are sqaure or sqaure tapper fittings? ..."\
Measure both ends of the square opening. Taper will have different measurements.
Measure both ends of the square opening. Taper will have different measurements.
Is there such a thing as square non-tapered ?
Last edited by JohnDThompson; 08-27-18 at 11:15 AM.
08-27-18 | 11:15 AM
#5
Thread Starter
Senior Member
Joined: Jun 2018
Posts: 733
Likes: 6
I'll it looks like it may have a slight taper on the inside but it does not seem very pronounced. That's why my concern is that the cranks were out on a taper but built for it. Gears changed pretty well from what I could tell but it's tough to judge when the ride is so short. If I'd known I needed to watch for it I would have ridden it longer before parting it.
To the second poster.
That's the ticket!
I'll do that once I'm home.
thanks!
Tragically they where made.
youd think some aerospace folks would have known better.
"Most of them, unfortunately, used a badly designed crank/axle fitting with a non-tapered square fitting, rather than the normal."
From sheldon
To the second poster.
That's the ticket!
I'll do that once I'm home.
thanks!
Tragically they where made.
youd think some aerospace folks would have known better.
"Most of them, unfortunately, used a badly designed crank/axle fitting with a non-tapered square fitting, rather than the normal."
From sheldon
08-27-18 | 11:46 AM
#6
Mr. Anachronism
Joined: Jan 2013
Posts: 2,110
Likes: 293
From: Somewhere west of Tobie's
Bikes: fillet-brazed Chicago Schwinns, and some other stuff
Lambert/Viscount made both square non-tapered and square tapered cranks. Note that of all the L/V spindles shown below, only the two on the far right are tapered. Measuring as noted by Homebrew01 (crank or spindle) should determine which of them you have.
Lambert/Viscount Bottom Bracket Spindles
Lambert/Viscount Bottom Bracket Spindles
__________________
"My only true wisdom is in knowing I have none" -Socrates
"My only true wisdom is in knowing I have none" -Socrates
Last edited by Hudson308; 08-27-18 at 12:04 PM.
08-28-18 | 07:37 AM
#7
Thread Starter
Senior Member
Joined: Jun 2018
Posts: 733
Likes: 6
They are tappered!
going by a highly inaccurate tape measure outside end is 1 inch and inner is 1 inch and 1/4 or so. Definitely a difference but cant tell how much without more accurate tools.
compared them to a set of Shimano 600s I've got and man are they light. Are the lamberts on the lighter side compared to a standard crankset or are the shimano 600s just bricks?
going by a highly inaccurate tape measure outside end is 1 inch and inner is 1 inch and 1/4 or so. Definitely a difference but cant tell how much without more accurate tools.
compared them to a set of Shimano 600s I've got and man are they light. Are the lamberts on the lighter side compared to a standard crankset or are the shimano 600s just bricks?
08-28-18 | 08:21 AM
#8
Ride, Wrench, Swap, Race
Joined: Jan 2010
Posts: 9,834
Likes: 1,809
From: Northern California
Bikes: Cheltenham-Pedersen racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.
Pre-1997 600 cranks were indeed heavily constructed, suitable for the largest riders.
08-29-18 | 03:48 PM
#9
Senior Member
Joined: Apr 2005
Posts: 17,196
Likes: 761
From: Ann Arbor, MI
Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8
Measure it.
08-29-18 | 03:50 PM
#10
Senior Member
Joined: Apr 2005
Posts: 17,196
Likes: 761
From: Ann Arbor, MI
Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8
No, it's a copy of the TA Pro-5 arms, made in England for Lambert/Viscount.
Yes, that's the definitive proof.
Unfortunately, there are. Some Lambert/Viscount cranks and spindles were square, but untapered. As you might expect, they had a tendency to spontaneously loosen.
Yes, that's the definitive proof.
Unfortunately, there are. Some Lambert/Viscount cranks and spindles were square, but untapered. As you might expect, they had a tendency to spontaneously loosen.
