Bent rear triangle: repairable?
09-20-18 | 03:19 PM
#1
Thread Starter
Junior Member
Joined: Jun 2018
Posts: 104
Likes: 17
From: Hayward, CA
Bikes: 1983 Peugeot PSV10
Bent rear triangle: repairable?
I'm not sure if that's the correct term but is it repairable? My guess is, with enough strength I can straighten it out but would it be safe?

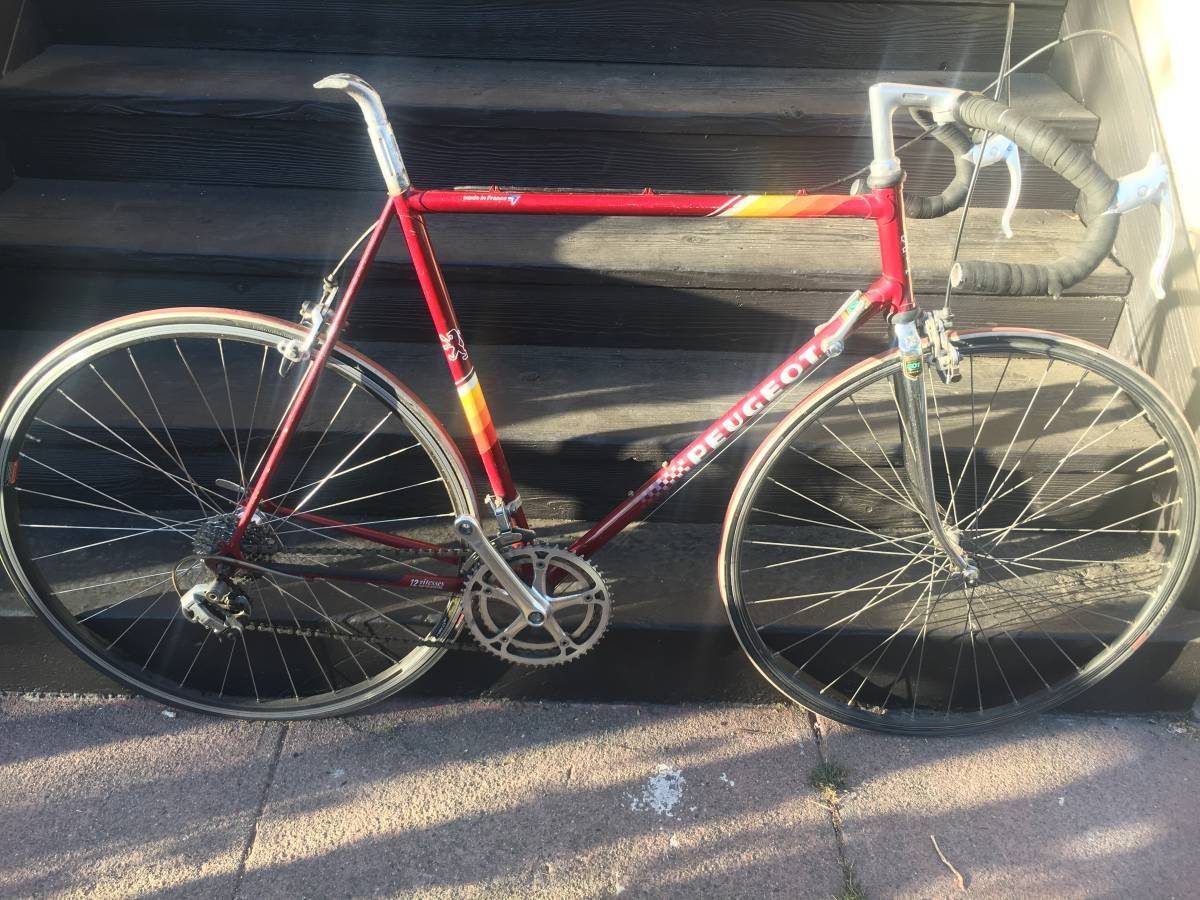

It's part of a Peugeot PGN with Reynolds 501 frame.
It's part of a Peugeot PGN with Reynolds 501 frame.
09-20-18 | 03:25 PM
#2
Senior Member
Joined: Dec 2004
Posts: 15,400
Likes: 8,319
From: Seattle area
Bikes: Bikes??? Thought this was social media?!?
That's a rather sharp bend,
Is that a crease on the outboard side?
Creases are very very bad.
Is that a crease on the outboard side?
Creases are very very bad.
__________________
Vintage, modern, e-road. It is a big cycling universe.
Vintage, modern, e-road. It is a big cycling universe.
09-20-18 | 03:38 PM
#3
Bike Butcher of Portland
Joined: Jul 2014
Posts: 12,486
Likes: 8,054
From: Portland, OR
Bikes: It's complicated.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
09-20-18 | 05:45 PM
#4
Bike Butcher of Portland
Joined: Jul 2014
Posts: 12,486
Likes: 8,054
From: Portland, OR
Bikes: It's complicated.
To the OP, check the link above.
Answer: yes, I think it can be fixed.
Answer: yes, I think it can be fixed.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
09-20-18 | 10:05 PM
#5
Thread Starter
Junior Member
Joined: Jun 2018
Posts: 104
Likes: 17
From: Hayward, CA
Bikes: 1983 Peugeot PSV10
09-20-18 | 10:09 PM
#6
Thread Starter
Junior Member
Joined: Jun 2018
Posts: 104
Likes: 17
From: Hayward, CA
Bikes: 1983 Peugeot PSV10
He's not sure if the wheels can be trued

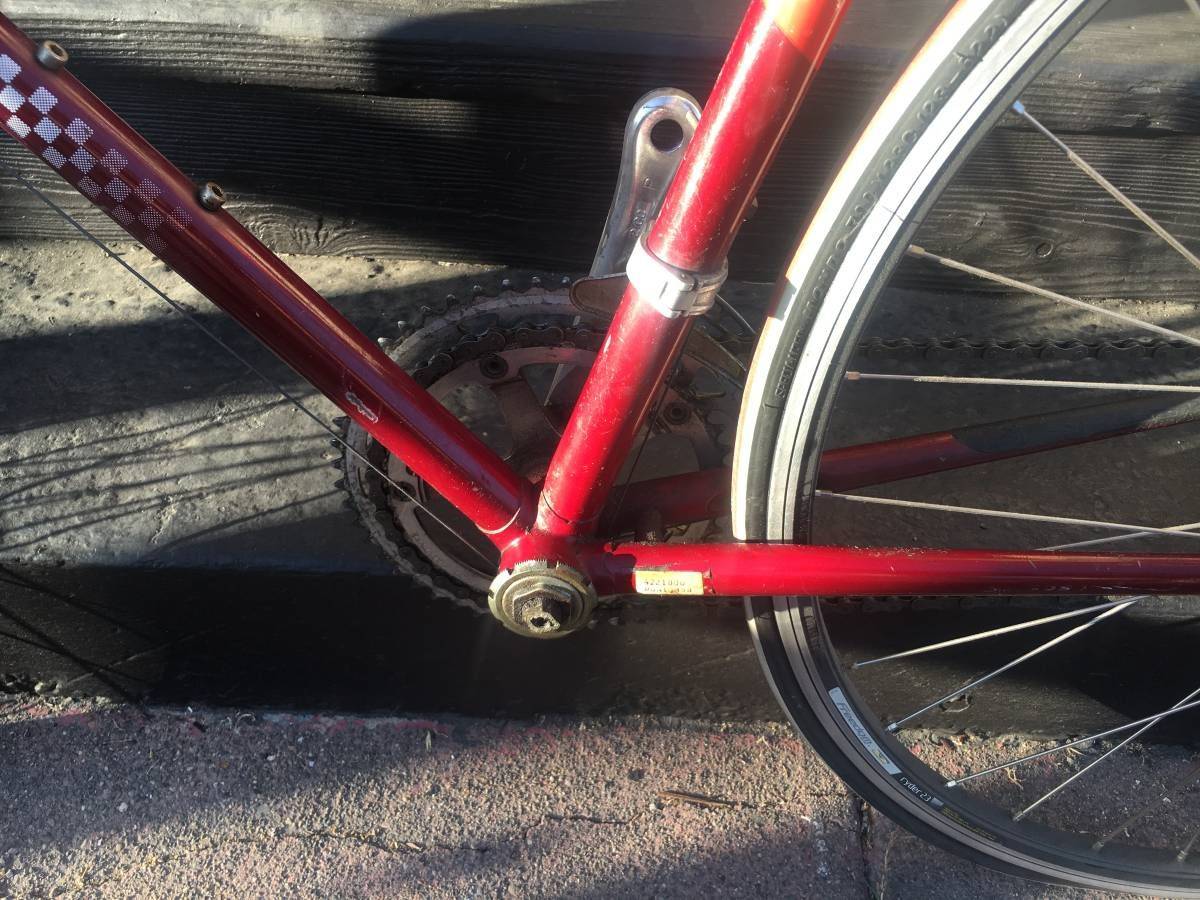

I think I can replace this with a shimano un55 bottom bracket? If the accident didn't jam this in somehow. Also he has the crank but not sure if it's usable
Didn't see this pic until recently and it's making me very hesitant. $20-30 for the whole bike might be worth it
09-20-18 | 10:38 PM
#7
Senior Member
Joined: Apr 2017
Posts: 2,248
Likes: 845
From: Los Angeles, CA
Bikes: 1964 Legnano Roma Olympiade, 1973 Raleigh Super Course, 1978 Raleigh Super Course, 1978 Peugeot PR10, 2002 Specialized Allez, 2007 Specialized Roubaix, 2013 Culprit Croz Blade
That looks a lot like my dead Bianchi. I was told it wasn't worth repairing. Hope you do better with yours.
09-20-18 | 11:30 PM
#8
Senior Member
Joined: Dec 2004
Posts: 15,400
Likes: 8,319
From: Seattle area
Bikes: Bikes??? Thought this was social media?!?
C'mon, Stew, you forgetting?
One picture never tells the whole story.
And I have some experiences with out-of-align framesets, over many years.
__________________
Vintage, modern, e-road. It is a big cycling universe.
Vintage, modern, e-road. It is a big cycling universe.
09-21-18 | 02:45 AM
#9
Senior Member
Joined: Nov 2014
Posts: 27,576
Likes: 5,476
From: Eugene, Oregon, USA
Is the left crank with the bike, and in good shape?
The front and rear wheels already don't match. So, if they can't be trued, you might as well just replace them both with either newer, or vintage parts.
Hard to say what damaged stuff is worth, I suppose it depends on the buyer, but the components (fork (if true), seatpost, shifters, etc), are probably worth at least $20 or $30. Ummm, you're missing half the seatpost, scratch that, but the brakes also have some value. Hubs if the wheels are bad?
09-21-18 | 04:40 AM
#10
verktyg
Joined: Jul 2006
Posts: 4,034
Likes: 1,271
From: SF Bay Area
Bikes: Current favorites: 1988 Peugeot Birraritz, 1984 Gitane Super Corsa, 1980s DeRosa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1988 Colnago Technos, 1985 RalieghUSA SBDU Team Pro
Neither bike is that bad condition. I enlarged the 1st picture of the PGN and didn't see any kinking or creasing.
Both [MENTION=381793]gugie[/MENTION] and I have straightened frames in much worse condition.
The Peugeot PGN is made of Reynolds 501 which is 4130 chrome moly steel and will take a lot of cold working. To be hit hard enough to break off the NDS crank spindle and have that little frame damage speaks to the strength of the tubing.
The whole frame probably needs realignment. I'd be more concerned that the wheels are toast.
verktyg
Both [MENTION=381793]gugie[/MENTION] and I have straightened frames in much worse condition.
The Peugeot PGN is made of Reynolds 501 which is 4130 chrome moly steel and will take a lot of cold working. To be hit hard enough to break off the NDS crank spindle and have that little frame damage speaks to the strength of the tubing.
The whole frame probably needs realignment. I'd be more concerned that the wheels are toast.
verktyg
__________________
Don't believe everything you think! History is written by those who weren't there....
Chas. ;-)
Don't believe everything you think! History is written by those who weren't there....
Chas. ;-)
09-21-18 | 09:52 PM
#11
www.theheadbadge.com
Joined: Sep 2005
Posts: 29,025
Likes: 5,537
From: Southern Florida
Bikes: https://www.theheadbadge.com
Doable repair on both (provided they're not heat treated; the Peugeot, as noted above, isn't). Have fixed one road frame with a similar dent in the past; can't remember it though. Also did a '51 Raleigh, but the '51 isn't really representative of these.
It'd be wise to check the joints for cracks afterwards, but it's likely that both can be cold-set back into alignment with a Park frame straightener with minimal damage to the paint too.
-Kurt
It'd be wise to check the joints for cracks afterwards, but it's likely that both can be cold-set back into alignment with a Park frame straightener with minimal damage to the paint too.
-Kurt
