What did I buy? :-)
11-02-18 | 08:59 AM
#1
Thread Starter
Senior Member
Joined: Sep 2016
Posts: 53
Likes: 4
From: Toronto
Bikes: Raleigh Record ?
What did I buy? :-)
So I bought this frame, pretty sure it is a Raleigh, fork says so. Black paint matches.
Also what the thing on the rear?
Also what the thing on the rear?
Last edited by NickDandy; 11-02-18 at 09:32 AM.
11-02-18 | 09:04 AM
#2
Francophile
Joined: Nov 2015
Posts: 4,828
Likes: 2,146
From: Seattle
Bikes: Lots
The thing on the rear is to hold the chain when you pull out the rear wheel.
Can’t help you with the I.D. though. More and sharper pics will help.
Can’t help you with the I.D. though. More and sharper pics will help.
__________________
Keeping Seattle’s bike shops in business since 1978
Keeping Seattle’s bike shops in business since 1978
11-02-18 | 09:05 AM
#3
BIKE RIDE
Joined: Jun 2014
Posts: 2,218
Likes: 1,012
From: Michigan
Bikes: GUNNAR CrossHairs / Riv RoadUno / TrekBike 950
11-02-18 | 10:58 AM
#5
Phyllo-buster
Joined: Jan 2010
Posts: 9,276
Likes: 2,698
From: Nova Scotia
Bikes: roadsters, club bikes, fixed and classic
Sorry but isn't that just a cable stop for rear derailleur housing? The chain holders usually come on higher models.

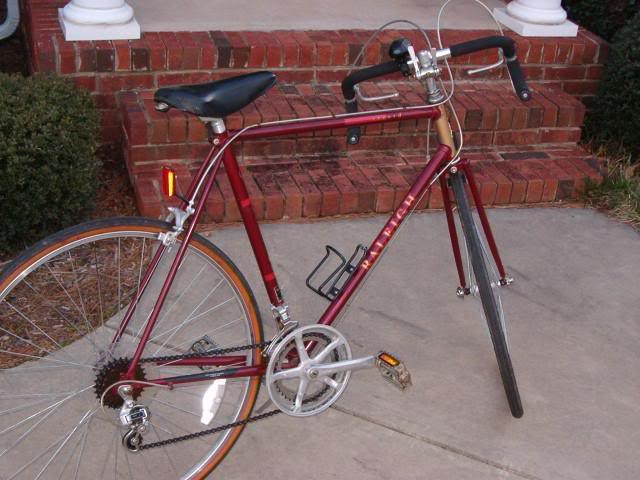

Looks like Record to me. Something like this?
Looks like Record to me. Something like this?
11-02-18 | 04:42 PM
#6
Senior Member
Joined: Nov 2011
Posts: 7,955
Likes: 702
From: Port Angeles, WA
Bikes: A green one, "Ragleigh," or something.
I don't see a chain holder boss there; but the angle is wrong for that anyway. I see a little "diving helmet" cable stop at the usual location. The combination of the screw-on cable guide under the BB + stamped dropouts + the brazed on cable guides (forcibly removed) makes me guess it's a lower end bike of mid-80's or later. Like the Record Clubman posted above.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1979 Motobecane Grand Jubile ●1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
11-03-18 | 11:21 AM
#8
do-over candidate
Joined: Jan 2014
Posts: 1,776
Likes: 627
From: PNW
Bikes: One of everything and three of everything French
The mid 80s Record I once owned had "Raliegh" stamped fork ends like this bike. It also had a chain hanger (can't tell on this one). And it had hideous, oversized stay leaf caps that also were stamped "Raleigh." This bike has different stay treatment. Does look like a similar and heavy hi-ten frame tho.
11-10-18 | 01:18 AM
#10
I AM AI
Joined: Aug 2013
Posts: 4,288
Likes: 1,170
From: Tucson, AZ
Bikes: 2008 S-Works Roubaix SL, 1979 Raleigh Comp GS, 1978 Schwinn Volare
They are. You can find a range of new threaded Tange headsets at amazon and ebay. Inexpensive, too.
__________________
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
A race bike in any era is a highly personal choice that at its "best" balances the requirements of fit, weight, handling, durability and cost tempered by the willingness to toss it and oneself down the pavement at considerable speed. ~Bandera
11-10-18 | 02:15 PM
#11
BIKE RIDE
Joined: Jun 2014
Posts: 2,218
Likes: 1,012
From: Michigan
Bikes: GUNNAR CrossHairs / Riv RoadUno / TrekBike 950
You are correct - the chainstay has a cable stop.
I've got some middling / lower end frames with the chain hanger boss on the seat stay - late '80s Rockhopper; early '80s TREK 420; some kind of Raleigh road frame from only the Good LORD knows when...
