Need help with finding Crank Bearings

Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Need help with finding Crank Bearings

Old 11-05-18, 08:57 PM
  #1
DukeRyder
FatTire
Thread Starter

DukeRyder's Avatar

Join Date: Feb 2007
Location: Boulder, CO
Posts: 70

Bikes: Specialized Roubaix & Turner Burner

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Need help with finding Crank Bearings

Hi there vintage bike enthusiasts! Iím having a heck of a time finding crank bearings for this 1970s era Sears 3-Speed. Itís a ladies model made in Austria. The bearings are 1/4Ē balls and thereís 9 of them in the cage. Thereís plenty available that meet the 1/4Ēx9 criteria but theyíre way too small and other bearings sold for Sears 3 speeds are too big. I was hoping someone could give me a lead on a source for the bearings.



DukeRyder is offline
Old 11-05-18, 08:59 PM
  #2
mtbikerinpa
Shimano Certified

mtbikerinpa's Avatar

Join Date: Dec 2004
Location: PA
Posts: 1,840

Bikes: 92 Giant Sedona ATX Custom

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
An old school bike shop? I know mine has a lot of vintagey parts in boxes in the back. Donor from a yard sale?
mtbikerinpa is offline
Old 11-05-18, 09:05 PM
  #3
DukeRyder
FatTire
Thread Starter

DukeRyder's Avatar

Join Date: Feb 2007
Location: Boulder, CO
Posts: 70

Bikes: Specialized Roubaix & Turner Burner

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Also if anyone has a lead on a Tl3-S20 ballcup removal tool so I can fix the rear hub thatíd also be greatly appreciated.

The bike was my girlfriends grandmothers and sheís got sentimental attachment to it. It needs a little TLC so she can safely ride around with our 9mo old son

DukeRyder is offline
Old 11-05-18, 09:17 PM
  #4
davester
Senior Member

davester's Avatar

Join Date: Oct 2012
Location: Berkeley CA
Posts: 1,516

Bikes: 1981 Ron Cooper, 1974 Cinelli Super Corsa, 2000 Gary Fisher Sugar 1, 1986 Miyata 710, 1983 Nishiki Cresta

Mentioned: 44 Post(s)
Tagged: 0 Thread(s)
Quoted: 398 Post(s)
Likes: 0
Liked 16 Times in 14 Posts
I'm a little confused here. Are you saying that replacement cages are too small in diameter? If so, then just reuse the old cage and snap the new balls into it. Alternatively, dump the cage and just use loose balls. Stick them to the races with grease. If you use loose balls then you will probably use more than nine...just be sure to leave approximately the space of one ball...don't use too many balls by crowding them all together.
davester is offline
Old 11-05-18, 09:20 PM
  #5
Nu2Miele
Senior Member

Join Date: Aug 2014
Posts: 68
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Likes: 0
Liked 1 Time in 1 Post
HI,

just pull a single bearing from your retained bearing holder, clean it thoroughly, and use your caliper to accurately it. Count the number of nalls in the holder and doble it. take away 1 of them so that 2(x) -1 = number of loose bearings. Use the best waterproof grease you can, something like "red" bearing grease which is tenacious holding onto metal parts.

As far as the tool, do you have a local bicycle co-op?
Nu2Miele is offline
Old 11-05-18, 10:22 PM
  #6
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 6,524

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 78 Post(s)
Tagged: 0 Thread(s)
Quoted: 536 Post(s)
Likes: 0
Liked 19 Times in 19 Posts
No, no, no. Fill the cup with 11 bearings, no added space. This is how half the bikes out there did it, and is perfect for the dimensions of the Steyr Cups and spindle.

You won't find an original bike out there that was factory assembled (intentionally) with one ball missing.

And same for the Steyr headsets, but where the original bearing cages had about 14 evenly-spaced balls instead of a much better "full compliment" of balls filling the races.
dddd is offline
Old 11-06-18, 03:06 AM
  #7
Aubergine
Bad example

Join Date: Nov 2015
Location: Seattle and Reims
Posts: 2,930
Mentioned: 33 Post(s)
Tagged: 0 Thread(s)
Quoted: 771 Post(s)
Liked 17 Times in 14 Posts
Originally Posted by dddd View Post
No, no, no. Fill the cup with 11 bearings, no added space. This is how half the bikes out there did it, and is perfect for the dimensions of the Steyr Cups and spindle.
Itís not really ďmissingĒ one ball. The point is, you donít want to put in so many balls that they all rub against each other when they roll. There must be a bit of space between them when assembled properly.
__________________
Keeping Seattleís bike shops in business since 1978
Aubergine is offline
Old 11-06-18, 07:51 AM
  #8
Pompiere
Senior Member

Join Date: Nov 2005
Location: NW Ohio
Posts: 2,464

Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 2011 Jamis Quest, 1980 Peugeot TH8 Tandem, 1992 Performance Parabola, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 218 Post(s)
Liked 9 Times in 7 Posts
Whenever I have replaced the cage with loose balls, it was pretty obvious when I had the correct amount of balls. With the balls neatly lined up around the cup there will be a small space left that is too small to fit one more ball.
Pompiere is offline
Old 11-06-18, 12:00 PM
  #9
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 6,706
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
Likes: 0
Liked 14 Times in 12 Posts
Originally Posted by Pompiere View Post
Whenever I have replaced the cage with loose balls, it was pretty obvious when I had the correct amount of balls. With the balls neatly lined up around the cup there will be a small space left that is too small to fit one more ball.
+1 I like to pack the cup with grease, lay the bearings in, then take the spindle and give a spin or two. This assures that the bearings are seated properly and makes any gap pretty obvious.
due ruote is offline
Old 11-06-18, 12:11 PM
  #10
rando_couche
Senior Member

Join Date: Jul 2013
Posts: 1,060
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 133 Post(s)
Likes: 0
Liked 13 Times in 11 Posts
Originally Posted by dddd View Post
No, no, no. Fill the cup with 11 bearings, no added space. This is how half the bikes out there did it, and is perfect for the dimensions of the Steyr Cups and spindle.

You won't find an original bike out there that was factory assembled (intentionally) with one ball missing.

And same for the Steyr headsets, but where the original bearing cages had about 14 evenly-spaced balls instead of a much better "full compliment" of balls filling the races.
Yep. Loose bearings are the way to go. A little more hassle, but much better overall.
rando_couche is offline
Old 11-06-18, 09:34 PM
  #11
DukeRyder
FatTire
Thread Starter

DukeRyder's Avatar

Join Date: Feb 2007
Location: Boulder, CO
Posts: 70

Bikes: Specialized Roubaix & Turner Burner

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
Originally Posted by davester View Post
I'm a little confused here. Are you saying that replacement cages are too small in diameter? If so, then just reuse the old cage and snap the new balls into it. Alternatively, dump the cage and just use loose balls. Stick them to the races with grease. If you use loose balls then you will probably use more than nine...just be sure to leave approximately the space of one ball...don't use too many balls by crowding them all together.

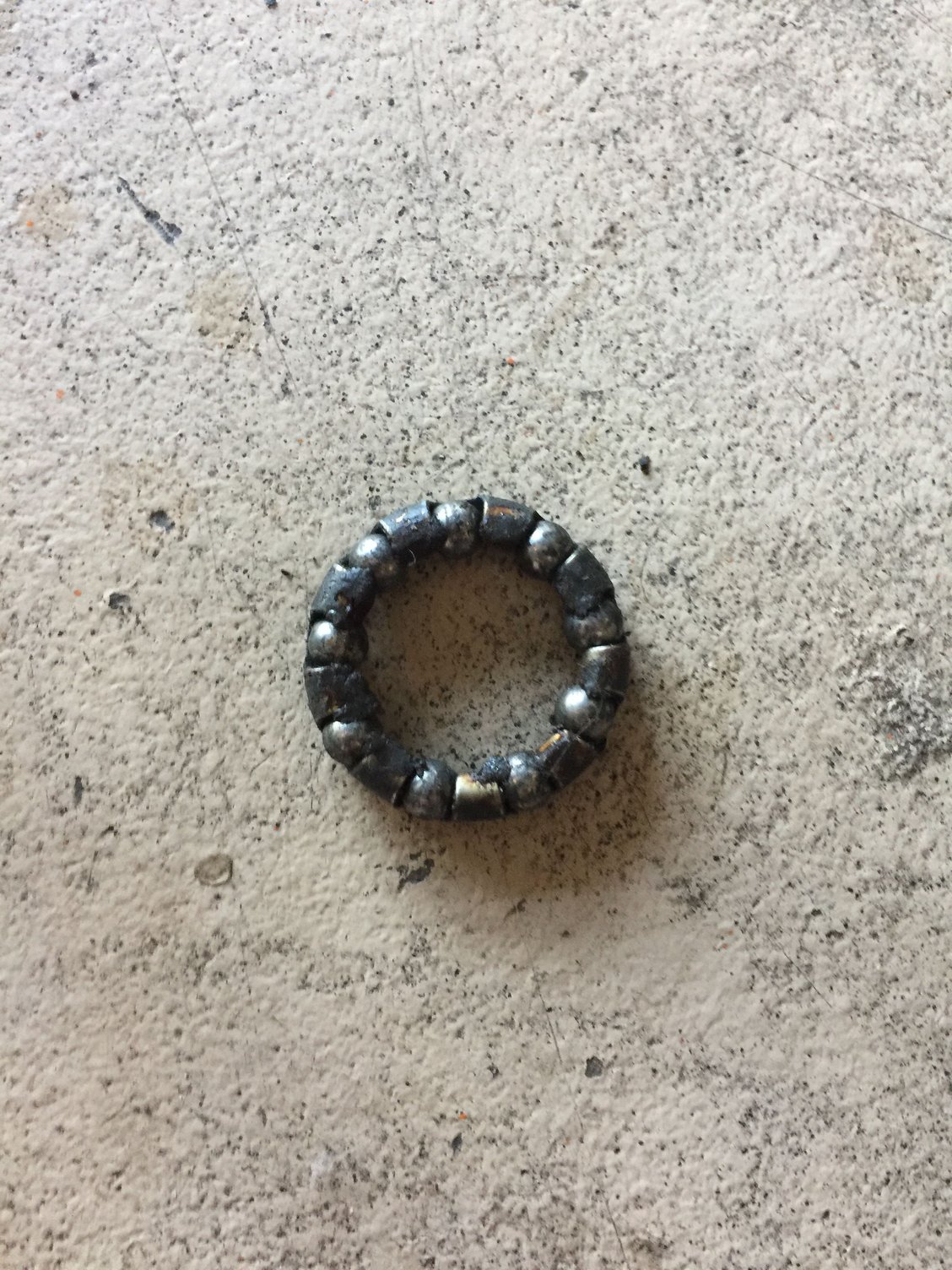

i wish I could have reused the old cage (the pic is of the one good bearing). it was completely trashed! I thought about leaving them loose in there just pack with grease. If I canít find a suitable replacement thatíll be my course of action for sure.
DukeRyder is offline
Old 11-06-18, 10:15 PM
  #12
Narhay
Senior Member

Narhay's Avatar

Join Date: Sep 2012
Location: Toronto, ON, Canada
Posts: 2,743
Mentioned: 91 Post(s)
Tagged: 0 Thread(s)
Quoted: 560 Post(s)
Likes: 0
Liked 8 Times in 7 Posts
11 loose 1/4" balls on either side.
Narhay is offline
Old 11-06-18, 10:57 PM
  #13
BrewsterII
Junior Member

BrewsterII's Avatar

Join Date: Nov 2018
Location: Arizona
Posts: 24
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Liked 0 Times in 0 Posts
Originally Posted by DukeRyder View Post


i wish I could have reused the old cage (the pic is of the one good bearing). it was completely trashed! I thought about leaving them loose in there just pack with grease. If I canít find a suitable replacement thatíll be my course of action for sure.
Ditch the bearing cage, additional ball bearings is far better.
BrewsterII is offline
