Pedals without dust cap?

Reply

Old 12-04-18, 08:12 PM
  #1
dlittle
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Pedals without dust cap?

I've got some old pedals from the 79 schwinn collegiate I am working on. I was going to give them an overhaul, but it appears that these are not serviceable? No dust cap, it looks like the entire riveted end cap is the dust cap?
dlittle is offline
Reply With Quote
Old 12-04-18, 09:17 PM
  #2
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Posts: 19,738

Bikes: Several, mostly not name brands.

Mentioned: 82 Post(s)
Tagged: 0 Thread(s)
Quoted: 1435 Post(s)
Probably not user-serviceable. I've opened up similar pedals and found the internals permanently swaged in place.

I'd just dribble some oil in and let it spread around and call it good.
JohnDThompson is offline
Reply With Quote
Old 12-04-18, 09:41 PM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 4,529

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 494 Post(s)
I use this on stuff like that. Gets in then sets up

https://www.northwoodstm.com/tuf-gel...oof-lubricant/
dedhed is online now
Reply With Quote
Old 12-04-18, 10:48 PM
  #4
Salamandrine
Senior Member

Join Date: Oct 2015
Location: Los Angeles
Posts: 4,356

Bikes: 78 Masi Criterium, 68 PX10, 2016 Mercian King of Mercia, Rivendell Clem Smith Jr

Mentioned: 94 Post(s)
Tagged: 0 Thread(s)
Quoted: 1475 Post(s)
It was very common for low end pedals to not be serviceable. If anything ever went wrong, which was doubtful, you spent $5 on a new pair.

I agree with the above advice to simply dribble some oil in there. You could go nuts and try to flush them out with kerosene or something first I suppose, but I wouldn't bother.
Salamandrine is online now
Reply With Quote
Old 12-04-18, 11:55 PM
  #5
jasnooks
Senior Member

Join Date: Jan 2018
Posts: 81
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
As others have said, I lean the pedals against something with the threads pointed up, and then squirt some heavy oil around the opening, and let it run down to the non servicable bearings
could try shooting some aerosol white lithium grease down in there also
jasnooks is offline
Reply With Quote
Old 12-05-18, 02:27 AM
  #6
Johno59
Senior Member

Join Date: Oct 2016
Location: Cambridge UK
Posts: 257

Bikes: 2x pre-1934 Humbers, 1932 Raleigh Tourist, 1946 Raleigh Lenton, 1947 Grand Prix Raleigh, 1949 Golden Arrow, 1950 Robin Hood, 1956 Claude Butler, 1973 Raleigh Wayfarer, 1984 Holdsworth, 1985 EG Bates Lo-pro Funny TT Bike, 1980 Alan,3 x custom TT bikes

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 91 Post(s)
Throw away the throwaway

Unless they have stood immobile, whilst rusting to that extent, the bearings and their racers will most likely be worn out. Any resurrection using oil and grease will probably crack the ball bearings during the first serious outing.
Johno59 is offline
Reply With Quote
Old 12-05-18, 02:45 AM
  #7
jj1091
Mike J

Join Date: Nov 2013
Location: Jacksonville Florida
Posts: 1,562

Bikes: 1975 Peugeot PX-50L, 1971 Peugeot PX-10, 1974 Peugeot PX-8

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Originally Posted by dlittle View Post
I've got some old pedals from the 79 schwinn collegiate I am working on. I was going to give them an overhaul, but it appears that these are not serviceable? No dust cap, it looks like the entire riveted end cap is the dust cap?
Doesn't the other end of the pedal at the crank side have nuts on the end of the rod that goes through the pedal's rubber blocks? I just overhauled a set just like those from a 1976 Schwinn Breeze. If so, you need to remove the rods and blocks and the assembly comes apart, then you can service them.

This mini-video shows the nuts that have to be removed.
jj1091 is offline
Reply With Quote
Old 12-05-18, 08:06 AM
  #8
dlittle
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
The blocks are held together with what appears to be long rivets, no nuts and bolts. However, that is an option: to grind off the rivet head, service and put back together with long bolts.
dlittle is offline
Reply With Quote
Old 12-05-18, 03:20 PM
  #9
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 7,568
Mentioned: 172 Post(s)
Tagged: 1 Thread(s)
Quoted: 1447 Post(s)
-----

Another lubrication technique posted by a member for non-disassemblable pedals is to make a small hole in the end cap and use a grease gun with a nipple small enough for the hole to pump clean grease into the assembly from the outer end until clean grease begins to flow out between the spindle and body at the inner end.

-----
juvela is offline
Reply With Quote
Old 12-06-18, 10:54 AM
  #10
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 19,078

Bikes: 1959 Capo; 1980 Peugeot PKN-10; 1981 Bianchi; 1988 Schwinn KOM-10;

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 609 Post(s)
I like the make-your-own-lubrication-hole and drill-out-the-rivets ideas, but if the pedals are old, just letting some oil settle into them should be adequate.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324
Capo: 1960 Sieger, S/N 42624
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1981 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Reply With Quote
Old 12-07-18, 09:29 AM
  #11
dlittle
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
I decided to go the disassembly route, but found that the one end will also be difficult as the cup side is also assembled with a press on washer. Now I think I'll just try giving it a good cleaning and get some grease in there as best I can.
dlittle is offline
Reply With Quote
Old 12-07-18, 10:08 AM
  #12
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,240
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
I always love it when I get to open up and tinker with "non-servicable" things as I get to say "OH YEAH?!,..SAYS WHO" in my mind while I explore its forbidden "secrets"......(Insert evil mad scientist laugh.......)!
Chombi1 is offline
Reply With Quote
Old 12-07-18, 02:04 PM
  #13
dlittle
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)

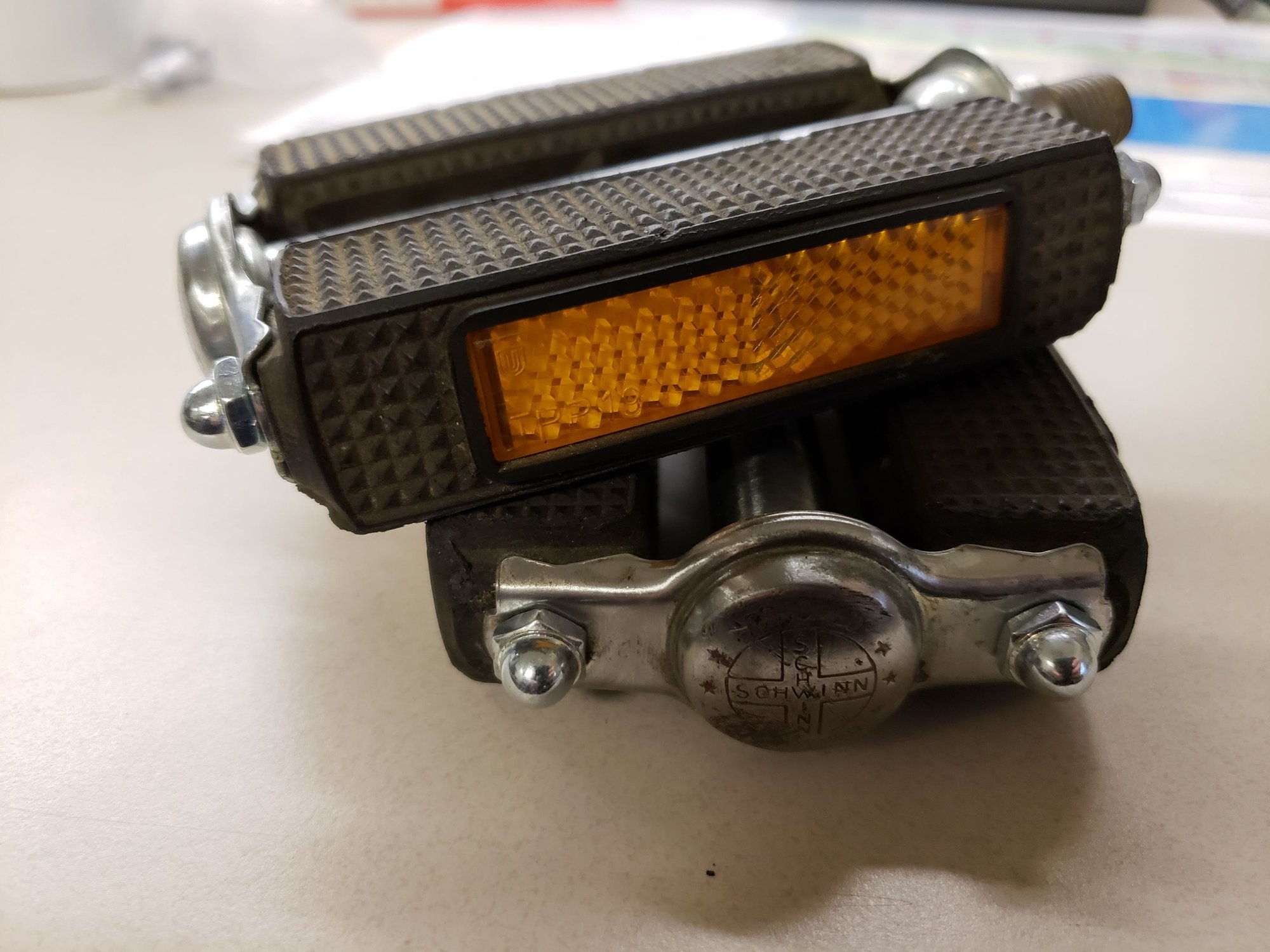

I did a full clean, grease and shine, then replaced the long rivets with threaded rod and some acorn nuts and these pedals are as smooth as butter!
dlittle is offline
Reply With Quote
Old 12-07-18, 02:32 PM
  #14
jj1091
Mike J

Join Date: Nov 2013
Location: Jacksonville Florida
Posts: 1,562

Bikes: 1975 Peugeot PX-50L, 1971 Peugeot PX-10, 1974 Peugeot PX-8

Mentioned: 25 Post(s)
Tagged: 0 Thread(s)
Quoted: 374 Post(s)
Originally Posted by dlittle View Post
I did a full clean, grease and shine, then replaced the long rivets with threaded rod and some acorn nuts and these pedals are as smooth as butter!
Good work, that's a nice fix.
jj1091 is offline
Reply With Quote
Old 12-07-18, 02:33 PM
  #15
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 2,240
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 743 Post(s)
You might consider putting in some Locktite in those acorn nuts so they don't drop off while you are biking....
Chombi1 is offline
Reply With Quote
Old 12-07-18, 02:52 PM
  #16
dlittle
Junior Member
Thread Starter

Join Date: Jun 2018
Posts: 18
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Originally Posted by Chombi1 View Post
You might consider putting in some Locktite in those acorn nuts so they don't drop off while you are biking....
I did use locktite, that was my biggest concern with using threaded rod and acorn nuts.
