Two Puch Questions

I've got two questions about an old Puch.

1.

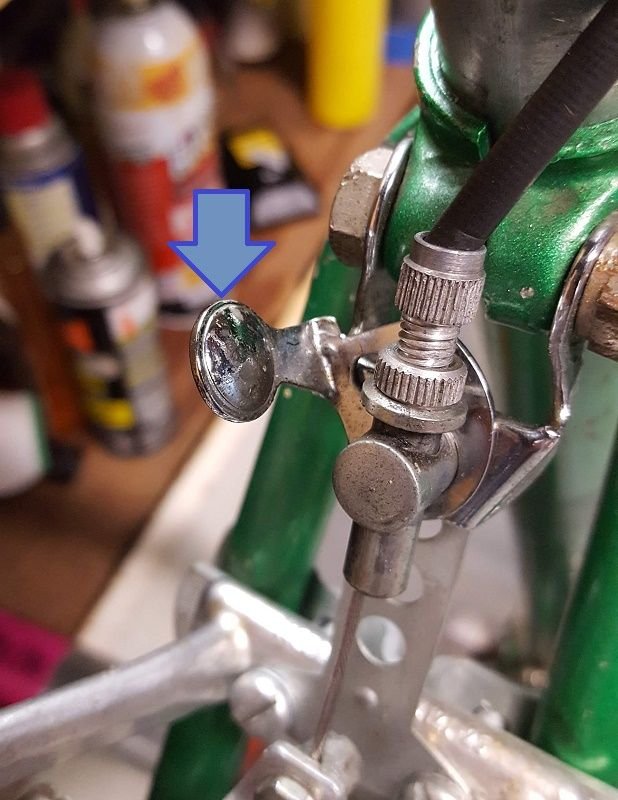

What is this mechanism? What is its purpose?




2.
Why are there three holes in the front wheel drop outs? I can see the need for one or two mount points (racks and fenders/mud guards), but this bike has three. And why is one rectangular shaped?

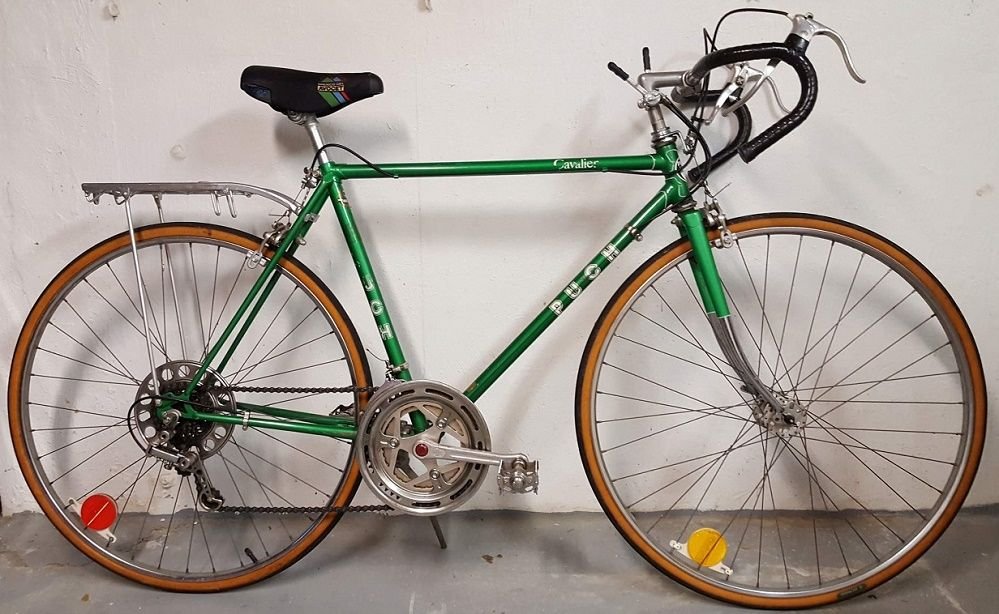

Here is a pic of the bike for reference:
Hatchet is offline
Old 01-06-19, 03:51 PM
  #2
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,771

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5218 Post(s)
Liked 1,839 Times in 1,204 Posts
Great pics. The brake quick release brake is to open up your center pull brakes so you can get the wheels out. I have no idea what that rectangular hole on the drop out is for.
bikemig is offline
Old 01-06-19, 04:02 PM
  #3
Bianchigirll
Bianchi Goddess

Bianchigirll's Avatar

Join Date: Apr 2009
Location: Shady Pines Retirement Fort Wayne, In
Posts: 27,494

Bikes: Too many to list here check my signature.

Mentioned: 146 Post(s)
Tagged: 2 Thread(s)
Quoted: 1997 Post(s)
Liked 834 Times in 510 Posts
The rectangular hole in the dropout is likely for a wheel retaining washer of some sort

__________________
Bianchis '90 Proto, '90 Campione del Fausto Giamondi Specialisma Italiano Mundo, '91 Boarala 'cross, '93 Project 3, '86 Volpe, '97 Ti Megatube, '93 Reparto Corse SBX

Others but still loved; '80 Batavus Professional, '87 Cornelo, '?? Jane Doe (still on the drawing board), '90ish Haro Escape SLX Bertoni "Speckled Trout"

Last edited by Bianchigirll; 01-06-19 at 04:11 PM.
Bianchigirll is offline
Old 01-06-19, 04:05 PM
  #4
dddd
Ride, Wrench, Swap, Race

dddd's Avatar

Join Date: Jan 2010
Location: Northern California
Posts: 8,112

Bikes: Cheltenham-Pederson racer, Boulder F/S Paris-Roubaix, Varsity racer, '52 Christophe, '62 Continental, '92 Merckx, '75 Limongi, '76 Presto, '72 Gitane SC, '71 Schwinn SS, etc.

Mentioned: 113 Post(s)
Tagged: 0 Thread(s)
Quoted: 1106 Post(s)
Liked 561 Times in 395 Posts
The brake quick release appears to need restoration. The flange on the barrel is supposed to engage the edge of the thin cam plate, but often bends away from the barrel and thus can't work. A flat along the length of the barrel is supposed to face the plate. Very common failure btw.

The rectangular hole in the dropouts might serve as a bungee anchor point for handlebar bags that require a tether.
EDIT: Probably an axle retainer slot as just mentioned above.
dddd is offline
Old 01-06-19, 05:24 PM
  #5
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 8,902

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1801 Post(s)
Liked 675 Times in 436 Posts
I like the bungee cord anchor point hypothesis. Not saying it’s correct, I just like it.
3speedslow is offline
Old 01-06-19, 05:29 PM
  #6
crank_addict
Banned

Join Date: Aug 2013
Posts: 7,152
Mentioned: 93 Post(s)
Tagged: 0 Thread(s)
Quoted: 1361 Post(s)
Likes: 0
Liked 395 Times in 260 Posts
Nice bike OP!

Two Pooch Question~

Which one will make your ankle bleed?

crank_addict is offline
Old 01-06-19, 05:40 PM
  #7
wrk101
Thrifty Bill

wrk101's Avatar

Join Date: Jan 2008
Location: Mountains of Western NC
Posts: 22,622

Bikes: 86 Katakura Silk, 87 Prologue X2, 88 Cimarron LE, 1975 Sekai 4000 Professional, 73 Paramount, plus more

Mentioned: 79 Post(s)
Tagged: 0 Thread(s)
Quoted: 908 Post(s)
Liked 328 Times in 246 Posts
Yes, most likely that bike originally had nutted axles, with a washer that had a tab that fit into that hole.
wrk101 is offline
Old 01-06-19, 06:23 PM
  #8
Lascauxcaveman
Senior Member

Lascauxcaveman's Avatar

Join Date: Nov 2011
Location: Port Angeles, WA
Posts: 7,899

Bikes: A green one, "Ragleigh," or something.

Mentioned: 182 Post(s)
Tagged: 0 Thread(s)
Quoted: 1577 Post(s)
Liked 471 Times in 275 Posts
Originally Posted by dddd View Post
The brake quick release appears to need restoration. The flange on the barrel is supposed to engage the edge of the thin cam plate, but often bends away from the barrel and thus can't work. ...
Another failure mode is the nut holding the whole thing together gets backed off a bit the resulting slop makes the ridge of the adjustable barrel fall off the edge of the cam it's supposed to riding on. Easy fix, in that case.
__________________
● 1971 Grandis SL ● 1972 Lambert Grand Prix frankenbike ● 1972 Raleigh Super Course fixie ● 1973 Nishiki Semi-Pro ● 1980 Apollo "Legnano" ● 1984 Peugeot Vagabond ● 1985 Shogun Prairie Breaker ● 1986 Merckx Super Corsa ● 1987 Schwinn Tempo ● 1988 Schwinn Voyageur ● 1989 Trek 400 ● 1989 Bottechia Team ADR replica ● 1990 Cannondale ST600 ● 1993 Technium RT600 ● 1996 Kona Lava Dome ●
Lascauxcaveman is offline
Old 01-06-19, 09:03 PM
  #9
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 18,771

Bikes: A bunch of old bikes and a few new ones

Mentioned: 161 Post(s)
Tagged: 0 Thread(s)
Quoted: 5218 Post(s)
Liked 1,839 Times in 1,204 Posts
Originally Posted by crank_addict View Post
Nice bike OP!

Two Pooch Question~

Which one will make your ankle bleed?

They're probably thinking about how much dog food they couild buy by selling that Richard Sachs . . .
bikemig is offline
Old 01-07-19, 02:18 AM
  #10
machinist42
mycocyclist

machinist42's Avatar

Join Date: Dec 2016
Location: Monkey Junction, Wilmington, NC
Posts: 1,693

Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 691 Post(s)
Liked 289 Times in 192 Posts
Originally Posted by crank_addict View Post
Nice bike OP!

Two Pooch Question~

Which one will make your ankle bleed?

(I know this one!)

YES!!!
machinist42 is offline
Old 01-07-19, 10:18 AM
  #11
TireLever-07
Senior Member

Join Date: Sep 2005
Location: Malden, MA.
Posts: 402

Bikes: 2009 Masi, 2014 Specialized Crossroads 1975 Schwinn Unicycle

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 11 Post(s)
Likes: 0
Liked 2 Times in 2 Posts
Poster number 2 is correct. Astro Damiler was their high end stuff. I bought 2 French bikes brand new & admired them back then. Bianchi bought out Puch in the very late, 1980's.
TireLever-07 is offline
Old 01-07-19, 11:26 AM
  #12
Mr. Spadoni
Senior Member

Join Date: Jan 2015
Posts: 549
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 206 Post(s)
Liked 119 Times in 67 Posts
The hole is an attempt to prevent lawsuits brought by those who do not understand how to use QRs. Later, those annoying tabs on forks would serve the same purpose.
Mr. Spadoni is offline
Old 01-07-19, 12:03 PM
  #13
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 9,702

Bikes: Yes, please.

Mentioned: 243 Post(s)
Tagged: 0 Thread(s)
Quoted: 1707 Post(s)
Liked 1,727 Times in 843 Posts
Judging by what Google presents, the Cavalier was available both in the US and in England. The "third hole" seems to have been a US market thing. So, what were the Austrians thinking? English cyclists are smarter, or: American cyclists have better lawyers?
__________________
The Upsetter is gone ... too late to check him out








non-fixie is online now
Old 01-07-19, 03:13 PM
  #14
Hatchet
Senior Member
Thread Starter

Join Date: Oct 2017
Location: Buffalo, NY
Posts: 242
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by bikemig View Post
Great pics. The brake quick release brake is to open up your center pull brakes so you can get the wheels out. I have no idea what that rectangular hole on the drop out is for.
Thanks.
I had the same thought about their purpose - but when I move the lever nothing happens.
Hatchet is offline
Old 01-07-19, 03:15 PM
  #15
Hatchet
Senior Member
Thread Starter

Join Date: Oct 2017
Location: Buffalo, NY
Posts: 242
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by Bianchigirll View Post
The rectangular hole in the dropout is likely for a wheel retaining washer of some sort

Interesting. I've never seen the rectangular hole for retain washers in that position before (not saying it isn't possible, just that I've never seen it). Normally the hole is aligned with the center-line of the fork arm.
Hatchet is offline
Old 01-07-19, 03:18 PM
  #16
Hatchet
Senior Member
Thread Starter

Join Date: Oct 2017
Location: Buffalo, NY
Posts: 242
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 85 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Originally Posted by dddd View Post
The brake quick release appears to need restoration. The flange on the barrel is supposed to engage the edge of the thin cam plate, but often bends away from the barrel and thus can't work. A flat along the length of the barrel is supposed to face the plate. Very common failure btw.

The rectangular hole in the dropouts might serve as a bungee anchor point for handlebar bags that require a tether.
EDIT: Probably an axle retainer slot as just mentioned above.
The need for restoration would explain why they donít work and originally had me questioning what their purpose was. Thanks for clarifying it for me.
Hatchet is offline
Old 01-07-19, 03:20 PM
  #17
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,321 Times in 831 Posts
in the 50's I had a 3 speed I bought from Sears , they had them made in Austria,, By AD-Puch.. but badged JC Higgins. Then..
fietsbob is offline
Old 01-08-19, 08:31 PM
  #18
wawine
Senior Member

Join Date: Aug 2011
Location: Bow, Washington
Posts: 96

Bikes: 1959 Bianchi Team issue ex G Barale, 1964 Garlatti, 1971 Cinelli SC Spence Wolfe, 1980 Bianchi Rekord 748, 1982 Raleigh Comp MKII, 1989 Vitus 979 / Chorus

Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
Liked 63 Times in 14 Posts

Originally Posted by TireLever-07 View Post
Poster number 2 is correct. Astro Damiler was their high end stuff. I bought 2 French bikes brand new & admired them back then. Bianchi bought out Puch in the very late, 1980's.
sort of correct. Austro Daimler was the higher end stuff for primarily the US market. There were still very high end Puch bikes in Europe. This is Klaus Peter Thalerís 1982 team bike, made in the Graz Austria factory and confirmed by him to be one of two bikes ridden by him that year, including in the TdF. It is serial number 001.
wawine is offline
Old 01-10-19, 05:05 AM
  #19
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 731
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 42 Times in 37 Posts
It looks like the "T" shaped support for the Pletscher rack was mistakenly bolted to the quick release cable stop in such a way as to render it incapable of working properly. The "T"support is supposed to be attached to the rear brake mounting bolt.
elcraft is offline
Old 01-10-19, 09:24 AM
  #20
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 20,535

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 36 Post(s)
Tagged: 0 Thread(s)
Quoted: 1013 Post(s)
Liked 438 Times in 320 Posts
Originally Posted by elcraft View Post
It looks like the "T" shaped support for the Pletscher rack was mistakenly bolted to the quick release cable stop in such a way as to render it incapable of working properly. The "T"support is supposed to be attached to the rear brake mounting bolt.
Good point. On Weinmann centerpull brake systems I prefer the foolproof cable tension releases built into the brake levers.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Old 01-14-19, 05:00 PM
  #21
elcraft
elcraft

Join Date: Sep 2008
Location: Greater Boston
Posts: 731
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 113 Post(s)
Liked 42 Times in 37 Posts
Originally Posted by John E View Post
Good point. On Weinmann centerpull brake systems I prefer the foolproof cable tension releases built into the brake levers.
+1. I also prefer the quick release on the lever, as well. One can actually operate them, albeit clumsily, while riding. If your wheel starts to rub during a ride,you have some recourse. I also prefer the adjusting ferrules that are attached to the brake lever for the same reason. The grey plastic OEM Weinmann adjusters are inferior to the red anodized aluminum Dia Compe versions.
elcraft is offline
