Campagnolo hub spoke question
10-06-19 | 02:30 AM
#1
Thread Starter
Full Member
Joined: Jun 2019
Posts: 295
Likes: 298
Campagnolo hub spoke question
Hi Guys,
Hit a problem with a wheel build - have a nos Campag 24h record electron hub (looks just like a shamal hub but 24h) and a set of nos Campag 24h Sigma rims - having issues with the spokes - do they need a small plate or something to secure in the rear hub?
Any advise would be appreciated, Dan.
Hit a problem with a wheel build - have a nos Campag 24h record electron hub (looks just like a shamal hub but 24h) and a set of nos Campag 24h Sigma rims - having issues with the spokes - do they need a small plate or something to secure in the rear hub?
Any advise would be appreciated, Dan.
10-06-19 | 06:30 AM
#2
Senior Member
Joined: Feb 2017
Posts: 876
Likes: 606
From: Concord, NC
Bikes: 1984 Bianchi Tipo Corsa, 1985 Cannondale SM600 (24/26)
Campagnolo Front Hub Spoke Support
Hi Guys,
Hit a problem with a wheel build - have a nos Campag 24h record electron hub (looks just like a shamal hub but 24h) and a set of nos Campag 24h Sigma rims - having issues with the spokes - do they need a small plate or something to secure in the rear hub?
Any advise would be appreciated, Dan.
Hit a problem with a wheel build - have a nos Campag 24h record electron hub (looks just like a shamal hub but 24h) and a set of nos Campag 24h Sigma rims - having issues with the spokes - do they need a small plate or something to secure in the rear hub?
Any advise would be appreciated, Dan.
10-06-19 | 07:44 AM
#3
Senior Member
Joined: Dec 2014
Posts: 5,382
Likes: 5,316
From: Central Virginia
Bikes: Numerous
Campagnolo site is a great resource for this type of thing. Looks like those plates are what you need.
https://www.campagnolo.com/media/fil...999_part_C.pdf
I also remember from my same era Protons needing a narrow 5 mm wrench to fit the recessed spoke nuts.
https://www.campagnolo.com/media/fil...999_part_C.pdf
I also remember from my same era Protons needing a narrow 5 mm wrench to fit the recessed spoke nuts.
__________________
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '95 Gios Compact Pro, '95 Carrera Zeus, ‘81 Masi Gran Criterium, ‘81 Merckx Pro, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘VO Randonneur, Ritchey Breakaway Steel, Rivendell Rambouillet, Heron Randonneur, ‘92 Ciöcc Columbus EL
N = '96 Colnago C40, '04 Wilier Alpe D'Huez, '10 Colnago EPS, '85 Merckx Pro, '89 Merckx Century, '86 Tommasini Professional, '04 Teschner Aero FX Pro, '05 Alan Carbon Cross, '86 De Rosa Professional, '95 Gios Compact Pro, '95 Carrera Zeus, ‘81 Masi Gran Criterium, ‘81 Merckx Pro, ‘89 Cinelli Supercorsa, ‘83 Bianchi Specialissima, ‘VO Randonneur, Ritchey Breakaway Steel, Rivendell Rambouillet, Heron Randonneur, ‘92 Ciöcc Columbus EL
10-06-19 | 08:38 AM
#4
Thread Starter
Full Member
Joined: Jun 2019
Posts: 295
Likes: 298
Great stuff, that looks like the bit thats required - figuring out the exact term to search for is the key - many thanks, Dan.
Campagnolo site is a great resource for this type of thing. Looks like those plates are what you need.
https://www.campagnolo.com/media/fil...999_part_C.pdf
I also remember from my same era Protons needing a narrow 5 mm wrench to fit the recessed spoke nuts.
https://www.campagnolo.com/media/fil...999_part_C.pdf
I also remember from my same era Protons needing a narrow 5 mm wrench to fit the recessed spoke nuts.
10-06-19 | 12:39 PM
#6
Full Member
Joined: Mar 2014
Posts: 467
Likes: 154
Bikes: Too many!

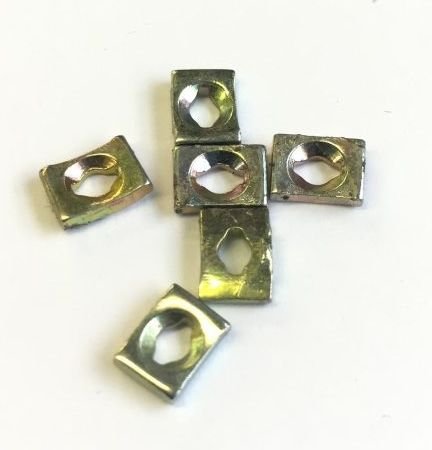

Rear GS are different.
I already have the factory hunting for them for the OP ... unless there's another customer looking to do this particular build ...
We have a few of each but not enough for a full build.
Last edited by gfk_velo; 10-06-19 at 12:50 PM.
10-06-19 | 12:41 PM
#7
Full Member
Joined: Mar 2014
Posts: 467
Likes: 154
Bikes: Too many!
10-06-19 | 12:43 PM
#8
Full Member
Joined: Mar 2014
Posts: 467
Likes: 154
Bikes: Too many!
Campagnolo site is a great resource for this type of thing. Looks like those plates are what you need.
https://www.campagnolo.com/media/fil...999_part_C.pdf
I also remember from my same era Protons needing a narrow 5 mm wrench to fit the recessed spoke nuts.
https://www.campagnolo.com/media/fil...999_part_C.pdf
I also remember from my same era Protons needing a narrow 5 mm wrench to fit the recessed spoke nuts.
Senator 5mm nut spinner (from Cromwell Tools, in the UK) is actually small enough to go through the rim drillings.
The corresponding 5.5 is a tight but OK fit for older-design Bora and Neutron Ultra ...
10-07-19 | 02:05 AM
#9
Thread Starter
Full Member
Joined: Jun 2019
Posts: 295
Likes: 298
A quick search for the front spacer took to me to a very well stocked site, looked through their campag hub fittings and they had the rear cassette side bell fittings required and in stock - ordered and on way.
