What is this brake called?

Old 09-03-20, 08:36 AM
  #1
natloz
Senior Member
Thread Starter

Join Date: Jun 2020
Location: Alberta, Canada
Posts: 156

Bikes: Bianchi Alfana, Specialized Hardrock, Specialized Sirrus Pro SS Conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 50 Times in 33 Posts

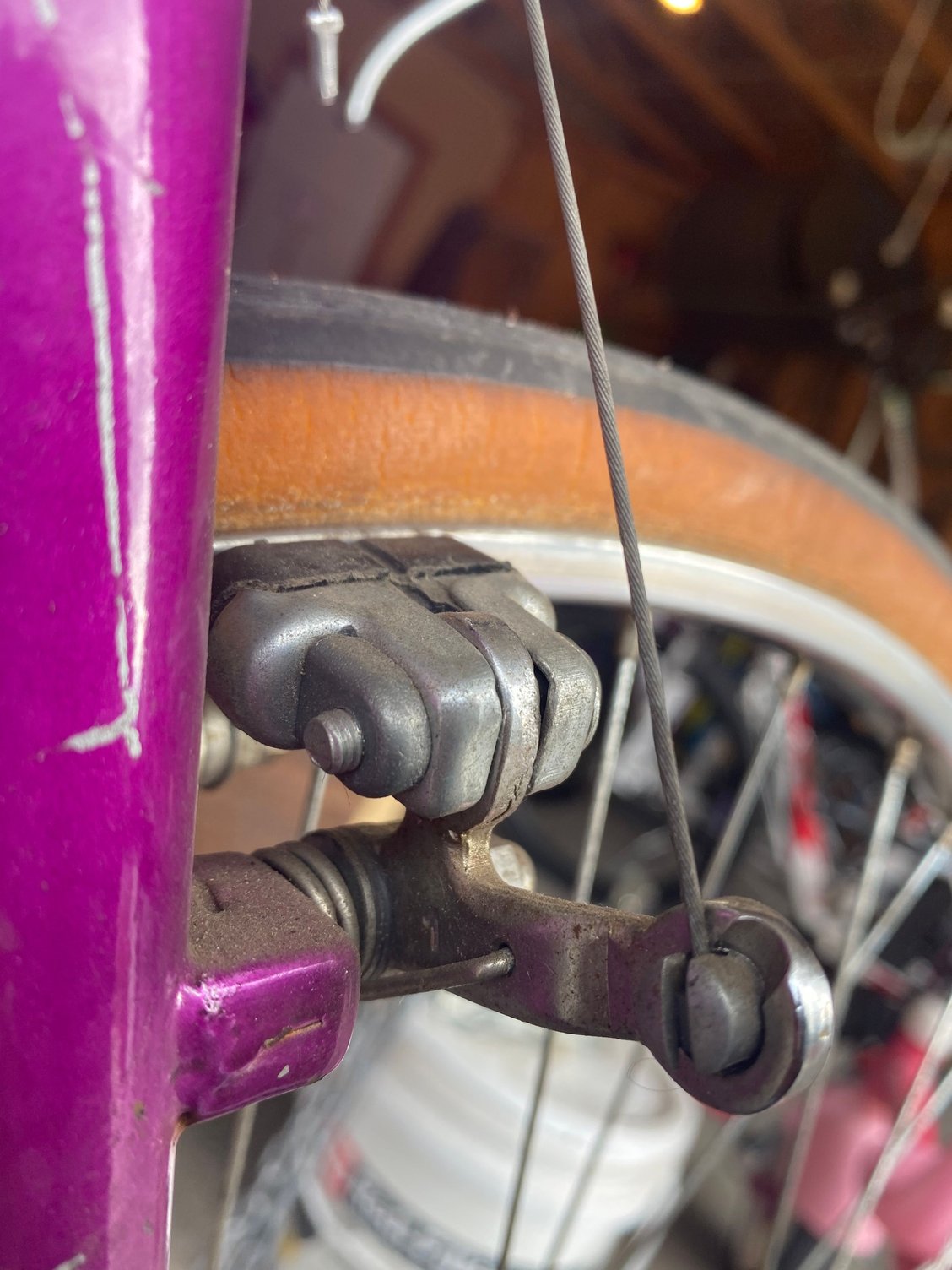

What is this brake called?

Just got a made in Japan Cobra road bike and this is the first i have seen these brakes with an uncommon brake pad. Please shed some light on my dark tunnel! I paid $30 for this find.






natloz is offline
Old 09-03-20, 08:54 AM
  #2
canopus
Senior Member

canopus's Avatar

Join Date: Mar 2009
Location: Kingwood, TX
Posts: 1,352

Bikes: 1985 Cannondale SR300, 1985 Cannondale ST400, 1984 Trek 760, 1984 Trek 610, 1984 Trek 720, 1981 Trek 710, 1979 Trek 710, Gary Littlejohn Cruiser, BMX

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 57 Post(s)
Liked 52 Times in 40 Posts
They are just inexpensive cantilever brakes. If you are trying to replace the pads, they might come apart when removed and allow you to find/replace pads only. If not you will probably need to scrounge a different pair of canti brakes from somewhere that mounts the pad a little more traditionally.
__________________
1984 Cannondale ST
1985 Cannondale SR300
1980 Gary Littlejohn Cruiser
1984 Trek 760
1981 Trek 710
Pics
canopus is offline
Old 09-03-20, 08:55 AM
  #3
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,057

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World, Schwinn Continental

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 344 Post(s)
Liked 247 Times in 188 Posts
It is called very interesting. That looks like a late 70's to perhaps early 80' bike to me, based on the crank, color, derailleur and brake levers. Cantilever brakes were not common at that time. The brakes themselves look like steel. For a bike manufacturer to go to the effort of brazing the studs for brakes in this era for a lower end bike is interesting. Then again, I believe that Japanese companies are always looking for something to give them an edge.

I am just guessing at all of this, T-Mar or someone else may know exactly that brake caliper that is and when it was produced.
Velo Mule is offline
Likes For Velo Mule:
Old 09-03-20, 09:17 AM
  #4
pcb
Senior Member

pcb's Avatar

Join Date: Jan 2012
Location: Joisey
Posts: 1,246
Mentioned: 76 Post(s)
Tagged: 0 Thread(s)
Quoted: 265 Post(s)
Liked 395 Times in 177 Posts
Interesting/cool...feels more '70s than '80s to me.

The cantis are unbranded, so unless somebody has a good eye for '70s Japanese entry-level unbranded components, they won't be easy to ID.

Brake shoe attachment is definitely different/weird, can't recall seeing that kind of brake shoe holder>brake arm interface before. Best bet is to find a replacement shoe that fits the holder, if possible. Otherwise, if you want it to be rideable, you'll likely need to replace the cantis. The boss>boss spacing is likely narrow, so you'd need either vintage wide-profile cantis, or modern repro/clones. Low-profile canti arms or mini-v won't work well.

Looks like the stamped rear dropouts were pressed in place, clamping/crimping the stays to hold the dropout in place, then brazed? Squished stay ends are pretty common on entry-level, mass-market frames, I've seen 'em often, but never really thought about how they work...
__________________
Fuggedaboutit!
pcb is offline
Likes For pcb:
Old 09-03-20, 09:18 AM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,223
Mentioned: 291 Post(s)
Tagged: 1 Thread(s)
Quoted: 2347 Post(s)
Liked 597 Times in 488 Posts
-----

possible brakes may be from Yoshikawa

not all of their parts are marked

if the levers exhibit a little fish marking that would be it

chainset is Takagi

frame's bulge-formed head is likely from Nikko Sangyo

this looks to be an all Shimano keiretsu machine

date is close to 1970

-----
juvela is offline
Likes For juvela:
Old 09-03-20, 09:31 AM
  #6
natloz
Senior Member
Thread Starter

Join Date: Jun 2020
Location: Alberta, Canada
Posts: 156

Bikes: Bianchi Alfana, Specialized Hardrock, Specialized Sirrus Pro SS Conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 50 Times in 33 Posts
Originally Posted by juvela View Post
-----

possible brakes may be from Yoshikawa

not all of their parts are marked

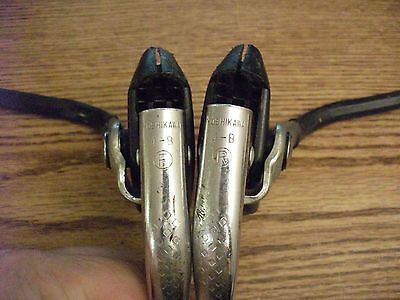

if the levers exhibit a little fish marking that would be it

chainset is Takagi

frame's bulge-formed head is likely from Nikko Sangyo

this looks to be an all Shimano keiretsu machine

date is close to 1970

-----
here are some more closeups






natloz is offline
Old 09-03-20, 10:10 AM
  #7
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,223
Mentioned: 291 Post(s)
Tagged: 1 Thread(s)
Quoted: 2347 Post(s)
Liked 597 Times in 488 Posts
-----

thank you for the additional pictures.

fine job with the photos!

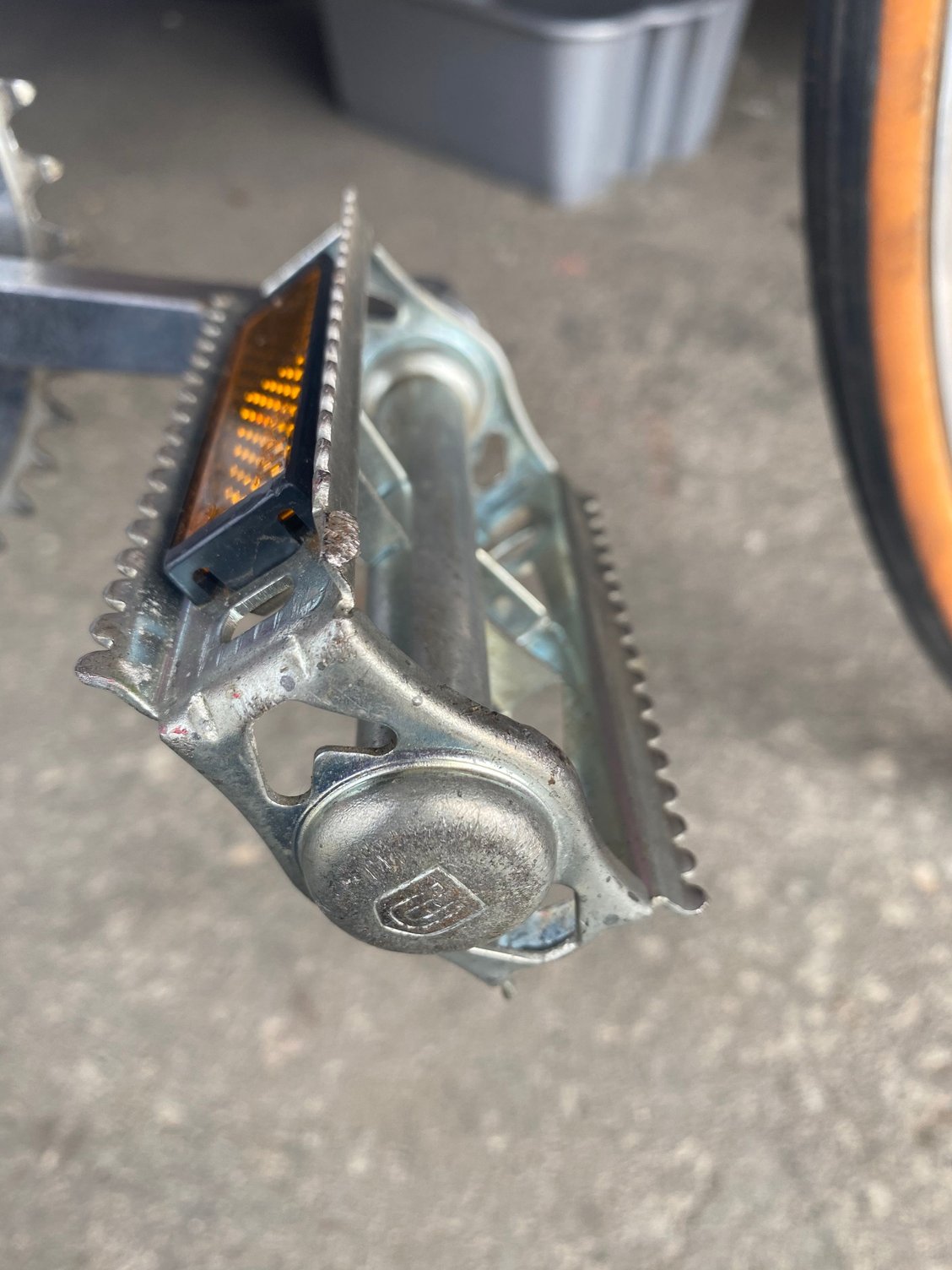

the Union pedals are from Germany so they are sure to be replacements. they are a model called K10491/U41 and a bit later than the cycle.

the backside of the Takagi crank arms should exhibit markings. these may include a date.

Takagi trade publication advert of 1971:




Three Arrows is the firms logo.

-----
juvela is offline
Old 09-03-20, 10:14 AM
  #8
Murray Missile
Bike hoarder.

Murray Missile's Avatar

Join Date: Jun 2013
Location: 700 Ft. above sea level.
Posts: 2,400

Bikes: Just as many as there were awhile ago.

Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 340 Post(s)
Liked 364 Times in 203 Posts
Originally Posted by pcb View Post

Looks like the stamped rear dropouts were pressed in place, clamping/crimping the stays to hold the dropout in place, then brazed? ...
Resistance Spot Welded.
__________________
".....distasteful and easily triggered."
Murray Missile is offline
Likes For Murray Missile:
Old 09-03-20, 10:23 AM
  #9
natloz
Senior Member
Thread Starter

Join Date: Jun 2020
Location: Alberta, Canada
Posts: 156

Bikes: Bianchi Alfana, Specialized Hardrock, Specialized Sirrus Pro SS Conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 50 Times in 33 Posts
Originally Posted by juvela View Post
-----

thank you for the additional pictures.

fine job with the photos!

the Union pedals are from Germany so they are sure to be replacements. they are a model called K10491/U41 and a bit later than the cycle.

the backside of the Takagi crank arms should exhibit markings. these may include a date.

Takagi trade publication advert of 1971:




Three Arrows is the firms logo.

-----
Great information, piece by piece it comes together! Awesome to actually see the original adverts. When I get a chance I will see if there is a date on the backside of the crank arms or any markings.
natloz is offline
Old 09-03-20, 10:41 AM
  #10
steve sumner
Senior Member

Join Date: Apr 2020
Posts: 331

Bikes: '68 Masi Special road, Grail bike

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
Likes: 0
Liked 66 Times in 55 Posts
I have seen those brakes b4 BITD. I'm not 100% but I think they are made by Cherry.
steve sumner is offline
Old 09-03-20, 10:49 AM
  #11
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 7,104

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 145 Post(s)
Tagged: 0 Thread(s)
Quoted: 2122 Post(s)
Liked 1,183 Times in 822 Posts
Originally Posted by Velo Mule View Post
It is called very interesting. That looks like a late 70's to perhaps early 80' bike to me, based on the crank, color, derailleur and brake levers. Cantilever brakes were not common at that time. The brakes themselves look like steel. For a bike manufacturer to go to the effort of brazing the studs for brakes in this era for a lower end bike is interesting. Then again, I believe that Japanese companies are always looking for something to give them an edge.

I am just guessing at all of this, T-Mar or someone else may know exactly that brake caliper that is and when it was produced.
"interesting" would be a gracious assessment.
merziac is offline
Likes For merziac:
Old 09-03-20, 11:23 AM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,223
Mentioned: 291 Post(s)
Tagged: 1 Thread(s)
Quoted: 2347 Post(s)
Liked 597 Times in 488 Posts
Originally Posted by natloz View Post
Great information, piece by piece it comes together! Awesome to actually see the original adverts. When I get a chance I will see if there is a date on the backside of the crank arms or any markings.
-----

Takagi was originally independent and then was purchased by Shimano. The Takagi name was kept going and the Three Arrows symbol. Do not have a date for the ownership change. Many lower-to-mid model cycles which are Shimano equipped come with Takagi chainsets.


-----
juvela is offline
Old 09-03-20, 12:04 PM
  #13
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,618
Mentioned: 555 Post(s)
Tagged: 1 Thread(s)
Quoted: 3657 Post(s)
Likes: 0
Liked 1,063 Times in 797 Posts
I've seen this brake several times but have been unable to determine the brand. While Yoshikawa is a definite possibility, so is Buffalo/Cherry and about a half dozen other, lower tier, Japanese brands that were favoured by marketing brands due to their lower pricing.

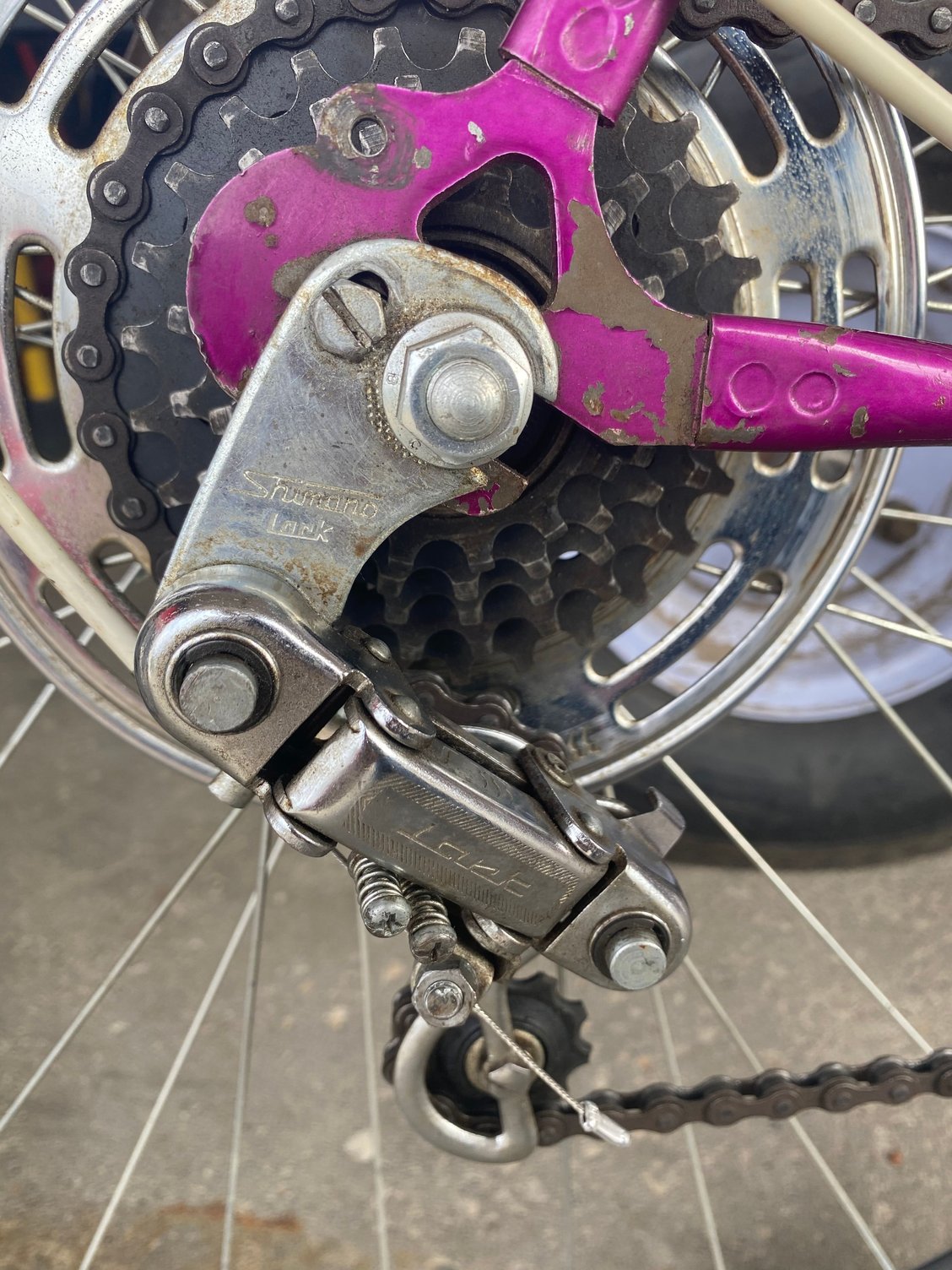

As for the bicycle itself, this particular version of the Lark rear derailleur suggests circa 1969-1971. The frame serial number may also provide some insight.
T-Mar is offline
Old 09-03-20, 01:22 PM
  #14
natloz
Senior Member
Thread Starter

Join Date: Jun 2020
Location: Alberta, Canada
Posts: 156

Bikes: Bianchi Alfana, Specialized Hardrock, Specialized Sirrus Pro SS Conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 50 Times in 33 Posts
Originally Posted by T-Mar View Post
I've seen this brake several times but have been unable to determine the brand. While Yoshikawa is a definite possibility, so is Buffalo/Cherry and about a half dozen other, lower tier, Japanese brands that were favoured by marketing brands due to their lower pricing.

As for the bicycle itself, this particular version of the Lark rear derailleur suggests circa 1969-1971. The frame serial number may also provide some insight.

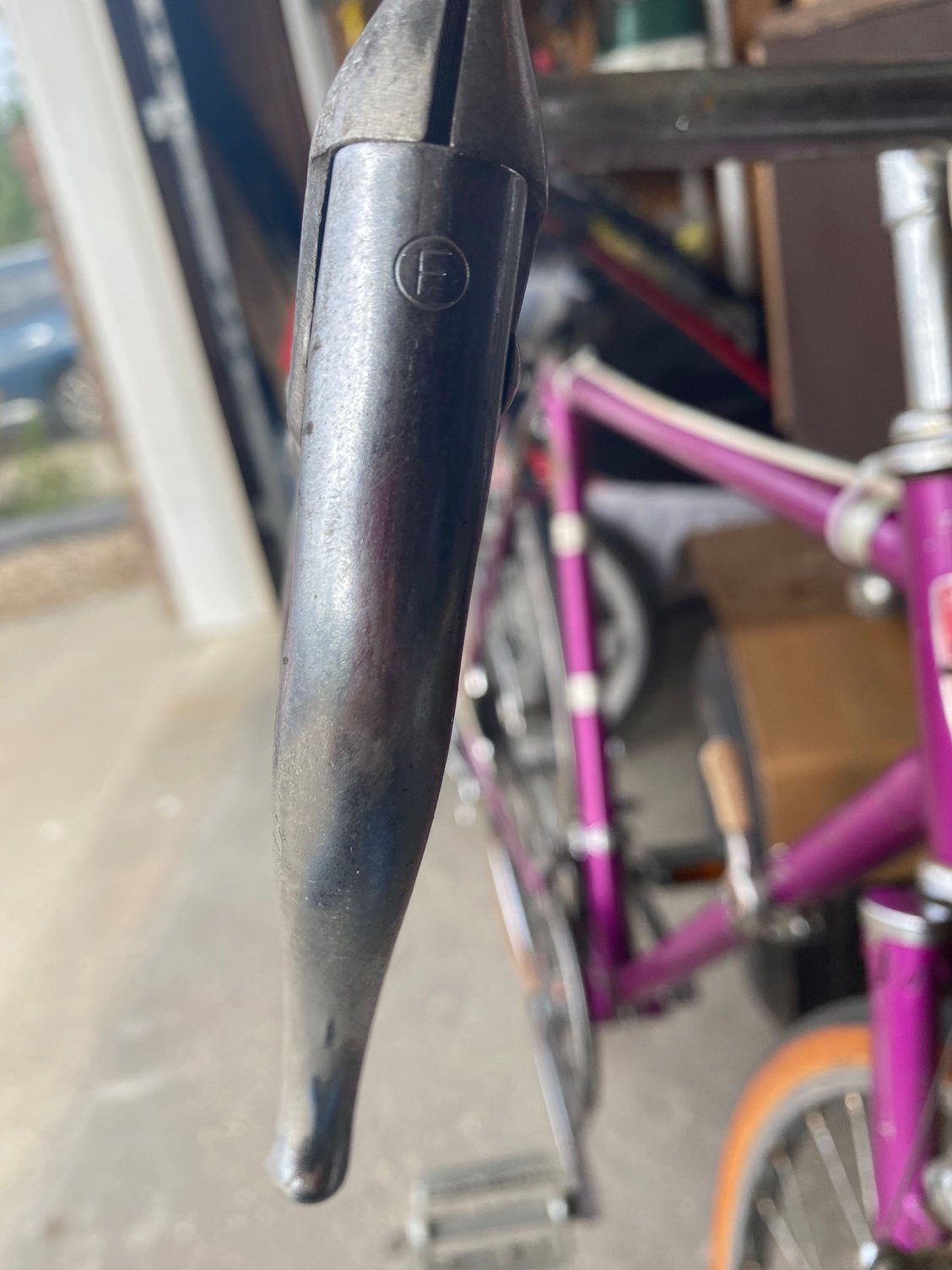

T-Mar, do you know what the F with the circle is on the lever?
natloz is offline
Old 09-03-20, 03:11 PM
  #15
natloz
Senior Member
Thread Starter

Join Date: Jun 2020
Location: Alberta, Canada
Posts: 156

Bikes: Bianchi Alfana, Specialized Hardrock, Specialized Sirrus Pro SS Conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 50 Times in 33 Posts
Originally Posted by juvela View Post
-----

Takagi was originally independent and then was purchased by Shimano. The Takagi name was kept going and the Three Arrows symbol. Do not have a date for the ownership change. Many lower-to-mid model cycles which are Shimano equipped come with Takagi chainsets.


-----

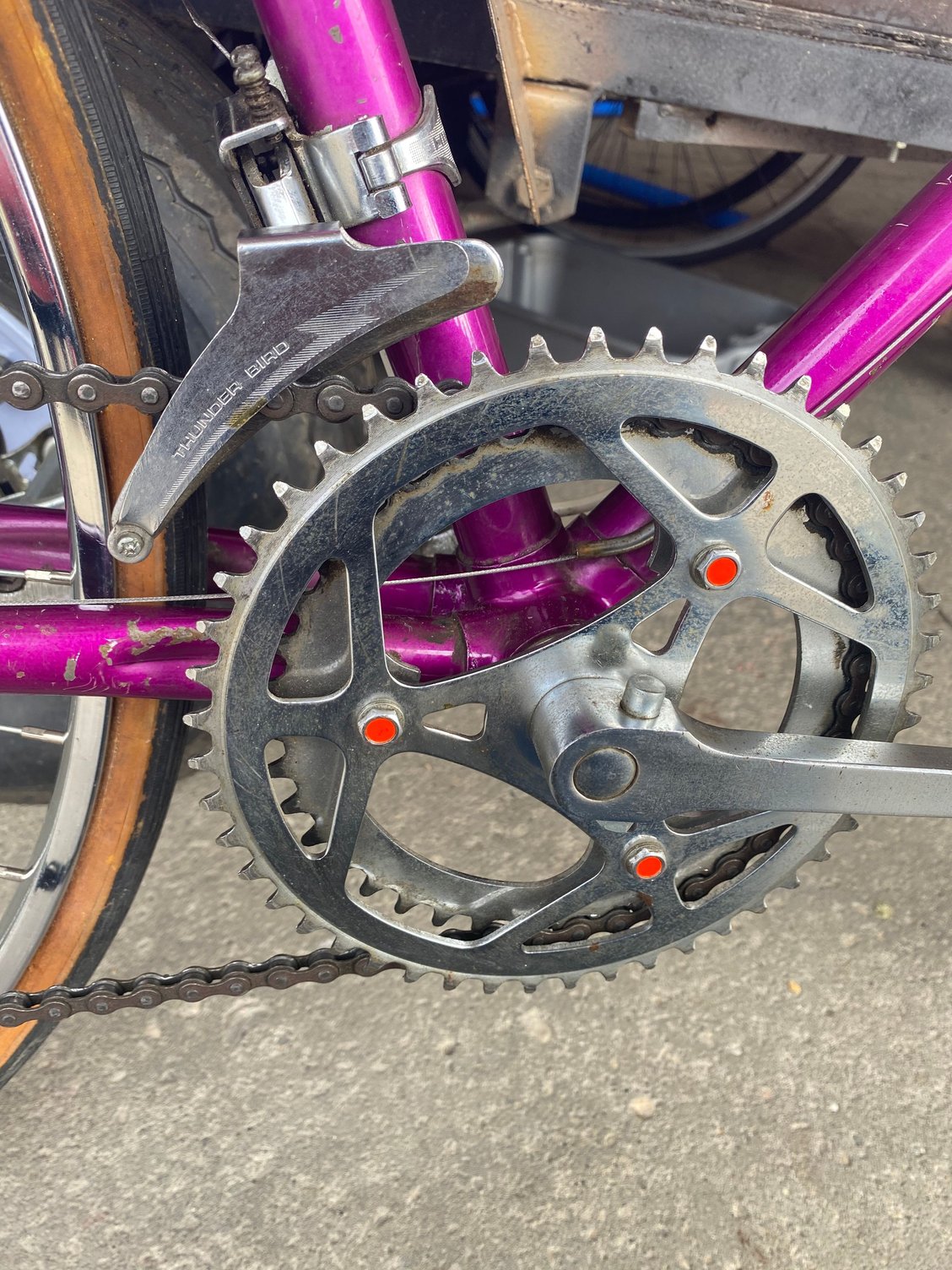

photos of crank arms

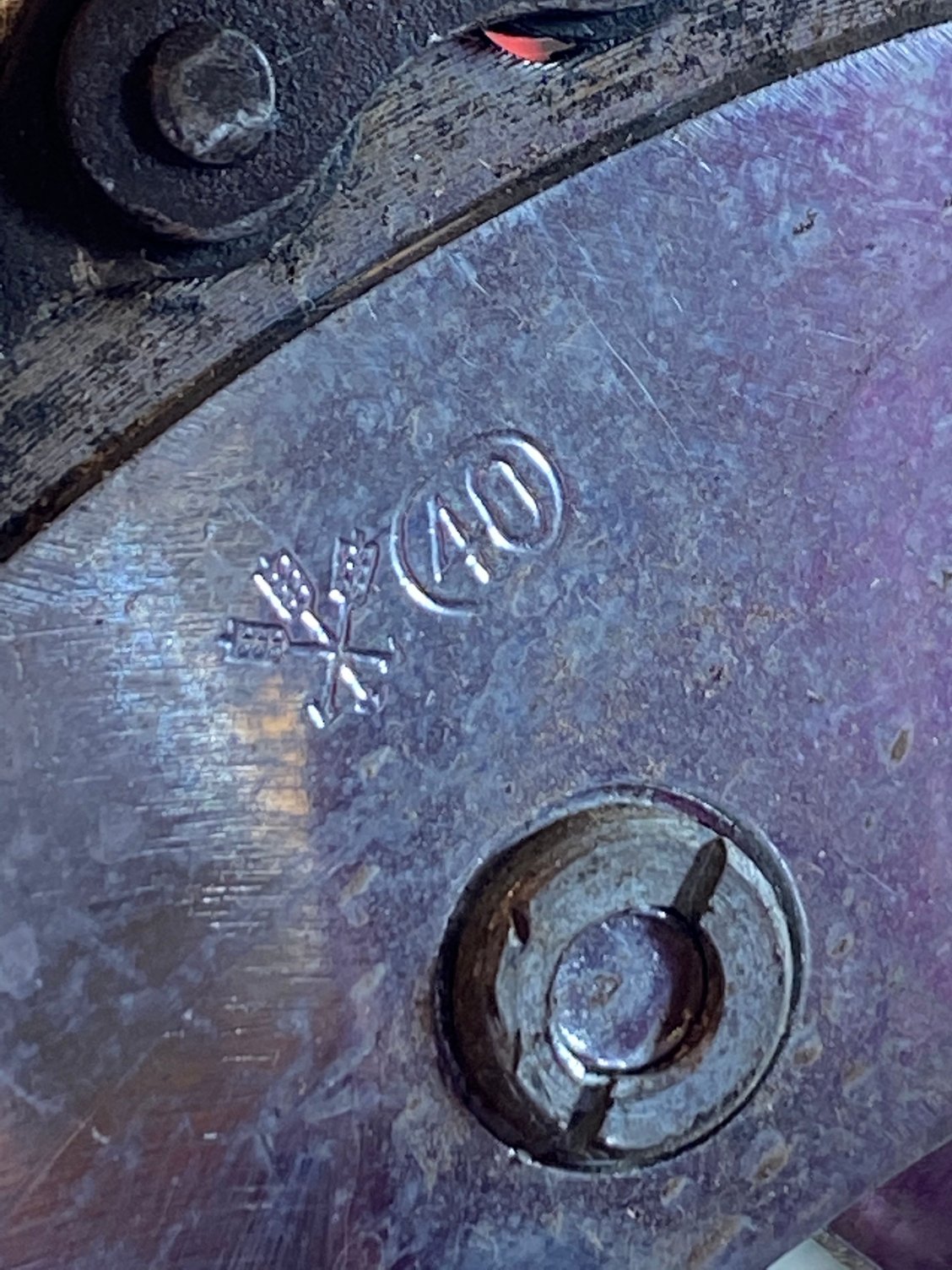

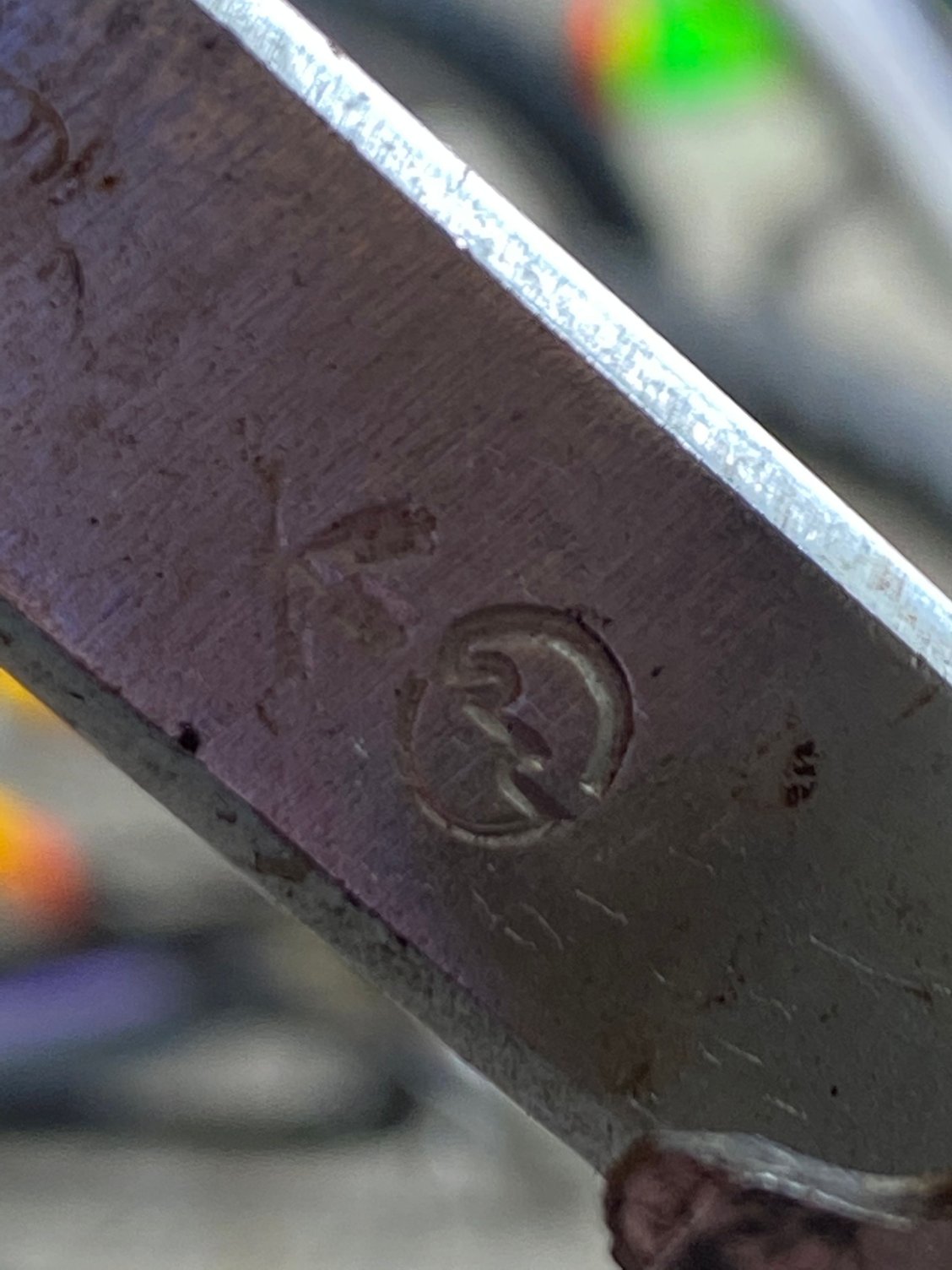

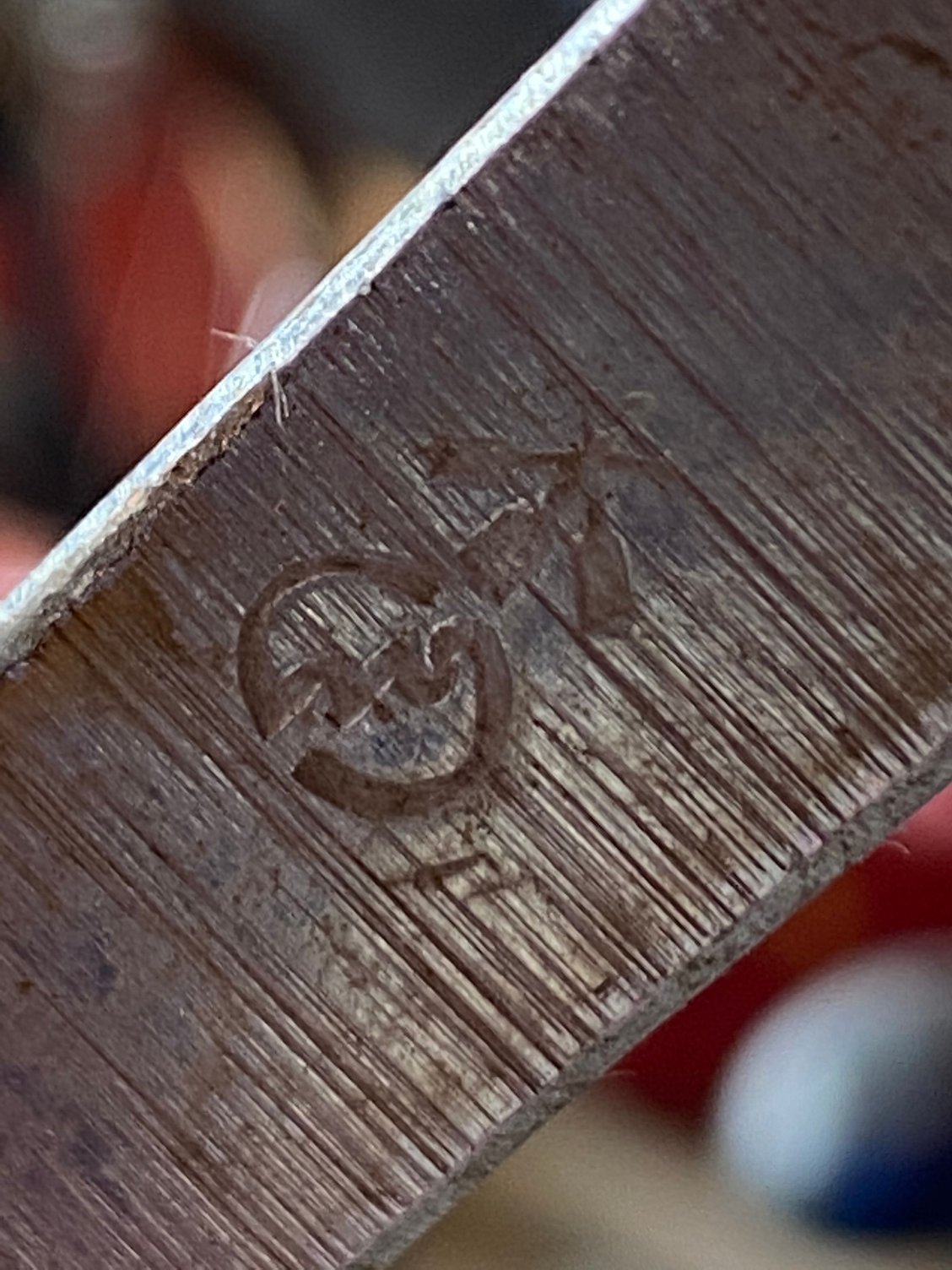

logo
natloz is offline
Old 09-03-20, 07:28 PM
  #16
natloz
Senior Member
Thread Starter

Join Date: Jun 2020
Location: Alberta, Canada
Posts: 156

Bikes: Bianchi Alfana, Specialized Hardrock, Specialized Sirrus Pro SS Conversion

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 32 Post(s)
Liked 50 Times in 33 Posts

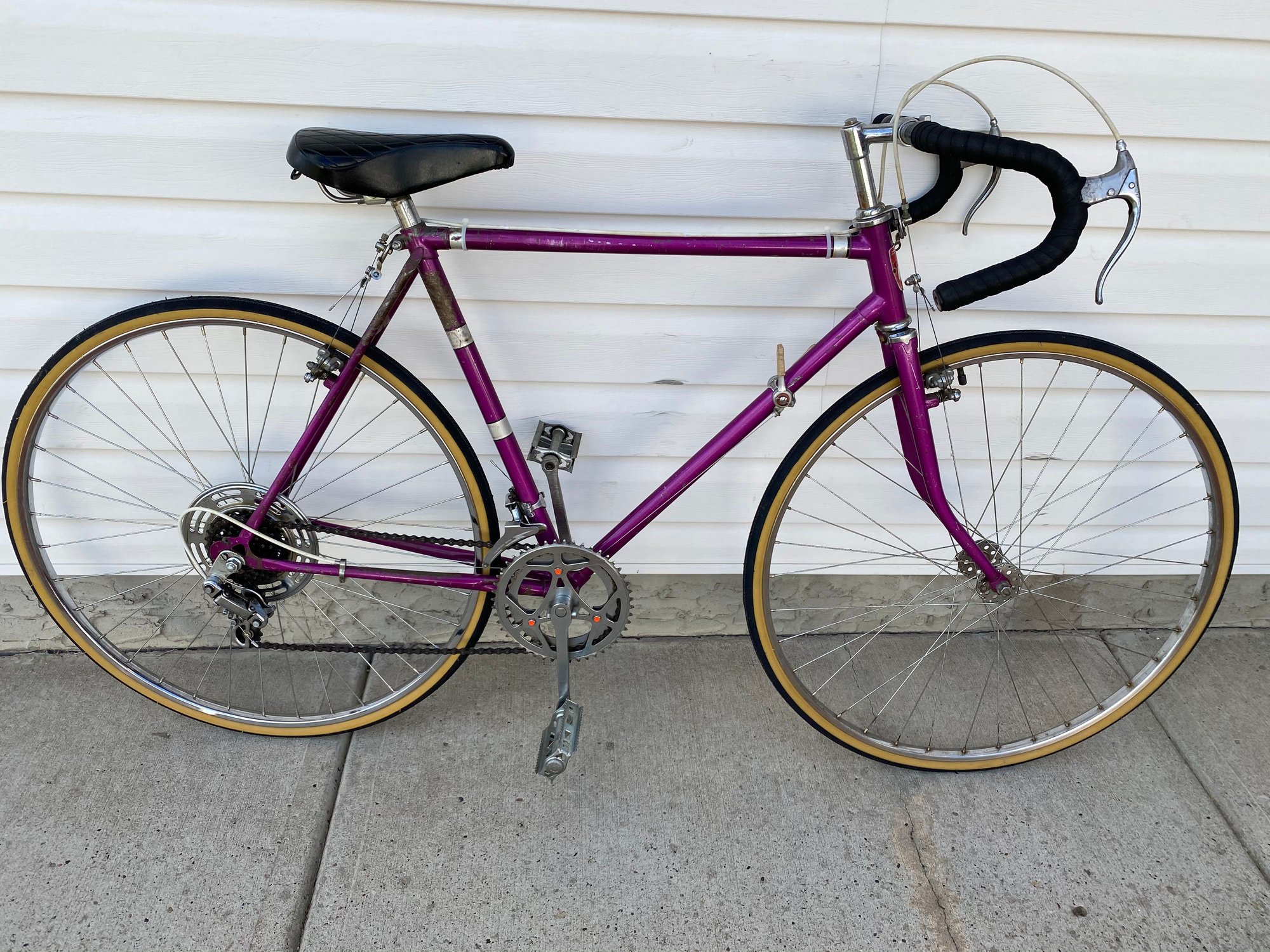

All cleaned up and tuned, new cables, new bar tape, and new gumwalls. Gonna flip it now!
natloz is offline
Old 09-03-20, 07:40 PM
  #17
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,223
Mentioned: 291 Post(s)
Tagged: 1 Thread(s)
Quoted: 2347 Post(s)
Liked 597 Times in 488 Posts
-----

thank you for the additional photos

in the "completed" image we can see that the crankrms are several degrees out of registration

cotters need to be seen to

what marking are you able to read on the cycle's hub barrels? 3 - 3 - 3? S.I.W.? Chair?

-----

Last edited by juvela; 09-03-20 at 07:54 PM. Reason: addition
juvela is offline
Old 09-04-20, 10:14 AM
  #18
Charles Wahl
Disraeli Gears

Charles Wahl's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 3,756
Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 297 Post(s)
Liked 117 Times in 78 Posts
Is this a cracked brake arm? (below the pad screw) If so, not very "cherry".

Charles Wahl is offline
Old 09-04-20, 12:09 PM
  #19
BikeWonder
Senior Member

Join Date: Oct 2018
Location: Calgary
Posts: 326
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 158 Post(s)
Liked 73 Times in 50 Posts
Last I heard, it was called a can't believe her brake. What a ridiculous name.


Jokes aside, it's a cantilever, but a very unusual one.
BikeWonder is offline
Old 09-04-20, 12:50 PM
  #20
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 7,002

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 97 Post(s)
Tagged: 0 Thread(s)
Quoted: 1592 Post(s)
Liked 669 Times in 450 Posts
That's a quintessential Canadian department store bike from the 70's. Instantly recognizable and forgettable at the same time.

clubman is offline
Old 09-04-20, 03:47 PM
  #21
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,618
Mentioned: 555 Post(s)
Tagged: 1 Thread(s)
Quoted: 3657 Post(s)
Likes: 0
Liked 1,063 Times in 797 Posts
Originally Posted by natloz View Post
T-Mar, do you know what the F with the circle is on the lever?
Yes, it designates the "Front" lever, as opposed to the "Rear". One company which used the F and R within a circle was Yoshikawa, as previously mentioned by juvela. Typically, the levers were stamped with the company name at top and an alpha-numeric date code underneath, followed by the F or R designation. If they didn't use the full name, sometimes you'll find their YSB trademark or fish logo somewhere on the brakes and/or levers.

Edit: Any luck with finding a serial number on the frame? TIA.

Last edited by T-Mar; 09-04-20 at 03:58 PM.
T-Mar is offline
Likes For T-Mar:
Old 09-04-20, 03:53 PM
  #22
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 20,618
Mentioned: 555 Post(s)
Tagged: 1 Thread(s)
Quoted: 3657 Post(s)
Likes: 0
Liked 1,063 Times in 797 Posts
Originally Posted by Charles Wahl View Post
Is this a cracked brake arm? (below the pad screw) If so, not very "cherry".

It looks more like a parting line from the forging dies.
T-Mar is offline

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
