Raleigh Gran Sport Frame advice

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Raleigh Gran Sport Frame advice

Old 09-06-20, 02:34 PM
  #1
rickrob
Senior Member
Thread Starter

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 355

Bikes: 75 Raleigh Gran Sport, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620, 95 Fuji Team

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Likes: 0
Liked 18 Times in 10 Posts
Raleigh Gran Sport Frame advice

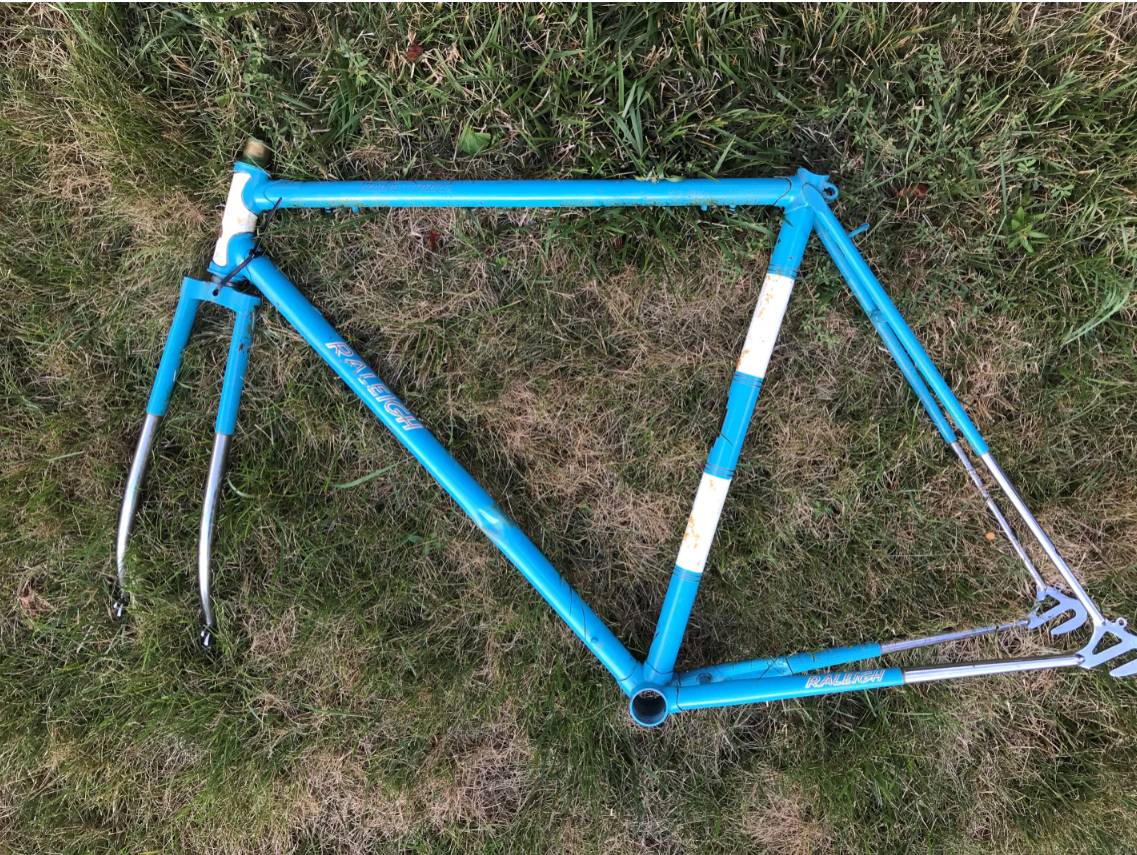

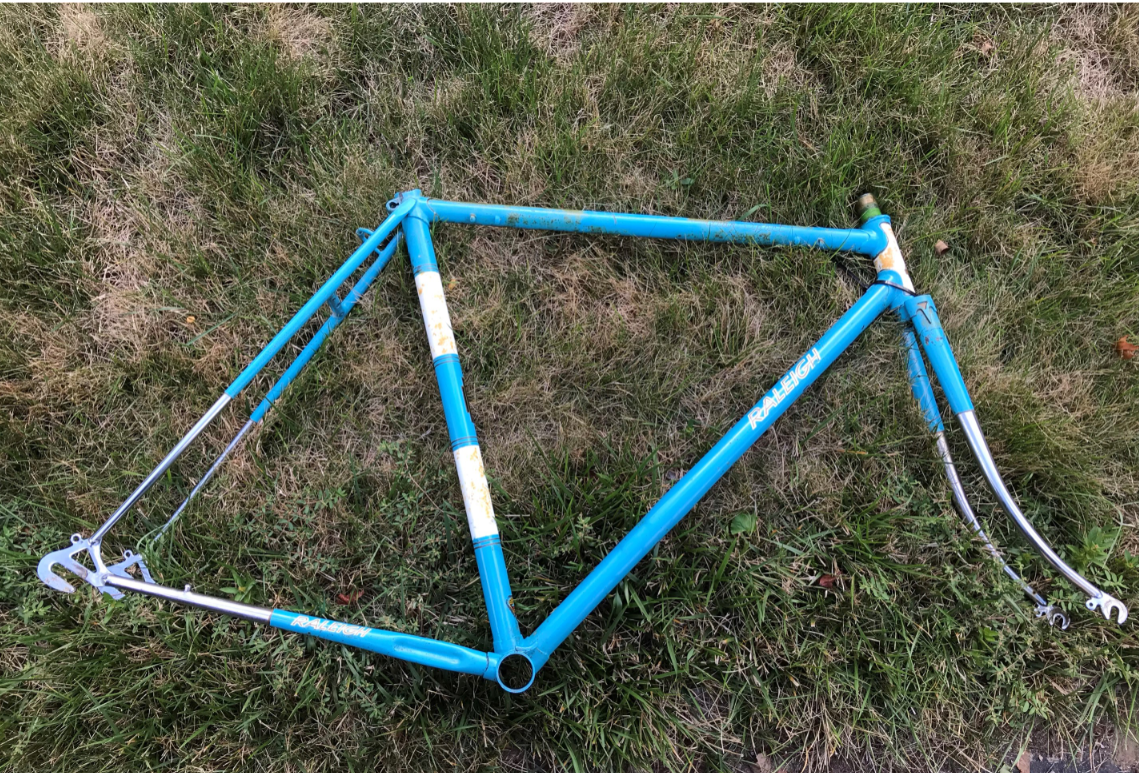

I picked up this Gran Sport Frame-- It think it's a 1976 model. It needs a little help. Being a full 531 frame, it might be worth saving.

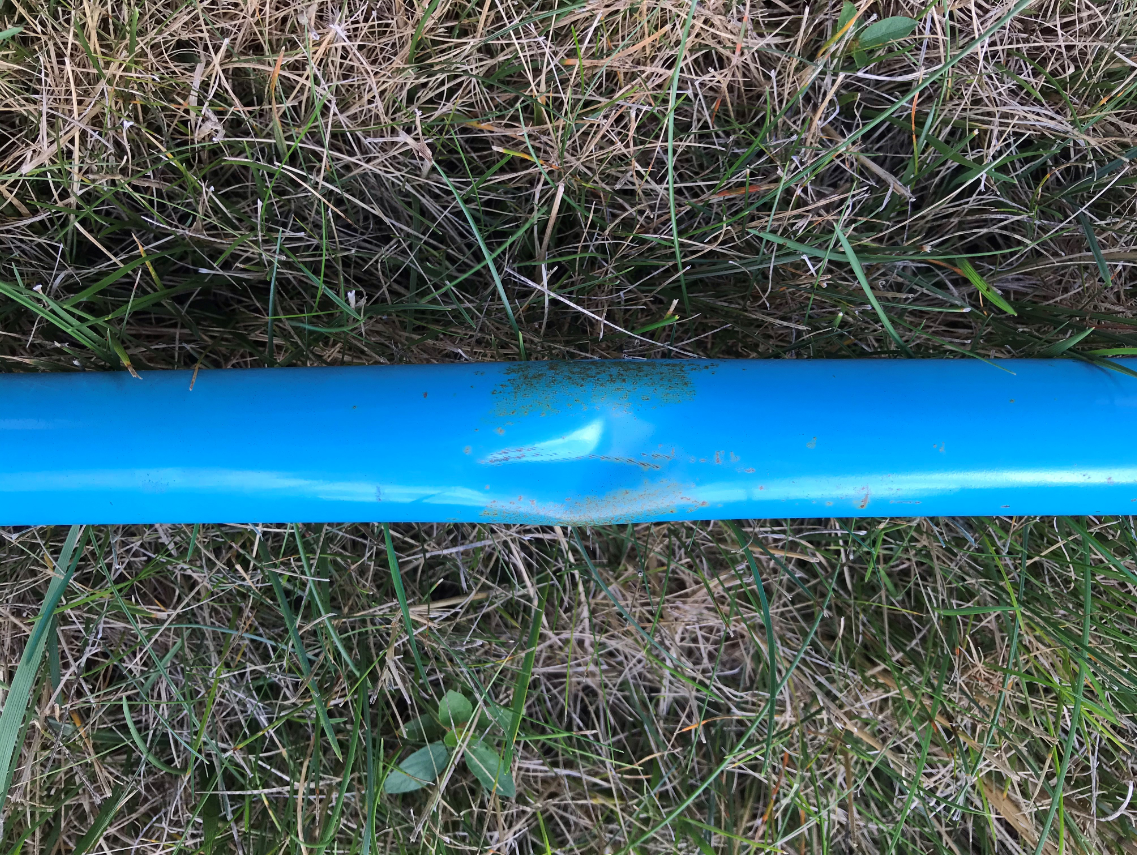

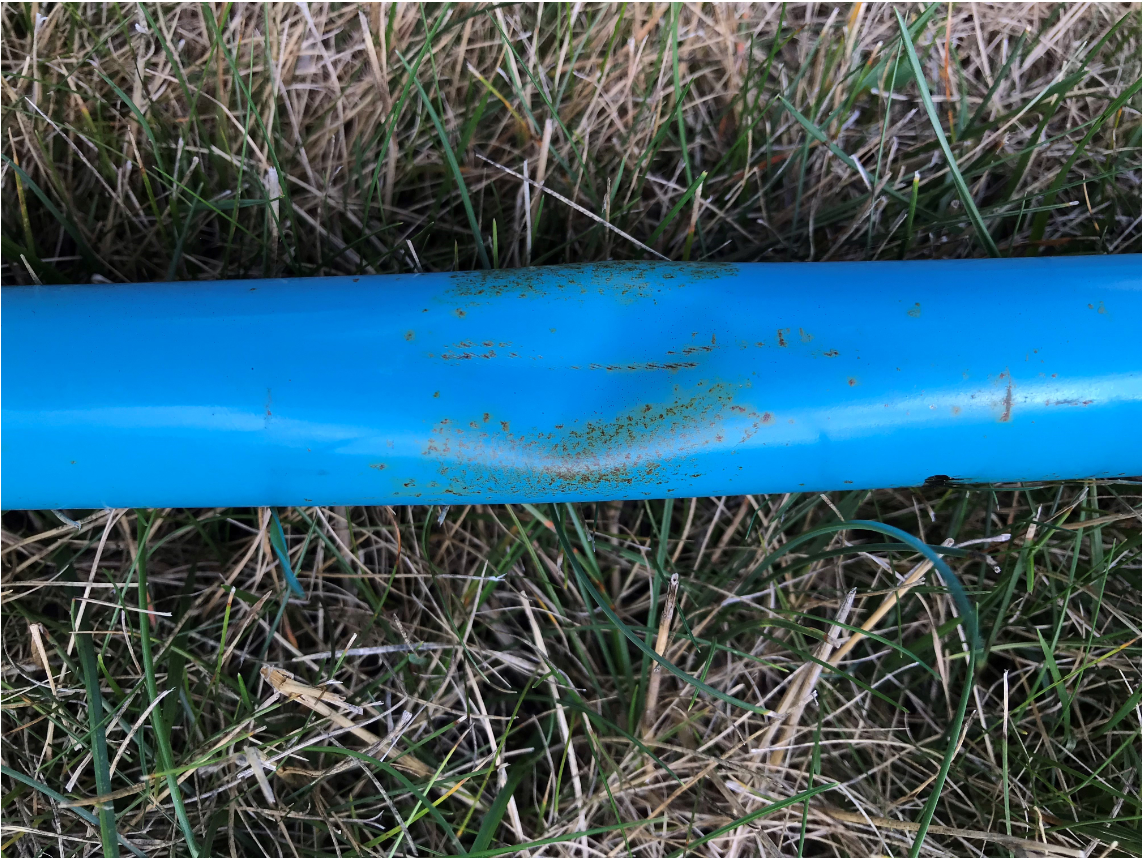

There's a dent in the down tube, and what appears to be surface rust under the paint. I figure this would be a good winter project, and I'm looking for some advice on how to approach this.

My plan is to work on the dent first, roll it out and fill with silver solder. I have a 1 1/8 tube block on order from Paragon Machine Works, and can make some wood blocks out of hard maple.
I did some reading about rolling out dents and watched a couple of videos-- but does anyone have any advice on how to attack this dent?

Start in the center and work to the each side?

The melting temp for Oatey plumber's silver solder is 415° to 455°F. Will that do any damage to 531 when filling what's left of the dent after rolling it out?

If the dent turns out well, then I'll try to work on the paint. I know the paint is going to get damaged rolling out the dent.

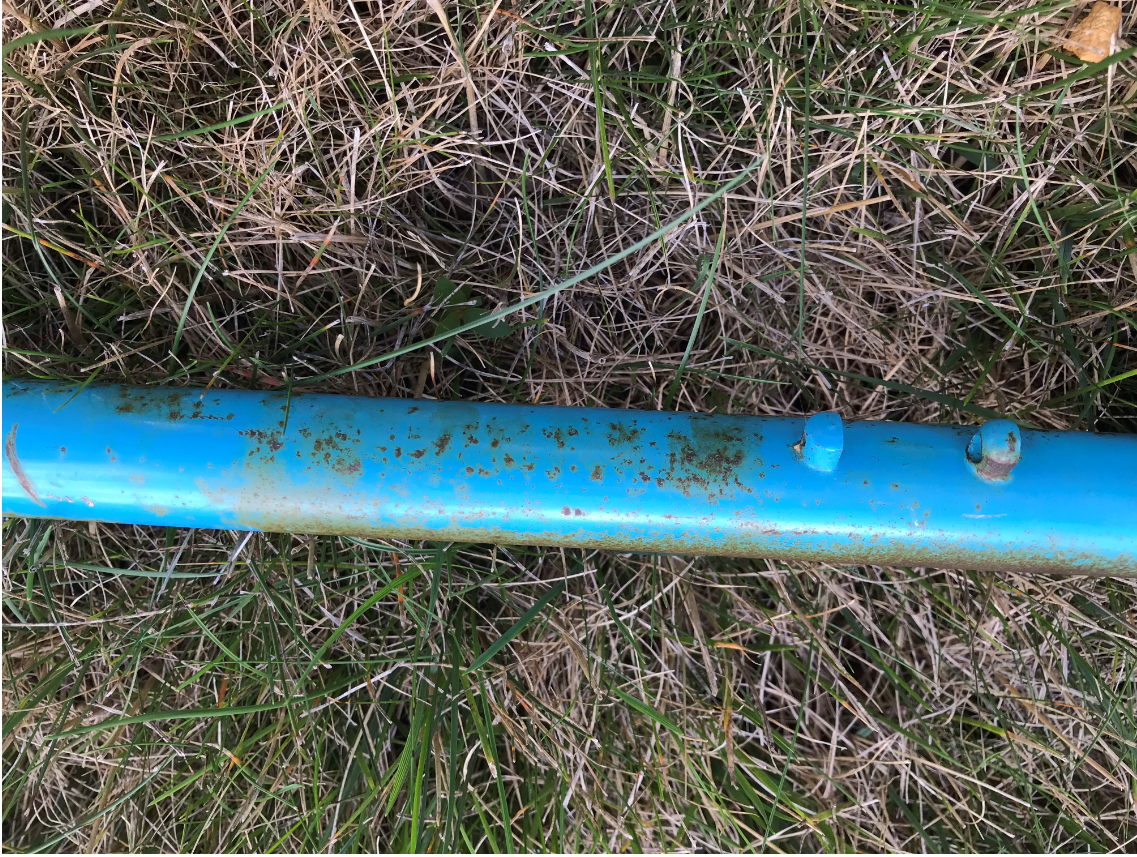

Would a bath in Oxalic acid remove that surface rust under the paint? I'm pretty sure it will clean up the inside of the frame.
Are there other methods for dealing with surface rust?

Do you think this paint too far gone at this point, and with the damage rolling out the dent is going to cause-- Would it be better to just strip and repaint?

Thanks






rickrob is offline
Old 09-06-20, 02:46 PM
  #2
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,110

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1880 Post(s)
Liked 816 Times in 518 Posts
The good news is the down tube is not one of the high stress places. The sharp line on the dent is the place to watch out for. I do believe you attack from the outside and move towards the dent while moving the frame around.

Repaint call would be after a bath IMO.

Following this one!
3speedslow is offline
Old 09-06-20, 04:03 PM
  #3
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,869

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 519 Times in 365 Posts
OP I think you need to shine the gugie signal....
ryansu is offline
Likes For ryansu:
Old 09-06-20, 04:48 PM
  #4
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,436

Bikes: It's complicated.

Mentioned: 1152 Post(s)
Tagged: 0 Thread(s)
Quoted: 3944 Post(s)
Liked 3,290 Times in 1,475 Posts
Originally Posted by ryansu View Post
OP I think you need to shine the gugie signal....
What, Batman can't take a Saturday afternoon nap anymore without Commissioner Gordon waking him up?

Grease up the blocks, clamp lightly, roll back and forth, tighten the blocks a bit, repeat until it's about as good as it can get. Instead of silver, consider JB weld, but silver solder will do fine as well.

Maybe consider painting a white panel there? Lot easier to match than Lagoon Blue. If you want to keep it original looking, take the frame down to an auto paint store and ask for an exact match. A "paint chip match" will cost under $20, last time I asked for an exact math it was about $75? You'll have a lifetime spray can for repairs. Feature it in, polish it out, and it should look like the the rest of the frame. The paint on that bike looks pretty nice, the rust spots can be removed without damaging the paint, and a good coat of wax will protect it.

Gran(d) Sport(s) aren't high end frames, but they were the cheapest all 531 DB frame and fork that Raleigh offered. The color combo is classic. This'll be a fun build!
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Likes For gugie:
Old 09-06-20, 05:07 PM
  #5
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,869

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 519 Times in 365 Posts
Originally Posted by gugie View Post
What, Batman can't take a Saturday afternoon nap anymore without Commissioner Gordon waking him up?
Its Sunday Sir, I would have never dared disturb your slumber on a Saturday.....
ryansu is offline
Old 09-06-20, 05:24 PM
  #6
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,436

Bikes: It's complicated.

Mentioned: 1152 Post(s)
Tagged: 0 Thread(s)
Quoted: 3944 Post(s)
Liked 3,290 Times in 1,475 Posts
Originally Posted by ryansu View Post
Its Sunday Sir, I would have never dared disturb your slumber on a Saturday.....https://www.youtube.com/watch?v=TDsQYV9eD0E
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 09-06-20, 06:19 PM
  #7
ryansu
Ride.Smile.Repeat

ryansu's Avatar

Join Date: May 2011
Location: Seattle WA
Posts: 2,869

Bikes: 2009 Handsome Devil, 1987 Trek 520 Cirrus, 1978 Motobecane Grand Touring, 1987 Nishiki Cresta GT, 1989 Specialized Allez Former bikes; 1986 Miyata Trail Runner, 1979 Miyata 912, 2011 VO Rando, 1999 Cannondale R800, 1986 Schwinn Passage

Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 794 Post(s)
Liked 519 Times in 365 Posts
gugie 220, 221 whatever it takes has been in the family lexicon for years. Well played Sir
ryansu is offline
Old 09-12-20, 05:21 PM
  #8
rickrob
Senior Member
Thread Starter

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 355

Bikes: 75 Raleigh Gran Sport, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620, 95 Fuji Team

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Likes: 0
Liked 18 Times in 10 Posts

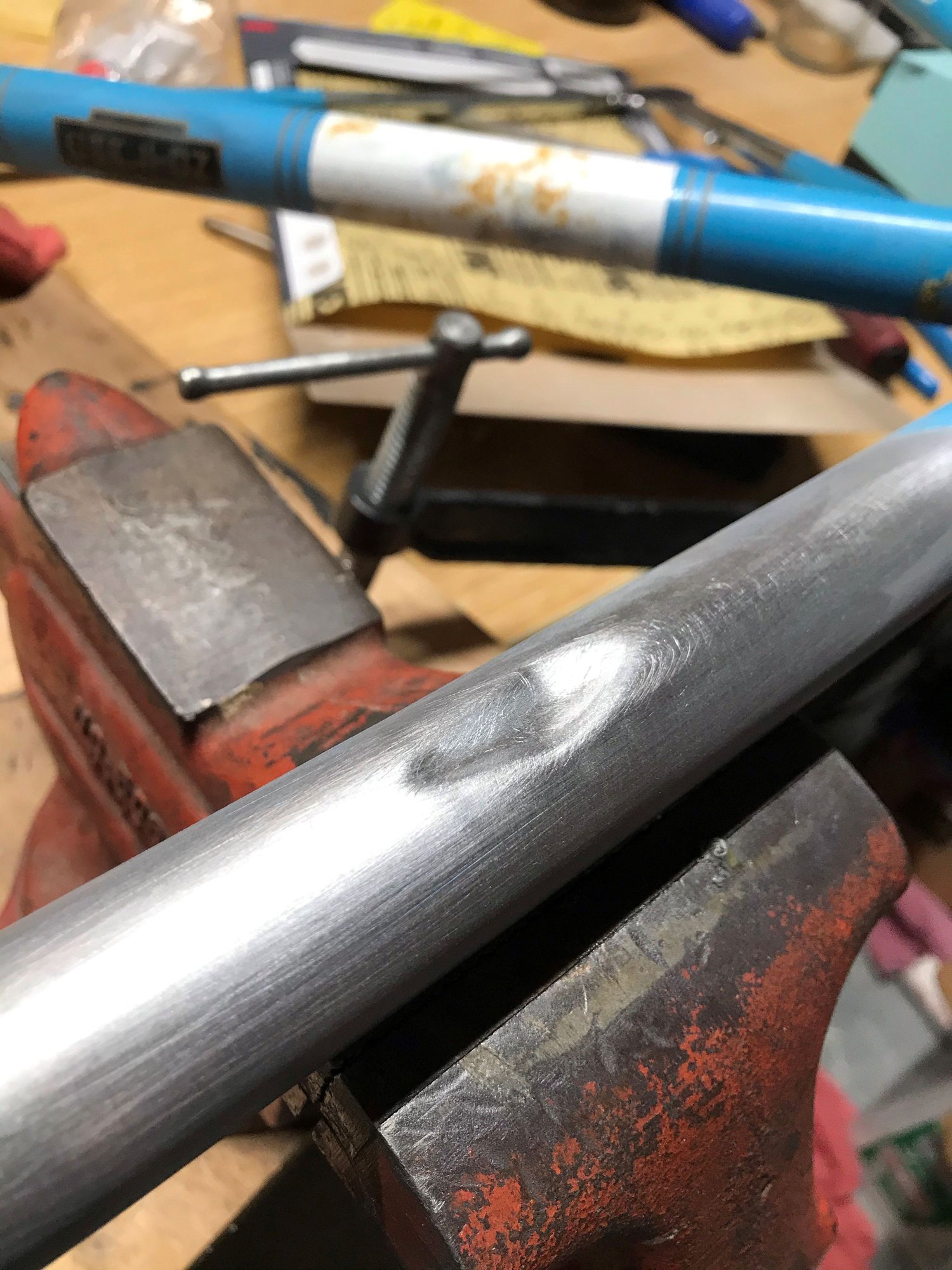

I rolled out the dent, which took more effort than I thought. A couple of hours of clamping /rolling and I think this is as good as it's going to get.
I put a straight edge on the tube and there is a low spot around the dent, less than 1/16 inch deep, but about 3/4 inch long on each side of the dent.
I think filling that low spot with silver solder is too big of a job, maybe too much heat on the frame -- gugie suggested J-B Weld so I'm going to use that.
I bought the original Cold Weld in the small tubes -- Never used it before. Looking forward to seeing how it works out.


Last edited by rickrob; 09-12-20 at 05:26 PM. Reason: typo
rickrob is offline
Old 09-12-20, 06:59 PM
  #9
nlerner
Senior Member

Join Date: Dec 2005
Posts: 15,670
Mentioned: 402 Post(s)
Tagged: 0 Thread(s)
Quoted: 2956 Post(s)
Liked 3,689 Times in 1,649 Posts
I’ve filled dents that size with similar products (some sort of two-part epoxy). It filled fine, but the challenging part was sanding it down so that the edges weren’t prominent. Sometimes you can’t tell how it turned out until you spray a coat of primer on it, and then back to sanding with increasingly finer grit. Kinda tedious.
nlerner is offline
Old 09-12-20, 07:24 PM
  #10
cudak888
www.theheadbadge.com

cudak888's Avatar

Join Date: Sep 2005
Location: Southern Florida
Posts: 26,813

Bikes: https://www.theheadbadge.com

Mentioned: 81 Post(s)
Tagged: 0 Thread(s)
Quoted: 1656 Post(s)
Liked 2,033 Times in 1,154 Posts
@gugie, any chance that could be pulled out with a stud welder and a slide hammer, and rolled out afterwards? Or would the localized heat cause a potential future crack?

I realize it's not going to react like automotive sheet metal, but I thought I'd ask.

-Kurt
__________________







cudak888 is offline
Old 09-12-20, 07:30 PM
  #11
3speedslow
Senior Member

3speedslow's Avatar

Join Date: Oct 2010
Location: Jacksonville, NC
Posts: 9,110

Bikes: A few

Mentioned: 114 Post(s)
Tagged: 0 Thread(s)
Quoted: 1880 Post(s)
Liked 816 Times in 518 Posts
Good effort! Still following.
3speedslow is offline
Old 09-12-20, 07:59 PM
  #12
Hudson308
Mr. Anachronism

Hudson308's Avatar

Join Date: Jan 2013
Location: Somewhere west of Tobie's
Posts: 2,088

Bikes: fillet-brazed Chicago Schwinns, and some other stuff

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 524 Post(s)
Liked 241 Times in 160 Posts
Originally Posted by cudak888 View Post
@gugie, any chance that could be pulled out with a stud welder and a slide hammer, and rolled out afterwards? Or would the localized heat cause a potential future crack?

I realize it's not going to react like automotive sheet metal, but I thought I'd ask.

-Kurt
I personally wouldn't use a Fitz-A-Dent on a bike frame. You'll never get it perfect, and it does heat the metal to red-hot in a small spot.
Rolling it as far as you can and filling with JB weld works for me.

When sanding, try to sand with a flexible sanding block in an axis diagonal to the tube axis. This helps keep you from creating flat spots.
__________________
"My only true wisdom is in knowing I have none" -Socrates
Hudson308 is offline
Likes For Hudson308:
Old 09-13-20, 11:10 AM
  #13
Sluggo
Senior Member

Sluggo's Avatar

Join Date: Oct 2005
Location: Left bank, Knoxville TN
Posts: 607
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 110 Times in 51 Posts
Why JB-Weld rather than Bondo?
Sluggo is offline
Old 09-13-20, 11:41 AM
  #14
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,436

Bikes: It's complicated.

Mentioned: 1152 Post(s)
Tagged: 0 Thread(s)
Quoted: 3944 Post(s)
Liked 3,290 Times in 1,475 Posts
Originally Posted by rickrob View Post

Good job! Yeah, that was a deep dent. What you're accomplishing by rolling it out is less a removal of the dent, more of a getting the tube back to round. Fill it and you're good to go.
Originally Posted by cudak888 View Post
@gugie, any chance that could be pulled out with a stud welder and a slide hammer, and rolled out afterwards? Or would the localized heat cause a potential future crack?
-Kurt
see below...

Originally Posted by Hudson308 View Post
I personally wouldn't use a Fitz-A-Dent on a bike frame. You'll never get it perfect, and it does heat the metal to red-hot in a small spot.
Rolling it as far as you can and filling with JB weld works for me.

When sanding, try to sand with a flexible sanding block in an axis diagonal to the tube axis. This helps keep you from creating flat spots.


I use a fine file (Epoxy is a lot softer than steel) and get it down close, then wrap the file in 80 grit garnet for the final smoothing. Overfill the dent, some epoxy going past the dent is fine, even preferable. As @nlerner pointed out, you may not see any imperfections until you shoot some primer on it. Spray some primer in the area and any imperfections will pop out. If you're not happy with it, sand down the primer, add a second coat of epoxy, rinse and repeat. It's kinda like mudding dry wall.

BTW, the reason I use JB Weld vs just any old epoxy is that it'll hold up to powder coat baking temperature, although I do know of one powder coater who recommends against it, since he's had some bubbling up in repaired areas. I've never had that issue, but he has a lot more experience powder coating frames than I do. If you're doing wet paint (professional or rattle can), this shouldn't be an issue.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.

Last edited by gugie; 09-13-20 at 11:54 AM.
gugie is offline
Old 09-13-20, 12:03 PM
  #15
gugie
Bike Butcher of Portland

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 10,436

Bikes: It's complicated.

Mentioned: 1152 Post(s)
Tagged: 0 Thread(s)
Quoted: 3944 Post(s)
Liked 3,290 Times in 1,475 Posts
Originally Posted by Sluggo View Post
Why JB-Weld rather than Bondo?
If that's what you've got, use it. If you're going to buy some, I think the smallest kit of Bondo is about $10? JB Weld kits can be had for $5.

As noted earlier, JB Weld can stand up to powder coat temperatures, and has a spec of 500 degrees F. I haven't been able to find a spec for Bondo. Since most of my frame jobs end up getting powder coated, I just stock that. If you were going to wet spray a frame and already have Bondo, I'd say use your Bondo.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 09-13-20, 12:40 PM
  #16
Sluggo
Senior Member

Sluggo's Avatar

Join Date: Oct 2005
Location: Left bank, Knoxville TN
Posts: 607
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Liked 110 Times in 51 Posts
Originally Posted by gugie View Post
If that's what you've got, use it. If you're going to buy some, I think the smallest kit of Bondo is about $10? JB Weld kits can be had for $5.

As noted earlier, JB Weld can stand up to powder coat temperatures, and has a spec of 500 degrees F. I haven't been able to find a spec for Bondo. Since most of my frame jobs end up getting powder coated, I just stock that. If you were going to wet spray a frame and already have Bondo, I'd say use your Bondo.
Yes, you are correct about the cost of Bondo, about $9 for a 4.5 oz tube.

Great point about powder coating heat. I found this: "It is not recommended to powder coat over Bondo or similar type putty products. Powder Coating over Bondo will cause outgassing to occur, this will create irregularities in the finish. Generally, any metal fabrication that has Bondo on it could be rejected by your custom coater. If a filler is needed and there are no other options, then we recommend a high temp filler such as Alvin’s Lab Metal. " ( Maui Powderworks blog )
Sluggo is offline
Old 09-25-20, 11:18 AM
  #17
rickrob
Senior Member
Thread Starter

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 355

Bikes: 75 Raleigh Gran Sport, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620, 95 Fuji Team

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Likes: 0
Liked 18 Times in 10 Posts
The dent filled in well with J-B Weld. Overfilled, then sanded out. Skimmed over it again and sanded smooth.




But I got carried away with the sanding around the filler.



Seriously, after a bath in weak Oxalic Acid ( 1 Tbs per gallon) the paint peeled off the chrome on the fork. Looks like they just painted over the chrome with no primer.

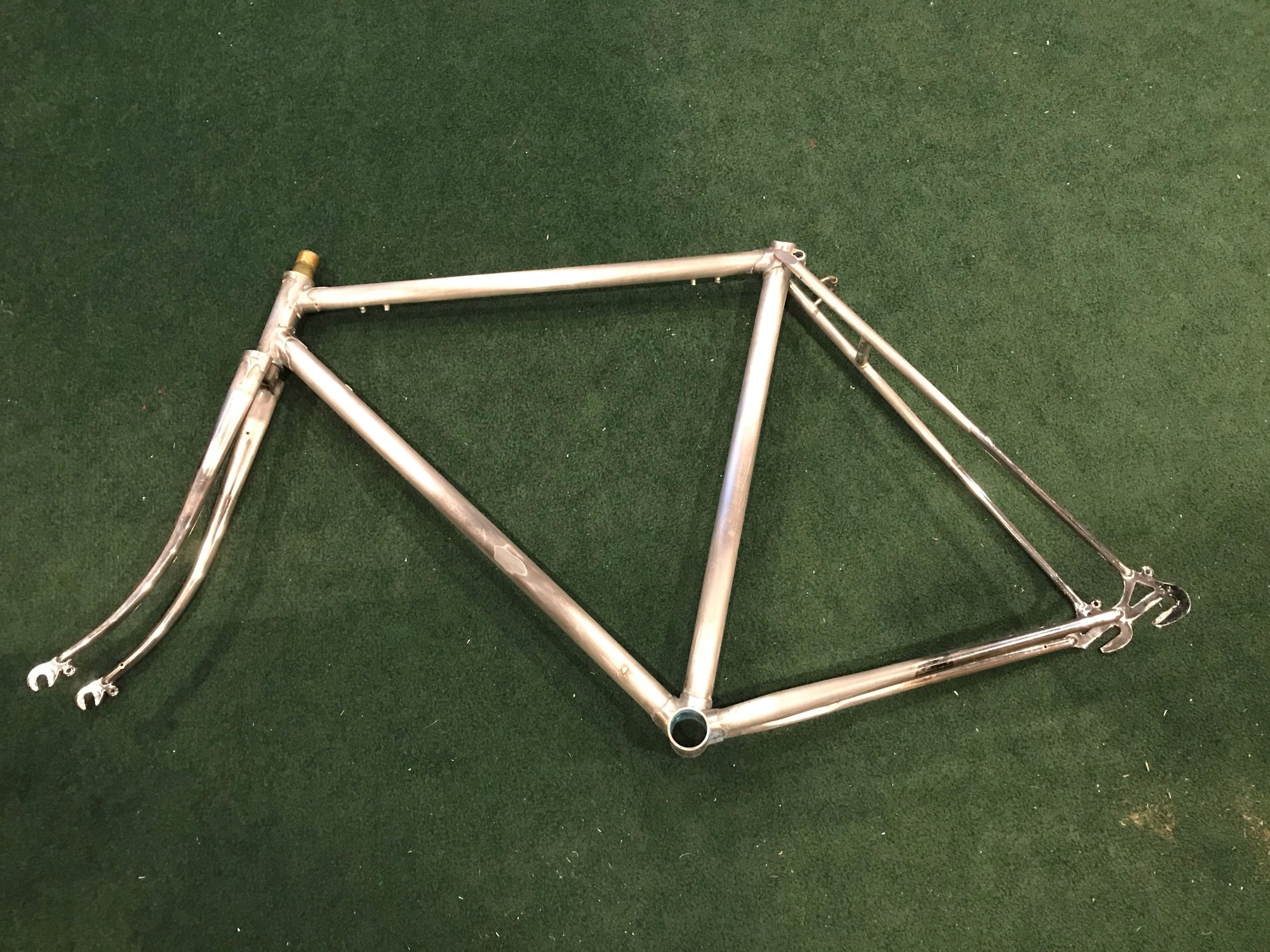

I just stripped it to bare metal at that point. Turned out to be a good thing, as the OA did clean up the surface rust, but there was still a lot of pitting / rust under the paint in those areas.

The frame was also 4mm out of alignment, so I straightened it out and cold set it to 126mm.

So now I have a blank canvas. i treated the frame with Frame Saver and cleaned it up. I'll sand it to 320, clean it up again and start with a self-etching primer.

I'm thinking just Rustoleum Stops Rust enamel in White with Lagoon Blue panels and giving the paint plenty of time to harden up.
I've used the 2K clear before, but I think I'm done with that. It's nasty stuff. I'll probably clear it with Rustoleum clear.

Last edited by rickrob; 09-25-20 at 11:31 AM. Reason: typo
rickrob is offline
Likes For rickrob:
Old 10-26-20, 04:33 PM
  #18
rickrob
Senior Member
Thread Starter

Join Date: Aug 2015
Location: Metro West, Boston
Posts: 355

Bikes: 75 Raleigh Gran Sport, 88 Bridgestone RB3, 72 Raleigh Super Course, 75 Jeunet 620, 95 Fuji Team

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 78 Post(s)
Likes: 0
Liked 18 Times in 10 Posts

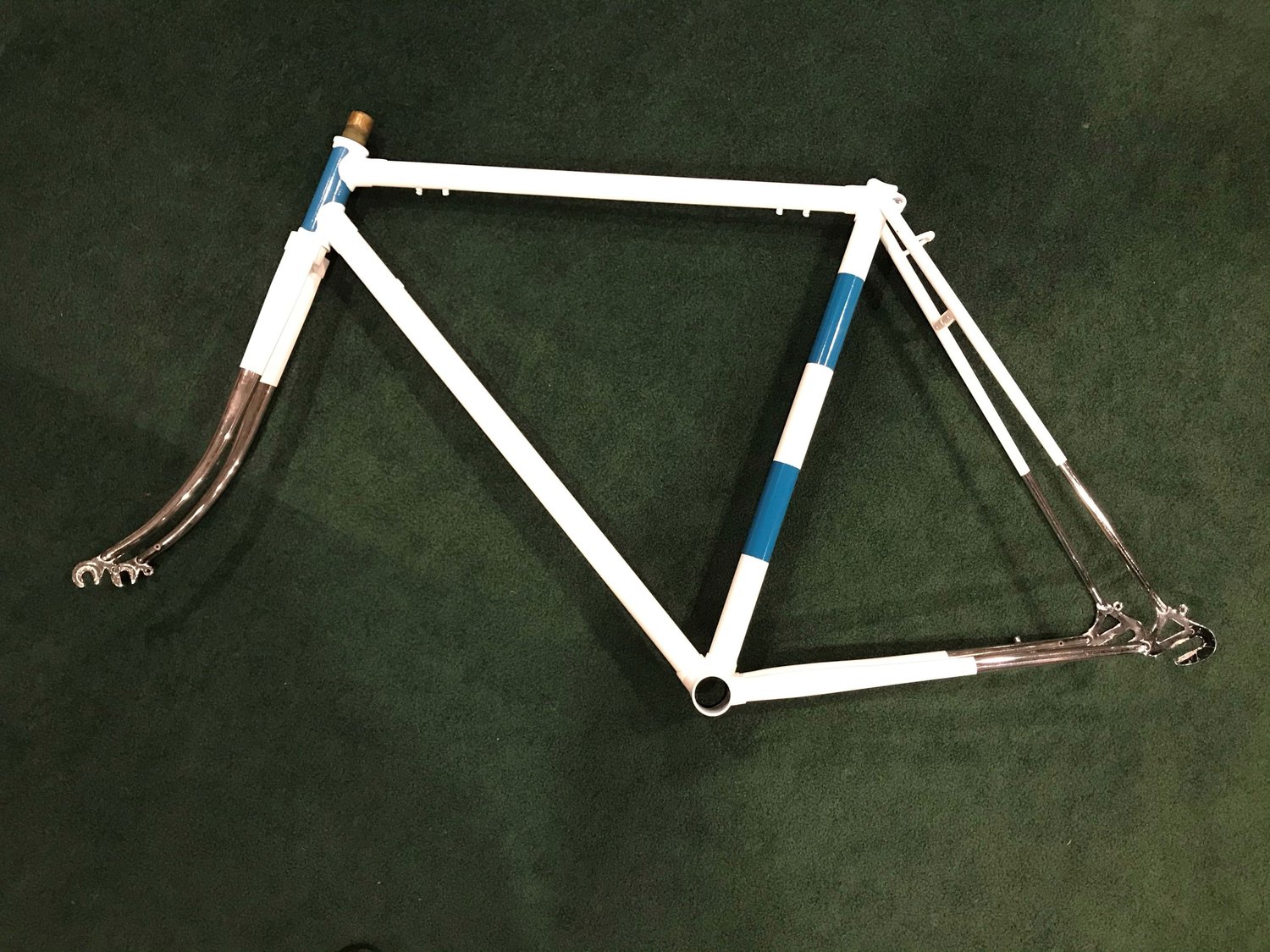

This is how the frame turned out after painting. It's all Rustoleum-- Self Etching primer, Gloss Pure White and Lagoon. It's been sitting for a month and still has a very faint smell of paint. The paint seems reasonably hard at this point, but I plan on letting this sit a while longer until there's no smell. I have Rustoleum clear enamel (It's Acrylic, I don't know why they call it Enamel)

I ordered some decals from VeloCals. I'm not sure if I should spray one coat of clear, then decals, then clear, or just apply decals and two coats of clear. Anyway, it doesn't look too bad for a spray bomb job. The white is killing the camera in my phone, so the pic is washed out a bit.

rickrob is offline
Likes For rickrob:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off


Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
