What might this bike be?
Greetings. We haven't posted for a while, but we're starting to take some donations again and this bike showed up. One of our volunteers rescued it from a pile set out for scrappers in his neighborhood. It's pretty rough, having suffered a repaint with silver over a red primer. Looks like a spray can job. The lug work says it was a decent bike at one time. Campy head set, Campy dropouts, Dura Ace brakes, Shimano 600 drive train. I've stripped some paint and there is no serial number on the bottom bracket, head tube, along the chain stays or anywhere on the the rear dropouts. Anywhere else to look?
The bike was all chrome, including the fork. You can see traces of the chrome in a couple of the photos. There are two holes where the head badge was located. I'm thinking it's a Schwinn that had the serial number on the head badge, but I am an amateur at i.d. What say ye?
As usual, thanks for your input.
Fred








The bike was all chrome, including the fork. You can see traces of the chrome in a couple of the photos. There are two holes where the head badge was located. I'm thinking it's a Schwinn that had the serial number on the head badge, but I am an amateur at i.d. What say ye?
As usual, thanks for your input.
Fred








__________________
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
#3
Senior Member


Joined: May 2008
Posts: 10,106
Likes: 2,757
From: Fredericksburg, Va
Bikes: ? Proteous, '65 Frejus TDF, '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, 'Litespeed Catalyst'94 Burley Duet, 97 Specialized RockHopper, 2010 Langster
Seat post size? Could it be a Motobecane Le Champion or Team Champion? French stuff? WAG!
__________________
Bikes don't stand alone. They are two tired.
Bikes don't stand alone. They are two tired.
#4
Senior Member




Joined: Oct 2015
Posts: 16,078
Likes: 9,432
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
[MENTION=208629]rcommbikes[/MENTION]
That looks like Schwinn primer but if the paint over it is crappy then.
We need a pic of the HB holes and of the NDS rear DO, if its a Schwinn there should be S/N remnants somewhere, BB or DO.
I'm hoping/voting Paramount too.
That looks like Schwinn primer but if the paint over it is crappy then.

We need a pic of the HB holes and of the NDS rear DO, if its a Schwinn there should be S/N remnants somewhere, BB or DO.

I'm hoping/voting Paramount too.
Last edited by merziac; 10-31-20 at 03:08 PM.
#5
-----
looks a production item from circa 1970 which has experienced some reworking
another spot to check for markings is steerer
---
the forum has a number of members who are Paramount owners; perhaps an owner could post the measurement between the fastener holes for the head emblem so that this could be checked against the subject machine...
-----
looks a production item from circa 1970 which has experienced some reworking
another spot to check for markings is steerer
---
the forum has a number of members who are Paramount owners; perhaps an owner could post the measurement between the fastener holes for the head emblem so that this could be checked against the subject machine...
-----
Last edited by juvela; 10-31-20 at 06:11 PM. Reason: addition
#6
Senior Member

Joined: Aug 2017
Posts: 1,122
Likes: 999
From: Minneapolis
Bikes: 1960 Carlton Franco Suisse,1974 Peugeot PX10, 1970 Hetchins, 1953 Rotrax Super Course, 1972 and 78 Raleigh Professionals, 1972 Schwinn Paramount, 1972 Motobecane Le Champion, 1965 and 67 Carlton Flyers, 1975 Raleigh International, 1972 Gitane TDF
Agreed, it looks like a Paramount with some braze-ons added before a repaint. No chance it ever had the serial number stamped on a head badge as that only happened on Japanese built frames. If it was in fact a chrome Paramount it would have looked something like this when new. You won’t want to let it hit scrap yard, Paramounts are quite nice and a worthy project if you’re so inclined.


Serial number should be located here but you never know if a new dropout was brazed on at some point. As Juvela says check the stearer tube, the number should be stamped there as well.


Serial number should be located here but you never know if a new dropout was brazed on at some point. As Juvela says check the stearer tube, the number should be stamped there as well.
Last edited by Pcampeau; 10-31-20 at 04:04 PM.
#7
If the frame isn't fully chromed, the head tube lugs and fork crown would have been chromed, but not the seat/top tube lugs. Seat stay caps say Paramount to me; no eyelets and the curve of the fork look like a P13 road racing model.
My size!
My size!
__________________
72 Fuji Finest 72+76 Super Course, 72 Gitane Tour de France, 74 P-10 & 79 Tandem Paramounts, 76 Grand Jubile,84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte 89 Cannondale ST400 and a queue
72 Fuji Finest 72+76 Super Course, 72 Gitane Tour de France, 74 P-10 & 79 Tandem Paramounts, 76 Grand Jubile,84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte 89 Cannondale ST400 and a queue
#8
feros ferio

Joined: Jul 2000
Posts: 22,397
Likes: 1,864
From: www.ci.encinitas.ca.us
Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;
Scrapper? I cringe to think of all the high-quality vintage frames and components that have met that fate at the hands of people who do not know about or appreciate fine bicycles.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
#9
Thread Starter
Junior Member


Joined: Oct 2010
Posts: 185
Likes: 28
From: Rochester NY
Bikes: Dahon folder, Santana tandem, Trek triathlon, Haro MTB, Bike Friday
Thanks for the reminder about the steerer tube. Numbers there are P3 and K72127. Spacing for head badge holes is 3 cm measured with a cloth tape.
There is no trace of a serial number or chrome anywhere on the rear dropouts. Frame is 67 cm. I’ll post more photos soon, but wanted to get this SN info out there.

There is no trace of a serial number or chrome anywhere on the rear dropouts. Frame is 67 cm. I’ll post more photos soon, but wanted to get this SN info out there.

__________________
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
#10
Senior Member




Joined: Oct 2015
Posts: 16,078
Likes: 9,432
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
Looks like Paramount FTW.
Still doesn't explain no RDO #
So 127th frame, Oct. 72?

Still doesn't explain no RDO #

So 127th frame, Oct. 72?
Last edited by merziac; 11-01-20 at 06:55 PM.
#11
Senior Member




Joined: Oct 2015
Posts: 16,078
Likes: 9,432
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
Thanks for the reminder about the steerer tube. Numbers there are P3 and K72127. Spacing for head badge holes is 3 cm measured with a cloth tape.
There is no trace of a serial number or chrome anywhere on the rear dropouts. Frame is 67 cm. I’ll post more photos soon, but wanted to get this SN info out there.


There is no trace of a serial number or chrome anywhere on the rear dropouts. Frame is 67 cm. I’ll post more photos soon, but wanted to get this SN info out there.


#12
I measured 32mm with a cloth tape from rivet head to head, so 30mm at the head tube is about right for a Paramount.
__________________
72 Fuji Finest 72+76 Super Course, 72 Gitane Tour de France, 74 P-10 & 79 Tandem Paramounts, 76 Grand Jubile,84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte 89 Cannondale ST400 and a queue
72 Fuji Finest 72+76 Super Course, 72 Gitane Tour de France, 74 P-10 & 79 Tandem Paramounts, 76 Grand Jubile,84 Raleigh Alyeska, 84 Voyageur SP, 85 Miyata Sport 10 mixte 89 Cannondale ST400 and a queue
#13
Senior Member




Joined: Oct 2015
Posts: 16,078
Likes: 9,432
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
#14
Senior Member

Joined: Nov 2019
Posts: 529
Likes: 357
From: SF Bay Area
Bikes: Raleigh Super Course, Raleigh International, Raleigh Gran Sport
This may be a sensitive topic and, if so, I apologize in advance. But when I see a frame that has had its serial number obscured or removed and is repainted with or without different decals I immediately think that a transaction took place with that bicycle where the "seller" was unaware and went uncompensated. There was a thread here recently where a guy was asking about his repainted "Cinelli" with no serial numbers and the wrong seat cluster and the specter of theft, disguise, and resale never came up despite the thread continuing for several pages.
Does the C&V community have a position(s) on how to deal with collectible cycles that may have been victim to an illegal transaction somewhere in their past? Is it just not talked about? In the art and antique world some provenance can be expected with items of value, are C&V bikes reaching a similar level?
Does the C&V community have a position(s) on how to deal with collectible cycles that may have been victim to an illegal transaction somewhere in their past? Is it just not talked about? In the art and antique world some provenance can be expected with items of value, are C&V bikes reaching a similar level?
#15
Senior Member




Joined: Oct 2015
Posts: 16,078
Likes: 9,432
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
This may be a sensitive topic and, if so, I apologize in advance. But when I see a frame that has had its serial number obscured or removed and is repainted with or without different decals I immediately think that a transaction took place with that bicycle where the "seller" was unaware and went uncompensated. There was a thread here recently where a guy was asking about his repainted "Cinelli" with no serial numbers and the wrong seat cluster and the specter of theft, disguise, and resale never came up despite the thread continuing for several pages.
Does the C&V community have a position(s) on how to deal with collectible cycles that may have been victim to an illegal transaction somewhere in their past? Is it just not talked about? In the art and antique world some provenance can be expected with items of value, are C&V bikes reaching a similar level?
Does the C&V community have a position(s) on how to deal with collectible cycles that may have been victim to an illegal transaction somewhere in their past? Is it just not talked about? In the art and antique world some provenance can be expected with items of value, are C&V bikes reaching a similar level?
We all hold each other to a pretty high standard and when warranted the alarm will sound. Most here are well enough known that the process supports the genuine intent most of the time.
We do regularly question many things and will call BS when we think we see it but the level of knowledge and discussion usually sorts it out.
Provenance is very hard to come by on most bikes as they are very transient, break, get damaged, repainted, reworked and much else.
Theft is one of those things, if you can't prove it, it is not going to be the first road you go down, you better have more to go on than lack of evidence and knowledge or just confusion and speculation.
Theft is not something we encounter with the bikes we deal with, most of us know a sketchy seller, situation, etc. before the bike ever gets here.
Your concern is certainly valid but not as much so here, IMHO.
#16
One thing is for sure, if you post a pic of the rear dropouts and how they transition into the stays, we can confirm or rule out Paramount in an instant. Paramounts used copious amounts of filler material on these joints and they don't look like anything else out there (to my eye). FWIW, I believe you've got a 70s Paramount there.
DD
DD
#17
Thread Starter
Junior Member


Joined: Oct 2010
Posts: 185
Likes: 28
From: Rochester NY
Bikes: Dahon folder, Santana tandem, Trek triathlon, Haro MTB, Bike Friday
Will strip
I’ll do some more paint stripping on the dropouts today.
__________________
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
#18
Thread Starter
Junior Member


Joined: Oct 2010
Posts: 185
Likes: 28
From: Rochester NY
Bikes: Dahon folder, Santana tandem, Trek triathlon, Haro MTB, Bike Friday
#19
Senior Member




Joined: Oct 2015
Posts: 16,078
Likes: 9,432
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
The fork is without a doubt original to the frame, especially being that tall and has K72127 which also lines up and is undoubtedly a Paramount.
#20
Thread Starter
Junior Member


Joined: Oct 2010
Posts: 185
Likes: 28
From: Rochester NY
Bikes: Dahon folder, Santana tandem, Trek triathlon, Haro MTB, Bike Friday

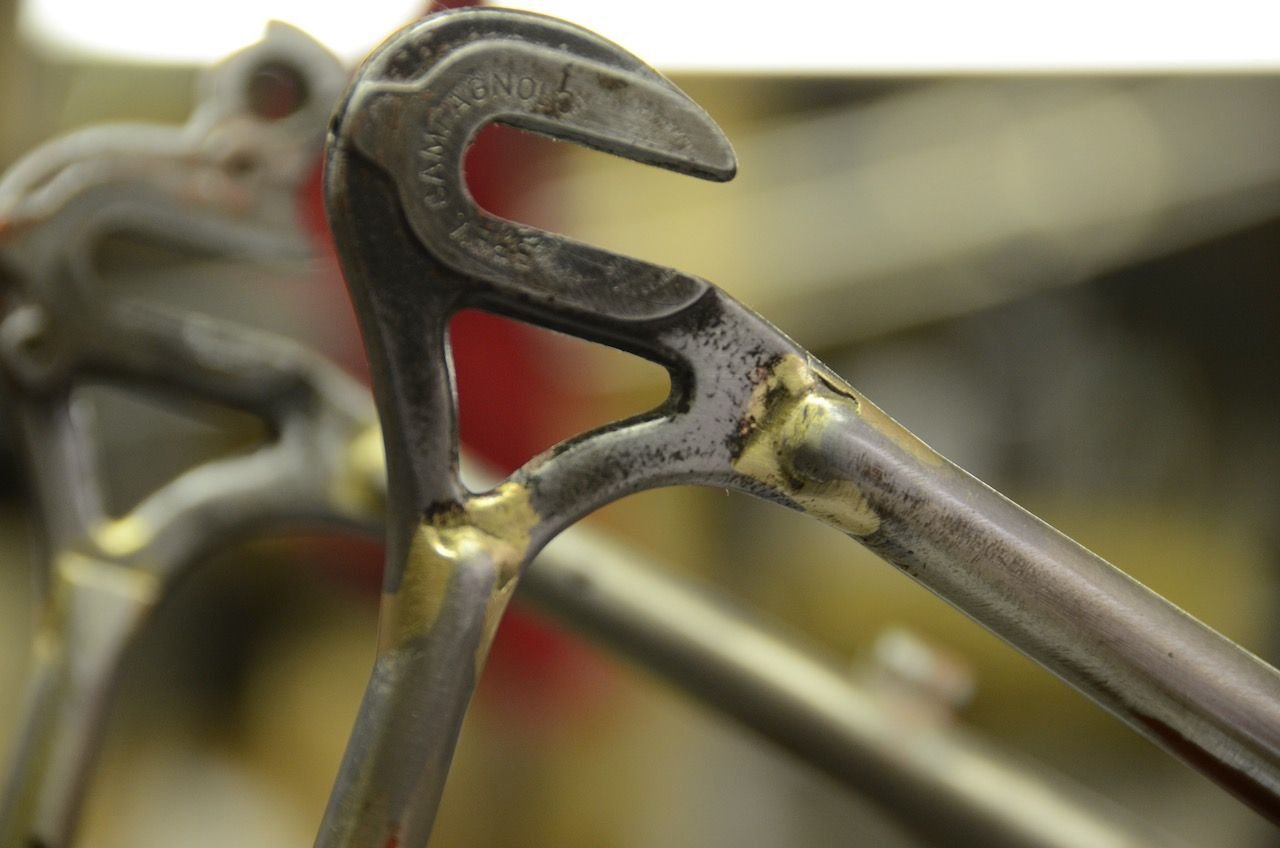

Dropout brazing photos
The paint is tenacious. Took quite a while to get this clean. I'm a retired chemist and can tell you that the good stuff was all taken off the market, with good reason.














__________________
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
#21
Senior Member




Joined: Oct 2015
Posts: 16,078
Likes: 9,432
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
It will likely not show us much if anything but maybe show work from the DO being replaced or ?
This could also be a case of a factory misstep where the DO was simply not stamped, unlikely but we know never to see never.
This could also be a case of a factory misstep where the DO was simply not stamped, unlikely but we know never to see never.
#22
Thread Starter
Junior Member


Joined: Oct 2010
Posts: 185
Likes: 28
From: Rochester NY
Bikes: Dahon folder, Santana tandem, Trek triathlon, Haro MTB, Bike Friday
The bad part

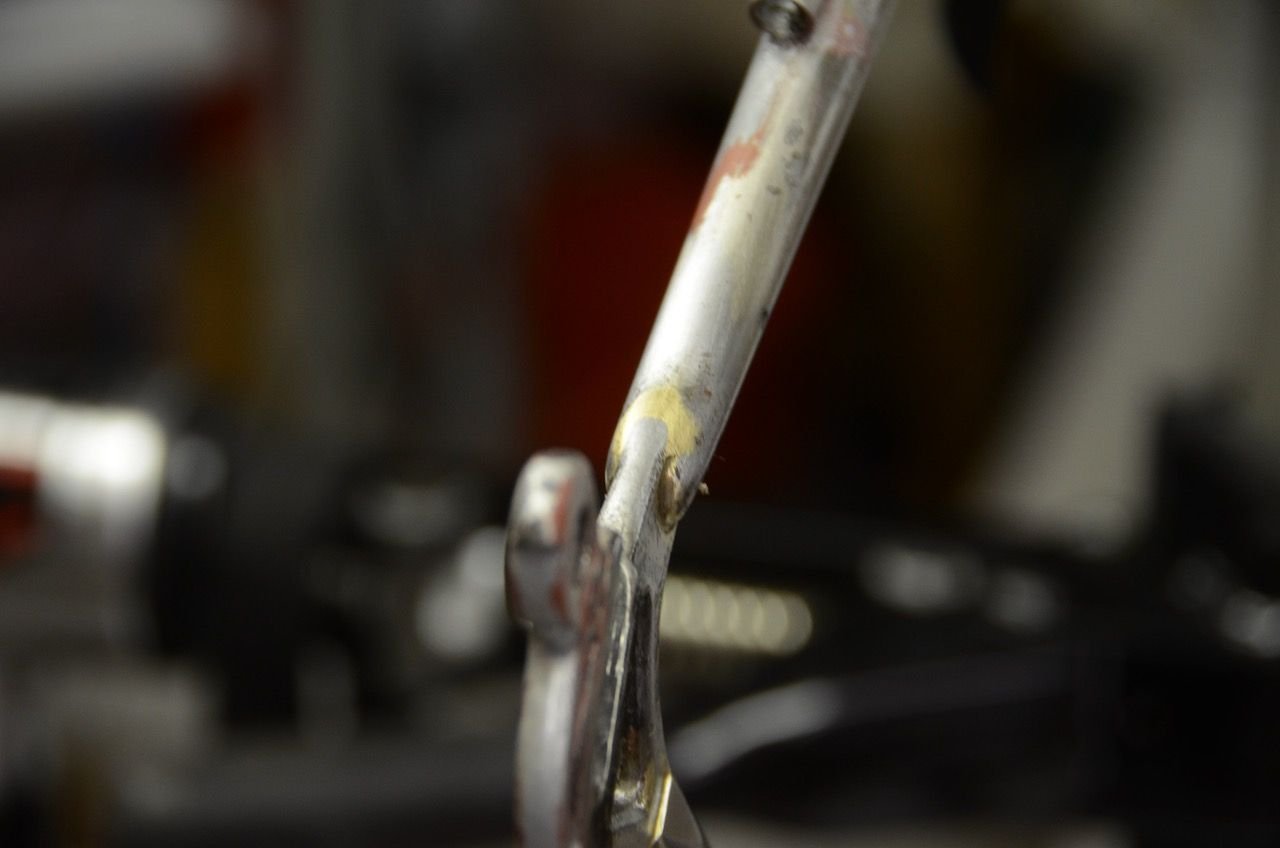

Two dimples on the top of the top tube. Also show the seat post bolt and the axle adjusters.




__________________
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
Fred, for R Community Bikes. www.rcommunitybikes.org
2,500 (yes 2,500) bikes given EACH YEAR to the needy 2011- 2018. All volunteer.
#23
Senior Member




Joined: Oct 2015
Posts: 16,078
Likes: 9,432
From: PDX
Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2
Very interesting, looks to me like the DS seatstay is different at the end where it meets the DO, but that doesn't explain the NDS DO not having a #.
Also the red primer shows it all to be mostly original and the DO's appear to be age correct and likely original too.
Still betting Paramount.
Also the red primer shows it all to be mostly original and the DO's appear to be age correct and likely original too.
Still betting Paramount.
#24
mycocyclist
Joined: Dec 2016
Posts: 1,319
Likes: 993
From: Monkey Junction, Wilmington, NC
Bikes: 1964 Schwinn Paramount P-13 DeLuxe, 1964 Schwinn Sport Super Sport, 1972 Falcon San Remo, 1974 Maserati MT-1, 1974 Raleigh International, 1984 Lotus Odyssey, 198? Rossin Ghibli, 1990 LeMond Le Vanquer (sic), 1991 Specialized Allez Transition Pro, +
Occam's Dropouts
Steerer serial dates the forks to 1972, while the Portacatena DS dropout suggests a date after 1977. Either the DOs were both changed out, or it could be mismatched forks and frame?
#25
I think the dropouts were swapped: Campy Portacatena shorties for the original Campy longboys...no idea why this would have been necessary (and could have been for "fashion" I suppose) but the rest of the frame does not look like a match to the "early '80s" DOs, more like this frame/fork is vintage 1972 as suspected EXCEPT there were also WB bosses added, maybe when the DOs were replaced. Do the shifter bosses seem OEM?
Also note the nutted brakes and "whale-tail" Nervex Pro headlugs, plus what I think are the OEM top-of-BB cable guides but NOW the cables are running UNDER the BB, this has been "updated" sometime after about 1978.
Also note the nutted brakes and "whale-tail" Nervex Pro headlugs, plus what I think are the OEM top-of-BB cable guides but NOW the cables are running UNDER the BB, this has been "updated" sometime after about 1978.
Last edited by unworthy1; 11-03-20 at 12:57 PM.
