Shellac & cloth bar tape experience

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Shellac & cloth bar tape experience

Old 01-10-21, 09:29 AM
  #1
KenNC
Senior Member
Thread Starter

KenNC's Avatar

Join Date: Oct 2013
Posts: 349
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 52 Post(s)
Liked 78 Times in 43 Posts
Shellac & cloth bar tape experience

For some time I have wanted to try this for a more classic look. I've liked what I've seen on threads here The Retrogrouch: Give 'Em a Good Shellacking here https://vintagebicycle.wordpress.com...itive-version/ and here https://velo-orange.com/pages/shella...r-tape-a-guide but did not want to start an expensive trial-and-error process with various cloth tapes and different shellacs. Finally gave it a try on a Peugeot PX80, tying to end up with something on the bars that would match or complement the orange highlights in the decals. A couple of pictures, including a sample of the tape before being shellacked, are below, and am happy with the results. This is orange Newbaum's tape, with two coats of Zinsser Bulls Eye amber shellac. The pre-mixed shellac dried just fine, and as it did not darken as much as I expected (a relief!) I may add a third coat.

Am interested in other folks experiences and what combinations of tape and shellac gave you a particular color result, as I'd like to try this again!

KenNC is offline
Old 01-10-21, 09:42 AM
  #2
IsleRide
Senior Member

IsleRide's Avatar

Join Date: Sep 2011
Location: Easthampton, MA
Posts: 212
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 68 Post(s)
Liked 62 Times in 41 Posts
I use cloth tape almost exclusively. If I finish it off with twine I'll shellac the twine but I prefer the tape uncoated. To me it feels better without shellac.
IsleRide is offline
Likes For IsleRide:
Old 01-10-21, 10:31 AM
  #3
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,286
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 744 Post(s)
Liked 232 Times in 163 Posts
OP, that looks very good as you have it. Before going to a third coat, I would do three coats on a piece of your scrap to make sure you don't lose too much of the orange. You might retain more of the original tape color if you switch to clear shellac rather than amber.
I have a slight preference for the feel of natural tape, but there is no denying that it lasts much longer with shellac. It also helps to prevent lifting of the tape edges if you tape your bars from the top down.
The trick is to hit the sweet spot of enough coats to do the job, without losing the tape color, and without getting too glossy. IMO anyway; I don't like it when the tape looks like it's been dunked in plastic.
due ruote is offline
Old 01-10-21, 10:48 AM
  #4
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,559

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked 108 Times in 86 Posts
Looks like nice job, it should serve you well. I usually use just a single coat and then reapply as hands/gloves wear down the shellac after cleaning with soft toothbrush, mild soap and good rinse. I believe it was this stuff I have used for many years: https://www.twilltape.com/heavyweight-cotton-tapes/. Can't beat $12 for 200+ feet. Also pretty sure I have always used clear shellac which give the just off white tape and cotton string a nice amber color.


easyupbug is offline
Likes For easyupbug:
Old 01-10-21, 12:48 PM
  #5
MKahrl
Senior Member

Join Date: Jan 2006
Location: Columbus, Ohio
Posts: 1,121

Bikes: Rivendell A.Homer Hilsen, Paramount P13, (4) Falcon bicycles, Mondia Special, Rodriguez Tandem

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Liked 12 Times in 7 Posts
Light gray tape and amber shellac will give you a good color match to a honey colored Brooks Saddle (at least for the first ten years of the saddle.)

I find the shellac helps keeping the tape clean. From time to time you can wash with soap and water. About every two years I might clean the tape and add a coat of shellac.
MKahrl is offline
Old 01-10-21, 08:45 PM
  #6
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,927

Bikes: It's complicated.

Mentioned: 980 Post(s)
Tagged: 0 Thread(s)
Quoted: 3108 Post(s)
Liked 1,248 Times in 653 Posts
Another thumbs up for cotton, twine and shellac. You can go multiple coats and get it as slick as Benotto, or just a few and keep it tacky. Shellac "glues" the tape together and makes it nearly indestrutable. I used to redo my tape every year, now it just gets cleaned and re-shellaced.

One thing I'd like to try is dying white twill with coffee (I've heard it's been done), and shellac with amber colored.

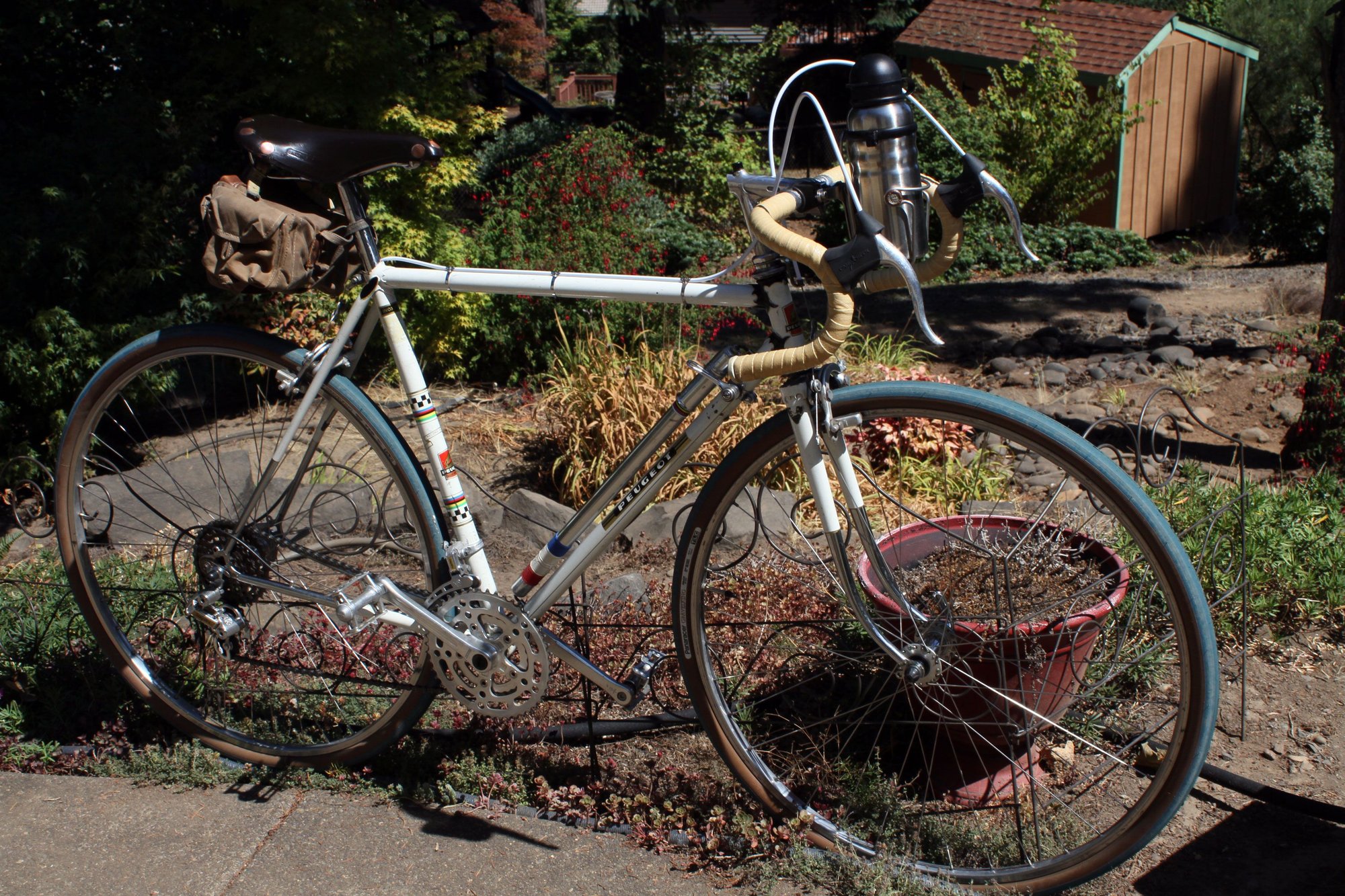

White with amber


Orange and amber (this one looks a bit like plastic, but "broke in" nicely)

__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.

Last edited by gugie; 01-10-21 at 08:57 PM.
gugie is offline
Old 01-11-21, 08:55 AM
  #7
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,669

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 385 Times in 275 Posts
Careful to keep the shellac off the rest of the bike. It is somewhat permanent.



Newbaums red w/3 coats amber.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.

Last edited by Classtime; 01-11-21 at 09:04 AM.
Classtime is offline
Likes For Classtime:
Old 01-11-21, 08:59 AM
  #8
76SLT
Cycologist

76SLT's Avatar

Join Date: Jun 2017
Location: Earlville, IL
Posts: 589

Bikes: 50s British Unknown - 71 Raleigh Competition - 71 Crescent 92318 - 73 Raleigh Grand Sports - 76 Schwinn Super LeTour 12.2 - 77 Schwinn Volare - 78 Schwinn Superior - 84 Bianchi Nuovo Racing - 87 Centurion Ironman Master - 88 Centurion Ironman Master

Mentioned: 28 Post(s)
Tagged: 0 Thread(s)
Quoted: 221 Post(s)
Liked 176 Times in 90 Posts
This was my first time using the shellac method. I used 3 coats of amber over bright red tape to get this darker red shade. It gave me the look I was shooting for on an old English bike.
76SLT is offline
Old 01-11-21, 09:34 AM
  #9
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 955

Bikes: Cinelli Hobootleg, Falcon San Remo, Benotto 2000 are the top 3 now

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 125 Times in 72 Posts
Originally Posted by Classtime View Post
Careful to keep the shellac off the rest of the bike. It is somewhat permanent.
A q-tip dipped in high proof alcohol will dissolve the shellac on the stem, frame, and rims. I just left the drips on the tires.
Dylansbob is online now
Likes For Dylansbob:
Old 01-11-21, 10:16 AM
  #10
79pmooney
A Roadie Forever

79pmooney's Avatar

Join Date: Oct 2014
Location: Portland, OR
Posts: 9,271

Bikes: (2) ti TiCycles, 2007 w/ triple and 2011 fixed, 1979 Peter Mooney, ~1983 Trek 420 now fixed and ~1973 Raleigh Carlton Competition gravel grinder

Mentioned: 102 Post(s)
Tagged: 0 Thread(s)
Quoted: 2714 Post(s)
Likes: 0
Liked 1,177 Times in 806 Posts
Question - how is shellac'd bar tape on hot days with sweaty hands? I have used cloth tape forever, love it and just figure it is a consumable. (And always go black to hide the dirt.)
79pmooney is online now
Old 01-11-21, 10:33 AM
  #11
Classtime
Senior Member

Classtime's Avatar

Join Date: Jan 2015
Location: Los Angeles
Posts: 2,669

Bikes: 81 Medici, 2011 Richard Sachs, 2011 Milwaukee Road

Mentioned: 29 Post(s)
Tagged: 0 Thread(s)
Quoted: 1001 Post(s)
Liked 385 Times in 275 Posts
I think the shelac makes the tape edges sharp and kind of raspy and doesn't feel as "nice" as naked tape. It is not slippery in so cal and I ride gloveless mostly.
__________________
I don't do: disks, tubeless, e-shifting, or bead head nymphs.
Classtime is offline
Old 01-11-21, 10:58 AM
  #12
tiger1964
Senior Member

tiger1964's Avatar

Join Date: Apr 2011
Location: Maryland, USA
Posts: 1,177

Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 370 Post(s)
Liked 86 Times in 65 Posts
Originally Posted by 76SLT View Post
This was my first time using the shellac method. I used 3 coats of amber over bright red tape to get this darker red shade. It gave me the look I was shooting for on an old English bike.
Love the end plugs!
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto. Susan: 1976 Windsor Profesional.
tiger1964 is offline
Old 01-11-21, 10:58 AM
  #13
Senrab62
It's the little things

Join Date: Jan 2016
Location: Chicagoland
Posts: 465

Bikes: Too many, yet not enough

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 145 Post(s)
Liked 94 Times in 52 Posts
Width

Originally Posted by easyupbug View Post
Looks like nice job, it should serve you well. I usually use just a single coat and then reapply as hands/gloves wear down the shellac after cleaning with soft toothbrush, mild soap and good rinse. I believe it was this stuff I have used for many years: https://www.twilltape.com/heavyweight-cotton-tapes/. Can't beat $12 for 200+ feet. Also pretty sure I have always used clear shellac which give the just off white tape and cotton string a nice amber color.


3/4" width, right? Similar to newbaums? Price looks like an excellent value.
Senrab62 is offline
Old 01-11-21, 12:10 PM
  #14
ollo_ollo
Senior Member

ollo_ollo's Avatar

Join Date: Nov 2003
Location: Near Sublimity Orygun
Posts: 4,931

Bikes: Still have a few left!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 345 Post(s)
Liked 79 Times in 50 Posts
Only had a couple with shellac on cotton: Super Course with 2 coats clear on black.+ my 2019 Cino PX10 with multiple coats on white. Liked them both, prefer the smoothness from many coats, but as you can see, clear shellac on white tape yields off-white. Can also recommend shellac on cork tape. It looks good, extends the life greatly and amber can give a pleasing color change. Cinelli yellow cork with amber goes will with Brooks Honey or Brown leather.. The Zeus has yellow + multiple coats of clear shellac, is still in place, looking good today, although additional coats were added a few times. I once got a buy on some hot pink cork tape that was too hideous to use. . Some amber shellac gave a pleasing red The group shot shows yellow cork + amber shellac and hot pink + amber on the AD. Expedition has hot pink + amber.. Don



Super Course

PX10

Motobecane Pleather vs Varnished Cork tape

84 Expedition, Varnished hot pink cork tape.
ollo_ollo is offline
Likes For ollo_ollo:
Old 01-11-21, 12:52 PM
  #15
greg3rd48
Senior Member

greg3rd48's Avatar

Join Date: Aug 2014
Location: Bronx, NYC
Posts: 1,927

Bikes: '19 Fuji Gran Fondo 1.5, '72 Peugeot PX10, '71ish Gitane Super Corsa, '78 Fuji Newest, '89 Fuji Ace, '94 Cannondale R600, early '70s LeJeune Pro project

Mentioned: 86 Post(s)
Tagged: 0 Thread(s)
Quoted: 288 Post(s)
Liked 200 Times in 93 Posts



I used Newbaum's maroon and twine then finished it with three coats of amber shellac on my '78 Newest.
greg3rd48 is offline
Old 01-11-21, 01:01 PM
  #16
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,559

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked 108 Times in 86 Posts
Originally Posted by Senrab62 View Post
3/4" width, right? Similar to newbaums? Price looks like an excellent value.
It has been a long long time since I used any newbaums tape but at the time I found this stuff it looked the same to me and certainly works the same.
easyupbug is offline
Old 01-11-21, 01:12 PM
  #17
J.Higgins
Mentally Derailleured

J.Higgins's Avatar

Join Date: Sep 2016
Location: New Hampshire
Posts: 2,250

Bikes: Bilenky Tourlite

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1088 Post(s)
Liked 343 Times in 234 Posts
Not a fan of shellacked cloth here. Its a little too permanent for me. I consider bar tape, like brake pads, to be an expendable/consumable item. Hey, I just had a thought... why not wrap the bars with bacon? EVERYTHING is better with bacon wrapped around it, right? Sorry, I just channeled Ron Swanson there for a moment.
__________________
Breathe! Drink a glass of water! We're getting there!









J.Higgins is offline
Likes For J.Higgins:
Old 01-11-21, 03:08 PM
  #18
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,927

Bikes: It's complicated.

Mentioned: 980 Post(s)
Tagged: 0 Thread(s)
Quoted: 3108 Post(s)
Liked 1,248 Times in 653 Posts
Originally Posted by J.Higgins View Post
Not a fan of shellacked cloth here. Its a little too permanent for me. I consider bar tape, like brake pads, to be an expendable/consumable item. Hey, I just had a thought... why not wrap the bars with bacon? EVERYTHING is better with bacon wrapped around it, right? Sorry, I just channeled Ron Swanson there for a moment.
Shellacked cloth tape is a lot of work to put on and also to to remove. I've only removed it once, ended up just taking a razor knife to split it from top to bottom. Some would consider the permanence of shellacked cloth a good thing. Reminds me of someone here once saying that a big negative of powder coating is that it's hard to remove it. I thought that was a positive?

As for bacon...
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.

Last edited by gugie; 01-11-21 at 03:13 PM.
gugie is offline
Likes For gugie:
Old 01-11-21, 03:12 PM
  #19
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,927

Bikes: It's complicated.

Mentioned: 980 Post(s)
Tagged: 0 Thread(s)
Quoted: 3108 Post(s)
Liked 1,248 Times in 653 Posts
Originally Posted by easyupbug View Post
It has been a long long time since I used any newbaums tape but at the time I found this stuff it looked the same to me and certainly works the same.
There's no "stickum" on the back of standard twill tape that you can get at a fabric store. You have to make sure you keep it tight while wrapping. I've tried spraying the bars with photo mount spray, if you let it tack up it kinda works. Now I just make sure it stays tight. Once you shellac, it's locked together.

Can't tell the difference between twill and Newbaum's, especially after shellacing.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 01-11-21, 04:55 PM
  #20
easyupbug
Senior Member

Join Date: Jan 2013
Posts: 1,559

Bikes: too many sparkly Italians, some sweet Americans and a couple interesting Japanese

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 254 Post(s)
Liked 108 Times in 86 Posts
I can not be the only member here who hates stickum on tape, any tape.
easyupbug is offline
Old 01-11-21, 05:04 PM
  #21
gugie
Dilberteur at large

gugie's Avatar

Join Date: Jul 2014
Location: Portland, OR
Posts: 8,927

Bikes: It's complicated.

Mentioned: 980 Post(s)
Tagged: 0 Thread(s)
Quoted: 3108 Post(s)
Liked 1,248 Times in 653 Posts
Originally Posted by easyupbug View Post
I can not be the only member here who hates stickum on tape, any tape.
Backside, so the bar tape sticks to the bars while you roll it on.

But yeah, I don't want my hands sticking to the handlebars.
__________________
If someone tells you that you have enough bicycles and you don't need any more, stop talking to them. You don't need that kind of negativity in your life.
gugie is offline
Old 01-11-21, 07:47 PM
  #22
BFisher
Senior Member

Join Date: Aug 2013
Posts: 1,440
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 425 Post(s)
Liked 839 Times in 425 Posts
I've done it a couple of times, and didn't like it at all. To me, it just makes the tape feel crusty. If I use cotton tape I prefer it bare.
BFisher is offline
Old 01-11-21, 08:54 PM
  #23
fender1
Senior Member

fender1's Avatar

Join Date: Jan 2006
Location: Berwyn PA
Posts: 6,055

Bikes: I hate bikes!

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 278 Post(s)
Liked 69 Times in 31 Posts

Tressostar and three coats of clear shellac. I tape the tops down to the brake lever and the drops from the bottom up and skip the twine.
fender1 is offline
Likes For fender1:
Old 01-11-21, 11:25 PM
  #24
northbend
Senior Member

northbend's Avatar

Join Date: Mar 2008
Location: North Bend, Washington State
Posts: 2,380

Bikes: 1937 Hobbs; 1974 Alex Singer; 1977 Bruce Gordon; 1987 Bill Holland; 1988 Schwinn Paramount (Fixed gear); 1999 Fat City Yo Eddy (MTB); 2018 Woodrup (Touring)

Mentioned: 216 Post(s)
Tagged: 0 Thread(s)
Quoted: 355 Post(s)
Liked 877 Times in 220 Posts
I wrap Tressostar or Newbaums cloth tape top to bottom and use enough coats of shellac so the tape feels smooth. I donít use twine for finishing,,,

White cotton tape with multiple (5) coats of shellac. I use Zinssers Clear mixed 4 parts to 1 with Zinssers Pigmented white. Iíd wash it with soap and water occasionally when it got dirty.
After a year of use, I applied another 2 coats this past summer and it looks good as new.

For a decorative touch I used short pieces of Red and White patterned bar tape was silicone glued into place and coated with clear polyurethane. Itís held up really well.
ThatsBetter by Matthew Pendergast, on Flickr

This wrap was a done with Off White colored ďVivaĒ tape. The shellac coatings give it a nice light honey color.

https://www.jitensha.com/eng/tape_e.html

This is my favorite tape because it has a much softer feel to it. Coated with Zinssers Clear, maybe 6 coats originally, Ive given it an additional 2 coats to refresh it up this past summer after 8 years of solid use. Still looks and feels great.
Handlebar detail shot. Taken at Rattlesnake Lake, just up the Snoqualmie Valley Trail from my house by Matthew Pendergast, on Flickr

This wrap, done with Light Pink colored tape with 5 or 6 coats of Zinssers Clear, turned out to appear a slightly darker honey color than the example above.
Apr21 Skagit Tulip Ride by Matthew Pendergast, on Flickr

This wrap was done with Light Blue cotton tape. 5 Coats with Zinssers Clear, darkened it up a little and gave it bit of a green tint - almost Celeste to my eye.
Bike refresh by Matthew Pendergast, on Flickr
northbend is offline
Likes For northbend:
Old 01-12-21, 08:49 AM
  #25
Dylansbob
2k miles from the midwest

Dylansbob's Avatar

Join Date: Feb 2005
Location: Washington
Posts: 955

Bikes: Cinelli Hobootleg, Falcon San Remo, Benotto 2000 are the top 3 now

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Liked 125 Times in 72 Posts
Is it just me or do a lot of us who like shellac also live in the PNW?

Maybe it's something in the water.....
Dylansbob is online now

Thread Tools
Search this Thread

Contact Us - Archive - Advertising - Cookie Policy - Privacy Statement - Terms of Service - Do Not Sell My Personal Information -

Copyright © 2021 MH Sub I, LLC dba Internet Brands. All rights reserved. Use of this site indicates your consent to the Terms of Use.
