Need help identifying frame

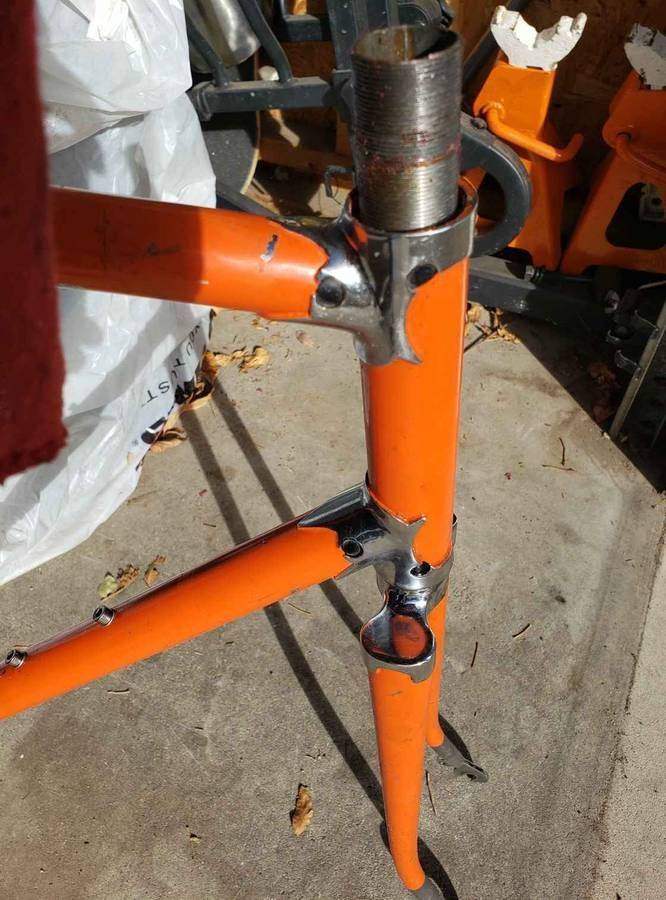

I've come across this interesting frameset on my regional CL and am perplexed as to its origin. The Suntour dropouts seem to indicate Japanese manufacture, but the BB shell and lugs have me scratching my head.
I came across this listing while searching for potential L'Eroica candidates.

I'd appreciate any expertise from our resident experts. Thanks!!!!!






__________________
Bikes are fun
canyoneagle is offline
Old 02-17-21, 12:04 PM
  #2
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,462

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp, '76 Eisentraut Limited

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
Liked 573 Times in 373 Posts
Maybe a Windsor? Just a wild, partially-informed guess.
noobinsf is offline
Likes For noobinsf:
Old 02-17-21, 01:11 PM
  #3
canyoneagle
Senior Member
Thread Starter

canyoneagle's Avatar

Join Date: Nov 2007
Location: Santa Fe, NM
Posts: 4,691

Bikes: Vassago Moosknuckle Ti 29+ XTR, 90's Merckx Corsa-01 9sp Record, PROJECT: 1954 Frejus SuperCorsa

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 171 Post(s)
Liked 139 Times in 67 Posts
Originally Posted by noobinsf View Post
Maybe a Windsor? Just a wild, partially-informed guess.
I think you nailed it. Clearly not a Professional....... more interwebs research seems to be pointing at the "Carrera" model, which appears to be lower end bike boom material.

Thanks for the tip!!
__________________
Bikes are fun
canyoneagle is offline
Likes For canyoneagle:
Old 02-17-21, 01:15 PM
  #4
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,192

Bikes: 1967 Paramount, 1982-ish Ron Cooper,1978 Eisentraut "A," mid-1960s Cinelli Speciale Corsa, 1961 Bianchi Competizione (an Eroica bike), 1994 Trek 520, 199? Burley Bossa Nova, early-1970s Cinelli Speciale Corsa (also an Eroica bike)

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 347 Post(s)
Liked 356 Times in 191 Posts
Yeah, the seat cluster kind of screams "Windsor," but I agree that the other lugs and the fork crown say "not a Windsor Pro." This is another partially-informed opinion, and it's worth exactly what you are paying for it.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Likes For bikingshearer:
Old 02-17-21, 01:20 PM
  #5
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,462

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp, '76 Eisentraut Limited

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
Liked 573 Times in 373 Posts
Originally Posted by canyoneagle View Post
I think you nailed it. Clearly not a Professional....... more interwebs research seems to be pointing at the "Carrera" model, which appears to be lower end bike boom material.

Thanks for the tip!!

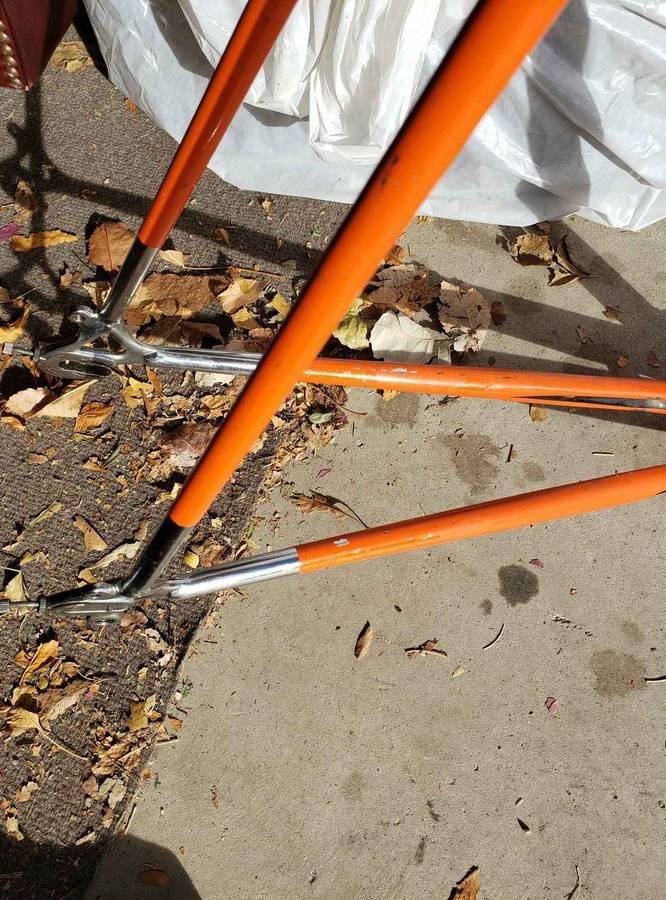

Maybe a Super Carrera? Late 70's ones appear to have less ornate lugs, but they have the Suntour GS dropouts and the fastback seat cluster. Also, Tange double butted...
noobinsf is offline
Old 02-17-21, 02:07 PM
  #6
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,388
Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 775 Post(s)
Liked 351 Times in 284 Posts
That's my vote^, juvela always has something to say re: Acer Mex products. This looks to me nicer than most in the Carrera range: some chrome, Cinelli-clone fastback, nicer flat(ish) fork crown too. Can't beat an orange frame but kind or weird black lug in-fills
unworthy1 is offline
Old 02-17-21, 02:25 PM
  #7
noobinsf
Senior Member

noobinsf's Avatar

Join Date: Sep 2005
Location: Oakland, CA
Posts: 2,462

Bikes: '82 Univega Competizione, '72 Motobecane Grand Record, '74 Campania Professional, '83 Mercian KOM Touring, '91 Univega Alpina Comp, '76 Eisentraut Limited

Mentioned: 47 Post(s)
Tagged: 0 Thread(s)
Quoted: 772 Post(s)
Liked 573 Times in 373 Posts
Or Carabela?

Link: Help me ID this frame?

Edit: Disregard, the Carabela in the linked thread does not have the fastback treatment nor the same fork crown.

Last edited by noobinsf; 02-17-21 at 03:15 PM.
noobinsf is offline
Likes For noobinsf:
Old 02-17-21, 05:29 PM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 10,756
Mentioned: 303 Post(s)
Tagged: 1 Thread(s)
Quoted: 2515 Post(s)
Liked 820 Times in 648 Posts
Originally Posted by noobinsf View Post
Or Carabela?

Link: Help me ID this frame?

Edit: Disregard, the Carabela in the linked thread does not have the fastback treatment nor the same fork crown.
-----

always wise to keep in mind the Carabela marque

it is much scarcer in the U.S. market than the Windsor one but we did receive some

California had at least three different ACER-MEX importers at one time or another

ACER-MEX did some contract manufacture as well; two recalled are C.Itoh and Centurion. there are likely to be others...

lug pattern of subject frame is an Agrati one which enthusiasts oftimes refer to as "Bozzi" as it appears in the notorious Bozzi parts catalogue of 1950

my guess for model, and it is only a guess, is International

for a time frame thinking 1973-75

you might wish to check the steerer to see if it is an .833

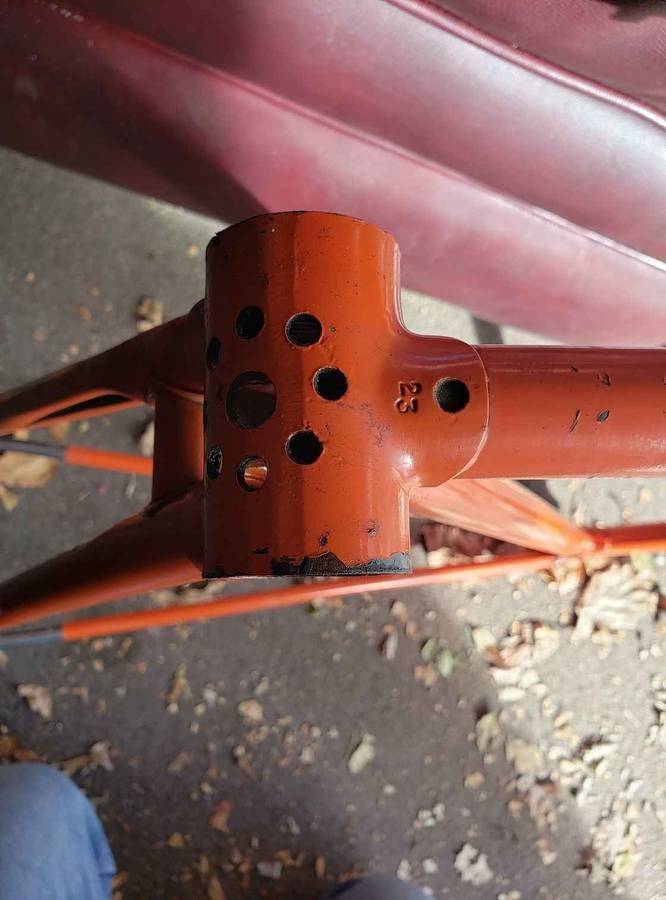

is shell 68mm but Italian threaded?

w/b mount clearly an add-on; looks to have been achieved with rivnuts

-----

Last edited by juvela; 02-17-21 at 05:36 PM. Reason: addition
juvela is online now
Old 02-17-21, 09:48 PM
  #9
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,167

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Electra Cantilever, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn World, Schwinn Continental

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 384 Post(s)
Liked 292 Times in 227 Posts
Oh my, I can't believe what I am about to type. I'm going to contradict juvela .

I don't think it is a Windsor International because I had an International and from my memory, which may not be that great, it did not have fast back seat stays, it had the serial number on the seat tube rather than the lug, it did not have holes in the bottom bracket and the lugs don't look the same.

I will say that I got the same Windsor/Acer Mex vibe but, if it is it is a Windsor/ Acer-Mex then it would be up a model or two from the bottom end International. Carrara maybe?
Velo Mule is offline
Likes For Velo Mule:
Old 02-18-21, 06:50 AM
  #10
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,288
Mentioned: 567 Post(s)
Tagged: 1 Thread(s)
Quoted: 3914 Post(s)
Likes: 0
Liked 1,397 Times in 1,014 Posts

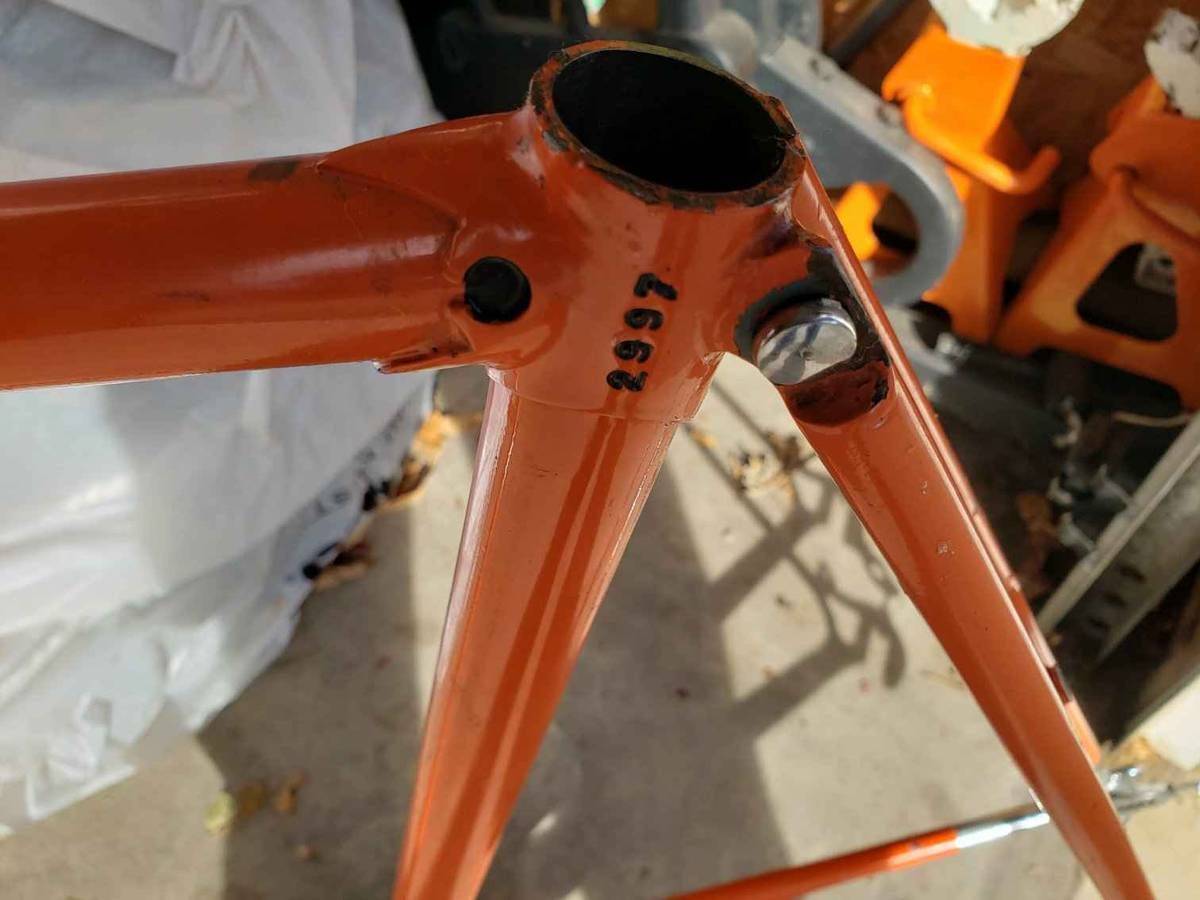

Agreed, it's definitely an Acer-Mex product based on the seat cluster and serial number. With the exception of the eyelets on the SunTour GS dropouts, ir reminds me of the Falck tubed Carabela Semi-Pro,
T-Mar is offline
Likes For T-Mar:
Old 02-18-21, 08:35 AM
  #11
Wildwood
Veteran, Pacifist

Wildwood's Avatar

Join Date: Dec 2004
Location: Seattle area
Posts: 10,922

Bikes: Bikes??? Thought this was social media?!?

Mentioned: 247 Post(s)
Tagged: 0 Thread(s)
Quoted: 2754 Post(s)
Liked 1,619 Times in 942 Posts
Originally Posted by T-Mar View Post
Agreed, it's definitely an Acer-Mex product based on the seat cluster and serial number. With the exception of the eyelets on the SunTour GS dropouts, ir reminds me of the Falck tubed Carabela Semi-Pro,
Doesn't look like the Carabela Semi-Pro I owned from the 70's.

i fell for the chrome head lugs and shorty chromed socks. i fell-out with the ride/handling characteristics
Wildwood is offline
Old 02-18-21, 09:29 AM
  #12
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 21,288
Mentioned: 567 Post(s)
Tagged: 1 Thread(s)
Quoted: 3914 Post(s)
Likes: 0
Liked 1,397 Times in 1,014 Posts
Originally Posted by Wildwood View Post
Doesn't look like the Carabela Semi-Pro I owned from the 70's.

i fell for the chrome head lugs and shorty chromed socks. i fell-out with the ride/handling characteristics
We've been through this in the past. The extant Bicycling! road test shows that the Carabela Semi-Pro was available with the Cinelli style fastback seat stay and binder bolt arrangement, as seen on the OP's bicycle.
T-Mar is offline
Likes For T-Mar:
