Easy Home Made Freewheel Vise

In the "Unlikely Tools" thread, I mentioned a home made freewheel vise I have in my workshop. Some folks asked for photos, so I thought I might as well create a stand-alone thread showing how it works and how to make one. You will need two chain whips, at least one of them being an SR-1 or SR-12 by Park Tools.

How to make it:

Step One: Drill two holes in your work table about 1 foot apart from each other
Step Two: Run a short bolt through the hole on the left, with a spacer on it. It's effectively a peg (see photo below):


How to use it to remove cogs from a freewheel:

Step One: Place the freewheel over the hole on the right
Step Two: Put the freewheel remover in
Step Three: Secure the freewheel to the table by running a front QR skewer through it. Note that I've added a couple of extra spacers to the take up the extra space on the skewer. If you have bolt that'll fit and is shorter, you don't need the extra spacers.


view from below:


Step Four: Secure the largest cog with the chain whip. You may need to loosen the bolt holding the freewheel to the table in order to get it on. Afterwards, tighten down the bolt or QR skewer. Slide the end of the chain whip, which has a hole in it, over the peg on the left.


Step Five: Use your second chain whip to remove the first cog on the freewheel. The lower chain whip will prevent the freewheel from moving, allowing you to put maximum force on the top cog.



How to use it to reassemble and tighten cogs on a freewheel:

Repeat steps 1-3 above.
Step Four: Secure the largest cog with the chain whip, in the opposite direction from the disassembly procedure.


Step Five: Tighten down cogs.
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Old 02-23-21, 10:04 PM
  #2
gaucho777
Senior Member

gaucho777's Avatar

Join Date: Aug 2009
Location: Berkeley, CA
Posts: 7,080

Bikes: '72 Cilo Pacer, '72 Gitane Gran Tourisme, '72 Peugeot PX10, '73 Speedwell Ti, '74 Peugeot UE-8, '75 Peugeot PR-10L, '80 Colnago Super, '85 De Rosa Pro, '86 Look Equipe 753, '86 Look KG86, '89 Parkpre Team, '90 Parkpre Team MTB, '90 Merlin

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 684 Post(s)
Liked 1,131 Times in 341 Posts
Thanks, @Catnap. I'm one of the people who was curious about your DIY freewheel vice. I appreciate the write-up and photos. I may try a "portable" version I can mount to my workbench when needed.
gaucho777 is offline
Old 02-23-21, 10:07 PM
  #3
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 4,237

Bikes: Astron Corsaro, Fuji Espree and Takara GT

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1308 Post(s)
Liked 1,020 Times in 727 Posts
Thank you. I was looking at buying a freewheel vise. You just saved me some money. Looks simple and workable

Last edited by WGB; 02-23-21 at 10:12 PM.
WGB is offline
Old 02-23-21, 10:11 PM
  #4
WGB
WGB

WGB's Avatar

Join Date: Jul 2017
Location: Niagara Region
Posts: 4,237

Bikes: Astron Corsaro, Fuji Espree and Takara GT

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 1308 Post(s)
Liked 1,020 Times in 727 Posts
Sorry duplicate!
WGB is offline
Old 02-23-21, 10:30 PM
  #5
scarlson
Senior Member

scarlson's Avatar

Join Date: Jun 2010
Location: Medford MA
Posts: 1,770

Bikes: Ron Cooper touring, 1959 Jack Taylor 650b ladyback touring tandem, Vitus 979, Joe Bell painted Claud Butler Dalesman, Colin Laing curved tube tandem, heavily-Dilberted 1982 Trek 6xx, René Herse tandem

Mentioned: 63 Post(s)
Tagged: 0 Thread(s)
Quoted: 811 Post(s)
Liked 1,065 Times in 573 Posts
You ever break a chain whip doing this? I've had some extra recalcitrant freewheels where the chain comes off the chain whip before I can get the little cog off. Been meaning to machine a wrench with the pins like the old Suntour freewheel vise, but haven't gotten around to it yet.

I bet the chain whip on the bench wouldn't be the one to break, since it's under less strain being on the big cog and having more leverage per chain tension.
__________________
Owner & co-founder, Cycles René Hubris. Unfortunately attaching questionable braze-ons to perfectly good frames since about 2015. With style.
scarlson is offline
Likes For scarlson:
Old 02-24-21, 09:02 AM
  #6
Catnap
zungguzungguguzungguzeng
Thread Starter

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,457

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked 127 Times in 60 Posts
No, I've never had a chain whip break. I've even had to put a breaker pipe on the upper chain whip before, to unscrew really stuck cogs. the only tricky part in that scenario is making sure that the chain whip stays level with the cog while applying pressure, so as not to break any teeth or bend the cog.
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Old 02-24-21, 09:04 AM
  #7
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,490

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 61 Post(s)
Tagged: 0 Thread(s)
Quoted: 1203 Post(s)
Liked 1,166 Times in 646 Posts
Other options shared here: DIY Tools for your bike work - Bike Forums
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 02-25-21, 04:29 PM
  #8
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,501

Bikes: yes

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 461 Post(s)
Likes: 0
Liked 222 Times in 97 Posts
I do something similar, although not as involved.

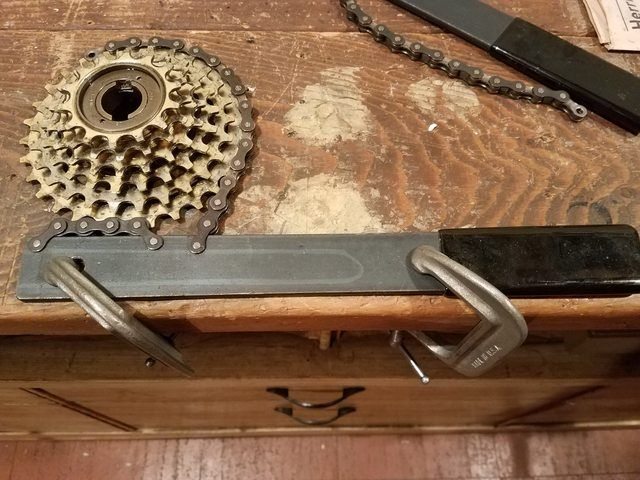

Clamp one whip down to the bench, position the freewheel, then mount the second whip and push. Easy peasy every time.




Vintage_Cyclist is offline
Likes For Vintage_Cyclist:
Old 02-26-21, 07:25 AM
  #9
seedsbelize
smelling the roses

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Posts: 15,428

Bikes: 79 Trek 930, 80 Trek 414, 84 Schwinn Letour Luxe (coupled), 92 Schwinn Paramount PDG 5

Mentioned: 104 Post(s)
Tagged: 1 Thread(s)
Quoted: 7079 Post(s)
Liked 894 Times in 609 Posts
Do all freewheels come apart like this?
__________________
Originally Posted by Bah Humbug View Post
Auto-pause is a honey-tongued devil whispering sweet lies in your ear.


seedsbelize is offline
Old 02-26-21, 06:26 PM
  #10
due ruote
Senior Member

due ruote's Avatar

Join Date: Dec 2006
Posts: 7,517
Mentioned: 26 Post(s)
Tagged: 0 Thread(s)
Quoted: 837 Post(s)
Liked 379 Times in 242 Posts
Nifty. Two thoughts:
1. It might be easier to use a bolt and wing nut rather than skewer.
2. You could clamp a piece of 2x4 to the edge of the bench to rest the top whip on to keep it from going out of plane.
due ruote is offline
Old 02-26-21, 11:53 PM
  #11
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,187

Bikes: More than I care to admit

Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 539 Times in 310 Posts
This is an interesting way to skin a cat. I took a 2x4, put the freewheel on it, and screwed four wood screws around the largest sprocket to hold it in place. Clamped the 2x4 to something, then chain-whiped away. Or in my case, hammer a punch on the teeth of the smallest sprocket until it came loose because it’s toast anyway and broke my chain whip...
mountaindave is offline
Old 02-27-21, 05:51 AM
  #12
Velosiped126
Junior Member

Join Date: Jan 2021
Location: Long Island, New York
Posts: 11

Bikes: 1981 Colnago, 1984 Bob Jackson, 1985 Benotto

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Likes: 0
Liked 1 Time in 1 Post
Brilliant!

This is brilliant — and, given my freewheel vise has been misplaced for a while and I want to rebuild some Regina CXs now, very timely. Thanks!
Velosiped126 is offline
Old 02-27-21, 01:18 PM
  #13
Catnap
zungguzungguguzungguzeng
Thread Starter

Catnap's Avatar

Join Date: Jun 2008
Location: Ridgewood, Queens
Posts: 1,457

Bikes: Zunow, 3Rensho, Look KG196

Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 72 Post(s)
Liked 127 Times in 60 Posts
Originally Posted by Vintage_Cyclist View Post
I do something similar, although not as involved.

Clamp one whip down to the bench, position the freewheel, then mount the second whip and push. Easy peasy every time.
I'd be a little concerned that the clamps might fail or slip if I was wrenching really hard on the freewheel. Has that ever happened?

Originally Posted by seedsbelize View Post
Do all freewheels come apart like this?
Most do. There's always the possibility that there's some obscure freewheel out there that uses an alternate system, but generally this is how it's done. Some freewheels have all the cogs screwed on, while many others only have the first and sometimes also the second cogs screwed on, the rest of the cogs sliding on splines like a freehub.

Originally Posted by due ruote View Post
Nifty. Two thoughts:
1. It might be easier to use a bolt and wing nut rather than skewer.
2. You could clamp a piece of 2x4 to the edge of the bench to rest the top whip on to keep it from going out of plane.
Both of these are great suggestions. There's room for improvement in this system, interesting to see how others do it,
__________________
Check out www.djcatnap.com for articles on vintage Japanese & French bicycle restorations, components and history.
Catnap is offline
Old 02-27-21, 01:45 PM
  #14
Vintage_Cyclist
Senior Member

Vintage_Cyclist's Avatar

Join Date: Nov 2013
Location: Big Apple
Posts: 1,501

Bikes: yes

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 461 Post(s)
Likes: 0
Liked 222 Times in 97 Posts
Originally Posted by Catnap View Post
I'd be a little concerned that the clamps might fail or slip if I was wrenching really hard on the freewheel. Has that ever happened?
Not a single time in over 40 years of doing it.
Vintage_Cyclist is offline
Old 02-27-21, 01:51 PM
  #15
dmark
Senior Member

Join Date: Oct 2017
Location: NJ
Posts: 445

Bikes: 84 Pinnarello Treviso NR, 72 Fuji Finest, 72 PX-10, 84 Trek 520, 90 Trek 750, 91 Trek 930

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 129 Post(s)
Liked 95 Times in 73 Posts
Yes I did; and after bending one another time I gave up before breaking #2.

Originally Posted by scarlson View Post
You ever break a chain whip doing this? I've had some extra recalcitrant freewheels where the chain comes off the chain whip before I can get the little cog off. Been meaning to machine a wrench with the pins like the old Suntour freewheel vise, but haven't gotten around to it yet.

I bet the chain whip on the bench wouldn't be the one to break, since it's under less strain being on the big cog and having more leverage per chain tension.
__________________
Last new bike 1991
dmark is offline
Old 03-01-21, 09:38 PM
  #16
mountaindave
tantum vehi

mountaindave's Avatar

Join Date: Jul 2008
Location: Flathead Valley, MT
Posts: 4,187

Bikes: More than I care to admit

Mentioned: 135 Post(s)
Tagged: 0 Thread(s)
Quoted: 1011 Post(s)
Liked 539 Times in 310 Posts

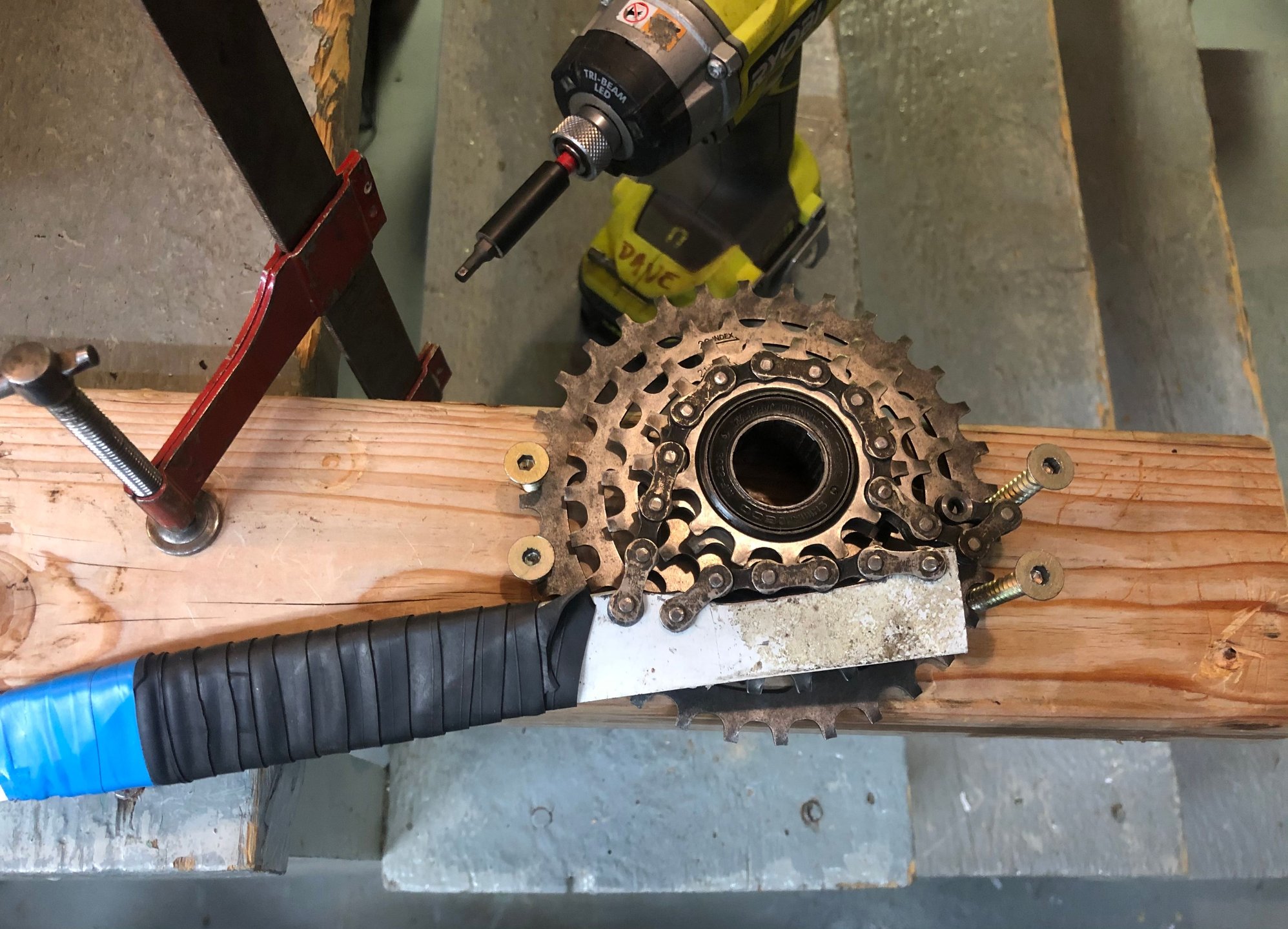

Pics of my description above:


And yes, that’s a home made chain whip.
mountaindave is offline
