Ride of Inline Parallelogram derailleur?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Ride of Inline Parallelogram derailleur?

Old 03-21-21, 11:06 PM
  #1
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Ride of Inline Parallelogram derailleur?

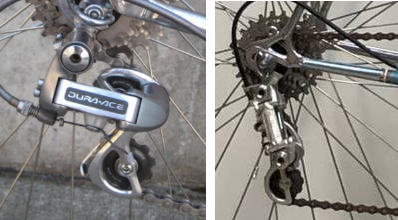

I just watched a good YouTube video that demonstrated how an inline parallelogram derailleur works, and how the slant parallelogram improved on the design so the derailleur follows the slope of the cogs.
But how did the old ones feel on a ride? Like if you had a Campagnolo Nuovo Record from the 70s, and it's clean & smooth, with a nice clean chain, smooth bottom bracket etc--how does it feel when you're riding and shifting? Especially since you're a rider from the future and you know how the newer stuff feels; does the old feel clunky by comparison? Or still very wonderful and smooth?
(I've never actually ridden on a bike with those old Campagnolo parts, just admired them from afar.)
P.S. Why did those Campagnolo Nuovo Record derailleurs stand so vertical? Was that unique to Campagnolo, or did all inline parallelograms look that way? If you look at this pic, the Dura Ace is shaped like the number 7--almost horizontal, then angling back 45 degrees--whereas the Campagnolo is just vertical:

lajt is offline
Old 03-22-21, 12:00 AM
  #2
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,603

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 19 Post(s)
Tagged: 0 Thread(s)
Quoted: 517 Post(s)
Liked 763 Times in 389 Posts
Originally Posted by lajt View Post
I just watched a good YouTube video that demonstrated how an inline parallelogram derailleur works, and how the slant parallelogram improved on the design so the derailleur follows the slope of the cogs.
But how did the old ones feel on a ride? Like if you had a Campagnolo Nuovo Record from the 70s, and it's clean & smooth, with a nice clean chain, smooth bottom bracket etc--how does it feel when you're riding and shifting? Especially since you're a rider from the future and you know how the newer stuff feels; does the old feel clunky by comparison? Or still very wonderful and smooth?
(I've never actually ridden on a bike with those old Campagnolo parts, just admired them from afar.)
P.S. Why did those Campagnolo Nuovo Record derailleurs stand so vertical? Was that unique to Campagnolo, or did all inline parallelograms look that way? If you look at this pic, the Dura Ace is shaped like the number 7--almost horizontal, then angling back 45 degrees--whereas the Campagnolo is just vertical:

There is a whole book dedicated to this and related questions called The Dancing Chain by Frank Berto. It discusses these issues (and others you never knew were issues) and has a ton of great photos and Daniel Rebour drawings. I recommend it highly.

As to your questions:

Why the straight drop for Campy NR's? History. When rear derailleurs moved to the rear drop out in the late 1940s/early 1950s (Simplex and the Campagnolo) gear ranges narrower - as in much narrower - than you see today, and the vertical drop design worked just fine. RD advances wnet hand-in-and with increased range in rear cog sizes. The drop "7" design was an attempt to permit better shifting over wider cog spreads. Campy, Simplex, Huret, and other Europeans makers didn't follow this trend for many years because they didn't have to - they were sellng plenty of RDs, thank you very much, and weren't interested in what the Japanese were doing. Suntour came out with the slant pantograph, a significant advance, in 1964. When their patent expired in 1984, Shimano was ready to make full use of the improved design, with Campy lagging by a couple of years. Suntour ultimately lost out because they made a few mistakes on the late 1980s and into the 1990s. So did Shimano and Campy. Shimano was big enough and devoted so much to R&D that they survived their mistakes. Campy was revered just enough and was just big enough to survive its mistakes. Suntour was neither big enough nor revered enough to survive its mistakes.

Which shift better, modern RDs or older ones? By pretty much any objective measure, modern ones do. That's the same as saying that, by all objective measures, modern automatic transmissions in cars shift better than 1960s or 1970s manual transmissions. That doesn't keep some people form loving old manual transmissions far more, and well designed ones work well, but not as easily as the automatics. The same is true with older versus newer RDs.

Also keep in mind that there is more to making a RD that shifts well than the shape and angling of the parallelogram. Positioning of the jockey wheels is very important. Compare the placement of the jockey wheels on a 1950s Campoy Gran Sport RD with a late 1960s to early 1980s Campy Nuovo Record - the placement of the wheels and where their cage pivots are quite different. That is not an accident.

In preparation for launching their slant pantograph RDs in 1984 when Suntour's patent expired, Shimano did a a ton of R&D to establish the optimum positioning and size of the parallelogram and the optimum placement of the jockey wheels and pivot point for the cage relative to the cogs, each other, and the other pivot on the rest of the RD. The result was excellent shifting geometry that everyone - yes, including you, Campy - copied for at least the next 25 years

Bottom line: A well designed RD from anytime after about 1950, properly set up and not too worn, will shift fairly well across its intended range of cogs. A well designed slant pantograph RD will be easier to shift crisply and accurately than an older non-slant pantopgraph or a straight-drop design. Does "easier" shifting mean "better" shifting? That, like beauty, is in the eye of the beholder.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Likes For bikingshearer:
Old 03-22-21, 12:45 AM
  #3
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,614

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2328 Post(s)
Liked 3,028 Times in 1,645 Posts
Originally Posted by lajt View Post
But how did the old ones feel on a ride?
I think you mean "do" (present tense), and the answer is "simple, complimentary and without much fuss."


.

.
SurferRosa is offline
Likes For SurferRosa:
Old 03-22-21, 01:15 AM
  #4
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,834
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Likes: 0
Liked 459 Times in 316 Posts
Straight parallelogram derailleurs do shift OK, most of the time, just a bit slower shifting and a bit less precise that offset pivot (Like Simplex SLJ6600) and slant/offset pivot (Like Suntour Cyclone Mk II). They usually require more overshift action at the lever to shift and more "trimming" after shifting. Their design simplicity though, seems to give them more reliability and ruggedness. That's why many pro and amateur racers still loved using straight parallelogram derailleurs like the Campy NR and SR right up until the beginning of the mid 80's, even though most other makers moved on to the later offset and slant/offset parallelogram designs.
As already noted, shifting performance on straight parallelogram RDs do benefit a lot from proper, careful adjustment. While offset and slant/offset parallelogram RDs are not as sensitive to this.

Last edited by Chombi1; 03-22-21 at 01:20 AM.
Chombi1 is offline
Likes For Chombi1:
Old 03-22-21, 08:39 AM
  #5
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
bikingshearer , thank you for the tip about the book! I'm going to read that for sure. I appreciate the thorough writeup about the history, too; I didn't know any of that. It's really fascinating.
SurferRosa , you are right, present tense. I think I was stuck in the time-traveler concept of going back to the 70s (and those are both gorgeous bikes!).
Chombi1 , thanks for the response. You've made me want to try riding one someday. Maybe that should be my next build...
lajt is offline
Old 03-22-21, 08:57 AM
  #6
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,185
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 704 Post(s)
Liked 1,614 Times in 778 Posts
The biggest improvements in shift performance have come from chain and cog tooth design.

When kept with the designed gear range, a Campagnolo Nuovo Record paired with a KMC Z or X series chain and Hyperglide-style cogs is butter smooth. New pulleys also help. This bike is set up with 52/40 chainrings, and a 14-24 6 speed freewheel. It is one of the smoothest shifting friction setups I have ever had, including many Suntour setups.
BFisher is offline
Likes For BFisher:
Old 03-22-21, 09:29 AM
  #7
steelbikeguy
Senior Member

steelbikeguy's Avatar

Join Date: Feb 2008
Location: Peoria, IL
Posts: 3,292
Mentioned: 72 Post(s)
Tagged: 0 Thread(s)
Quoted: 1259 Post(s)
Liked 1,585 Times in 800 Posts
Derailleurs have always been about the search for a good way to shove the chain from one cog to the next. Some have been more sophisticated, and some less so....
Definitely get a copy of the Dancing Chain! That will keep you entertained for a long time, and thoroughly explain all of the ways that have been explored on the path to our present technology.

As a teaser, you might want to look at the Vittoria Margherita. This was a derailleur from the 1940's that just used some metal fingers to shove the chain left or right as the rider backpedaled.
https://steel-vintage.com/taurea-vit...ad-bike-detail
The Campagnolo Cambio Corsa is another example where metal guides were used to move the chain left and right. The novel feature is that the proper chain tension was achieved by allowing the rear wheel to roll fore and aft in the horizontal dropouts while changing gears!
Dave Moulton's Blog - Dave Moulton's Bike Blog - The Cambio Corsa: Campagnolo's Early Masterpiece

As far as the usual 70's derailleurs, they do require more attention and care when shifting. The chain isn't as eager to hop to the next cog, so you typically need to move the lever beyond the final position in order to get the chain to make the change. Indexed shifting definitely made the process fairly mindless and something beginners could do well.

Steve in Peoria
steelbikeguy is offline
Likes For steelbikeguy:
Old 03-22-21, 10:04 AM
  #8
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Originally Posted by steelbikeguy View Post
Derailleurs have always been about the search for a good way to shove the chain from one cog to the next. Some have been more sophisticated, and some less so....
Definitely get a copy of the Dancing Chain! That will keep you entertained for a long time, and thoroughly explain all of the ways that have been explored on the path to our present technology.

As a teaser, you might want to look at the Vittoria Margherita. This was a derailleur from the 1940's that just used some metal fingers to shove the chain left or right as the rider backpedaled.
https://steel-vintage.com/taurea-vit...ad-bike-detail
The Campagnolo Cambio Corsa is another example where metal guides were used to move the chain left and right. The novel feature is that the proper chain tension was achieved by allowing the rear wheel to roll fore and aft in the horizontal dropouts while changing gears!
Dave Moulton's Blog - Dave Moulton's Bike Blog - The Cambio Corsa: Campagnolo's Early Masterpiece

As far as the usual 70's derailleurs, they do require more attention and care when shifting. The chain isn't as eager to hop to the next cog, so you typically need to move the lever beyond the final position in order to get the chain to make the change. Indexed shifting definitely made the process fairly mindless and something beginners could do well.

Steve in Peoria
Whoa! So bizarre and cool! Actually very creative designs. When presented with the challenge of shoving the chain from one cog to the next, I definitely wouldn't think of a derailleur--I would probably design something like that Vittoria Margherita.
Thanks for those historical links, this is really neat. I'll definitely get that book too. I'm ready for my next one anyway.
lajt is offline
Old 03-22-21, 10:13 AM
  #9
lajt
Member
Thread Starter

Join Date: Mar 2021
Location: Los Angeles, CA
Posts: 48
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Liked 14 Times in 12 Posts
Originally Posted by BFisher View Post
The biggest improvements in shift performance have come from chain and cog tooth design.

When kept with the designed gear range, a Campagnolo Nuovo Record paired with a KMC Z or X series chain and Hyperglide-style cogs is butter smooth. New pulleys also help. This bike is set up with 52/40 chainrings, and a 14-24 6 speed freewheel. It is one of the smoothest shifting friction setups I have ever had, including many Suntour setups.
Beautiful Motobecane. That's interesting about the setup. I like friction shifting so maybe I will try a setup like this at some point.
lajt is offline
Likes For lajt:
Old 03-22-21, 10:25 AM
  #10
cocoabeachcrab
Myrtle Beach Crab

cocoabeachcrab's Avatar

Join Date: Nov 2012
Location: Newport RI
Posts: 544

Bikes: enough one would think, but thinking isn't my strong point

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 183 Post(s)
Liked 204 Times in 101 Posts
From Disreali Gears..."Frank Berto caustically comments that the Campagnolo Nuovo Record rear derailleur shifted poorly, but was so well constructed that it would keep on shifting exactly as poorly - forever."
cocoabeachcrab is offline
Old 03-22-21, 11:14 AM
  #11
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,772

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 550 Post(s)
Tagged: 0 Thread(s)
Quoted: 1863 Post(s)
Liked 390 Times in 257 Posts
As a general rule, any derailleur system that worked well enough to be put into production probably worked well enough. If it didn't survive the test of time, it was probably because of some other feature, such as difficulty of setup, availablilty of spare parts, or that type of thing.

A notable exception to that rule: derailleurs with one pulley wheel., like the Campagnolo Sport. I've never tried one, but I understand they are pretty bad.

But two-pulley systems tend to work just fine, within design parameters. I had a bike with a Cyclo Standard derailleur for a short while. Date code on the Williams crank put the bike at 1934, which was consistent with the other components on the bike (Resilion brakes, Brampton free hub, early Marcel Berthet pedals, etc. It had a twist grip shifter on the handlebar. I didn't mess with it. It shifted perfectly, very smoothly, and very easily, and it feathered itself. That's an advantage of the old two-cable mechanisms (Cyclo, Nivex, Simplex 3-4-5, &c)-- since they don't have a spring to pull them one way, it takes very little effort to push them one way or the other-- if the shifter isn't feathered right, the friction on the chain is enough to move the derailleur, and the shifter, to the smoothest location (though it may take a while). The shortcoming of the Cyclo Standard was not that it didn't work well; it worked great. The problem was that it was a pain in the neck to set it up, a pain in the neck to change an innertube, and these are serious shortcomings.


I have a Trivelox Model B derailleur on one of my bikes. It's also from the mid-30's. It's awesomely primitive, and it shifts only three cogs. So pretty limited, but what it does, it does quite well.


These modern derailleurs that mount to a derailleur hanger integrated into the dropout, and that shift flawlessly over 11 or more cogs, are pretty cool. Take the shifter and matching derailleur out of their boxes, attach them to the bike, attach the cable (included) and make one or two small adjustments, and you're ready to ride/! That's way better than fiddling around with a Cyclo Standard until you get it just right, and 11 cogs are definitely an improvement over 3 cogs. So, sure, the new ones are better. But it's not because the old ones didn't work.
__________________
www.rhmsaddles.com.
rhm is offline
Old 03-22-21, 03:45 PM
  #12
sd5782
Senior Member

Join Date: Jan 2019
Location: Toledo Ohio
Posts: 931

Bikes: 1964 Frejus,1972 Fuji Newest, 1973 Schwinn Super Sport, 1983 Trek 700, 1985 Ironman, 1985 Torpado, 1983 Peugeot UO14, 1989 Miyata 1000LT and others

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 328 Post(s)
Liked 342 Times in 188 Posts
I have to second the comment about shifted good as designed for the original setup. The gran sport on my 64 Frejus was just fine with the stock 14-22 freewheel and 47/50 front, but didn’t like much else. It crudely shifted a 14-26 in back and seemed maxed out chain wrap wise although others state more capacity. Running a Suntour VX now and bike and rider are both happy.
sd5782 is offline
Old 03-22-21, 06:12 PM
  #13
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,919

Bikes: many

Mentioned: 54 Post(s)
Tagged: 0 Thread(s)
Quoted: 1051 Post(s)
Liked 670 Times in 384 Posts
I rode my ItalVega today. It has a Nuovo Record rear derailleur. The rest of the drivetrain is right in its wheelhouse (24T big cog, probably a SunTour freewheel and a SRAM 8sp chain). It shifts perfectly. I suspect others have mentioned this or at least alluded to it, but if you keep this derailleur within its design specs, it's fine. If you get out beyond its limits - too many cogs, too large a big cog, long pulley cage - you're likely to have trouble.
__________________
Contact me to help Doug Fattic's colleagues in Ukraine

smontanaro is offline
Old 03-22-21, 07:44 PM
  #14
Chombi1
Senior Member

Chombi1's Avatar

Join Date: Nov 2015
Posts: 3,834
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 1363 Post(s)
Likes: 0
Liked 459 Times in 316 Posts
Originally Posted by smontanaro View Post
I rode my ItalVega today. It has a Nuovo Record rear derailleur. The rest of the drivetrain is right in its wheelhouse (24T big cog, probably a SunTour freewheel and a SRAM 8sp chain). It shifts perfectly. I suspect others have mentioned this or at least alluded to it, but if you keep this derailleur within its design specs, it's fine. If you get out beyond its limits - too many cogs, too large a big cog, long pulley cage - you're likely to have trouble.
As I noted,, you can make RD like the Csnpy NR shift pretty decently, if adjusted properly. But if you ride even a well adjusted NR back to back with a best of the early 80's friction RD, like the Suntour Cyclone MkII and you will definitely feel a big difference in shifting performance......
__________________
72 Line Seeker
83 Davidson Signature
84 Peugeot PSV
84 Peugeot PY10FC
84 Gitane Tour de France.
85 Vitus Plus Carbone 7
86 ALAN Record Carbonio
86 Medici Aerodynamic (Project)
88 Pinarello Montello
89 Bottecchia Professional Chorus SL
95 Trek 5500 OCLV (Project)
Chombi1 is offline
Old 03-22-21, 08:31 PM
  #15
SurferRosa
Señor Member

SurferRosa's Avatar

Join Date: Dec 2018
Location: Pac NW
Posts: 5,614

Bikes: Old school lightweights

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2328 Post(s)
Liked 3,028 Times in 1,645 Posts
Originally Posted by Chombi1 View Post
if you ride even a well adjusted NR back to back with a best of the early 80's friction RD, like the Suntour Cyclone MkII, you will definitely feel a big difference in shifting performance.
I haven't found that to be true. Maybe I'm doing it wrong.
SurferRosa is offline
Old 03-22-21, 09:21 PM
  #16
rhm
multimodal commuter

rhm's Avatar

Join Date: Nov 2006
Location: NJ, NYC, LI
Posts: 19,772

Bikes: 1940s Fothergill, 1959 Allegro Special, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1974 Fuji "the Ace", 1976 Holdsworth 650b conversion rando bike, 1983 Trek 720 tourer, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...

Mentioned: 550 Post(s)
Tagged: 0 Thread(s)
Quoted: 1863 Post(s)
Liked 390 Times in 257 Posts
Originally Posted by SurferRosa View Post
I haven't found that to be true. Maybe I'm doing it wrong.
Either that or, like me, you just can't tell that subtle difference between "fine" and "even better than fine."
__________________
www.rhmsaddles.com.
rhm is offline
Likes For rhm:
