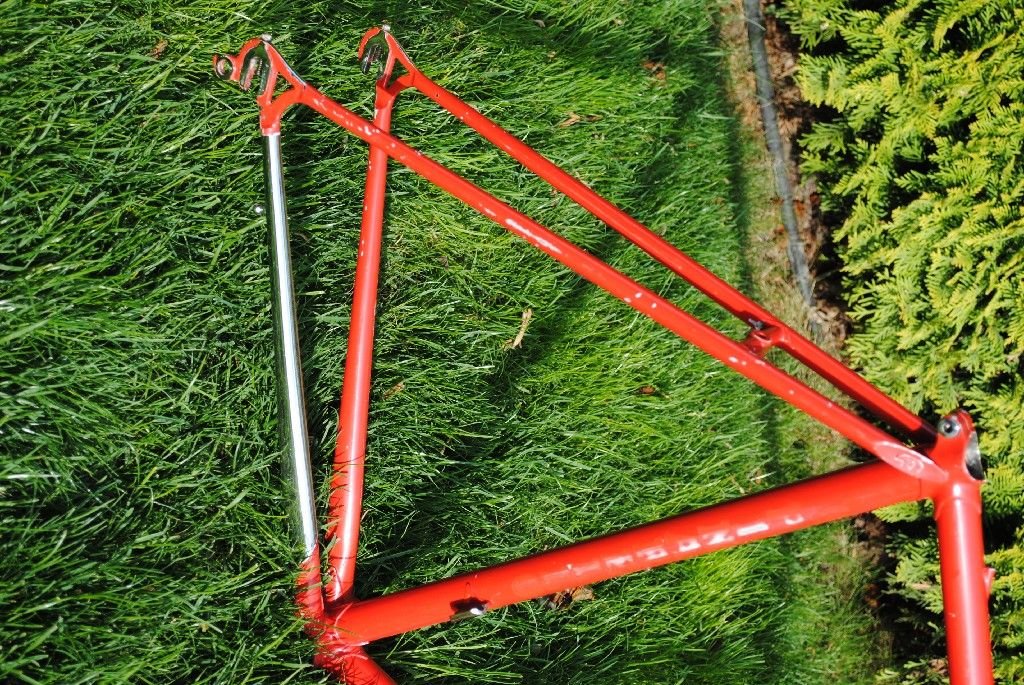

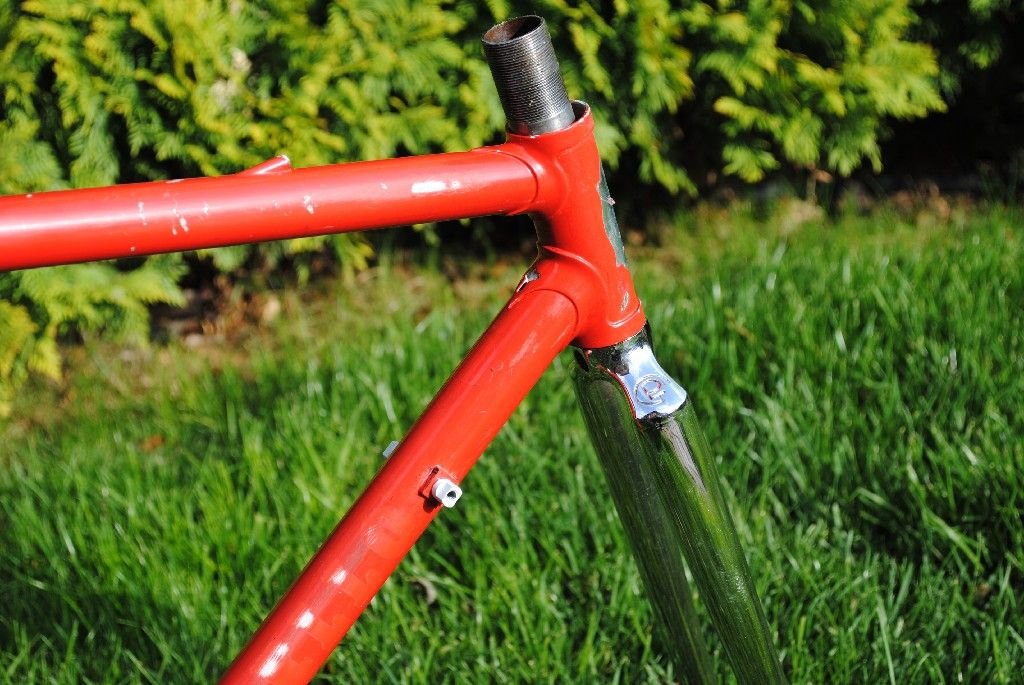

Hi All, I just got a Pinarello frame, though in a bad paint condition and even worse decal , actually stripped off decal condition, it is still identifiable as a pinarello with hints of treviso text decal from the seat tube.
The frame has a serial F875X on the bb shell and matching serial on its fork. One thing I noticed is the shifter cable guide on the BB which Im not really familiar with looking at other Pinarello bike. The frame has Pinarello stamping on lugs and seat stays. Hopoe anyone can help out, im planning to restore this and put on the correct decal set.

I have to ask, what vintage Pinarello doesn’t have chipping paint and disappearing decals?

As for the BB cable guides, yes they are internal and different from my Gavin. With mine the cables run right against the BB shell through 2 loops.

Lol yeah your right. Anyway the BB cable guide is also something that caught my attention on this. I hope anyone can shed some light

So most ~80's Pinarellos have 'Treviso' on the seat tube, but this isn't an indication of model, it's just where they were made.

However, there was a Treviso model. See if you can make out any ghost decals on the top tube near the head tube end.

Typically a Treviso wouldn't have internal cable routing, but they do pop up from time to time. Also, a Treviso would typically have a chainstay bridge, but I think they started to lose them as the 80's wound up.

The Pinarello stamped dropouts and fork tips, along with the BB shell suggest post '87, I'd even go as far as saying '89.

The serial number doesn't really fit the known formats, so I'm wondering if this is a custom job of some description. The BB shell suggests a Gavia or Veneto model (I think) but other details don't support that.

See if there are any internal helical reinforcements to the bottom of the seat tube - this would indicate SLX tubing.

I don't think it's a Montello because there entire rear triangle would typically be chrome, but like everything Pinarello, there are always exceptions.

Might need to do some more research on this one...

Edit: even the brake bridge is giving me a headache - I can't find a model that used that type!

The shape of the missing paint on the head tube suggests the 'old' badge/decal, but by 1989 I thought it would be the stripy decal. Aaaargh!

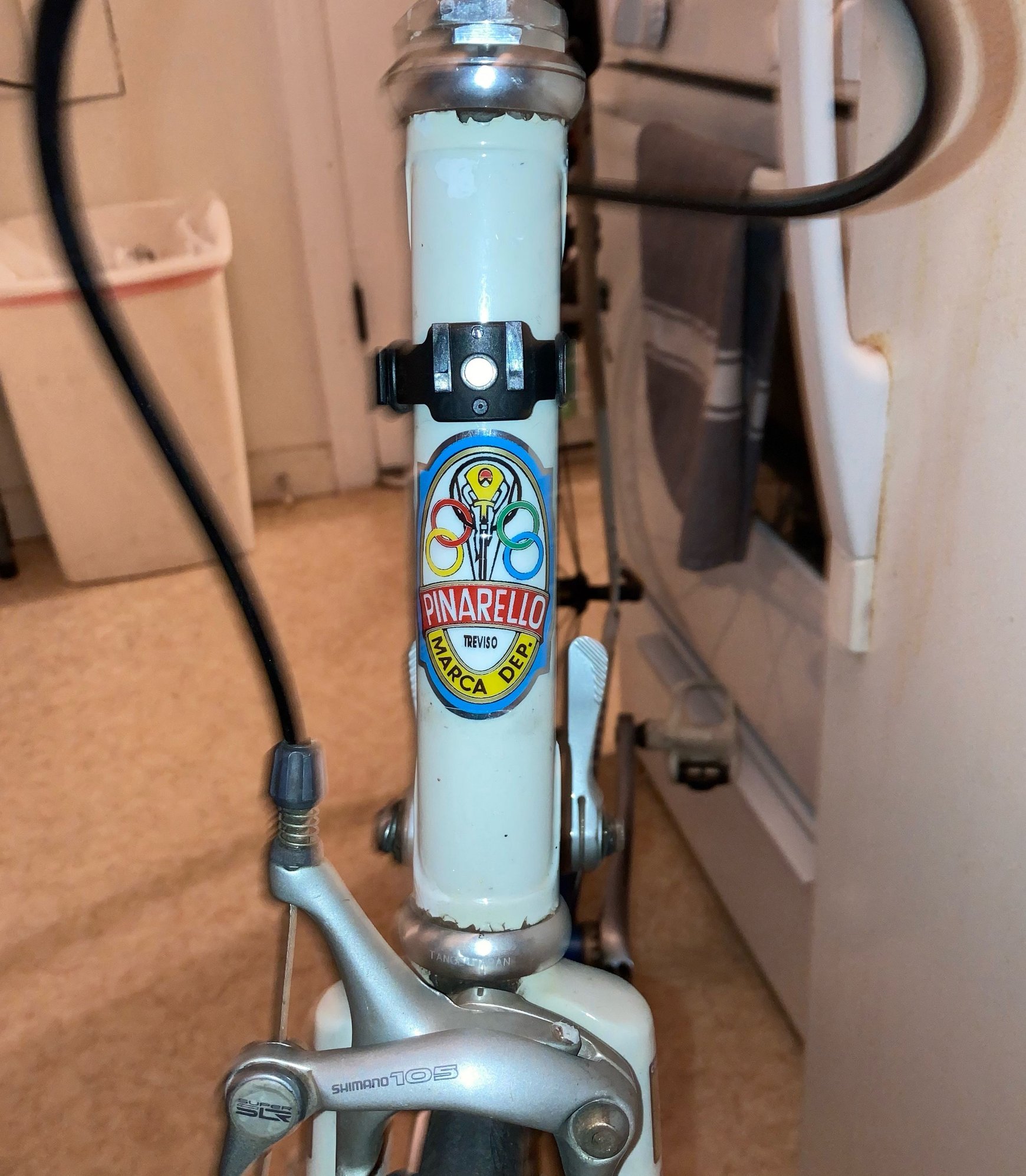

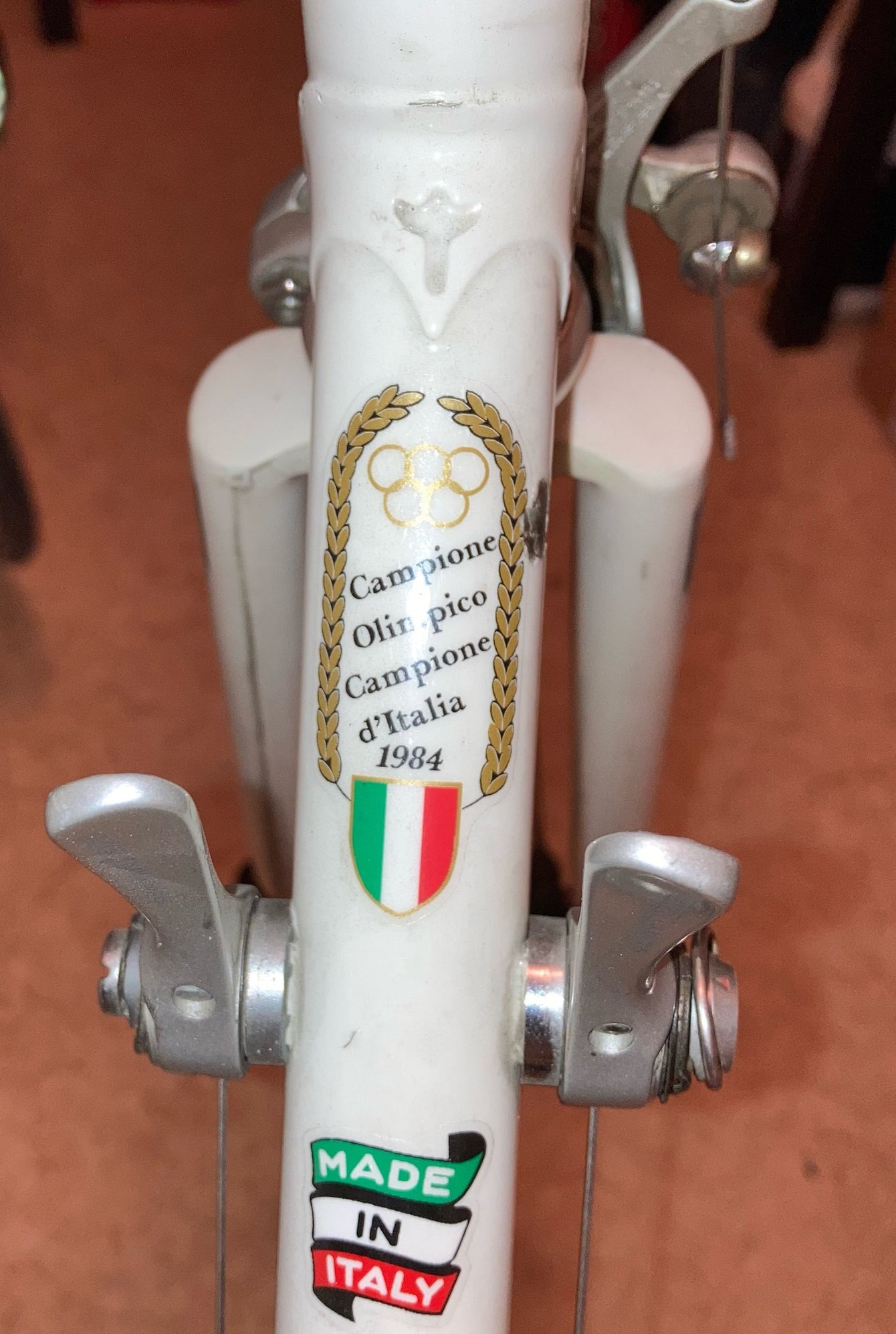

I had one in pearl white and it's one smooth ride.

supposedly an ‘85. enjoyable ride regardless. apologies for the dirt.

I've never seen Pinarello do the internal cable routing like that - it's usually on top with just a simple projecting tube. I wonder if the top tube has been replaced somewhere along the line? What's the serial number? Decals aren't original, I'm sure you know that - mainly because they're still there!

It's difficult because it's almost like there's one of three possible red herrings here. Either the (a) BB shell or (b) the top tube cable routing and dropout/ends, or (c) the head badge. Clearly a Pinarello though.

Through-TT cable routing started in '86 on the Montello only, and continued on the Montello only until around around '90 IIRC. Likewise the Pinarello-stamped DO and fork ends.
They started using the strip of steel for cable guidance under the BB in the '70s, with at least a couple years overlap of that headbadge shape.
Head badge in the shape of that void stopped, what, '86ish?

I'd go with the path of least resistance here. Since we know this is likely not pre-70s due to the TT routing and stamped ends/DO, I'd focus on the BB shell. When did they stop using that setup for cable guidance? That may put you in the right arena..

I'm going to recommend the head badge is the potential herring, if anything, but even that may be legit.

I don't question the OPS bike being a Pinarello. I do question the white one. Other than the cutout on the bottom HT lug, there isn't any clear identification of it being a Pinarello. I have a questionable Veneto with very few markings but it does have GPT on the FD mount and mimics other Pinarello features.

If the white one is really a Pinarello, it would be at the bottom of the line up, if it even got that far down.

I don't doubt it's a Pinarello. But would probably be lower, like an Italia, Asolo, Treviso or something. Looks like this 1991 bike (below) had the same shaped headbadge sticker, bb shell, Pinarello dropouts. But OP's is not this model. However, this shows that - at least by 1991 - this style of shell was being used.

https://steel-vintage.com/pinarello-...ke-1991-detail

Mine has the internal routing on the toptube.

The white bike pictured does have the typical flower shaped cutouts on the lugs, as seen on most Pinarellos......
The absence of Pinarello pantographs on the BB, fork crown and seat stay caps and chrome fork and stays might mean it's a lower to mid level model. I suspect it might have "Pinarello" stamped on its dropouts.

Here's the BB on my Gavia.

gkamieneski Hard to argue that!

I forgot about the DO being Pinarello on the Veneto.

P1020862 on Flickr
P1020843 on Flickr
P1020860 on Flickr
P1020897 on Flickr

Maybe I should start a thread on this one and not hyjack this one\!

This Treviso has similar features to the OP's: BB shell, top tube routing, no chainstay bridge and chrome DS chainstay. Although the dropouts aren't stamped 'Pinarello'. If we ignore the 'x' in the OP's serial number, the formats are the same - X###. Supposedly from 1992.

https://pezcyclingnews.com/amp/reade...vuelta-winner/

It's interesting that sometimes the dropouts are Campagnolo, sometimes pantographed Pinarello. I suspect the same with things like the seat post binder bolt. My Gavia has a Pinarello bolt, but my replacement bolt is Campagnolo.
