Ever heard of Radius?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Ever heard of Radius?

Old 04-27-21, 08:20 AM
  #1
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts

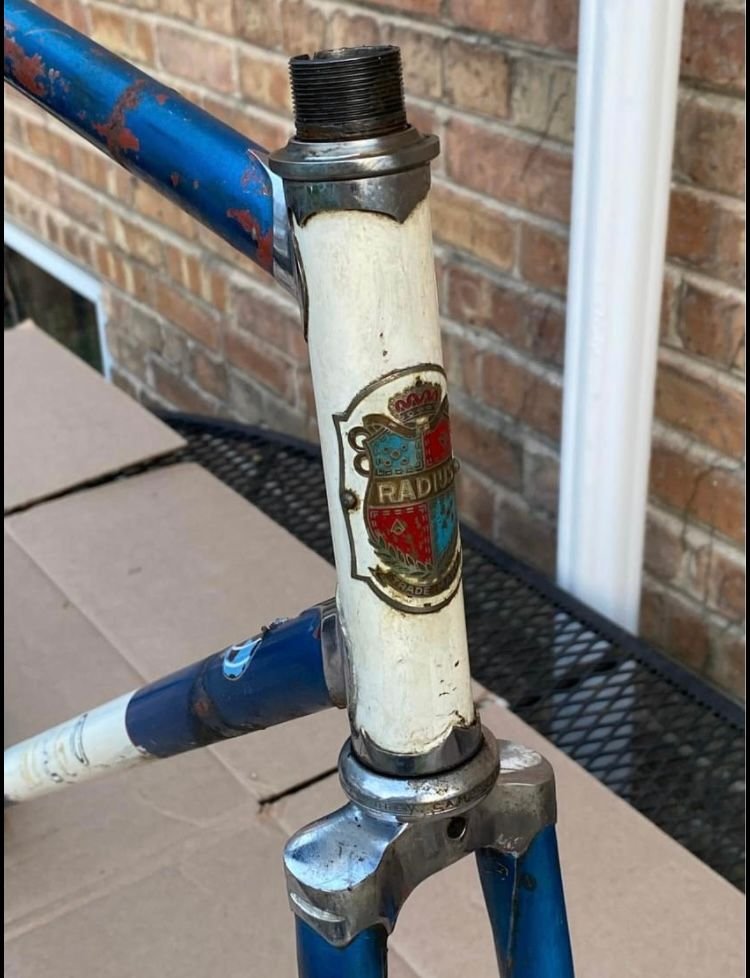

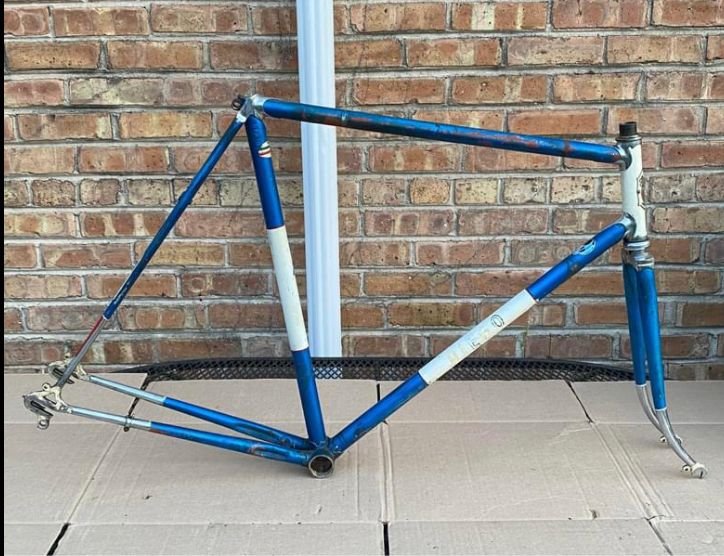

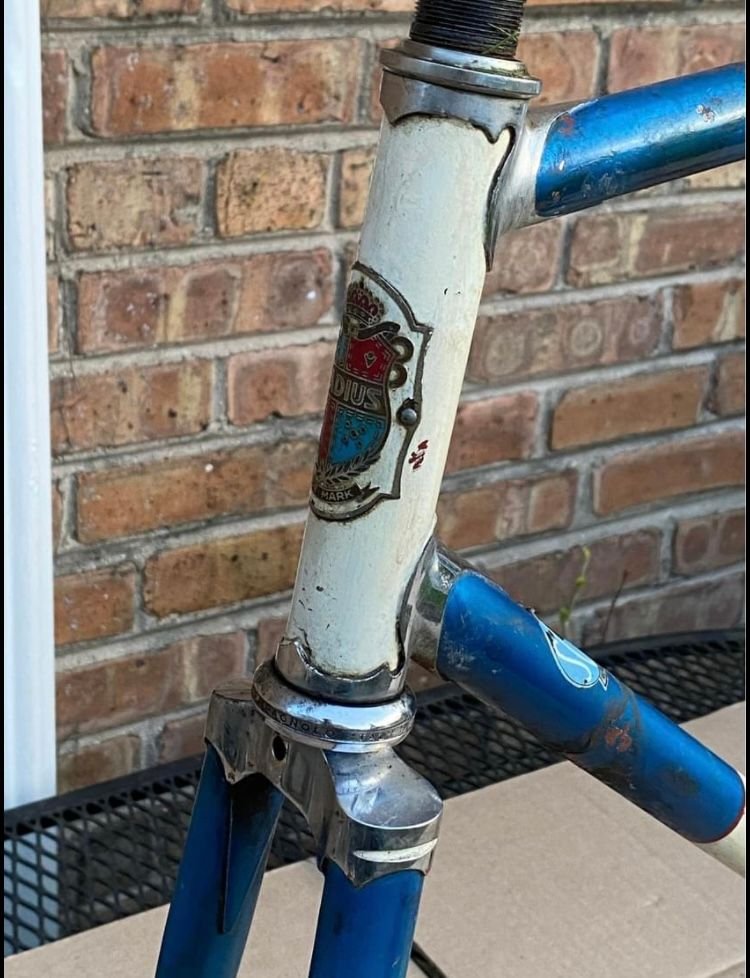

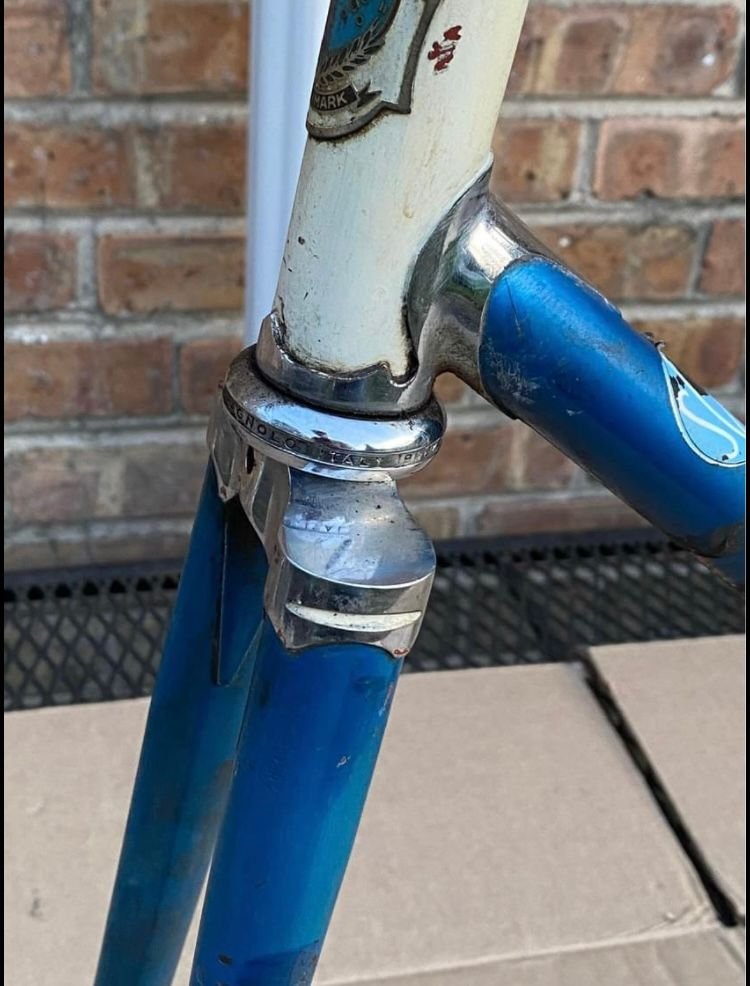

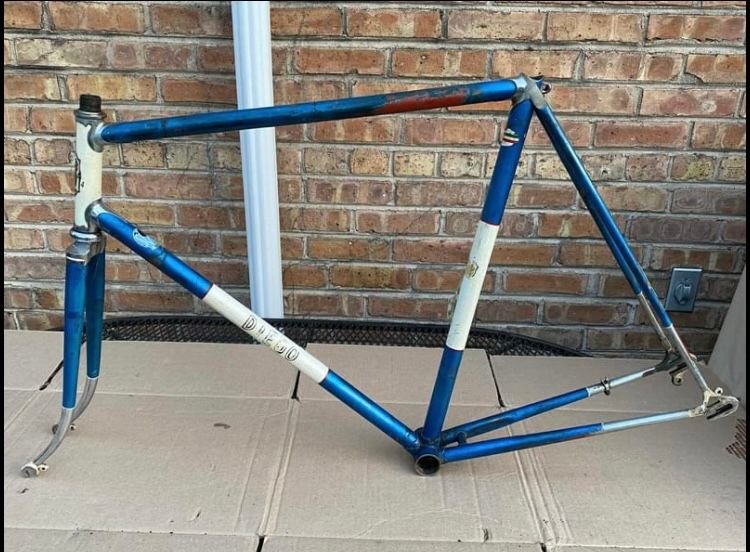

Ever heard of Radius?

1970ís Italian steel. Canít find any info about this brand.

Paint is in rough shape but seems like a quality frame.










__________________
b dub is offline
Old 04-27-21, 08:39 AM
  #2
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,881
Mentioned: 607 Post(s)
Tagged: 1 Thread(s)
Quoted: 4536 Post(s)
Likes: 0
Liked 2,673 Times in 1,688 Posts
Radius was one of the brands owned and manufactured by the Rizzato company, which was best known for their Atala brand. The Rizzato origin is confirmed by the serial number format, which is located on the drive side of the upper seat tube and in this case indicates a 1967 model.

Given the era and characteristics, Id' expect Columbus SL or SP tubing, the former which would use a 27.2mm seat post, while the latter would use 27.0mm. The presence of one of these two tubeset can also be confirmed by the presence a Columbus steering column for the fork, with five helical ridges on the inside, at the bottom. If you remove the fork, there should also be the Columbus dove logo stampoed into the outside of the steering column.

Nice acquisition. Enjoy!
T-Mar is offline
Likes For T-Mar:
Old 04-27-21, 08:44 AM
  #3
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts
Originally Posted by T-Mar View Post
Radius was one of the brands owned and manufactured by the Rizzato company, which was best known for their Atala brand. The Rizzato origin is confirmed by the serial number format, which is located on the drive side of the upper seat tube and in this case indicates a 1967 model.

Given the era and characteristics, Id' expect Columbus SL or SP tubing, the former which would use a 27.2mm seat post, while the latter would use 27.0mm. The presence of one of these two tubeset can also be confirmed by the presence a Columbus steering column for the fork, with five helical ridges on the inside, at the bottom. If you remove the fork, there should also be the Columbus dove logo stampoed into the outside of the steering column.

Nice acquisition. Enjoy!
I donít have it yet. Checking it out later today. Iím so glad you provided above info. Yeah, should be fun project.

I have been hanging onto a full Campagnolo Record group from 1966 so this should be a great match.

Last edited by b dub; 04-27-21 at 08:50 AM.
b dub is offline
Likes For b dub:
Old 04-27-21, 08:53 AM
  #4
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts
Now Iím getting somewhere.


__________________
b dub is offline
Old 04-27-21, 01:07 PM
  #5
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

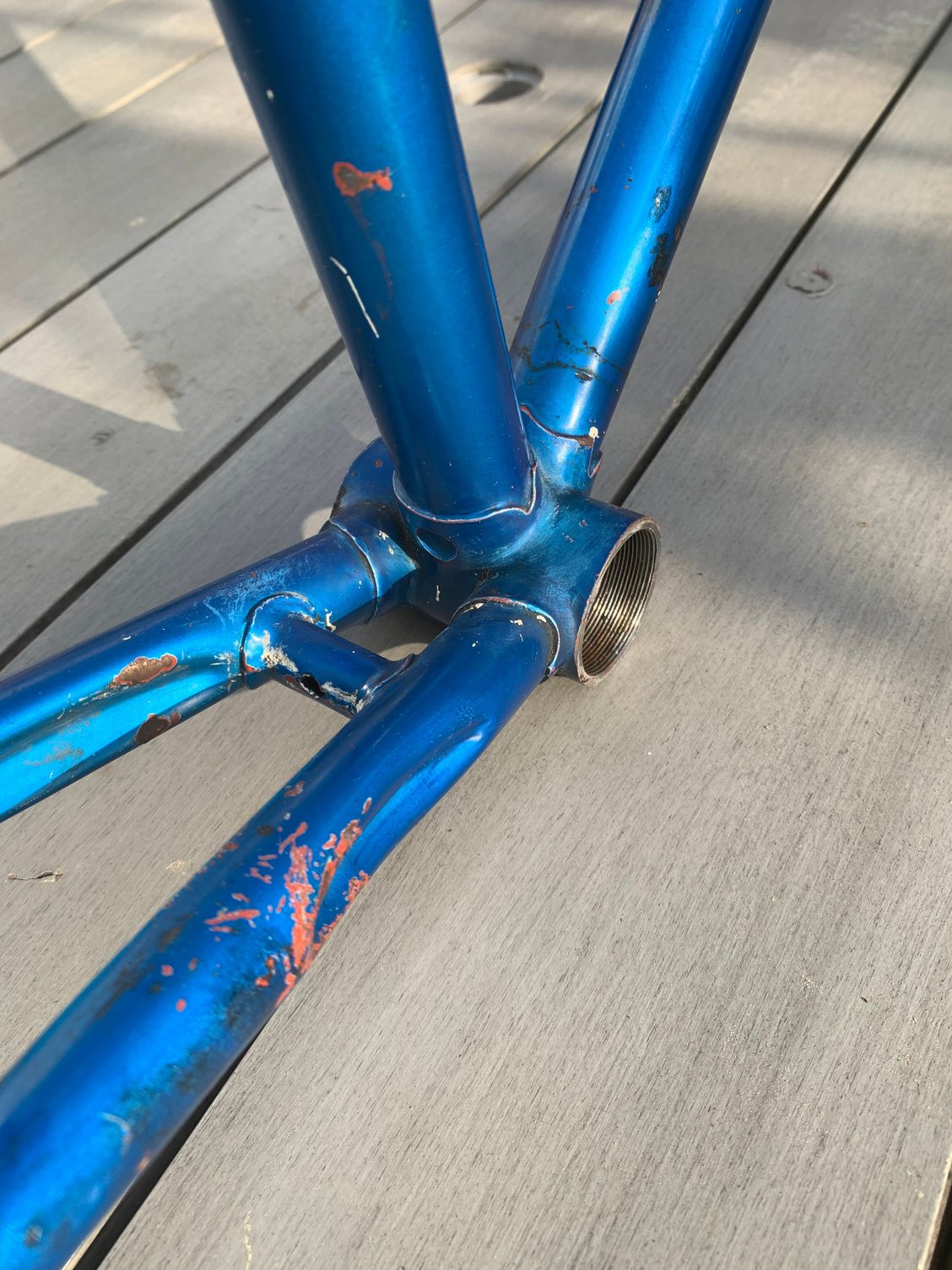

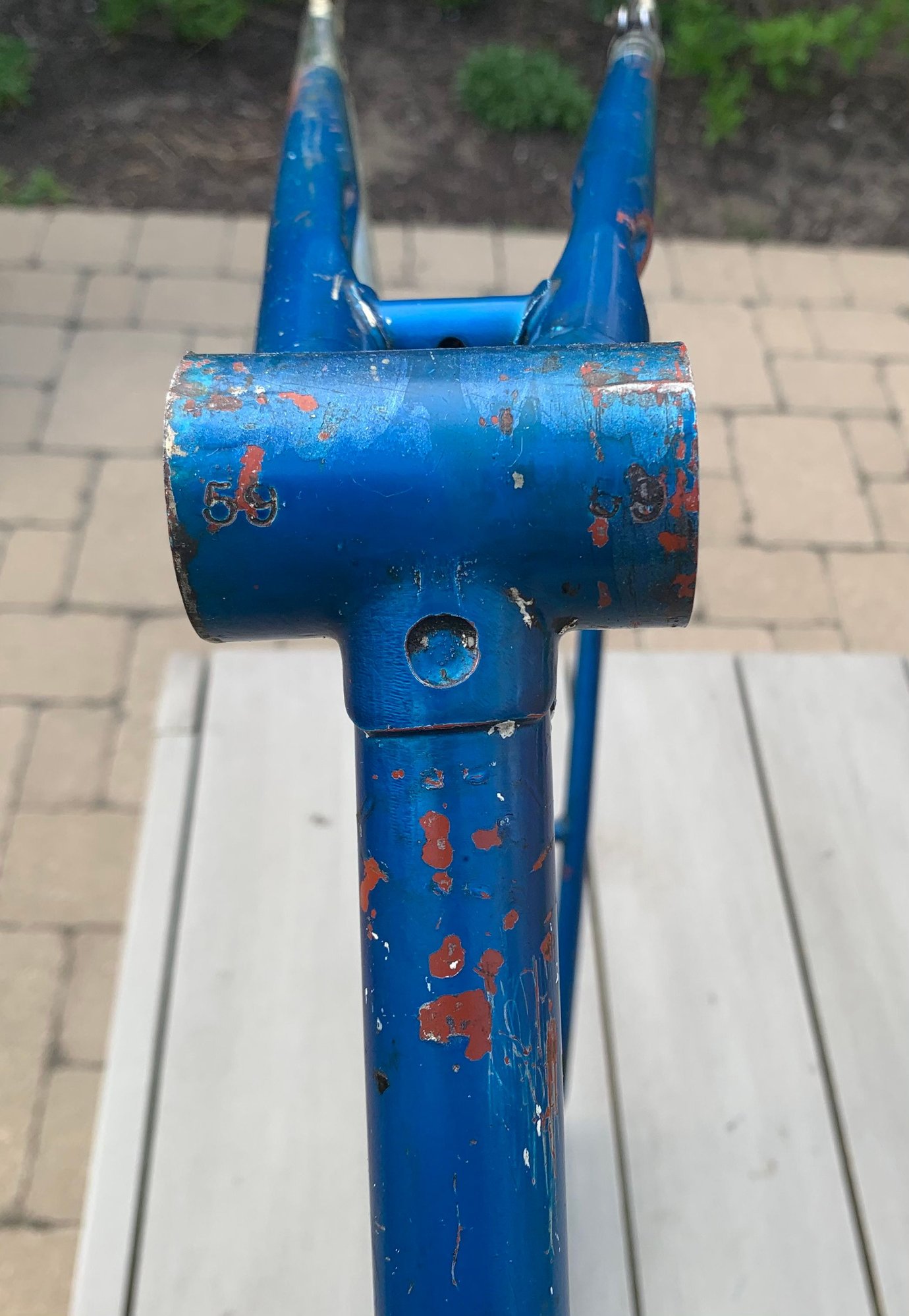

the underside of the shell may exhibit a number 23 in two places

this is the frame's nominal size as measured in inches, measuring c-t-t

another badge owned by Rizzato not shown in the emblem illustration is that of Maino

lug pattern Prugnat 62/d

frame same as that of the Atala model Professional


-----

Last edited by juvela; 04-27-21 at 01:12 PM. Reason: addition
juvela is offline
Old 04-27-21, 01:42 PM
  #6
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,241

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1890 Post(s)
Liked 2,678 Times in 1,171 Posts
That is a lovely frame! Looks like it should clean up well. Looking forward to seeing more of it.
__________________
Woo hoo!









non-fixie is online now
Old 04-27-21, 02:27 PM
  #7
smontanaro
Senior Member

Join Date: Aug 2007
Location: Evanston, IL
Posts: 4,966

Bikes: many

Mentioned: 56 Post(s)
Tagged: 0 Thread(s)
Quoted: 1072 Post(s)
Liked 699 Times in 404 Posts
b dub We can compare frames. My 1970 Atala Super Professional is hanging in the basement, devoid of parts.
__________________
Contact me to help Doug Fattic's colleagues in Ukraine

smontanaro is offline
Old 04-27-21, 03:01 PM
  #8
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

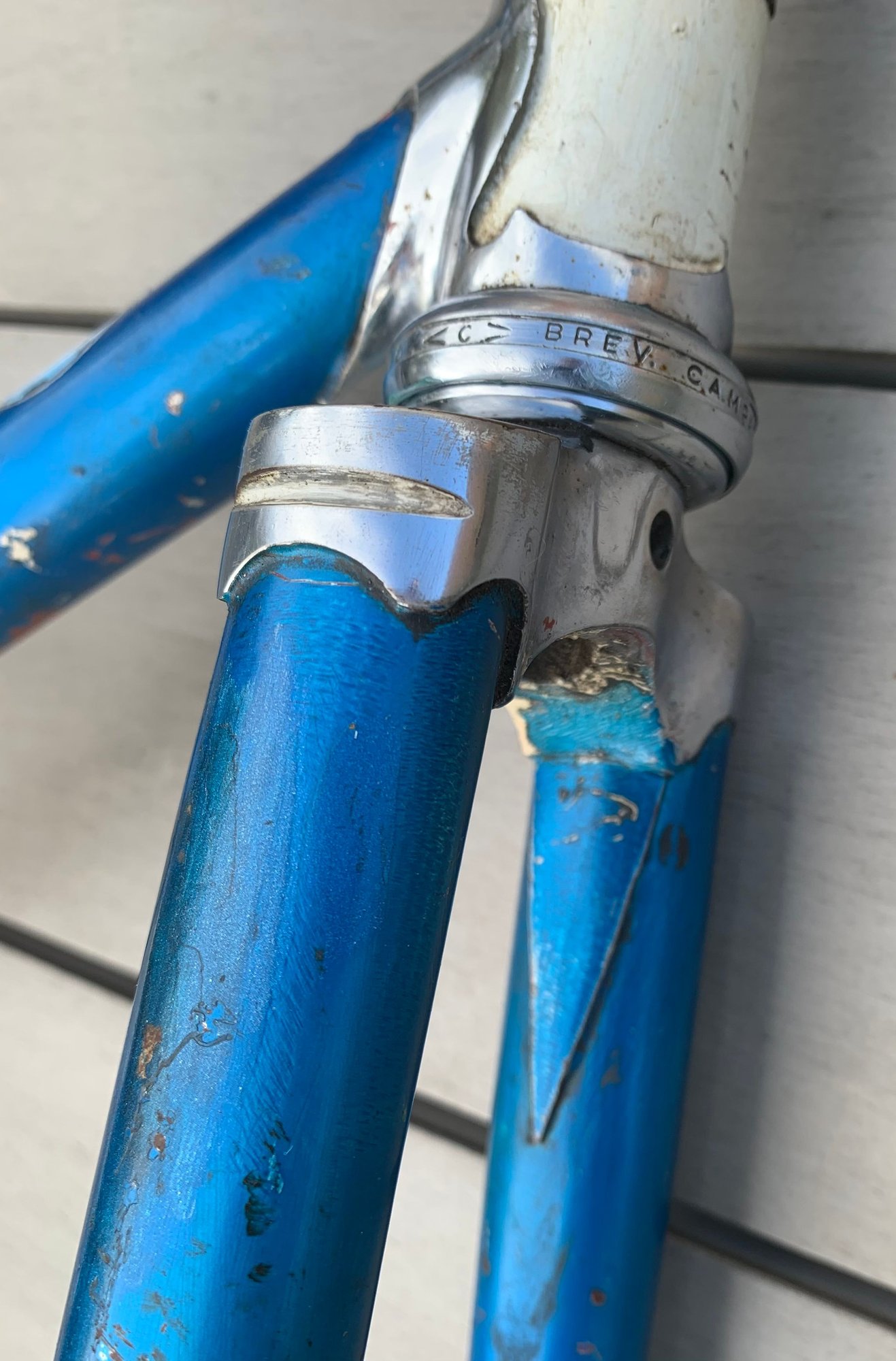

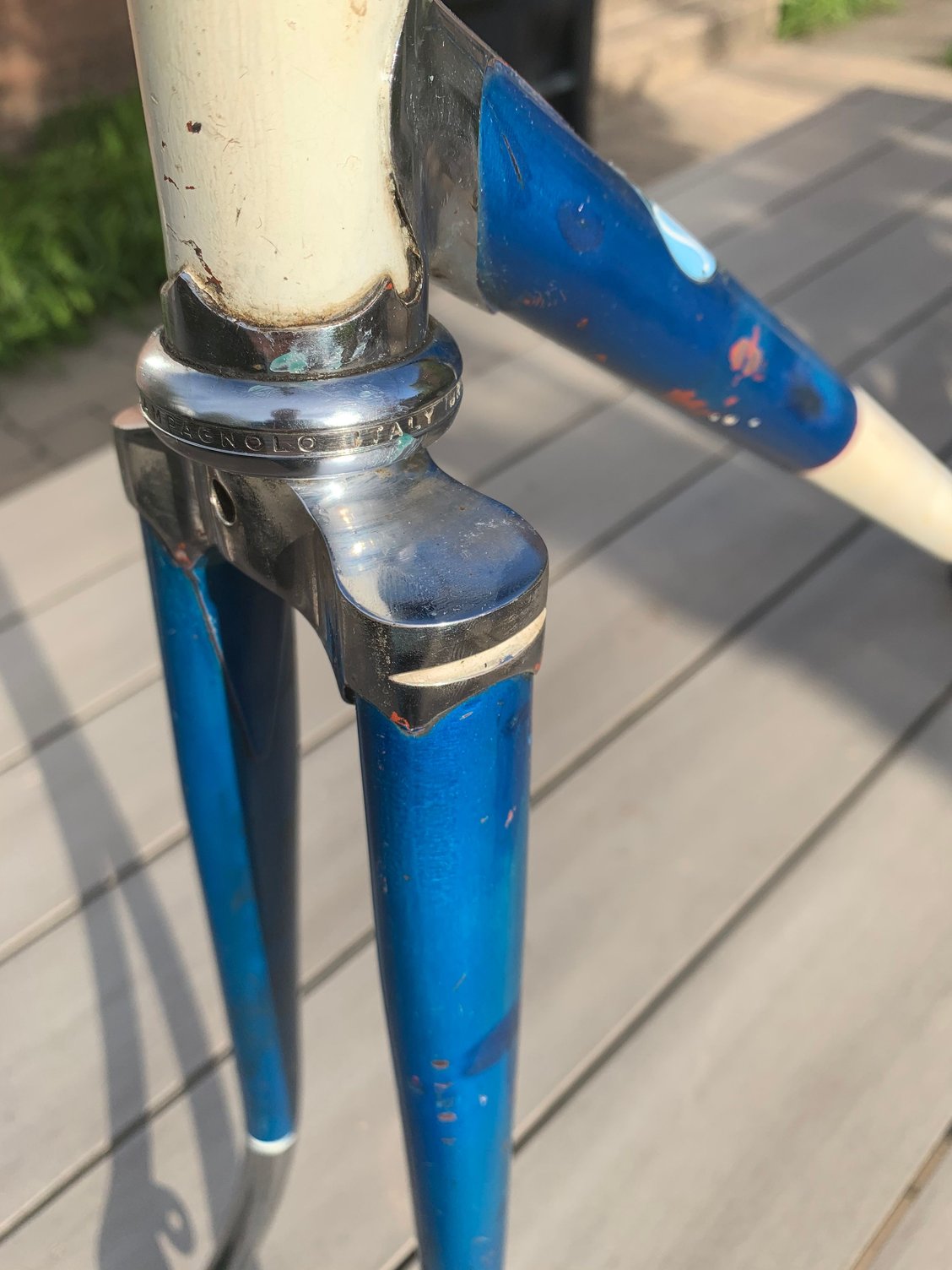

one minor feature it does not show is the vee shape at the junction of paint and chrome on the taper tubes

some examples show it and some do not

at first thought it might have to do with model year but seems they went back and forth with regard to this feature...

perhaps our Rizzato experts shall be able to comment

-----
juvela is offline
Old 05-01-21, 05:25 PM
  #9
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts

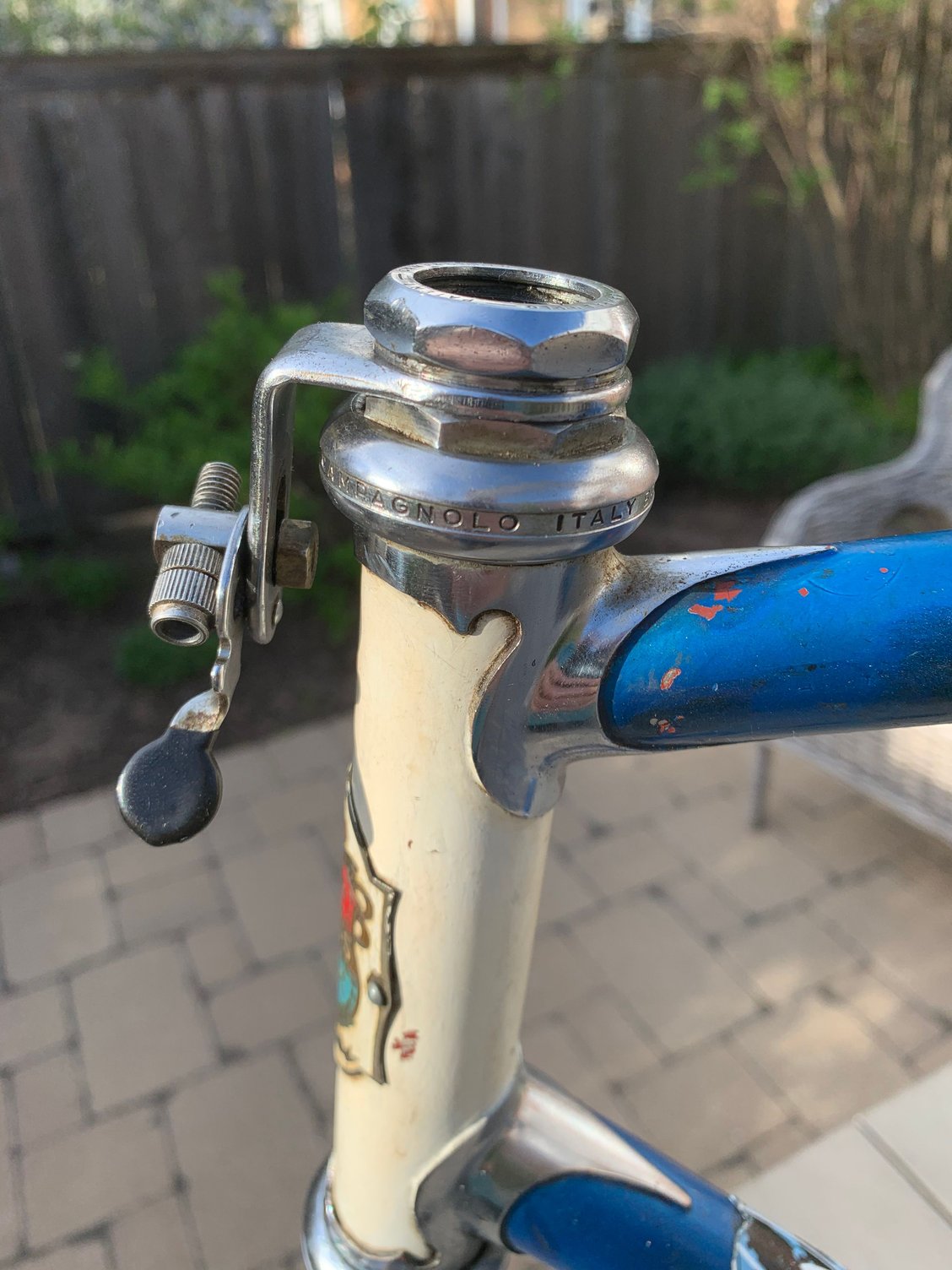

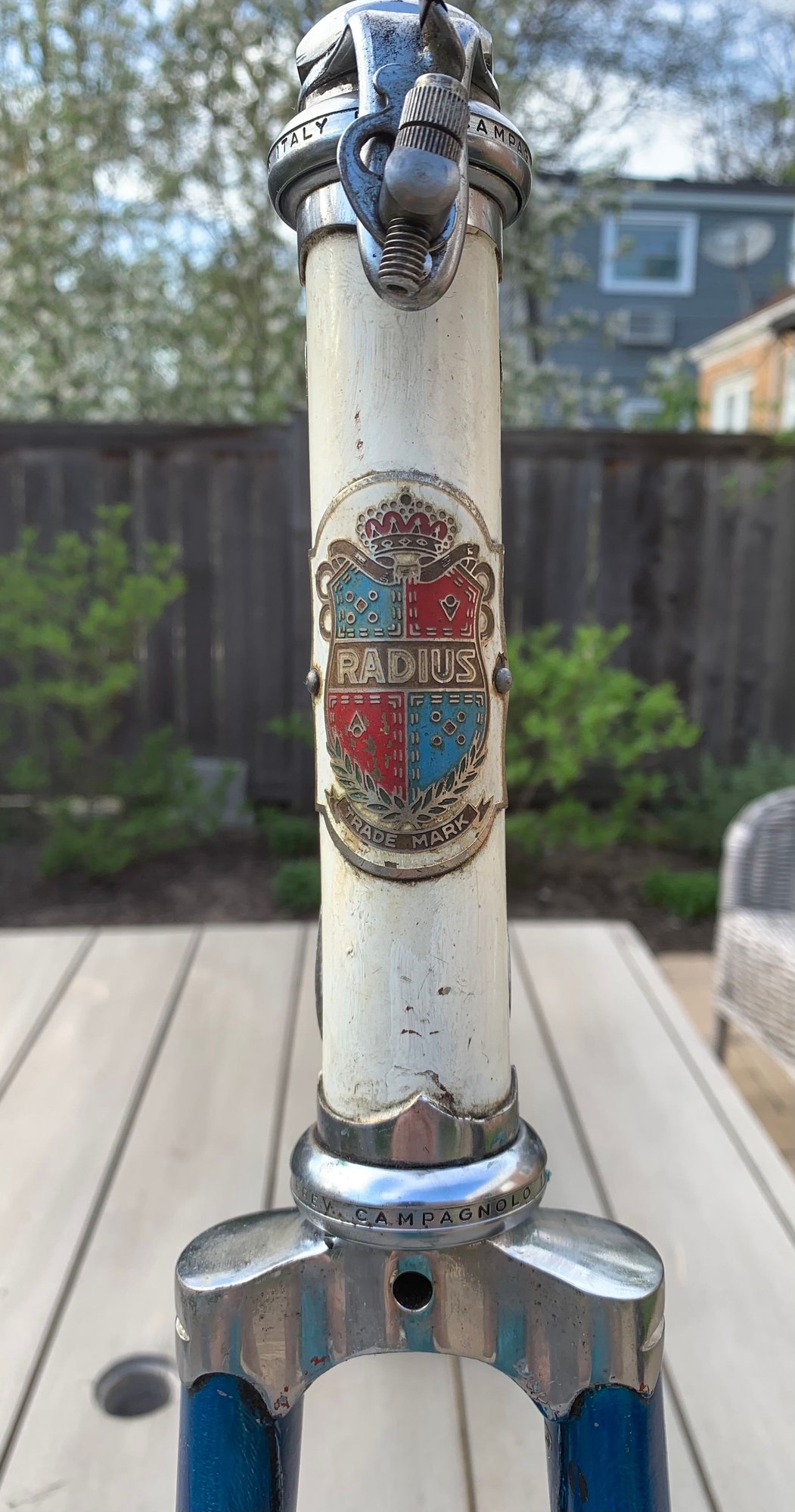

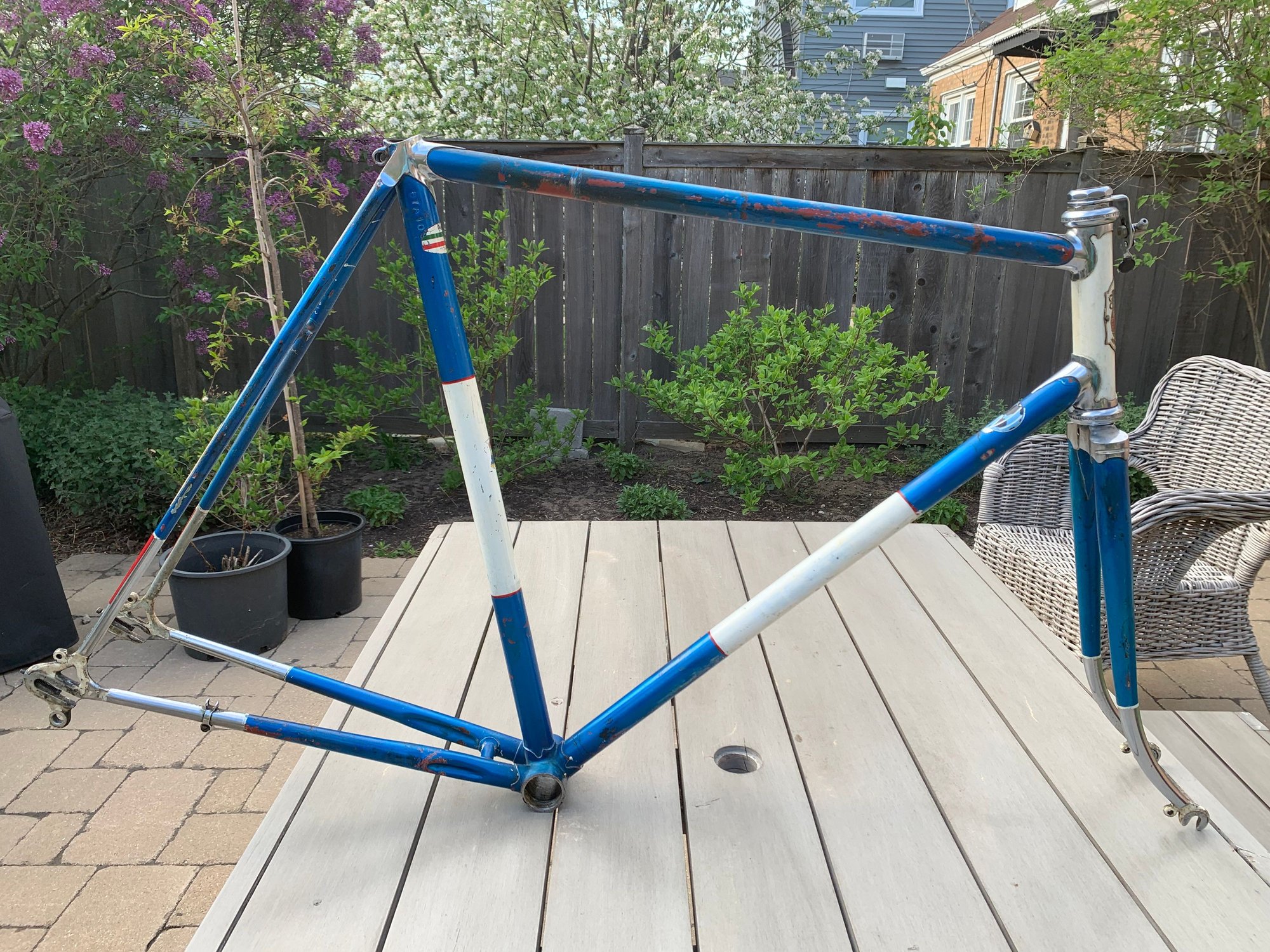

I picked up the frame today. As known the paint is in rough shape but the frame seems solid.













The period correct Campagnolo Record group I have available to build this frame up with includes a 27.2 seat post but it doesnít fit. Iíll confirm later that a 27.0 post does fit.

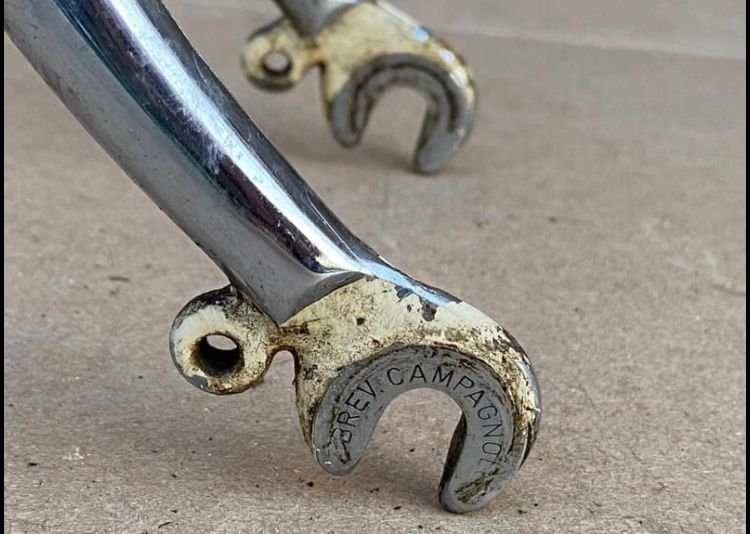

I checked the fork but donít see the Columbus dove.
__________________
b dub is offline
Old 05-01-21, 05:33 PM
  #10
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts








__________________
b dub is offline
Old 05-01-21, 05:36 PM
  #11
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts

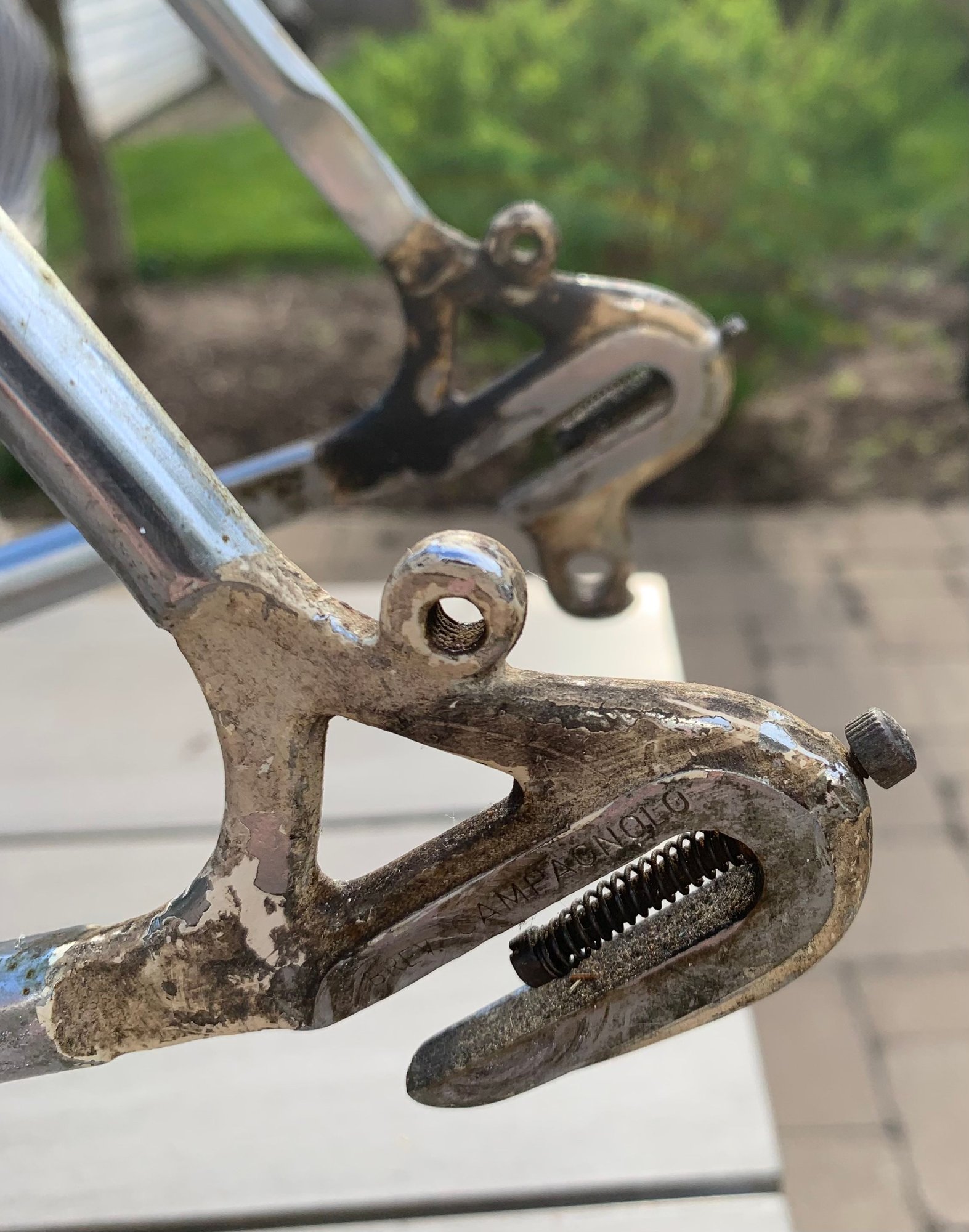

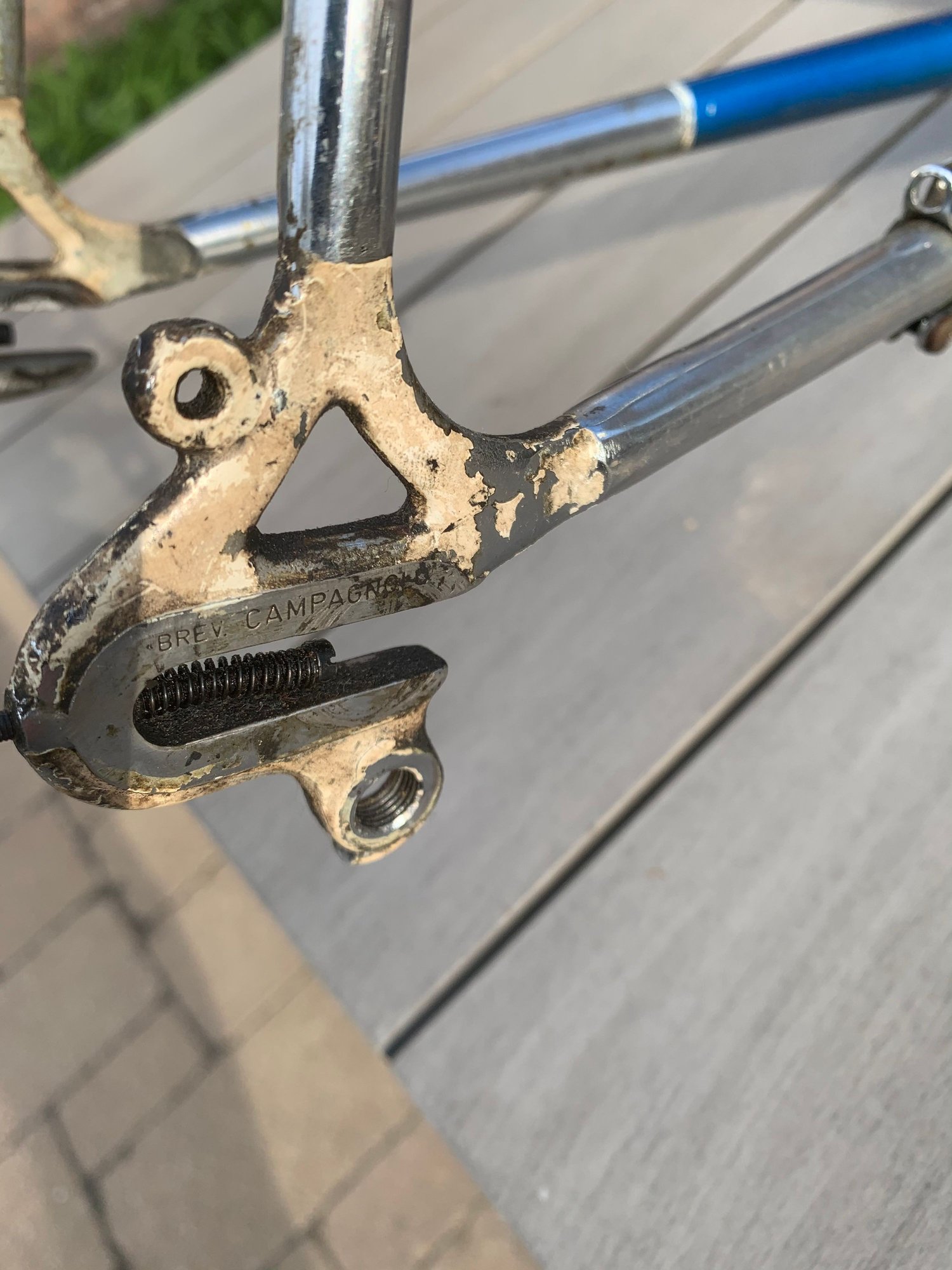

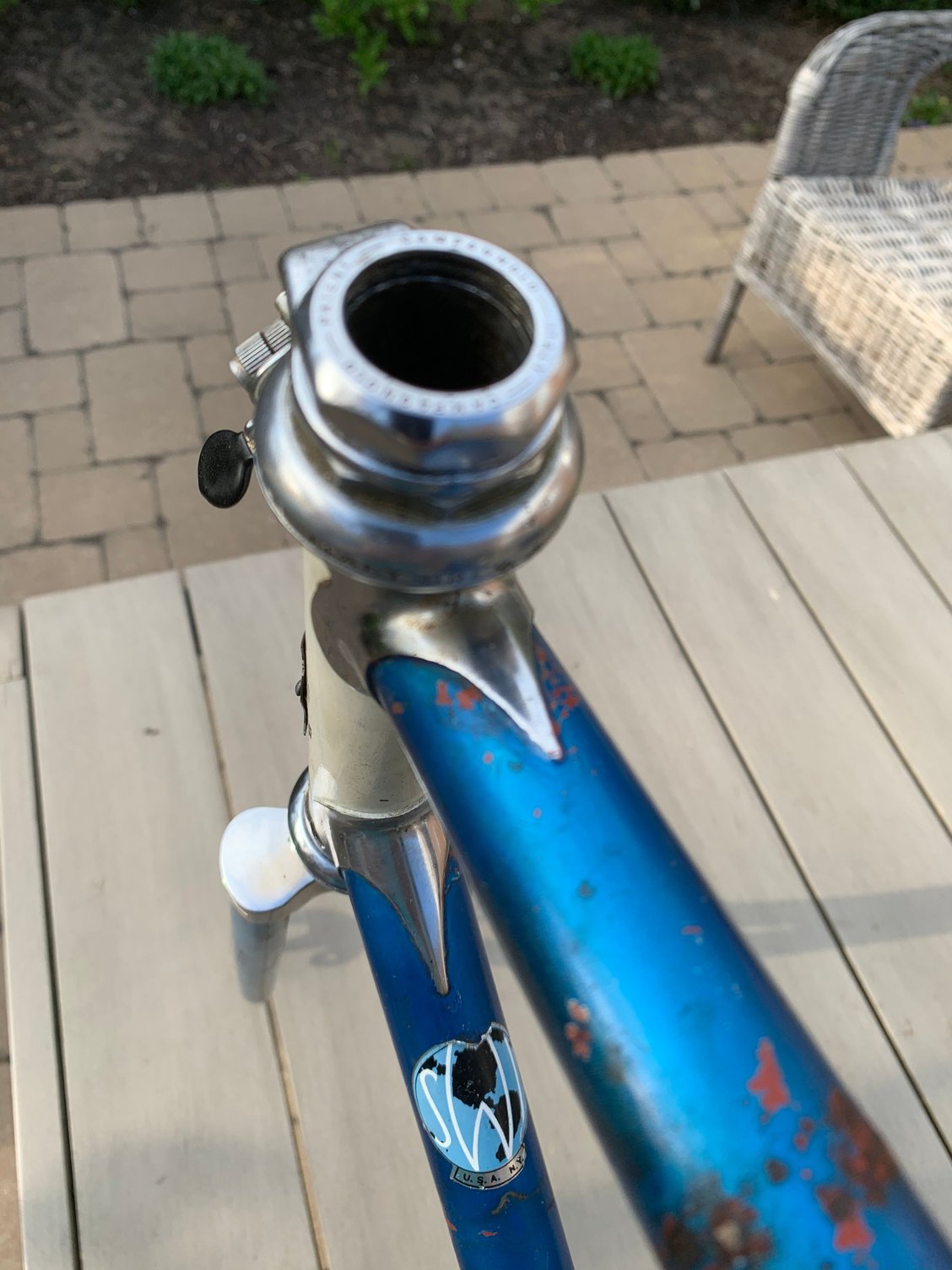

There is more clean up to be done but Iím liking the results. I was able to remove 99% of ďDIEGOĒ stick on stickers so far.
b dub is offline
Old 05-01-21, 06:58 PM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,923
Mentioned: 331 Post(s)
Tagged: 1 Thread(s)
Quoted: 2890 Post(s)
Liked 1,473 Times in 1,074 Posts
-----

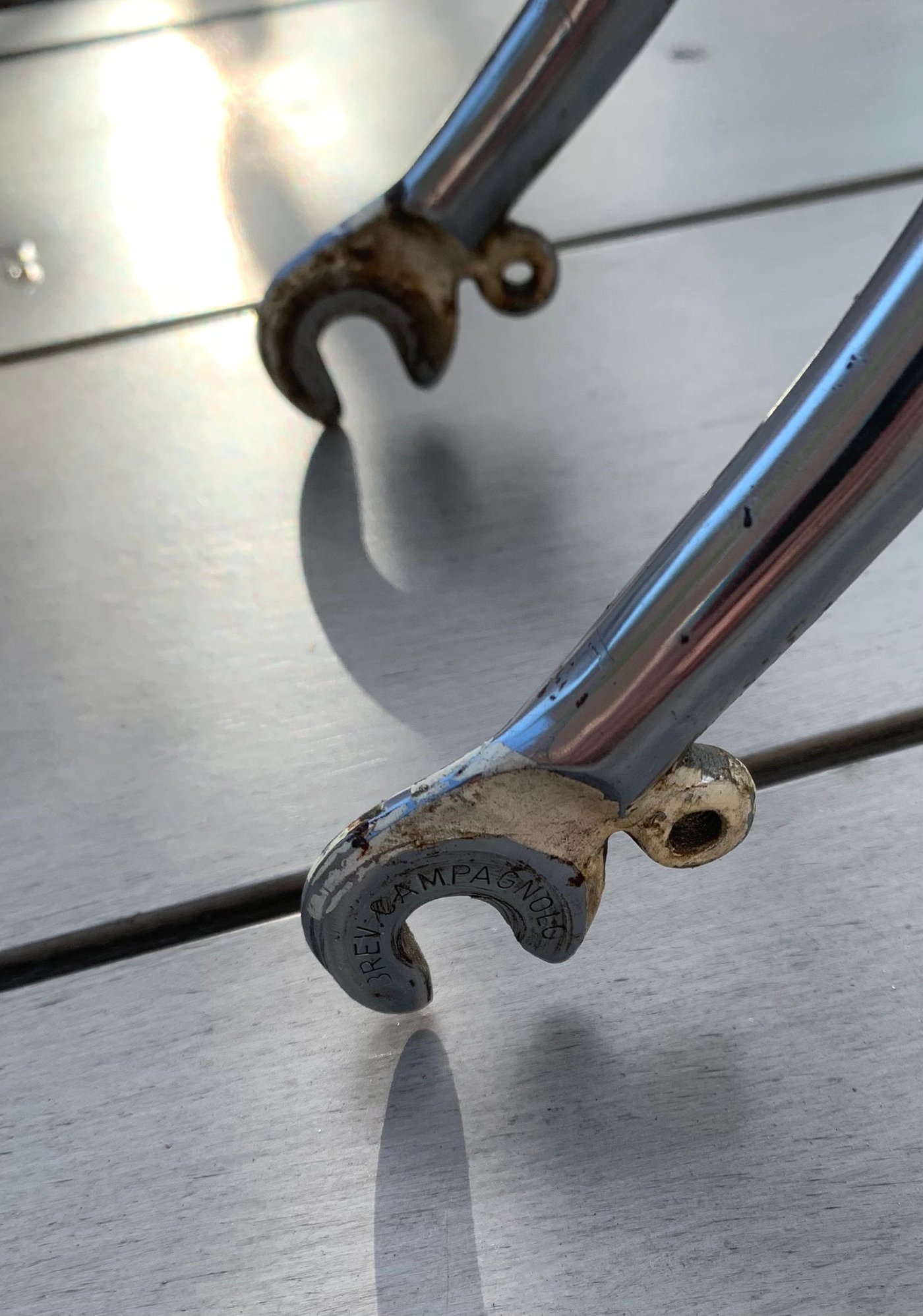

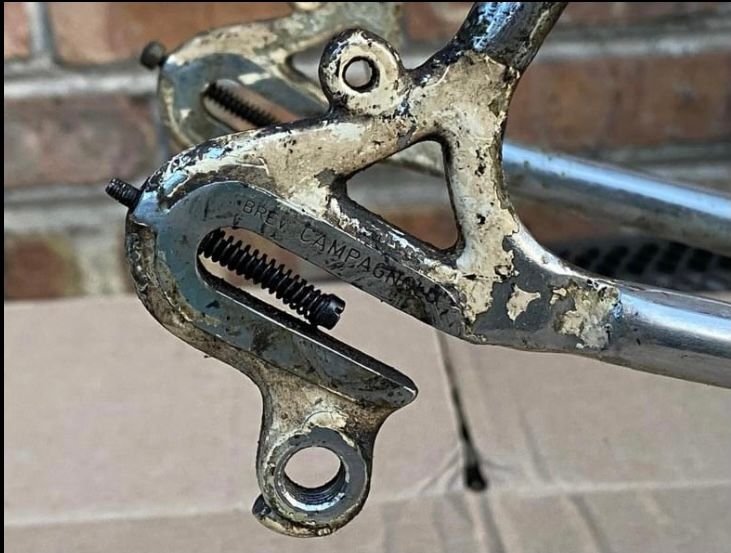

for readers who have not seen one these Rizzatos of this era previously the white paint on the frame ends is indeed from the factory - appreciate it looks peculiar at first glance...


-----
juvela is offline
Old 05-01-21, 07:00 PM
  #13
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts
Originally Posted by juvela View Post
-----

for readers who have not seen one these Rizzatos of this era previously the white paint on the frame ends is indeed from the factory - appreciate it looks peculiar at first glance...


-----
Iím not touching it😀

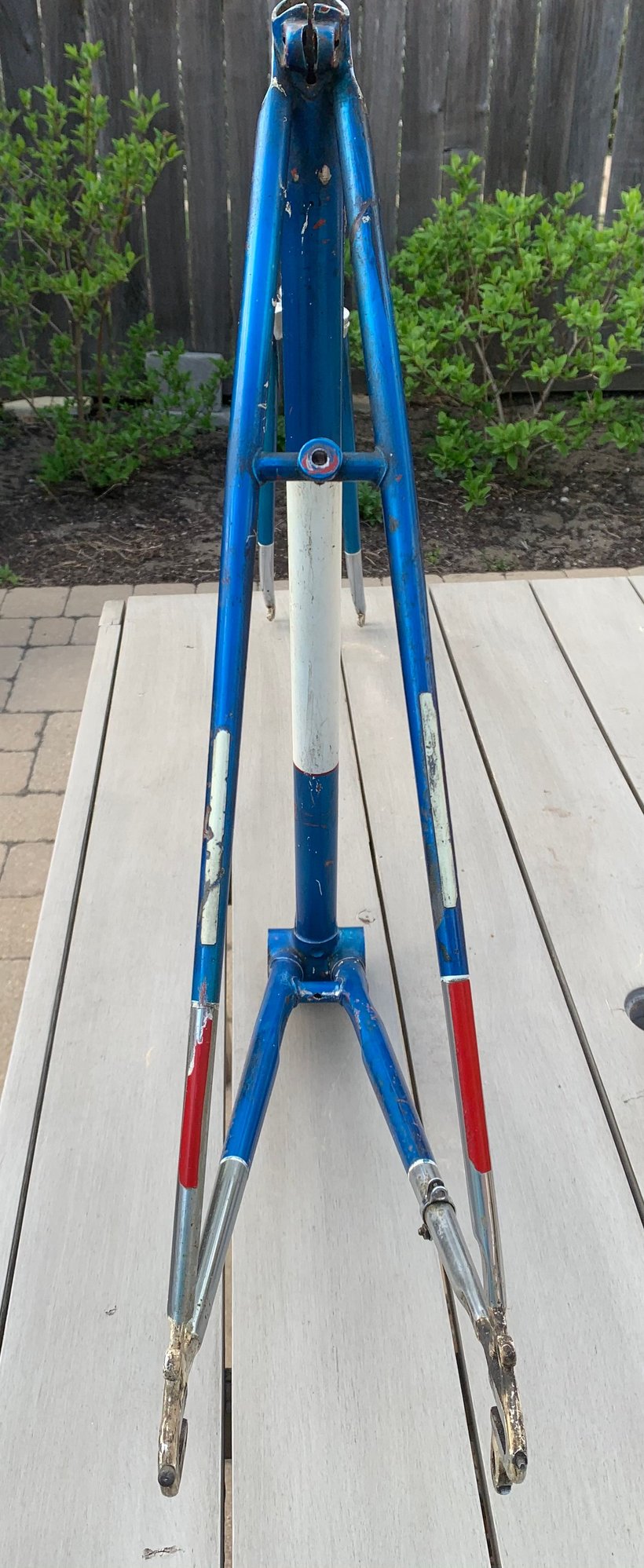

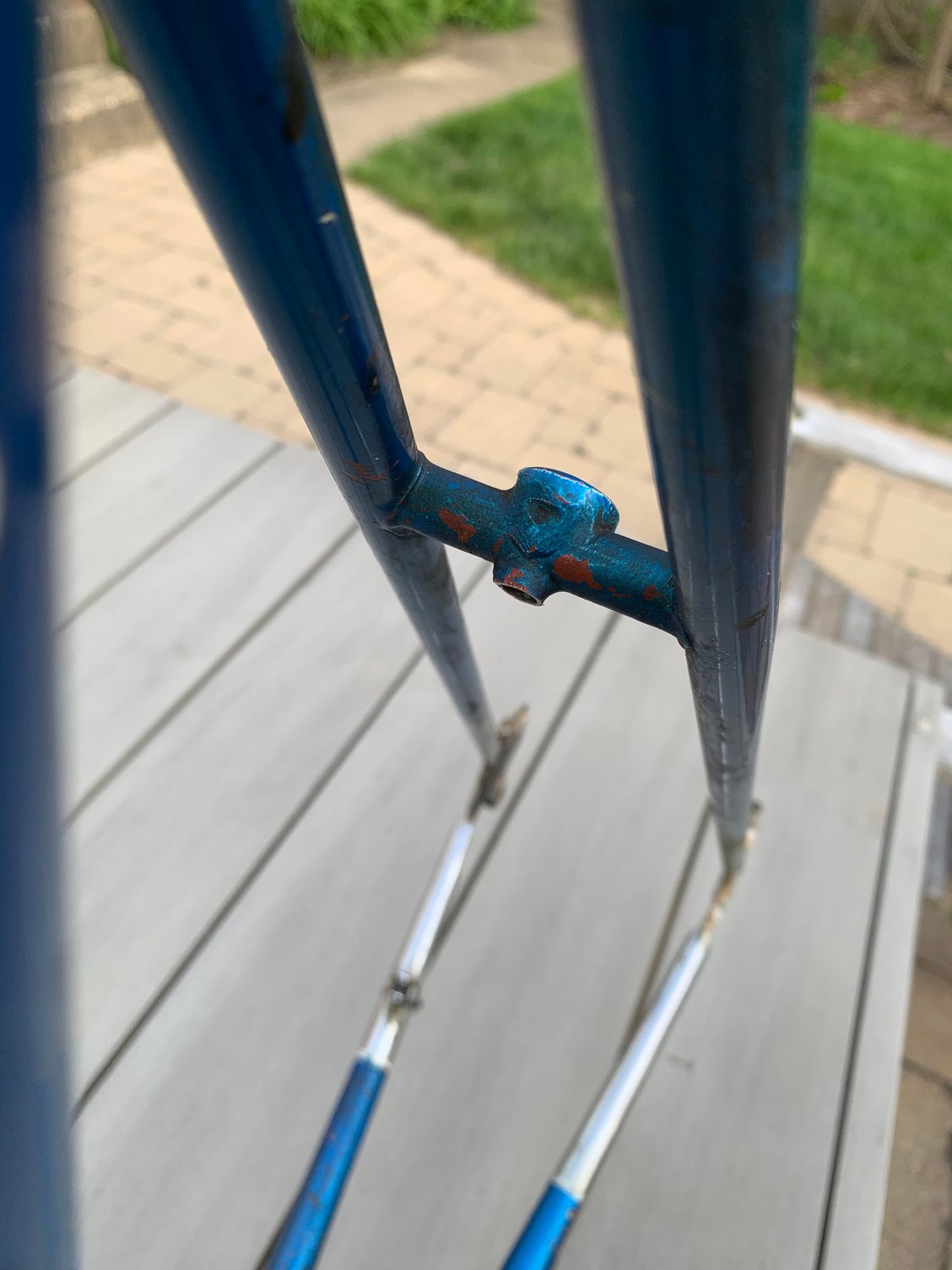

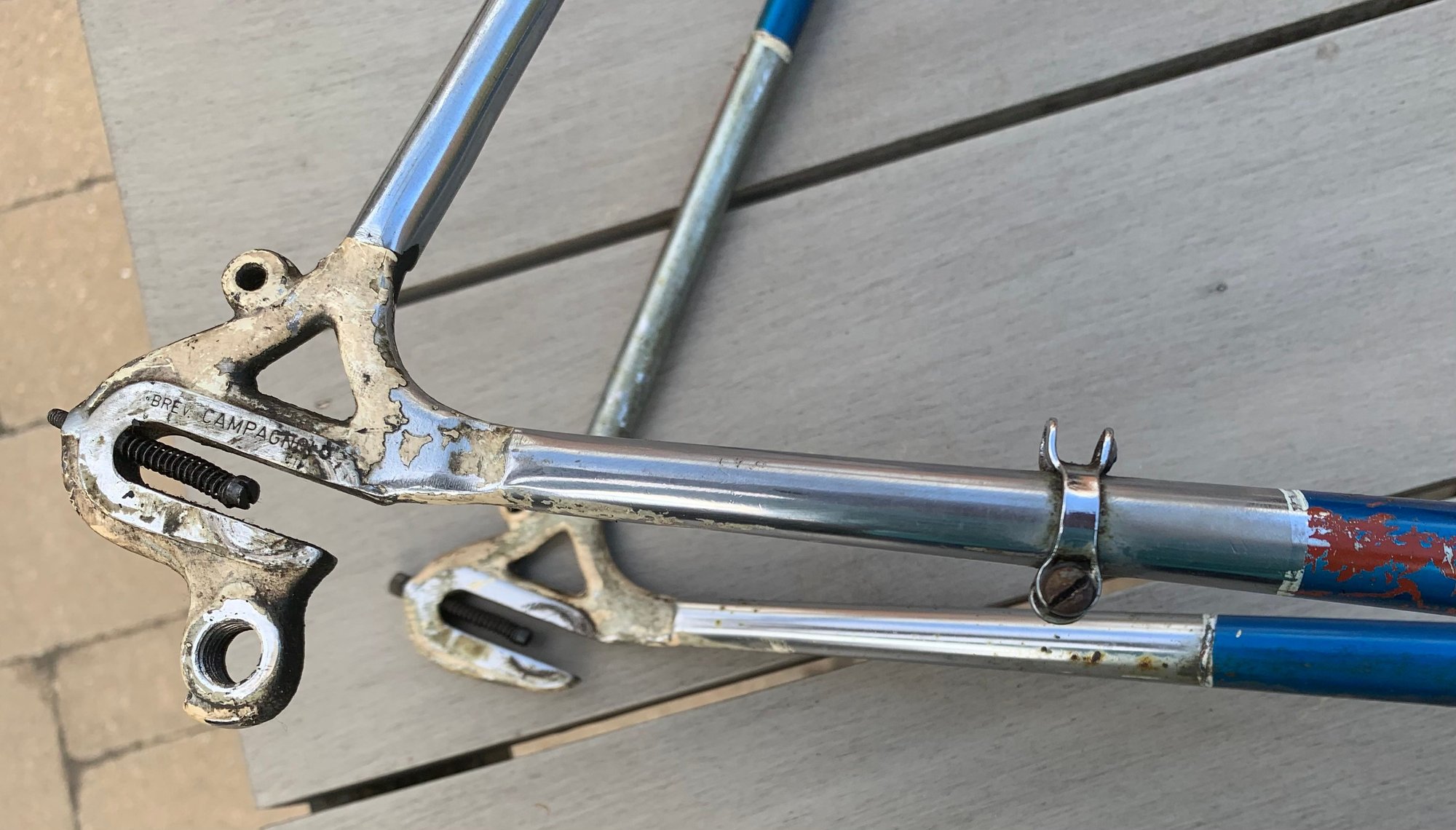

I am however removing the white and red reflective strips on the back. This frame clearly has had a live.

Last edited by b dub; 05-01-21 at 07:25 PM.
b dub is offline
Old 05-01-21, 07:02 PM
  #14
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts

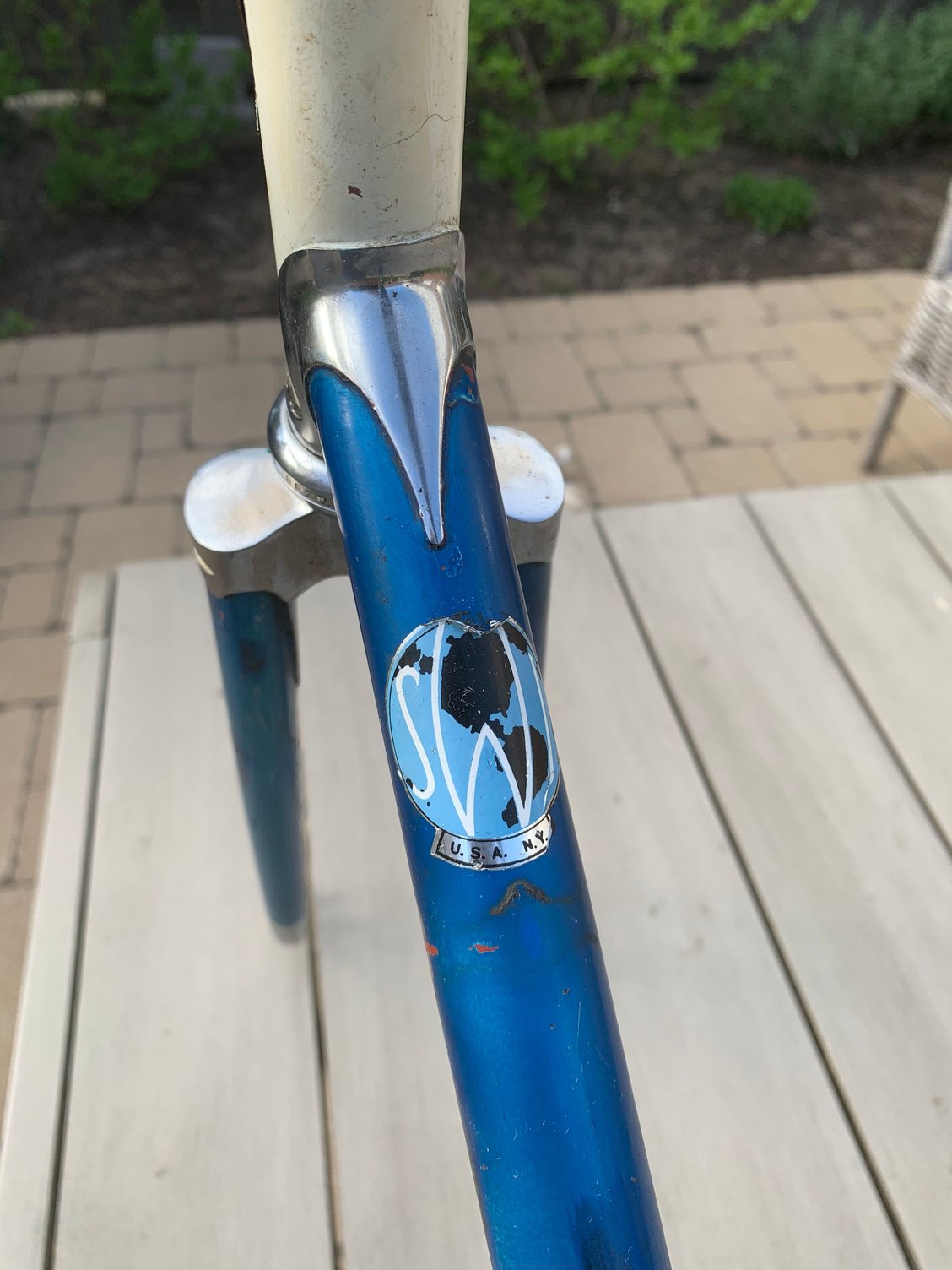

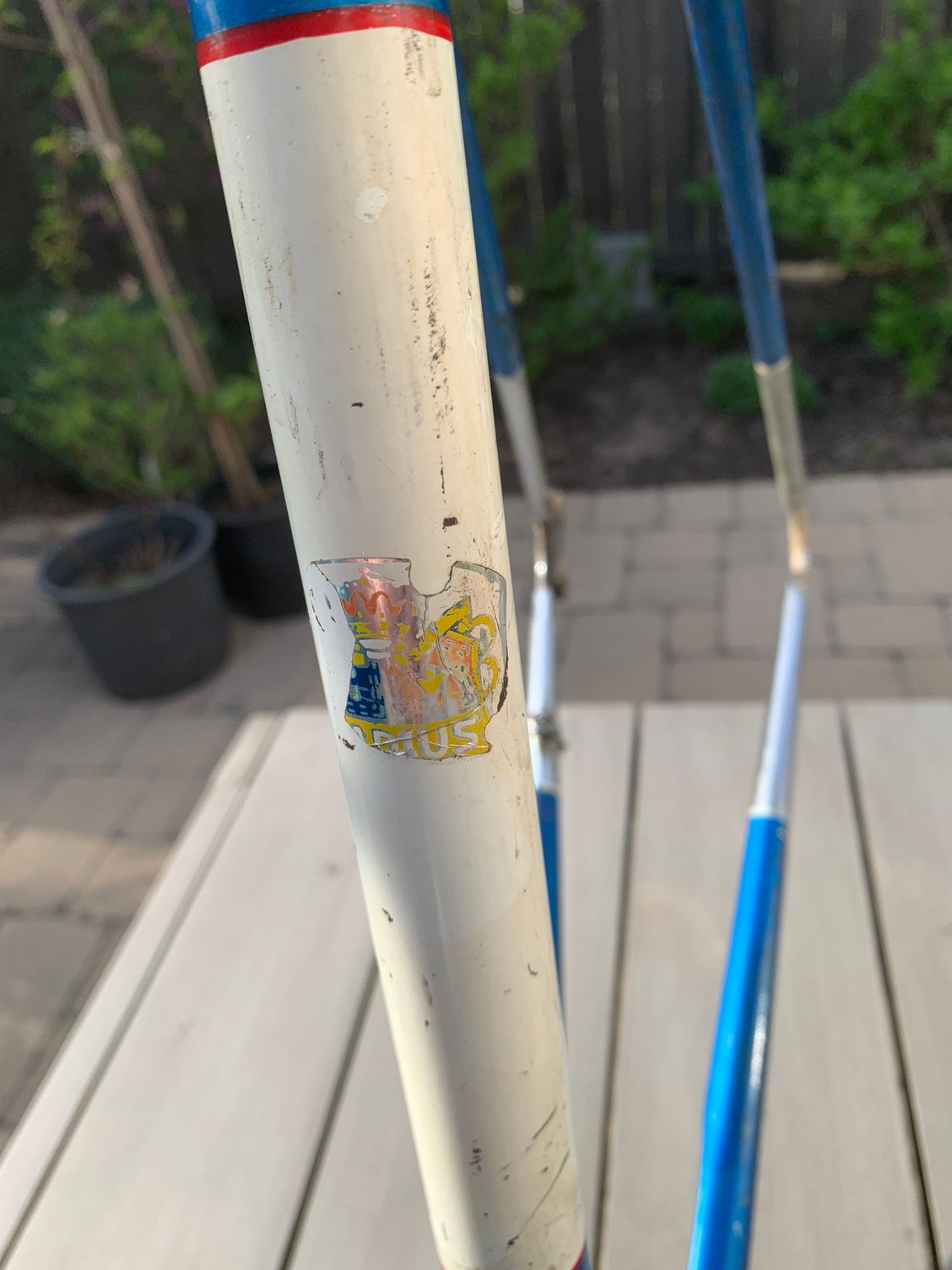

Is this bike shop sticker original? Should I leave it alone? Looks more recent.

Last edited by b dub; 05-01-21 at 07:28 PM.
b dub is offline
Old 05-01-21, 08:43 PM
  #15
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,881
Mentioned: 607 Post(s)
Tagged: 1 Thread(s)
Quoted: 4536 Post(s)
Likes: 0
Liked 2,673 Times in 1,688 Posts
Originally Posted by b dub View Post
I picked up the frame today. As known the paint is in rough shape but the frame seems solid.
The period correct Campagnolo Record group I have available to build this frame up with includes a 27.2 seat post but it doesnít fit. Iíll confirm later that a 27.0 post does fit.

I checked the fork but donít see the Columbus dove.

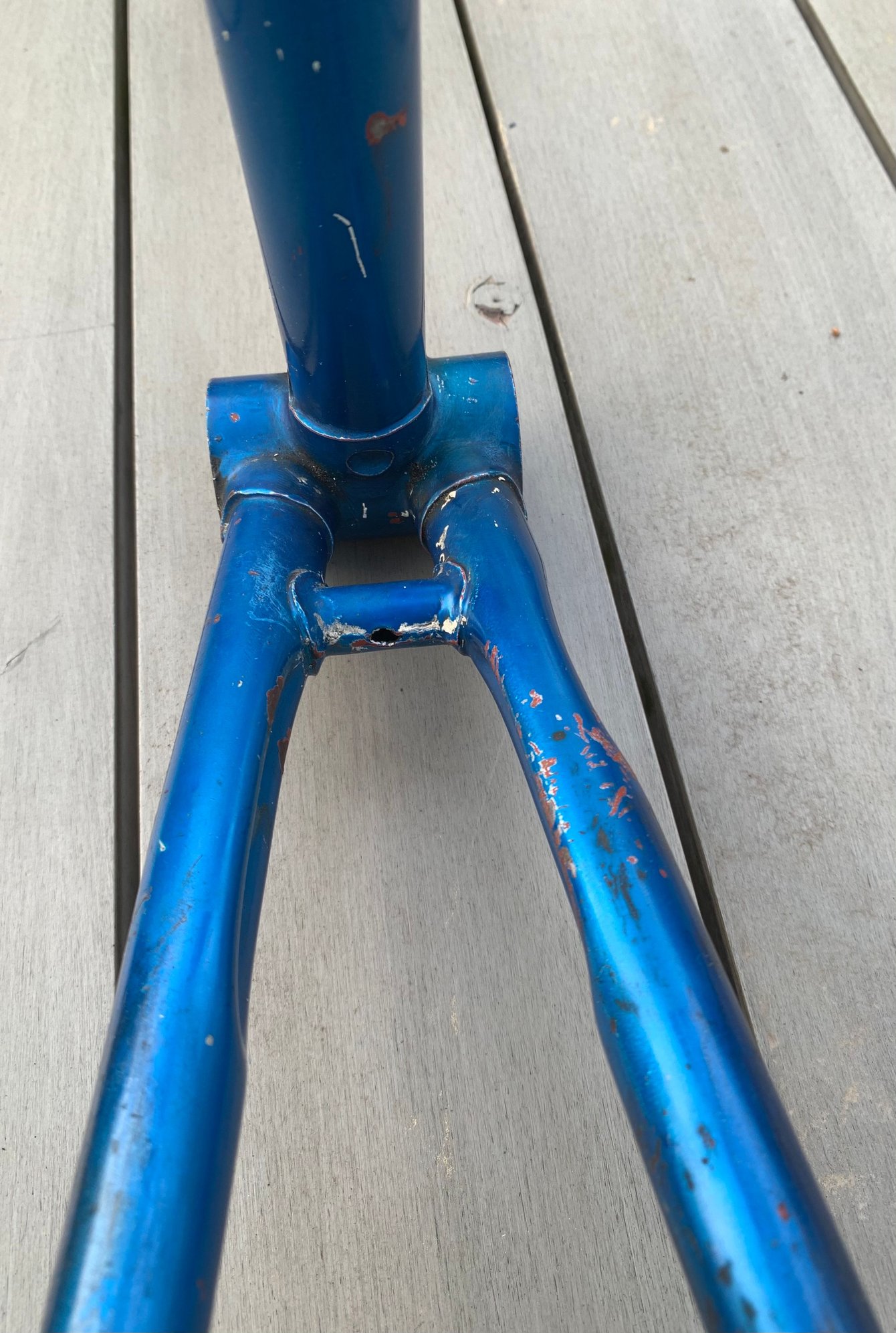

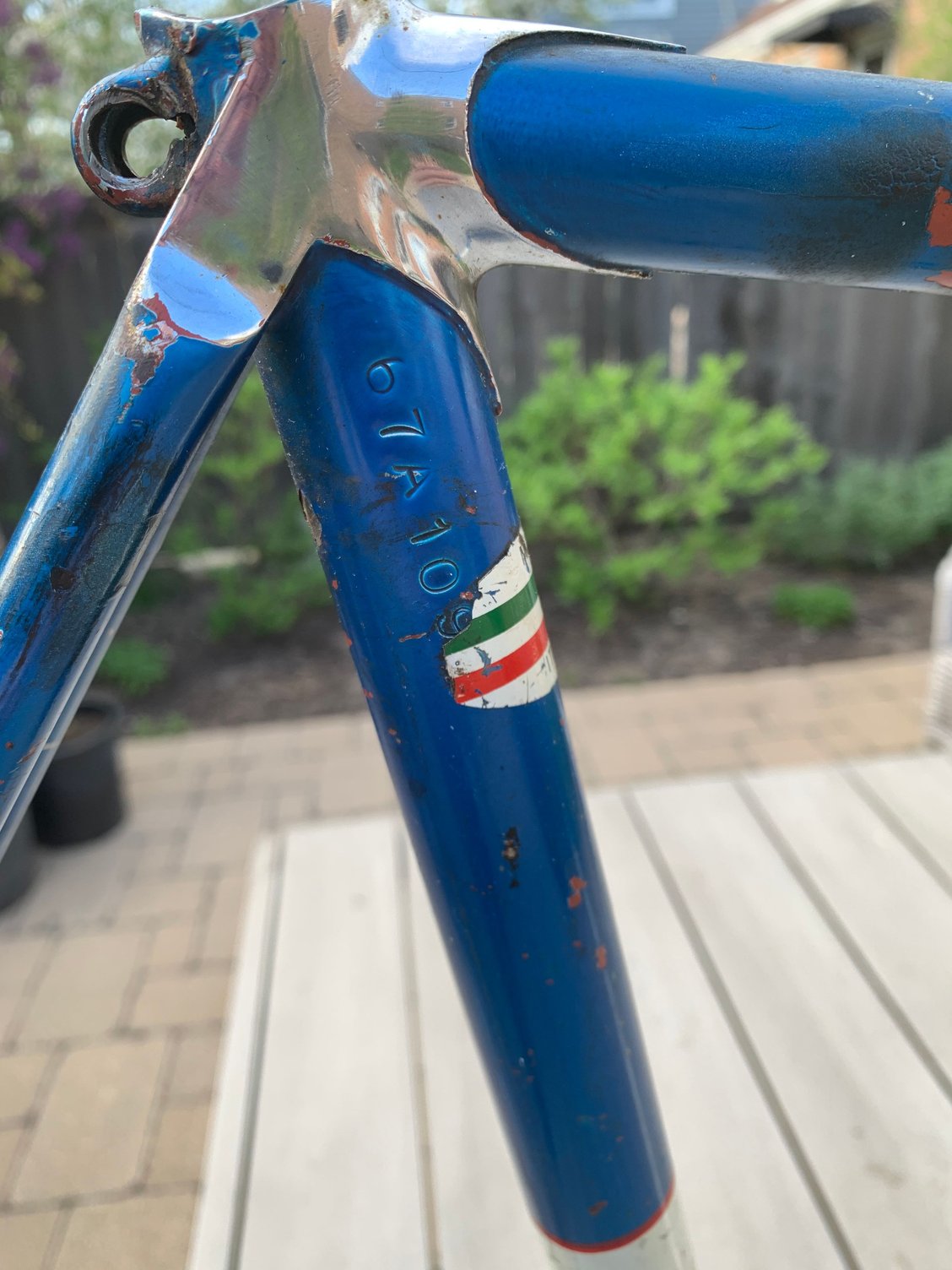

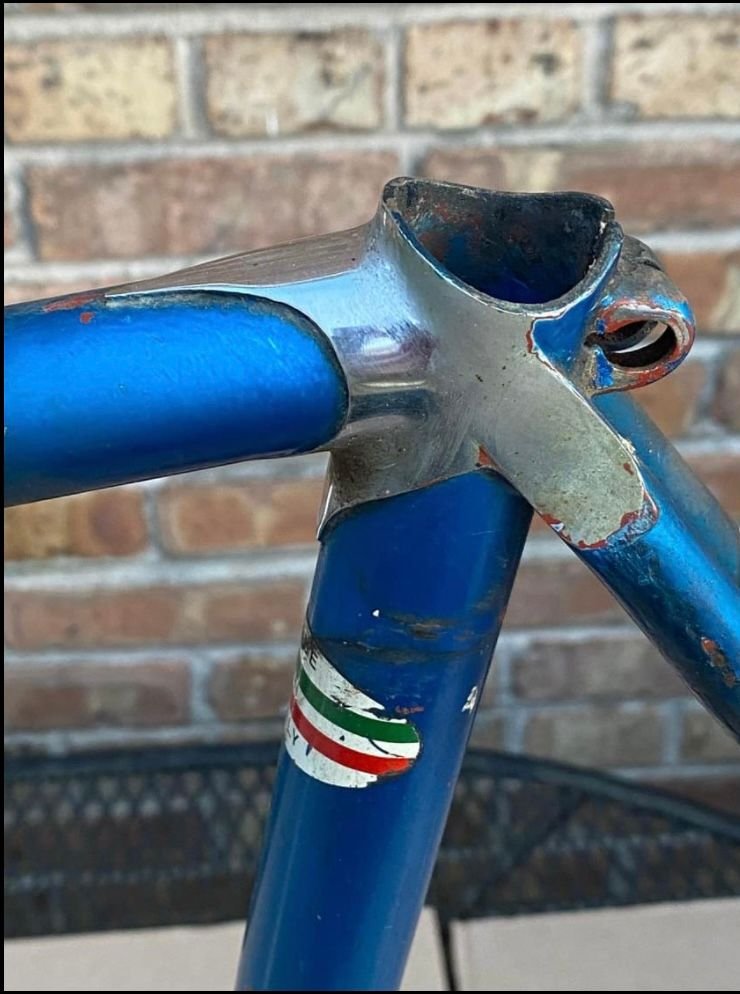

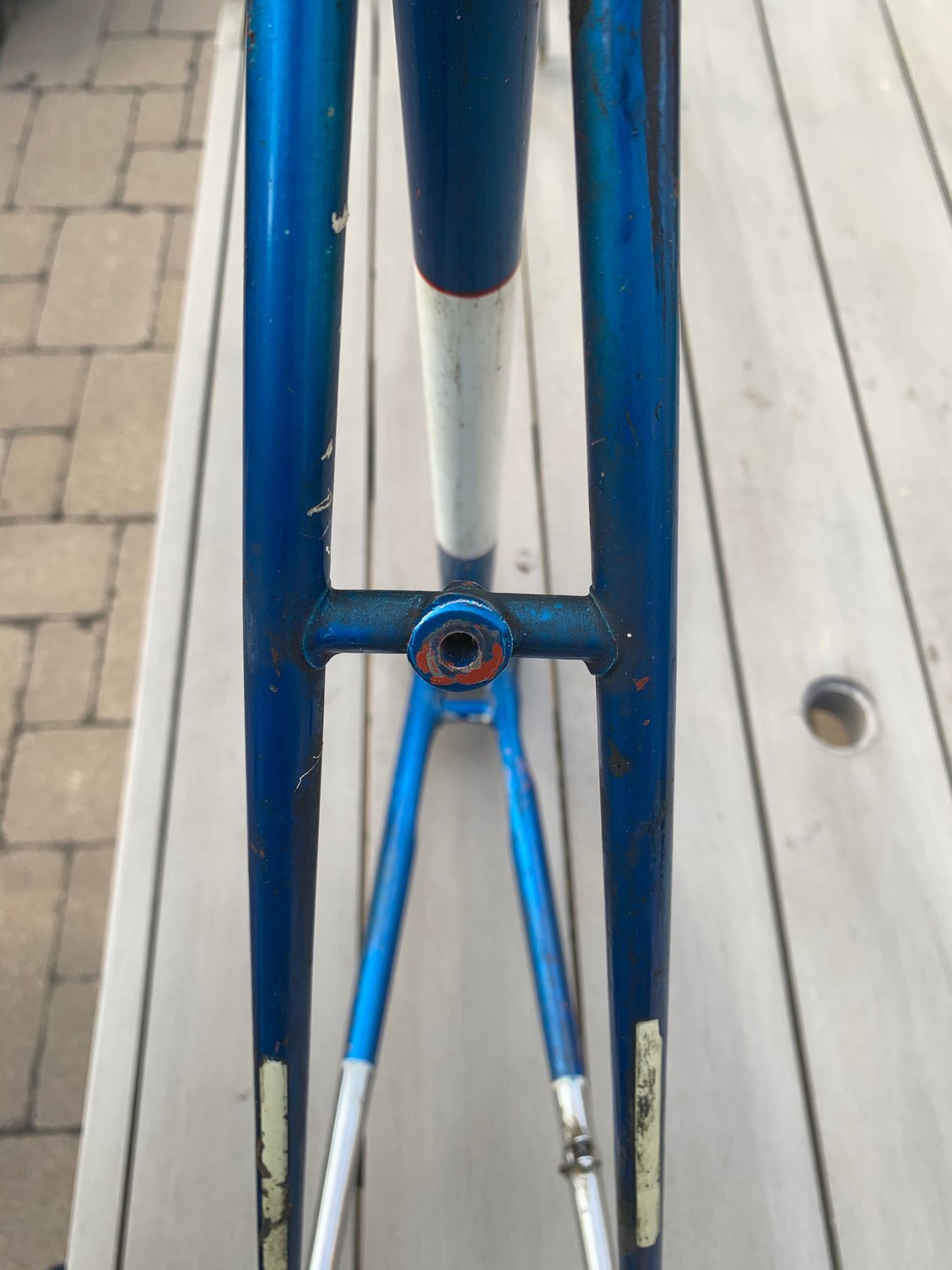

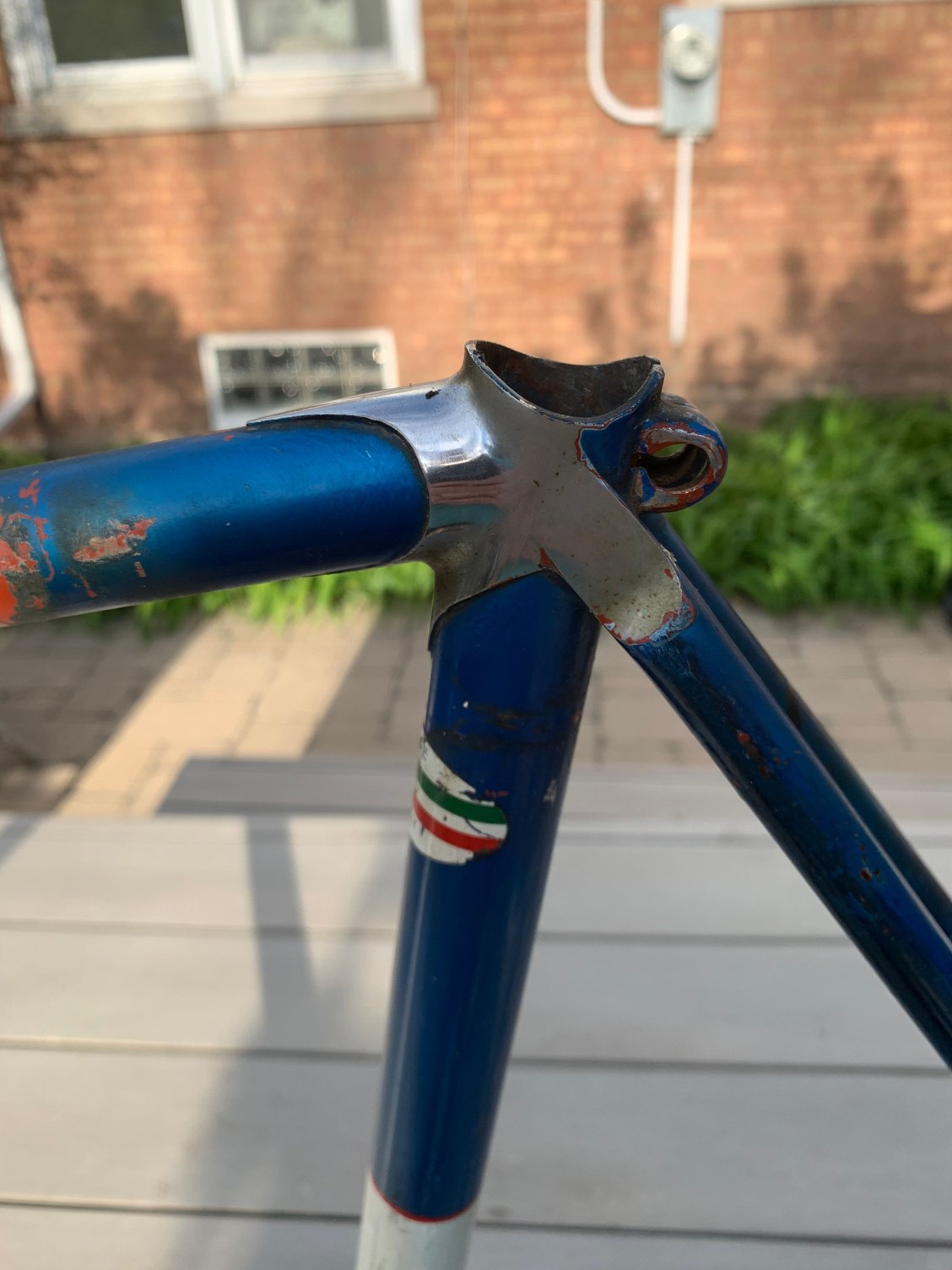

The cinch slot for the seat post is notably pinched at the top, as if a previous owner used an undersize post. Gently pry the cinch slot open with a large, flat bladed screwdriver, until it is slightly wider at the top than the bottom. Also, make sure there are no burrs or foreign material build-up on the inside of the seat tube. If so, remove with a reamer, hone or emery cloth. Then try your 27.2mm post.

Did you remove the fork? The Columbus dove logo is the outside of the fork's steerer tube, so you have to remove the fork to see it. Sometimes it can be quite faint. You can also verify a Columbus steerer tube by the five helical ridges on the bottom inside of the steerer tube (see attached). On old frames like these, corrosion and dirt build-up can make them hard to see.
T-Mar is offline
Old 05-14-21, 09:33 PM
  #16
b dub
CL Addict
Thread Starter

b dub's Avatar

Join Date: Oct 2007
Location: Evanston, IL
Posts: 1,081

Bikes: '50s Leon Cattrysse - late 50s Raleigh Lenton Sports - 1960/61 Raleigh Lenton Grand Prix - '72 Canadian Tire Company Supercycle - '74 Raleigh International - '83 Nishiki Cresta - '84 Centurion Turbo - '86 v. Herwerden (Chesini) - '87 Specialized Sirr

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 76 Post(s)
Liked 81 Times in 53 Posts
Originally Posted by T-Mar View Post
The cinch slot for the seat post is notably pinched at the top, as if a previous owner used an undersize post. Gently pry the cinch slot open with a large, flat bladed screwdriver, until it is slightly wider at the top than the bottom. Also, make sure there are no burrs or foreign material build-up on the inside of the seat tube. If so, remove with a reamer, hone or emery cloth. Then try your 27.2mm post.

Did you remove the fork? The Columbus dove logo is the outside of the fork's steerer tube, so you have to remove the fork to see it. Sometimes it can be quite faint. You can also verify a Columbus steerer tube by the five helical ridges on the bottom inside of the steerer tube (see attached). On old frames like these, corrosion and dirt build-up can make them hard to see.
I confirmed; after removing the fork I could not find the Columbus dove and no helical ridges.

Also, the seat post size is 26.8.
__________________
b dub is offline
Old 05-17-21, 05:02 AM
  #17
T-Mar
Senior Member

Join Date: Nov 2004
Posts: 22,881
Mentioned: 607 Post(s)
Tagged: 1 Thread(s)
Quoted: 4536 Post(s)
Likes: 0
Liked 2,673 Times in 1,688 Posts
If the info provided in correct, then it is not a top model with Columbus tubing. It doesn't appear to be Libellula, so it's most likely a Falck tubeset and 2nd from the top of the Lygie line.
