85 Rockhopper w/ a hole drilled into the seat stay

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

85 Rockhopper w/ a hole drilled into the seat stay

Old 06-12-21, 08:09 AM
  #1
OutnBack
Senior Member
Thread Starter

OutnBack's Avatar

Join Date: Jul 2013
Posts: 326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 81 Times in 49 Posts
85 Rockhopper w/ a hole drilled into the seat stay

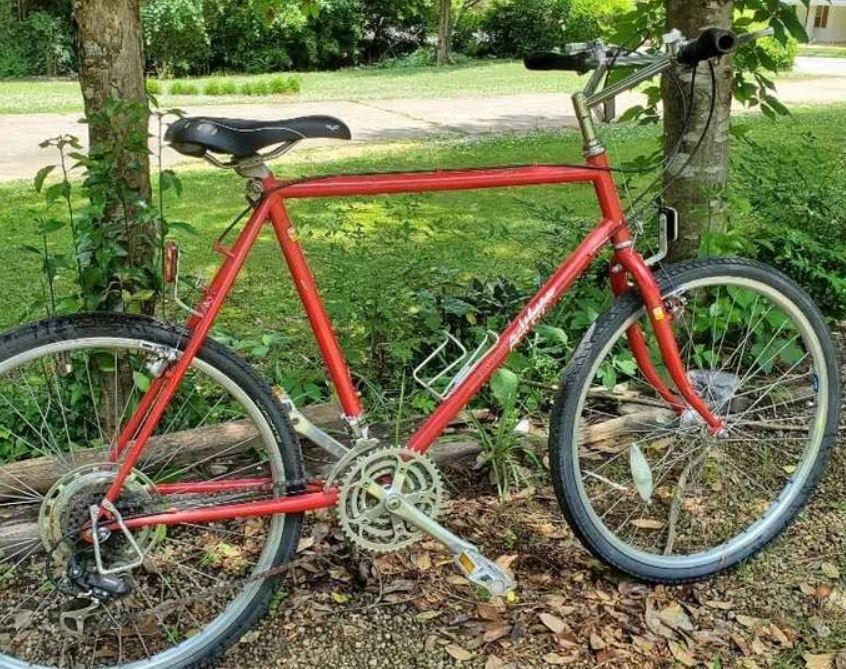

I picked up this 85 Specialized Rockhopper yesterday for $25. I knew before purchasing it that a hole had been drilled into the seat stay in order to install a rear derailleur guard. The wheels, bullmoose bars, Specialized Flag Crank, & shifters are all in fantastic condition, so I knew I couldn't go wrong for $25. What I'm wondering though, is the frame structurally challenged? I removed the derailleur guard, & the hole looks fairly clean, no obvious rust. But the hole was drilled off center. Anybody dealt with an issue like this? Will steel rivnuts help? I hate to just chuck a 1st year Rockhopper, but have no interest in catastrophic frame failure.




Last edited by OutnBack; 06-12-21 at 08:13 AM.
OutnBack is offline
Old 06-12-21, 08:25 AM
  #2
SJX426
Senior Member

SJX426's Avatar

Join Date: May 2008
Location: Fredericksburg, Va
Posts: 8,614

Bikes: '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, '94 Burley Duet, 97 Specialized RockHopper, 2010 Langster, Tern Link D8

Mentioned: 62 Post(s)
Tagged: 0 Thread(s)
Quoted: 1252 Post(s)
Liked 1,254 Times in 689 Posts
OutnBack I would think a frame builder could fill it with braze and it would be fine. It looks like part of the hole hit the DO. Please confirm.
__________________
Bikes don't stand alone. They are two tired.
SJX426 is offline
Old 06-12-21, 08:30 AM
  #3
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Posts: 9,037

Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970

Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 2140 Post(s)
Liked 2,161 Times in 1,338 Posts
Cut a rod of the proper diameter and length, have it brazed/welded in, grind/file smooth, touch up paint.
dedhed is offline
Likes For dedhed:
Old 06-12-21, 08:40 AM
  #4
OutnBack
Senior Member
Thread Starter

OutnBack's Avatar

Join Date: Jul 2013
Posts: 326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 81 Times in 49 Posts
Originally Posted by SJX426 View Post
OutnBack I would think a frame builder could fill it with braze and it would be fine. It looks like part of the hole hit the DO. Please confirm.
Hard to tell for sure, but I believe the hole is just above the DO.
OutnBack is offline
Old 06-12-21, 09:43 AM
  #5
Moe Zhoost
Half way there

Moe Zhoost's Avatar

Join Date: Sep 2015
Location: North Carolina
Posts: 2,663

Bikes: Many, and the list changes frequently

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 889 Post(s)
Liked 683 Times in 413 Posts
Seat stays are probably the least stressed tubes on a bike. Plus, the hole appears to have been drilled through the tab on the dropout. I would not have any concern about that at all. It's kinda like the old-timey bolt on seat stays,
Moe Zhoost is offline
Old 06-12-21, 11:00 AM
  #6
clubman
Youngman Grand

clubman's Avatar

Join Date: Jan 2010
Location: Nova Scotia
Posts: 8,202

Bikes: roadsters, club bikes, fixed and classic

Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2075 Post(s)
Liked 1,421 Times in 918 Posts
You stole it for $25. Fill the holes with just about anything and it's got another 30 years in it.
clubman is offline
Likes For clubman:
Old 06-12-21, 11:17 AM
  #7
OutnBack
Senior Member
Thread Starter

OutnBack's Avatar

Join Date: Jul 2013
Posts: 326
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 102 Post(s)
Liked 81 Times in 49 Posts
The plan for the bike was to take advantage of the relaxed angles & long chainstays & turn it into an urban grocery-getter/bar bike. Certainly nothing crazy.
OutnBack is offline
Likes For OutnBack:
Old 06-12-21, 11:57 AM
  #8
DiegoFrogs
Senior Member

DiegoFrogs's Avatar

Join Date: Feb 2005
Location: Scranton, PA, USA
Posts: 2,519

Bikes: '77 Centurion "Pro Tour"; '67 Carlton "The Flyer"; 1984 Ross MTB (stored at parents' house)

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 155 Post(s)
Liked 59 Times in 40 Posts
The tires (Forte?) look recent enough that someone has been riding it like that. I'd probably bolt that sucker back on and use it like you intend.
DiegoFrogs is offline
Old 06-12-21, 12:47 PM
  #9
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Posts: 9,573

Bikes: Klein, Merckx, Trek

Mentioned: 65 Post(s)
Tagged: 0 Thread(s)
Quoted: 3478 Post(s)
Liked 1,817 Times in 986 Posts
Originally Posted by Moe Zhoost View Post
Seat stays are probably the least stressed tubes on a bike.
Agreed. If that hole were to cause a problem it would probably start to crack and you'd get plenty of notice before anything catastrophic happened... it'd start to feel squirmy or maybe the tire would rub on a chainstay.
DiabloScott is offline
Old 06-12-21, 01:48 PM
  #10
krakhaus
Full Member

krakhaus's Avatar

Join Date: Sep 2012
Location: Palm Springs, California
Posts: 409
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 177 Post(s)
Liked 384 Times in 150 Posts
Find a bolt that will thread in relatively tight, slather it with flux, hit it with a quick braze and grind the ends off.
krakhaus is offline
Old 06-12-21, 05:04 PM
  #11
Reynolds
Passista

Reynolds's Avatar

Join Date: Jul 2005
Posts: 7,382

Bikes: 1998 Pinarello Asolo, 1992 KHS Montaña pro, 1980 Raleigh DL-1, IGH Hybrid, IGH Utility

Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 795 Post(s)
Liked 511 Times in 286 Posts
If this worked, I think you'll have no problems:

Reynolds is offline
Likes For Reynolds:
