64 Cinelli build

Old 08-31-21, 10:48 AM
  #1
gravelinmygears
Senior Member
Thread Starter

Join Date: Apr 2020
Location: Albuquerque, New Mexico
Posts: 226

Bikes: 73 Eisentraut, Mystery Ritchey Road, 2013 Kirk Frameworks, 2021 Black Mountain Monster Cross Disc

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 101 Times in 52 Posts
64 Cinelli build

I have this frame and some Nuovo Record bits. What else should I put on there?
gravelinmygears is offline
Old 08-31-21, 11:01 AM
  #2
SoccerBallXan
Full Member

SoccerBallXan's Avatar

Join Date: Aug 2019
Location: Arizona
Posts: 416

Bikes: Many!

Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 173 Post(s)
Liked 181 Times in 108 Posts
Originally Posted by gravelinmygears View Post
What else should I put on there?
Your ass and a ton of miles!
SoccerBallXan is offline
Likes For SoccerBallXan:
Old 08-31-21, 12:23 PM
  #3
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,793
Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2533 Post(s)
Liked 1,467 Times in 1,106 Posts
review the velo-retro Campagnolo time line.
Nuovo Record was not around.

Record was.
most likely Universal brakes.
Fiamme red label rims.

attached shift cable guide is too new.
repechage is offline
Likes For repechage:
Old 08-31-21, 12:23 PM
  #4
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,985

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 218 Post(s)
Tagged: 0 Thread(s)
Quoted: 3433 Post(s)
Liked 3,516 Times in 2,173 Posts
Originally Posted by gravelinmygears View Post
I have this frame and some Nuovo Record bits. What else should I put on there?
One thing is to make sure you have a correct BB spindle, I assume this is 70mm so can be a bit of a challenge, especially if you want to go with a triple. aside from that, what ever you want for however you're going to use it.

Mine will eventually be Spence Wolf Alpine inspired build so I will need a very special spindle for a triple as mine is a 74mm.
merziac is offline
Old 08-31-21, 12:32 PM
  #5
repechage
Senior Member

Join Date: Jun 2006
Posts: 17,793
Mentioned: 118 Post(s)
Tagged: 0 Thread(s)
Quoted: 2533 Post(s)
Liked 1,467 Times in 1,106 Posts
At that age... might be wider... scavenger hunt if so
repechage is offline
Old 08-31-21, 12:39 PM
  #6
gravelinmygears
Senior Member
Thread Starter

Join Date: Apr 2020
Location: Albuquerque, New Mexico
Posts: 226

Bikes: 73 Eisentraut, Mystery Ritchey Road, 2013 Kirk Frameworks, 2021 Black Mountain Monster Cross Disc

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 101 Times in 52 Posts
Originally Posted by repechage View Post
review the velo-retro Campagnolo time line.
Nuovo Record was not around.

Record was.
most likely Universal brakes.
Fiamme red label rims.

attached shift cable guide is too new.
Is that you, John? I'm putting on NR now and will put on the "correct" stuff later. I've been told that Gran Sport is an option.

One thing I would like is a correct stem and bar. Anyone have something appropriate? Mid-60s Cinelli stem and bar?
gravelinmygears is offline
Old 08-31-21, 12:41 PM
  #7
gravelinmygears
Senior Member
Thread Starter

Join Date: Apr 2020
Location: Albuquerque, New Mexico
Posts: 226

Bikes: 73 Eisentraut, Mystery Ritchey Road, 2013 Kirk Frameworks, 2021 Black Mountain Monster Cross Disc

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 101 Times in 52 Posts
Originally Posted by merziac View Post
One thing is to make sure you have a correct BB spindle, I assume this is 70mm so can be a bit of a challenge, especially if you want to go with a triple. aside from that, what ever you want for however you're going to use it.

Mine will eventually be Spence Wolf Alpine inspired build so I will need a very special spindle for a triple as mine is a 74mm.
I have the correct spindle! That's one thing I DO have. As discussed elsewhere, I've decided to "Spence Wolf" three other bikes and keep this one somewhat original.
gravelinmygears is offline
Likes For gravelinmygears:
Old 08-31-21, 12:56 PM
  #8
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,711

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Liked 907 Times in 455 Posts
Originally Posted by merziac View Post
One thing is to make sure you have a correct BB spindle, I assume this is 70mm so can be a bit of a challenge, especially if you want to go with a triple. aside from that, what ever you want for however you're going to use it.

Mine will eventually be Spence Wolf Alpine inspired build so I will need a very special spindle for a triple as mine is a 74mm.
Merziac: If you have a 74mm BB shell, Phil Wood is your friend. Campy BBs for 74mm used 3/16 " bearings. Those aren't hard to find. The cups are a different story. Finding a thin-walled Italian-threaded cup for 3/16" bearings is amazingly not easy. All of this was learned the hard way. Profit from my angst.

I finally gave up and put in a Phil Wood using standard Italian threaded cups. Use blue loctite - not red - on the DS cup to keep it self-removing as you ride, as Italian DS cups are wont to do. Mine was for a double up front, but I am sure you can get a Phil spindle long enough to handle a triple and because of the way Phils are made, you have several millimeters of side-to-side adjustment available .
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Old 08-31-21, 01:15 PM
  #9
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,711

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Liked 907 Times in 455 Posts
Originally Posted by repechage View Post
review the velo-retro Campagnolo time line.
Nuovo Record was not around.

Record was.
most likely Universal brakes.
Fiamme red label rims.

attached shift cable guide is too new.
If you use Universal 61s (or any center-pull brake), you will need to factor in the rear brake cable hanger. Standard ones will not be wide enough and the arms are most likely too short to rebend to fit. Because of the way Cinelli seat post bots fit, you can't use the more modern dangle-from-the-middle-of-the-bolt hangers. Universal made one-arm hangers, but they came in two designs. One was purpose made for use with Cinellis (I found one on eBay and am embarrassed to say how much I spent for it) and one for use on everything else. You could use the second on on a Cinelli, but t would leave the cable off-center. So the choices of which I am aware are (1) hope you can find the right Universal hanger and be prepared to spend stupid money for it or (2) get creative.

Just another example of Cino Cinelli's design idiosyncrasies. If my experience is any indication, though, it will be a joy to ride.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Old 08-31-21, 01:28 PM
  #10
gravelinmygears
Senior Member
Thread Starter

Join Date: Apr 2020
Location: Albuquerque, New Mexico
Posts: 226

Bikes: 73 Eisentraut, Mystery Ritchey Road, 2013 Kirk Frameworks, 2021 Black Mountain Monster Cross Disc

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 101 Times in 52 Posts

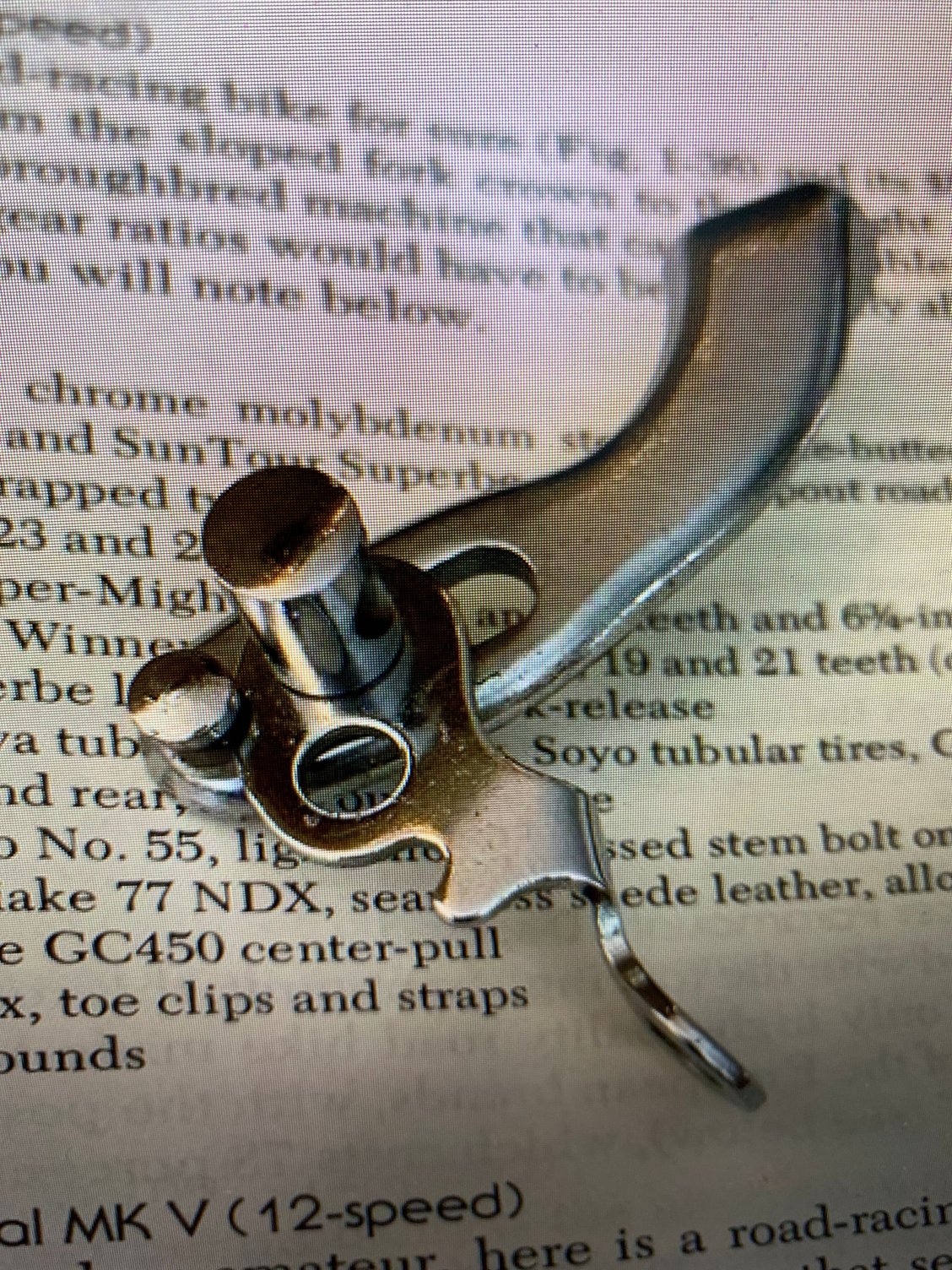

Originally Posted by bikingshearer View Post
One was purpose made for use with Cinellis.
Like this?

gravelinmygears is offline
Old 08-31-21, 01:41 PM
  #11
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,393
Mentioned: 177 Post(s)
Tagged: 0 Thread(s)
Quoted: 2534 Post(s)
Liked 2,295 Times in 955 Posts
Originally Posted by gravelinmygears View Post
Is that you, John? I'm putting on NR now and will put on the "correct" stuff later. I've been told that Gran Sport is an option.

One thing I would like is a correct stem and bar. Anyone have something appropriate? Mid-60s Cinelli stem and bar?
There are a lot of options. Titan stem with Maes-Kint bars. Ambrosio/3T stem/bars. GS is good if you want tier 2, Record as mentioned before was top of the line. Or you could go Simplex for that matter. Fiamme, Mavic, Weinmann, Ambrosio rims, whatever.

But it seems you know all this so do want you want. You could play a game. What would be the "typical" build out of Germany? The US? UK? Or mix and match. What really doesn't matter is another opinion.
iab is offline
Old 08-31-21, 01:47 PM
  #12
gravelinmygears
Senior Member
Thread Starter

Join Date: Apr 2020
Location: Albuquerque, New Mexico
Posts: 226

Bikes: 73 Eisentraut, Mystery Ritchey Road, 2013 Kirk Frameworks, 2021 Black Mountain Monster Cross Disc

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 95 Post(s)
Liked 101 Times in 52 Posts
Originally Posted by iab View Post
There are a lot of options. Titan stem with Maes-Kint bars. Ambrosio/3T stem/bars. GS is good if you want tier 2, Record as mentioned before was top of the line. Or you could go Simplex for that matter. Fiamme, Mavic, Weinmann, Ambrosio rims, whatever.

But it seems you know all this so do want you want. You could play a game. What would be the "typical" build out of Germany? The US? UK? Or mix and match. What really doesn't matter is another opinion.
This is helpful! I love opinions. I'm not sure I can afford to get it period correct but I stumble across cool parts sometimes.
gravelinmygears is offline
Old 08-31-21, 03:44 PM
  #13
bikingshearer
Crawlin' up, flyin' down

bikingshearer's Avatar

Join Date: Jan 2006
Location: Democratic Peoples' Republic of Berkeley
Posts: 4,711

Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 551 Post(s)
Liked 907 Times in 455 Posts
Originally Posted by gravelinmygears View Post
Like this?

That's the right basic design. I can't be certain, but that looks the right one.
__________________
"I'm in shape -- round is a shape." Andy Rooney
bikingshearer is offline
Old 08-31-21, 05:38 PM
  #14
oneclick
Senior Member

Join Date: Feb 2020
Posts: 2,048
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 763 Post(s)
Likes: 0
Liked 808 Times in 496 Posts
Originally Posted by bikingshearer View Post
If you use Universal 61s (or any center-pull brake), you will need to factor in the rear brake cable hanger... (2) get creative.
If option 2 is required and he is ok with a bespoke one, he can pm me.
oneclick is offline
Old 08-31-21, 06:01 PM
  #15
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,985

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 218 Post(s)
Tagged: 0 Thread(s)
Quoted: 3433 Post(s)
Liked 3,516 Times in 2,173 Posts
Originally Posted by bikingshearer View Post
Merziac: If you have a 74mm BB shell, Phil Wood is your friend. Campy BBs for 74mm used 3/16 " bearings. Those aren't hard to find. The cups are a different story. Finding a thin-walled Italian-threaded cup for 3/16" bearings is amazingly not easy. All of this was learned the hard way. Profit from my angst.

I finally gave up and put in a Phil Wood using standard Italian threaded cups. Use blue loctite - not red - on the DS cup to keep it self-removing as you ride, as Italian DS cups are wont to do. Mine was for a double up front, but I am sure you can get a Phil spindle long enough to handle a triple and because of the way Phils are made, you have several millimeters of side-to-side adjustment available .
Tx, I have a complete, excellent condition 74mm BB for a double that came with the frame, HS, SP, original and repro binder bolts as well.

Phil will be the way to go for the triple.

Should have stepped up for a Merz binder bolt when he made them.
merziac is offline
