A Mid-1950s Express Werke AG (Bavarian) Road Bicycle

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

A Mid-1950s Express Werke AG (Bavarian) Road Bicycle

Old 02-22-22, 12:30 PM
  #1
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,751
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 848 Times in 325 Posts
A Mid-1950s Express Werke AG (Bavarian) Road Bicycle

Hello folks,

I trust everyone is doing well! Yesterday I had the good fortune to pick up this 1950s Express Werke AG road bicycle that was built in Newmarkt in der Oberpfalz in Bavaria. Express Werke AG was founded in the 1880s and continued to make bicycles until the mid-20th century. I received it from a gentleman named Jurgen who purchased it in 1958 from the original owner, who Jurgen described as an older man that had had the frame custom made. I have only come across a few of these bicycles when searching the internet so additional information is of course welcome. I purchased the bicycle primarily because I noticed the quality of some of the components in an otherwise vague eBay advertisement, and recognized the logo specifically from a similar bicycle sold by Steel Vintage in Berlin a couple of years ago... Only Jurgen's height was listed yet the frame turned out to be my ideal size, which is 24.5" (c-t) on the seat tube and 22" along the top tube. Jurgen had fenders, a rear rack and a lighting setup on the bicycle which I removed in order to wash, polish and wax the frame, which was done this morning before taking the photos shown below. I still have not cleaned the components much except to dust everything off, remove bar tape and use some Proofide on the saddle.

Jurgen said he put new tubes in the tires and was adamant that all of the components were original, which I believe based on research into the respective appearance on the market for each part.

I plan to replace the consumables throughout and re-grease everything to get it back into riding order but will otherwise maintain a sympathetic restoration.

The frame has crimped seat and chain stays with triangular cross-sections for added rigidity, and the upper inside of the fork blades are also crimped. I was unable to photograph these details on this overcast day but I'm sure when I get it all set up and out for a ride on a sunny day it will be apparent enough! The black paint is chipped and dull throughout but overall very presentable for its age, and the chrome on the fork blades and the rest of the components is also in decent condition with minimal pitting and I'm sure will clean up well.

The component list includes the following:

- Brooks B17 Champion Standard saddle
- Unmarked steel seat post
- Phillipe stem (~95mm)
- Scheeren steel handlebars

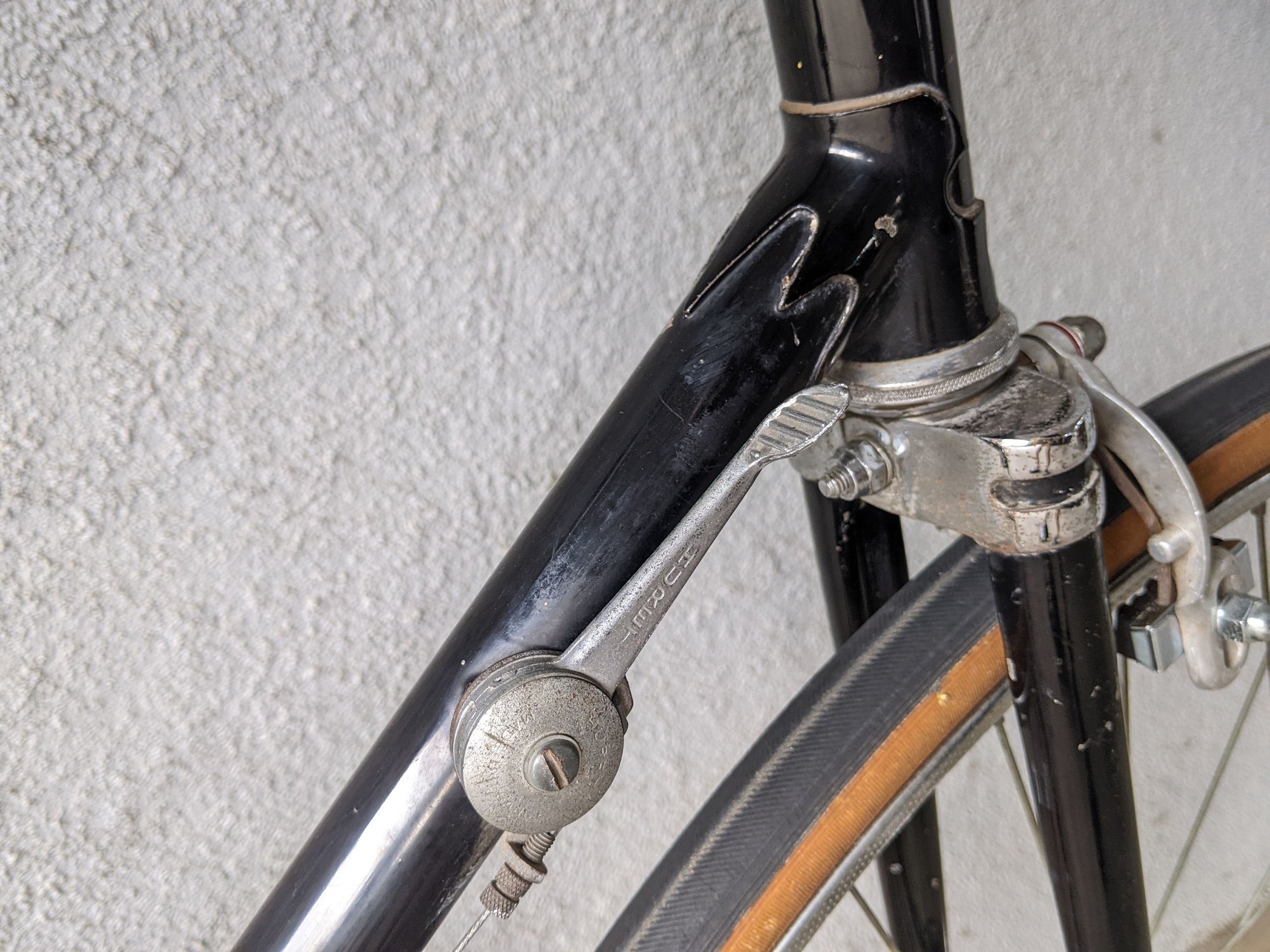

- Huret lever-actuated front derailleur
- Huret Tour de France rear derailleur
- Huret down tube shifter

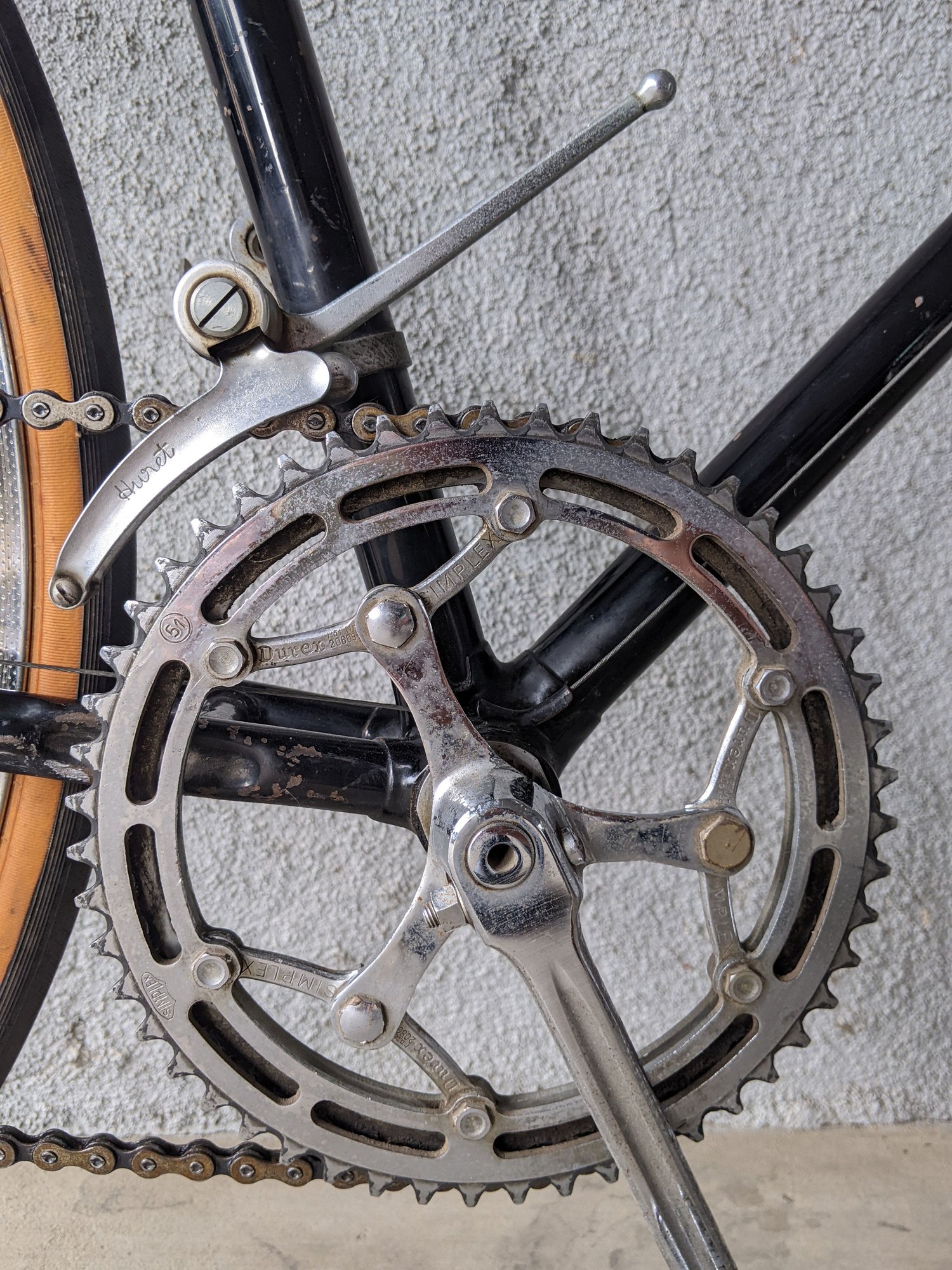

- Unmarked forged 3-arm crankset (I suspect a German-made copy of a French model)
- Durex (German manufactured) Simplex 51/49 chainrings.
- Lyotard Marcel Berthet pedals
- Regina Gran Sport 4-speed freewheel
- Weinmann Type 730 brake calipers
- Weinmann AG brake levers
- Maillard Normandy high-flange hubs
- Rigida Chrolux steel 700c rims
- Aiglor front wingnuts
- F&S rear wingnuts

Overall, I'm very excited about this find, particularly because the quality of the frame and the components matches that of other 1950s bicycles I've restored piece by piece, yet here I got it all at once for a fraction of the cost! Expect some updates as I get it road worthy again!

-Gregory











Last edited by Kilroy1988; 02-22-22 at 03:48 PM.
Kilroy1988 is offline
Old 02-22-22, 12:54 PM
  #2
bikemig
Senior Member

bikemig's Avatar

Join Date: Apr 2012
Location: Middle Earth (aka IA)
Posts: 19,410

Bikes: A bunch of old bikes and a few new ones

Mentioned: 168 Post(s)
Tagged: 0 Thread(s)
Quoted: 5458 Post(s)
Liked 2,331 Times in 1,507 Posts
This is such a cool bike and I love the bell. Nice score. The only thing I don't like about seeing a bike like this is that it gets me thinking that I need to spend some even more time on eBay . . .


Last edited by bikemig; 02-22-22 at 02:19 PM.
bikemig is online now
Likes For bikemig:
Old 02-22-22, 01:27 PM
  #3
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,934
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2894 Post(s)
Liked 1,478 Times in 1,078 Posts
-----

thanks so much for sharing this wonder

the completeness, originalness and lack of damage combine for a small miracle

seat binder looks to be one of the Way-Assauto models

---

there was a period during the 1950's when both Freres Huret & Juy (Simplex) offered these manual front mech models whose levers operate with a front-to-back action

the Juy ones were termed Randonneur -







-----

Last edited by juvela; 02-22-22 at 02:20 PM. Reason: addition
juvela is offline
Likes For juvela:
Old 02-22-22, 02:05 PM
  #4
cinelliguy
Junior Member

Join Date: Sep 2011
Location: Redwood City CA
Posts: 75

Bikes: 1940 Automoto, 1958 Cinelli Mod B, 1962 Cinelli Mod B Altenberger, 1971 Witcomb, 1976 Masi GC, 1977 Centurion Super Elite, 1980 Jack Taylor Tourist, 1983 Palo Alto, 1990 Colnago Master, 1997 LeMond, 2004 Peter Johnson, 2010 Bianchi Superleggera

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Liked 147 Times in 31 Posts
You luck DOWG! That is spectacular! At first I was so excited thinking it was for sale and feverishly read the post to scan a number $!! Good for you!
cinelliguy is offline
Likes For cinelliguy:
Old 02-22-22, 02:13 PM
  #5
merziac
Senior Member

merziac's Avatar

Join Date: Oct 2015
Location: PDX
Posts: 10,501

Bikes: Merz x 5 + Specialized Merz Allez x 2, Strawberry/Newlands/DiNucci/Ti x3, Gordon, Fuso/Moulton x2, Bornstein, Paisley,1958-74 Paramounts x3, 3rensho, 74 Moto TC, 73-78 Raleigh Pro's x5, Marinoni x2, 1960 Cinelli SC, 1980 Bianchi SC, PX-10 X 2

Mentioned: 211 Post(s)
Tagged: 0 Thread(s)
Quoted: 3262 Post(s)
Liked 3,155 Times in 1,972 Posts
@Kilroy1988

The condition, completeness and correctness of this machine is absolutely fantastic, Bravo!
merziac is online now
Likes For merziac:
Old 02-22-22, 02:14 PM
  #6
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,065

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1183 Post(s)
Liked 748 Times in 523 Posts
Great score! I love half-step gearing, but I have never understood 51-49 or 49-47 two-tooth chainring drops, having always gone with 3 or 4 teeth myself, for a better ratio progression with 2-to-3-tooth spreads across the freewheel.

I love the head badge and the graphics, and I prefer your Huret front shift mech. over the more familiar Simplex unit.

Your rear derailleur is interesting, in the sense that the pivot really is supposed to be at the top of the cage. The Simplex equivalent is the opposite, but most get set up to look like yours and any conventional rear derailleur, with the jockey wheel on the bottom.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 02-22-22, 02:32 PM
  #7
non-fixie
Shifting is fun!

non-fixie's Avatar

Join Date: Aug 2009
Location: South Holland, NL
Posts: 10,248

Bikes: Yes, please.

Mentioned: 261 Post(s)
Tagged: 0 Thread(s)
Quoted: 1891 Post(s)
Liked 2,688 Times in 1,174 Posts
Very, very, very nice. Congratulations on finding it, and what's more, in this size! Color me jealous.
__________________
Woo hoo!









non-fixie is offline
Likes For non-fixie:
Old 02-22-22, 03:26 PM
  #8
Ged117
Full Member

Ged117's Avatar

Join Date: May 2018
Location: Ottawa, Ontario, Canada
Posts: 410

Bikes: 1951 Sun Wasp, 1975 Raleigh Competition, 1976 Peugeot A08 (fixed), 1990 Schwinn Voyageur

Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 257 Post(s)
Liked 173 Times in 88 Posts
A pretty bicycle. Nice catch, Kurt Gregory!

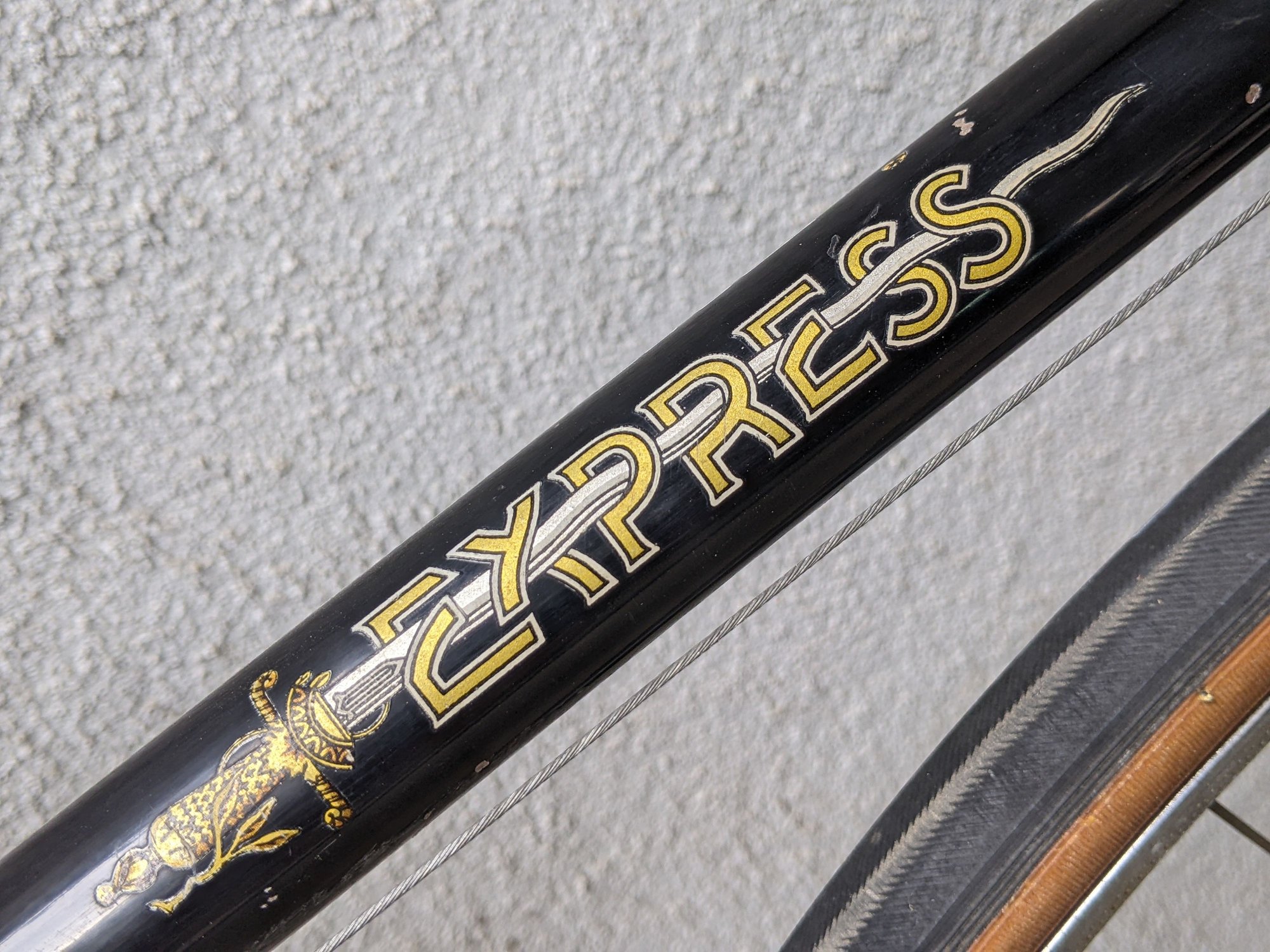

I think the sword transfer is my favourite part.

Last edited by Ged117; 03-30-22 at 02:08 PM. Reason: foof brain
Ged117 is offline
Likes For Ged117:
Old 02-22-22, 03:56 PM
  #9
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,751
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 848 Times in 325 Posts
Thanks folks! Regarding the transfer my hunch is that Express Werke's association with Nurnberg made the sword an appropriate mark. My undergraduate degree is in European history and I have long studied the manufacture and development of medieval armament, and Nurnberg was a center of the German arms industry throughout the later medieval and renaissance periods. Seeing a high quality bicycle that was made nearby is a neat way to appreciate the rich industrial history of the region.

John E I hear you on the Simplex derailleurs of the period. I have one I'll need to set up on that Carlton Super Python and need to remember they did it somewhat counter-intuitively!

juvela I haven't had the opportunity to use the Simplex lever-actuated derailleur like in the catalog picture you show, but my understanding is that the lever was turned from left to right around an axis on that model. With the Huret derailleur on the Express it is in fact a back-to-forth motion.

-Gregory

Last edited by Kilroy1988; 02-22-22 at 04:14 PM.
Kilroy1988 is offline
Old 02-22-22, 04:49 PM
  #10
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,934
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2894 Post(s)
Liked 1,478 Times in 1,078 Posts
----

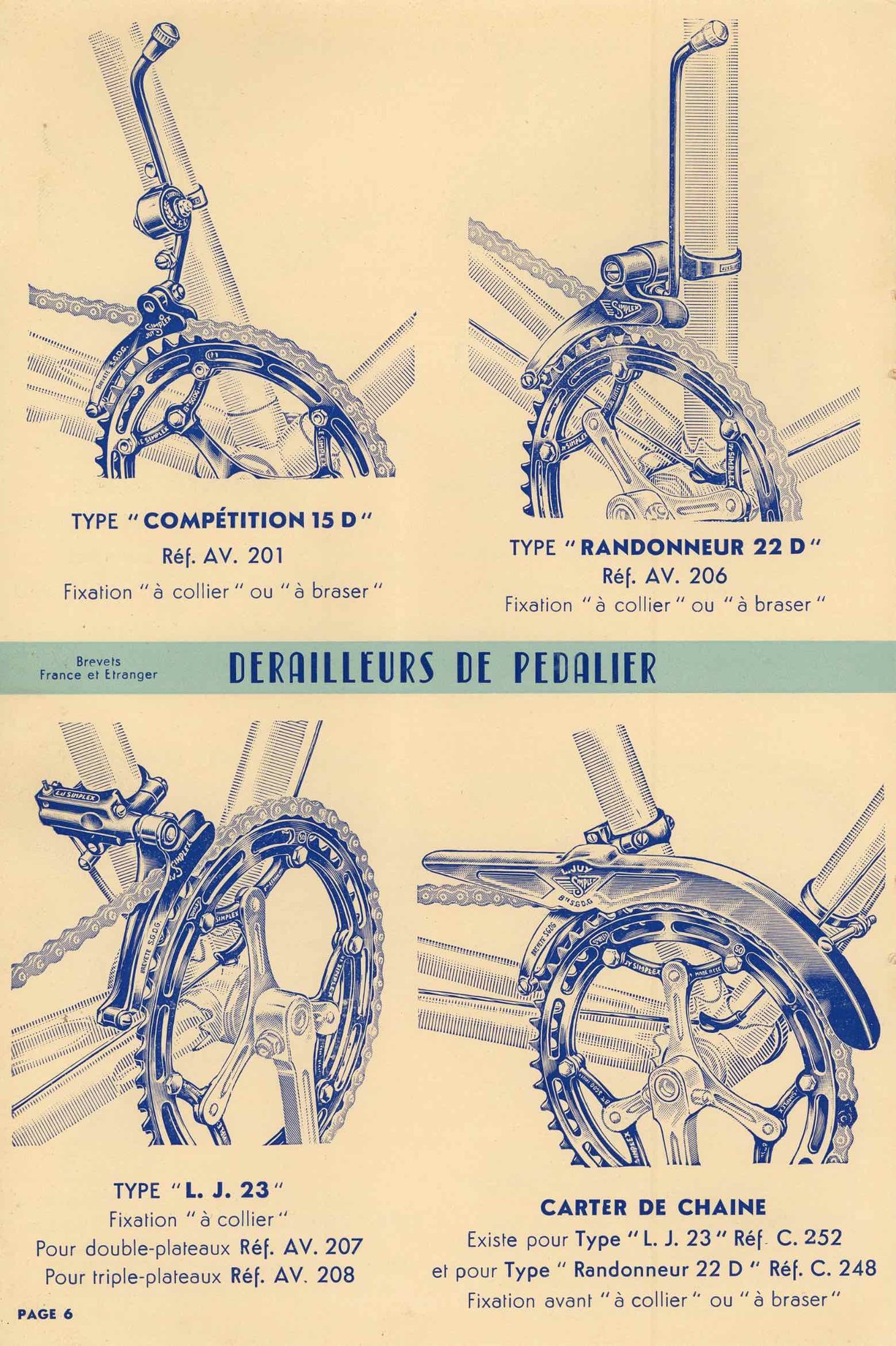

Freres Huret catalogue pages of MCMLVI illustrating the machine's gear ensemble (or something close thereto!)...

​​​​​​

-----
juvela is offline
Old 02-22-22, 05:13 PM
  #11
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,751
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 848 Times in 325 Posts
Originally Posted by juvela View Post
----

Freres Huret catalogue pages of MCMLVI illustrating the machine's gear ensemble (or something close thereto!)
-----
I have a feeling we're talking about different derailleurs, or perhaps your last post was not a response to my last.. I was referencing the pivots on the front derailleur levers - the Simplex moves left to right while the Huret moves front to back.
Kilroy1988 is offline
Old 02-22-22, 06:14 PM
  #12
juvela
Senior Member

juvela's Avatar

Join Date: Feb 2013
Location: Alta California
Posts: 11,934
Mentioned: 332 Post(s)
Tagged: 1 Thread(s)
Quoted: 2894 Post(s)
Liked 1,478 Times in 1,078 Posts
Originally Posted by Kilroy1988 View Post
I have a feeling we're talking about different derailleurs, or perhaps your last post was not a response to my last.. I was referencing the pivots on the front derailleur levers - the Simplex moves left to right while the Huret moves front to back.
-----

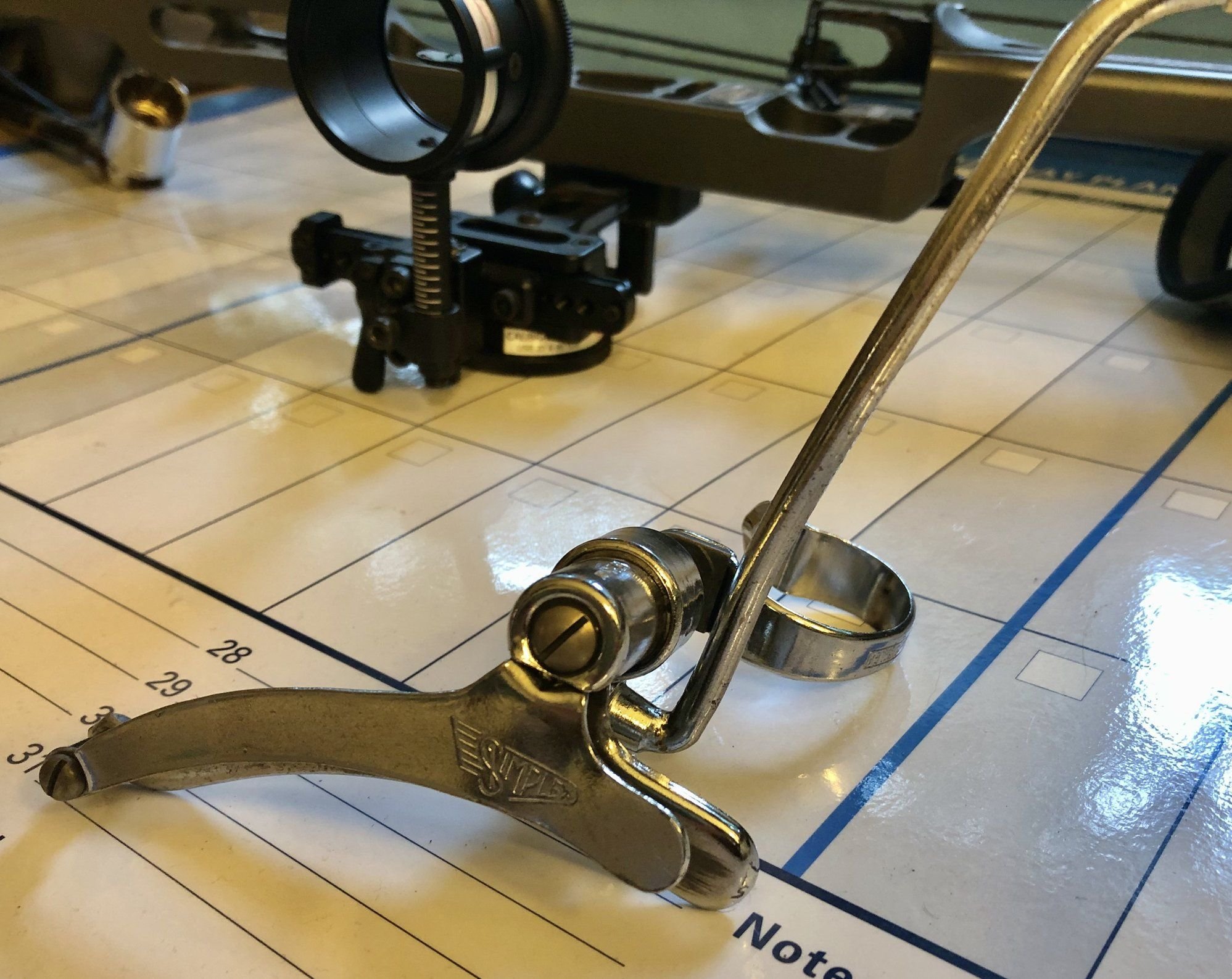

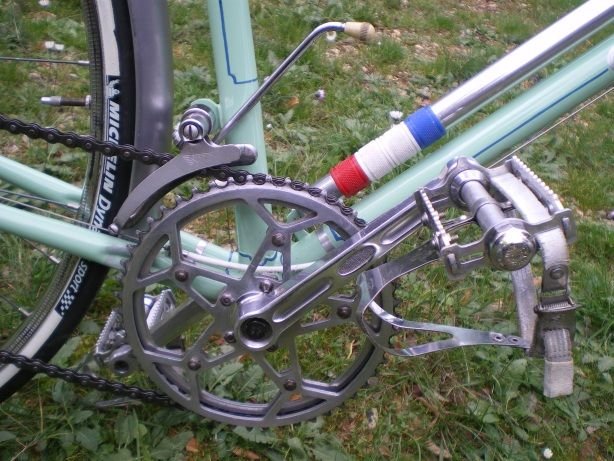

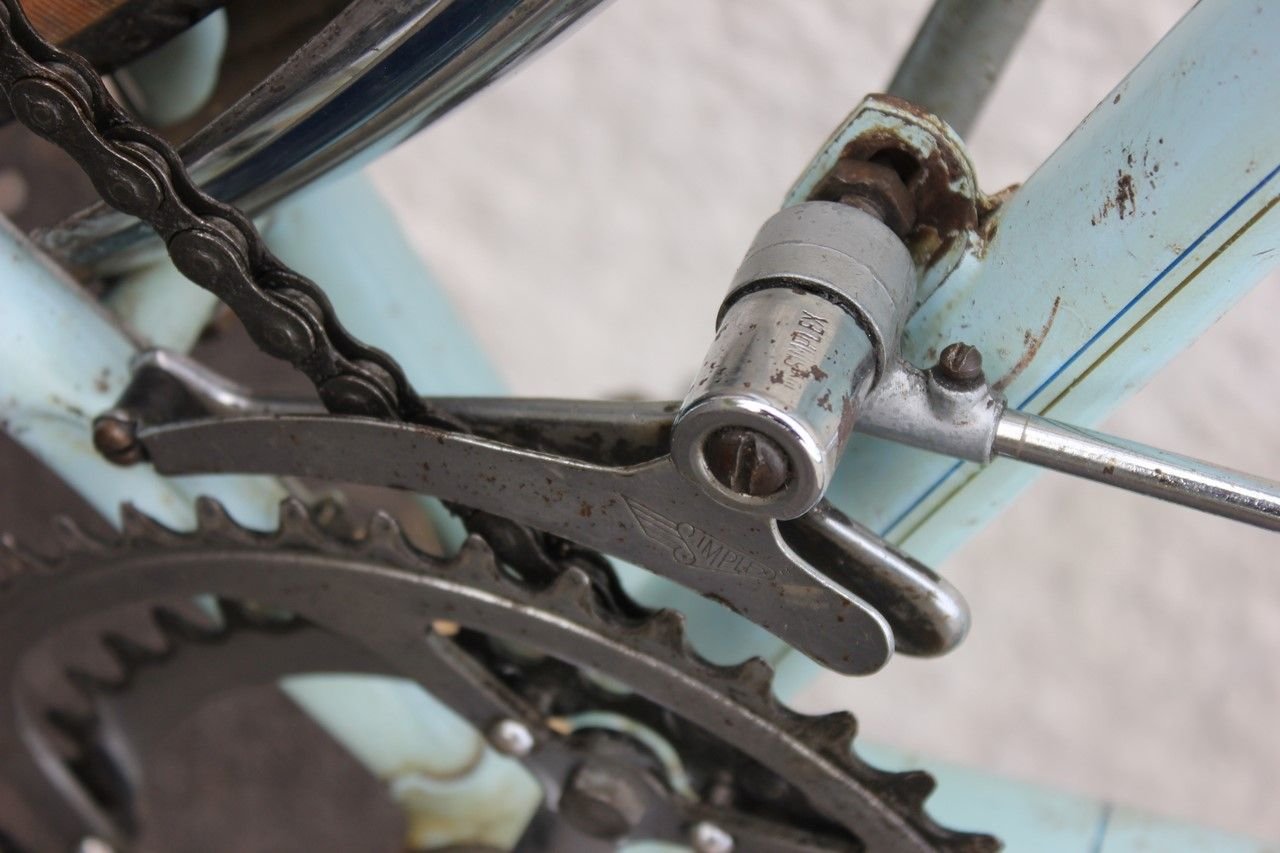

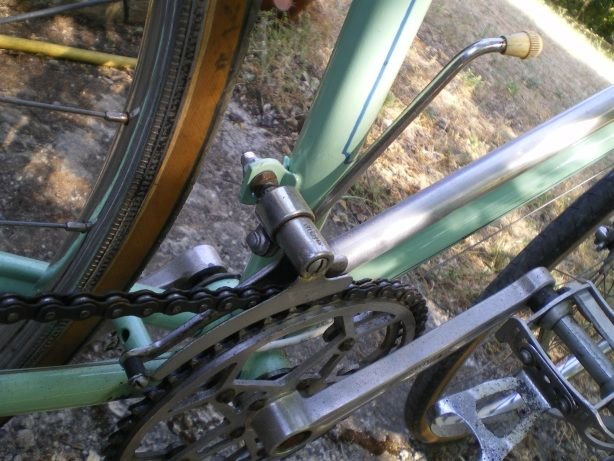

here are some additional images of the Juy Randonneur serie manual front mechs which operate by moving the lever in a front-to-back direction

the Juy Competition serie manual front mechs operate by twisting the lever






they were produced as late as nineteen & sixty-one

-----
juvela is offline
Likes For juvela:
Old 02-22-22, 06:22 PM
  #13
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,751
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 848 Times in 325 Posts
juvela I see the difference in those mechanisms now, while I did not notice early when I glimpsed at the catalog images. I have not seen one of the Simplex randonneur front derailleurs before. Cheers!

-Gregory
Kilroy1988 is offline
Old 02-22-22, 07:30 PM
  #14
iab
Senior Member

iab's Avatar

Join Date: Jun 2006
Location: NW Burbs, Chicago
Posts: 11,330
Mentioned: 176 Post(s)
Tagged: 0 Thread(s)
Quoted: 2496 Post(s)
Liked 2,198 Times in 916 Posts
Great bike! Was it Jurgen Borgmann out of Munich? That guy has some spectacular stuff.
iab is offline
Likes For iab:
Old 02-22-22, 07:52 PM
  #15
BFisher
Senior Member

BFisher's Avatar

Join Date: Aug 2013
Posts: 2,188
Mentioned: 34 Post(s)
Tagged: 0 Thread(s)
Quoted: 704 Post(s)
Liked 1,628 Times in 783 Posts
Love it! Very classy bike. Congrats on the score.
BFisher is offline
Likes For BFisher:
Old 02-22-22, 08:21 PM
  #16
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,751
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 848 Times in 325 Posts
Originally Posted by iab View Post
Great bike! Was it Jurgen Borgmann out of Munich? That guy has some spectacular stuff.
No, although in the past this Jurgen did live in Munich, as the rear fender has a Munich bicycle license attached! It was his personal commuting and touring bicycle for a couple of decades. He lived between Bremen and Santa Barbara with his wife, who recently passed away, so his daughter is helping him to sell some of the things he had at the house in California as he will be relocating back to Germany permanently. I picked it up from him in person yesterday.

-Gregory

Last edited by Kilroy1988; 02-23-22 at 07:17 AM.
Kilroy1988 is offline
Old 02-22-22, 09:28 PM
  #17
obrentharris
Senior Member

obrentharris's Avatar

Join Date: May 2012
Location: Point Reyes Station, California
Posts: 3,899

Bikes: Indeed!

Mentioned: 80 Post(s)
Tagged: 0 Thread(s)
Quoted: 1158 Post(s)
Liked 2,028 Times in 681 Posts
I anguished over bidding on this one, even had it in my watch list.
I'm really glad you got it!
Brent
obrentharris is offline
Likes For obrentharris:
Old 02-23-22, 04:33 PM
  #18
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Posts: 21,065

Bikes: 1959 Capo Modell Campagnolo; 1960 Capo Sieger (2); 1962 Carlton Franco Suisse; 1970 Peugeot UO-8; 1982 Bianchi Campione d'Italia; 1988 Schwinn Project KOM-10;

Mentioned: 40 Post(s)
Tagged: 0 Thread(s)
Quoted: 1183 Post(s)
Liked 748 Times in 523 Posts
Originally Posted by juvela View Post
----

Freres Huret catalogue pages of MCMLVI illustrating the machine's gear ensemble (or something close thereto!)...

​​​​​​

-----
Thank you for posting that. I have seen the nested right-side downtube levers from Huret and Simplex in the past, but I did not know they made a left-mount pair, as well.
__________________
"Far and away the best prize that life offers is the chance to work hard at work worth doing." --Theodore Roosevelt
Capo: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger (2), S/N 42624, 42597
Carlton: 1962 Franco Suisse, S/N K7911
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1982 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline
Likes For John E:
Old 02-23-22, 06:17 PM
  #19
Kilroy1988
Senior Member
Thread Starter

Join Date: Aug 2016
Location: Visalia, CA
Posts: 1,751
Mentioned: 37 Post(s)
Tagged: 0 Thread(s)
Quoted: 747 Post(s)
Liked 848 Times in 325 Posts
I took the Express out for a quick ride on this brisk, partly cloudy afternoon just to see how it feels. It is indeed sized just the way I prefer and the ride was very stable. The grease must not be totally gone as everything spins freely yet there is little noise from bearings jumping around anywhere along the drivetrain. I've decided that what I'll do is take it apart one weekend, clean everything up and get all the fresh grease on, and also touch up the frame with proper black automotive paint that I have handy to keep it from rusting in the future, let that cure for a week then put it back together the next weekend with fresh consumables. I may have time to do all of that sometimes before Easter so that I can enjoy riding it a bit during the spring holiday.

'Til then, cheers!

-Gregory
Kilroy1988 is offline
Old 02-27-22, 01:32 PM
  #20
shmithys
Member

Join Date: Feb 2022
Posts: 27
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Liked 1 Time in 1 Post
Very gentle! I think you will be pleased
shmithys is offline
