Bottom bracket retaining clip removal?
03-26-22 | 06:30 PM
#4
Junior Member
Joined: Apr 2018
Posts: 191
Likes: 179
From: Portland, Oregon, USA
Bikes: '66 Lygie, '02 Rivendell Atlantis, '03 Air Friday, '21 Black Shadow Campeur
Are we looking at the drive side fixed cup? Why do you call it a retaining ring? Might it just be a spacer?

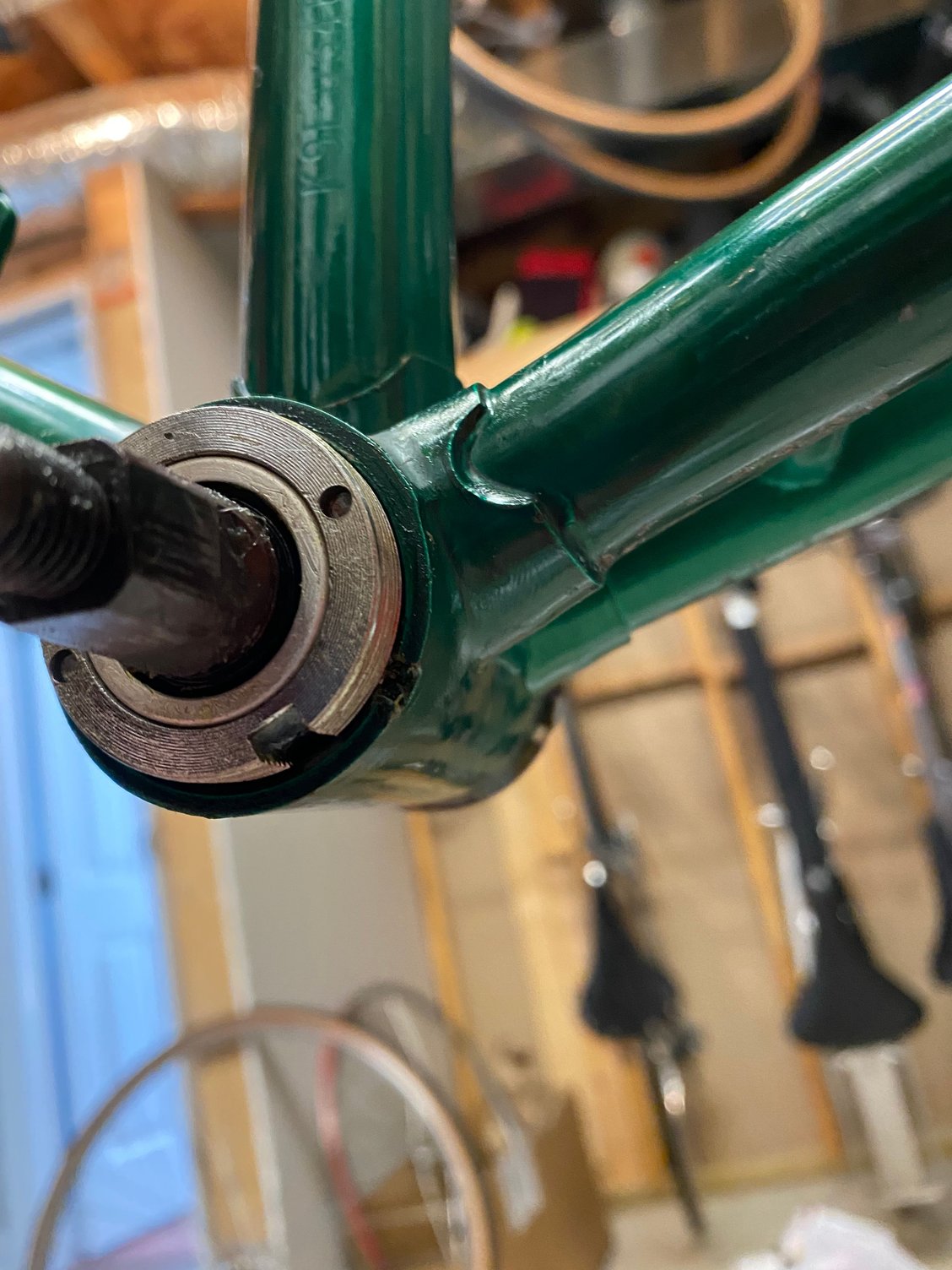

Perhaps you should remove the cranks, and the adjustable cup, and the BB spindle, and then show us what's left? The problem might become easier when we (you and us) can see the face of the cup.
Perhaps you should remove the cranks, and the adjustable cup, and the BB spindle, and then show us what's left? The problem might become easier when we (you and us) can see the face of the cup.
03-27-22 | 07:03 AM
#5
Senior Member
Joined: Feb 2020
Posts: 4,035
Likes: 2,356
First off, take the crank off.

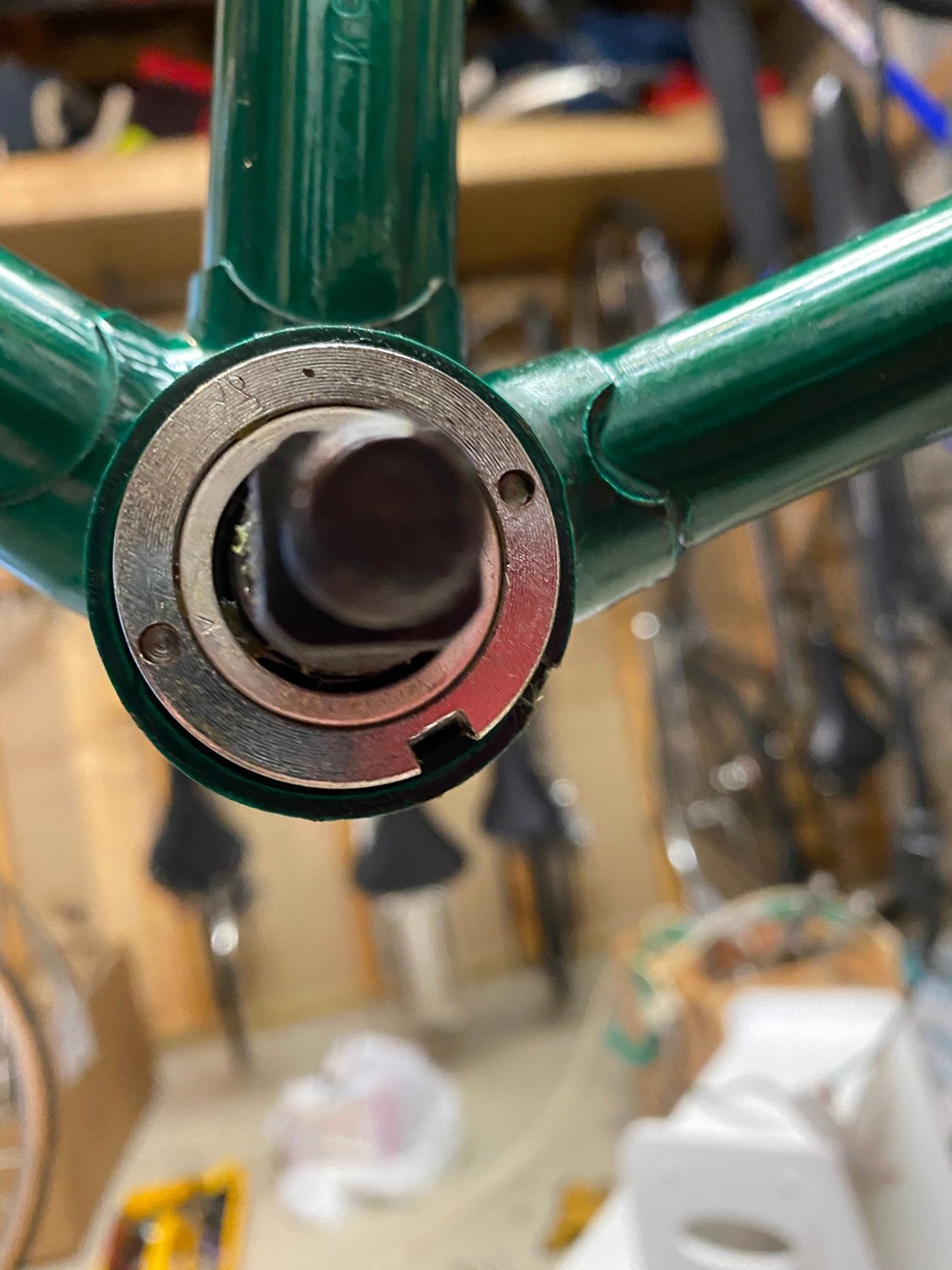

Then take a picture of the cup from the side - if it isn't obvious how it comes off. There should be either holes for a pin-spanner or flats for a ring-spanner.
And it'll almost certainly be left-hand thread.
p.s. that looks like quite a nice Fuji - if you have a good local bike shop you should take it there if you are unable.
Then take a picture of the cup from the side - if it isn't obvious how it comes off. There should be either holes for a pin-spanner or flats for a ring-spanner.
And it'll almost certainly be left-hand thread.
p.s. that looks like quite a nice Fuji - if you have a good local bike shop you should take it there if you are unable.
Last edited by oneclick; 03-27-22 at 07:08 AM.
03-27-22 | 08:11 AM
#7
Senior Member
Joined: May 2008
Posts: 10,106
Likes: 2,762
From: Fredericksburg, Va
Bikes: ? Proteous, '65 Frejus TDF, '73 Bottecchia Giro d'Italia, '83 Colnago Superissimo, '84 Trek 610, '84 Trek 760, '88 Pinarello Veneto, '88 De Rosa Pro, '89 Pinarello Montello, 'Litespeed Catalyst'94 Burley Duet, 97 Specialized RockHopper, 2010 Langster
I wonder if someone didn't' face the shell too far and tack welded a spacer on there to get it back to spec.
__________________
Bikes don't stand alone. They are two tired.
Bikes don't stand alone. They are two tired.
03-27-22 | 09:20 AM
#8
SE Wis
Joined: Apr 2005
Posts: 11,555
Likes: 4,332
From: Milwaukee, WI
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400, 2013 Novara Randonee, 1990 Trek 970
03-27-22 | 09:55 AM
#9
Senior Member
Joined: May 2012
Posts: 5,056
Likes: 4,923
From: Point Reyes Station, California
Bikes: Indeed!

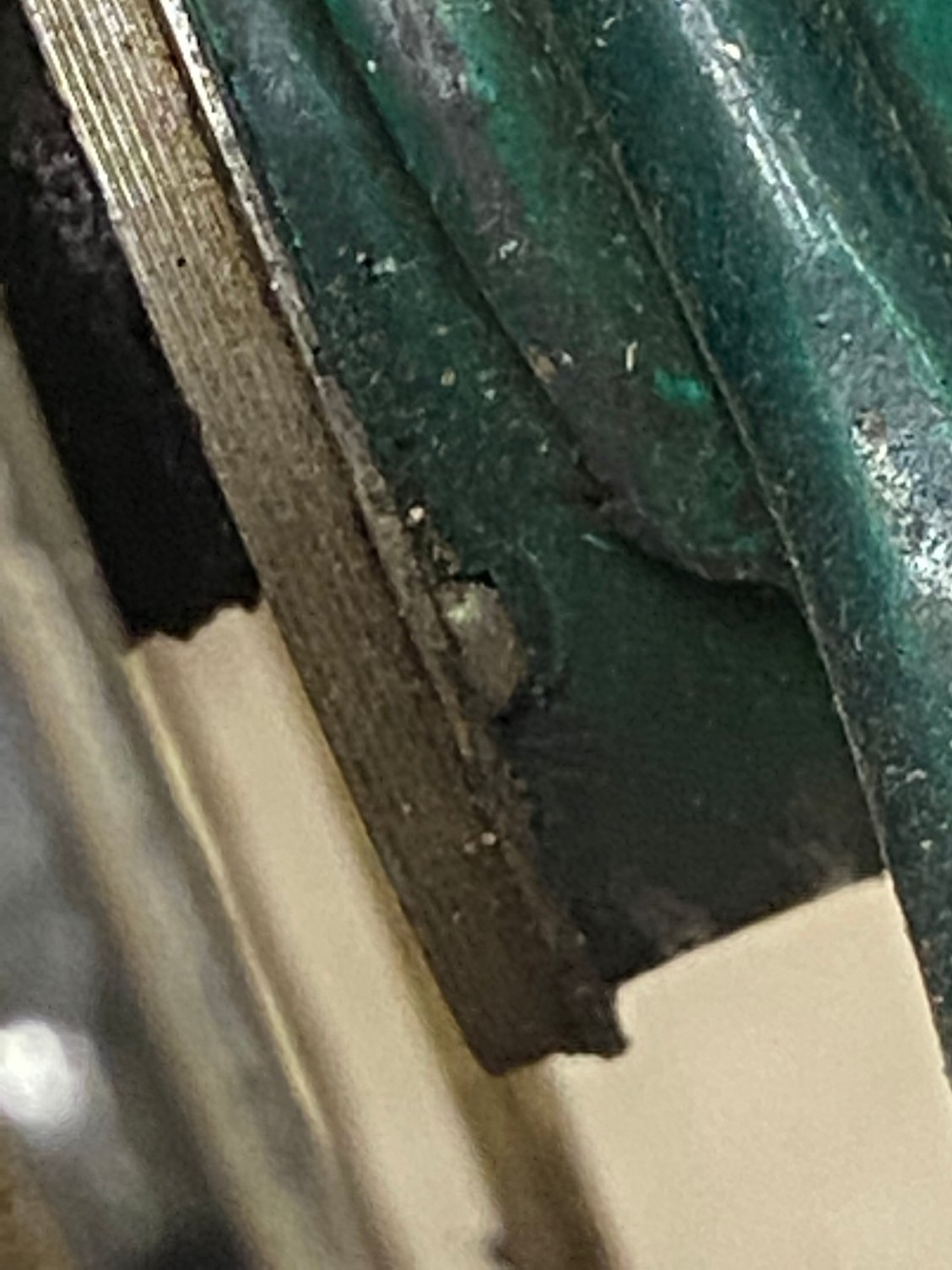

Adjustable cup used as a fixed cup with ring tack welded to frame? There's a good chance the ring is welded to the cup also. As others have said, remove the crank so we can get a better idea what's going on here. Pull off the cup from the non-drive side while you're at it. Remove the spindle and the balls. This will give you a chance to evaluate the condition of the race on the cup in question and decide whether you want to follow the advice implied by [MENTION=493684]SurferRosa[/MENTION] and just leave the cup in place rather than grinding off tack welds.
Brent
Brent
03-27-22 | 01:58 PM
#10
Senior Member
Joined: Dec 2008
Posts: 2,735
Likes: 2,792
From: Pioneer Valley

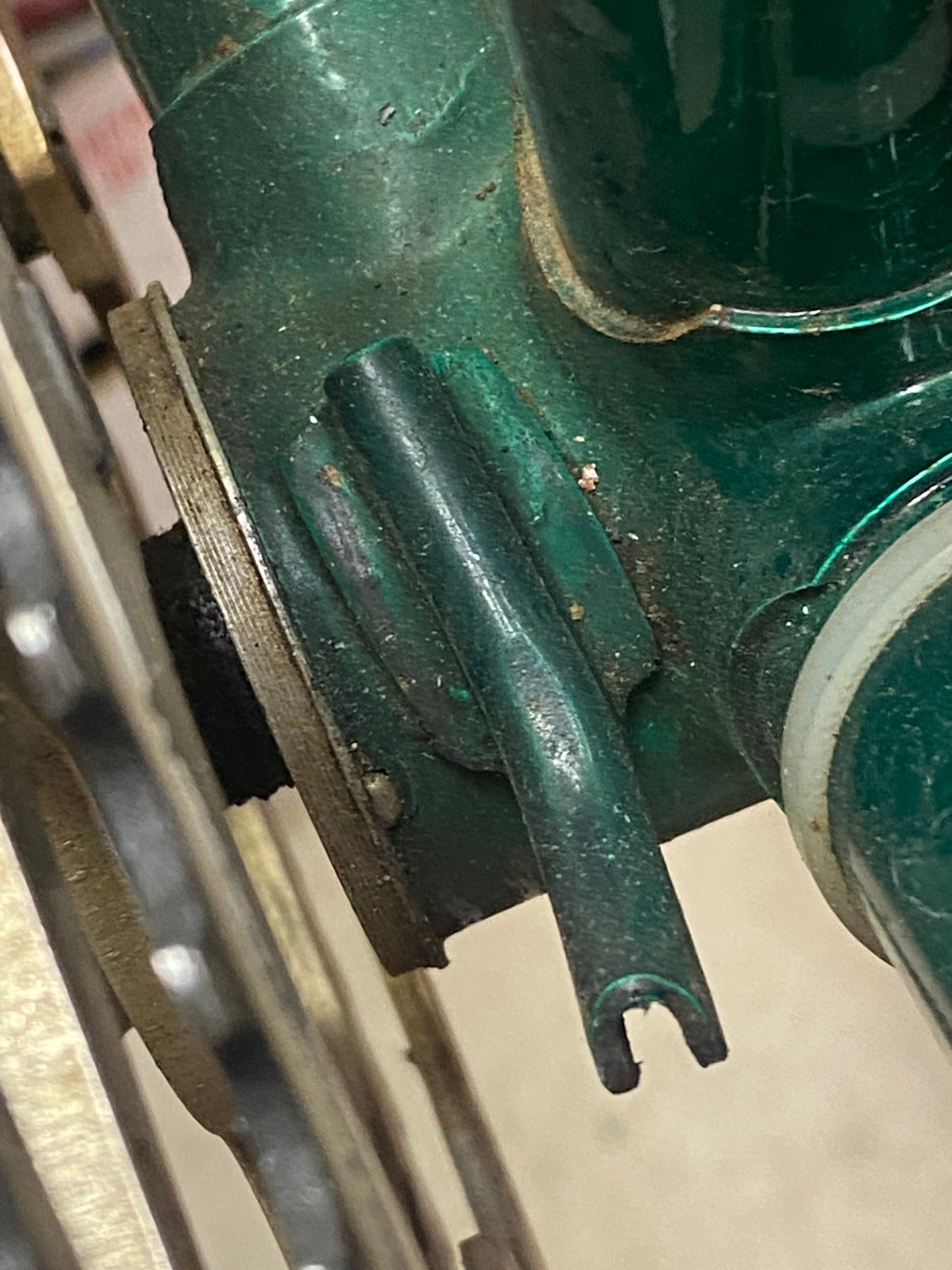

The clip is just a washer, notched into the frame so it doesn’t rotate. I’ve seen these on similar old fujis. If I recall, some have a fixed cup that needs to be removed with a lockring tool (or punch), similar to the lockring on the adjustable side, but removing the crankarm should give you a good look for whatever tool surface the cup has.
03-27-22 | 03:09 PM
#12
Senior Member
Joined: Nov 2005
Posts: 4,066
Likes: 2,153
From: NW Ohio
Bikes: 1984 Miyata 310, 1986 Schwinn Sierra, 1987 Ross Mt. Hood, 1988 Schwinn LeTour, 1988 Trek 400T, 1981 Fuji S12-1977 Univega Grand Rally, S LTD, 1973 Sears Free Spirit 531, 197? FW Evans

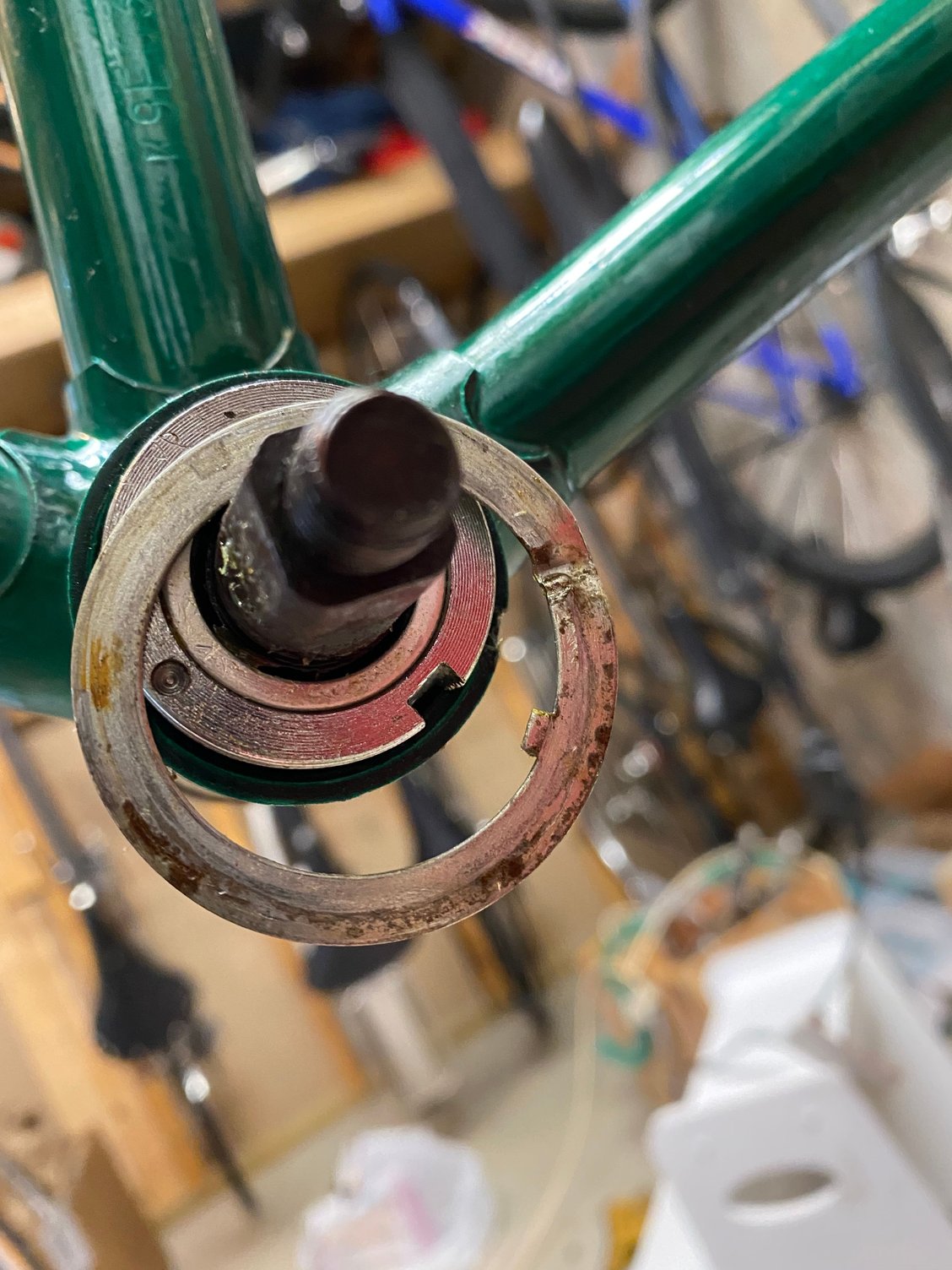

The thin washer is just to hold the adjustable cup in position when the lock ring is tightened. Most bikes don't use one, so I wonder if it was something invented to speed up production assembly versus wrestling two wrenches to set the bearing adjustment. You could hammer the washer flat on an anvil and flip it over to make the stake in a new spot. Or you could leave it out altogether.
03-27-22 | 03:39 PM
#13
Thread Starter
Senior Member
Joined: Apr 2016
Posts: 587
Likes: 369
The thin washer is just to hold the adjustable cup in position when the lock ring is tightened. Most bikes don't use one, so I wonder if it was something invented to speed up production assembly versus wrestling two wrenches to set the bearing adjustment. You could hammer the washer flat on an anvil and flip it over to make the stake in a new spot. Or you could leave it out altogether.
