Contract built Rossin?

Notices
Classic & Vintage This forum is to discuss the many aspects of classic and vintage bicycles, including musclebikes, lightweights, middleweights, hi-wheelers, bone-shakers, safety bikes and much more.

Contract built Rossin?

Old 05-25-22, 09:24 AM
  #1
Chuckk
Groupetto Dragon-Ass
Thread Starter

Chuckk's Avatar

Join Date: May 2005
Location: Lostin Austin, TX
Posts: 457

Bikes: https://mcaf.ee/hsm2z

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 407 Times in 239 Posts
Contract built Rossin?

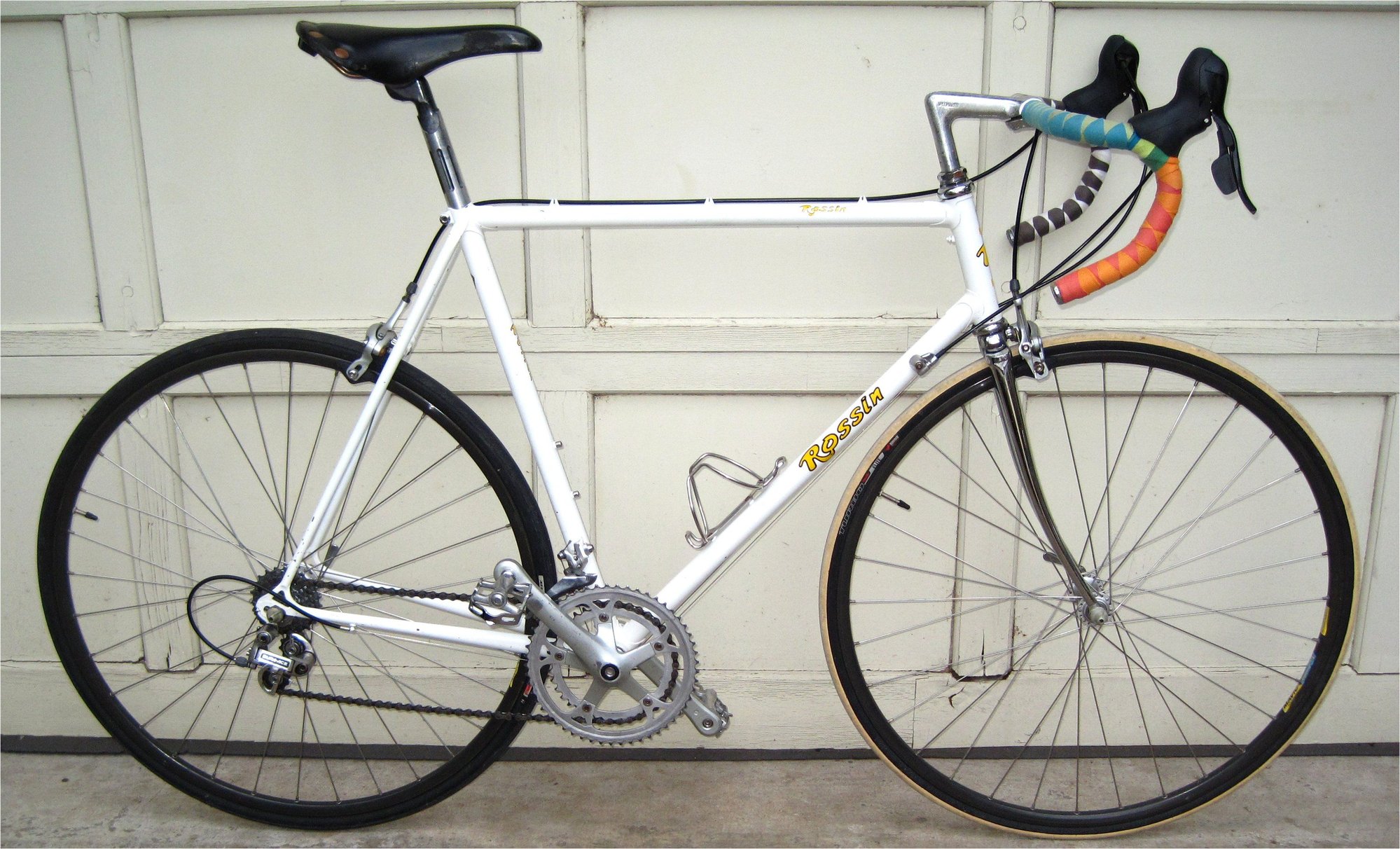

Picked up this Rossin this weekend. Nice bike, but without any of the details normally seen on Rossins, like lug windows, pantoing, R cutouts or even chrome.
I have or had several bikes - Tommasini, Viner, and Pinarello which have been identified as sub-contracted frames and was wondering if anybody had info on this for Rossin.
I'm guessing a date of either late 80's or leading to the Rossin sale in 92.
Description:

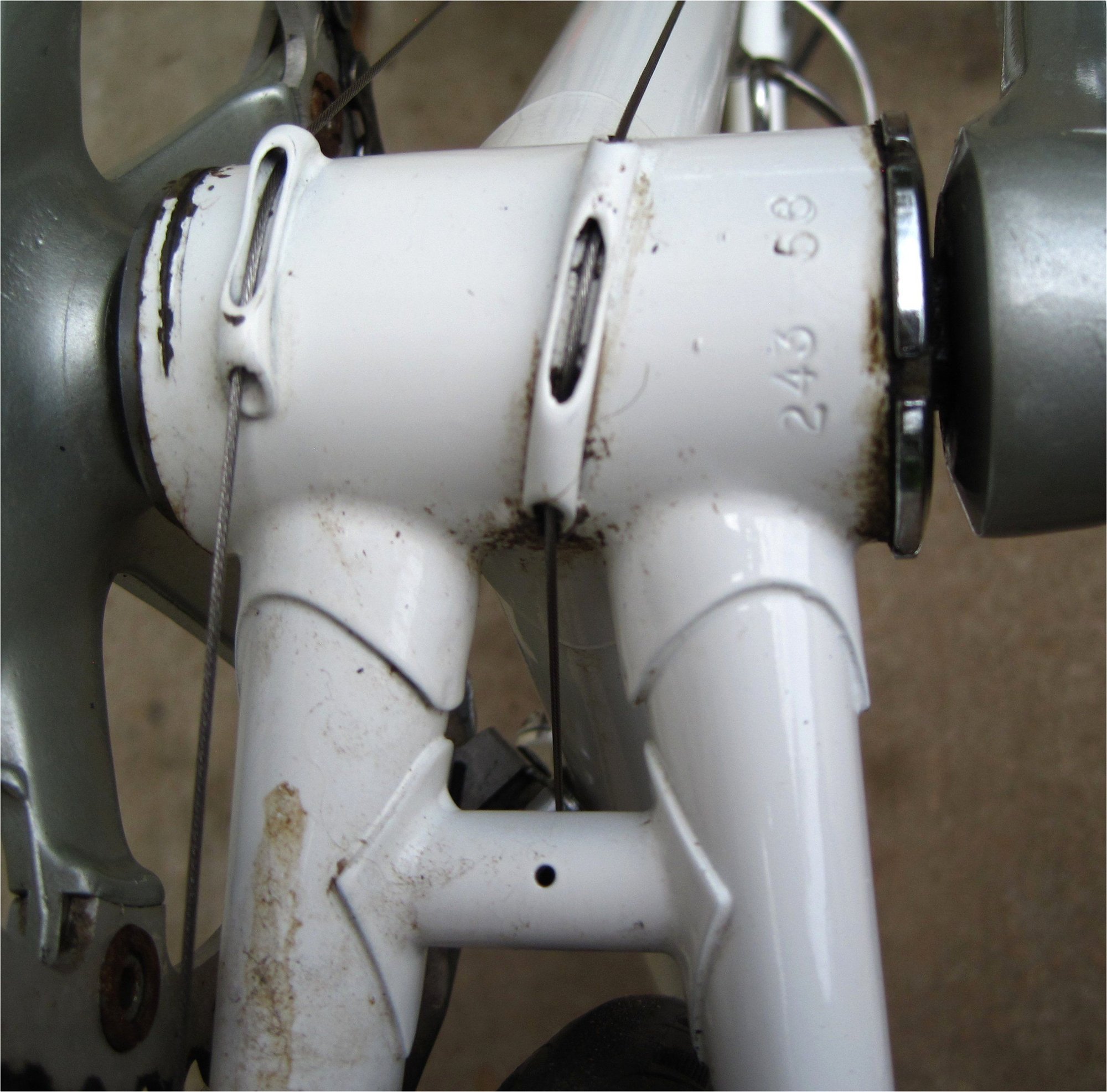

Serial number 243 58 (58 c-t so that's Italian!)
No ridges in the tubing but does seem to be double butted, No tube decal. It looks like SIX ridges at the bottom of the fork stem.

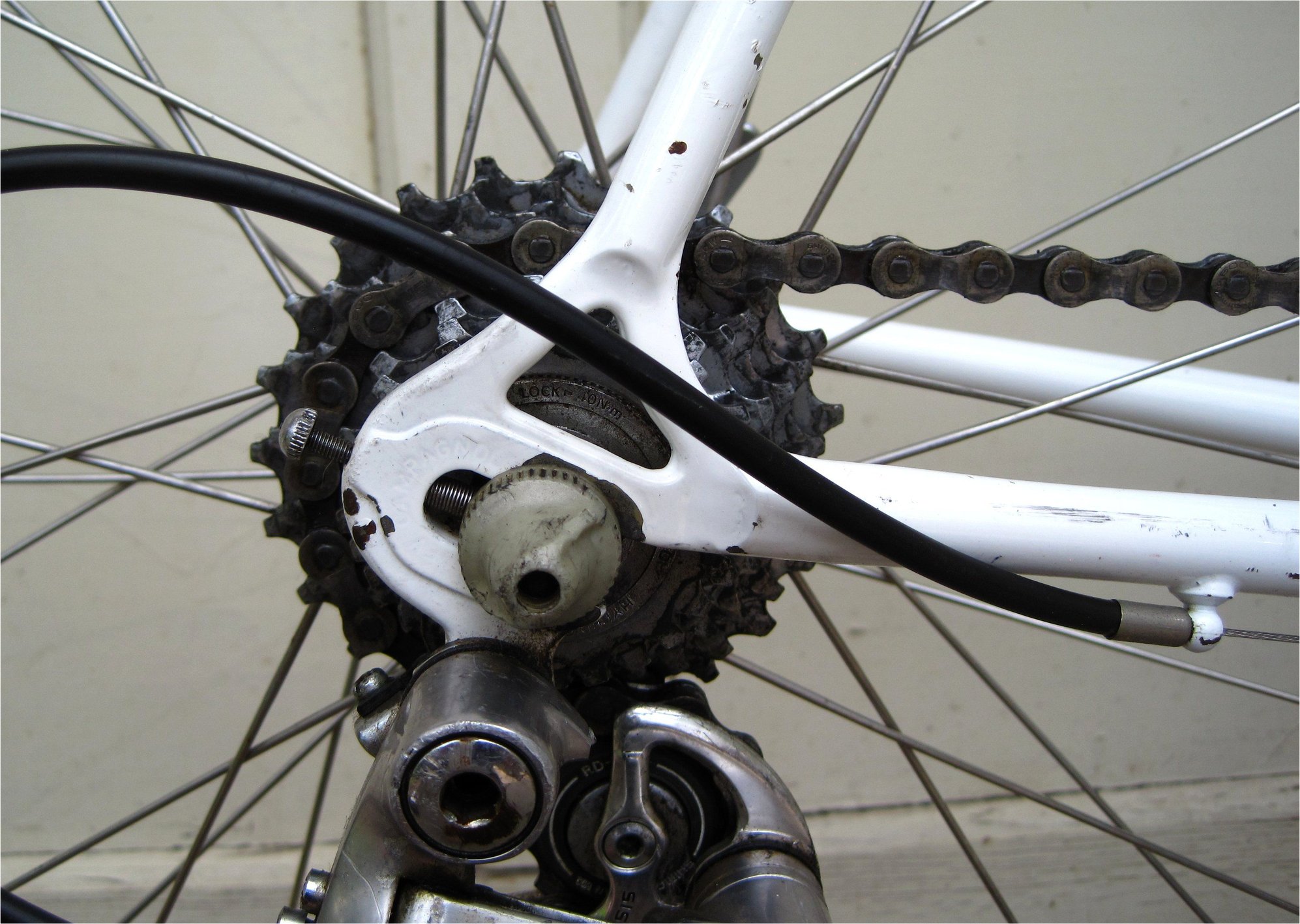

Campy dropouts front and rear
27.2 Gipiemme seatpost (wonder if it''s the only original component)
Italian thread BB
126, 7 speed spread
Most components are 1991 105, except for the older DA RD
Specialized BB, headset and stem.
Anybody have a handle on this?






Chuckk is offline
Likes For Chuckk:
Old 05-25-22, 09:31 AM
  #2
jonny7
Full Member

Join Date: Oct 2018
Posts: 385

Bikes: 1994 Cadex CFR3, 2006 Scott CR1 SL, Rossin aero, Bertrand GB 2000, Spec Allez Pro

Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 134 Post(s)
Liked 66 Times in 50 Posts
Could be a repaint? If you are on FB, search for the "Vintage Rossin Steelbikes" group. Lots of info there!
jonny7 is offline
Likes For jonny7:
Old 05-25-22, 09:54 AM
  #3
Chuckk
Groupetto Dragon-Ass
Thread Starter

Chuckk's Avatar

Join Date: May 2005
Location: Lostin Austin, TX
Posts: 457

Bikes: https://mcaf.ee/hsm2z

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 407 Times in 239 Posts
Might be repaint, but no color down in the seat tube.
Decal backing is cut echoing the outline of the graphics.
Applied to the group.
Chuckk is offline
Old 05-25-22, 10:18 AM
  #4
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,471

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1423 Post(s)
Liked 1,329 Times in 920 Posts
Originally Posted by Chuckk View Post
Might be repaint, but no color down in the seat tube.
Decal backing is cut echoing the outline of the graphics.
Applied to the group.
I don’t remember any lower lineup type Rossins without pantographs, but if it is SL, or SLX it likely wouldn’t be a contract build, or at least they would have Pantographed and cut out lugs.

It looks to me like a very nice not Rossin bike.

Others smarter than me will chime in though.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...




Last edited by jdawginsc; 05-26-22 at 09:16 AM.
jdawginsc is offline
Old 05-25-22, 11:06 AM
  #5
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Posts: 11,945
Mentioned: 73 Post(s)
Tagged: 0 Thread(s)
Quoted: 995 Post(s)
Liked 511 Times in 419 Posts
don't know why but "contour-cutting the decal film" sounds like something to check and confirm if Rossin typically did that.
Cause it's hand-work that somebody (like me) would do with aftermarket decals I bought but did a factory operation like Rossin do it or have their decal-supplier do it to the decals they ordered?

And are you certain there are 6 ridges in the steerer and not 5, and do they spiral?

Cause 6 usually means something other than typical Columbus (SL, SLX, SP, SPX, TSX, etc.) steerers.
I believe common knowledge has it that: Ishiwata has five straight ridges; Tange has six helical ridges, Columbus has five helical ridges.
But that may not be 100% conclusive
unworthy1 is offline
Old 05-25-22, 11:55 AM
  #6
Chuckk
Groupetto Dragon-Ass
Thread Starter

Chuckk's Avatar

Join Date: May 2005
Location: Lostin Austin, TX
Posts: 457

Bikes: https://mcaf.ee/hsm2z

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 407 Times in 239 Posts
Counted 6, and it looks like a hexagon from the bottom. I got lazy, but will drop the fork later today.
Chuckk is offline
Old 05-25-22, 01:33 PM
  #7
bamboobike4
Senior Member

Join Date: Jan 2022
Posts: 1,049
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 352 Post(s)
Liked 536 Times in 322 Posts
I'll check the details on my 1982, especially the BB work, brake bridge, seat cluster.
It may be the paint, but the work on that seat cluster looks nice and precise.
There were a couple of builders who apprenticed under Rossin.
That's all I know, but I'll check.

Not very much like my 1989, but there are a lot of Rossins.

Thanks to jonny7 for the FB group heads up.
bamboobike4 is offline
Old 05-25-22, 06:49 PM
  #8
Chuckk
Groupetto Dragon-Ass
Thread Starter

Chuckk's Avatar

Join Date: May 2005
Location: Lostin Austin, TX
Posts: 457

Bikes: https://mcaf.ee/hsm2z

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 349 Post(s)
Liked 407 Times in 239 Posts
Pulled out the fork, but you probably heard me when the the uncaged bearings went everywhere.
And, a waste of time since there was no marking on the steering tube.
But I did spend more time with the Bulgier '88 catalog, and realized that the Cromor model had no chrome on the frame and the fork in the catalog has the same triangle window as mine.
It was even offered with a 105 group.
Maybe not the same year, but close! Searching for more photos of Cromor Rossins.
https://bulgier.net/pics/bike/Catalogs/rossin-88/5.jpg

Last edited by Chuckk; 05-25-22 at 07:40 PM.
Chuckk is offline
Old 05-26-22, 09:14 AM
  #9
jdawginsc
Edumacator

Join Date: Jan 2018
Location: Goose Creek, SC
Posts: 4,471

Bikes: '87 Crestdale, '87 Basso Gap, '92 Rossin Performance EL-OS, 1990 VanTuyl, 1980s Losa, 1985 Trek 670, 1982 AD SLE, 1987 PX10, etc...

Mentioned: 27 Post(s)
Tagged: 0 Thread(s)
Quoted: 1423 Post(s)
Liked 1,329 Times in 920 Posts
Originally Posted by Chuckk View Post
Pulled out the fork, but you probably heard me when the the uncaged bearings went everywhere.
And, a waste of time since there was no marking on the steering tube.
But I did spend more time with the Bulgier '88 catalog, and realized that the Cromor model had no chrome on the frame and the fork in the catalog has the same triangle window as mine.
It was even offered with a 105 group.
Maybe not the same year, but close! Searching for more photos of Cromor Rossins.
https://bulgier.net/pics/bike/Catalogs/rossin-88/5.jpg
The pantographing is what makes me wonder. Even the Cromor model pictured has significant engravatures present.
__________________
1987 Crest Cannondale, 1987 Basso Gap, 1992 Rossin Performance EL, 1990ish Van Tuyl, 1980s Vanni Losa Cassani thingy, 1985 Trek 670, 1982 AD SLE, 2003 Pinarello Surprise, 1990ish MBK Atlantique, 1987 Peugeot Competition, 1987 Nishiki Tri-A, 1981? Faggin, Cannondale M500, etc...Need to do an N -1...



jdawginsc is offline
Likes For jdawginsc:
Old 05-26-22, 12:24 PM
  #10
QuikRick
Newbie

QuikRick's Avatar

Join Date: Aug 2008
Location: SF Bay Area
Posts: 70
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Liked 150 Times in 40 Posts
Originally Posted by jdawginsc View Post
The pantographing is what makes me wonder. Even the Cromor model pictured has significant engravatures present.
Most noticeably the seat stay caps.
QuikRick is offline
Likes For QuikRick:
