Please Help ID these Campy hubs.
08-01-22 | 11:41 AM
#1
Thread Starter
Senior Member
Joined: May 2008
Posts: 2,497
Likes: 472
From: North, Ga.
Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's
Please Help ID these Campy hubs.

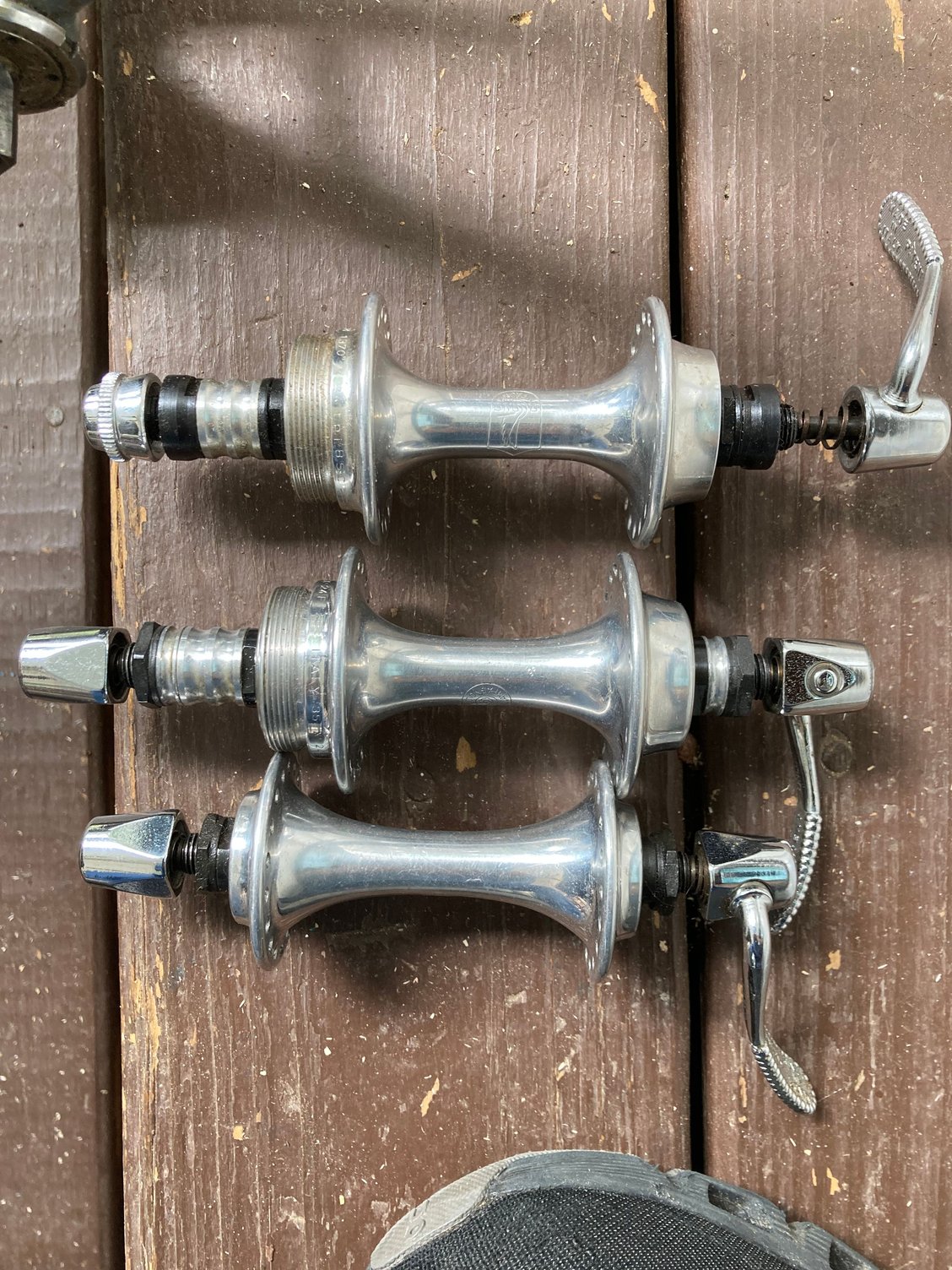

I am certainly not an expert with old Campy bits. I know just enough to get into trouble. Looks like the the two hubs with the square quick release may be Triomphe. The other rear may be Victory? It has never been laced into a wheel. Wondering just what i have. Thanks!
Last edited by embankmentlb; 08-01-22 at 12:14 PM.
08-01-22 | 01:40 PM
#2
señor miembro
Joined: Dec 2018
Posts: 3,532
Likes: 8,936
From: Pac NW
Bikes: '70s - '80s Campagnolo
I would agree with you, but the Victory one might also be Chorus. Their skewers look very similar if not the same.
The bearing races on your hubs are very similar to the old Nuovo Tipo. Not nearly as nice as Record. And they don't adjust as easily as Record (ime). But they're incredibly durable and work just fine.
Last edited by SurferRosa; 08-01-22 at 01:43 PM.
08-01-22 | 07:13 PM
#3
Thread Starter
Senior Member
Joined: May 2008
Posts: 2,497
Likes: 472
From: North, Ga.
Bikes: 3Rensho-Aerodynamics, Bernard Hinault Look - 1986 tour winner, Guerciotti, Various Klein's & Panasonic's
It's all about the skewer, isn't it?
I would agree with you, but the Victory one might also be Chorus. Their skewers look very similar if not the same.
The bearing races on your hubs are very similar to the old Nuovo Tipo. Not nearly as nice as Record. And they don't adjust as easily as Record (ime). But they're incredibly durable and work just fine.
I would agree with you, but the Victory one might also be Chorus. Their skewers look very similar if not the same.
The bearing races on your hubs are very similar to the old Nuovo Tipo. Not nearly as nice as Record. And they don't adjust as easily as Record (ime). But they're incredibly durable and work just fine.
08-02-22 | 06:24 AM
#4
Old fart
Joined: Nov 2004
Posts: 26,404
Likes: 5,338
From: Appleton WI
Bikes: Several, mostly not name brands.
Triomphe, Victory, and Chorus hubs were all derived from Gran Sport (aka Nuovo Tipo) and share the same axles, cones, and cups. The differences are the finish and the skewers.
08-02-22 | 07:42 AM
#5
Bianchi Goddess
Joined: Apr 2009
Posts: 28,967
Likes: 4,236
From: Shady Pines Retirement Fort Wayne, In
Bikes: Too many to list here check my signature.

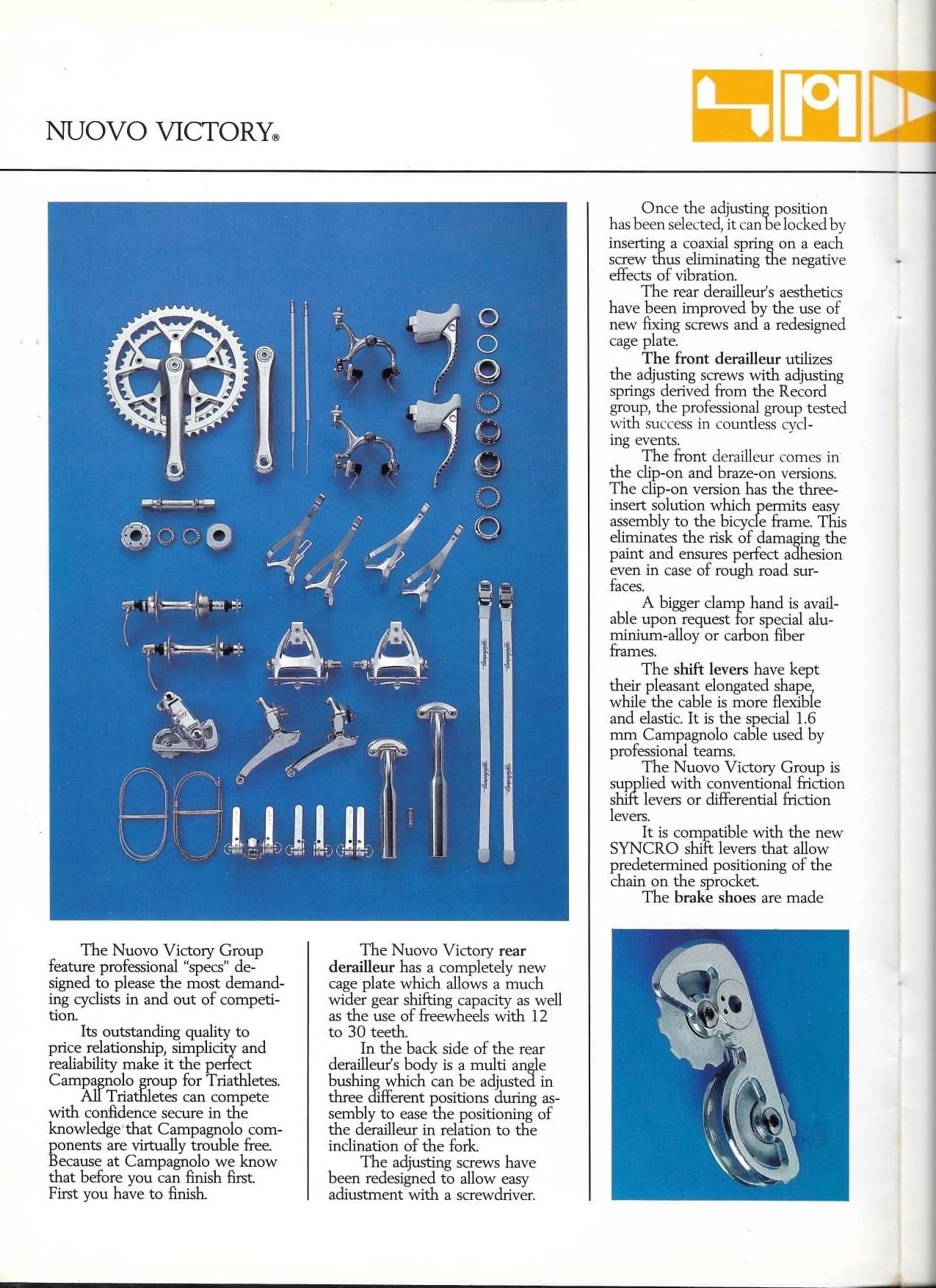

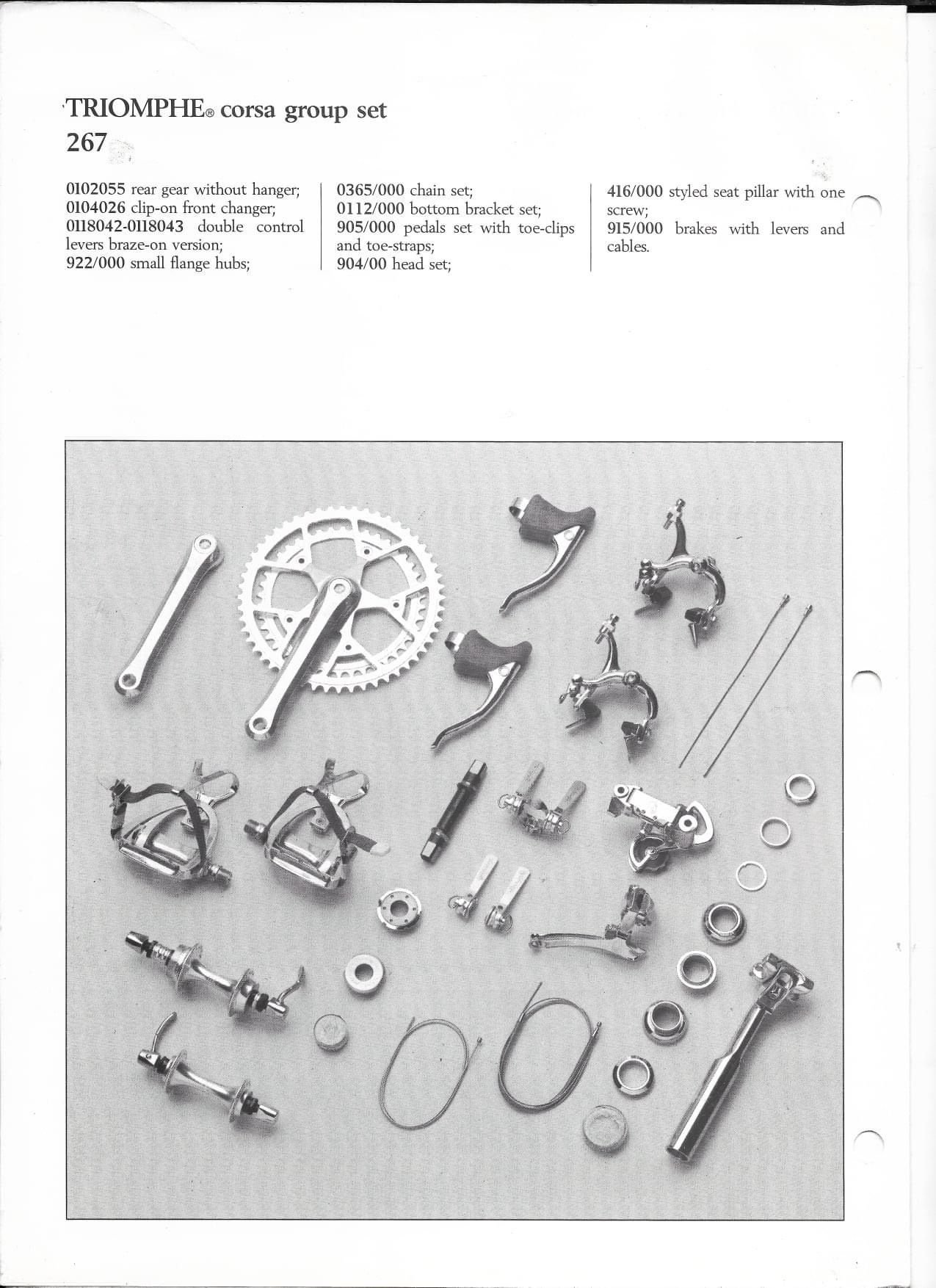

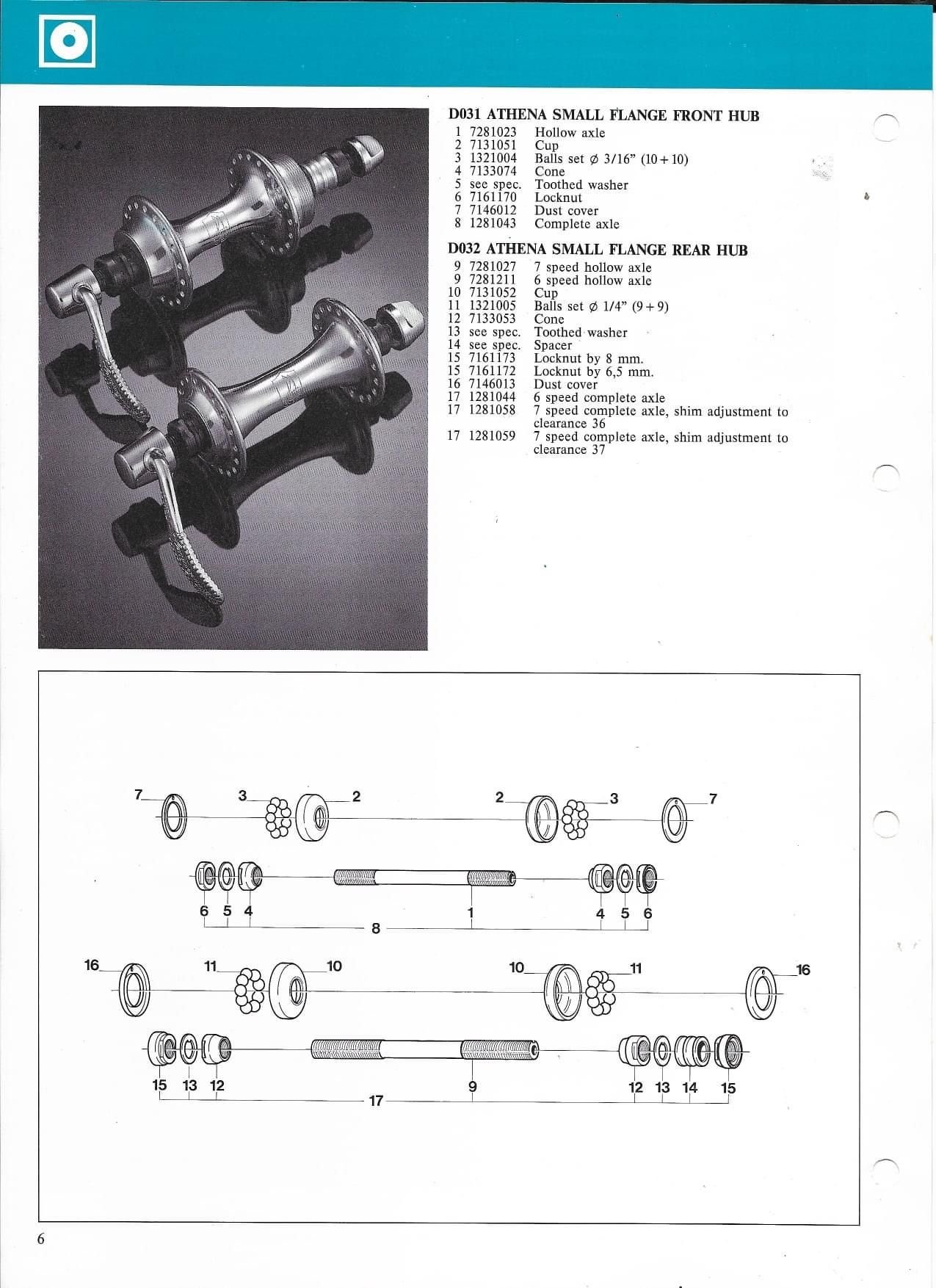

‘86ish Victory/Triomphe propaganda as well as early Chorus Athena information

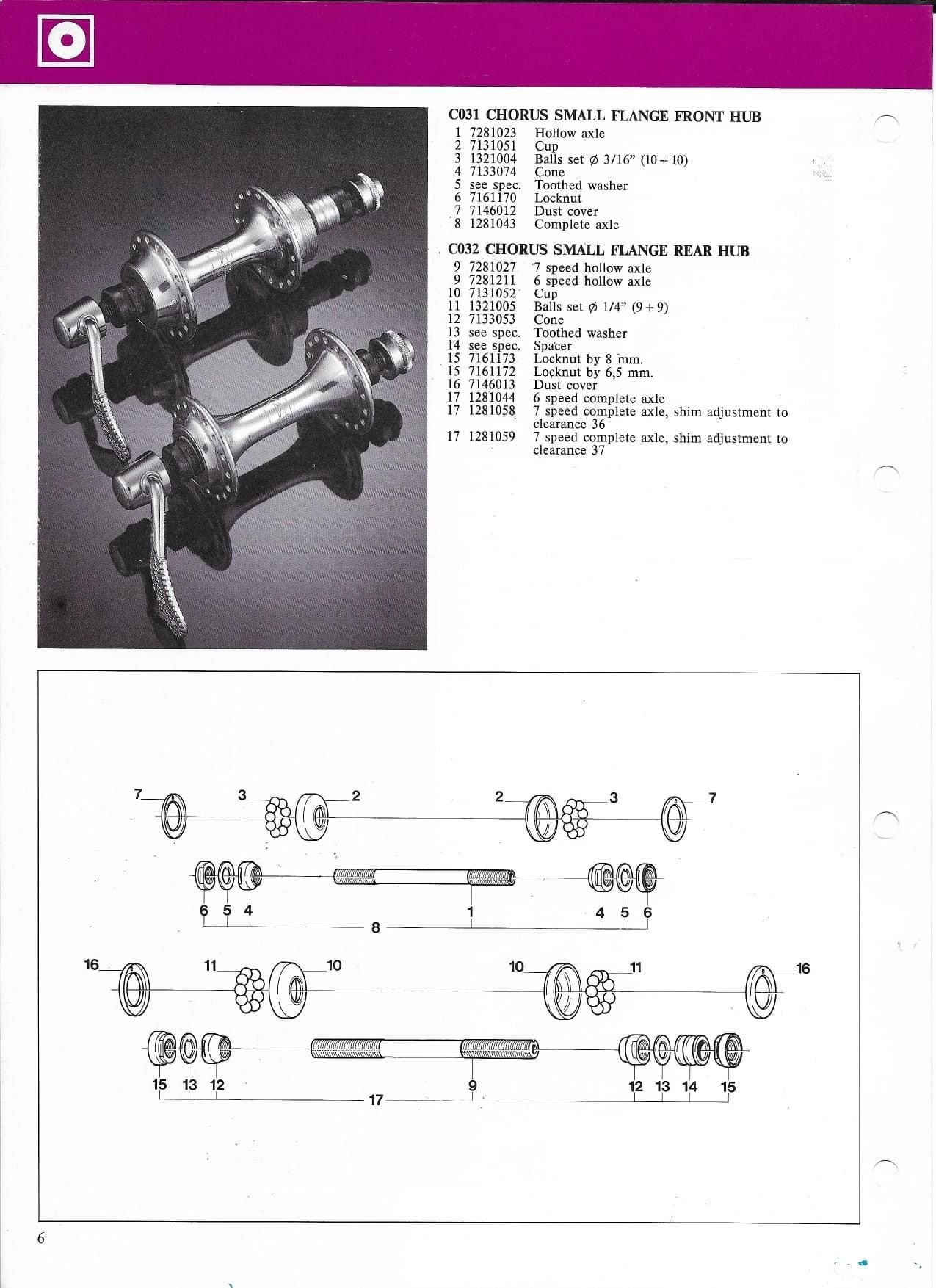

I agree the ‘Solo’ hub is likely Chorus the other two Victory/Triomphe.
I agree the ‘Solo’ hub is likely Chorus the other two Victory/Triomphe.
