Fork cutting time -- is Tange Passage headset good enough to commit to (short stack)?

Reply Subscribe

Thread Tools

Search this Thread

08-03-24 | 05:25 PM

#26

gearbasher

Senior Member

Joined: May 2009

Posts: 1,907

Likes: 1,468

From: A different place and time.

Quote:

Originally Posted by SurferRosa

Thanks. Interesting that it now says 30.3mm.

But, if you add the dimensions on the right illustration you get 20.0 +10.5 = 30.5.

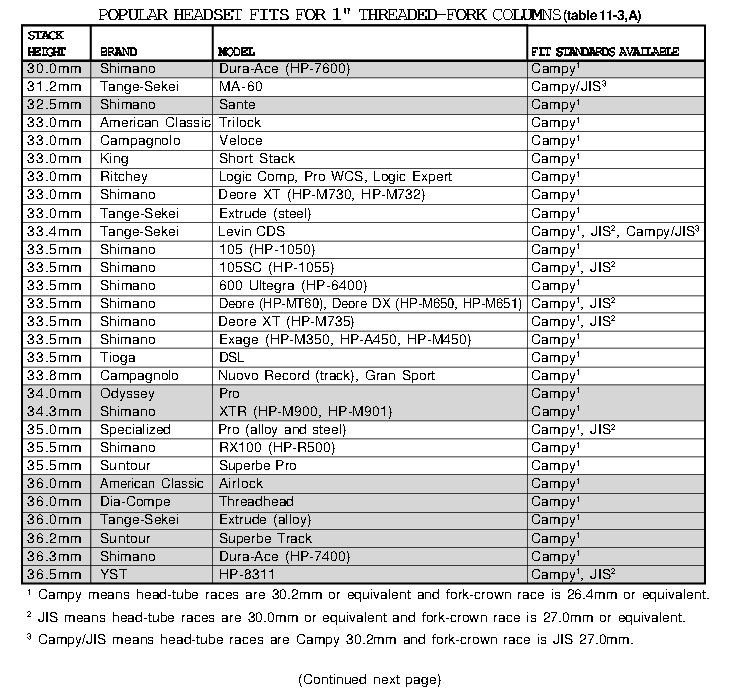

If you add the dimensions on the two Levins, they don't add up to the spec stated.

Last edited by gearbasher; 08-03-24 at 06:43 PM.

08-04-24 | 06:16 AM

#27

Hondo6

Senior Member

Joined: Sep 2021

Posts: 1,596

Likes: 864

From: SW Florida, USA

Bikes: Yes

Quote:

Originally Posted by gearbasher

But, if you add the dimensions on the right illustration you get 20.0 +10.5 = 30.5.

If you add the dimensions on the two Levins, they don't add up to the spec stated.

Speculation: individual measurements for the Passage are "worst case" (not under compression), while overall figure is "as-installed" (under compression from top nut).

The difference is 0.2mm, or less than 0.01"; I'd guess seal compression could easily account for that. As I recall, the Passage has a rubber/plastic seal on the top nut and a thin rubber/plastic seal for the lower headset assembly.

Or it could be an error. Dunno.

For the Levin and Levin CDS, have no idea why the figures don't add up. As you note, they're not even particularly close.

Last edited by Hondo6; 08-04-24 at 08:29 AM. Reason: Add info.
