Dino Deloni Lo Pro
#1
Thread Starter
Full Member
Joined: Jan 2019
Posts: 250
Likes: 127
Dino Deloni Lo Pro
I had a thread on this bike but it seems not updatable so starting a new thread.
I'll make this short to catch up
I bought a Dino Deloni frame off eBay for cheap a couple years ago and posted here looking for info about it.

Turns out it was a promotional bike for perfume maker Lancome

I added some parts and rode it for a while

I like the bike but it always looked so out of proportion with the extra long chain stays and I did not like the look of that 24" fork with the eyelets on the ends.

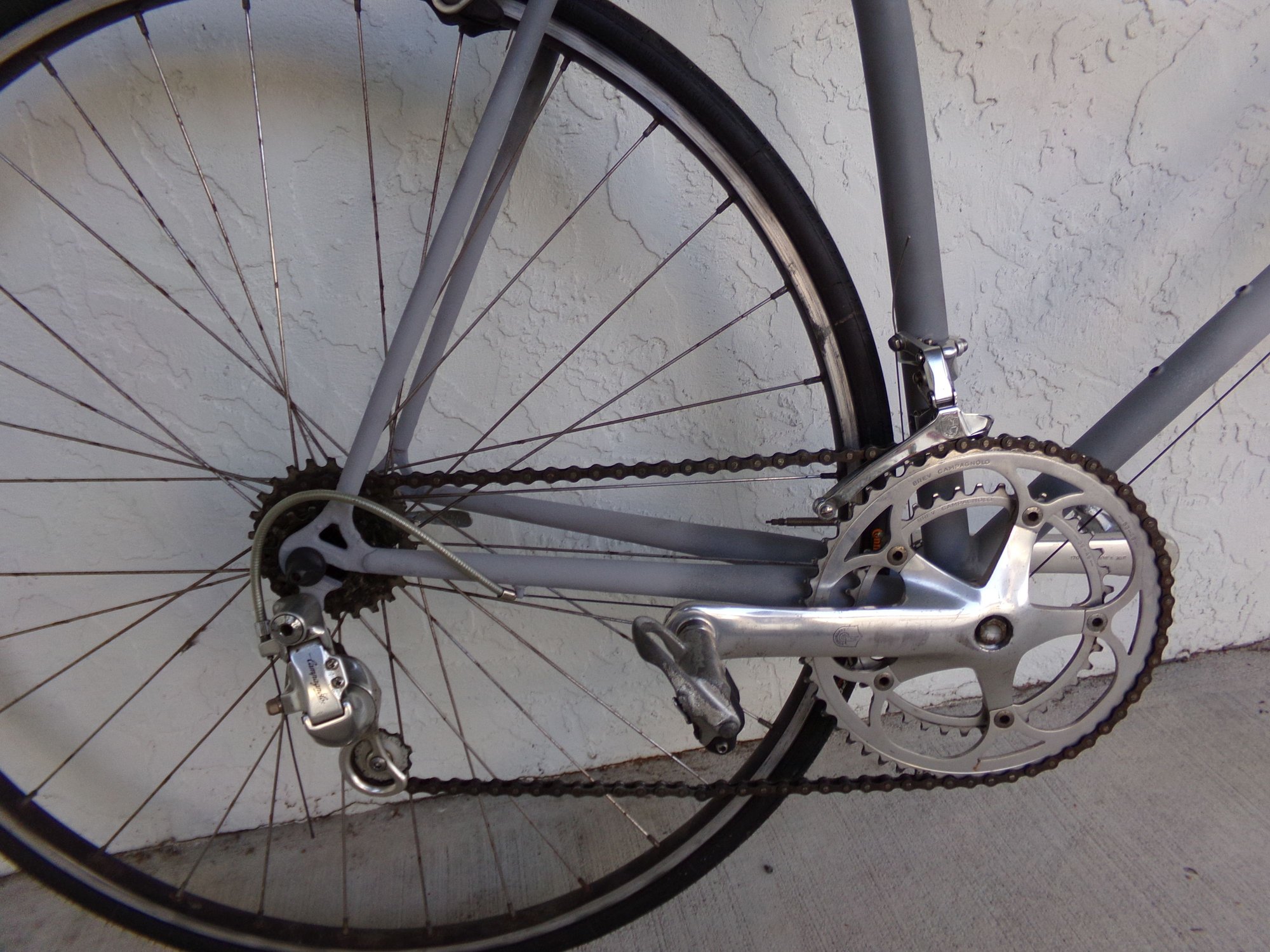

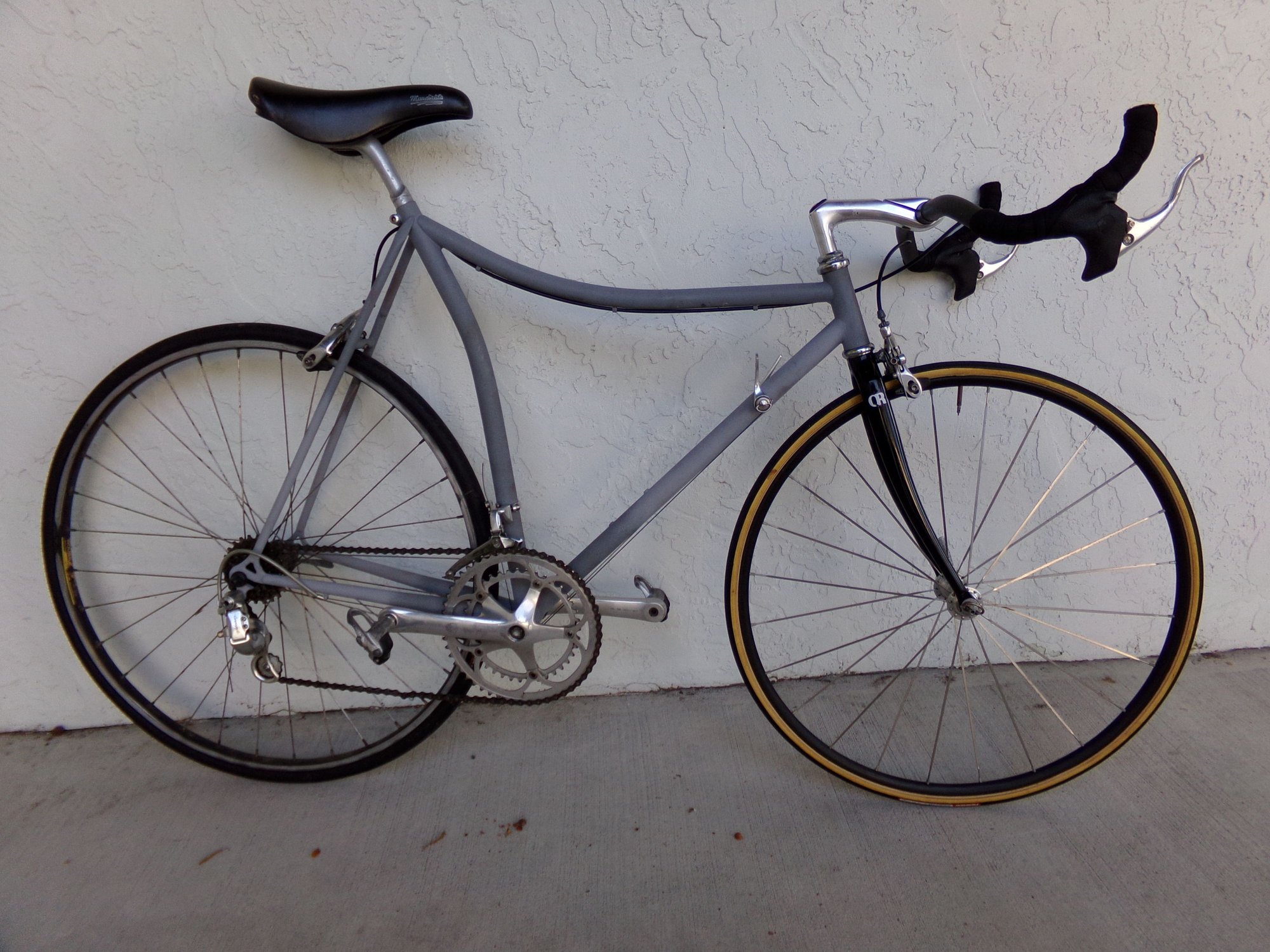

So fast forward to now. I shortened the chain satays to tuck the rear tire in close to the downtube. Added cast dropouts with a derailleur hanger from a discarded frame and also used the shifter mounts from that same frame. I was able to find a Quuintana Roo 650 carbon fork on eBay. I put it together over the last two evenings and look at it now! It has been completely transformed into a proper looking Lo Pro. I rode it around the neighborhood and it rides and tracks pretty good. I had to use an old spare wheel since my good wheel has a couple broken spokes now. It's not the lightest at 19lbs but not bad for a cheap frame that has less than $200 into it total.
It still needs work. I need to clean up my brazing some and install nicer parts, but it is ridable and now looks as it should.


I'll make this short to catch up
I bought a Dino Deloni frame off eBay for cheap a couple years ago and posted here looking for info about it.

Turns out it was a promotional bike for perfume maker Lancome

I added some parts and rode it for a while

I like the bike but it always looked so out of proportion with the extra long chain stays and I did not like the look of that 24" fork with the eyelets on the ends.
So fast forward to now. I shortened the chain satays to tuck the rear tire in close to the downtube. Added cast dropouts with a derailleur hanger from a discarded frame and also used the shifter mounts from that same frame. I was able to find a Quuintana Roo 650 carbon fork on eBay. I put it together over the last two evenings and look at it now! It has been completely transformed into a proper looking Lo Pro. I rode it around the neighborhood and it rides and tracks pretty good. I had to use an old spare wheel since my good wheel has a couple broken spokes now. It's not the lightest at 19lbs but not bad for a cheap frame that has less than $200 into it total.
It still needs work. I need to clean up my brazing some and install nicer parts, but it is ridable and now looks as it should.


#3
Crawlin' up, flyin' down


Joined: Jan 2006
Posts: 6,761
Likes: 4,415
From: Democratic Peoples' Republic of Berkeley
Bikes: 1967 Paramount; 1982-ish Ron Cooper; 1978 Eisentraut "A"; two mid-1960s Cinelli Speciale Corsas; and others in various stages of non-rideability.
A few questions, all of them purely out of idle curiosity.
What was involved in getting those chainstays that much shorter? I'm guessing you had to replace the entire rear triangle, but what do I know? If torch work was involved, did you do the work yourself or have it done?
Can you take the rear wheel off or put it back on with the tire inflated? From the look of things, I'm guessing you have to have a deflated tire for both operations. (I have a bike like that; it rides great but it is a bit of a nuisance if I want to take the rear wheel off for anything other than a flat.)
What was involved in getting those chainstays that much shorter? I'm guessing you had to replace the entire rear triangle, but what do I know? If torch work was involved, did you do the work yourself or have it done?
Can you take the rear wheel off or put it back on with the tire inflated? From the look of things, I'm guessing you have to have a deflated tire for both operations. (I have a bike like that; it rides great but it is a bit of a nuisance if I want to take the rear wheel off for anything other than a flat.)
__________________
"I'm in shape -- round is a shape." Andy Rooney
"I'm in shape -- round is a shape." Andy Rooney
#4
Steel is real



Joined: Mar 2013
Posts: 4,554
Likes: 2,633
From: Not far from Paris
Bikes: 93GiantTourer,92MeridaAlbon,96Scapin,98KonaKilaueua,93Peugeot Prestige,05CasatiClipper,98Jamis Dragon,95Tange Prestige(to be built),98VettaTeam,95Coppi,93Grandis,Daccordi x3(in build),98Piton(in build),99Trek SLR2300
interesting bike
, thanks for sharing
#6
Thread Starter
Full Member
Joined: Jan 2019
Posts: 250
Likes: 127
Shortening them was fairly straight forward. I figured out how much shorter they needed to be, cut the dropouts off and brazed on the new dropouts. Then moved the seat stays into place, trimmed them to the correct length and brazed them to the dropouts. I did the work myself.
The wheel does not come off inflated but for the most part I only take them off if they are flat
The wheel does not come off inflated but for the most part I only take them off if they are flat
#7
Bianchi Goddess



Joined: Apr 2009
Posts: 28,962
Likes: 4,230
From: Shady Pines Retirement Fort Wayne, In
Bikes: Too many to list here check my signature.
Why not use vertical dropouts?
__________________
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
“One morning you wake up, the girl is gone, the bikes are gone, all that's left behind is a pair of old tires and a tube of tubular glue, all squeezed out"
Sugar "Kane" Kowalczyk
#10
Patina Avoider


Joined: Apr 2011
Posts: 3,297
Likes: 1,088
From: Maryland, USA
Bikes: Drysdale/Gitane/Zeus/Masi/Falcon/Palo Alto/Vitus
Forks not bent. Everything else, however, is.
If one of these was near me, I've love to ride one and see how it feels.

If one of these was near me, I've love to ride one and see how it feels.
__________________
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto, 198? Vitus 979. Susan: 1976 Windsor Profesional.
Larry:1958 Drysdale, 1961 Gitane Gran Sport, 1974 Zeus track, 1988 Masi Gran Corsa, 1974 Falcon, 1980 Palo Alto, 198? Vitus 979. Susan: 1976 Windsor Profesional.
#11
#12
Senior Member

Joined: Aug 2017
Posts: 1,252
Likes: 929
From: Germany
Bikes: 80s Alan Super Record, 79' Somec Special, 90s Rossin(?) Columbus Ego Triathlon, previously: Bianchi SBX Reparto Corse (stolen) and so on...
cdaniels Odd little one, and you did you did justice to it! Interestingly, all the Trophée Lancome Schauff bikes here on the German market have dropped seat stays (yes I see not even that German newspaper ad version has it), shorter wheelbase (but not as short as yours now) and (somewhat more) proper droupouts. Whats funny about them is people, who know its a joke bike are asking way to few money, thinking its a crap (and unsellable, which is true) others try to advertise it as some niche high end product and asking 7-800 or in some cases 1500 eur (although thats a like new one on its first day) which is ridiculous
It rings a bell, who knows more about these.


martl Guck mal... finally a proper(ized) Trophée Lancome...
It rings a bell, who knows more about these.


martl Guck mal... finally a proper(ized) Trophée Lancome...
